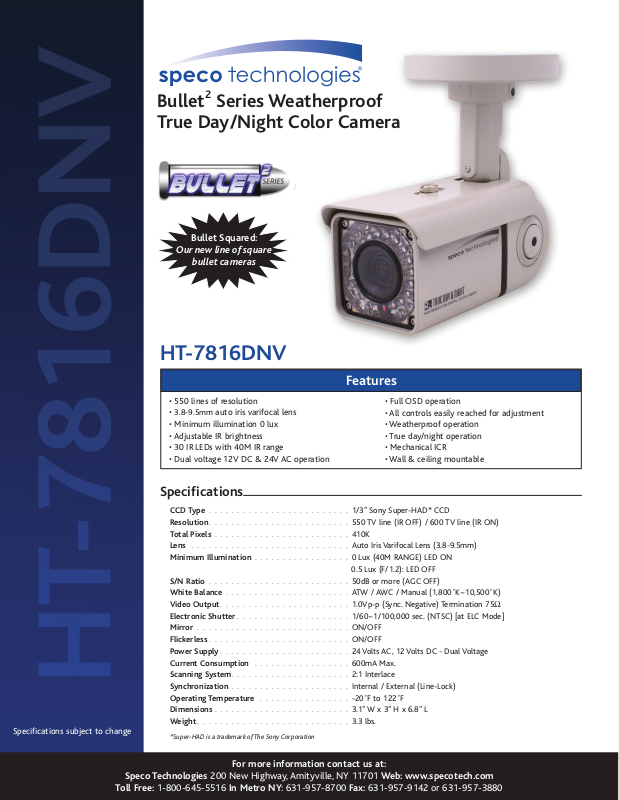

Speco Technologies HT-7816DNV User Manual

Bullet2Series Weatherproof True Day/Night Color Camera

Bullet Squared:

Our new line of square

bullet cameras

HT-7816DNV

Features

Specifications subject to change

• 550 lines of resolution

•

3.8-9.5mm auto iris varifocal lens

• Minimum illumination 0 lux

• Adjustable IR brightness

• 30 IR LEDs with 40M IR range

• Dual voltage 12V DC & 24V AC operation

• Full OSD operation

• All controls easily reached for adjustment

• Weatherproof operation

• True day/night operation

• Mechanical ICR

• Wall & ceiling mountable

Specifications

CCD Type . . . . . . . . . . . . . . . . . . . . . . . . . 1/3” Sony Super-HAD* CCD

Resolution. . . . . . . . . . . . . . . . . . . . . . . . . 550 TV line (IR OFF) / 600 TV line (IR ON)

Total Pixels . . . . . . . . . . . . . . . . . . . . . . . . 410K

Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auto Iris Varifocal Lens (3.8-9.5mm)

Minimum Illumination . . . . . . . . . . . . . . . . . 0 Lux (40M RANGE) LED ON

0.5 Lux (F/1.2): LED OFF

S/N Ratio . . . . . . . . . . . . . . . . . . . . . . . . . 50dB or more (AGC OFF)

White Balance . . . . . . . . . . . . . . . . . . . . . . ATW / AWC / Manual (1,800˚K~10,500˚K)

Video Output. . . . . . . . . . . . . . . . . . . . . . . 1.0Vp-p (Sync. Negative) Termination 75Ω

Electronic Shutter . . . . . . . . . . . . . . . . . . . . 1/60~1/100,000 sec. (NTSC) [at ELC Mode]

Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . ON/OFF

Flickerless . . . . . . . . . . . . . . . . . . . . . . . . . ON/OFF

Power Supply . . . . . . . . . . . . . . . . . . . . . . . 24 Volts AC, 12 Volts DC - Dual Voltage

Current Consumption . . . . . . . . . . . . . . . . . 600mA Max.

Scanning System. . . . . . . . . . . . . . . . . . . . . 2:1 Interlace

Synchronization . . . . . . . . . . . . . . . . . . . . . Internal / External (Line-Lock)

Operating Temperature . . . . . . . . . . . . . . . . -20˚F to 122˚F

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 3.1” W x 3” H x 6.8” L

Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3 lbs.

*Super-HAD is a trademark of The Sony Corporation
