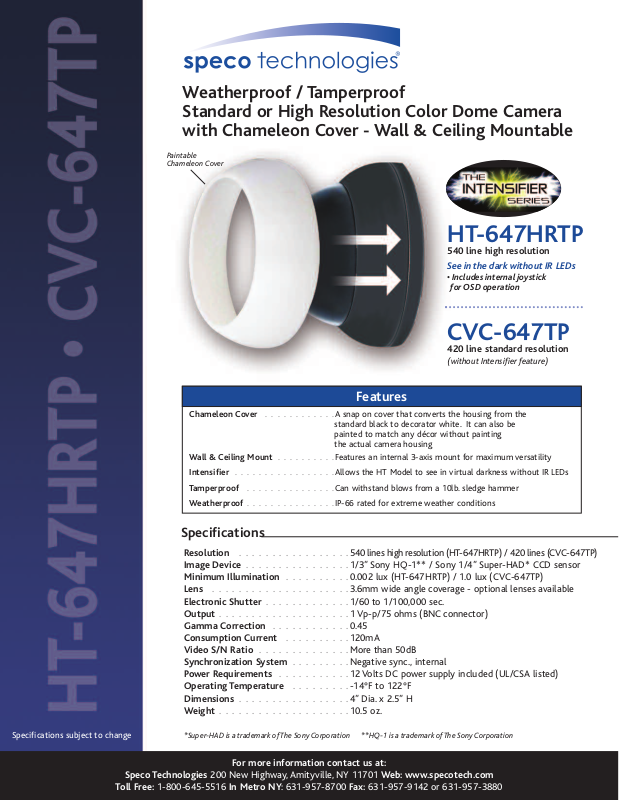

Speco Technologies CVC-647TP, HT647HRTP User Manual
Weatherproof / Tamperproof
Standard or High Resolution Color Dome Camera
with Chameleon Cover - Wall & Ceiling Mountable
Paintable
Chameleon Cover
HT-647HRTP
540 line high resolution
See in the dark without IR LEDs
• Includes internal joystick
for OSD operation
CVC-647TP
420 line standard resolution
(without Intensifier feature)
Features
Chameleon Cover . . . . . . . . . . . . A snap on cover that converts the housing from the
Wall & Ceiling Mount . . . . . . . . . . Features an internal 3-axis mount for maximum versatility
Intensifier . . . . . . . . . . . . . . . . . Allows the HT Model to see in virtual darkness without IR LEDs
Tamperproof . . . . . . . . . . . . . . . Can withstand blows from a 10lb. sledge hammer
Weatherproof . . . . . . . . . . . . . . . IP-66 rated for extreme weather conditions
standard black to decorator white. It can also be
painted to match any décor without painting
the actual camera housing
Specifications
Resolution . . . . . . . . . . . . . . . . . 540 lines high resolution (HT-647HRTP) / 420 lines (CVC-647TP)
Image Device . . . . . . . . . . . . . . . . 1/3” Sony HQ-1** / Sony 1/4” Super-HAD* CCD sensor
Minimum Illumination . . . . . . . . . . 0.002 lux (HT-647HRTP) / 1.0 lux (CVC-647TP)
Lens . . . . . . . . . . . . . . . . . . . . .3.6mm wide angle coverage - optional lenses available
Electronic Shutter . . . . . . . . . . . . .1/60 to 1/100,000 sec.
Output . . . . . . . . . . . . . . . . . . . .1 Vp-p/75 ohms (BNC connector)
Gamma Correction . . . . . . . . . . . .0.45
Consumption Current . . . . . . . . . . 120mA
Video S/N Ratio . . . . . . . . . . . . . .More than 50dB
Synchronization System . . . . . . . . .Negative sync., internal
Power Requirements . . . . . . . . . . . 12 Volts DC power supply included (UL/CSA listed)
Operating Temperature . . . . . . . . .-14°F to 122°F
Dimensions . . . . . . . . . . . . . . . . .4” Dia. x 2.5” H
Weight . . . . . . . . . . . . . . . . . . . . 10.5 oz.
Specifications subject to change
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880
*Super-HAD is a trademark of The Sony Corporation **HQ-1 is a trademark of The Sony Corporation
For more information contact us at:
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
