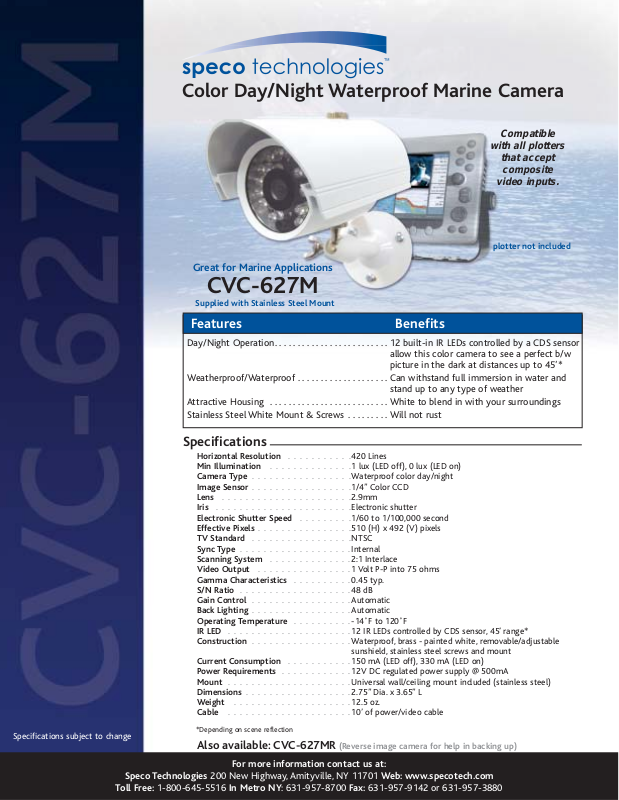

Speco Technologies CVC-627M User Manual

Color Day/Night Waterproof Marine Camera

Compatible

with all plotters

that accept

composite

video inputs.

plotter not included

Great for Marine Applications

CVC-627M

Supplied with Stainless Steel Mount

Specifications subject to change

Features

Day/Night Operation. . . . . . . . . . . . . . . . . . . . . . . . . 12 built-in IR LEDs controlled by a CDS sensor

Weatherproof/Waterproof . . . . . . . . . . . . . . . . . . . . Can withstand full immersion in water and

Attractive Housing . . . . . . . . . . . . . . . . . . . . . . . . . . White to blend in with your surroundings

Stainless Steel White Mount & Screws . . . . . . . . . Will not rust

Benefits

allow this color camera to see a perfect b/w picture in the dark at distances up to 45’*

stand up to any type of weather

Specifications

Horizontal Resolution . . . . . . . . . . .420 Lines

Min Illumination . . . . . . . . . . . . . .1 lux (LED off), 0 lux (LED on)

Camera Type . . . . . . . . . . . . . . . . .Waterproof color day/night

Image Sensor . . . . . . . . . . . . . . . . .1/4” Color CCD

Lens . . . . . . . . . . . . . . . . . . . . . .2.9mm

Iris . . . . . . . . . . . . . . . . . . . . . . .Electronic shutter

Electronic Shutter Speed . . . . . . . . .1/60 to 1/100,000 second

Effective Pixels . . . . . . . . . . . . . . . .510 (H) x 492 (V) pixels

TV Standard . . . . . . . . . . . . . . . . .NTSC

Sync Type . . . . . . . . . . . . . . . . . . .Internal

Scanning System . . . . . . . . . . . . . .2:1 Interlace

Video Output . . . . . . . . . . . . . . . .1 Volt P-P into 75 ohms

Gamma Characteristics . . . . . . . . . .0.45 typ.

S/N Ratio . . . . . . . . . . . . . . . . . . .48 dB

Gain Control . . . . . . . . . . . . . . . . .Automatic

Back Lighting . . . . . . . . . . . . . . . . .Automatic

Operating Temperature . . . . . . . . . .-14˚F to 120˚F

IR LED . . . . . . . . . . . . . . . . . . . . .12 IR LEDs controlled by CDS sensor, 45’ range*

Construction . . . . . . . . . . . . . . . . .Waterproof, brass - painted white, removable/adjustable

Current Consumption . . . . . . . . . . .150 mA (LED off), 330 mA (LED on)

Power Requirements . . . . . . . . . . . .12V DC regulated power supply @ 500mA

Mount . . . . . . . . . . . . . . . . . . . . .Universal wall/ceiling mount included (stainless steel)

Dimensions . . . . . . . . . . . . . . . . . .2.75” Dia. x 3.65” L

Weight . . . . . . . . . . . . . . . . . . . .12.5 oz.

Cable . . . . . . . . . . . . . . . . . . . . .10’ of power/video cable

*Depending on scene reflection

Also available: CVC-627MR (Reverse image camera for help in backing up)

sunshield, stainless steel screws and mount
