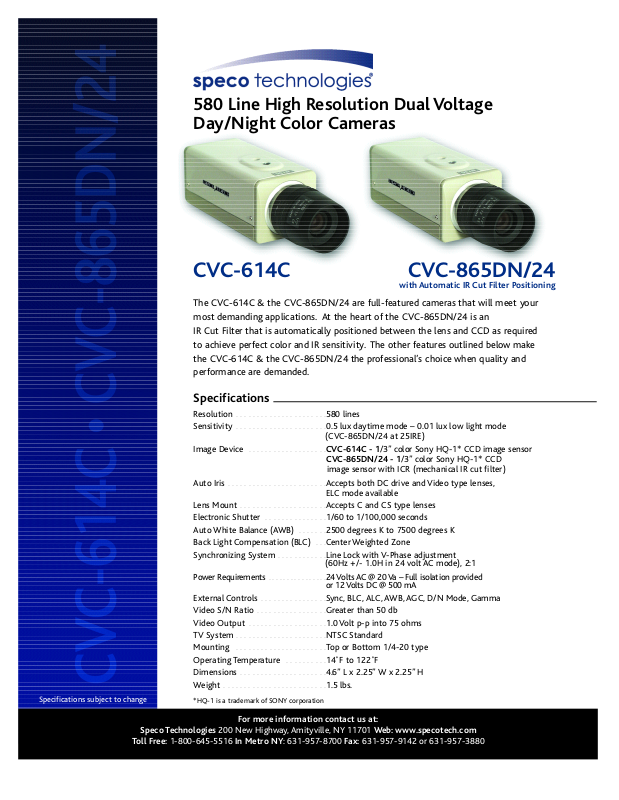

Speco Technologies CVC-614C User Manual

580 Line High Resolution Dual Voltage Day/Night Color Cameras

Specifications subject to change

For more information contact us at:

Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com

Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

CVC-614C

Specifications

Resolution . . . . . . . . . . . . . . . . . . . . . .580 lines

Sensitivity . . . . . . . . . . . . . . . . . . . . . .0.5 lux daytime mode – 0.01 lux low light mode

(CVC-865DN/24 at 25IRE)

Image Device . . . . . . . . . . . . . . . . . . .CVC-614C - 1/3” color Sony HQ-1* CCD image sensor

CVC-865DN/24 - 1/3” color Sony HQ-1* CCD image sensor with ICR (mechanical IR cut filter)

Auto Iris . . . . . . . . . . . . . . . . . . . . . . . .Accepts both DC drive and Video type lenses,

ELC mode available

Lens Mount . . . . . . . . . . . . . . . . . . . . .Accepts C and CS type lenses

Electronic Shutter . . . . . . . . . . . . . . .1/60 to 1/100,000 seconds

Auto White Balance (AWB) . . . . . . .2500 degrees K to 7500 degrees K

Back Light Compensation (BLC) . . .Center Weighted Zone

Synchronizing System . . . . . . . . . . . .Line Lock with V-Phase adjustment

(60Hz +/- 1.0H in 24 volt AC mode), 2:1

Power Re q u i re m e n t s . . . . . . . . . . . . . . . .24 Volts AC @ 20 Va – Full isolation provided

or 12 Volts DC @ 500 mA

External Controls . . . . . . . . . . . . . . . .Sync, BLC, ALC, AWB, AGC, D/N Mode, Gamma

Video S/N Ratio . . . . . . . . . . . . . . . . .Greater than 50 db

Video Output . . . . . . . . . . . . . . . . . . .1.0 Volt p-p into 75 ohms

TV System . . . . . . . . . . . . . . . . . . . . . .NTSC Standard

Mounting . . . . . . . . . . . . . . . . . . . . . .Top or Bottom 1/4-20 type

Operating Temperature . . . . . . . . . .14˚F to 122˚F

Dimensions . . . . . . . . . . . . . . . . . . . . .4.6” L x 2.25” W x 2.25” H

Weight . . . . . . . . . . . . . . . . . . . . . . . . .1.5 lbs.

*HQ-1 is a trademark of SONY corporation

The CVC-614C & the CVC-865DN/24 are full-featured cameras that will meet your most demanding applications. At the heart of the CVC-865DN/24 is an IR Cut Filter that is automatically positioned between the lens and CCD as required to achieve perfect color and IR sensitivity. The other features outlined below make the CVC-614C & the CVC-865DN/24 the professional’s choice when quality and performance are demanded.

CVC-865DN/24

with Automatic IR Cut Filter Positioning
