INSTRUCTION
MANUAL
550 Line Color Dome Camera
Focus Free
CVC6146SCSFF
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Rev. 6/9/10
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
☞Do NOT use power sources other than those specified.
☞Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and
should conform to all local codes.
- 2 -
Contents
Contents
Precautions
Sefety Instructions
SPECIFICATIONS
General Features
Menu Set Up
▶
Menu Set Up
▶
Lens Set Up
▶
Exposure
3
4
5
6
7
8
10
11
12
▶
Back Light
▶
D-WDR
▶
White Bal.
▶
Day & Night
▶
3DNR
▶
Special
◈
Camera Title
◈
D - Effect
◈
Motion
◈
Privacy
◈
Sync
◈
Return
▶
Adjust
14
17
18
19
20
21
21
24
26
27
28
28
28
▶
Reset
▶
Exit
Trouble Shooting
29
29
30
- 3 -
Precautions
Do not install the camera in
extreme temperature conditions.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful to provide
ventilation when operating under high
temperatures.
Never keep the camera pointed
directly at strong light.
Do not install the camera under
unstable lighting conditions.
Severe lighting change or flicker can
cause the camera to work improperly.
Do not drop the camera or subject
it to physical shocks.
Do not touch the front lens of the
camera.
This is one of the most important parts of the
camera. Be careful not to leave
fingerprints on the lens cover.
Do not expose the camera to
radioactivity.
It can cause malfunctions to occur.
* If the camera is exposed to
spotlight or object reflecting strong light, smear or blooming may occur.
* please check that the power satisfies the normal specification before
connecting the camera.
Severe lighting change or flicker can
cause the camera to work improperly.
NOTE
If exposed to radioactivity the CCD
will fail.
- 4 -
Sefety Instructions
Precautions for use
◑
This camera should be installed by qualied personnel only
◑
There are no user serviceable parts inside
◑
Do not disassemble this camera other than to make initial adjustments
◑
Use a UL approved regulated 24 volt AC or 12 volt DC power supply
◑
Use appropriate low voltage power cable to prevent re or electrical shock
◑
Please insure that your installation area can support the weight of the camera
Please handle this camera carefully :
◑
Do not use a strong or abrasive detergent when cleaning the camera
◑
Do not install near cooling or heating device
- 5 -
550 Line color dome camera
Focus free AI Motorized zoom Lens(2.8-10mm)
■
Focus Free
CVC6146SCSFF
SPECIFICATIONS
MODEL
Sensor
Total Pixels
Effective Pixels
Scanning System
Synchronization
O.S.D
Backlight
Resolution
S/N (Y signal)
Min. Illumination
White Balance
Electronic Shutter Speed
Sense-Up
Gain Control
3 DNR
D-WDR
Motion Detection
Privacy
Mirror
Freeze
Sharpness
D&N Selection
Digital Zoom
Blemish Compensation
Power
Power Consumption
Lens
Operating Temperature/Humidity
Storage Temperature/Humidity
Dimension
Weight
0.00001LUX
CVC6146SCSFF
1/3" SONY Super HAD CCD
NTSC=811(H) * 508(V) / PAL=795(H) * 595(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
2:1 Interlace
Internal / Line Lock
Available
BLC / HSBLC / Off Selectable
550TV Lines(Color), 600TV Lines(B/W)
52dB (AGC Off, Weight On)
0.00001Lux(Sens-Up * 256)
ATW / AWB / Manual / AWC → SET
AUTO (1/50sec, 1/60sec ~ 1/120,000sec)
Off / Auto(Selectable limit *2 ~ *256)
High, Middle, Low, Off Selectable
Off/On (1~50 Level Adjustable)
Indoor / Outdoor / Off
On/Off (4 Zone, Alarm Output)
On/Off (8 Zone)
Off / Mirror / V-Rev / Rotate
On/Off
0~31’(Level Adjustable)
Color /BW /Auto
On(*32) / Off
256 Point (Even 128 Point, ODD 128 Point)
DC 12V
DC 12V 250mA
Focus free AI Motorized zoom Lens(2.8-10mm)
14~122ºF RH 95% Max
-4~140ºF RH 95% Max
5.47"(W) * 3.82"(H) * 5.47"(D)
1.54 lb
x256
550
General Features
3D-DNR
Digital
R
eduction
Noise
DSP
3D-DNR
3D-DNR
Digital
R
eduction
Noise
Resolution
Horizontal
550
DSP
3D-DNR
3D-DNR
Digital
R
eduction
Noise
Resolution
Horizontal
550
Wide Dynamic Range
Digital
WDR
DSP
3D-DNR
3D-DNR
Digital
R
eduction
Noise
Resolution
Horizontal
550
Wide Dynamic Range
Digital
WDR
Backlight
Compensation
BLC
DSP
3D-DNR
DSP
3D-DNR
3D-DNR
Digital
R
eduction
Noise
0.00001 Lux
Illumination
Minimum
Resolution
Horizontal
550
Wide Dynamic Range
Digital
WDR
Backlight
Compensation
BLC
DSP
3D-DNR
3D-DNR
Digital
R
eduction
Noise
0.00001 Lux
Illumination
Minimum
Resolution
Horizontal
550
Wide Dynamic Range
Digital
WDR
Backlight
Compensation
BLC
DISK SAVING
DSP
3D-DNR
Digital
Noise
R
eduction
3D-DNR
3D Filtering Method of Newly Advanced DNR Function
Newly developed 3D filtering enhances Digital Noise reduction at low light levels. 3D Filtering of
☞
the Video Signal Optimises the Signal to Noise ratio, giving vastly improved low light visivility
and a powerful Sens-Up function (up to 256 times magnification).
550
Horizontal
Resolution
550TV Lines
The combination of a Sony Super HAD CCD image sen-sor and DNR DSP provides an excellent
☞
resolution of 550 TV lines.
WDR
Digital
Wide Dynamic Range
D-WDR(Digital Wide Dynamic Range)
D-WDR is a powerful and ultra advanced technology that captures cleaner and superior high
☞
Resolution pic-tures even where images appear dark because there is a strong back light present.
BLC
Backlight
Compensation
High Spotlight BLC Function
High Spotlight BLC Function is Especially Effective to Read the Number Plate of the Vehicles in
☞
the Street or Parking Lot at Night Time. Especially Users Can Adjust and Select the Special
Required Area to Observe the Target Object Under the Strong Spots of Light Exist.
Minimum
Illumination
0.00001 Lux
Illumination
DISK SAVING
OSD
With an Incredibly Minimum Illumination of Amazing 0.00001Lux can Capture Good Images Even in Extremely
☞
Low Light Conditions and Related Noises are Significantly Reduced by the Ultra Advanced DNR(Digital Noise
Reduction) Technology.
Disk Saving Effects
Advanced 3DNR technology improves picture quality and saves hard drive space, as less
☞
noise means much smaller file sizes - much smaller than standard CCTV camera images.
Additional Functions
OSD - On Screen Display menu with multi-Language support.
☞
Privacy Masking - 8 zones, Sens-Up - x256 times, Digital Zoom - x32
- 7 -
Menu Set-Up
SET UP MENU DEFAULT SET MENU
LENS
EXPOSURE
WHITE BAL.
DAY / NIGHT.
DC / MANUAL

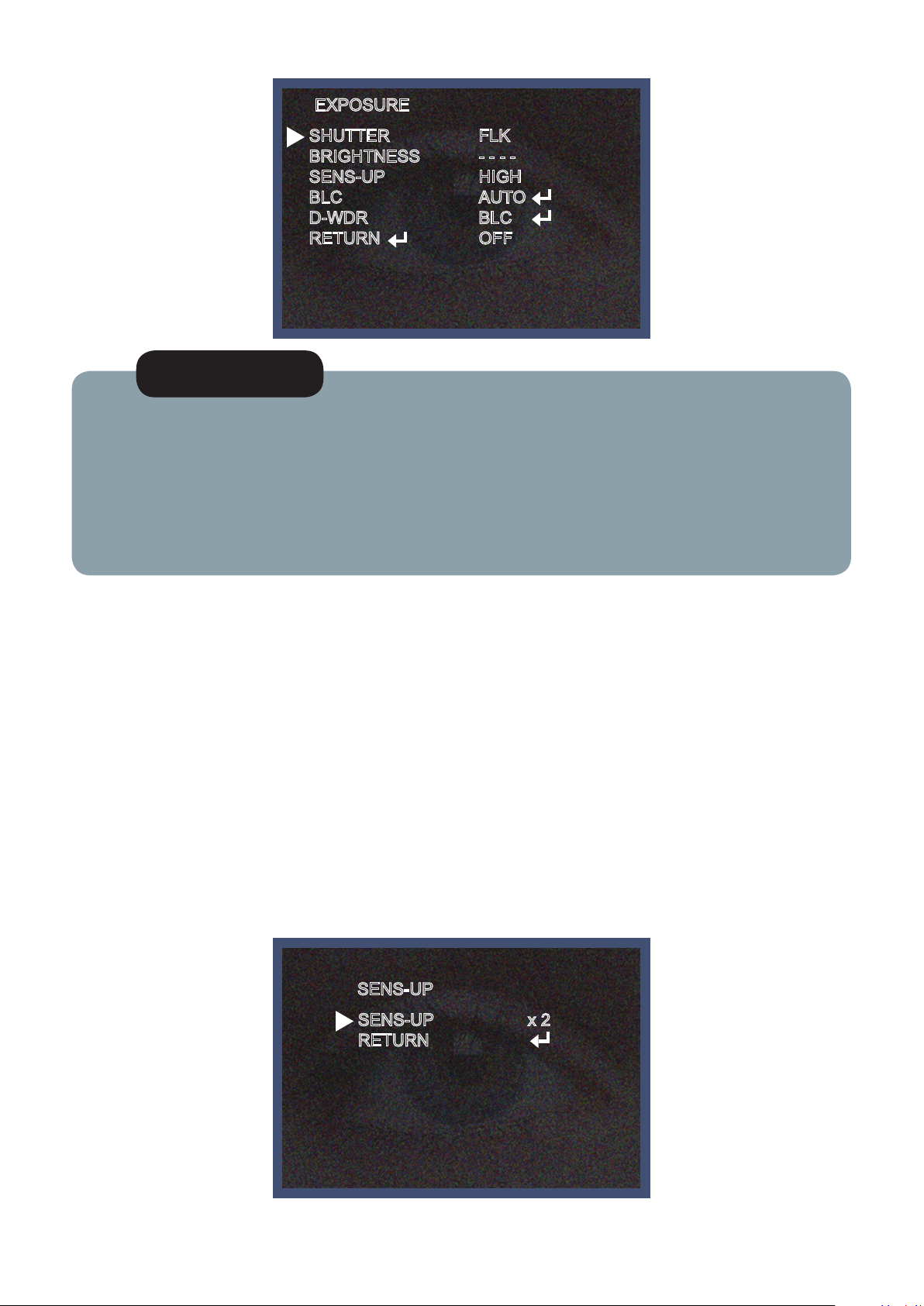

SHUTTER
BRIGHTNESS
AGC: --SENS-UP
BLC
D-WDR
RETURN
ATW
AUTO/B/W COLOR/EXT
DC : LEVEL (0 ~100 Adjustable)
SHUTTER : FLK/ 1/60 / 1/250, 1/500, 1/2000, 1/5000,
1/10000, 1/100000
BRIGHTNESS
AGC : OFF / LOW / MIDDLE/ HIGH
SENS-UP : x2~ x256 Level Selectable
BLC : OFF / BLC (GAIN : LOW, MIDDLE, HIGH/ DEFAULT :
HSBLC (LEVEL : RANGE 1~8 Selectable/ DEFAULT :
D-WDR : OFF / INDOOR/ OUTDOOR
RETURN
ATW/ AWB/ MANUAL(R Gain : 0 ~100 Level Selectable,
B Gain : 0 ~100 Level Selectable)
/ AWC SET
COLOR
AUTO : DELAY (0~63) / S-LEVEL(0~100)/ E-LEVEL(0~100)
RESET
(0 ~100 Adjustable)
LEFT/RIGHT, WIDTH, TOP/
BOTTOM, HEIGHT, RTURN) /
LEFT/RIGHT, WIDTH, TOP/BOTTOM,
HEIGHT, RETURN)
3D-DNR
SPECIAL
ADJUST
RESET
EXIT
ON
Refer to the next page
SHARPNESS
BLUE
RED
RETURN
FACTORY
ON (RANGE : 0 ~100 Level Selectable) / OFF
SHARPNESS : (RANGE : 0 ~ 31 Level Adjustable)
BLUE : (RANGE : 0 ~ 100 Level Adjustable)
RED : (RANGE : 0 ~ 100 Level Adjustable)
RETURN
Save the SETUP Menu and exit
- 8 -

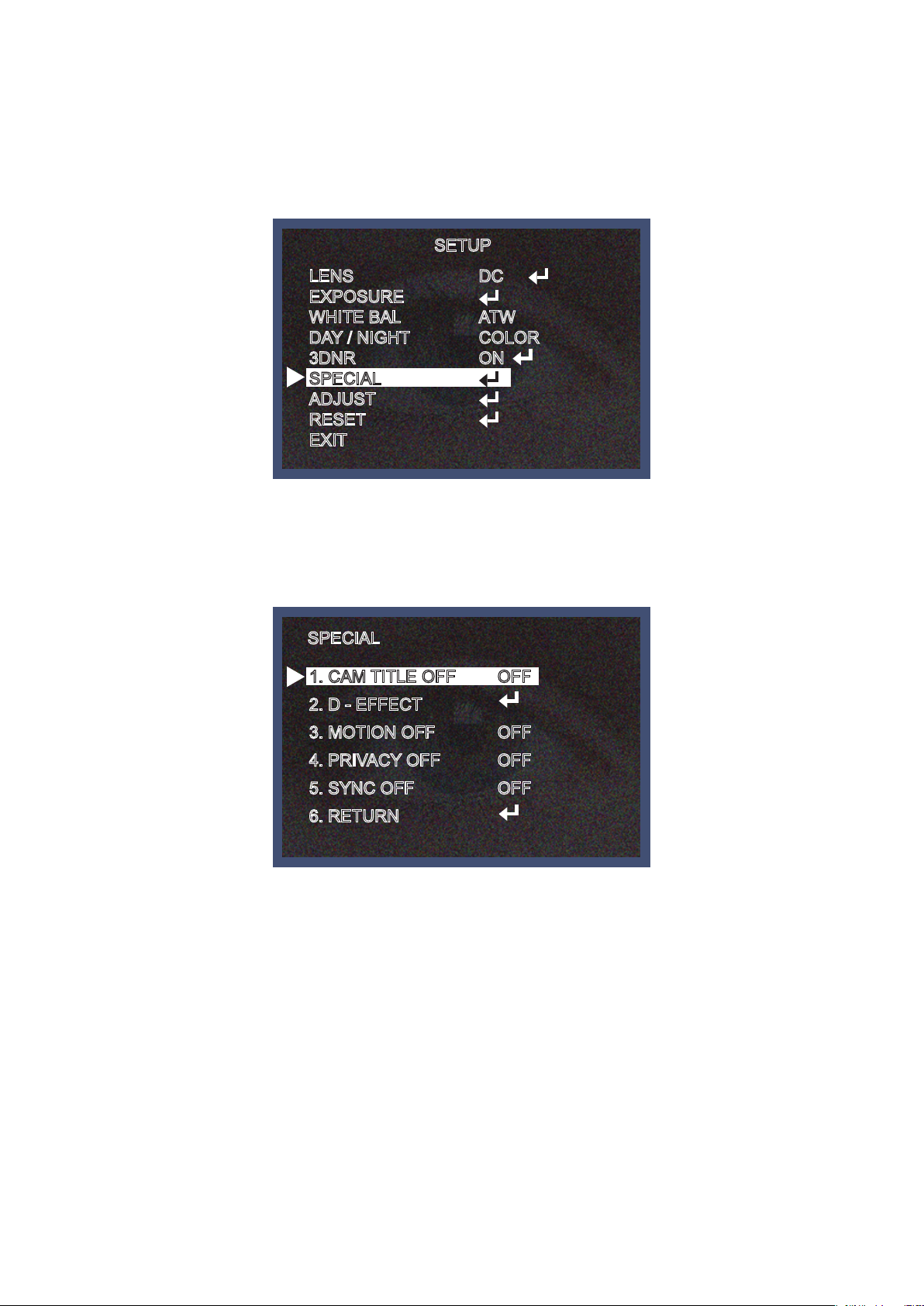

Special Menu
SPECIAL MENU DEFAULT SET MENU

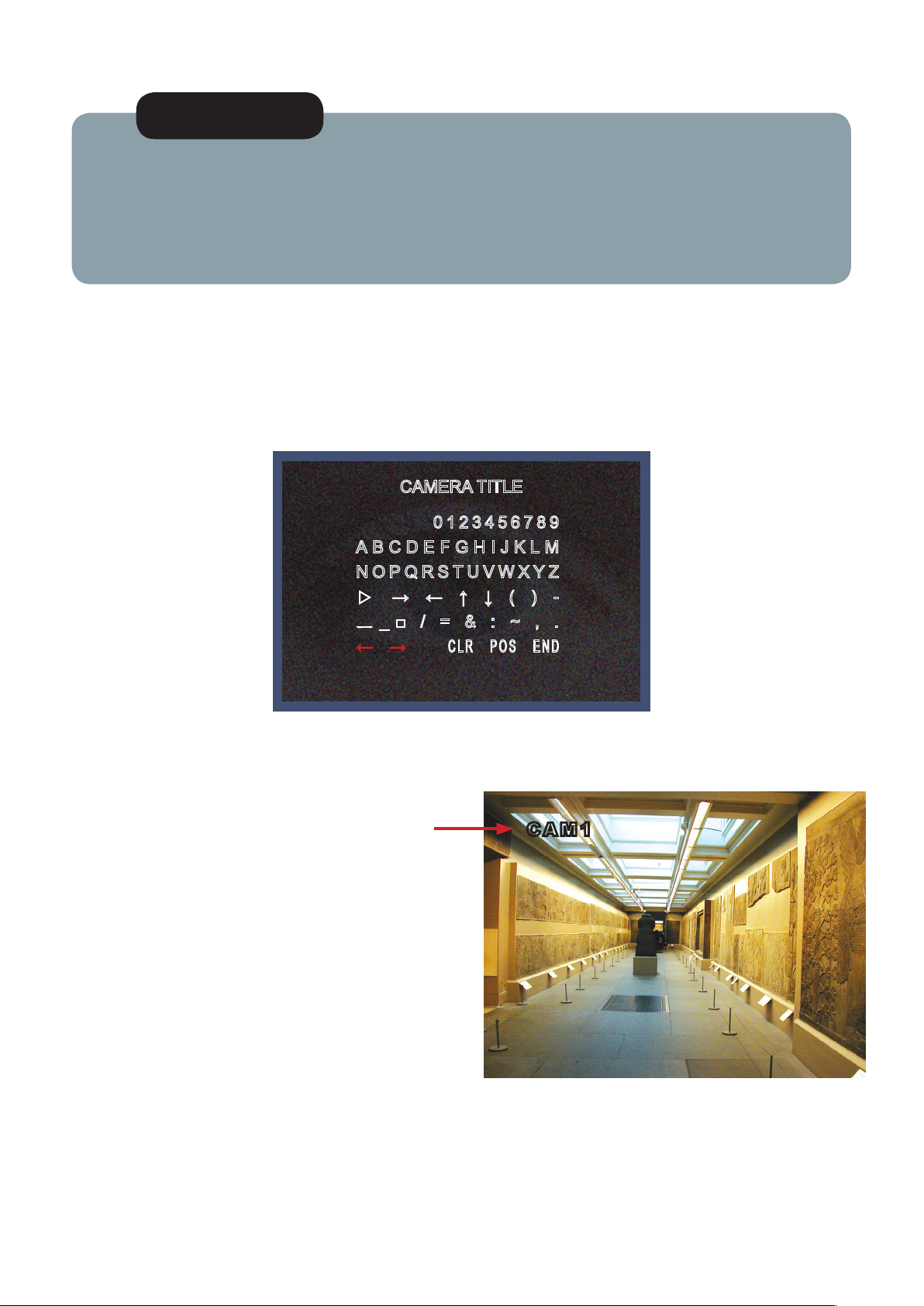

CAMERA TITLE OFF
D - EFFECT ON
MOTION ON
PRIVACY ON
SYNC INT
ON / OFF
FREEZE / MIRROR/ D-ZOOM/ GAMMA/ NEG. IMAGE
AREA SELECT : AREA 1
AREA DISPLAY : ON / OFF
LEFT / RIGHT : 0 ~ 100 Level Adjustable
WIDTH : 0 ~ 100 Level Adjustable
TOP / BOTTOM : 0 ~ 100 Level Adjustable
HEIGHT : 0 ~ 100 Level Adjustable
SENSITIVITY : 0 ~ 40 Level Adjustable
RETURN
AREA SELECT : AREA 1
AREA DISPLAY : ON / OFF
LEFT / RIGHT : 0 ~ 100 Level Adjustable
WIDTH : 0 ~ 100 Level Adjustable
TOP / BOTTOM : 0 ~ 100 Level Adjustable
HEIGHT : 0 ~ 100 Level Adjustable
COLOR : Selectable in 15 Color
RETURN
RETUEN
END
- 9 -
Menu Set Up
Menu items can be selected by using the OSD buttons of the camera
1. Press the Set Up button.
* The Set Up menu will be displayed on the monitor.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY / NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
2. Move and select the required function using the Up and Down button.
* Move the arrow indicator Up or Down to select the desired feature by pressing
the Up or Down button.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY / NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
- 10 -
3. Changing menu settings using the Left or Right button.
* Available values or Status are displayed by pressing the Left or Right buttons.
Press the button until desired value / status is displayed.
4. After completing the setting move the arrow indicator to EXIT and press the
SET button to EXIT.
NOTE
* Move to the available submenu by moving arrow to desired feature.
* Submenu is not available when this symbol is display "- - - -"
Lens
1. Move the arrow indicator to LENS using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left or Right button.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY / NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC:DC Auto Iris Lens
DC
ATW
COLOR
ON
- 11 -
NOTE
* When DC is selected, the brightness can be adjusted. The brightness control
range is 1 ~ 100.
Lens
BRIGHTNESS
100
RETURN
3. Press the RETURN to return to the SETUP menu.
Exposure
This function is used to select Automatic or Manual shutter speed control.
1. On the Set Up menu screen select EXPOSURE by using the Up or Down button.
2. Select the desired shutter mode by pressing the Left or Right button.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY / NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
* FLK : Select FLK mode when flickering occurs; caused by the unmatched frequency of electric lights.
DC
ATW
COLOR
ON
- 12 -
EXPOSURE
SHUTTER
BRIGHTNESS
SENS-UP
BLC
D-WDR
RETURN
FLK
- - - -
HIGH
AUTO
BLC
OFF
NOTE
* To produce better results with FLK, do not use it in conjunction with the WDR
mode in the BACKLIGHT menu.
* Desired shutter speed can be selected by user 1/60, 1/250, 1/500, 1/2000, 1/5000,
1/0000, 1/100000, FLK .
* Brightness just can operate when selected the Manual mode(Option), When
selected DC mode, brightness will be disabled .
* AGC(AUTO GAIN CONTROL):
A higher gain increases brightness but also increases any noise.
OFF : Deactivates the AGC function
LOW : Allows automatic gain control to LOW.
MIDDLE : Allows automatic gain control to MIDDLE.
HIGH : Allows automatic gain control to HIGH
* SENS - UP:
At night and/or in dark conditions, the Sens-Up mode can be selected desired value from x2 ~ x256.
* FLK : Select FLK mode when flickering occurs; caused by the unmatched frequency of electric lights.
SENS-UP
SENS-UP
RETURN
x 2
- 13 -
* RETURN:
Select Return to save the changes in the EXPOSURE menu and retun to the SETUP menu.
NOTE
* Pressing the SET button in AUTO mode allows adjustment of image brightness
by increasing or decreasing the shutter speed (x2 ~x258).
* The higher the level, the brighter the image becomes, but it is possible that an
after image (ghosting) could appear.
* When SENS-UP is activated the increased magnification can induce noise and
pixelation; this is quite normal.
Back Light(BLC)
This camera provides intelligent light level control to overcome even strong backlight conditions.
1. Move the arrow indicator to BACKLIGHT using the Up or Down button on the SETUP menu screen.
2. Select the desired level by using the Left or Right button.
EXPOSURE
SHUTTER
BRIGHTNESS
AGC
SENS-UP
BLC
D-WDR
RETURN
1/60
- - - LOW
- - - -
BLC
OFF
* OFF : BLC function does not operate.
* BLC : Users can select and define a specific area in a scene, and view the area clearly.
* HSBLC : When there are simultaneous brightness & dark image areas HSBLC makes both distinct.
- 14 -
BLC ON BLC OFF
3. Select a mode using the Left and Right buttons then press the SET button.
Select BLC to adjust the desired BLC area and GAIN level.
* GAIN : Adjust the BLC sensitivity by selecting LOW, MIDDLE or HIGH.
* DEFAULT : Press the Default to back to the factory default when input the wrong data .
① Move the arrow indicator to select the WIDTH of cells to increase or decrease by using the Left / Right
button from 0 ~ 7 cells.
BLC
GAIN
DEFAULT
LEFT / RIGHT
WIDTH
TOP / BOTTOM
HEIGHT
RETURN
LOW
7
8
7
8
② Move the arrow indicator to select the HEIGHT of cells to increase or decrease by using the Left / Right
button from 0 ~ 7 cells.
③ Move the arrow indicator to the LEFT / RIGHT and TOP / BOTTOM to select the desired area positon by
using the LEFT or RIGHT button.
- 15 -
* Move the arrow indicator to RETURN and press the Set Up button after complete the BLC area set to
return to EXPOSURE menu.
4. Select HSBLC(High Suppress Backlight Compensation) by using the Left and Right buttons then press the
Set Up button to set up the desired HSBLC area and GAIN level.
HSBLC OFF HSBLC ON
* LEVEL : Adjust the HSBLC sensitivity by selecting between 0~8.
* DEFAULT : Press the Default to return to the factory default when input the wrong data .
① Move the arrow indicator to select the WIDTH of cells to increase or decrease by using the Left / Right
button from 0 ~ 7 cells.
HSBLC
LEVEL
DEFAULT
LEFT / RIGHT
WIDTH
TOP / BOTTOM
HEIGHT
RETURN
8
7
8
7
8
② Move the arrow indicator to select the HEIGHT of cells to increase or decrease by using the Left / Right
button from 0 ~ 7 cells.
③ Move the arrow indicator to the LEFT / RIGHT and TOP / BOTTOM to select the desired area positon by
using the LEFT or RIGHT button.
- 16 -
D-WDR(digital WDR)
This camera provides intelligent light level control to overcome even strong backlight conditions.
1. Move the arrow indicator to D-WDR using the Up or Down button on the EXPOSURE menu screen.
2. Select the desired feature by using the Left or Right button.
EXPOSURE
SHUTTER
BRIGHTNESS
AGC
SENS-UP
BLC
D-WDR
RETURN
1/60
- - - LOW
- - - -
BLC
OFF
* D-WDR : When there are simultaneous brightness & dark image areas WDR makes both distinct and can
be selected desired feature between OUTDOOR and INDOOR.
* OFF : D-WDR function does not operate.
* RETURN: Select Return to save the changes in the EXPOSURE menu and retun to the SETUP menu.
- 17 -
White Balance
The White Balance function is used to control the “on-screen” color.
1. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button.
2. Select the desired mode by using the Left or Right button.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY / NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
* There are three user selectable White Balance settings available.
* ATW : (Auto Tracking White Balance)
Normal setting; when the
color
temperature range is from 1,800˚K to 10,500˚K. (Ex: a fluorescent lamp or outdoors)
* AWB : The White Balance is automatically adjusted in a specific environment.
* AWC → SET : To obtain the best results press the SET button while the camera is focused onto white
paper. If the environment, and/or light source changes, the White Balance will require re-adjustment.
* MANUAL : Used for fine adjustment of White Balance. Set White Balance first using ATW or AWC then
change to MANUAL and press SETUP button. Increase or decrease the value of R-Gain(Red) and
B-Gain(Blue) while monitoring the color of the image.
WHITE BAL MANUAL
BLUE
RED
RETURN
- - - - - - - -100
- - - - - - - -100
- 18 -
Day / Night
Picture can be displayed in either color or black and white.
1. Select DAY / NIGHT using the Up or Down button on the SETUP menu screen.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY / NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
2. Select the desired mode using the Left and Right buttons.
* COLOR : The picture is always displayed in color.
* BW : The White Balance is automatically adjusted in a specific environment.
* AUTO : The mode is automatically switches to color in normal conditions and switches to B/W mode when
ambient illumination is low. To set the switching time or speed in AUTO mode, press the SET button.
DELAY
S - LEVEL
E - LEVEL
RETURN
DAY NIGHT AUTO
- - - - - - - - 63
- - - - - - - -100
- - - - - - - -100
- 19 -
3. Select the desired mode and set the values by using the Left or Right button .
* DELAY : The range can be adjusted between 0 ~ 63.
* S - LEVEL : The start level can be adjusted between 0 ~ 100.
* E - LEVEL : The end level can be adjusted between 0 ~ 100.
3DNR
3DNR is used to reduce the level of background noise in a low luminance environment.
1. Move the arrow indicator to 3DNR by using the Up and Down button.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY / NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
2. Select whether or not to activate 3DNR by using the Left and Right buttons.
* ON: Activates 3DNR - Digial noise reduction can be adjusted between 0 ~ 100.
* OFF: Deactivates 3DNR - noise is not reduced.
3DNR
LEVEL
RETURN
- - - - - - - -100
* Select RETURN by using the Up or Down button to return to Set Up menu.
- 20 -
Special
1. When the SETUP menu screen is displayed, select SPECIAL using the Up and Down buttons.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY / NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
2. Select one of the mode using the Up and Down button.
SPECIAL
1. CAM TITLE OFF
2. D - EFFECT
DC
ATW
COLOR
ON
OFF
3. MOTION OFF
4. PRIVACY OFF
5. SYNC OFF
6. RETURN
OFF
OFF
OFF
1. CAM TITLE : When input, the Camera ID is displayed on the monitor.
1-1) Move the arrow indicator to CAMERA ID using the Up or Down button on the SETUP menu screen.
1-2) Set to ON using the Left or Right button.
- 21 -
NOTE
* When CAMERA TITLE is set to OFF, the CAMERA TITLE is not displayed on the monitor.
3) Press the SETUP button.
CAMERA TITLE
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
▷ → ← ↑ ↓ ( ) -
ㅡ _ □ / = & : ~ , .
← →
CLR POS END
1-4) The CAMERA TITLE can be up to 15 alphanumeric characters in length.
① Move the cursor to choose an alphanumeric character.
CAMERA TITLE
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
▷ → ← ↑ ↓ ( ) -
ㅡ _ □ / = & : ~ , .
← →
CLR POS END
② Choose a character in displayed range A~Z, a~z, 0~9 using the Up, Down, Left and Right buttons.
③ Select the desired character by pressing the SETUP button.
- The cursor moves to the next position, after character input, by pressing the SETUP button.
④ Repeat the above steps until the Camera ID has been created.
- 22 -
NOTE
* In cases where the wrong Camera ID has been input........
Move the cursor to CLR and press SETUP button to erase characters from left to
right, and repeat the above steps to input the characters again.
1-5) To select the position where the Camera ID should be displayed on the screen.
① Move the cursor to POS and press the SET button.
CAMERA TITLE
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
▷ → ← ↑ ↓ ( ) -
ㅡ _ □ / = & : ~ , .
← →
CLR POS END
② Created camera ID is displayed.
(Factory default position)
CAM1
- 23 -
③ Select a new position by using the four
directional button, Press the SET button to
confirm the position.
2) D - EFFECT
Move the cursor to D-EFFECT and press the SET button to set the other image functions.
SPECIAL
CAM1
1. CAM TITLE OFF
2. D - EFFECT
3. MOTION OFF
4. PRIVACY OFF
5. SYNC OFF
6. RETURN
2 -1) FREEZE : Image freezing or moving Image
D-EFFECT
1. FREEZE
2. MIRROR
3. D-ZOOM
4. GAMMA
OFF
OFF
OFF
OFF
OFF
V-FLIP
OFF
0.45
5.. RETURN
- 24 -
2 -2) MIRROR : Flip the image horizontally on the screen.
D-EFFECT
1. FREEZE
2. MIRROR
3. D-ZOOM
4. GAMMA
5. RETURN
* V-FLIP : Flip the image vertically on the screen.
* ROTATE : Flip the horizontal image vertically on the screen.
* OFF : Disabled.
OFF
V-FLIP
OFF
0.45
MIRROR ON MIRROR OFF
3) D - ZOOM: Digital zoom available, range x1 ~ x32.
PAN : The pan range can be controlled between -10 ~ + 100
TILT : The tilt range can be controlled between -10 ~ + 100
D-ZOOM
D-ZOOM
PAN
TILT
RETURN
x 2.6
20
20
- 25 -
NOTE
* PAN and TILT function should be available when using the digital zoom.
2-4) GAMMA : Desired gamma values can be adjusted between 0.05 ~ 1.00.
2-5) RETURN : Move the arrow indicator to RETURN after complete the setup to return to SPECIAL menu.
3. MOTION
MOTION
AREA SELECT
AREA DISPLAY
LEFT / RIGHT
WIDTH
TOP / BOTTOM
HEIGHT
SENSITIVITY
RETURN
AREA
ON
100
100
100
100
40
3-1) When the special menu screen is displayed, use the Up or Down botton to access the MOTION menu.
① AREA SELECT : Determines whether the MD area selected AREA 1, 2, 3, 4.
② Move the arrow indicator to select the HEIGHT of cells to increase or decrease by using the Left / Right
button between the level 0 ~ 100.
③ Move the arrow indicator to the LEFT / RIGHT and TOP / BOTTOM to select the desired area positon by
using the LEFT or RIGHT button.
④ Move the arrow indicator to select the WIDTH of cells to increase or decrease by using the Left / Right
button between the level 0 ~ 100.
- 26 -
⑤ Move the arrow indicator to select the SENSITIVITY to increase or decrease by using the Left / Right
button between the level 0 ~ 40.
RETURN : Move the arrow indicator to RETURN after complete the setup to return to SPECIAL menu.
4. PRIVACY
Hide an area you want to hide on the screen.
4-1). When the SPECIAL menu screen is displayed, press the Up and Down buttons to set to PRIVACY.
SPECIAL
1. CAM TITLE OFF
2. D - EFFECT
3. MOTION OFF
4. PRIVACY OFF
5. SYNC OFF
6. RETURN
4-2). Set up the area mode using the 4 direction buttons.
① AREA SELECT : You can select up to 8 MD area.
PRIVACY
AREA SELECT
AREA DISPLAY
LEFT / RIGHT
WIDTH
TOP / BOTTOM
HEIGHT
COLOR
RETURN
ON
OFF
ON
OFF
AREA
ON
100
100
100
100
40
② AREA DISPLAY : OFF : Disabled
ON : Activates area display
- 27 -
③ Move the arrow indicator to WIDTH to make desired width of cells to increase or decrease by using the
Left / Right button between the level 0 ~ 100.
④ Move the arrow indicator to HEIGHT to make desired height of cells to increase or decrease by using the
Left / Right button between the level 0 ~ 100.
⑤ Move the arrow indicator to the LEFT / RIGHT and TOP / BOTTOM to select the desired area positon by
using the LEFT or RIGHT button.
⑥ Move the arrow indicator to COLOR to select the desired color of each area cells by using the Left /
Right button between the 15 different color.
RETURN : Move the arrow indicator to RETURN after complete the setup to return to SPECIAL menu.
5) SYNC : INT (Internal Synchronisation)
Move the arrow indicator to RETURN after complete the setup to return to SETUP menu.
ADJUST
1. When the SETUP menu screen is displayed, select ADJUST using the Up and Down buttons.
SETUP
LENS
EXPOSURE
WHITE BAL
DAY / NIGHT
3DNR
SPECIAL
ADJUST
RESET
EXIT
DC
ATW
COLOR
ON
- 28 -
2. Select the desired mode by using Up or Down button..
ADJUST
SHARPNESS
BLUE
RED
RETURN
SHARPNESS : Improving image clarity. The level can be adjusted to obtain an improved image. However,
when the level is set too high it can distort the image or cause noise.
* Select BLUE or RED to increase or decrease the value of R-Gain(RED) and B-Gain(BLUE) while monitoring
the color of the image.
- - - - - - - -100
- - - - - - - -100
- - - - - - - -100
RETURN :Move the arrow indicator to RETURN after complete the setup to return to SETUP menu.
RESET
Resets the camera settings to the factory defaults.
EXIT
Press the SET button in the EXIT menu to save the current settings and exit the SETUP menu.
- 29 -
Trouble Shooting
PROBLEM
Northing appears on
the screen.
The image on the
screen is dim.
The image on the
screen is dark.
The camera is not
working properly
and the surface of
the camera is hot.
POSSIBLE CAUSE
☞
Check the power cable, power supply output and video
connection between the camera and monitor.
☞
Are the camera lens or the lens glass dirty?
Clean the lens / glass with a soft clean cloth.
☞
Adjust the monitor controls, as required.
☞
If the camera is facing a very strong light, change
the camera position.
☞
Adjust the lens focus.
☞
Adjust the contrast control of the monitor.
☞
If there is an intermediate device, correctly set the 75Ω/Hi-z.
☞
Check the camera is correctly connected to an appropriate
regulated power source.
Motion Detection
is not activated.
The color of the
picture is not correct.
The image on the
screen ickers.
The SENS-UP does
not work.
☞
Has MOTION DET been set to ON in the menu?
☞
Has MD AREA been properly dened?
☞
Check the settings in WHITE BALANCE menu.
☞
Make sure that the camera isn’t facing direct sunlight or
uorescent lighting. If necessary,change the camera position.
☞
Check that the AGC setting in the EXPOSURE menu is’t set to OFF.
☞
Check the EXPOSURE menu and make sure SHUTTER is set to------.
- 30 -
PRODUCT WARRANTIES AND INFORMATION EFFECTIVE JULY 8, 2008
POLICY, TERMS AND CONDITIONS OF SALE
This statement of policy is in lieu of any other policy, expressed or implied, and no representative or person is authorized to assume for us any
other liability or policy without our written consent. We cannot be held responsible for typographical errors.
TERMS OF PAYMENT
2%, 10 days, net 30 from invoice date of merchandise for qualified accountsorVisa/MasterCard/Amex net at time of order placement only,
other payment discountsdo not apply ($300 credit card minimum). We reservethe rightto charge 1-1/2% interest per month on past
due balances. New orders will notbe shipped whilethere is a past due balance. We will also ship net C.O.D. or C.I.A.
PRICING POLICY
This price sheet reflects current published price. All prices aresubject to change without notice. Allitems will be billed at current prices.
CREDIT
Companies that have not established credit with our company shouldallow asufficient periodof time for credit approval. Please be sure to
provide completecredit information, bank and trade references, plus financial statements,if available with your firstorder.To expedite first
shipment, a certified or bank check with the order or use of Visa/MasterCard/Amexwillavoid delays, while we arecheckingcreditand waiting
for bank clearance.
FREIGHT POLICY
All shipments areF.O.B. our New York warehouse. All orders totaling $2000 or morewillbeshipped freight allowed to anypoint in zones 1,2,3,4,5
and 1/2 freight allowed in zones 6,7,8, providing invoice is paid within 30 days from receiptof merchandise, catalogs or exceptions from regular
pricing. All UPS and USPS shipments will be insured with insurance fee plus shipping and handling charges added to the invoice.
MINIMUM OPENING ORDER $1500
We reserve the right to refuse reorders under $250. PLEASE REQUEST CONFIRMATION OF ALLFAXED PURCHASE ORDERS.
WARRANTY
Cameras5Years
Monitors &IR LEDs 1Year
DVRs / EZVR Series VDRs 3Years
VIDEOAUDIO
PCPro/PCL Series DVRs 2Years
Indoor Speakers Lifetime
Outdoor/Weatherproof Speakers
Amplifiers 5Years
PA Horns, Microphones, 2Years
Volume Controls
Megaphones,
Speaker Distribution Centers 1Year
and Speaker Selectors
Electrical Equipment NotListed
Above&Balance of Line
RETURNS
A written returnauthorization must be obtained prior to shipment. Label(s) must appear on all packages andreturnmustbe ship prepaid.
Defective in-warrantyproducts will be returned prepaid. Defective out-of-warrantyproducts willberepairedatanominal charge forparts and
labor andreturned with shipping charges added to the invoice. If yourequire an estimate beforerepair,please request.
RETURNED GOODS POLICY
1. RETURNS SENT WITHOUT PRIOR APPROVAL WILL NOT BE ACCEPTED. CREDIT WILL BE ISSUED UPON INSPECTION OF RETURNED UNITS.
2. No discounted item maybereturned for credit or exchange.
3. An order of $3.00 for every $1.00 to be returned must accompanyarequest forreturnfor stockadjustment.
4. There will beaminimum charge of 15% for handling and repacking where
missing or damaged packaging or accessories will be charged accordingly. Merchandise returned for repair will be shipped back repaired
but in the same physical condition as when received by us. If repacking or refurbishingisrequested, where possible, you will be charged
accordingly.
5. If acredit is issued, currentbest quantity price or price when purchased, whicheveris lower,willprevail.
BACK ORDERS
Products not immediately available for shipment will be back ordered and shipped as soon as available, unless we areadvised to cancel back
orders. The original order will determine basis of shipment. If the original order is freight allowed, back orders will be freightallowed.If the
original order does not qualify for freightallowance, backorders will be shipped freightcollect or shipping and handling charges added to
the invoice.
PROMOTIONAL MATERIAL
Requests for nominal amounts of catalogs, brochures, promotional sheets, etc. will be supplied at no charge. Requests for bulk quantities of
promotional materials will be billed on a cooperative 50-50 basis.
CLAIMS
Claims for shortage must be presented within thirty days of date of invoice. Freightdamageclaims and freight shortages should be filed
directly with the carrier within seven days of receipt of shipment. No liabilitywillbe accepted for damages directlyor indirectly caused from
the use of our products or from any other cause. Ourliability shall be limited to therepair and/or replacement of our products, at ouroption
of found to be defective.
NOTE: All units priced and packaged individually unless specified. Not responsible forprinter errors.
We now accept Visa/MasterCard/AMEX at time of order placement. (See termsofPayment &CreditTerms)
5Years
90 Days
We warrantyall products to be free from any manufacturingor material defects.
This warranty will not extend to any products which have been subjected to misuse,
neglect, accident,or improper installation, used in violation of instructions furnished by
us; or to units which have beenrepaired or altered outside of the factory.Thi
warranty does not applytobroken cases, batteries,or other physically damaged parts.
Upon request by the customer, thecompany will at the customer's expenserepackage
merchandise in new cartons, replace missingaccessories, and return in resalable
condition. Unlessrequested, the company will replace and returnall merchandise in the
packaging in which it wasreceived. This warrantyisin lieu of all expressed warranties,
expressed or implied, andofall obligationsor liability on our part, and we
neither assume norauthorize any representative or other person to assume for us any
obligation or liability. In no event shallwebeliable for incidental or consequential
damages arising from the use of the product, or for any delay in theuse of this product
do to causes beyond our control. Some states do not allow limitationsof how long an
implied warranty lastsand/or do not allow the exclusion or limitation of consequential
damages. The above limitationsonimplied warranty and consequential damages may
not apply to you. Thiswarranty gives you specificlegal rights. Youmay have other
rights which varyfrom state to state. See actual warranty statement included with
product for limitations and exclusions where applicable. This limited warranty extends to
products listed in the company's currentprice schedule.
necessary. Merchandise returned for credit or exchangewith
slimited
For moreinformation contact us at: Speco Technologies 200New Highway •P.O. Box726 • Amityville, N.Y. 11701-0726
Tel. 631-957-8700 Outside Metro N.Y. 1-800-645-5516 • Fax 631-957-9142 or 631-957-3880 •Web: www.specotech.com
- 31 -
200 New Highway
Amityville, NY 11701
631-957-8700
1 800 645 5516
www.specotech.com
Loading...
