DVR-4TL/8TL/16TL

Version 1.1

TL H.264 DVR User’s Manual

Caution and Preventive Tips

• Handle with care, do not drop the unit

• Mount the unit in an equipment rack or place it on a solid, stable surface

• Indoor use only. Do not place the unit in a humid, dusty, oily, or smoky site

• Do not place it in an area with poor ventilation or in an area close to fire or other sources of

heat. Doing so may damage the unit as well as cause fire or an electric shock

• When cleaning is necessary, shut down the system and unplug the unit from the outlet

before uncovering the top cover. Do not use liquid cleaners or aerosol cleaners. Use only

a damp cloth for cleaning

• Always shut down the system prior connecting or disconnecting accessories, with the

exception of USB devices

This symbol intends to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying the

appliance.

This symbol intends to alert the user to the presence of unprotected “Dangerous

Voltage” within the product’s enclosure that may be strong enough to cause a

risk of electric shock.

TL H.264 DVR User’s Manual

Important Information

Before proceeding, please read and observe all instructions and warnings in this manual.

Retain this manual with the original bill of sale for future reference and, if necessary, warranty

service. When unpacking your unit, check for missing or damaged items. If any item is missing,

or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your

dealer for assistance.

Rack Mounting

Consult with the supplier or manufacturer of your equipment rack for the proper hardware and

procedure of mounting this product in a safe fashion. Avoid uneven loading or mechanical

instability when rack-mounting units. Make sure that units are installed to get enough airflow

for safe operation. The maximum temperature for rack-mounted units is 40 °C. Check product

label for power supply requirements to assure that no overloading of supply circuits or over

current protection occurs. Mains grounding must be reliable and uncompromised by any

connections.

TL H.264 DVR User’s Manual

Table of Content

1. Overview .....................................................................................................................10

2. System Setup.............................................................................................................. 11

2.1 Position the DVR ............................................................................................... 11

2.2 Select Video Format .......................................................................................... 11

2.3 Connect Devices to the DVR .............................................................................12

2.4 Rear Panel Connections....................................................................................12

3. General System Setup ...............................................................................................14

3.1 Front Panel Introduction ............................

3.1.1 LED Definition ......................................................................................14

3.1.2 Function Keys.......................................................................................15

3.2 Entering OSD Setup Menu ................................................................................17

3.2.1 User Management................................................................................18

3.3 Power Up / Shutdown the DVR..........................................................................19

3.4 System Date / Time Setting ...............................................................................20

3.4.1 Set Date / Time.....................................................................................20

3.4.2 Daylight Saving Time............................................................................21

3.4.3 Network Time Protocol Setup ...............................................................22

3.5 Record Schedule / Quality Setting .....................................................................23

3.5.1 Schedule Setup ....................................................................................23

3.5.2 Preset Record Configuration ................................................................24

3.5.3 Per Camera Configuration....................................................................24

3.5.4 Record Event Video Only .............................

4. Basic Operation..........................................................................................................26

4.1 View Live / Playback Video................................................................................26

........................................................14

........................................25

4.1.1 Viewing Modes .....................................................................................26

4.1.2 Digital Zoom .........................................................................................27

4.1.3 View Live Cameras ..............................................................................27

4.1.4 View Recorded Video...........................................................................27

4.2 Sequence...........................................................................................................29

4.2.1 Sequence with Main Monitor ................................................................29

4.2.2 Sequence with Call Monitor..................................................................29

4.3 Search Recorded Video.....................................................................................30

4.3.1 Search by Time ....................................................................................30

4.3.2 Calendar Search ..................................................................................31

4.3.3 Search by Event .....................................

4.4 Video Export ......................................................................................................33

4.4.1 ezBurn Introduction .................................

4.4.2 Export Normal Video ............................................................................34

..............................................32

.............................................33

TL H.264 DVR User’s Manual

4.4.3 Export Event Video...............................................................................35

4.5 Dome Control.....................................................................................................35

4.5.1 Dome Connection.................................................................................35

4.5.2 Dome Protocol Setup ...........................................................................36

4.5.3 RS485 Setup ........................................................................................36

4.5.4 Dome Controlling Keys.........................................................................37

4.5.5 Setting Preset Points............................................................................38

4.5.6 Calling Preset Points ............................................................................39

5. Advanced System Configuration ..............................................................................40

Username and Password ...............................

............................................................40

Key Usage in OSD setup menu..................................................................................41

Key Usage in Virtual Keyboard...................................................................................41

5.1 System Setup ....................................................................................................42

5.1.1 System/Version Info .............................................................................42

5.1.1.1 System and Version Information .............................................43

5.1.1.2 Software Upgrade via Local Device ........................................43

5.1.2 Language .............................................................................................44

5.1.3 Date / Time...........................................................................................44

5.1.3.1 Date / Time..............................................................................44

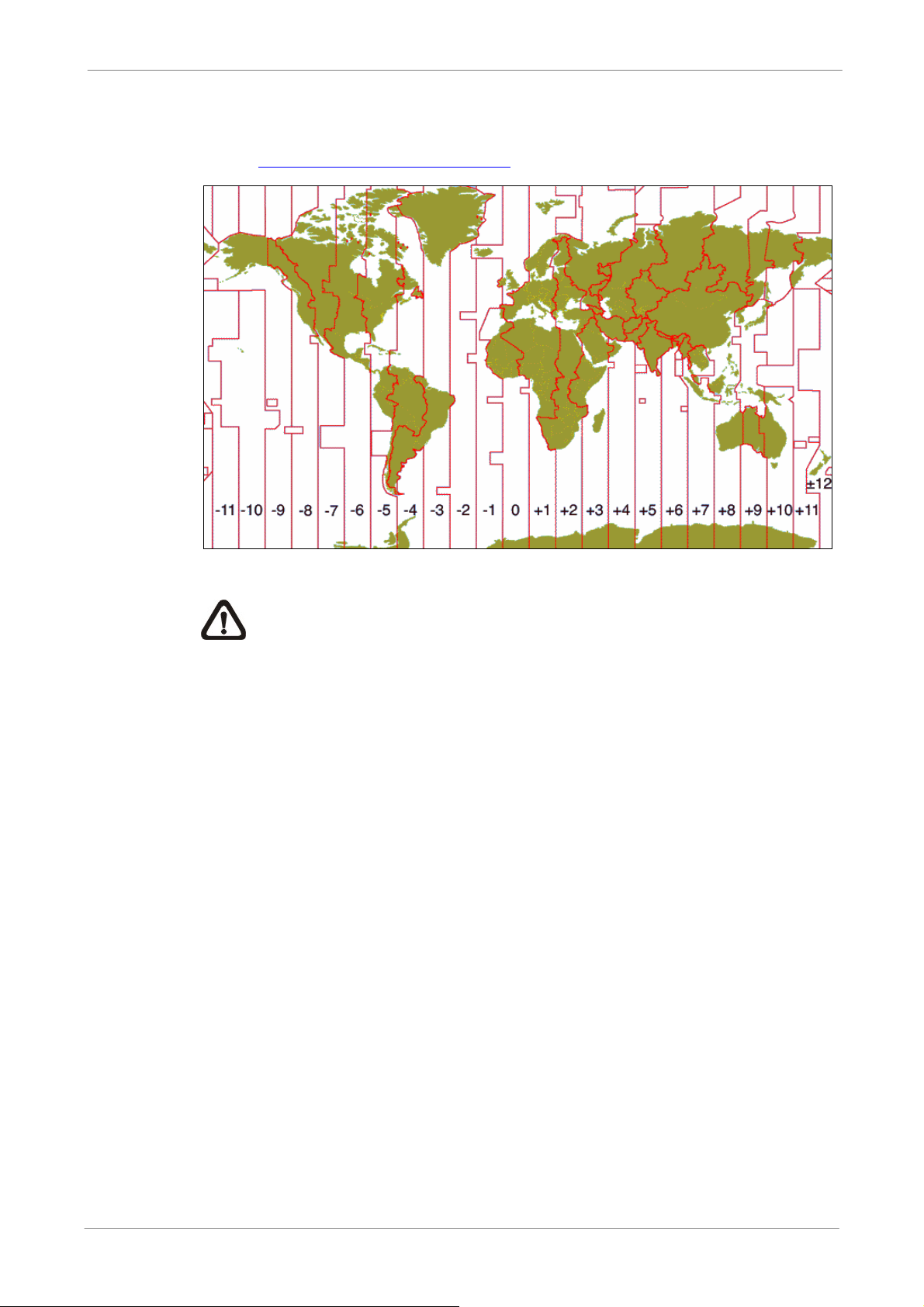

5.1.3.2 Time Zone...............................................................................45

5.1.3.3 Date / Time Display.................................................................45

5.1.3.4 Date Display Mode..................................................................45

5.1.3.5 Time Display Mode .................................................................45

5.1.3.6 Date/Time Order .....................................

................................45

5.1.3.7 Daylight Saving Time Setup....................................................46

Daylight Saving Time ..............................................................46

DST Start / End .......................................................................46

DST Bias.................................................................................46

5.1.3.8 Network Time Protocol Setup Setup .......................................46

NTP Server .............................................................................47

Automatically Time Sync.........................................................47

Manually Time Sync................................................................47

5.1.4 Unit Name ............................................................................................47

5.1.5 User Management................................................................................48

5.1.5.1 Password Protection ...............................................................48

5.1.5.2 Account Setup.........................................................................48

5.1.5.3 Authority Setup .....................................

..................................49

5.1.5.4 Load Default Setting ...............................................................49

5.1.6 Network Setup.......................................

...............................................49

5.1.6.1 LAN Select ..............................................................................50

TL H.264 DVR User’s Manual

5.1.6.2 LAN Setup...............................................................................50

DHCP......................................................................................50

IP ............................................................................................51

Netmask..................................................................................51

Gateway..................................................................................51

DNS ........................................................................................51

PPPoE Account.......................................................................51

PPPoE Password....................................................................52

PPPoE Max Idle......................................................................52

Connect At Booting ..................................

...............................52

Network Restart ......................................................................52

5.1.6.3 Trigger Port .............................................................................53

5.1.6.4 Email Address.........................................................................53

5.1.6.5 SMTP Setup............................................................................53

Email via SMTP ......................................................................53

SMTP Server ..........................................................................54

SMTP Port ..............................................................................54

SMTP Account ........................................................................54

SMTP Password .....................................................................55

5.1.6.6 DDNS Setup ...........................................................................55

Enable DDNS..........................................................................55

Host Name ..............................................................................56

DDNS Port ..............................................................................56

Submit/ Update ......................................

.................................56

ezDDNS..................................................................................57

5.1.7 RS485 Setup........................................................................................57

5.1.7.1 Unit ID.....................................................................................57

5.1.7.2 Baud Rate ...............................................................................57

5.1.7.3 Bits..........................................................................................57

5.1.7.4 Stop.........................................................................................58

5.1.7.5 Parity.......................................................................................58

5.1.8 Audio Output/Key Beep........................................................................58

5.1.8.1 Audio Output .........................................................................58

5.1.8.2 Key Beep...............................................................................58

5.2 Monitor Setup ....................................................................................................59

5.2.1 Show Camera Title ...............................................................................59

5.2.2 Screen Center Adjust ................................

...........................................59

5.2.3 VGA Resolution ....................................................................................59

5.2.4 Show Color Bar ......................................

..............................................60

5.3 Camera Setup....................................................................................................60

TL H.264 DVR User’s Manual

5.3.1 Analog Camera Select .........................................................................60

5.3.2 Dome Protocol......................................................................................60

5.3.3 Dome ID ...............................................................................................60

5.3.4 Camera Title.........................................................................................61

5.3.5 Covert...................................................................................................61

5.3.6 Brightness ............................................................................................61

5.3.7 Contrast................................................................................................61

5.3.8 Saturation.............................................................................................62

5.3.9 Hue.......................................................................................................62

5.4 Record Setup........................................

5.4.1 Record Mode Setting............................................................................63

5.4.1.1 Record Resolution.................................................................63

5.4.1.2 Record Format ......................................................................63

5.4.1.3 Max Rec. PPS.......................................................................63

5.4.2 Schedule Setup....................................................................................64

5.4.2.1 Day / Night Time Start / End....................................................64

5.4.2.2 Weekend Schedule.................................................................64

5.4.2.3 Weekend Start / End ...............................................................64

5.4.3 Preset Record Configuration ................................................................65

5.4.4 Per Camera Configuration....................................................................66

5.4.4.1 Camera Select ........................................................................66

5.4.4.2 Normal PPS ............................................................................66

5.4.4.3 Normal Qlty .............................................................................66

5.4.4.4 Event Max PPS.......................................

5.4.4.5 Event Qlty ...............................................................................67

5.4.4.6 Event Active ............................................................................67

.............................................................62

................................66

5.4.5 ezRecord Setup....................................................................................67

5.4.6 Data Lifetime ........................................................................................68

5.4.7 Circular Recording................................................................................68

5.4.8 Audio Recording...................................................................................69

5.4.9 Purge Data ...........................................................................................69

5.4.7.1 Purge All Data.........................................................................69

5.4.7.2 Purge All Event Data...............................................................69

5.4.7.3 Purge Event Before.................................................................69

5.4.7.4 Start to Purge ..........................................................................69

5.5 Sequence Setup ................................................................................................70

5.5.1 Main / Call Monitor Dwell...........................

...........................................70

5.5.2 Main / Call Monitor Schedule................................................................70

5.6 Event Setup .........................................

..............................................................71

5.6.1 Internal Buzzer .....................................................................................71

TL H.264 DVR User’s Manual

5.6.2 Event Icon ............................................................................................71

5.6.3 Email Notice .........................................................................................71

5.6.4 Email Notice .........................................................................................72

5.6.5 Email Full Screen .................................................................................72

5.6.6 Event Duration......................................................................................72

5.6.7 Per Channel Config..............................................................................73

5.6.7.1 Channel Select........................................................................73

5.6.7.2 Video Loss Detect...................................................................73

5.6.7.3 Motion Detect..........................................................................73

5.6.7.4 Motion Detect Indicator .............................

..............................73

5.6.7.5 Detection Config .....................................................................74

Sensitivity................................................................................74

Block Threshold ......................................................................74

5.6.7.6 Alarm In...................................................................................75

5.6.7.7 Alarm Out................................................................................75

5.7 Database Setup .................................................................................................75

5.7.1 Total / Free Size of HDD.......................................................................75

5.7.2 Available Recording Time.....................................................................75

5.7.3 Internal Disks........................................................................................76

5.8 Configuration .....................................................................................................76

5.8.1 Load Factory Default............................................................................77

5.8.2 Import Configuration.............................................................................77

5.8.3 Export Configuration.............................................................................78

5.8.3.1 Copy Destination....................................

.................................78

5.8.3.2 Configuration Name ................................................................78

5.8.3.3 Begin Export ...........................................................................78

5.9 Video Export ......................................................................................................79

5.9.1 Select Device .......................................................................................79

5.9.2 Select Channel .....................................................................................80

5.9.3 From / To Time .....................................................................................80

5.9.4 Select Events .......................................................................................80

5.9.5 Data Type .............................................................................................81

5.9.6 Export Format.......................................................................................81

5.9.7 Digital Signature ...................................................................................81

5.9.8 Erase Disc............................................................................................82

5.9.9 Begin Export.........................................................................................82

5.10 Shutdown............................................

...............................................................82

5.10.1 Power Off .............................................................................................82

5.10.2 Reboot..............................................

....................................................82

6. Remote Monitoring Software.....................................................................................83

TL H.264 DVR User’s Manual

6.1 System Requirements........................................................................................83

6.2 Installation of Software.......................................................................................84

6.2.1 Change Internet Settings......................................................................84

6.2.2 Install SpecoRemote ............................................................................86

6.2.2.1 Login / Logout .........................................................................87

6.2.2.2 Software Upgrades .................................................................88

6.3 Basic Operation .................................................................................................88

6.3.1 View Live Video....................................................................................88

6.3.1.1 Select Display Mode ...............................................................89

6.3.1.2 Operating Cameras with Dome Control .................

.................89

6.3.2 Instant Recording .................................................................................90

6.3.2.1 Record Video Instantly............................................................90

6.3.2.2 Playback Instant Recorded Video ...........................................90

6.3.3 Playback Video.....................................................................................91

6.3.3.1 Playback Remote Video..........................................................91

6.3.3.2 Playback Local *.drv Files .......................................................92

6.3.3.3 Playback Controls ...................................................................92

6.3.4 Verify Digital Signature .........................................................................93

6.3.5 Search from Event List.........................................................................93

6.3.6 Take a Snapshot...................................................................................94

6.3.7 Health Status ........................................................................................94

6.3.8 Remote Monitoring Software Trouble Shooting Guide .........................95

Appendix A: Recommended HDDs ................................................................................96

Appendix B: Remote Controller .......................

..............................................................97

Appendix C: Setting up a DVR behind a Router............................................................99

1. Overview

DVR-4TL/8TL/16TL is an integrated digital video recorder that combines the

features of a time-lapse audio / video recorder, a multiplexer, and a video

server to create a single security solution.

TL H.264 DVR User’s Manual

Its outstanding variable

and playback any recorded video by date/time or event, and remotely monitor

the unit via internet on PC, MEANWHILE the recording of the DVR unit is

ongoing simultaneously.

DVR-4TL/8TL/16TL is enhanced to provide H.264 compression mode.

Moreover, a marvelous implementation is the brand-new experience of

Graphical User Interface (GUI) that optimizes the monitoring controls of the

unit.

DVR-4TL/8TL/16TL is pre-installed with remote viewing and configuration

software SpecoR

view live or recorded video images, and enables remote configuration.

SpecoRemote is stored in DVR-4TL/8TL/16TL and deployed over a LAN,

WAN or Internet connection to remote Windows-based computers. This

simplifies the installation and maintenance of the software components so all

remote users are using the same software coming from the unit.

emote, which is a Web-browser plug-in allowing users to

operation enables users to view live video, search

2. System Setup

The notices and introduction on system installation will be described

particularly in this chapter. Please follow the description to operate the unit.

In order to prevent the unit from data loss and system damage that caused by

a sudden power fluctuation, use of an Uninterruptible Power Supply (UPS) is

highly recommended

2.1 Position the DVR

First, note to position / mount the DVR in a proper place and be sure to power

off the unit before making any connections. The placed location should avoid

hindering or blocking the unit from airflow. Enough airflow is needed to protect

the unit from overheating. The maximum allowable temperature of operating

TL H.264 DVR User’s Manual

environment is 40°C.

The unit utilizes heat-conducting techniques to transfer internal heat to the

case, especially to the bottom side of the unit.

NOTE: Be sure the rubber feet are not removed, and always leave a

space for air ventilation on the unit’s bottom side.

2.2 Select Video Format

The DVR is designed to operate under either NTSC or PAL video formats.

The switch is on the rear panel.

2.3 Connect Devices to the DVR

This section lists some important notices that should be read before making

any connection to the DVR.

Connecting Required Devices

Before power up the unit, cameras and a monitor should be connected to the

unit for basic operation. If needed, connect a call monitor for displaying full

screen video of all installed cameras in sequence.

TL H.264 DVR User’s Manual

Connecting Short-term Device

If any short-term devices shall be installed to the DVR as parts of the unit

system, such as USB ThumbDrive® or any USB devices, etc, make sure

those devices are connected only after the unit is powered up. The reason is

because the DVR can recognize the external devices only after the power-up

process is done completely.

2.4 Rear Panel Connections

There are various connectors on the rear panel for the DVR installations. The

following shows the detailed description of each connector.

Main Monitor (BNC/ VGA)

BNC and VGA output connectors are offered for

connecting to a main monitor. The main monitor displays

live image and playback recorded video in either

full-screen or split-window format.

Call Monitor

The call monitor is used to display full screen video of all

installed cameras in sequence. The BNC call monitor

connector allows users to connect the DVR with an

optional call monitor.

Video In

A group of BNC connectors is offered for video input

streams from installed cameras. The number of

connectors is equal to the number of channels.

TL H.264 DVR User’s Manual

Alarm I/O & RS485

DVR-4TL

A D-Sub connector is provided to

offer users the flexibility to connect

the DVR to Alarm I/O and RS-485

DVR-8TL & DVR-16TL

devices. Refer to Setup Guide for

detailed pin definitions.

LAN Connector (RJ-45)

The DVR is capable of networking. Once the unit is

connected to the LAN network, users can remotely

access the unit through SpecoRemote on a PC.

USB Connector (x1)

There is one USB port provided to allow users to connect

a PS/2 mouse via a USB converter.

Power Jack

The DVR has a free voltage DC power connection jack.

Please connect the power adapter shipped with the unit.

Audio In

Audio In connectors are offered for

DVR-4TL

connecting audio source devices to

the unit. DVR-4TL offer RCA

connectors while DVR-8TL and

DVR-16TL offer a D-Sub connector.

DVR-8TL & DVR-16TL

Audio Out – Main & Call

Main & Call Audio Out RCA connectors

are provided for connecting the DVR to

audio output devices (e.g. amplified

speakers). “Main” will output audio from

the main monitor, whereas “Call” will

output audio form the call monitor.

3. General System Setup

Before operating the DVR, some general configuration should be setup first.

The following subsections will introduce function keys on the front panel and

general configuration of the DVR.

The regular displayed OSD information and its displayed positions are shown

as following figure. Title of the channel will be displayed on the top-left corner

of the window, either in full screen mode or in multiple channel mode. The

current operating mode, including Call mode, Dome Control mode, Playback

mode, Freeze mode and Sequence mode, will be displayed on the

bottom-left corner of the screen. The date/ time information will be display on

the bottom-right corner of the screen. On the upper-right corner will show the

authority level of login account. Under logout condition, the icon will show “N”.

TL H.264 DVR User’s Manual

Ch1

►*1

3.1 Front Panel Introduction

The front panel controls enable users to control the unit and preset the

programmable functions.

3.1.1 LED Definition

The LEDs on the front panel of the DVR are described as follow.

Power LED

2008/05/09 PM04:31:22

The LED lights up when the correct power is connected to the unit.

Alarm LED

The LED lights up when an alarm is triggered.

Network LED

The LED lights up when the DVR is connected to a network and

blinks when the data is being transferred.

REC LED

The LED blinks while the DVR is recording.

3.1.2 Function Keys

This section describes the functional keys on the front panel of the DVR.

Refer to the Setup Guide for the graphical illustration of functional keys.

CHANNEL

• In both Live and Playback modes, press the CHANNEL key to view the

corresponding video in full screen. The number of the CHANNEL keys

corresponds to the number of cameras supported by the unit.

• In Dome Control mode, the key “1” is used to access the Set/Go preset

menu; the key “2” is used to hide or display the hint screen.

In OSD virtual keyboard, press keys 1~9 to input number 1~9, and press

•

key 10 to input number 0.

COPY

TL H.264 DVR User’s Manual

In Playback mode, press COPY to select the start and end time of the export

video. Refer to section Video Export for detailed information.

CALL

• In Live mode, press this button to enter call monitor control mode.

• In Dome Control mode, press CALL in association with ENTER to enter

the OSD setup menu of the dome camera.

• In OSD virtual keyboard, press this key to input a period mark “.”.

Direction Keys

• In Zoom mode, these keys function as Direction keys.

• In the OSD setup menu, the LEFT/ RIGHT keys are used to move the

cursor to previous or next fields. To change the value in the selected field,

press UP/ DOWN.

ENTER / ZOOM

• In OSD setup menu or selection interface, press this key to make the

selection or save settings.

• In live full screen view mode, press this key to view a 2× zoom image;

press it again to exit Zoom mode.

DOME

• Press the key to enter dome control mode. Please refer to section Dome

• In OSD virtual keyboard, press this key to go backspace.

Control for detailed controlling operation.

TL H.264 DVR User’s Manual

ESC

• Press to cancel or exit from certain mode or OSD setup menu without

changing the settings made previously.

• If password protection has been enabled, press ESC for five seconds to

lock up functions of certain keys, including PLAY, MENU, SEARCH,

DOME and CALL. Once users lock up the functions of these keys, enter

proper username and password to unlock.

NOTE: Please go to the <System Setup>  <User Management>

menu to enable or disable the password protection.

MODE

Press repeatedly to select for wanted monitor display format. The available view modes includes: full-screen, 4-window (2×2), 9-window (3 × 3) and 16-window (4×4). Refer to section Viewing Modes for detailed information.

PLAY/STOP

Press this key to switch between live image and playback video.

NOTE: According to record setting, part of the latest video cannot be

played back because the video is still saved in the buffer.

FREEZE

• Press FREEZE while viewing live image, the live video will be frozen. The

date / time information shown on the monitor will continue updating. Press

FREEZE again to return to live mode.

• Press FREEZE while playing the recorded video, the playback video will

be paused. Press LEFT / RIGHT to move the recorded video reverse /

forward by single step. Press FREEZE again to continue playing video.

SEQ (Sequence)

Press to start automatic sequence display of video from all installed cameras.

In both Playback and Live mode, press SEARCH to enter the Search menu

for searching and playing back recorded video by date and time or events.

Press this key to enter the OSD setup menu.

3.2 Entering OSD Setup Menu

◄

►

The configuration of the DVR can be customized by entering the intuitive

Graphical User Interface (GUI) OSD setup menu. Collaborating with a USB

mouse, setting up the DVR can be easy as operating on a PC. Press MENU

and input a valid username. There are two preset accounts: “admin” and

“user”. “admin” can be inputted via pressing the hot key MENU, while “user”

can be inputted via pressing the hot key SEARCH. Move to <OK> and press

ENTER to proceed.

Input Username

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 # − _ , “ + = *

Backspace Delete

Cancel OK

TL H.264 DVR User’s Manual

! @

The next step is to enter a corresponding password. The preset password for

“admin” is “1234”, and the password “4321” is for “user”.

Password Verification

_______

Press Channel Keys To Enter Password

(4-8 Digits)

Press ◄ Key To Delete

NOTE: It is strongly suggested to change the preset password to

prevent unauthorized access to the unit.

An icon displayed at the upper-right corner of the screen will show the

authority level of the account. Under logout condition, the icon will show “N”.

When an account is logged in, its authority level number (1~8) will be shown.

Before completely logout, other functions can also be accessed without

having to login again. There are two ways to logout: manually logout by

pressing ESC key at Live mode, or auto logout when keys are not pressed for

5 minutes at Live/ Menu mode.

3.2.1 User Management

The DVR provides the option to create up to seven sets of usernames and

passwords with customized authority, excluding the preset “admin” account.

From the Main Menu, select <System Setup>  <User Management> and

the menu is as the following:

1. Password Protection

2. Account Setup

3. Authority Setup

4. Load Default Setting

Password Protection

Select <ON> to request for username and password for accessing functions

listed in Authority Setup menu, or select <OFF> to allow free access.

TL H.264 DVR User’s Manual

User Management

Account Setup

Setup customized username, password, and authority level in this menu. The

username is case sensitive. The authority level is ranked from level 1~8, and

level 8 has highest authority. Alternatively, select <Disable> to suspend the

account.

NOTE: The username and authority level of the preset “admin”

account cannot be changed.

Authority Setup

Setup the allowed authority level for accessing the functions listed in this

menu. The functions include: Playback/Search, Dome Control, Call Control,

Export Data, Menu Access, System Setup, Monitor Setup, Camera Setup,

Record Setup, Sequence Setup, Event Setup, Database Setup,

Configuration and Shutdown. The authority level is ranked from level 1~8,

and level 8 has highest authority. Alternatively, select <Disable> to allow free

access.

NOTE: The “Menu Access” cannot be set to <Disable>.

When the account does not have authority to access certain

functions, an error message will be displayed on the screen.

Load Default Setting

Select <Yes> to load the default setting.

3.3 Power Up / Shutdown the DVR

If the DVR must be shutdown for any reason, please use the proper shut

down and power up procedures to avoid damaging the DVR.

Power Up the Unit

Simply plug in the power adapter that came with the package and the DVR

will start to boot.

The color bar and system checking information will be shown on the monitor

and then disappear when the unit has been completely powered up.

TL H.264 DVR User’s Manual

Restart / Shutdown the Unit

Press MENU and input the username and password that has sufficient

authority to access the OSD setup menu. Select <Shutdown> in Main Menu

and press ENTER to enter the Shutdown menu, which displays as follows.

Shutdown

1. Power Off

2. Reboot

Execute Execute

Select this item to shut down the unit. Do not remove the power during shut

down until the message “You can safely turn off DVR now!” displays.

Select this item to reboot the unit. The color bar and system checking

information are displayed on the monitor until the unit is completely restarted.

3.4 System Date / Time Setting

Users can set the current date, time and other OSD parameters in Date/Time

menu (under System Setup menu). The login account should have authority

to access the System Setup menu. In OSD setup menu, select <System

Setup> and press ENTER, then select <Date/Time> to access the Date/Time

menu; the menu displays as follows.

Date/Time

1. Date

2. Time

3. Time Zone

4. Date/Time Display

5. Date Display Mode

6. Time Display Mode

7. Date/Time Order

8. Daylight Saving Time Setup

9. Network Time Protocol Setup

TL H.264 DVR User’s Manual

2008/02/21

PM10:39:26

OFF

1 Row

Y/M/D

12 HR

Date First

3.4.1 Set Date / Time

Set Date / Time

Select <Date> / <Time> and press ENTER to adjust the settings. LEFT /

RIGHT keys are used to move the cursor to previous or next field, ENTER is

for selecting, and UP / DOWN are used to change the value in the selected

field.

NOTE: The new date / time setting applies to record new video. The

date and time of previously recorded video will not be changed.

NOTE: If time settings have to be changed in any case, it is strongly

recommended to format the HDDs to avoid database corruption.

Date / Time Display

Users are allowed to set the time OSD displays in 1 or 2 rows. Use the UP /

DOWN keys to change the setting.

TL H.264 DVR User’s Manual

Date Display Mode

This function allows users to set the OSD display type of the date. There are

three options to select from: <Y/M/D>, <M/D/Y> or <D/M/Y>. “Y” represents

“Year”, “M” represents “Month” and “D” represents “Day”.

Move to the item and press ENTER, the option starts blinking. Use UP /

DOWN keys to change the setting.

Time Display Mode

Users can set the time format to <12 hour> or <24 hour>. Use the UP /

DOWN keys to change the format.

Date / Time Order

The item is used to set the order of date / time display to <Date First> or

<Time First>. Use UP / DOWN keys to change the setting.

3.4.2 Daylight Saving Time

Daylight Saving Time

The item is for those people who live in certain regions to observe Daylight

Saving Time. Select <ON> to enable, or <OFF> to disable the function.

If the function is disabled, the DST Start / End time and DST Bias will be

grayed out and cannot be accessed.

NOTE: If this function is enabled, the date/ time information will be

shown on the screen with a DST icon when playing back recorded

video or searching video in the event list. “S” indicates summer time

and “W” indicates wintertime.

DST Start / End

The items are used to program the daylight saving duration. Use LEFT /

RIGHT keys to move the cursor to the next or previous field, UP / DOWN to

change the settings in the selected field.

DST Bias

The item allows users to set the amount of time to move forward from the

standard time for daylight saving time. The available options are in minutes.

3.4.3 Network Time Protocol Setup

Time Zone

Select <Time Zone> to enter the time zone. To find out the correct local time

zone, please visit www.greenwichmeantime.com or refer to the following

figure.

TL H.264 DVR User’s Manual

NOTE: The <Time Zone> must be set to the correct local time zone

or the <Network Time Protocol Setup> will not be accessible.

Network Time Protocol Setup

After entering the time zone, the <Network Time Protocol Setup> option will

appear. Select the <Network Time Protocol Setup> to set the time server.

The default time server is time.nist.gov, but the user can change it to other

time servers when desired. A list of IP addresses of the time servers is listed

below.

129.6.15.28 129.6.15.29 132.163.4.101

132.163.4.102 132.163.4.103 128.138.140.44

192.43.244.18 131.107.1.10 69.25.96.13

206.246.118.250 208.184.49.9 64.125.78.85

207.200.81.113 64.236.96.53 68.216.79.113

After the time server is set, set <Manually Time Sync> to <Yes> to sync the

time immediately. The time sync can also be updated periodically. Set

<Automatically Time Sync> to <ON>, and the time will be automatically

synced once an hour.

TL H.264 DVR User’s Manual

3.5 Record Schedule / Quality Setting

The Record Setup menu allows users to set recording quality, recording

schedules, and other recording parameters. Login with a proper account to

access Record Setup menu. In the Main menu, move the cursor to <Record

Setup> and press ENTER; the following menu is displayed.

Record Setup

1. Record Mode Setup

2. Schedule Setup

3. Preset Config

4. Per Camera Config

5.ezRecord Setup

6. Data Lifetime

7. Circular Recording

8. Audio Recording

9. Purge Data

Best Quality

0 Days

ON ON

3.5.1 Schedule Setup

The Schedule Setup is used to set the day and night time, or weekend

recording schedule. Select <Schedule Setup> from the Record Setup menu

and press ENTER; the following menu is displayed.

1. Day Time Start

2. Day Time End

3. Night Time Start

4. Night Time End

5. Weekend Schedule

6. Weekend Start

7. Weekend End

• Make appropriate changes of the start time of Day and Night Time using

Direction keys.

• Press ENTER to confirm the settings or ESC to cancel.

• If a weekend record is required, select <ON> to enable the Weekend

Schedule Setup

AM 06:00 PM 06:00 PM 06:00 AM 06:00

Fri 18:00

Mon

06:00

Schedule in advance and then set the Weekend Start/End time.

• Press ESC to return to previous page.

3.5.2 Preset Record Configuration

CH1

The <Preset Config> is used to select the preset recording quality and frame

rate. In normal circumstances, it is strongly recommended to set the preset

configuration as <Best Quality>. Below table shows the PPS and picture size

under <Best Quality> in Half-D1 mode for DVR-16TL. Please refer to the

section Preset Record Configuration under Advanced System

Configuration for more detailed information.

Half-D1 mode (NTSC: 720x240@120PPS; PAL: 720x288@100PPS)

Normal PPS Normal Size Event PPS Event Size

7.5 NTSC

(6.25 PAL)

12 KB / PIC

3.5.3 Per Camera Configuration

30 NTSC

(25 PAL)

TL H.264 DVR User’s Manual

12 KB / PIC

This function is used to set the Day / Night / Weekend PPS (Picture per

Second) and Quality for each channel. The Preset Configuration must be set

to <OFF> for accessing these schedules. The menu is displayed as below

(Record Mode: 720×240@120PPS in NTSC / 720×288@100PPS in PAL for

DVR-16TL).

Per Camera Config

Cameral Select

Normal PPS Normal Size Event Max PPS Event Size Event Active

Day

7.5

Mid

Best

Both

Night

7.5

Mid

30 Best Both

Weekend

7.5

Mid

Best

Both

• First, select a Camera for setting its record configuration. The image and

recording settings from the selected camera will be displayed on the

screen.

• Move the cursor using Direction keys and press ENTER to select an item.

• Change the value using UP / DOWN keys.

• Press ENTER to confirm the settings or ESC to abort.

• Press ESC to return to Record Setup menu.

Please note that the total normal PPS for all channels (for DVR-16TL) cannot

exceed 120 NTSC (720×240@120PPS) / 100 PAL (720×288@100PPS). To

increase one channel’s PPS, you may have to reduce others’ first. Event PPS

is not restricted to this rule, since a smart event scheduler will handle the total

PPS with a correct weighting.

3.5.4 Record Event Video Only

If the DVR shall start recording only when alarms are triggered, follow the

steps below:

• Enter the OSD setup menu with correct password.

• In the OSD setup menu, select <Record Setup> menu. Move the cursor to

the item <Preset Config>, and select <Event only>.

TL H.264 DVR User’s Manual

Refer to the section Preset Record Configuration

System Configuration for more detailed information.

under Advanced

4. Basic Operation

The DVR allows users to access some general operations through the front

panel easily. The following sections introduce the general operations of the

unit.

4.1 View Live / Playback Video

The general functions in live and playback mode are described in the

following sections.

4.1.1 Viewing Modes

The DVR provides users versatile ways of viewing both live and recorded

video. Following presents these view formats.

TL H.264 DVR User’s Manual

Viewing in Full Screen

Press any CHANNEL key directly to view the corresponding camera image in

full screen format.

Viewing in Multi-window

Various multi-window view formats are offered for selection. To switch

between available viewing formats, press MODE repeatedly.

The available view formats are illustrated as the following figure.

NOTE: 3x3 viewing mode is only available in DVR-8TL and

DVR-16TL, whereas 4x4 viewing mode is only available in

DVR-16TL.

4.1.2 Digital Zoom

Users are able to view a 2× full screen in live mode. To view the 2× full

screen, follow the steps.

• Press any CHANNEL key to view the corresponding camera in full screen.

• Press ENTER to view 2× zoomed screen of the selected camera.

• To view a specific area in 2× zoomed screen, use Direction keys to pan /

tilt the zoomed screen.

• Either press ENTER again or ESC to leave the Zoom mode.

4.1.3 View Live Cameras

Users are allowed to view live camera in versatile viewing modes, including full-screen, 2×2, 3x3 and 4×4. The general operation under live mode is

described as follows.

TL H.264 DVR User’s Manual

Freeze Live Image

Press FREEZE while viewing live image, the image pauses but the date /

time information does not, and the system clock continues running.

Press FREEZE to pause the live image; press FREEZE again to resume the

live camera view.

4.1.4 View Recorded Video

To view recorded video, users can press PLAY key directly. When press the

PLAY key, the unit starts to continue playing back the recorded video from the

suspended point of record. If it is the first time to use the PLAY key, the unit

will playback from the very beginning of the record. Alternatively, users can

select records from the Search menu to play specific video. Refer to section

Search Recorded Video for more information.

NOTE: When playing back videos with mass motion recorded in D1

mode (resolution=720x480), press SEQ key to switch on “deflicker

function” to avoid gleaming of images. Press SEQ again to switch

“deflicker off” and the image will return to real D1 resolution.

The Forward or Reverse speed indicator will be shown on the bottom-left

corner of the screen, when in the playback mode.

TL H.264 DVR User’s Manual

The general operations in playback mode are described as follows.

Key Usage in Playback

The key usage is slightly different in playback mode. Following is the key

usage found in playback mode.

 LEFT (Reverse Playback)

The key is used to reverse the recorded video while the unit is playing

back. Press the key repeatedly to increase the speed of reverse

playback by 1×, 2×, 4×, 8×, 16×, or 32×.

 RIGHT (Forward Playback)

The key is used to play the recorded video fast forward. Press the key

repeatedly to increase the speed of forward playback by 1×, 2×, 4×, 8×,

16×, or 32×.

 FREEZE

Press FREEZE to pause the playback video. When the recorded video is

paused, press LEFT / RIGHT to resume playback video single step

reverse / forward, respectively. Press FREEZE again to continue playing

video.

 PLAY

Press it to start playing back video, exit current mode, or stop playing

back video and return to live mode.

Pause Playback and Single Step Forward

To pause and resume recorded video, follow these steps.

• Press any CHANNEL key to view the corresponding camera in full screen.

• Press FREEZE to pause the current playback image.

• Press LEFT / RIGHT Direction keys to move the video single step reverse

/ forward. Press and hold LEFT / RIGHT keys to repeatedly reverse /

forward the video single step.

• Press FREEZE again to resume the playback operation.

4.2 Sequence

This section introduces the way to view sequence mode with both Main

Monitor and Call Monitor, if connected. Sequence function can avoid manual

backtracking and provides more flexibility while monitoring surveillance.

4.2.1 Sequence with Main Monitor

Automatic sequence function can be observed in any view mode. Select

certain view format and press SEQ to toggle the automatic sequence; press

ESC to stop sequencing. The figure below displays the 4-camera and

9-camera sequencing view modes.

TL H.264 DVR User’s Manual

4-camera:

9-camera:

(for DVR-16TL only)

4.2.2 Sequence with Call Monitor

Users are allowed to use the DVR front panel to control a call monitor display

without having to access the Main menu. Two viewing modes can be

displayed on call monitor: Sequence display and Single camera display. To

program the call monitor sequence, see section Sequence Setup

Advance System Configuration.

Follow the steps to control the call monitor.

• Press the CALL key on the front panel to enter Call Monitor Control mode.

The message “Call Mode” will be shown on the bottom-left of the screen.

under

Press 1-16 Key To Select Channel

Press SEQ To Enable Sequence

Call Mode

• Press CHANNEL key to display the associated camera on call monitor.

• Alternatively, press SEQ repeatedly to display the sequence of cameras

previously programmed in Call Monitor Schedule menu.

• Press ESC to return the front panel to Main Monitor Control mode.

4.3 Search Recorded Video

The DVR is capable of searching and playing back recorded video by time or

by events. To search by time, select a specific date and time of the wanted

video or enter Calendar Search. To search by event, select channels to

display the event list.

In live or playback mode, press SEARCH to enter the Search menu, shown

as below.

----------------------------Search By Time---------------------------From: End: Select:

----------------------------Search By Event---------------------------Select Channel: CH1 CH2 CH3 CH4

TL H.264 DVR User’s Manual

2008/01/01 00:00:00 2008/05/01 00:00:00 2008/01/01 00:00:00

Begin Playback

Calendar Search

Event List

4.3.1 Search by Time

Follow the steps to search video by date and time.

• Press SEARCH to enter the Search menu.

• Move the cursor to “From” and press ENTER will start playing recorded

video from the specified “From” time.

• Move the cursor to “End” and press ENTER will start playing recorded

video from the specified “End” time.

• Move the cursor to “Select” and press LEFT/RIGHT keys to choose date/

time. Press ENTER and adjust the values by UP/DOWN keys.

• Press ENTER to confirm the settings or ESC to abort.

• Move the cursor to <Begin Playback> and press ENTER to start playing

back the selected video.

• Press PLAY again to return to live video.

NOTE: If there is no available recorded video that matches the

specified time and date, the unit starts playback from the next

available video.

NOTE: The date/time information will be shown on the screen

with a DST icon if the Daylight Saving Time function is enabled.

“S” indicates summer time and “W” indicates winter time.

4.3.2 Calendar Search

Follow the steps below to search recorded video via Calendar Search.

• Press SEARCH button to enter the Search menu.

• Move the cursor to <Calendar Search> and press ENTER. A calendar will

be shown as below.

S M T W T F S 1 2 3 4 5 6 7 8 9

15 16 17 18 19

22 23 24 25 26 27 28 29 30 31

---------------------

0 4 8 12 16 20 24

Select:

Calendar Search

2009 / 03

10 11 12 13 14

20 21

Search By Time ----------------------

↓↓↓↓

2009/03/13 PM06:03:02 ►

TL H.264 DVR User’s Manual

• Move the cursor to year/ month and press ENTER. Then press UP/DOWN

keys to adjust the value and press ENTER again to confirm.

• Move the cursor to select any day shown in bold font, and a time ruler will

be displayed.

• Press ENTER and an arrow will show up above the time ruler. Press

LEFT/RIGHT keys to select a desired time. Alternatively, move the cursor

to the time shown at the bottom. Press ENTER and adjust the values of

hour/ minute/ second via UP/DOWN keys.

• Note that the time blocks highlighted in red represent events occurred.

• Move the cursor to the playback icon (►) and press ENTER to start

playing back the video.

4.3.3 Search by Event

“Event List” allows users to search wanted video by event. The Event List is

displayed as below figure:

First Page

Date Time 2008/03/17 11:26:50 2008/03/17 09:53:03 2008/03/16 16:14:42 2008/03/15 03:45:31 2008/03/12 22:27:56 2008/03/12 10:09:29 2008/03/11 12:18:20 2008/03/10 05:16:00 2008/03/08 17:11:37 2008/03/08 16:29:10 2008/03/08 03:22:17

Event List

Ch.

2 5 3 1 1 7 6 4 2 8 2

TL H.264 DVR User’s Manual

Type

Motion

Alarm Alarm

Motion

Alarm Motion Motion

Alarm

The list displays events by date, time, triggered camera and alarm type. As

some events are deleted, others are displayed. The latest recorded event

video will be listed on the top.

Follow these steps to search event video through Event List:

• Press SEARCH to enter the Search menu.

• To search event video that has been recorded on a specific camera, use

LEFT / RIGHT to move the cursor and press ENTER to select or de-select

a channel.

• Move the cursor to <Event List> and press ENTER to list the event video

of the selected channels. The Event List displays.

• To exit the event list, press ESC.

Follow the steps to playback video from Event List.

• Press and hold UP / DOWN to scroll through the Event List.

• Press ENTER to play back the selected event record.

• Press PLAY to return to live mode.

4.4 Video Export

The unit allows users to export wanted video to the built-in DVD+RW or an

external device, such as a USB ThumbDrive, and the exported video will be

saved as *.drv file.

If the video is to be exported to an external device, make sure the device is

connected to the DVR unit and the port has been set appropriately for video

export.

NOTE: Once an external device is connected to the DVR unit, the

device has priority over the built-in DVD+RW. That means the video

will be exported to the external device instead of the built-in DVD+RW.

According to the size of video, the export may take about 10 minutes to 1

TL H.264 DVR User’s Manual

hour.

NOTE: The Central Management System (CMS) software can also

remotely execute video export function. Please refer to the CMS

user’s manual for more details.

4.4.1 ezBurn Introduction

Built with the ezBurn technology, ezBurn function provides users the easier

way to export desired video with built-in DVD+RW or to an external device,

such as an USB ThumbDrive.

TWO keys (SEARCH and COPY) and THREE touches are all what’s needed

for completing the export. The entire exporting process will be done through

the front panel, without needing to enter the OSD setup menu.

The ezBurn exporting process is illustrated as below figure:

The entire process is described step by step in the following sections.

NOTE: The file exported using ezBurn will be in .drv file format, and

it can only be played using the player software, SpecoPlayer.

4.4.2 Export Normal Video

To Export normal video to external device, follow these step:

• Press SEARCH and play wanted normal video by entering date and time,

or via calendar search .

• After entering playback mode, play the video and press COPY once to

mark the starting point of the export video. The playback continues.

• Press COPY again to mark the ending point of the export video. Then the

“ezBurn” window will display as below figure. The information shown on

the window is “read only”.

TL H.264 DVR User’s Manual

ezBurn confirmation

Selected Device: Built-in DVD+RW

All data on the disc will be erased.

Exported Required Size = 11 MB

Real Export Range:

From: 2008/06/07 AM10:41:13

To: 2008/06/07 AM10:41:21

Enter: YES ESC: NO

• Press ENTER to start the export; or, press ESC to abort.

• If there is no any exportable device connected to the DVR unit, then a

warning message will be shown on the screen, as below figure:

No exportable device detected.

Please install the target device/media

to the DVR.

Enter: Retry ESC: Exit

4.4.3 Export Event Video

To export event video, follow these steps:

• Press SEARCH and play wanted event video. To play event video, refer to

section Search Recorded Video.

• After entering the playback mode, press COPY. The “ezBurn” window will

display as below figure. The information shown is “read only”.

Selected Device: Built-in-DVD+RW

All data on the disc will be erased.

Exported Required Size = 11 MB

Data Time Ch Type

2008/06/07 AM10:42:35 13 Motion

TL H.264 DVR User’s Manual

ezBurn confirmation

Export Event Info:

Enter: YES ESC: NO

• If there is no any exportable device connected to the DVR unit, a warning

message will be shown on the screen

• Press ENTER to start the export the whole event video to the connected

device; or, press ESC to abort.

4.5 Dome Control

The DVR allows users to control a dome camera by the front panel. In Live

mode, users can press CHANNEL key to display the desired dome camera in

full screen. To enter Dome Control mode, press the DOME key and press

channel key 2 to display the hint screen. To exit the Dome Control mode and

return to live mode, press ESC or DOME.

In dome control mode, press CALL + ENTER to open the OSD setup menu of

the dome camera. To traverse the menu, press CALL + UP/DOWN keys to

move up/down, CALL + RIGHT/LEFT to change value or to move left/right,

and CALL + ENTER to select or enter submenu.

4.5.1 Dome Connection

Follow the steps to install dome cameras.

• See Setup Guide for RS-485 port pin definition.

• Connect the R+, R- terminals on the dome camera to the D+, D- terminals

on the RS-485 port by RS-485 cable respectively. Refer to the connection

figure illustrated in Setup Guide.

4.5.2 Dome Protocol Setup

Unit ID

Baud Rate

224

The Dome Protocol item lists the available dome protocols for communicating

with dome cameras connected to the DVR. From the Main menu, select

<Camera Setup> and press ENTER. The following menu is displayed.

1. Analog Camera Select

2. Dome Protocol

3. Dome ID

4. Camera Title

5. Covert

6. Brightness

7. Contrast

8. Saturation

9. Hue

10. Audio Association

TL H.264 DVR User’s Manual

Analog Camera

CH1

None

0 0 0 0

Yes

To configure dome protocol, select a camera first and set the communications

protocol associated with dome camera using the Direction keys and ENTER.

NOTE: The settings become effective after saving the changes and

exiting from the menu.

4.5.3 RS485 Setup

The DVR controls the domes via RS-485 communication protocol. The

RS-485 parameters in the DVR must be set to the same parameters set in

dome camera.

Users are allowed to change the RS-485 settings of the DVR. Select

<System Setup> in Main menu, then select <RS485 Setup> from the System

Setup menu and press ENTER. The following menu is displayed.

3. Bits

4. Stop

5. Parity

RS485 Setup

9600

8 1

None

The ID number must match the ID address set by the dome. The Unit ID is in

the range of 1 to 255. Note that there cannot be any two devices on the same

bus given the same ID address, or a conflict may occur.

NOTE: The settings become effective after saving the changes and

exiting from the menu.

4.5.4 Dome Controlling Keys

The functions of some keys in Dome Control mode are totally different from

normal status function. Please refer to Setup Guide for the graphical

illustration of functional keys.

Set / Go Preset

This key is used to enter the Dome Preset menu to set up certain position as

TL H.264 DVR User’s Manual

a preset and go to the predetermined preset positions for viewing.

Toggle Hint Screen

This function is used to avoid viewing the dome parameter information while

controlling dome cameras. Press this key to hide the screen. Press it again to

redisplay the screen.

Iris Open

Use to open the Iris on the dome camera.

Focus Near

Use to focus the dome camera near.

Zoom In

Use to zoom in the dome camera. This function enables users to enlarge a

certain area.

ESC

Use to leave Dome Control mode and return to live and full-screen viewing

mode.

TL H.264 DVR User’s Manual

Auto / Enter

• In OSD setup menu interface, the key is used to make selection.

• In Dome Control mode, this key is used to activate automatic focus and

iris function.

Iris Close

Use to close the Iris on the dome camera.

Focus Far

Use to focus the selected dome camera far.

Zoom Out

Use to zoom out the dome camera. This function enables users to shrink the

current image and view a larger area.

Pan / Tilt

Use to pan and tilt dome camera.

4.5.5 Setting Preset Points

The DVR allows users to set preset positions. The amount of preset points

depends on the dome manufacturer.

Follow the steps to set preset points.

• Press a Channel key to view the corresponding camera in full screen.

• Then press DOME to enter Dome Control mode. A Hint Screen shown as

below figure displays on the screen.

• Press 2 to hide the Dome Control Hint Screen; press 2 again to toggle the

Hint Screen.

• Use Direction keys to position the dome camera to desired position.

Hint Screen

DOME / ESC: Exit MODE / PLAY: Iris Open / Close SEQ / FREEZE: Focus Near / Far MENU / SEARCH: Zoom In / Out ENTER: Auto Focus / Iris ◄▲▼►: Pan / Tilt CH1: Set / Go Preset CH2: Hint Screen On / Off

Dome Control

TL H.264 DVR User’s Manual

• Press 1 to access the Set/Go Preset function. The Dome Preset menu is

displayed.

Dome Preset

First Page

Index

1 2 3 4 5 6 7

Set Preset

No No No No No No No

Go Preset

No No No No No No No

• Use UP / DOWN keys to select the desired preset number from the menu.

• Set the <Set Preset> of the selected preset number to <Yes>, and press

ENTER to save the position. Now the preset is set and ready to be called.

4.5.6 Calling Preset Points

Follow the steps to call preset points.

• Press a Channel key to view the corresponding camera in full screen.

• Then press DOME to enter dome control mode. A Hint Screen shown as

below figure will be displayed on the screen.

• Press 2 to hide the Dome Control Hint Screen; press 2 again to toggle the

Hint Screen.

• Press 1 to access the Set/Go Preset function.

First Page

Index

1 2 3 4 5 6 7

Dome Preset

Set Preset

No No No No No No No

Go Preset

No No No No No No No

• Use UP / DOWN keys to select the desired preset number from the menu.

• Set the <Go Preset> of the selected preset number to <Yes>, and press

ENTER to call the preset point.

• Now the selected dome camera rotates to the preset position automatically.

TL H.264 DVR User’s Manual

◄

►

5. Advanced System Configuration

The detailed functions and settings of DVR-4TL/8TL/16TLcan be set by

entering the intuitive Graphical User Interface (GUI) OSD setup menu.

Collaborating with a USB mouse, setting up the DVR can be easy as

operating on a PC. This chapter particularizes the items and options in the

OSD setup menu.

Username and Password

Press MENU and input a valid username. There are two

preset accounts:

“admin” and “user”. The default username “admin” can be inputted via

pressing the hot key MENU, while “user” can be inputted via pressing the hot

key SEARCH. Move to <OK> and press ENTER to proceed.

Input Username

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 # − _ , “ + = *

Backspace Delete

Cancel OK

! @

The next step is to enter a corresponding password. The preset password for

“admin” is “1234”, and the password “4321” is for “user”.

Password Verification

____________

Press Channel Keys To Enter Password

(4-8 Digits)

Press ◄ Key To Delete

NOTE: It is strongly suggested to change the preset password to

prevent unauthorized access to the DVR.

An icon displayed at the upper-right corner of the screen will show the

authority level of the account. Under logout condition, the icon will show “N”.

When an account is logged in, its authority level number (1~8) will be shown.

Before completely logout, other functions can also be accessed without

having to login again. There are two ways to logout: manually logout by

pressing ESC key at Live mode, or auto logout after 5 minutes idle time at

Live/ Menu mode.

Key Usage in OSD setup menu

◄

►

In the OSD setup menu, Direction keys are used to move the cursor to select

menu items. UP / DOWN are used to change the value in the selected field.

<ENTER>

In OSD setup menu or selection interface, press this key to select or save

settings.

<ESC>

Press to cancel or exit from certain OSD setup menu without saving any

changes.

TL H.264 DVR User’s Manual

Key Usage in Virtual Keyboard

A virtual keyboard shows is some setting items, such as camera title, e-mail

address, etc. The virtual keyboard displays as follows.

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 # − _ , “ + = *

Cancel OK

Move the cursor by pressing Direction keys and press ENTER to select

characters. Alternatively, press channel keys 1~9 to directly enter number 1~9,

press channel key 10 to directly enter number 0, or press “CALL” key to

Backspace Delete

! @

directly enter a period mark “.”. The hot keys are for speeding up inputs of IP

addresses or etc.

Select < ◄ > / <► > and press ENTER, or press MODE and < ◄ > / <► >

simultaneously to move the cursor to left / right in the title entry field.

Select <Backspace> and press ENTER, or press DOME.

Select <Delete> and press ENTER.

Select <OK> and press ENTER to save the settings and exit, or press ESC to

exit without saving changes.

NOTE: If a USB keyboard is connected and when any key on the

keyboard is pressed, the cursor on the virtual keyboard will be

automatically moved to “OK”.

5.1 System Setup

Select <System Setup> from the Main Menu and press ENTER to enter the

System Setup menu. The items in the System Setup menu are described in

TL H.264 DVR User’s Manual

the following sections.

1. System/Version Info

2. Language

3. Date/Time

4. Unit Name

5. User Management

6. Network Setup

7. RS485 Setup

8. Audio Output/Key Beep

5.1.1 System/Version Info

The System/Version Info menu allows users to view system information such

as hardware and software version. From the System Setup menu, select

<System/Version Info> and press ENTER. The following menu is displayed.

The first five items are “read only”, thus CANNOT be changed. The items in

this menu are described in the following subsections.

System Setup

English

DVR

System/Version Info

Model Name Video System Hardware Software MAC Address 1 Software Upgrade via Local Device

****-****-****-****

**:**:**:**:**:**

****

NTSC

**-**-**

5.1.1.1 System and Version Information

Select

The first five items show the model name, video system, MAC Address1, and

identify the hardware and software version for this unit.

5.1.1.2 Software Upgrade via Local Device

This item is used for updating software of DVR-4TL/8TL/16TLvia local device.

The menu is displayed as follows.

Software Upgrade via Local Device

Upgrade Version xxxx-xxxx-xxxx-xxxx

Connect an USB storage device containing upgrade software to the DVR; the

available upgrade files will be listed in the menu. To update the system, select

a file and use UP / DOWN keys to choose <Yes>. Press ENTER to confirm

TL H.264 DVR User’s Manual

the selection and start the upgrade process. DVR-4TL/8TL/16TL will

download the software, update the system files, and reboot automatically.

The upgrade may take several minutes to save the changes in the memory of

the system. After the DVR is rebooted, please check the software version

again.

NOTE: Power interruption is NOT allowed during the software update.

Ensure that no power interruption can occur until the DVR is

completely rebooted.

NOTE: Do not remove the external USB ThumbDrive / DVD+RW

before the DVR has completely shutdown (hard drive and fan are off).

Removing the external USB ThumbDrive / DVD+RW before shutdown

can cause the system to update improperly.

5.1.2 Language

2008/02/21

PM10:39:26

1 Row

Y/M/D

12 HR

Date First

The Language item allows users to select the language for the OSD menu

and screen messages. Language selection takes effect immediately when the

selection is made. Press UP / DOWN to select from listed languages and

press ENTER to confirm.

5.1.3 Date / Time

Users can set the current date, time and other OSD parameters in this menu.

Setup menu, select <Date/Time> and press ENTER. The Date/Time menu

displays as follows.

1. Date

2. Time

3. Time Zone

4. Date/Time Display

5. Date Display Mode

6. Time Display Mode

7. Date/Time Order

8. Daylight Saving Time Setup

9. Network Time Protocol Setup

TL H.264 DVR User’s Manual

Date/Time

OFF

NOTE: The reset of date / time setting only applies to new video. The

date and time of previously recorded video will not be changed.

NOTE: To avoid database corruption, formation of the database must

be done after changing Date/Time setting.

5.1.3.1 Date / Time

Select <Date> or <Time> and press ENTER to adjust the settings. LEFT /

RIGHT keys are used to move the cursor to previous or next field, ENTER is

for selecting, and UP / DOWN are used to change the value in the selected

field.

5.1.3.2 Time Zone

Press ENTER to set users’ local time zone. Please refer to the following figure

or visit www.greenwichmeantime.com to find out users’ local time zone.

TL H.264 DVR User’s Manual

NOTE: <Time Zone> must be set to users’ local time zone or the

<Network Time Protocol Setup> will not be accessible.

5.1.3.3 Date / Time Display

The date/time display can be set to be shown in 1 row, 2 rows, or not shown.

Use the UP / DOWN keys to change the setting.

5.1.3.4 Date Display Mode

This menu allows users to set the display type of the date. Three options are

provided: <Y/M/D>, <M/D/Y> or <D/M/Y>. “Y” represents “Year”, “M”

represents “Month” and “D” represents “Day”. Use UP / DOWN keys to

change the setting.

5.1.3.5 Time Display Mode

Users can set the time format to <12 hour> or <24 hour>. Use the UP /

DOWN keys to change the format.

5.1.3.6 Date/Time Order

This item is used to set the order of Date/Time display to <Date First> or

<Time First>. Select this item and press UP / DOWN keys to change the

setting.

5.1.3.7 Daylight Saving Time Setup

60 Min

This function is for people who live in certain regions to observe Daylight

Saving Time. The menu displays as follows:

Daylight Saving Time Setup

1. Daylight Saving Time

2. DST Start

3. DST End

4. DST Bias

TL H.264 DVR User’s Manual

OFF

Apr. 1st Sun, 02:00

Oct. Last Sun, 02:00

Daylight Saving Time

Select <ON> to enable, or <OFF> to disable the function. If the function is

disabled, the DST Start / End time and DST Bias will be grayed out and

cannot be accessed. If this function is enabled, the date/time information will

be shown on the screen with a DST icon when playing back recorded video or

searching video in the event list. “S” indicates summer time and “W” indicates

winter time.

DST Start / End

These items are used to set duration of daylight saving time. Use LEFT /

RIGHT to move the cursor to the previous or next field, UP / DOWN to change

the settings.

DST Bias

This item allows users to set the amount of time to

move forward from the

standard time for daylight saving time. Available options are <30>, <60>,

<90> and <120> minutes.

5.1.3.8 Network Time Protocol Setup Setup

After time zone is set, the <Network Time Protocol Setup> option will be

available.

Network Time Protocol Setup

1. NTP Server

2. Automatically Time Sync

3. Manually Time Sync

time.nist.gov

TL H.264 DVR User’s Manual

◄

►

NTP Server

Enter this item to setup a feasible time server. The default time server is

time.nist.gov. Users can change it to any other time server if desired. IP

addresses of other time servers are listed below for reference.

129.6.15.28 129.6.15.29 132.163.4.101

132.163.4.102 132.163.4.103 128.138.140.44

192.43.244.18 131.107.1.10 69.25.96.13

206.246.118.250 208.184.49.9 64.125.78.85

207.200.81.113 64.236.96.53 68.216.79.113

Automatically Time Sync

Select <ON> and the time will be synced once an hour.

NOTE: If users want the unit to automatically synchronize the local

time, the <Time Zone> item MUST NOT be set to <OFF>, or the

function cannot be activated.

Manually Time Sync

Select <Yes> to sync the time immediately.

5.1.4 Unit Name

Users are allowed to assign a unit name, up to 11 characters, to

DVR-4TL/8TL/16TL.

Follow the steps below to edit the unit name.

• Select <Unit Name> from System Setup menu and press ENTER. A virtual

keyboard displays as below.

Unit Name

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 # − _ , “ + = *

Backspace Delete

• Use Direction keys to move the cursor to the wanted character.

• Press ENTER to add the character to the entry field (up to 11 characters).

• When the unit name is entered, move the cursor to <OK> and press

Cancel OK

! @

ENTER to save the settings and exit.

5.1.5 User Management

The DVR provides the option to create up to seven sets of usernames and

passwords with customized authority, excluding the preset “admin” account.

The menu is as the following.

1. Password Protection

2. Account Setup

3. Authority Setup

4. Load Default Setting

5.1.5.1 Password Protection

Select <ON> to request for username and password for accessing functions

listed in Authority Setup menu, or select <OFF> to allow free access.

TL H.264 DVR User’s Manual

User Management

5.1.5.2 Account Setup

Setup customized username, password, and authority level in this menu.

Press Direction keys and ENTER to select items. The username(ID) is case

sensitive. The authority level ranks from level 1~8, and level 8 has highest

authority. Alternatively, select <Disable> to stop using the account.

Account

admin

user user1 user2 user3 user4 user5 user6 user7

NOTE: The username and authority level of the preset “admin”

account cannot be changed.

Account Setup

ID Edit Edit Edit Edit Edit Edit Edit Edit Edit

PWD

Edit Edit Edit Edit Edit Edit Edit Edit Edit

Authority

Level 8 Level 4 Level 4 Level 4 Level 4 Level 4 Level 4 Level 4 Level 4

5.1.5.3 Authority Setup

Setup permitted authority level for accessing the functions listed in this menu.

The functions include: Playback/Search, Dome Control, Call Control, Export

Data, Menu Access, System Setup, Monitor Setup, Camera Setup, Record

Setup, Sequence Setup, Event Setup, Database Setup, Configuration and

Shutdown. Press Direction keys and ENTER to select from items. The

authority level ranks from level 1~8, and level 8 has highest authority.

Alternatively, select <Disable> to allow free access.

FIRST PAGE Item

Playback/Search Dome Control Call Control Export Data Menu Access

System Setup Monitor Setup Camera Setup Record Setup

TL H.264 DVR User’s Manual

Authority Setup

Authority

Level 4 Level 4 Level 4 Level 4 Level 4 Level 4 Level 4 Level 4 Level 4

NOTE: The “Menu Access” cannot be set to <Disable>.

When the account does not have authority to access certain functions, an

error message will be displayed on the screen.

5.1.5.4 Load Default Setting

This item is for restoring the default settings. Select <Yes> to load default

setting or select <No> to exit.

5.1.6 Network Setup

The Network Setup menu allows users with proper privilege to configure the

network by specifying the network related settings, such as IP address and

Netmask, etc. Check with the network administrator and/or network service

provider for more specific information.

1. LAN Select

2. LAN Setup

3. Trigger Port

4. Email Address

5. SMTP Setup

6. DDNS Setup

Network Setup

LAN

100

5.1.6.1 LAN Select

This item allows users to select the network type among <LAN>, <PPPoE>,

and <None>. If the internet connection is a local area network communication,

please select <LAN>. If the internet connection is a broadband medium, such

as DSL Line or cable modem, please select <PPPoE>.

PPPoE stands for Point-to-Point Protocol over Ethernet. It is a specification

for connecting the users on an Ethernet to the Internet through a common

broadband medium.

If <None> is selected, then there is no need to set further LAN or PPPoE

settings. Therefore, the second item <LAN Setup>will be inaccessible.

5.1.6.2 LAN Setup

The network related settings in the LAN Setup menu should be associated

TL H.264 DVR User’s Manual

with the network service type. Select <LAN Setup> in Network Setup menu

and press ENTER to set the parameters. The menu displays as follows.

LAN Setup

1. DHCP

2. IP

3. Netmask

4. Gateway

5. DNS

6. PPPoE Account

7. PPPoE Password

8. PPPoE Max Idle

9. Connect At Booting

10. Network Restart

192.168.1.1

255.255.255.0

192.168.1.1

OFF

0.0.0.0

35min

Yes

DHCP

This item allows users to obtain a dynamic IP address from DHCP (Dynamic

Host Configuration Protocol) server when the DVR boots up. When using

DHCP, the settings are dynamic and will change every time the DVR power

on or off, depending on the network's setup.

If the item is enabled (ON), a dynamic IP will be assigned to

DVR-4TL/8TL/16TL. In this case, users do not need to set a static IP and the

Ethernet settings, including IP address, Netmask, Gateway, and DNS settings

will be read-only.

If the DVR is using a permanent address, disable DHC

P (OFF) to manually

set IP Address, Netmask, Gateway, and DNS. See the network system

administrators or IT personnel for appropriate values.

TL H.264 DVR User’s Manual

This item is used to configure the IP (Internet Protocol) address of the DVR.

The IP address is the identifier for the DVR on a TCP/IP LAN. Please note

that to set a static IP address, DHCP must be set to <OFF>.

Netmask

A netmask is a 32-bit mask used to divide an IP address into subnets and

specify the networks available hosts. Its value is defined by the network

administrator. It takes the form as ***.***.***.***, for example, 255.255.255.0.

This item allows users to enter the value of the Netmask for the DVR. Please

note that to configure this item, DHCP must be set to <OFF>.

Gateway

Gateway is a node on a network that serves as an entrance to another

network. Users are allowed to specify the IP address of the gateway or router

associated with this DVR. To configure this item, DHCP must be set to

<OFF>.

DNS

DNS is the abbreviation for “Domain Name Server”, which is an Internet

service that translates domain names into IP addresses. The advantage of

using DNS is that domain names are easier to remember.

This item allows users to specify the IP address of the Domain Name System

associated with the DVR. To configure this item, DHCP must be set to

<OFF>.

If the server is unavailable when using DHCP, the DVR will search for the

network server and boots up more slowly. This network search continues until

it times out.

PPPoE Account

The item allows users to setup the PPPoE login username.

NOTE: For accessing the PPPoE settings, select <PPPoE> as the

Network Type in Network Setup menu.

TL H.264 DVR User’s Manual

◄

►

To setup the login username, follow the steps:

• Select <PPPoE Account> from LAN Setup menu and press ENTER. A

virtual keyboard displays.

PPPoE Account

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 # − _ , “ + = *

Backspace Delete

Cancel OK

! @

• Use Direction keys to move the cursor to the desired character.

• Press ENTER to add the character to the entry field.

• When it’s done, move the cursor to <OK> and press ENTER to save the

setting and exit.

PPPoE Password

The item allows users to setup the PPPoE password. Follow these steps to

setup the login password.

• Select <PPPoE Password> from LAN Setup menu and press ENTER. A

virtual keyboard displays.

• Use Direction keys to select from characters.

• Press ENTER to add the selected character to the entry field.

• When it’s done, move the cursor to <OK> and press ENTER to save the

setting and exit.

PPPoE Max Idle

The item indicates the duration that the modem connection remains active if

there is no acknowledgement from the remote PC. Users can select the idle

time from 0 to 600 minutes.

Connect At Booting

The DVR is allowed to automatically connect to the internet when booting up.

Select <Yes> to connect at booting, otherwise select <No>.

Network Restart

Network restart is required after network settings a

re changed. Select <Yes>

to restart the network connection.

5.1.6.3 Trigger Port

To avoid the possibility of the default service port (port 100) being blocked,

this item enables the user to change port 100 into another port. To change the

trigger port, move the cursor over <Trigger Port> and press ENTER, then

adjust the setting by UP / DOWN keys.

5.1.6.4 Email Address

This item is used to edit the e-mail address where alarm event information will

be sent. Follow these steps to setup the e-mail address.

• Select <Email Address> from Network Setup menu and press ENTER. A

virtual keyboard displays.

• Use Direction keys to move the cursor for selecting from characters.

• Press ENTER to add the selected character to the entry field.

• When it’s done, move the cursor to <OK> and press ENTER to save the

settings and exit.

TL H.264 DVR User’s Manual

5.1.6.5 SMTP Setup

Simple Mail Transfer Protocol (SMTP), a protocol for sending e-mail

messages between servers. SMTP is a relatively simple, text-based protocol

that one or more recipients of a message are specified and the message text

is transferred.

Select < SMTP Setup> from Network Setup menu and press ENTER; the

menu displays as follows.

1. Email via SMTP

2. SMTP Server

3. SMTP Port

4. SMTP Account

5. SMTP Password

Email via SMTP

SMTP Setup

The item enables users to determine if the DVR sends e-mail via SMTP.

Select <ON> to send e-mail via SMTP using direction keys; if not, select

<OFF>.

TL H.264 DVR User’s Manual

◄

►

SMTP Server

This item enables users to set the SMTP server. Contact the network service

provider for more specific information.

Follow these steps to setup the SMTP Server.

• Select <SMTP Server> from SMTP Setup menu and press ENTER. A

virtual keyboard displays.

SMTP Server

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 # − _ , “ + = *

Backspace Delete

Cancel OK

! @

• Use Direction keys to move the cursor to the desired character.

• Press ENTER to add the selected character to the entry field.

• When it’s done, move the cursor to <OK> and press ENTER to save the

settings and exit.

SMTP Port

The item is used to change SMTP port to another port, if necessary. SMTP

usually is implemented to operate over Internet port 25.

To change the SMTP port, move the cursor to <SMTP Port> in SMTP Setup

menu and press ENTER. Use UP / DOWN keys to change the values.

SMTP Account

The item allows users to setup the SMTP username. Follow these steps to

setup the login username.

• Select <SMTP Account> from SMTP Setup menu and press ENTER. A

virtual keyboard displays.

• Use Direction keys to move the cursor for selecting from characters.

• Press ENTER to add the selected character to the entry field.

• When it’s done, move the cursor to <OK> and press ENTER to save the

settings and exit.

SMTP Password

The item allows users to setup the SMTP password. Follow these steps to

setup the password.

• Select <SMTP password> from SMTP Setup menu and press ENTER. A

virtual keyboard displays.

• Use Direction keys to move the cursor for selecting from characters.

• Press ENTER to add the selected character to the entry field.

• When it’s done, move the cursor to <OK> and press ENTER to save the

settings and exit.

5.1.6.6 DDNS Setup

Dynamic Domain Name System (DDNS) allows a DNS name to be constantly

synchronized with a dynamic IP address. In other words, it allows those using

a dynamic IP address to be associated to a static domain name so others can

connect to it by the domain name.

TL H.264 DVR User’s Manual

Once the setting is completed, the DDNS address will be:

http://hostname.ddns.specoddns.net

Fore example, if the chosen Host name is “SPECO”, then the address will be:

http://speco.ddns.specoddns.net

Select <DDNS Setup> from Network Setup and press ENTER. The menu

displays as below.

DDNS Setup

1. Enable DDNS

2. Host Name

3. DDNS Port

4. Submit/Update

5. ezDDNS

XXXX_XXXXXX

80 No No

Enable DDNS

The item is used to enable or disable the Dynamic Domain Name Service.

Select <ON> to enable the service, or <OFF> to disable.

TL H.264 DVR User’s Manual

◄

►

Host Name

The item allows users to setup a domain name, which is used for entering

DVR-4TL/8TL/16TL through internet on the remote PC.

To setup the host name of the DVR, follow the steps.

• Select <Host Name> from DDNS Setup menu and press ENTER. A virtual

keyboard displays as below.

Host Name

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 # − _ , “ + = *

Backspace Delete

Cancel OK

! @

• Use Direction keys to select character.

• Press ENTER to add the selected character to the entry field

• When it’s done, move the cursor to <OK> and press ENTER to save the

settings and exit.

NOTE: Each DVR-4TL/8TL/16TL should have a unique host

name.

DDNS Port

The item allows users to setup the port for DDNS. Press UP / DOWN

Direction keys to change the port.

Submit/ Update

When the settings are finished, move the cursor to this item and select <Yes>

to submit the settings.

NOTE: If more than one DVR-4TL/8TL/16TL has the same domain

name, only the first one will be submitted successfully.

TL H.264 DVR User’s Manual

ezDDNS

ezDDNS enables the users to register for host name automatically. Press

ENTER and select <Yes>. The following screen will be displayed:

ezDDNS Submit/update ok!

Host name is XXXX_XXXXXX

Press any key to return

NOTE: The DVR must be connected to the *Real IP address, or be

assigned a specific port using **Port Forwarding technique.

*A "Real IP" is the IP address that is assigned by users’ ISP.

**A "Virtual IP" is the IP address assigned either manually or through

DHCP. When the user is assigned a Virtual IP, the user must use Port

Forwarding technique to assign a specific port to the DVR.

5.1.7 RS485 Setup

This menu allows the user to setup the parameters of the unit’s RS-485

communications port. From the System Setup menu, select <RS485 Setup>

and press ENTER. The following menu is displayed.

1. Unit ID

2. Baud Rate

3. Bits

4. Stop

5. Parity

5.1.7.1 Unit ID

This item is used to change the RS-485 ID address of the DVR. The ID is in

the range of <1> to <255>.

RS485 Setup

224

9600

8 1

None

5.1.7.2 Baud Rate

The Baud rate options for associated with the protocol are <2400>, <4800>,

<9600>, <19200>, <38400>, and <57600>..

5.1.7.3 Bits

Users can specify the bits in a word associated with this protocol. The

available options are <6>, <7> and <8> bits.

5.1.7.4 Stop

Users can specify the stop bit associated with this protocol. Options are <1>

and <2> stop bits.

5.1.7.5 Parity

This item is used to specify the parity associated with this protocol. Options

are <ODD>, <EVEN> and <None>.

5.1.8 Audio Output/Key Beep

Enter this menu to setup the audio output or key beep.

Audio Output/Key Beep

1. Audio Output

2. Key Beep

TL H.264 DVR User’s Manual

Live/PB

5.1.8.1 Audio Output

This item is used to set the audio output mode. The available options are as

below.

Select this to play the recording sounds of live image in live mode, and

sounds of recorded video in playback mode respectively.

Select this to play live sounds in both live mode and playback mode.

<OFF>

Select this to disable the audio output function.

5.1.8.2 Key Beep

This item is used to enable or disable the key tone. Select <ON> to enable

the key tone, or <OFF> to disable.

5.2 Monitor Setup

The Monitor Setup menu allows users to adjust the quality of the displayed

image. Select <Monitor Setup> from the Main menu and press ENTER. The

following menu is displayed.

1. Show Camera Title

2. Screen Center Adjust

3. VGA Resolution

4. Show Color Bar

5.2.1 Show Camera Title

This item allows users to choose whether to display the camera title on the

screen or not. The default is <Yes>, which displays the camera titles with the

TL H.264 DVR User’s Manual

Monitor Setup

Yes

800x600

Execute

video.

5.2.2 Screen Center Adjust

This item is used to adjust the screen center of the main monitor display area.

Follow the steps to set the center point.

• Select <Screen Center Adjust> from the Monitor Setup menu and press

ENTER. The adjusting screen is as follows.

Screen Center Adjust

◄ + ►

• Position the screen center position using the Direction keys.

• Press ENTER to exit when finished.

▲

▼

5.2.3 VGA Resolution

This item allows users to select appropriate VGA resolution for the VGA

monitor connected to the DVR. The options are <800×600> (default),

<1024×768> and <1280×1024>.

NOTE: If the selected VGA resolution is too high that the monitor

cannot support, the message “No Signal’’ will be displayed. Then

please press ESC on the front panel to restore the original setting.

5.2.4 Show Color Bar

Choose this item to display color bar pattern on the screen. The color bar

helps to adjust the monitor hue, saturation, text color, and display options.

Press ESC to exit the color bar pattern display and return to the OSD menu.

5.3 Camera Setup

The items in the Camera Setup menu enable users to set camera parameters,

including camera title, dome protocol and ID for each connected camera.

1. Analog Camera Select

2. Dome Protocol

3. Dome ID

4. Camera Title

5. Covert

6. Brightness

7. Contrast

8. Saturation

9. Hue

TL H.264 DVR User’s Manual

Analog Camera

CH1

None

CH1

0 0 0 0

5.3.1 Analog Camera Select

This item is used to select a camera for setting the parameters. The related

settings will follow the selected camera, such as dome protocol and camera

title. Move the cursor to <Analog Camera Select> and press ENTER, then

select a channel using UP / DOWN keys.

5.3.2 Dome Protocol

If the connected camera is a dome camera, select the communication

protocol associated with the dome camera using ENTER and Direction keys.

The available protocol includes <Speco>, <DSCP>, <AD422>, <Pelco D>,

<Pelco P>, <Fastrax 2>, <JVC>, <Panasonic_C> and <Panasonic_N>. The

default is set to <None>.

5.3.3 Dome ID

This item is used to assign an ID number to the selected dome camera. Note

that ID number must match the ID address set by the dome camera.

5.3.4 Camera Title

◄

►

This item allows the users to change the title of each connected camera. By

default, the titles of cameras are numbered from 1 through 16 respectively.

The title will be displayed on screen after the changes of the titles are set.

Follow these steps to enter a new title for a camera.

• Move the cursor to <Camera Title> and press ENTER. A virtual keyboard

with alphanumeric characters is displayed as below.

TL H.264 DVR User’s Manual

Camera Title

A B C D E F G H I J K L M

N O P Q R S T U V W X Y Z

A b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 # − _ , “ + = *

Backspace Delete

Cancel OK

! @

• Use Direction keys to select character.

• Press ENTER to add the selected character to the entry field.

• When it’s done, move the cursor to <OK> and press ENTER to save the

settings and exit.

5.3.5 Covert

This function allows users to set the specific camera to be covert while the

DVR continues to record video. Choosing <Yes> means to cover the selected

camera; and <No> to remain the specific camera non-covert.

5.3.6 Brightness

Select this item to adjust the brightness of the camera. Use UP / DOWN keys

to adjust the numeric value. The range of brightness values is from <-128> to

<127>.

5.3.7 Contrast

Select this item to adjust the contrast of the camera. Use UP / DOWN keys to

adjust the value. The range of contrast values is from <-128> to <127>.

5.3.8 Saturation

Select this item to adjust the color saturation of the camera using UP / DOWN

keys. This value will be ignored on monochrome monitors. The range of

saturation values is <-128> to <127>.

5.3.9 Hue

Select this item to adjust the hue of the camera. Use UP / DOWN keys to

adjust the value. The range of hue values is from <-128> to <127>.

5.4 Record Setup

The total record time of DVR-4TL/8TL/16TL will be effected by HDD capacity,

recording rate (Picture per Second), image quality settings, and event

TL H.264 DVR User’s Manual

settings.

The greater the recording rate and the higher the quality setting, the shorter

the recording time. Most of the related factors can be set here in this

submenu.

The Record Setup menu allows user to set recording quality, recording

schedules, and other recording parameters. Administrator's password is

required to access Record Setup menu. In the Main menu, move the cursor to

<Record Setup> and press ENTER. The following menu is displayed.

Record Setup

1. Record Mode Setup

2. Schedule Setup

3. Preset Config

4. Per Camera Config

5. ezRecord Setup

6. Data Lifetime

7. Circular Recording

8. Audio Recording

9. Purge Data

Best Quality

0 Days

ON ON

5.4.1 Record Mode Setting

Enter this menu to setup record resolution. The relative record settings, such

as preset configuration, will follow the record mode setting. The menu is

displayed as the following.

1. Record Resolution

2. Record Format

3. Max Rec. PPS

5.4.1.1 Record Resolution

Select resolution of the recorded video. If the recording is set to NTSC system,

the selections are 720*480, 720*240, and 352*240. If the recording is set to

PAL system, the selections are 720*576, 720*288, and 352*288.

TL H.264 DVR User’s Manual

Record Mode Setup

720*240

H264

120

5.4.1.2 Record Format

The record format will be H.264 compression.

5.4.1.3 Max Rec. PPS

This item will be automatically changed according to record resolution.

After the Record Mode settings are changed and the ESC is pressed to return

to the previous menu, a warning message will be shown as below. Press

ENTER to confirm the selection, or press ESC to abort.

NOTE: It is strongly recommended to backup the programmed

configuration before making any changes on Record Mode settings.

!!Warning!!

System will reboot

Because of different record mode

ENTER: Yes ESC: No

5.4.2 Schedule Setup

This submenu is used to set the day and night time, or weekend recording

schedule. The Day and Night schedules are for defining day time and night

time; the Weekend schedule can be modified for weekends and holidays.

Select <Schedule Setup> from the Record Setup menu and press ENTER;

the following menu is displayed.

1. Day Time Start

2. Day Time End

3. Night Time Start

4. Night Time End

5. Weekend Schedule

6. Weekend Start

7. Weekend End

TL H.264 DVR User’s Manual

Schedule Setup

AM 06:00 PM 18:00 AM 06:00 PM 18:00

Fri 18:00

Mon 06:00

5.4.2.1 Day / Night Time Start / End

The Day / Night Start / End Time determines the duration of day / night

recording time. The time is indicated in 1-minute increments. The time display

format in this menu is based on the setting of Time Display Mode in

Date/Time menu.

5.4.2.2 Weekend Schedule

<Weekend Schedule> determines whether a weekend schedule is in effect.

Choose <ON> to take effect the related weekend settings.

5.4.2.3 Weekend Start / End

<Weekend Start> indicates the specific day and time when weekend

schedule should begin, for example, FRI 18:00. <Weekend End> indicates

the specific day and time when weekend schedule should end, for example,

MON 06:00. Time is indicated in 1-minute increments.

Note that the value users have set indicates when the regular Day and Night

scheduling ends, and Weekend recording begins.

5.4.3 Preset Record Configuration

The <Preset Config> is used to select the preset recording quality and frame

rate. Different preset recording quality levels are offered for users to choose:

<Best Quality>, <Standard>, <Extended Record>, <Event Only>, <ezRecord

>, <512Kbps DSL>, <256Kbps DSL>, <128Kbps DSL>, and <OFF>.

According to various Record modes, the preset configuration options for

normal and event status are described in terms of relative recording rate PPS

(Picture Per Second) and recording size for each channel in the table below.

These preset conditions <Best Quality>, <Standard>, <Extended Record>,

<Event Only>, <ezRecord >, <512Kbps DSL>, <256Kbps DSL>, and <

selected, the channels not connected to cameras will not be recorded.

In128Kbps DSL> override any other quality and rate settings. Refer to the

table below for file sizes of different preset conditions for DVR-16TL. Note

TL H.264 DVR User’s Manual

that <Event Only> and <ezRecord> are not included in the table because

there are further details for these two settings. <Event Only> will be described

in <Event Setup> section. <ezRecord> will be explained in <ezRecord Setup>

section.

NTSC 720 X 480 @ 60PPS 720 X 240 @ 120PPS 360 X 240 @ 240PPS

PAL 720 X 576 @ 50PPS 720 X 288 @ 100PPS 360 X 288 @ 200PPS

Best

Standard

Extended 512Kbps DSL 256Kbps DSL 128Kbps DSL

22 KB/Pic 12 KB/Pic 6 KB/Pic 14 KB/Pic 8 KB/Pic 4 KB/Pic

6 KB/Pic 4 KB/Pic 2 KB/Pic

4 KB/Pic 3 KB/Pic 2 KB/Pic

NOTE: The total PPS is equally shared by all channels, which means,

even if one channel has not been connected with a camera, the

channel still reserves its share of PPS. However, if <ezRecord> is

other words, the total PPS will be shared by channels with cameras

connected only.

5.4.4 Per Camera Configuration

This sub-menu is used to set the Day / Night / Weekend PPS and recording

quality for each individual channel. <Preset Configuration> must be set to

<OFF> in order to access these related settings. The menu is displayed as

below in Record mode: 720×240@120PPS in NTSC / 720×288@100PPS in

PAL (for DVR-16TL).

Per Camera Config

Cameral Select

Normal PPS Normal Qlty Event Max PPS Event Qlty Event Act

5.4.4.1 Camera Select

Day

7.5

Mid

Best

Both

TL H.264 DVR User’s Manual

CH1

Night

7.5

Mid

30 Best Both

Weekend

7.5 Mid 30

Best

Both

The item is used to select a desired channel for setting the parameters. Move

the cursor to <Camera Select> and press ENTER, then select a channel

using UP / DOWN keys. Press ENTER again to confirm the selection.

5.4.4.2 Normal PPS

Normal PPS is used to set the recording rate for normal status.

Please note that the total normal PPS of all channels cannot exceed the

maximum PPS of each Record mode. To increase one channel’s PPS, others’

may have to be reduced first. Event PPS is not restricted to this rule, since a

smart event scheduler will handle to the total PPS with a correct weighting.

For example, if channel 1 is set to event mode with 30PPS, the remaining 30

PPS will be equally distributed to other 15 channels, which means each

channel will be set to 2 PPS.

5.4.4.3 Normal Qlty

This item is used to set the picture size for normal status recording. The

available options are: <Low>, <Fair>, <Mid>, <High> and <Best>.

5.4.4.4 Event Max PPS

<Event Max PPS> is used to set the event recording rate for Event status.

Usually, the Event PPS is set equal to or greater than the Normal PPS. The

setting is depending on users’ application. If the Event PPS is set to <0>,

DVR-4TL/8TL/16TL will not record event video when alarms triggered.

5.4.4.5 Event Qlty

This item is used to set the picture size for event status recording. The

available options are: <Low>, <Fair>, <Mid>, <High> and <Best>.

5.4.4.6 Event Active

Users are allowed to choose which alarm type needs to be recorded. The

available options are <Alarm> (alarm events only), <Motion> (motion

detection events only) and <Both> (alarm event + motion detection), and

<None>. The default setting is <Both>, which includes Alarm and Motion

events recording.

5.4.5 ezRecord Setup

This item aims to ease the complicated record settings, and to make the

setup much easier. Note that this item can be accessed only when

TL H.264 DVR User’s Manual

<ezRecord> is selected as the option for <Preset Config>.

Select <ezRecord Setup> from <Record Setup> and press ENTER, the menu

is displayed as below:

ezRecord Setup

How Many Days To Record Daytime Record Night Record Weekend Record

Average Normal PPS Average Normal Quality

Record Info

2 Days

Yes Yes Yes

7.5

Best

Follow these steps to Setup ezRecord:

• Select <How Many Days To Record> and press ENTER, then press

UP/DOWN to select a desired number of days. The average normal PPS

& quality will be adjusted automatically. The maximum recording days

depends on the storage size of the HDD. In other words, the larger the

storage size, the more days the DVR can record.

• Move to <Daytime Record> and press ENTER. This item is for users to

select whether the DVR will record during daytime. If yes, use UP/DOWN

to select <Yes> to enable daytime recording; or select <No> to disable.

• Repeat the same procedures for <Night Record> and <Weekend Record>,

respectively. Note that <Weekend Record> will be inaccessible if

<Weekend Schedule> in <Schedule Setup> is set to <OFF>.

• Select <Average Normal PPS> and press ENTER, then press UP/DOWN

to choose a desired number of PPS. The <How Many Days To Record>

will be computed automatically.

• Select <Average Normal Quality> and press ENTER, then press

UP/DOWN to select a desired quality. The <How Many Days To Record>

will be computed automatically.

NOTE: The current number of connected cameras will affect the

recording quality automatically calculated by the <ezRecord

Setup>. Therefore, when there are cameras disconnected or

connected, the <ezRecord Setup> should be reset.

5.4.6 Data Lifetime

Data Lifetime indicates the duration that a video is saved and recallable in the

TL H.264 DVR User’s Manual

HDD. Only those video recorded during Data Lifetime can be retrieved for

playback. The video exceeded Data Lifetime will be hidden and cannot be

retrieved for playback. Press ENTER to select this item in Record Setup

menu, and then use UP / DOWN keys to set the data lifetime. The value

ranges from <1> to <365> days, or select <0> to disable the function.

NOTE: If users want to playback a video which is beyond the data

lifetime, please extend the duration till the recording data/time of the

video is included.

5.4.7 Circular Recording

Users can choose to record video in circular mode or in linear mode. If

circular mode (set to <ON>) is selected, the DVR will store new video data to

overwrite the oldest recorded video. If linear mode (set to <OFF>) is selected

instead, the DVR will stop recording when HDD capacity is full, and the

internal buzzer will start beeping.

From the Record Setup menu, move the cursor to <Circular Recording> and

press ENTER, then select <ON> / <OFF> using UP / DOWN keys.

5.4.8 Audio Recording

2008/01/01

This item allows users to enable / disable Audio recording function of the DVR.

When it’s set to <ON>, audio input is recorded and saved with the video.

When it’s set to <OFF>, audio is ignored.

5.4.9 Purge Data

This item is used to delete the Normal or Event videos. In <Record Setup>

menu, move the cursor to <Purge Data> and press ENTER. The <Purge

Data> menu is shown as below.

1. Purge All Data

2. Purge All Event Data

3. Purge Event Before

4. Start to Purge

TL H.264 DVR User’s Manual

Purge Data

5.4.7.1 Purge All Data

This item is used to delete all videos from the database. Use UP / DOWN

keys to select <Yes> and start the deletion by setting <Start to Purge> to

<Yes>.

5.4.7.2 Purge All Event Data

This item is used to delete all event videos from the database. Use UP /

DOWN keys to select <Yes> and start the deletion by setting <Start to Purge>

to <Yes>.

5.4.7.3 Purge Event Before

This item is used to delete event video before a specific date. Use LEFT /

RIGHT keys to move the cursor to next or previous field, ENTER to select the

item and UP / DOWN to adjust the value. Start the deletion by setting <Start to

Purge> to <Yes>.

5.4.7.4 Start to Purge

After selected the videos to be deleted or chosen the date for deletion, set this

item to <Yes> to start the deletion, or select <No> to cancel.

5.5 Sequence Setup

5 Sec

The Sequence Setup menu allows the user to set the camera sequence

schedule and dwell time for main and call monitor. Select <Sequence Setup>

in Main menu and press ENTER; the menu displays as follows.

Sequence Setup

1. Main Monitor Dwell

2. Main Monitor Schedule

3. Call Monitor Dwell

4. Call Monitor Schedule

5.5.1 Main / Call Monitor Dwell

The main/ call monitor can be set to display full screen video of all installed

cameras in sequence. This item is used to set the Main/ Call Monitor dwell

TL H.264 DVR User’s Manual

5 Sec

time, which is the duration of time elapsed before switching to the next

channel. The dwell time is in the range of 1 to 120 seconds.

5.5.2 Main / Call Monitor Schedule

This item is used to set displaying sequence of connected cameras to be

displayed on the main/ call monitor in full-screen format. Move the cursor to

<Main Monitor Schedule> and press ENTER. The menu is displayed as

follows.

Main Monitor Schedule

_►_►_►_►_►_►_►_►

_►_►_►_►_►_►_►_

Press Channel Keys To Select Channel

Press ◄ Key To Delete

Follow these steps to set a sequence:

• Press LEFT direction key to delete the original setting.

• Press the desired Channel keys to assign the camera to the position

where the cursor stops.

• Continue the steps until the sequence is completed.

The maximum number of entries in a sequence equals to the number of

channels. Users can select fewer than the maximum entries for camera

sequence and leave the remaining entries blank. The sequence can include a

specific camera or cameras multiple times.

5.6 Event Setup

This menu allows users to determine DVR-4TL/8TL/16TL behavior in

response to alarm events. In the Main menu, move the cursor to <Event

Setup> and press ENTER. The following menu is displayed. Items in the

Event Setup menu are described in the following subsections.

1. Internal Buzzer

2. Event Icon

3. Email Notice

4. Email Attachment

5. Event Full Screen

6. Event Duration

7. Per Channel Config

TL H.264 DVR User’s Manual

Event Setup

ON OFF OFF

None

20 Sec

5.6.1 Internal Buzzer

This item allows users to enable / disable internal buzzer of

DVR-4TL/8TL/16TL. If <ON> is selected, the buzzer is activated in response

to alarm events. If <OFF> is selected, the buzzer is not activated.

5.6.2 Event Icon

This item enables (ON) / disables (OFF) the display of event icons on the

monitor when alarm events occur. The event icons are represented by a

character according to the event types respectively. Refer to the following

table for association of event icons and event types.

Event Icon Event Type

Alarm in event Motion detection event Video loss event

5.6.3 Email Notice

The item enables (ON) / disables (OFF) the Email notification of an event.

When an alarm event is triggered and <Email Notice> is enabled, an e-mail

concerning the alarm event will be sent.

NOTE: In order to send an event notification e-mail successfully,

ensure that the DVR is connecting to the internet.

5.6.4 Email Notice

The function allows the DVR to send out a brief AVI video regarding the event.

The number of the attached AVI video will be equivalent to the number of

cameras connected to the DVR. For example, if the DVR has been connected

with 8 cameras, then 8 videos will be attached to the notice email. The total

size of the video will be about 2 MB.

Select <ON> to enable this function; or <OFF> to disable it.

NOTE: The video clips of the Email Attachment will ONLY be in *.avi

TL H.264 DVR User’s Manual

format. Please download the Divx Player from www.divx.com

the *.avi files.

5.6.5 Email Full Screen

This function allows the DVR to display the alarm channel in full screen size

when an alarm is triggered.

Select <None> to disable this function; select <Main> to display the alarm

channel on Main Monitor when an alarm is triggered; select <Call> to display

the alarm channel on Call Monitor; and select <Both> to display the alarm

channel on both Main Monitor and Call Monitor.

5.6.6 Event Duration

This item determines the duration of the buzzer and Alarm Out relay function

after an alarm is triggered. The available event duration range is from 5

to play

second to 999 seconds.

5.6.7 Per Channel Config

CH1

OFF

None

This menu is used to set the Video Loss Detect, Motion Detect and Alarm In /

Out function for each channel. The menu is displayed as below.

1. Channel Select

2. Video Loss Detect

3. Motion Detect

4. Motion Detect Indicator

5. Detection Config

6. Alarm In

7. Alarm Out

5.6.7.1 Channel Select

The item is used to select a desired channel for setting the parameters. Move

the cursor to <Channel Select> and press ENTER, then select a channel

TL H.264 DVR User’s Manual

Per Channel Config

using UP / DOWN keys. Press ENTER again to confirm the selection.

5.6.7.2 Video Loss Detect

This item allows users to enable or disable Video Loss as an alarm event.

Select <ON> to enable Video Loss alarm events, or <OFF> to disable.

5.6.7.3 Motion Detect

This item allows users to enable or disable motion detection function of

DVR-4TL/8TL/16TL. Select <ON> to enable Motion Detect alarm events, or

<OFF> to disable. If motion detection function is enabled, it is required to

define motion detection parameters such as detection area and sensitivity

settings in <Detection Config>.

5.6.7.4 Motion Detect Indicator

This item allows users to display/ hide the motion detection indicators. Select

<ON> to display the indicators, or <OFF> to hide them.

5.6.7.5 Detection Config

88%

If motion detection function is enabled, it is required to define the motion

detection parameters such as detection area and sensitivity settings. Select a

channel for setting the parameters, move the cursor to <Detection Config>

and press ENTER. The Detection Configuration menu displays as follows.

1. Detected Area Setup

2. Sensitivity

3. Block Threshold

Detected Area Setup

After selected this item, the detected area is displayed as follows. The

detection area consists of 192 (16×12) detection grids.

TL H.264 DVR User’s Manual

Detection Config

Use the Direction keys to move the cursor and press ENTER to select or

de-select a grid. Press MODE to select all of the grids for detection; press

MODE again to de-select all of the grids.

Sensitivity

This item is used to set the sensitivity of detection grids for the camera. A

greater value indicates more sensitive motion detection. A motion alarm will

be triggered once the amount of motion detected exceeds the Threshold

value.

Move the cursor to <Sensitivity> and press ENTER, and then use UP/ DOWN

keys to adjust the value. The value is increased by 4% increment.

Block Threshold

<Block Threshold> indicates the motion alarm triggered level; select from <1>

to <16>. Selecting <1> means the DVR will trigger the alarm when one grid is

detected; and selecting <16> means the DVR will trigger the alarm when 16

grids are detected. Move the cursor to <Block Threshold> and press ENTER,

and then use UP / DOWN keys to adjust the value.

5.6.7.6 Alarm In

This item allows users to enable/ disable alarm input detection. According to

users’ application, select <N/O> (Normal Open) or <N/C> (Normal Close) to

enable the alarm input detection, or select <OFF> to disable the detection.

If <N/C> is selected without installing any device, an alarm will be triggered

and the Event Icon will always display on the monitor until the selection is

changed to <N/O> or <OFF>, or when a device is installed.

5.6.7.7 Alarm Out

This item allows users to enable/ disable the alarm output on the selected

channel to activate the relay. The signal can be a light or siren to caution an

alarm event. Select <ON> to enable the alarm output, or <OFF> to disable.

TL H.264 DVR User’s Manual

5.7 Database Setup

The menu displays information of internal and external HDDs. In the main

menu, select <Database Setup> and press ENTER. The following menu is

displayed.

Database Setup

1. Total Size

2. Free Size

3. Avail. Rec Time

4. Internal Disks

NOTE: If the detection of HDDs fails, the message “HDD fail” will be

displayed.

5.7.1 Total / Free Size of HDD

Total Size shows the total storage capacity of HDDs that have been added to

xxx GB (Circular) (Circular)

the database. Free Size indicates free storage space available for recording

in the database, or “Circular” will be shown if the DVR is set to record in

circular mode. Both of them are “read only”.

5.7.2 Available Recording Time

The Avail Rec. Time indicates the available time duration for recording. If the

DVR is set to record in circular mode, the item will show “Circular”. The

information is “read only”.

5.7.3 Internal Disks

Active

Action

None

Select <Internal Disks> to see information of the built-in HDDs. The menu is

displayed as below.

Device Name xxx xxxxxxx-xxxxxx

The information of the built-in HDDs will be listed by model name and status.

If no storage device is connected to the DVR, the message “No Available

Items!” will be displayed.

NOTE: If the file system of the internal HDDs is not compatible for the

DVR, the system will format the internal HDDs automatically without

TL H.264 DVR User’s Manual

Internal Disks

Yes

notice.

This item indicates if the HDD is added to the database. <Yes> means the

HDD has been added to the database.

This item allows users to add the HDD to the database or remove it from the

database. The options are <None> (no action), <Add> (add the selected HDD

to the database), <Remove> (remove the selected HDD from the database),

<Format> (format the selected HDD).

NOTE: Before disconnecting an external HDD from the DVR,

ALWAYS remember to remove it from the database first.

5.8 Configuration

Users can restore factory default setting, import/ export configuration in the

Configuration menu. Select <Configuration> from the main menu and press

ENTER. The following menu is displayed. Items in this menu are described in

the following subsections.

Configuration

1. Load Factory Default

2. Import Config

3. Export Config

5.8.1 Load Factory Default

Select

This item is used to load the factory default setting. Select <Yes> to restore

the factory default setting from the read-only memory, or select <No> to

cancel.

5.8.2 Import Configuration

This item allows users to load a DVR configuration that was saved in an

external drive. To import a configuration that was previously exported, make

sure the device with the saved configuration is connected to the DVR. Select

<Import Config> from the Configuration menu and press ENTER. The

following menu is displayed.

Config Name xxxx-xxxx xxx-xx

TL H.264 DVR User’s Manual

Import Config

Press UP/ DOWN to select one of the available configuration files, and

choose <Yes> to start importing the configuration.

NOTE: If the record mode and/or number of IP cameras of the imported

configuration are different from the DVR’s configuration, the following

message will be displayed.

Warning!! System will reboot if

record mode and/or IP camera number

differ.

ENTER: Yes ESC: No

NOTE: DO NOT remove the external device before the DVR

completely reboots, otherwise it will be formatted.

5.8.3 Export Configuration

Select

Users are allowed to save a DVR configuration by exporting it to an external

drive, such as an USB Flash Drive. Before exporting the configuration, make

sure the device in which the configuration will be saved is attached to the

DVR appropriately. Select <Export Config> from the Configuration menu and

press ENTER. The following menu is displayed. Items in this menu are

described in the following sections.

1. Copy Destination

2. Config Name

3. Begin Export

5.8.3.1 Copy Destination

Enter this item to list available destinations (external storage devices) where

TL H.264 DVR User’s Manual

Export Config

the configuration can be exported. Press UP/ DOWN to select a destination.

Please note that saving a different configuration to the same destination with

the same file name will overwrite the previous configuration file without

warning.

Device Name xxxx-xxxx

NOTE: It is not allowed to select the built-in DVD+RW as a copy

destination.

5.8.3.2 Configuration Name

This item allows users to assign a name to the exported configuration file.

Use the virtual keyboard to enter the configuration file name. Note that the file

name can only contain up to 15 characters, with no spaces.

Copy Destination

5.8.3.3 Begin Export

Select <Yes> to begin exporting the configuration file, or select <No> to exit.

NOTE: It is strongly recommended to export configuration before

upgrading the DVR system. Also, backup the configuration routinely is

recommended as well, just in case for unexpected situation.

5.9 Video Export

The Video Export menu enables the user to export recorded video with or

without digital signature to a USB ThumbDrive, or to a DVD+RW drive. Make

sure an external storage device is available and connected to the appropriate

port for video export.

If the <Pre-Alarm Recording> function is enabled, the event video will be

exported into two files, including pre-alarm video and video recorded after the

alarm is triggered.

When recorded video is exported with digital signature, the output will be four

files, including *.gpg, *.avi (*.drv), *.sig and readme.txt. Exporting a file whose

size is 1GB with digital signature may take about 30 minutes.

TL H.264 DVR User’s Manual

From the Main menu, select <Video Export> and press ENTER. The following

menu is displayed. Items in the menu will be described in the following section

NOTE: The inserted CD/DVD will be ejected when its capacity is 99%

full.

1. Select Device

2. Select Ch:

3. From

4. To

5. Select Events

6. Data Type

7. Export Format

8. Digital Signature

9. Erase Disc

10. Begin Export

5.9.1 Select Device

Video Export

CH1 CH2 CH3 CH4 2008/03/19 AM 07:50:05 2008/03/28 PM 03:09:18

Normal

DRV

No No No

The available external devices for exporting video will be listed by name and

free size in Select Device menu. The Select Device menu displays as follows.

Select Device

Device Name xxx-xxx-x-x-xx xx-xxx-xx-xxxx

Available

256 MB

1.5 GB

Sel

No No

TL H.264 DVR User’s Manual

DVR-4TL/8TL/16TL only supports EXT3 file system. Make sure the HDD

format is EXT3 before connecting it with the unit. If not, please format the

HDD to EXT3 format first.

The item shows the name of the available device.

The item shows the free space of the available device.

<Sel>

Set the item to <Yes> to set it as an exporting destination; or <No> to cancel.

NOTE: The item <Erase Disk> from Video Export menu will be grayed

out when the selected device is not a DVD+RW or when the device is

not selected yet.

5.9.2 Select Channel

The item is used to select channels for export. Move the cursor to the desired

channel using LEFT / RIGHT keys, select or de-select a channel by pressing

ENTER.

5.9.3 From / To Time

These items are used to set the time which data export begins and ends.

Move the cursor using Direction keys, and press ENTER to select the date /

time items; adjust the selected date and time value by UP / DOWN keys.

NOTE: When the Start / End Time are set, remember to select the

exporting Data Type.

5.9.4 Select Events

Select the item to display the event list for exporting event video. Move the

cursor to scroll the event list and press ENTER to select the events users

want to export.

5.9.5 Data Type

The item is used to select exporting video type. The options are <Normal>

(export normal video only), <Event> (export event video only) and <Both>

(export both normal and event video).

NOTE: If users want to export selected event video using the item

<Select Event>, users have to set <From> and <To> to the same day

and time; otherwise, not only the selected event video will be exported

to the selected destination, but also other event video recorded during

the period between <From> and <To>.

NOTE: Users will not be allowed to access the <Select Events> if the

Data Type is set to <Normal>.

TL H.264 DVR User’s Manual

5.9.6 Export Format

This item is for selecting exporting video format. The options are <DRV> and

<AVI>.

The *.drv file can only be played back with SpecoRemote and SpecoPlayer,

and multiple camera video can be played from one file. The *.avi file can be

played back with Windows Media Player. Note that if multiple channels are

exported, each channel is exported to a separate file.

5.9.7 Digital Signature

The Digital Signature function enables users to export video clip with the

unit’s unique signature key. It aims to authenticate that a video clip was

exported from the unit and it has not been modified. Users can export video

clip with or without a digital signature file (*.sig). Set the item to <Yes> to

export with the signature file, or <No> to export without it.

Make sure there is an external storage device, such as a USB Hard Drive or

USB ThumbDrive, available and connected to the appropriate port for export.

For more information on verifying digital signature, see section Verify Digital

Signature.

5.9.8 Erase Disc

This function is used to remove information found on a DVD+RW disk prior to

exporting new information to the drive. Select <Yes> and press ENTER to

start deleting data.

NOTE: This item will be grayed out when the selected device is not a

DVD recorder or when the device is not selected yet.

5.9.9 Begin Export

Select <Yes> and press ENTER to start exporting.

5.10 Shutdown

TL H.264 DVR User’s Manual

This item is used to shut down or reboot the unit. If users must shut down

DVR-4TL/8TL/16TL for any reason, please follow the proper shut down and

power on procedures to avoid any potential damages to the unit.

Select <Shutdown> in Main menu and press ENTER to access the Shutdown

menu, which displays as follows.

1. Power Off

2. Reboot

5.10.1 Power Off

Press ENTER on this item to shut down the unit. Do not remove the power

during shut down until the message “You can safely turn off DVR now!”

displays.

Shutdown

Execute Execute

5.10.2 Reboot

Press ENTER on this item to reboot the unit. The color bar and system

checking information are displayed on the monitor until the unit is completely

restarted.

6. Remote Monitoring Software

The remote monitoring software SpecoRemote is a remote browser-based

software application designed to operate with the DVR products. Using the

software, users are allowed to view live and recorded video, and configure the

DVRs remotely via a LAN, WAN or Internet on a personal computer.

The connected PC will automatically download SpecoRemote plug-ins from

the DVR when the DVR is connected by entering its IP address in the address

bar on the browser.

Due to the setting items are similar to those listed in the DVR’s OSD setup

TL H.264 DVR User’s Manual

menu, please refer to the chapter Advanced System Configuration

setting configuration of SpecoRemote.

The tasks can be performed with SpecoRemote are listed below:

• Remote viewing of live/ recorded video

• Remote setup of the DVR

• Remote control of dome cameras

• Alarm notification from the DVR

• Up to five connections to one DVR using SpecoRemote, including the

preset “admin” and four other accounts

6.1 System Requirements

Items Minimum Requirements

Minimum:

Intel® Pentium® M CPU 1.40GHz

Personal Computer

Hard Disk Drive Requires 20 MB for software installation Operating System Windows XP, Windows Vista Web Browser Microsoft Internet Explorer version 6.0 or above Monitor Resolution Minimum 1024 x 768 with 16-bit color

Network Card

RAM 512 MB

Recommended:

Intel® Core™2 Quad CPU Q6600 @ 2.4GHZ RAM 2 GB

10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation; must match the network configuration

for

6.2 Installation of Software

Refer to the following description to install SpecoRemote.

6.2.1 Change Internet Settings

The PC operating with SpecoRemote should be set to accept ActiveX

plug-ins. Please follow the steps to set the Internet security settings

appropriately.

• Before operating SpecoRemote, please check the IP address of the DVR.

To check the IP address, press MENU key on the unit and enter password

to access OSD setup menu. Select <System Setup>, <Network Setup>,

then <LAN Setup> to check the IP.

• Start the IE; it can be started either by clicking on the desktop icon, or by

TL H.264 DVR User’s Manual

using the Start menu to access it.

NOTE: Windows IE provides the ActiveX component that is

required when using SpecoRemote.

• Select <Tools> from the main menu of the browser, then <Internet

Options>, and then click the <Security> tab.

• Select <Trusted sites> and click <Sites> to specify its security setting.

TL H.264 DVR User’s Manual

• Uncheck “Require server verification (https:) for all sites in this zone”.

Type the IP address of the unit in field and click <Add> to add this web site

to the zone.

• Click <OK> to confirm the setting and close Trusted sites dialog.

• In the Security Level area, click <Custom Level>. The Security Settings

screen is displayed.

• Under <ActiveX controls and plug-ins>, set all items to <Enable> or

<Prompt>.

• Click <OK> to apply the setting and close the <Security Settings> screen.

• Click <OK> to close Internet Options dialog.

Now the installation can continue to the next step.

6.2.2 Install SpecoRemote

Start the browser to initiate the installation of SpecoRemote on the PC. The

IP address of the DVR can be saved as a Favorites item in the web browser

to enable easy access in the future.

• Start the IE; it can be started either by clicking on the desktop icon, or by

using the Start menu to access it.

• Enter the IP address of the DVR in the address bar at the top of the

browser.

• The ActiveX controls and plug-ins dialog will show twice for confirmation;

click <Yes> to accept ActiveX plug-ins. SpecoRemote plug-ins will be

downloaded and installed on the PC automatically when the connection is

successfully made.

TL H.264 DVR User’s Manual

NOTE: Do not enter any leading “0” characters in the address, for

example, “192.068.080.006” should be entered as “192.68.80.6”.

If the default trigger port 80 is changed into another one, take port

81 for example, the IP address should be entered as

“192.68.80.6:81”.

• A version check starts to verify whether SpecoRemote was installed

already, and also check if the version is the same as that stored in that

particular DVR. This process may take up to 30 seconds.

• When the software is completely downloaded and installed, the Login

Screen is now displayed.

6.2.2.1 Login / Logout

same as setup in the DVR.

One preset account “admin” and up to four other accounts can access a DVR

at the same time. Nevertheless, if the “admin” account is currently accessing

the unit’s OSD setup menu via front panel of the unit, then the “admin”

account at the remote monitoring site cannot change the settings at the same

time. The “admin” account of the DVR has priority.

TL H.264 DVR User’s Manual

The following steps demonstrate procedures to view video from remote unit:

• Start SpecoRemote by entering the IP Address of the DVR in the Address

bar of the browser. Alternatively, click on the Favorite entry for the unit (if

the IP address of the unit has been set).

• Enter the Username and password. The login username and password

can be saved to ease future login. The default username and password is

admin / 1234.

• Click <OK> to login to the DVR. The process may take a few seconds.

• If the connection is made successfully, the main window will display live

video of the attached cameras.

If the IE browser is closed, the remote system is logout and disconnected

from the DVR at the same time.

6.2.2.2 Software Upgrades

If a new version of SpecoRemote is available on the DVR, upgrade will be

prompted while accessing the unit. Follow the steps to upgrade the software.

• The message as the above figure will be prompted. Click <Yes> to accept

version upgrade.

• Start the IE again and enter the IP address of the DVR in the Address bar

of the browser; or if the unit address is set as a Favorite site, click the

TL H.264 DVR User’s Manual

Favorites entry for the unit.

• When the software is completely downloaded and installed, the Login

Screen will be displayed.

6.3 Basic Operation

When a DVR is successfully connected, the main window of SpecoRemote

will be displayed. Please refer to the Setup Guide for the graphical

illustration of functional items.

The functions on SpecoRemote will be described in the following sections.

6.3.1 View Live Video

View live video from the cameras attached to the DVR by clicking <Live>

button on the main window toolbar. Choose desired display mode –

full-screen, 2x2 windows, 3x3 windows, and 4x4 windows – after the live

images of the DVR are displayed on the main window. When a dome camera

is connected and viewed in single channel full-screen mode, the dome

camera control operation can be accessed. To choose desired display mode

and to operate dome camera control, refer to the following sections.

6.3.1.1 Select Display Mode

Choose the number of windows to be displayed on the main window. Click

one of the display buttons in MODE section. Available selections are 4, 9 and

16 camera displays. To view certain window in full screen, either double-click

on the wanted window, or click on the corresponding CAMERA button.

6.3.1.2 Operating Cameras with Dome Control

SpecoRemote allows users to control and configure a dome camera

remotely.

TL H.264 DVR User’s Manual

Click on any CAMERA button displayed with a dome ico

in full screen. The Dome Control Panel will be displayed on the main window.

The items on the dome control panel are described as follows.

Set Preset (•)

Set Preset is used to set up preset positions. SpecoRemote allows its user to

set up to 255 preset positions with Speco, DSCP, American Dynamics,

Fastrax, JVC, Panasonic (C & N), and Pelco (Pelco P & Pelco D) domes.

Use Direction buttons to move dome camera to an appropriate position, and

then click the button and choose wanted number from the pull-down list. The

preset position is named as the selected number.

Go Preset (•)

Go Preset is used to call the camera preset point, which was set up with the

set preset point function. Click and choose a number to call the preset point

for viewing.

n to view the camera

Auto Focus (A.F.)

Click on it and the focus of the camera will be automatically adjusted to show

a clearer image.

Dome ID (ID)

Click for changing the dome ID and protocol. Proper authority is required to

access this function.

TL H.264 DVR User’s Manual

Focus +/−

Use to adjust the camera lens to focus on objects for a clear view. Click on

<Focus +> to focus near or <Focus −> to focus far.

Iris +/−

This item is used to open and close the iris to let more or less light into the

camera. Click on <Iris +> to open iris or <Iris −> to close iris.

Zoom +/−

Users are allowed to zoom-in or zoom-out using the adjusting buttons.

Zoom-in to enlarge a certain area and zoom-out to view more area.

Direction Button

This button is used to pan and/or tilt the dome camera. Click the arrows in the

directions to be viewed.

6.3.2 Instant Recording

The Instant Recording function allows users to record video quickly to the PC.

NOTE: The Audio function is set to OFF as the default setting.

6.3.2.1 Record Video Instantly

Follow the steps to start recording instantly:

• Click on the <Instant Recording> button.

• Select the destination folder to save the video.

• Click on the button again to stop recording.

NOTE: The instant recording video will be saved as *.drv file.

6.3.2.2 Playback Instant Recorded Video

Follow the steps to playback a video recorded by “Instant Recording”.

• Click <Play> on main window toolbar and click <Local Playback> tab.

• Click <Open> to choose a recorded file.

• Click <OK> to start playing the recorded video.

6.3.3 Playback Video

SpecoRemote allows users to view recorded video either from the DVR, or

from the hard disk drive of the PC

To access the Playback screen, click <Play> button on the main window

toolbar. There are three tabs in the Playback screen: <Remote Playback>,

<Local Playback>, and <Verify> tabs. <Remote Playback> allows users to

play back from the DVR. <Local Playback> enables users to playback a

recorded video file stored on the hard disk drive of the PC. <Verify> is

provided for users to authenticate if the exported video is altered.

The DVR continues recording while playing back recorded video on the PC,

either remote playback or local playback.

TL H.264 DVR User’s Manual

6.3.3.1 Playback Remote Video

To view remote video, click <Play> on the main window toolbar, and then

<Remote Playback> tab. The <Remote Playback> screen will be displayed.

The <From> and <To> in the <Available Record Video> display the date and

time from which recorded video is available for playback.

To playback remote video segments, follow these steps:

• Choose <Playback> in <Select> field for playback recorded video.

• In <Start> field, users can change the date and time either by typing

desired numbers directly or using the arrow buttons.

To type directly:

Click on day, month and year of date field respectively, and type the

desired numbers directly. Follow above steps to adjust the hour, minute

and second of time field.

To use the arrow buttons:

Click on the arrow button next to the date field to display the calendar; then

click the left and right arrow at the top of the calendar to change the date.

Use up and down arrow next to the time field to change to the wanted time.

• The other way to select date and time is by moving the blue sliding bar.

• Click <OK> to start the playback, or click <Close> to abort.

• The other option <Download (.DRV)> in <Select> field enables users to

download the video segment of selected date and time to the PC. The

selection of time duration is the same as described above. Files

downloaded will be in *.drv format.

6.3.3.2 Playback Local *.drv Files

The <Local Playback> tab allows users to playback *.drv video files stored in

the PC's hard drive.

Follow below steps to playback a downloaded *.drv file with SpecoRemote.

• Click <Open> and the file selection screen is displayed.

• Select the *.drv video file for playback and click <OK>.

• Click <OK> in the <Local Playback> Screen to start the playback, or click

<Cancel> to abort.

• View the video playback using the Playback controls.

TL H.264 DVR User’s Manual

• To end the playback, click <Live> to return to live video.

6.3.3.3 Playback Controls

When the local or remote video is being played, SpecoRemote is in Playback

Mode. The playback controls toolbar will emerge on the main window toolbar.

The Playback controls and indicators are described as below.

Icon

⊲⊲

⊲⊲⊲⊲

⊳⊳⊳⊳ / ⌷⌷

⌷⌷

⌷⌷⌷⌷

Name Description

Fast Backward /

Step Backward

Play / Pause

1. Click to play the recorded video in backward

direction. Click repeatedly to select the backward playback speed: 1×, 2×, 4×, 8×, 16×, or 32×.

2. When playback is paused, click repeatedly to

move backward step-by-step.

1. While playing, click to pause the playback.

2. When paused, click to resume the playback.

1. Click to play the recorded video in forward

direction. Click repeatedly to select the forward playback speed: 1×, 2×, 4×, 8×, 16×, or 32×.

⊳⊳

⊳⊳⊳⊳

Fast Forward /

Step Forward

2. When playback is paused, click repeatedly to

move forward step-by-step.

6.3.4 Verify Digital Signature

The digital signature aims to authenticate a video file exported from the unit.

Follow the description to verify the digital signature.

• Click <Play> on the main window toolbar.

• Click <Verify> tab to display the Verify window.

• Click <Browse> to select the *.gpg, *.avi, *.sig files respectively, which

belong to the exported video to be authenticated.

• Click <Verify> to start verifying digital signature.

• The result of verify shows in the <Status Log> field. It returns a GOOD or

BAD signature result. A GOOD signature indicates the exported clip has

not been altered.

TL H.264 DVR User’s Manual

6.3.5 Search from Event List

Click SEARCH, the Event List appears. The List contains information about

the alarm events that the unit recorded and saved. Up to 1024 events can be

listed in the Event List.

The Event List displays each event by its number, the date and time of the

event, the type of the event (including Alarm In, Motion Detection, Video Loss,

and Over Speed), and the camera channel where the event occurred.

To view an event video, follow these steps:

• Click SEARCH button positioned in the main window toolbar. The Event

List appears.

• Scroll through the Event List and highlight the interested events.

• Double-click on the desired event to view the event video.

6.3.6 Take a Snapshot

Snapshot is a simple screen capture tool. When users click on the

SNAPSHOT button, it will capture the screenshot of the window that is

currently showing on the screen. Each click captures one screenshot to be

saved as a JPEG file on the desktop. The snapshot file will be named as

“Snapshot-*”.

6.3.7 Health Status

This function verifies the HDD status of the DVR. The information items in the

status chart are described as below.

Device Name

This item shows the model name of the HDD.

TL H.264 DVR User’s Manual

Int./Ext.

This item indicates whether the HDD is an internal or external device.

Total Size

This item indicates the total size of the HDD.

State

This item indicates whether the HDD is active or non-active.

Temperature

This item indicates the current temperature of the HDD in Celsius degree.

TL H.264 DVR User’s Manual

6.3.8 Remote Monitoring Software Trouble Shooting Guide

What happened if the server requests to upgrade the software every time the

DVR is connected? If the following screen displays repeatedly, please follow

the steps to delete the temporary internet files.

• Select <Tools> from the main menu of the web browser, then <Internet

Options>, and then click the <General> tab.

• Click the <Delete Files> button in the <Temporary Internet Files> field; the

<Delete Files> screen displays as below.

• Check the <Delete all offline content> box and click <OK>.

• Now, enter the IP address of the DVR to make the connection again.

TL H.264 DVR User’s Manual

Appendix A: Recommended HDDs

Refer to the following list for some recommended HDDs to be used in the DVR.

Brand Model Name Model Number Size

Barracuda ES.2 ST3500320NS 500G

Seagate

HITACHI

Maxtor

Western Digital

Barracuda 7200.11 ST3500320AS 500G

Barracuda 7200.11 ST3750330AS 750G

Barracuda 7200.11 ST31000340AS 1000G

DeskStar HDP725032GLA360 320G

DeskStar HDP725050GLA360 500G

DiamondMax 22 STM3500320AS 500G

WD AV WD1600AVJS 160G

WD AV WD2500AVJS 250G

WD AV WD3200AVJS 320G

WD AV WD5000AVJS 500G

WD AV WD7500AVVS 750G

TL H.264 DVR User’s Manual

Appendix B: Remote Controller

The operational function keys on the remote control are listed as below figure:

TL H.264 DVR User’s Manual

The keys of the remote control function as the keys of the front panel of the DVR. The only

difference between the remote control and the front panel keys is the “DVR SEL” key. The

DVR Selection key is used to switch control between each DVR.

The remote control can be used to control up to 16 DVRs. To setup the remote control, the

first thing is to assign a unique DVR Unit ID to each DVR.

Use the front panel of the DVR, and follow this path to change the DVR Unit ID, <Main

Menu>  <System Setup>  <RS485 Setup>  <Unit ID>. Change the DVR Unit ID to

any number between 224 and 239, and exit the menu.

The ID Table is listed below for reference.

DVR Unit ID 224

225 226 227 228 229 230 231

Remote Control # 1 2 3 4 5 6 7 8

DVR Unit ID 232 233 234 235 236 237 238 239

Remote Control # 9 10 11 12 13 14 15 16

After the DVR Unit ID is changed, setup the “DVR SEL” of the remote control. Press “DVR

SEL”, and then press the Remote Control # immediately to select the DVR. For example,

assuming the DVR Unit ID is set to 225, press “DVR SEL” and then press “2” immediately.

Now, the remote control will only be able to control the specified DVR. Press “DVR SEL”,

and then press the Remote control # to switch between DVRs.

To exit the single DVR Control mode, press “DVR SEL”, and then press “ESC” to do so.

TL H.264 DVR User’s Manual

Appendix C: Setting up a DVR behind a Router

This appendix describes how to set up a router if the DVR connects to the internet via a

router.

To properly operate a web server, e.g. a DVR, users have to set up both the IP and port of

the DVR, which are essential for data and command transmission. The port setting is

adjustable in OSD setup menu of the DVR and only one port is needed to do remote

operation. Typically and by the default, the DVR operates on port 80, which is well known

as the http port. Please make sure that port 80 is not blocked by the ISP. Otherwise, a

different available port shall be reset and the setting of the DVR shall be changed.

In case a router or sometimes a DSL modem is in place, the real IP is now assigned to the

router instead of the DVR. The DVR is located behind the wall (router) and operates on

virtual IP. In most cases, virtual IP starts with 192.168.x.x. The router has two IP: one is real

IP (WAN IP); the other is virtual IP (LAN IP). The virtual IP would be 192.168.x.1. When the

remote users want to operate the DVR, they will have to send command to the real IP, i.e.

the router. Then the router has to map (forward) the command to the DVR. Thus, it is

required to set up the router for port mapping (forwarding) before images from the DVR can

be remotely viewed on a PC.

See the router manufacturer's websites for more instructions on port mapping.
