DVR-4TH
DVR-8TH
DVR-16TH
Digital Video Recorder Family
With Network/DDNS Video Server
User’s Manual
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
1-800-645-5516
200 New Highway
Amityville, NY 11701
www.specotech.com
User’s Manual
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
1
User’s Manual
Caution and Preventive Tips
• Take care not to drop the unit or subject the unit to major shocks or jolts.
• Do not place this unit on an unstable stand, bracket or mount.
• This unit is designed for indoor use only. Do not place the unit near water or in other
extremely humid conditions.
• This unit should not be placed in a built-in installation unless proper ventilation is provided.
• Please check the type of power source available before you plug and operate the unit.
• If the clearing is necessary, note to plug the unit from the outlet before uncovering the top
cover. Do not use liquid cleaners or aerosol cleaners. Use only a damp cloth for cleaning.
• Always power down the system prior to connecting and disconnecting accessories, with
the exception of USB devices.
• Lithium battery: Danger of explosion if battery is incorrectly replaced. Replace with
the same type of battery or equivalent type recommended by the battery manufacturer.
Dispose of used batteries according to the battery manufacturer’s instructions.
This symbol intends to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the
appliance.
2
This symbol intends to alert the user to the presence of unprotected “Dangerous
Voltage” within the product’s enclosure that may be strong enough to cause a
risk of electric shock.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Important Information
Before proceeding, please read and observe all instructions and warnings in this
manual. Retain this manual with the original bill of sale for future reference and, if necessary,
warranty service. When unpacking your unit, check for missing or damaged items. If any item is
missing, or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your
dealer for assistance.
Rack Mounting
Consult with the supplier or manufacturer of your equipment rack for the proper procedure
and hardware for mounting this product in a safe fashion. Avoid uneven loading or
mechanical instability when rack-mounting units. Make sure the units are installed to get
enough airflow for safe operation. The maximum temperature for rack-mounted units is 104
°F/40 °C. Check product label for power supply requirements to assure that no overloading
of supply circuits or over current protection occurs. Main grounding must be reliable and
uncompromised by any connections.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
3
User’s Manual
Table of Contents
1. Overview .....................................................................................................................13
1.1 Product Key Features ........................................................................................14
1.2 Product Application Diagram..............................................................................15
2. System Setup..............................................................................................................16
2.1 Position the Unit.................................................................................................16
2.2 Selecting Video Format......................................................................................16
2.3 Connecting Devices to the Unit..........................................................................16
2.4 Rear Panel Connections....................................................................................17
3. General System Setup ...............................................................................................20
3.1 Front Panel Introduction ....................................................................................20
3.1.1 LED Definition.........................................................................................20
3.1.2 Functional Keys ......................................................................................21
3.2 Entering OSD Setup Menu ................................................................................24
3.2.1 User Management ..................................................................................25
3.3 Configuring the HDD in the unit .........................................................................26
3.4 Power On/ Off the Unit.......................................................................................26
3.5 System Date/ Time Setting ................................................................................28
3.5.1 Set Date/ Time ........................................................................................28
3.5.2 Daylight Saving Time Setup ....................................................................29
3.5.3 Network Time Protocol Setup..................................................................30
3.6 IP Camera Setting .............................................................................................30
3.6.1 IP Camera Information ............................................................................31
3.6.2 Connection Setup ...................................................................................32
3.6.3 Device Setup...........................................................................................33
3.6.4 Activated .................................................................................................33
3.6.5 Status ......................................................................................................33
3.7 Record Schedule/ Quality Setting......................................................................34
3.7.1 Record Mode Setup ................................................................................34
3.7.2 Schedule Setup.......................................................................................34
3.7.3 Preset Record Configuration...................................................................35
3.7.4 Per Camera Configuration ......................................................................36
3.7.5 Record Event Video Only........................................................................36
4. Basic Operation..........................................................................................................37
4.1 Viewing Live/ Playback Video............................................................................37
4.1.1 Viewing Modes........................................................................................37
4.1.2 Digital Zoom............................................................................................38
4.1.3 Viewing Live Cameras ............................................................................38
4
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
To Freeze Live Image..............................................................................38
4.1.4 Viewing Recorded Video.........................................................................38
Key Usage in Playback ...........................................................................39
Pause Playback and Single Step Forward/ Backward ............................39
4.2 Sequence Setup ................................................................................................40
4.2.1 Sequence on Main Monitor .....................................................................40
4.2.2 Call Monitor Control ................................................................................40
4.3 Searching Recorded Video................................................................................41
4.3.1 Searching by Time ..................................................................................41
4.3.2 Calendar Search .....................................................................................42
4.3.3 Smart Search ..........................................................................................43
4.3.4 Searching by Event.................................................................................44
4.3.5 Search by Text ........................................................................................45
4.4 Video Export ......................................................................................................46
4.4.1 Export from OSD Setup Menu ................................................................46
4.4.1.1 Select the External Device......................................................47
4.4.1.2 Select Video for Exporting.......................................................47
4.4.1.3 Digital Signature......................................................................48
4.4.1.4 Erase Disc...............................................................................49
4.4.2 Quick Video Export through Front Panel.................................................49

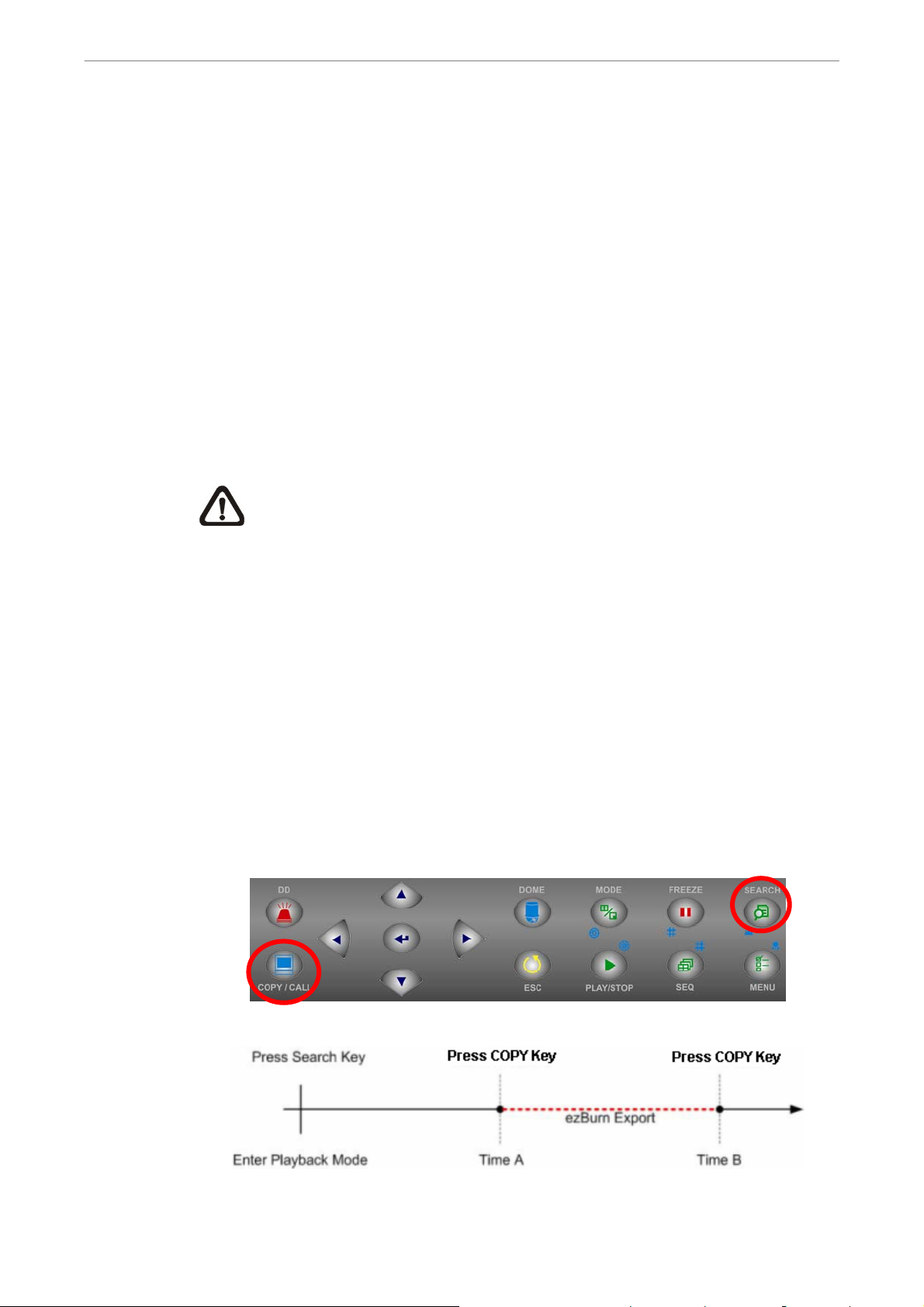

4.4.2.1 ezBurn Introduction.................................................................49
4.4.2.2 Export Normal Video...............................................................50
4.4.2.3 Export Event Video .................................................................50
4.5 Deleting Recorded Video...................................................................................51
4.6 Dome Control.....................................................................................................52
4.6.1 Dome Connection ...................................................................................52
4.6.2 Dome Protocol Setup..............................................................................52
4.6.3 RS485 Setup...........................................................................................53
4.6.4 Dome Controlling Key .............................................................................54
4.6.5 Setting Preset Points...............................................................................55
4.6.6 Calling Preset Points...............................................................................56
4.7 Manual Digital Deterrent ....................................................................................57
4.8 2-Way Audio Talk Function ................................................................................57
4.9 UPnP Function...................................................................................................58
4.9.1 Setting Up the DVR and the PC..............................................................58
4.9.2 UPnP NAT Traversal Function ................................................................58
4.10 Boot Log Exportation .........................................................................................59
5. Advanced System Configuration ..............................................................................60
Account and Password ...............................................................................................60
Key Usage in OSD setup menu..................................................................................60
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
5
User’s Manual
Key Usage in Virtual Keyboard...................................................................................61
5.1 System Setup ....................................................................................................62
5.1.1 System/Version Info ................................................................................62
5.1.1.1 DVR System Information & Version Numbers.........................62
5.1.1.2 Software Upgrade via Local Device ........................................63
5.1.1.3 Software Upgrade via Internet ................................................63
5.1.2 Language................................................................................................64
5.1.3 Date / Time..............................................................................................64
5.1.3.1 Date / Time..............................................................................64
5.1.3.2 Time Zone...............................................................................65
5.1.3.3 Date / Time Display.................................................................65
5.1.3.4 Date Display Mode..................................................................65
5.1.3.5 Time Display Mode .................................................................66
5.1.3.6 Daylight Saving Time Setup ....................................................66
Daylight Saving Time ..............................................................66
DST Start / End .......................................................................66
DST Bias.................................................................................66
5.1.3.7 Network Time Protocol Setup..................................................66
NTP Server .............................................................................66
Automatically Time Sync .........................................................67
Manually Time Sync................................................................67
5.1.4 Unit Name...............................................................................................67
5.1.5 Show Unit Name .....................................................................................67
5.1.6 User Management ..................................................................................68
5.1.6.1 Password Protection ...............................................................68
5.1.6.2 Account Setup.........................................................................68
5.1.6.3 Authority Setup .......................................................................68
5.1.6.4 Load Default Setting ...............................................................69
5.1.7 Network Setup ........................................................................................69
5.1.7.1 LAN Select ..............................................................................70
5.1.7.2 LAN Setup...............................................................................70
DHCP......................................................................................71
6
IP ............................................................................................71
Netmask..................................................................................71
Gateway..................................................................................71
DNS ........................................................................................72
PPPoE Account.......................................................................72
PPPoE Password....................................................................73
PPPoE Max Idle......................................................................73
Connect At Booting .................................................................73
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Network Restart ......................................................................73
5.1.7.3 Modem Setup..........................................................................74
Dial-in Setup ...........................................................................74
Dial-out Setup .........................................................................76
Dial Port Selection ..................................................................79
5.1.7.4 Trigger Port .............................................................................79
5.1.7.5 Email Address .........................................................................80
5.1.7.6 SMTP Setup............................................................................80
Email via SMTP ......................................................................80
SMTP Server ..........................................................................81
SMTP Port ..............................................................................81
SMTP Account ........................................................................81
SMTP Password .....................................................................82
5.1.7.7 DDNS Setup ...........................................................................82
Enable DDNS..........................................................................82
Host Name..............................................................................82
DDNS Port ..............................................................................83
Submit/ Update .......................................................................83
ezDDNS..................................................................................83
5.1.7.8 UPnP Setup ............................................................................84
UPnP ......................................................................................84
UPnP NAT Traversal ...............................................................84
5.1.8 RS485 Setup...........................................................................................84
5.1.8.1 Unit ID.....................................................................................84
5.1.8.2 Baud Rate...............................................................................85
5.1.8.3 Bits..........................................................................................85
5.1.8.4 Stop.........................................................................................85
5.1.8.5 Parity.......................................................................................85
5.1.9 Audio Output/ Key Beep..........................................................................85
5.1.9.1 Audio Output...........................................................................85
5.1.9.2 Key Beep ................................................................................86
5.1.10 User Graphic Interface .........................................................................86
5.1.11 IP Camera Support...............................................................................86
5.2 Monitor Setup ....................................................................................................87
5.2.1 Show Camera Title..................................................................................87
5.2.2 Title Position............................................................................................87
5.2.3 Monitor Brightness ..................................................................................88
5.2.4 Monitor Contrast .....................................................................................88
5.2.5 Monitor Chrominance..............................................................................88
5.2.6 VGA Resolution.......................................................................................88
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
7
User’s Manual
5.2.7 VGA Frequency.......................................................................................89
5.2.8 Show Color Bar.......................................................................................89
5.3 Camera Setup....................................................................................................90
5.3.1 Analog Camera .......................................................................................90
5.3.1.1 Camera Select ........................................................................90
5.3.1.2 Dome Protocol ........................................................................90
5.3.1.3 Dome ID..................................................................................90
5.3.1.4 Camera Title............................................................................91
5.3.1.5 Covert/Privacy Mask ...............................................................91
Covert .....................................................................................91
Privacy Mask...........................................................................92
Privacy Mask Select................................................................92
5.3.1.6 Termination .............................................................................92
5.3.1.7 Brightness...............................................................................92
5.3.1.8 Contrast ..................................................................................92
5.3.1.9 Saturation ...............................................................................93
5.3.1.10 Hue .........................................................................................93
5.3.1.11 Audio Association....................................................................93
5.3.1.12 Copy Settings..........................................................................93
5.3.2 IP Camera...............................................................................................93
5.3.2.1 IP Camera Select ....................................................................94
5.3.2.2 IP Camera Title .......................................................................94
5.3.2.3 Search Via UPnP ....................................................................94
5.3.2.4 Hostname/IP ...........................................................................94
5.3.2.5 Model ......................................................................................95
5.3.2.6 Connection Setup ...................................................................95
Account...................................................................................95
Password ................................................................................95
Management Port ...................................................................95
Streaming Format ...................................................................95
Advance Streaming Option .....................................................95
Streaming Port ........................................................................95
8
Streaming Protocol..................................................................96
IP Dome Protocol....................................................................96
5.3.2.7 Device Setup...........................................................................96
Product ID...............................................................................97
Image Resolution/ FPS/ Compression/ Quality.......................97
Sharpness/ Brightness/ Contrast/ Saturation/Hue...................97
Apply.......................................................................................97
5.3.2.8 Activated .................................................................................98
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.3.2.9 Status ......................................................................................98
5.3.2.10 Copy Settings..........................................................................98
5.4 Record Setup.....................................................................................................99
5.4.1 Record Mode Setup ................................................................................99
5.4.1.1 Record Resolution ..................................................................99
5.4.1.2 Record Format ......................................................................100
5.4.1.3 Max Rec. PPS.......................................................................100
5.4.2 Schedule Setup.....................................................................................100
5.4.2.1 Day / Night Time Start / End..................................................100
5.4.2.2 Weekend Schedule...............................................................100
5.4.2.3 Weekend Start / End .............................................................101
5.4.3 Preset Record Configuration.................................................................101
5.4.4 Per Camera Configuration ....................................................................101
5.4.4.1 Camera Select ......................................................................102
5.4.4.2 Normal PPS ..........................................................................102
5.4.4.3 Normal Qlty...........................................................................102
5.4.4.4 Event Max PPS.....................................................................102
5.4.4.5 Event Qlty .............................................................................102
5.4.4.6 Event Active ..........................................................................102
5.4.5 ezRecord Setup ....................................................................................103
5.4.6 Data Lifetime Setup...............................................................................104
5.4.6.1 Data Lifetime Mode...............................................................104
5.4.6.2 Data Lifetime.........................................................................104
5.4.6.3 Data Lifetime By Day ............................................................104
5.4.6.4 Data Lifetime By Channel .....................................................105
5.4.7 Pre-Alarm Recording ............................................................................105
5.4.8 Circular Recording ................................................................................105
5.4.9 Audio Recording ...................................................................................105
5.4.10 Purge Data............................................................................................106
5.4.10.1 Purge All Data .......................................................................106
5.4.10.2 Purge All Event Data.............................................................106
5.4.10.3 Purge Event Before...............................................................106
5.4.10.4 Start To Purge .......................................................................106
5.5 Sequence Setup ..............................................................................................107
5.5.1 Main / Call Monitor Dwell ......................................................................107
5.5.2 Main / Call Monitor Schedule ................................................................107
5.6 Event Setup .....................................................................................................108
5.6.1 Internal Buzzer......................................................................................108
5.6.2 Event Icon.............................................................................................108
5.6.3 Email Notice..........................................................................................108
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
9
User’s Manual
5.6.4 Email Attachment ..................................................................................109
5.6.5 Alert Notification Setup..........................................................................109
5.6.6 Event Full Screen.................................................................................. 110
5.6.7 Event Duration ...................................................................................... 110
5.6.8 Per Channel Config............................................................................... 110
5.6.5.1 Alert Configuration Set..........................................................109
5.6.5.2 Alert Notification....................................................................109
5.6.5.3 Alert IP .................................................................................. 110
5.6.5.4 Alert Port............................................................................... 110
5.6.5.5 Alert Interval.......................................................................... 110
5.6.8.1 Channel Select...................................................................... 111
5.6.8.2 Video Loss Detect................................................................. 111
5.6.8.3 Motion Detect........................................................................ 111
5.6.8.4 Detection Config ................................................................... 111
Detected Area Setup............................................................. 111
Sensitivity.............................................................................. 112
Area Threshold .....................................................................112
5.6.8.5 Alarm In ................................................................................112
5.6.8.6 Alarm Out.............................................................................. 112
5.6.8.7 Digital Deterrent – Day/ Night/ Weekend ..............................113
5.7 Database Setup ...............................................................................................115
5.7.1 Total / Free Size of HDD .......................................................................115
5.7.2 Avail. Rec Time ..................................................................................... 115
5.7.3 Est. Rec Period..................................................................................... 115
5.7.4 Internal / External Disks ........................................................................ 116
5.7.5 NAS Device........................................................................................... 117
5.8 Configuration ...................................................................................................117
5.8.1 Load Factory Default............................................................................. 118
5.8.2 Import Configuration .............................................................................118
5.8.3 Export Configuration ............................................................................. 118
5.8.3.1 Copy Destination................................................................... 119
5.8.3.2 Configuration Name .............................................................. 119
5.8.3.3 Begin Export .........................................................................119
5.8.4 Import Deterrent.................................................................................... 119
5.8.5 Export Deterrent....................................................................................120
5.8.6 Boot Log................................................................................................120
5.8.7 Operation Log .......................................................................................120
5.9 Video Export ....................................................................................................120
5.9.1 Select Device........................................................................................121
5.9.2 Select Channel......................................................................................122
10
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.9.3 From / To Time ......................................................................................122
5.9.4 Select Events........................................................................................122
5.9.5 Data Type..............................................................................................122
5.9.6 Export Format .......................................................................................123
5.9.7 Digital Signature....................................................................................123
5.9.8 Erase Disc.............................................................................................123
5.9.9 Begin Export .........................................................................................123
5.10 POS Setup.......................................................................................................124
5.10.1 POS Function......................................................................................124
5.10.2 POS Overlay .......................................................................................124
5.10.3 Exception POS Setup..........................................................................125
5.10.3.1 Exception No.........................................................................125
5.10.3.2 Trigger...................................................................................125
5.10.3.3 Exception String....................................................................125
5.10.3.4 By Numerals .........................................................................125
5.10.4 Input Setup..........................................................................................126
5.10.4.1 Port Selection........................................................................127
5.10.4.2 Input source ..........................................................................127
5.10.4.3 Camera Selection .................................................................127
5.10.4.4 Text Filter ..............................................................................127
5.10.4.5 Manual Filter Setup...............................................................128
5.10.4.6 Input Process........................................................................128
5.10.4.7 Text Baud Rate .....................................................................128
5.10.4.8 Text Bit ..................................................................................128
5.10.4.9 Text Stop ...............................................................................128
5.10.4.10 Text Parity .............................................................................128
5.11 Shutdown.........................................................................................................129
5.11.1 Power Off ............................................................................................129
5.11.2 Reboot.................................................................................................129
5.11.3 Auto Rebooting ...................................................................................129
5.11.4 Rebooting Time ...................................................................................129
6. Remote Monitoring Software...................................................................................130
6.1 Remote Monitoring System Requirements ......................................................130
6.2 Software Installation.........................................................................................131
6.2.1 Change Internet Settings ......................................................................131
6.2.2 Install Remote Monitoring Software ......................................................133
6.2.2.1 Login / Logout .......................................................................134
6.2.2.2 Software Upgrades ...............................................................135
6.3 Basic Operation for Remote Monitor................................................................135
6.3.1 View Live Video.....................................................................................135
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
11
User’s Manual
6.3.2 Instant Recording..................................................................................137
6.3.3 Playback Video .....................................................................................138
6.3.4 Verify Digital Signature..........................................................................140
6.3.5 Search from Event List..........................................................................140
6.3.6 Take a Snapshot ...................................................................................140
6.3.7 Health Status of HDD............................................................................141
6.3.8 Normal and Dual Streaming ..................................................................141
6.3.9 Remote Monitoring Software Trouble Shooting Guide ..........................142
6.3.1.1 Select Display Mode .............................................................136
6.3.1.2 Operate Cameras with Dome Control ...................................136
6.3.2.1 Record Video Instantly..........................................................137
6.3.2.2 Playback Instant Recorded Video .........................................137
6.3.3.1 Playback Remote Video........................................................138
6.3.3.2 Playback Local *.drv Files.....................................................139
6.3.3.3 Playback Controls .................................................................139
Appendix A: Technical Specifications .........................................................................143
Appendix B: Preset Record Configuration ..................................................................145
Appendix C: Record Duration.......................................................................................147
Appendix D: Dial-up Connections via Modem ............................................................149
Establishing Dial-in Connection ................................................................................149
Establishing Dial-out Connection..............................................................................153
Appendix E: Verifying Digital Signature ......................................................................158
Appendix F: Alarm I/O Pin Definition ...........................................................................161
Appendix G: HDD PC Player Tool Introduction...........................................................163
Using EXT2IFS on Your PC......................................................................................163
Start Playing the *.drv file..........................................................................................165
Appendix H: IR Remote.................................................................................................167
Appendix I: USB Mouse Operation...............................................................................169
Special Operations ...................................................................................................169
Appendix J: ezRecord Diagram Sample ......................................................................171
Appendix K: Connect to External Storage Device ......................................................174
12
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
1. Overview
The DVR-4TH/ 8TH/ 16TH series unit is an integrated digital video recorder
that combines the features of a time-lapse audio / video recorder, a
multiplexer, and a video server to create a single security CCTV solution.
Its outstanding variable operation enables users to view live or playback
recorded video, have remote access through network simultaneously while
recording other video, and to view previously recorded video instantly by
entering the time and date or selecting recorded video from the event list.
The DVR-4TH/ 8TH/ 16TH series unit is enhanced to provide Multi-Codec
including H.264, MPEG-4, and MJPEG compression mode. Moreover, its
distinctive hybrid solution supports the coexistence of network compatible IP
devices and convenient analog connections.
The DVR-4TH/ 8TH/ 16TH series includes SpecoRemote™, the remote
viewing and configuration software that is a Web-browser plug-in, which
allows users to view live, or recorded video images, and enables remote
configuration. The remote software is stored in the DVR-4TH/ 8TH/ 16TH
series unit and deployed over a LAN, WAN or Internet connection to remote
Windows-based computers. This simplifies the installation and maintenance
of the software components so all remote users are kept up to date.
Please refer to the following for the front panel design of the three models.
DVR-4TH
DVR-8TH
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
13
User’s Manual
DVR-16TH
1.1 Product Key Features
The DVR-4TH/ 8TH/ 16TH series offers advanced features not typically found
in standard multiplexers. It integrates the full features of a DVR, a multiplexer
and a video server (by using the software SpecoRemote™). The key features
of the DVR-4TH/ 8TH/ 16TH series are listed as follows.
Advanced Functions
• H.264 high quality compression
• 4/8/16 channels for video input
• Simultaneous Live/ Playback monitor and remote access via network,
while recording without interruption
• SpecoRemote™ web-based software for remote monitoring and control
via LAN or Internet including CMS
• Embedded Linux operating system
• Real-time “live display” for each channel
• Recording frame rate up to 240 pps(NTSC)/ 200 pps(PAL)
• 16 Channels of audio recording/ playback
• Digital Deterrent
• Two-way audio
• 4 USB2.0 ports for video clip export and/or backup
®
• Easy software upgrade via USB ThumbDrive
, DVD+RW or Internet
Remote Application
• Up to 4 internal hard drives (4
th
drive requires removal of the DVD-RW)
• Supports SATA HDDs up to 1TB
14
• POS Support
• Gigabit LAN (RJ45) for external storage and NAS for TH series models
• 2X Digital Zoom available in Live and Playback mode
• Automatic camera detection (Plug & Play)
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
• Covert camera operation provides enhanced security and administrator
control
• Per camera configuration for camera settings, frame rate, picture bit rate,
alarms, motion detection.
• Programmable day/ night/ weekend scheduling
• Programmable main monitor/ call-monitor switching sequence
• Powerful alarm processor allows flexible alarm trigger and responses,
including alarm, motion, and camera failure
• Dome control protocols: Speco, Pelco D, Pelco P, Fastrax 2, AD422,
Panasonic_C, Panasonic_N, DSCP and JVC
• 8 levels of password security
1.2 Product Application Diagram
According to system demand, connect the unit with selective devices as
shown in the system diagram below to complete a video surveillance solution.
The figure also displays the expandability and flexibility of this digital
recording system.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
15
User’s Manual
2. System Setup
Prior notices and an introduction on system installation will be described in
this chapter. Please follow the instructions to operate the unit.
In order to prevent the unit from data loss or system damage that might result
from a sudden power fluctuation, the use of an Uninterruptible Power Supply
(UPS) is highly recommended.
2.1 Position the Unit
Position/ mount the DVR-4TH/ 8TH/ 16TH series unit in an appropriate,
steady location and make sure the power is off before making any
connections. The area should avoid hindering or blocking the unit from airflow.
Sufficient airflow is required to protect the unit from overheating. The
tolerable high temperature of the operating environment is 104°F/ 40°C.
The unit utilizes heat-conducting techniques to transfer internal heat to the
case, especially to the bottom side of the unit.
NOTE: Be sure not to remove the rubber feet, and always leave a
space for air ventilation on the bottom side of the unit.
2.2 Selecting Video Format
The DVR-4TH/ 8TH/ 16TH series unit is designed to operate under either
NTSC or PAL video formats. Please contact a qualified service person to
perform the installation procedure.
2.3 Connecting Devices to the Unit
This section lists some important notices that should be read BEFORE
16
making any connections to the DVR-4TH/ 8TH/ 16TH series unit.
NOTE: Be sure to connect short-term external devices, such as USB
®
ThumbDrive
AFTER the unit is successfully powered on.
, USB DVD+RW, USB Hard Disk Drive, etc., ONLY
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Connecting Required Devices
Before powering up, you should connect cameras and a main monitor to the
unit for basic operation. If needed, connect a call monitor for displaying full
screen video of all installed cameras in sequence.
Connecting Short-term Device
If you plan to install any short-term external devices, such as USB DVD+RW,
USB Hard Disk Drive, etc, to the DVR-4TH/ 8TH/ 16TH series and want to
use them as part of the unit system, make sure those devices are
connected only after the DVR-4TH/ 8TH/ 16TH is powered up. The
DVR-4TH/ 8TH/ 16TH series unit can only recognize the external devices
after the power-up process is completed.
2.4 Rear Panel Connections
There are several connectors on the rear panel of the DVR-4TH/ 8TH/ 16TH
series unit available for installations. The following figure shows the
connectors by name and a detailed description of each connector follows.
There are two differences on the rear panels of different models:
1. The BNC channel connectors are provided according to the supported
number of channels, respectively 4-ch, 8-ch, and 16-ch.
2. The terminal blocks of audio in/out and alarm I/O for DVR-4TH/ 8TH is
smaller whereas the terminal blocks of audio in/out and alarm I/O for
DVR-16TH is larger.
The detail description of each connector is as the followings.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
17
User’s Manual
Main Monitor (S-Video/ BNC/ VGA)
S-Video, BNC, and VGA output connectors are available for connecting to a
main monitor. The main monitor displays live image and playback recorded
video in full-screen or multiple window format.
Digital Output (Main Monitor)
A digital output connector is provided for connection to a displaying device
that transfers data digitally to show the best video quality.
Call Monitor (BNC)
The call monitor is used to display full screen video of all installed cameras in
sequence. The BNC call monitor connector allows the user to connect an
optional call monitor to the DVR-4TH/ 8TH/ 16TH series unit. Reference to
dual monitor support in section Dual Main Output
.
Video Input
A group of BNC connectors is provided for video input streams from installed
cameras. The number of connectors equals to the number of channels. The
DVR-4TH/ 8TH/ 16TH series unit has 4/ 8/ 16 BNC connectors on the rear
panel, respectively.
Video Looping
The other group of BNC connectors positioned on the rear panel is for looping
out video input.
RS-232C
The unit provides a RS-232C communication port for sending and receiving
signals.
Alarm I/O & RS-485 Ports
18
The unit provides Alarm I/O and RS-485 ports that offer users the flexibility
required to connect the unit to other devices.
Refer to appendix Ala rm I/O Pin Definition for detailed pin definition on the
Alarm I/O for the DVR-4TH/ 8TH/ 16TH series unit.
NAS
The DVR-4TH/ 8TH/ 16TH series unit can connect to a Network Attached
Storage (NAS) device through this connector to increase storage space and
allow vast recording.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Audio In
The DVR-4TH/ 8TH/ 16TH series unit provides 4/ 8/ 16 channels of audio
recording accordingly. The Audio In connectors are offered for connecting
audio source devices (e.g. external amplified microphone) to the unit. The
PIN of upper row is for input of each channel while the lower row is for
ground.
Main Audio Out
One RCA connector is provided for audio output of main monitor.
Audio Out
In addition to the RCA connector, the DVR-4TH/ 8TH/ 16TH series unit
provides 4/ 8/ 16 channels of audio exporting accordingly. The Audio Out
connectors are provided for connecting audio output devices (e.g. amplified
speakers) to the unit. The PIN of upper row is for output of each channel while
the lower row is for ground.
USB 2.0 (x4)
There are two USB 2.0 ports on the rear panel and two on the front panel to
allow users to connect external USB devices to the unit, such as a
ThumbDrive®, DVD+RW, or a USB mouse.
The DVR-4TH/ 8TH/ 16TH series unit allows users to preset the OSD settings
using a USB mouse or a USB keyboard.
LAN (RJ-45)
The DVR-4TH/ 8TH/ 16TH series unit is capable of networking. Once the unit
is connected to the LAN network, the users can remotely access the unit
through SpecoRemote™ on a PC.
Power Switch
The power switch is used to power up or shut down the unit.
Power Supply
Connect the power supply cord shipped with the unit to the power supply jack
to provide power to operate the DVR-4TH/ 8TH/ 16TH series unit.
NOTE: Use of other power supply cord may cause overloading.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
19
User’s Manual
3. General System Setup
Before operating the DVR-4TH/ 8TH/ 16TH series unit, some general
configuration should be setup in advance. The following subsections will
introduce functional keys on the front panel and general configuration of the
DVR-4TH/ 8TH/ 16TH series unit.
The regularly displayed OSD information and its positions are shown in the
following figure. The title of the channel is displayed on the upper left-hand
corner of the window, either in full screen mode or in multiple-channel mode.
The current operating mode, including Call mode, Dome Control mode,
Playback mode, Freeze mode and Sequence mode, is displayed in the status
bar located on the lower left-hand corner of the screen. The date/ time
information is displayed on the lower right-hand corner of the screen.
Ch1
2009/10/22 PM 04:31:55
3.1 Front Panel Introduction
The functional keys on the unit’s front panel enable users to control the unit
and preset programmable settings.
3.1.1 LED Definition
The LED indication lights of the DVR-4TH/ 8TH/ 16TH series unit on the front
panel are described as follows.
20
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Power LED
The LED should be lit when the power is connected.
HDD LED
The LED will be lit while the HDD is processing data to or from the connected
HDD(s).
Alarm LED
The LED should be lit when an alarm is triggered.
Network LED
The LED should be lit when the DVR-4TH/ 8TH/ 16TH series unit is
connected to a network and it should blink when any data is being transferred.
REC LED
The LED should blink while the DVR-4TH/ 8TH/ 16TH series unit is recording.
3.1.2 Functional Keys
The DVR-4TH/ 8TH/ 16TH series unit’s function keys on the front panel are
described below for normal operation.
CHANNEL
• In both Live and Playback modes, press any CHANNEL key to view the
corresponding video in full screen. The number of the CHANNEL keys
corresponds to the number of cameras supported by the unit.
• In Dome Control mode, the key “1” is used to access the Set/ Go Preset
menu while the key “2” is used to hide or display the dome camera setting
parameters.
• In OSD virtual keyboard, press keys 1~9 to input number 1~9, and press
key 10 to input number 0.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
21
User’s Manual
Digital Deterrent
Users can trigger warning announcement at certain camera site by pressing
the digital deterrent key and the specific camera key. Refer to section Manual
Digital Deterrent for more detail about manually triggering the digital
deterrent function.
COPY/ CALL
• In Live mode, press this button to enter call monitor control mode.
• In Dome Control mode, press CALL in association with ENTER to enter
the OSD setup menu of the dome camera.
• This is used to quick export video to an external device, such as USB
DVD+RW, USB ThumbDrive®, etc. For more detailed operating
instructions, refer to section Quick Video Export through Front Panel
.
• In OSD virtual keyboard, press this key to input a period mark “.”.
Direction Keys
• In Zoom mode, these keys function as normal Direction Keys.
• In the OSD setup menu, the Direction Keys are used to move the cursor to
previous or next fields. To change the value in the selected field, press UP
/ DOWN keys.
ZOOM/ ENTER
• In OSD setup menu or selection interface, press this key to make
selection or to save settings.
• In live full screen viewing mode, press this key to view a 2× zoom image.
Press it again to return.
ESC
• Press to cancel or exit from certain mode or OSD setup menu without
22
changing the settings made previously.
• If the password protection has been enabled, press ESC for five seconds
to lock up the function of certain keys, including PLAY, MENU, SEARCH,
and DOME. Once users lock up the function of these keys, enter proper
username and password to gain access of the functions of these keys.
NOTE: Please go to the <System Setup> Æ <User Management>
menu to enable or disable the password protection.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
DOME
• Press this key to enter Dome Control mode. Please refer to section Dome
Control for more details about dome camera controlling operation.
• In OSD virtual keyboard, press this key to go backspace.
MODE
Press repeatedly to select desired main monitor display format. There are
four viewing modes available: full screen, 4-window (2×2), 9-window (3×3),
and 16-window (4×4). Refer to section Viewing Modes
for more detailed
information.
PLAY/ STOP
Press this key to switch between live image and playback video.
NOTE: Video taken within the latest 5 ~ 10 minutes cannot be played
back because the video is still saved in the buffer.
SEQ (Sequence)
Press to start automatic sequencing of the video coming in from the installed
cameras.
FREEZE
• Press FREEZE while viewing live image, the live image will be frozen, but
the date/ time information shown on the monitor will continue updating.
The recording of the video will continue as well. Press FREEZE again to
return to live mode.
• Press FREEZE while playing recorded video, the playback video will be
paused. Press LEFT/ RIGHT to move the recorded video reverse/ forward
by a single step. Press FREEZE again to continue playing video.
MENU
Press this key to access the OSD setup menu.
SEARCH
In both Playback and Live mode, press SEARCH to access the Search menu
to search and playback recorded video by date/ time, events, or text.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
23
User’s Manual
JOG/ SHUTTLE
• The jog/ shuttle knob is a dual function knob, including a shuttle ring and
an embedded jog disk, that provides wide range in playback control. Note
that the jog/ shuttle knob is active only when the unit is in Playback mode.
• When playing back videos, the shuttle ring can control playback speed in
either forward or backward directions. Rotate the shuttle ring clockwise/
counterclockwise to fast forward/ reverse playing speed. According to the
angle of rotation, the playing speed changes to 1×, 2×, 4×, 8×, 16×, or 32×,
in both forward and reverse playback.
• When the video is paused, the embedded jog disk can control single-step
playback. Clockwise rotation moves the video image one-step forward,
whereas counterclockwise rotation moves the video image one-step
backward. Note that single-step playback is for JPEG recoding only.
3.2 Entering OSD Setup Menu
The configuration of the DVR-4TH/ 8TH/ 16TH series unit can be customized
through the intuitive Graphical User Interface (GUI) OSD setup menu.
Collaborating with a USB mouse, setting up the DVR can be easy as
operating on a PC. Press MENU and select an account to login.
The next step is to enter a corresponding password. The preset password for
the administrator account “admin” is “1234”.
NOTE: It is strongly suggested to change the preset password to
prevent unauthorized access to the unit.
An icon displayed at the status bar will show the authority level of the account.
Under logout condition, the icon will show “Guest”. When an account is
logged in, its authority level number (1~8) will be shown.
24
Before completely logout, other functions can also be accessed without
having to login again. There are two ways to logout: manually logout by
pressing ESC key at Live mode, or auto logout when keys are not pressed for
5 minutes at Live/ Menu mode.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
3.2.1 User Management
The DVR-4TH/ 8TH/ 16TH series unit provides the option to create up to
seven sets of usernames and passwords with customized authority, excluding
the preset “admin” account. From the Main Menu, select <System Setup> Æ
<User Management> and the menu is as the following:
User Management
Password Protection
Account Setup
Authority Setup
Load Default Setting
Password Protection
Select <ON> to request for username and password for accessing functions
listed in Authority Setup menu, or select <OFF> to allow free access.
ON
No
Account Setup
Setup customized username, password, and authority level in this menu. The
username is case sensitive. The authority level rank from level 1~8, and level
8 has highest authority. Alternatively, select <Disable> to stop using the
account.
NOTE: The username and authority level of the preset “admin”
account cannot be changed.
Authority Setup
Setup the allowed authority level for accessing the functions listed in this
menu. The functions include: Playback/Search, Dome Control, Call Control,
Export Data, Menu Access, System Setup, Monitor Setup, Camera Setup,
Record Setup, Sequence Setup, Event Setup, Database Setup, Configuration,
POS Setup, and Shutdown. The authority level rank from level 1~8, and level
8 has highest authority. Alternatively, select <Disable> to allow free access.
NOTE: The “Menu Access” cannot be set to <Disable>.
If the account does not have authority to access certain functions, an error
message will be displayed on the screen.
Load Default Setting
Select <Yes> to load the default setting.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
25
User’s Manual
3.3 Configuring the HDD in the unit
There is an empty cartridge positioned on the front panel where users can
install a swappable HDD. There are two possible situations after a HDD is
installed into the unit.
• If a brand new HDD is installed, the unit will automatically format it and
add it into the database.
• If a used HDD that has a different data format is installed, the screen will
show “1 disk(s) with wrong data format! Please format then add to the
database manually”. Please follow the steps described below:
- Enter the OSD setup menu using account with appropriate privilege
and access <Database Setup>.
- Access <External Disks>.
- Find the HDD that was just installed, and select <Format> to format it.
- After the HDD is formatted, select <Add> to add it into the database.
Some recommended HDDs are listed as below:
SV35.2 160G / 320G
Barracuda ES.2 500G Seagate
Barracuda 7200.11 1000G
Hitachi
Maxtor
Western Digital
DeskStar 320G
DiamondMax 22 500G
WD AV 160G / 320G / 500G
3.4 Power On/ Off the Unit
If the DVR-4TH/ 8TH/ 16TH series unit must be shutdown for any reason,
always remember to follow proper shutdown and power on procedures in
order to avoid damage to the unit.
To Power On the Unit
26
First check if the type of power source available is compatible before plugging
into the unit. Then turn on the unit using the power switch on the rear panel.
The system checking information and color bar will be shown on the monitor.
It will disappear when the unit has been properly powered on.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
To Restart/ Shutdown the Unit
Press MENU and input the username and password that has sufficient
authority to access the OSD setup menu. Select <Shutdown> in Main menu
and press ENTER to enter the Shutdown menu, which displays as follows.
Shutdown
Power Off
Reboot
Auto Rebooting
Rebooting Time
Off
<Power Off>
Select this item to shutdown the unit. DO NOT disconnect the power during
shutdown until the message “You can safely turn off DVR now!” displays.
<Reboot>
Select this item to restart the unit. The system checking information and color
bar will be displayed on the monitor until the unit is properly restarted.
NOTE: While the DVR-4TH/ 8TH/ 16TH series unit is shutting down or
rebooting, the recoding and playback of videos will stop to avoid
abnormal images.
<Auto Rebooting>
The DVR-4TH/ 8TH/ 16TH series unit can be set to reboot automatically once
a day/week at predetermined time in order to keep the DVR system more
stable. Select <Off> to disable the auto rebooting function.
<Rebooting Time>
If the auto rebooting function is enabled, select a desired time to perform the
auto rebooting function.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
27
User’s Manual
3.5 System Date/ Time Setting
The user can set the current date, time and other OSD parameters in the
Date/ Time menu. The login account should have authority to access the
System Setup menu. In the OSD Main menu, select <System Setup> and
press ENTER, then select <Date/ Time> to access the Date/ Time menu; the
menu displays as follows.
Date/Time
Date
Time
Time Zone
Date/Time Display
Date Display Mode
Time Display Mode
Daylight Saving Time Setup
Network Time Protocol Setup
2009/02/21
PM10:39:26
OFF
1 Row
Y/M/D
24 HR
3.5.1 Set Date/ Time
Set Date/ Time
Select <Date>/ <Time> and press ENTER to adjust the settings. LEFT/
RIGHT keys are used to move the cursor to previous or next field, ENTER is
for selecting, and UP/ DOWN are used to change the value in the selected
field.
NOTE: The reset date/ time setting applies for recording new video,
the date and time of previously recorded video will not be changed.
NOTE: To avoid record database corruption, after changing the date/
time setting, it is recommended to clear the database.
Date/ Time Display
Users are allowed to choose to set the date/ time OSD displays in 1 or 2 rows.
Use the UP/ DOWN keys to change the setting. The default is to display the
28
date/ time OSD in one row.
Date Display Mode
This function allows user to set the OSD display type of the date/ time. There
are three options to select from: <Y/M/D>, <M/D/Y> or <D/M/Y>. “Y”
represents “Year”, “M” represents “Month” and “D” represents “Day”.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Move to the desired item and press ENTER, the option starts blinking. Use
UP / DOWN keys to change the setting. The default setting is <Y/M/D> in
both NTSC/ PAL formats.
Time Display Mode
The user can choose to set the time format to <12 hour> or <24 hour>. Use
the UP/ DOWN keys to change the format. The default setting is <12 hour>.
3.5.2 Daylight Saving Time Setup
The items in this sub-menu are for those people whom live in certain regions
to observe Daylight Saving Time.
Daylight Saving Time
Select <ON> to enable, or <OFF> to disable the function.
If the function is disabled, the DST Start/ End time and DST Bias will be
grayed out and cannot be accessed.
NOTE: If this function is enabled, the date/ time information will be
shown on the screen with a DST icon when playing back recorded
video or searching video in the event list. “S” indicates summer time
and “W” indicates wintertime.
DST Start/ End
This is used to program the daylight saving duration. Use Direction keys to
move the cursor to the next or previous field, use UP/ DOWN to change the
settings in the selected field.
DST Bias
<DST Bias> allows the user to set the amount of time to move forward from
the standard time for daylight saving time. The available options are <30>,
<60>, <90> and <120> minutes.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
29
User’s Manual
3.5.3 Network Time Protocol Setup
This section guides you to synchronize your unit to fit the local time.
Go the <System Setup> Æ <Date/ Time> Æ <Time Zone>. Refer to below
figure and select your time zone from the options.
Then go to <System Setup> Æ <Date/ Time> Æ <Network Time Protocol
Setup> and select <ON> for the item <Automatically Time Sync>. When this
function is ON, time sync will be performed every hour in order to observe
correct time of your local zone.
NOTE: If you want the unit to automatically synchronize the local time,
the <Time Zone> item MUST NOT be set to <OFF>, or the function
cannot be activated.
3.6 IP Camera Setting
The distinctive hybrid solution of the DVR enables users to connect IP
camera(s) while others are analog cameras. First enter the OSD setup menu
with a proper account and access <System Setup> Æ <IP Camera Support>
30
to select the number of IP cameras to be connected. The supported channels
of IP cameras will be from the largest numbers, for example CH16 for 16ch
models.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
NOTE: The DVR must be rebooted in order to apply the change of IP
Camera Support option.
To configure setting of an IP camera, access <Camera Setup> and select the
channel with the largest number. The menu will be shown as follows.
IP Camera
IP Camera Select
IP Camera Title
Search Via UPnP
Hostname/IP
Model
Connection Setup
Device Setup
Activated
Status
Copy Settings
CH16
CH16
X.X.X.X
NH Series
No
NOTE: If the IP camera is already activated, menu items 3 to 5 will be
grayed out and cannot be accessed.
3.6.1 IP Camera Information
IP Camera Title
Access this item to enter the name of the IP camera to be shown on the
monitor.
Search Via UPnP
If the IP camera is UPnP compatible and is in the local area network, select
this item and press ENTER to automatically search for the IP camera
attached to the DVR.
Hostname/IP
Access this item to enter the hostname or IP address of the IP camera, for
example 192.168.1.123.
Model
Access this item to select the model of the connected IP camera.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
31
User’s Manual
3.6.2 Connection Setup
Enter <Connection Setup> to configure the connection and data transmission
setting of the connected IP Camera. The menu will be shown as below.
Account
Password
Management Port
Streaming Format
Advance Streaming Option
Streaming Port
Streaming Protocol
IP Dome Protocol
Account / Password
Access these two items to enter a valid account name and password of the
Connection Setup
****
****
80
MPEG4
OFF
554
RTP+RTSP
NONE
connected IP camera.
Management Port
Access this item to enter the default port of the IP camera.
Streaming Format
Access this item to select the streaming format, <MPEG4>, <MJPEG> or
<H264>, of the IP camera.
Advance Streaming Option
Select <OFF> and the Streaming Port and Streaming Protocol will be set
automatically according to the camera model selected. Alternatively, select
<ON> to manually set the Streaming Port and Streaming Protocol.
Streaming Port
Access this item to enter the streaming port, for transmitting video and related
commands, of the IP camera.
32
Streaming Protocol
Access this item to select the streaming protocol of the IP camera. The option
includes <RTP+RTSP>, <RTP/RTSP>, <RTP/RTSP/HTTP>, and <HTTP>.
NOTE: Please contact manufacturer of the IP camera for assistance if
the IP camera’s Management Port / Streaming Port / Streaming
Format / Streaming Protocol are unknown.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
IP Dome Protocol
If the connected device is an IP Dome Camera, then select an appropriate IP
Dome Protocol from the provided options.
3.6.3 Device Setup
Enter <Device Setup> to configure the basic settings of the IP camera. The
basic settings include the IP camera’s product name, image quality, image
adjustment, etc. Set the item <Apply> to <Yes> to apply the changes.
NOTE: The <Device Setup> menu may have fewer or more menu
items according to different IP camera models.
3.6.4 Activated
Access this item and select <Yes> to activate the connection to the IP camera.
To deactivate the connection, select <No>.
NOTE: Once the connection to the IP camera is activated, menu items
<Hostname/IP>, <Model>, and <Connection Setup> will be grayed out
and cannot be accessed.
3.6.5 Status
After the connection to the IP camera is activated, users can check the
connection status. The menu will be shown as below.
Model
Streaming Format
Resolution
PPS
Bandwidth
Pkg. lost rate
Status
****
MPEG4
640x480
10
20 KB/Sec
0.1%
The information shown on the monitor is “read only”.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
33
User’s Manual
3.7 Record Schedule/ Quality Setting
The Record Setup menu allows users to set recording quality, recording
schedules, and other recording parameters. Login with a proper account to
access Record Setup menu. In the Main menu, move the cursor to <Record
Setup> and press ENTER; the following menu is displayed.
Record Setup
Record Mode Setup
Schedule Setup
Preset Config
Per Camera Config
ezRecord Setup
Data Lifetime Setup
Pre-Alarm Recording
Circular Recording
Audio Recording
Purge Data
Best Quality
15 Sec
ON
ON
3.7.1 Record Mode Setup
The Record Mode Setup menu is for selecting resolution and recording format.
The relative record settings, such as preset configuration, will follow the
record mode setting. In normal circumstance, it is recommended to select
half-D1 resolution and H.264 recording format.
Move the cursor to <Record Mode Setup> and press ENTER, then select
desired record resolution and format.
3.7.2 Schedule Setup
This submenu is used to set the day and night time, or weekend recording
schedule. The Night and Day schedules are used to define daytime and
nighttime; the Weekend schedule is tailored for weekends and holidays.
Select <Schedule Setup> from the Record Setup menu and press ENTER.
34
Schedule Setup
Day Time Start
Day Time End
Night Time Start
Night Time End
Weekend Schedule
Weekend Start
Weekend End
AM 06:00
PM 18:00
PM 18:00
AM 06:00
On
Fri 18:00
Mon 06:00
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
• Make appropriate changes for the start time of the Day Time and Night
Time schedule using the Direction keys.
• Press ENTER to confirm the settings or ESC to cancel.
• If you want to record over the weekend, choose <YES> to enable the
Weekend Schedule in advance and then set the Weekend Start/ End time.
• Press ESC to back to previous page.
Day/ Night Time Start
The Day/ Night Start Time determines the beginning of day/ night recording
time. The time is indicated in 1-minute increments. The time display format in
this menu is based on the setting of Time Display Mode.
Day/ Night Time End
The Day/ Night End Time determines the end point of day/ night recording
time. The time is indicated in 1-minute increments. The time display format in
this menu is based on the setting of Time Display Mode.
Weekend Schedule
The Weekend Schedule determines whether a weekend schedule is in effect.
Choose <YES> to take effect the related weekend settings.
Weekend Start/ End
The Weekend Start Time indicates the specific day and time that a weekend
begins, for example, FRI 18:00. The Weekend End Time indicates the specific
time and day that a weekend ends, for example, MON 06:00. Time is
indicated in 1-minute increments.
Note that the value you have set indicates when the regular Day and Night
scheduling ends, and when the Weekend recording begins.
3.7.3 Preset Record Configuration
The <Preset Config> is used to preset recording quality and frame rate for
normal video and event video. In normal circumstances, it is strongly
suggested to set the item to <Best Quality>, the default. Please refer to
appendix Record Configuration
under various setting. For further information about setting up the
configuration, please refer to section Preset Record Configuration.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
for tables showing the PPS and picture size
35
User’s Manual
3.7.4 Per Camera Configuration
This function is used to set the Day/ Night/ Weekend PPS (Picture per
Second) and Quality for each channel. The Preset Configuration must be set
to <OFF> for accessing these schedules. The menu displays as follows:
(Record Mode: 352×240@240PPS in NTSC/ 352×288@200PPS in PAL).
Per Camera Config
Cameral Select
Normal PPS
Normal Qlty
Event Max PPS
Event Qlty
Event Act
• First, select a Camera to set its record configuration. The image and
Day
7.5
Best
30
Best
Both
Night
7.5
Best
30
Best
Both
CH1
Weekend
7.5
Best
30
Best
Both
record settings from the selected camera will be displayed on the screen.
• Move the cursor using the Direction keys and press ENTER to select an
item.
• Change the value using UP/ DOWN keys.
• Press ENTER to confirm the settings or ESC to abort.
• Press ESC to return to Record Setup menu.
Please note that the total normal pps for all channels cannot exceed 240
NTSC (352×240@240PPS)/ 200 PAL (352×288@200PPS). To increase one
channel’s pps, you may have to reduce other’s first. Event pps is not
restricted to this rule, since a smart event schedule will correct the total pps
automatically..
3.7.5 Record Event Video Only
If you want your DVR unit to start recording only under the alarm is triggered,
follow the steps:
36
• Enter the OSD setup menu with a proper account.
• In the OSD setup menu, select <Record Setup> menu. Move the cursor to
the item <Preset Config>, and select <Event only>.
Refer to section Preset Record Configuration for more detailed information.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
4. Basic Operation
The DVR-4TH/ 8TH/ 16TH series unit allows the user to easily access some
general operations through the front panel. The following sections introduce
the general operation of the unit.
4.1 Viewing Live/ Playback Video
The general functions in live and playback mode are described in the sections
that follow.
4.1.1 Viewing Modes
The DVR-4TH/ 8TH/ 16TH series unit provides several ways of viewing both
live and recorded video. The following descriptions explain the view formats
that are available.
Viewing in Full Screen
Press any CHANNEL key directly to view the corresponding camera image in
full screen format.
Viewing in Multi-Window
Various multi-window viewing formats are available for selection. To switch
between these viewing formats, press MODE repeatedly.
The available viewing formats are illustrated in the following figure. Note that
3x3 viewing mode is only available in DVR-8TH/16TH models, whereas 4x4
viewing mode is only available in DVR-16TH models.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
37
User’s Manual
4.1.2 Digital Zoom
Users are able to view a 2× full screen in live and playback mode. To view the
2× full screen, follow these steps:
• Press the CHANNEL key to view the corresponding camera in full screen.
• Press ZOOM to enter a 2× full screen zoom mode of the selected camera.
• If you need to view a specific area of the 2× zoomed screen, use Direction
keys to pan/ tilt the zoomed area around the original image.
• Either press ZOOM again or ESC to leave the zoom mode.
4.1.3 Viewing Live Cameras
Users are allowed to view live cameras in several viewing modes, including
full-screen, 2×2, 3x3 and 4×4. General operation under live mode is
described as follows.
To Freeze Live Image
Press FREEZE while viewing a live image, the image then pauses, but the
date/ time information does not, and the system clock continues running.
Press FREEZE to pause the live image; press FREEZE again to resume the
live camera view.
4.1.4 Viewing Recorded Video
To view recorded video, the user can press the PLAY/ STOP key directly.
When the PLAY/ STOP key is pressed, the unit starts to continue playing back
the recorded video from the suspended point of record. If the PLAY/ STOP
key is being used for the first time, the unit will playback from the very
beginning of the record. Alternatively, a user can select records from the
Search menu to play specific video. Refer to section Searching Recorded
Video for more information.
38
The Forward or Backward playing speed indicator will be shown on the
bottom-left of the screen in Playback mode.
General operation for Playback mode is described as follows.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Key Usage in Playback
Key usage changes slightly in Playback mode as follows.
<LEFT> (Backward Playback)
This key is used to play recorded video fast backward. Press the key
repeatedly to increase the speed of backward playback by 1×, 2×, 4×, 8×, 16×,
or 32×.
<RIGHT> (Forward Playback)
This key is used to play recorded video fast forward. Press the key repeatedly
to increase the speed of forward playback by 1×, 2×, 4×, 8×, 16×, or 32×.
<FREEZE>
Press FREEZE to pause the playback video. When the recorded video is
paused, press LEFT/ RIGHT to move playback video a single step backward/
forward, respectively. Press FREEZE again to continue playing video.
<PLAY/ STOP>
Press to start playing back video, or to stop playing back video and return to
live mode.
Pause Playback and Single Step Forward/ Backward
To pause and move recorded video single step forward/ backward, follow
these steps.
• Press one of the CHANNEL keys to display the corresponding camera in
full screen.
• Press FREEZE to pause the current playback image.
• Press LEFT/ R IGHT keys to move the recorded video a single step
backward/ forward. Press and hold LEFT/ RIGHT keys to move backward/
forward the video single steps continuously.
• Press FREEZE again to resume the playback operation.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
NOTE: Single step backward is available in JPEG recording only.
39
User’s Manual
4.2 Sequence Setup
This section introduce how to view in sequence mode with both Main Monitor
and Call Monitor, if connected. Sequence function can avoid manually
backtracking and give more flexibility in surveillance.
4.2.1 Sequence on Main Monitor
The automatic sequence function can be displayed in any viewing mode.
Select certain viewing format and press SEQ to start the automatic sequence.
Press ESC to stop and return to live mode. The figure below shows the
example of displaying sequence in 4-channel viewing mode.
4.2.2 Call Monitor Control
Users can use front panel of the DVR-4TH/ 8TH/ 16TH series unit to control a
call monitor display without having to access the Main menu. Two viewing
modes can be displayed on call monitor: Sequence display and Single
camera display. To program the call monitor sequence, refer to section
Sequence Setup
Follow the steps below to control the call monitor.
• Press the CALL key on the front panel to enter call monitor control mode,
the message “Call Mode” will then be shown on the bottom-left of the
screen.
.
Press 1-16 Key To Select Channel
Press SEQ To Enable Sequence
40
• Press any CHANNEL key to display the image of the corresponding
camera on the call monitor.
• Alternatively, press SEQ repeatedly to display the sequence of cameras
previously programmed in Call Monitor Schedule menu.
• Press ESC to return the front panel to Main Monitor Control mode.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
4.3 Searching Recorded Video
The DVR-4TH/ 8TH/ 16TH series unit is capable of searching and playing
back recorded video by date/ time, events, or text. To search by time, select a
specific date and time of the wanted video or enter Calendar Search. To
search by event, select channels to display the event list.
In live or playback mode, press SEARCH to enter the Search menu, which is
shown as follows.
Search
---------------------------Search By Time--------------------------From:
End:
Select:
Begin Playback
Calendar Search
Smart Search
--------------------------Search By Event-------------------------Select Channel:
Event List
---------------------------Search By Text--------------------------Text Query Page
CH1 CH2 CH3 CH4 All
1 Nov 2009 16:45:36
11 Nov 2009 08:15:12
10 Nov 2009 04:19:03
None
NOTE: “Search By Text” only functions when a POS machine is
connected and text data is stored.
4.3.1 Searching by Time
Follow the steps to search video by date and time.
• Press SEARCH to enter the Search menu.
• Move the cursor to “From” and press ENTER will start playing recorded
video from the specified “From” time.
• Move the cursor to “End” and press ENTER will start playing recorded
video from the specified “End” time.
• Move the cursor to “Select” and press LEFT/RIGHT keys to choose date/
time. Press ENTER and adjust the values by UP/DOWN keys.
• Press ENTER to confirm the settings or ESC to abort.
• Move the cursor to <Begin Playback> and press ENTER to start playing
back the selected video.
• Press PLAY again to return to live video.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
41
User’s Manual
NOTE: If there is no available recorded video that matches the
specified time and date, the unit starts playback from the next
available video.
NOTE: The date/time information will be shown on the screen with a
DST icon if the Daylight Saving Time function is enabled. “S” indicates
summer time and “W” indicates winter time.
4.3.2 Calendar Search
Follow the steps below to search recorded video via Calendar Search.
• Press SEARCH button to enter the Search menu.
• Move the cursor to <Calendar Search> and press ENTER. A calendar will
be shown as below.
------------------------------ Date/Time ------------------------------
← November 2009 →
Sun Mon Tue Wed Thu Fri Sat
44 25 26 27 28 29 30 31
45
46 8 9 10 11 12 13 14
47 15 16 17 18 19 20 21
48 22 23 24 25 26 27 28
49 29 30 1 2 3 4 5
-------------------------- Search By Time --------------------------From/End
Select
Begin Playback
• Move the cursor to year/ month and press ENTER. Then press UP/DOWN
2 3 4 5
1
Calendar Search
4 Nov 2009 06:19:45
6 7
From End
42
keys to adjust the value and press ENTER again to confirm.
• Move the cursor and press ENTER to select any date shown in bold and
underlined font. The bar below the calendar will change according to the
recorded data of the selected date.
• Then select preferred time from the time bar. Alternatively, move the
cursor to the time shown at the bottom. Press ENTER and adjust the
values of hour/ minute/ second via UP/DOWN keys.
• The <From> and <End> buttons allows users to playback video from the
beginning or end of the database.
• Note that the time blocks highlighted in red represent events occurred.
• Select <Begin Playback> and press ENTER to start playing back selected
video.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
4.3.3 Smart Search
Smart Search allows users to search for recorded videos according to specific
date/time, channel, and monitoring area. Follow the steps below to search
recorded video via Smart Search.
• Press SEARCH button to enter the Search menu.
• Move the cursor to <Smart Search> and press ENTER. The Smart Search
menu will be displayed as below.
Smart Search
From:
End:
Select Channel
Select Search Area
Search Sensitivity
Search Threshold
Interval
Smart Search List
2009/01/01 AM00:00:00
2009/05/01 AM00:00:00
CH1
77%
50%
60 Sec
• Specify the From/End time to search for recorded video within the period.
• Choose a channel for smart search.
• Setup the monitoring area following the special operation described in
appendix USB Mouse Operation.
• Specify detection sensitivity and threshold according to environment and
required application.
• The time interval specified here will be time segment of smart search. That
means, if the total time period is 10 minutes, and the time interval is 60
seconds, then there will be 10 time segments. Therefore, if video satisfied
the smart search criteria is found in the 4th segment, only the 4th segment
video will be reported on the Smart Search List.
• When the criteria are all set, select <Smart Search List> and press
ENTER to start the smart search.
When the Smart Search List is displayed, use Direction keys to scan through
the list. Press ENTER to playback any desired item, or press ESC to exit the
list.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
43
User’s Manual
4.3.4 Searching by Event
“Event List” will be displayed, as shown below, when users searched
recorded video by event. Users can scroll down the Event List to look for
interested event video.
Date Time
2009/03/17 11:26:50
2009/03/17 09:53:03
2009/03/16 16:14:42
2009/03/15 03:45:31
2009/03/12 22:27:56
2009/03/12 10:09:29
2009/03/11 12:18:20
2009/03/10 05:16:00
2009/03/08 17:11:37
2009/03/08 16:29:10
2009/03/08 03:22:17
Event List
Ch.
2
5
3
1
1
7
6
4
2
8
2
Type
Motion
Alarm
Alarm
Motion
Alarm
Motion
Motion
Alarm
Motion
Motion
Alarm
The list displays the first 9999 events by date, time, triggered camera, and
alarm type. As some events are deleted, event items beyond 9999 will be
displayed. The latest recorded event video will be listed on the top.
Follow these steps to search event video through the Event List:
• Press SEARCH to enter the Search menu.
• To search event video recorded on a specific channel, press LEFT/ RIGHT
to move the cursor and press ENTER to select or de-select a channel.
• Move the cursor to <Event List> and press ENTER to list the event video
from the selected channels.
• To exit the event list, press ESC.
Follow these steps to playback selected event video from the Event List.
• Press and hold UP/ DOWN to scroll through the Event List.
• Press ENTER to playback the selected event video.
• Press PLAY/ STOP to return to live mode.
44
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
4.3.5 Search by Text
When a POS device is connected to the DVR, users can search for videos
with text data. The “Text Query Page” is displayed as below:
Text Query Page
By Text
Item
Item
By Numerals
Value
Value (Upper Limit)
By Date/Time
From:
To :
By Channel
Text Query List
2009/01/01 AM00:00:00
2009/05/01 AM00:00:00
OFF
OFF
OFF
OFF
There are three ways to search: by text, by numerals, or by text and numerals.
In the mean time, date/time and/or channel can be specified to narrow down
range, thus the search will be faster. Refer to below for search options.
By Text:
• Exception: Search for video with data containing the exception string set
in the OSD setup menu.
• OR: Enter two sets of word strings. Search for videos with data containing
EITHER ONE of the word strings.
• AND: Enter two sets of word strings. Search for videos with data
containing BOTH of the word strings.
• Specific: Specify one set of word string. Search for videos with data
containing the specific word string.
By Numerals
:
• Outside The Range: Enter two numbers to specify a range. Search for
videos with data containing number(s) out of the range.
• Inside The Range: Enter two numbers to specify a range. Search for
videos with data containing number(s) within the range.
• Less Equal Than: Enter one number. Search for videos with data
containing number(s) less than or equal to the specific number.
• Greater Equal Than: Enter one number. Search for videos with data
containing number(s) greater than or equal to the specific number.
• Specific: Specify a number. Search for videos with data containing the
specific number.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
45
User’s Manual
4.4 Video Export
The following sections are instructions for video export via OSD setup menu
and via hot keys on the front panel.
NOTE: The Central Management System (CMS) software can also
remotely execute video export function. Please refer to the CMS user’s
manual for more details.
4.4.1 Export from OSD Setup Menu
The Video Export menu enables only the accounts with proper authority to
export recorded video with digital signature to a USB ThumbDrive® or a
DVD+RW drive. Login with a proper account to export video.
The exported video will be identified by the exporting date/ time, and
classified by event type. The exportation of each recorded video consist of
four files if digital signature is necessary, including *.gpg, *.drv, *.sig and
readme.txt.
If an external storage device will be the destination of the exporting video,
make sure it is available and connected to the appropriate port.
From the Main menu, select <Video Export> and press ENTER. The menu is
displayed below.
Select Device
Select Ch:
From:
To :
Select Events
Data Type
Export Format
Digital Signature
Erase Disc
Begin Export
Video Export
CH1 CH2 CH3 CH4
2009/03/19 AM07:50:05
2009/03/28 PM03:09:18
Normal
DRV
No
No
No
46
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
4.4.1.1 Select the External Device
The available external devices for exporting video will be listed by name and
free size in Select Device menu. The Select Device menu displays as follows.
Select Device
Device Name
xxx-xxx-x-x-xx
xx-xxx-xx-xxxx
The DVR-4TH/ 8TH/ 16TH series unit only supports EXT3 file system. If an
external HDD will be connected to the unit, ensure the format of the HDD is
EXT3. If not, please format this HDD to EXT3 first.
Available
256 MB
1.5 GB
Sel
No
No
Device Name
The item shows the name of the available device.
Available
The item shows the free space of the available device.
Select
Set to <Yes> to select it as the exporting destination, or <No> to deselect.
4.4.1.2 Select Video for Exporting
Select video from desired channel(s) with specific date / time and/or event(s),
and set the item <Begin Export> to <Yes> to start exporting. Following are the
items for selecting video.
Select Channel
Select the channel to export. Move the cursor to the desired channel using
LEFT / RIGHT keys, select or de-select a channel by pressing ENTER.
From / To Time
The items are used to set the time which data export begins and ends. Move
the cursor using LEFT / RIGHT keys, and press ENTER to select the date/
time items; adjust the selected date and time value by UP / DOWN keys.
NOTE: The exported data between the Start Time and End Time
includes both normal and event video.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
47
User’s Manual
Select Events
Select this item to display the event list. Move the cursor to scroll through the
event list and press ENTER to select event(s) to be exported.
Data Type
The item is used to select exporting video type. The options are <Normal>
(export normal video only), <Event> (export event video only) and <Both>
(export both normal and event video).
NOTE: To export event video only, se the “From” and “To” items at the
same date and time. Otherwise, not only the event video but also the
normal video included between the “From” date/ time and “To” date/
time will be exported.
Export Format
This item is for selecting exporting video format. The options are <DRV>,
<AVI>, and <Original>.
The *.drv file can only be played back with SpecoRemote™ and
SpecoPlayer™, and multiple camera video can be played from one file. The
*.avi file can be played back with media players. Note that if multiple channels
are exported, each channel is exported to a separate file.
4.4.1.3 Digital Signature
The user can export a video clip with or without a digital signature. Set the
item to <YES> to export with the signature file, or <NO> to export without the
signature file.
Each recorded video with a digital signature will be exported automatically
into four files, including *.gpg, *.drv, *.sig and readme.txt. The *.gpg file name
is the same as the last eight digits of MAC (Media Access Control) address of
the unit.
48
Make sure that an external storage device, such as a USB Hard Drive or USB
ThumbDrive®, is available and connected to the appropriate port for export.
For more information about verifying a digital signature, see appendix
Verifying Digital Signature
.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
4.4.1.4 Erase Disc
This function is used to remove information found on a DVD+RW disk prior to
exporting new information to the drive. Select <Yes> and press ENTER to
start deleting data.
4.4.2 Quick Video Export through Front Panel
The unit provides an easy and quick way, called ezBurn, to export video files
to the built-in DVD+RW or an external device, such as a USB ThumbDrive®.
The video exported via ezBurn is saved as *.drv file.
If an external device will be the destination of the video, make sure it has
been connected to the unit and the port has been set appropriately.
NOTE: Once an external device has been connected to the unit, the
device has priority over the built-in DVD+RW. That means the video
will be exported to the external device instead of the built-in DVD+RW.
Exporting process may take about 10 minutes to 1 hour depending on the file
size of the video.
4.4.2.1 ezBurn Introduction
The ezBurn function provides users a convenient way to export video with
built-in DVD-RW or to external storage devices, such as USB ThumbDrive®.
TWO keys (SEARCH and COPY) and THREE touches are all that will be
needed to complete the export. The whole exporting process is done through
the front panel operation, but no need to access the OSD setup menu.
The ezBurn export process is illustrated as the following:
The process is described step by step in the following sections.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
49
User’s Manual
4.4.2.2 Export Normal Video
To export normal video to an external device, follow these steps:
• Press SEARCH and play desired normal video by entering date and time.
• When the playback starts, press COPY once to mark the starting point of
the export video. The playback continues.
• Press COPY again to mark the ending point of the export video. Then the
“ezBurn” window will be displayed as shown below. The information
shown on the window is “read only”.
Selected Device: Built-in-DVD+RW
All data on the disc will be erased.
Exported Required Size = 11 MB
From: 2009/11/07 AM10:41:13
To: 2009/11/07 AM10:41:21
Digital Deterrent File Sound_N
ezBurn confirmation
Real Export Range:
Enter: YES ESC: NO
or
Press CH N to assign
NOTE: For more information about setting of Digital Deterrent
function, please refer to section Digital Deterrent.
• Press ENTER to start the export, or press ESC to abort.
• If there is no exportable external device connected to the unit, then a
warning message will be displayed on the screen, as shown below:
Please install the target device/mediato the DVR.
4.4.2.3 Export Event Video
To export event video, follow these steps:
• Press SEARCH and playback desired event video. For details on how to
No exportable device detected.
Enter: Retry ESC: Exit
or
Press CH N to assign
Digital Deterrent File Sound_N
50
playback event video, refer to section Searching by Event.
• When the playback starts, press COPY. The “ezBurn” window will be
displayed as follows. The information shown on the window is “read only”.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
ezBurn confirmation
Selected Device: Built-in-DVD+RW
All data on the disc will be erased.
Exported Required Size = 11 MB
Export Event Info:
Data Time Ch Type
2009/11/07 AM10:42:35 13 Motion
Enter: YES ESC: NO
• Press ENTER to start the export, or press ESC to abort.
• If there is no exportable external device connected to the unit, then a
warning message will be displayed as shown in the previous section.
NOTE: The DVD will be ejected when its capacity is 99% full.
4.5 Deleting Recorded Video
The account with appropriate privilege can delete recorded video in the Purge
Data menu. Select <Record Setup> from Main menu and press ENTER, then
move the cursor to <Purge Data> and press ENTER. The Purge Data menu
will be displayed.
Purge Data
Purge All Data
Purge All Event Data
Purge Event Before
Start to Purge
2009/01/01
No
No
No
The first three items are used to select the data to be purged. After the data is
selected for deletion, set the forth item <Start to Purge> to <Yes> and press
ENTER to start the deleting process. The menu items are described below.
Purge All Data
Select this item to delete all normal and event videos from the database.
Purge All Event Data
Select this item to delete all event videos from the database.
Purge Event Before
This item is for deleting event videos that are recorded before a specific date.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
51
User’s Manual
4.6 Dome Control
The DVR-4TH/ 8TH/ 16TH series unit allows the user to control a dome
camera via the front panel.
In Live mode, users can press a CHANNEL key to display the corresponding
dome camera in full screen. To enter Dome Control mode, press the DOME
key and the hint screen will be displayed. Press ESC or DOME to exit Dome
Control mode and return to live mode. To configure settings regarding dome
camera control, see the following sections.
4.6.1 Dome Connection
Follow the steps below to install a dome camera.
• Refer to appendix Alarm I/O Pin Definition for RS-485 port pin definition.
• Using a RS-485 cable, connect the R+, R- terminals from the dome
camera to the D+, D- terminals on the RS-485 port respectively. Refer to
the following illustration.
4.6.2 Dome Protocol Setup
The Dome Protocol item lists the dome protocols available for communicating
with dome cameras connected to the DVR-4TH/ 8TH/ 16TH series unit. From
the Main menu, select <Camera Setup> and press ENTER. The following
52
menu is displayed.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Analog Camera
Analog Camera Select
Dome Protocol
Dome ID
Camera Title
Covert/ Privacy Mask
Termination
Brightness
Contrast
Saturation
Hue
Audio Association
Copy Settings
CH01
None
0
Ch1
On
0
0
0
0
Yes
To configure dome protocol, first select a camera then set the communication
protocol associated with that dome camera using the direction keys and press
ENTER.
NOTE: The settings only become effective after saving the changes
and exiting from the menu.
4.6.3 RS485 Setup
The DVR-4TH/ 8TH/ 16TH series unit controls the dome cameras via RS-485
communication protocol. The RS-485 parameters for the DVR-4TH/ 8TH/
16TH series unit must be set to the same parameters set in the dome
camera.
Users are allowed to change the RS-485 settings for the DVR-4TH/ 8TH/
16TH series unit. Select <System Setup> in the Main menu, then select
<RS485 Setup> from the System Setup menu and press ENTER. The
following menu is displayed.
Unit ID
Baud Rate
Bits
Stop
Parity
RS485 Setup
224
9600
8
1
None
The Unit ID number must match the ID address of the dome camera. The
range of the Unit ID is from 1 to 255 while the default is 224. Note that no two
devices on the same bus should be given the same ID address, or a conflict
may occur.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
53
User’s Manual
The default RS-485 settings of the DVR-4TH/ 8TH/ 16TH series unit are 9600
Baud, 8 Data Bits, 1 Stop Bit, and No Parity.
NOTE: The settings only become effective after saving the changes
and exiting from the menu.
4.6.4 Dome Controlling Key
The function keys used for Dome Control are illustrated below.
Enter / Auto
• In OSD setup menu, press this key to make selection.
• In dome control mode, press this key to activate automatic adjustment of
focus and iris.
Set / Go Preset
This key is used to enter the Dome Preset menu to enable the set up of a
specific position as a preset and to go to the predetermined preset positions.
Toggle Hint Screen
This function is used to avoid showing the dome parameter information while
controlling the dome camera. Press this key to hide the information. Press the
key again to recover it.
Pan / Tilt
54
• In OSD setup menu, these keys function as direction keys.
• In dome control mode, press these keys to pan and tilt the lens of dome
camera.
ESC
Press this key to leave dome control mode and return to live mode.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Iris Open
Press this key to open the Iris and let in more light to the dome camera.
Iris Close
Press this key to close the Iris and let in less light to the dome camera.
Focus Near
Press this key to focus the lens of the dome camera at a near position.
Focus Far
Press this key to focus the lens of the dome camera at a far position.
Zoom In
Press this key to zoom in the lens of the dome camera. This enables the user
to enlarge the designated viewing area.
Zoom Out
Press this key to zoom out the lens of the dome camera. This allows the user
to get a wider range of viewing area.
4.6.5 Setting Preset Points
The DVR-4TH/ 8TH/ 16TH series unit allows users to set preset positions.
The maximum amount of preset points allowed depends on the brand and
model of the dome camera. Follow steps below to set preset points.
• Press a Channel key to view the corresponding camera in full screen.
• Then press DOME to enter dome control mode. Then a Hint Screen,
shown as below figure, will display on the screen.
• Press 2 to hide the dome control Hint Screen; press 2 again to toggle the
Hint Screen.
• Use Direction keys to position the dome camera to desired position.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
Hint Screen
DOME / ESC: Exit
MODE / PLAY: Iris Open / Close
SEQ / FREEZE: Focus Near / Far
MENU / SEARCH: Zoom In / Out
ENTER: Auto Focus / Iris
←↑↓→: Pan / Tilt
CH1: Set / Go Preset
CH2: Hint Screen On / Off
CH3 / CH4: Move Speed 000%
55
User’s Manual
• Press 1 to access the Set/Go Preset function. A virtual keyboard will be
displayed as below.
1 2 3 BS
4 5 6 Set Preset
7 8 9 Go Preset
0 Clear Exit
• Input a desired preset number.
• Click on the <Set Preset> button to save the position. Now the preset
position is set and ready to be called.
4.6.6 Calling Preset Points
Follow these steps to call preset points.
• Press a Channel key to view the corresponding camera in full screen.
• Then press DOME to enter dome control mode. Then a Hint Screen,
shown as blow figure, will display on the screen.
• Press 2 to hide the dome control Hint Screen; press 2 again to toggle the
Hint Screen.
• Press 1 to access the Set/Go Preset function.
1 2 3 BS
4 5 6 Set Preset
7 8 9 Go Preset
0 Clear Exit
• Input a desired preset number.
• Click on the <Go Preset> button to call the preset point.
• Now the selected dome camera will rotate to the preset position
56
automatically.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
4.7 Manual Digital Deterrent
Besides presetting the digital deterrent function in OSD setup menu, users
can also manually trigger digital deterrent function via front panel control. To
do so, press the Digital Deterrent (D.D.) key and the menu will be displayed:
Manual Digital Deterrent
PRESS THE DESIRED CHANNEL TO
TRIGGER DIGITAL DETERRENT.
← DD Source: Follow Event Setup →
ENTER: SEND TO ALL CHANNEL
ESC: Exit
Use LEFT/RIGHT keys to select source files from <Follow Event Setup>,
<Default Sound>, or <Sound_N>, where N can be chosen from 1 to 50. Press
any channel key to manually trigger digital deterrent at that specific channel
site. Alternatively, press ENTER to trigger digital deterrent at ALL channel
sites.
4.8 2-Way Audio Talk Function
2-way audio talk function enables the DVR site to communicate with the
camera site. To initiate communication, press and hold any channel key for 2
seconds. When the communication starts, below message will be shown on
the screen:
2-WAY AUDIO
YOU ARE NOW COMMUNICATING WITH CHANNEL
02
At this time, users will be able to hear audio from the camera site, even if the
audio output setting is disabled in the OSD setup menu. To start speaking to
the camera site, press and hold the D.D. key. Once the D.D. key is released,
the audio from the camera site will be heard again.
To terminate 2-way audio talk, press the same channel key or press ESC.
NOTE: 2-way audio talk function is not available for channel 1.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
57
User’s Manual
4.9 UPnP Function
UPnP is the abbreviation for Universal Plug and Play, which is a relatively
new technology that integrates a universal protocol for widespread
plug-and-play devices to ease the network implementation. When a PC and a
DVR both installed the UPnP function, the PC can automatically recognize
the DVR in the same local area network.
The advantage of this function is that PCs can connect to the DVR via the
remote control software by directly clicking on the icon representing the DVR
in <My Network Places> folder.
4.9.1 Setting Up the DVR and the PC
Enable the UPnP function in the DVR:
Enter the OSD menu with a proper account and access <System Setup> Æ
<Network Setup> Æ <UPnP Setup>. The menu is as the following:
UPnP Setup
UPnP
UPnP NAT Traversal
ON
No
Set the first item UPnP to <ON> and the DVR is ready.
Install the UPnP interface components in a PC:
• Click <Start> Æ <Control Panel> Æ <Add or Remove Programs>.
• Then click <Add/Remove Windows Components> on the left.
• In Windows Components Wizard, double click on <Networking
Services>, then check the box in front of <Universal Plug and Play>.
• Click <OK>, then <Next> and the installation process will begin.
• When the installation is completed, the icon representing the DVR can be
found in <My Network Places> folder.
• Double click on the icon will open an internet browser that connects to the
DVR via the remote control software.
4.9.2 UPnP NAT Traversal Function
The UPnP NAT traversal function will help to automatically setup a router if
the DVR connects to the internet via a router.
58
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
When a PC connects to a DVR not in the same local area network, a real IP
address and corresponding port number is required. However if the DVR is
behind a router, the communication between the PC and the DVR will be
transmitted back and forth by the router. The router will need to setup port
mapping (forwarding) before images from the DVR can be remotely viewed
on the PC. For each individual DVR, the setting needs to be done individually.
Imagine if there is tens or hundreds of DVRs. The setting will take a long time.
Fortunately, if the DVR has UPnP NAT traversal function, the setting of the
router will be done automatically when it is enabled. Just select <Yes> for the
menu item UPnP NAT Traversal in the UPnP setup menu and it will take care
of everything.
4.10 Boot Log Exportation
The DVR-4TH/ 8TH/ 16TH series unit will keep records of important system
logs. Users can also choose whether or not to keep records of operation logs.
Login using an account with proper authority and enter the OSD menu. Then
access the Configuration menu, as displayed below.
Configuration
Load Factory Default
Import Config
Export Config
Import Deterrent
Export Deterrent
Boot Log
Operation Log
No
On
Set <Operation Log> to <On> and operation logs will start to be recorded in
the system log. Alternatively, set to <Off> and operation logs will not be part of
the system log.
Select <Boot Log> and a list of system logs will be displayed on the screen.
Users can export the system log as a data file to an external storage device.
Connect a USB storage device and press COPY to export the system log file
to the USB storage device. In the mean time, a digital signature file will also
be exported.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
59
User’s Manual
5. Advanced System Configuration
The detailed functions and settings of the DVR-4TH/ 8TH/ 16TH series unit
can be set through the intuitive Graphical User Interface (GUI) OSD setup
menu. Collaborating with a USB mouse, setting up the DVR can be easy as
operating on a PC. This chapter describes the menu items and options in the
OSD setup menu.
Account and Password
Press MENU and select an account to login. There are two preset accounts:
“admin” and “user”. The next step is to enter a corresponding password. The
preset password for the administrator account “admin” is “1234”, while the
preset password for the account “user” is “4321”.
NOTE: It is strongly suggested to change the preset password to
prevent unauthorized access to the unit.
An icon displayed at the status bar will show the authority level of the account.
Under logout condition, the icon will show “Guest”. When an account is
logged in, its authority level number (1~8) will be shown.
Before completely logout, other functions can also be accessed without
having to login again. There are two ways to logout: manually logout by
pressing ESC key at Live mode, or auto logout when keys are not pressed for
5 minutes at Live/ Menu mode.
Key Usage in OSD setup menu
<Direction Keys>
In the OSD setup menu, Direction keys are used to move the cursor to select
menu items. UP / DOWN are used to change the value in the selected field.
<ENTER>
60
In OSD setup menu or selection interface, press this key to select or save
settings.
<ESC>
Press to cancel or exit from certain OSD setup menu without saving any
changes.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Key Usage in Virtual Keyboard
A virtual keyboard shows in some setting items, such as camera title, e-mail
address, etc. The virtual keyboard displays as follows.
! @ # * - _ + = , . / Back
1 2 3 4 5 6 7 8 9 0 Del
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m
n o p q r s t u v w x y z
<< >> Space Cancel OK
<To input characters>
Move the cursor by pressing Direction keys and press ENTER to select
characters. Alternatively, press channel keys 1~9 to directly enter number 1~9,
press channel key 10 to directly enter number 0, or press “CALL” key to
directly enter a period mark “.”. The hot keys are for speeding up inputs of IP
addresses or etc.
<To move the cursor in title entry>
Select “<<” / “>>” and press ENTER, or press MODE and “<<” / “>>”
simultaneously to move the cursor to left / right in the title entry field.
<To delete previous character>
Select “Back” and press ENTER, or press DOME.
<To delete current character>
Select “Delete” and press ENTER.
<To exit the virtual keyboard>
Select “OK” and press ENTER to save the settings and exit, or press ESC to
exit without saving changes.
NOTE: If a USB keyboard is connected and when any key on the
keyboard is pressed, the cursor on the virtual keyboard will be
automatically moved to “OK”.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
61
User’s Manual
5.1 System Setup
Select <System Setup> from the Main Menu and press ENTER to enter the
System Setup menu.
System/Version Info
Language
Date/Time
Unit Name
Show Camera Title
User Management
Network Setup
RS485 Setup
Audio Output/Key Beep
User Graphic Interface
IP Camera Support
System Setup
English
DVR
Yes
Graphic
0
The items found in the System Setup menu are described in the following
sections.
5.1.1 System/Version Info
The System/Version Info menu allows the user to view system information
such as hardware and software versions. From the System Setup menu,
select <System/Version Info> and press ENTER. The following menu is
displayed.
Model Name
Video System
Hardware
Software
DSP
Mac Address1
Mac Address2
Software Upgrade via Local Device
Software Upgrade via Internet
System/Version Info
xxxxxxx
NTSC
xx-xx-xx
xxxx-xxxx-xxxx-xxxx
xxxx-xxxx-xxxx-xxxx
xx-xx-xx-xx-xx-xx
xx-xx-xx-xx-xx-xx
The items in this menu are described in the following subsections.
5.1.1.1 DVR System Information & Version Numbers
The first seven items listed DVR system information and version numbers of
hardware and software. These information is “read only”.
62
SPECO TECHNOLOGIES 07/10
DVR-4TH/8TH/16TH Series
User’s Manual
5.1.1.2 Software Upgrade via Local Device
This item is used for updating the DVR-4TH/ 8TH/ 16TH series unit software
by local device. The menu is displayed as follows.
Software Upgrade via Local Device
Upgrade Version
xxxx-xxxx-xxxx-xxxx
Connect a USB drive that contains the upgrade software to the unit; the
upgrade files that are available will then be listed in the menu. To update the
system, select a file and use UP / DOWN keys to choose <Yes>. Press
ENTER to confirm the selection and start the upgrade process. The
DVR-4TH/ 8TH/ 16TH series unit uploads the software, updates the system
files, and reboots automatically.
Select
No
The upgrade process may take several minutes to complete. After rebooting
the unit, please check the software version again.
NOTE: If you want to upgrade your unit with a USB ThumbDrive®
contains the newest software, make sure the software you want to use
to update the unit should be fold into a folder named “upd_200s”,
otherwise, the unit cannot recognize it.
NOTE: Power interruption cannot occur during the software upgrade
process. Ensure that no power interruption can happen until the unit is
completely rebooted.
NOTE: Do not remove the external USB ThumbDrive®/DVD+RW
before the unit has completely shut down (hard drive and fan are off).
®
Removing the external USB ThumbDrive
/DVD+RW before shut down
can cause the system to update improperly.
5.1.1.3 Software Upgrade via Internet
This item is used to upgrade the unit’s software via the internet. Select one of
the listed software versions and choose <Yes>. The DVR-4TH/ 8TH/ 16TH
series unit uploads the software, updates the system files and reboots
automatically.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
63
User’s Manual
5.1.2 Language
The Language item allows the user to select the language for the OSD menu
and screen messages. Language selection takes effect immediately when the
selection is done. Press UP / DOWN to select from languages listed and
press ENTER to confirm.
5.1.3 Date / Time
The user can set the current date, time and other OSD parameters in this
menu. The login account should have authority to access the System Setup
menu. In the System Setup menu, select <Date/Time> and press ENTER; the
Date/Time menu displays as follows.
Date
Time
Time Zone
Date/Time Display
Date Display Mode
Time Display Mode
Daylight Saving Time Setup
Network Time Protocol Setup
Date/Time
2008/02/21
10:39:26
Off
1 Row
Y/M/D
24 HR
NOTE: The reset date/ time setting applies only to future recorded
video, the date and time of previously recorded video will not be
changed.
NOTE: After the Date/Time setting is changed, clearing the database
is recommended for avoiding record database corruption.
5.1.3.1 Date / Time
Select <Date> or <Time> and press ENTER to adjust the settings. LEFT /
RIGHT keys are used to move the cursor to previous or next field, ENTER is
for selecting, and UP / DOWN are used to change the value in the selected
field.
64
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.1.3.2 Time Zone
You can adjust the unit to the local time either by manually setting the date/
time and daylight saving time, or by setting this item and let unit automatically
adjusts the two items mentioned above according to the time zone you select.
Please refer to the figure below and select you local time zone.
NOTE: After selecting the time zone, you MUST go to <Network Time
Protocol Setup> Æ <Manually Time Sync> and synchronize the local
time once, or the time zone setting will not be activated.
5.1.3.3 Date / Time Display
Users are allowed to choose to set the Date / Time OSD displays in 1 or 2
rows. Use the UP / DOWN keys to change the setting. The default is to
display the date / time OSD in one row.
5.1.3.4 Date Display Mode
This function allows the user to set the OSD display type for the date / time.
There are three options to select from: <Y/M/D>, <M/D/Y> or <D/M/Y>. “Y”
represents “Year”, “M” represents “Month” and “D” represents “Day”.
Use UP / DOWN keys to change the setting. The default setting is <Y/M/D> in
both NTSC / PAL formats.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
65
User’s Manual
5.1.3.5 Time Display Mode
The user can choose to set the time format to <12 hour> or <24 hour>. Use
the UP / DOWN keys to change the format. The default setting is <12 hour>.
5.1.3.6 Daylight Saving Time Setup
This menu is for people who live in certain regions to observe Daylight Saving
Time (DST).
Daylight Saving Time
Select <On> to enable, or <Off> to disable the function.
If the function is disabled, the DST Start/ End time and DST Bias will be
grayed out and cannot be accessed. If this function is enabled, the date/time
information will be shown on the screen with a DST icon when playing back
recorded video or searching video in the event list. “S” indicates summer time
and “W” indicates wintertime.
DST Start / End
These items are used to set the daylight saving duration. Use LEFT / RIGHT
to move the cursor to the next or previous field, UP / DOWN to change the
settings.
DST Bias
This item allows the user to set the amount of time to move forward from the
standard time for daylight saving time. Available options are <30>, <60>,
<90> and <120> minutes.
5.1.3.7 Network Time Protocol Setup
The submenu allows you to setup the Network Time Protocol (NTP) server, to
automatically synchronize your unit to fit the local time per hour, and to
manually synchronize the local time.
66
Network Time Protocol Setup
NTP Server
Automatically Time Sync
Manually Time Sync
time.nist.gov
Off
No
NTP Server
The item shows IP address of the NTP server. If you want to change to
another NTP server, press ENTER and fix it through a virtual keyboard.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Automatically Time Sync
Select <On> to synchronize the local time automatically every hour.
NOTE: If you want the unit to automatically synchronize the local time,
the <Time Zone> item MUST NOT be set to <Off>, or the function
cannot be activated.
Manually Time Sync
Select <Yes> to instantly synchronize the local time.
5.1.4 Unit Name
Users are allowed to assign a name, up to 11 characters, to the DVR-4TH/
8TH/ 16TH series unit.
Follow the steps below to edit the unit name.
• Select <Unit Name> from System Setup menu and press ENTER. A virtual
keyboard displays.
Unit Name
! @ # * - _ + = , . / Back
1 2 3 4 5 6 7 8 9 0 Del
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m
n o p q r s t u v w x y z
<< >> Space Cancel OK
• Use Direction keys to move the cursor to the desired character.
• Press ENTER to add the character to the entry field (up to 11 characters).
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
5.1.5 Show Unit Name
Select <Yes> to show the DVR-4TH/ 8TH/ 16TH series unit name on the
monitor or <No> hide the unit name.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
67
User’s Manual
5.1.6 User Management
The DVR provides the option to create up to seven sets of usernames and
passwords with customized authority, excluding the preset “admin” account.
The menu is as the following.
Password Protection
Account Setup
Authority Setup
Load Default Setting
5.1.6.1 Password Protection
Select <On> to request for username and password for accessing functions
listed in Authority Setup menu, or select <Off> to allow free access.
User Management
On
No
5.1.6.2 Account Setup
Setup customized username, password, and privilege level in this menu.
Press Direction keys and ENTER to select items. The account is case
sensitive. The authority level rank from level 1~8, and level 8 has the highest
privilege. Alternatively, select <Disable> to stop using the chosen account.
Account: admin Mod
Password: **** Mod
Privilege: Level 8
2nd PWD: OFF
2nd PWD: Mod
NOTE: The account and privilege level of the preset “admin” account
cannot be changed.
5.1.6.3 Authority Setup
Account Setup
68
Setup permitted authority level for accessing the functions listed in this menu.
The functions include: Playback/Search, Dome Control, Live Operation, Call
Control, Export Data, Menu Access, System Setup, Monitor Setup, Camera
Setup, Record Setup, Sequence Setup, Event Setup, Database Setup,
Configuration, POS Setup, and Shutdown. Press Direction keys and ENTER
to select items. The privilege level rank from level 1~8, and level 8 has
highest authority. Alternatively, select <Disable> to allow free access.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Authority Setup
Item
Playback/Search
Dome Control
Live Operation
Call Control
Export Data
Menu Access
System Setup
Monitor Setup
Camera Setup
Authority
Level 4
Level 4
Level 4
Level 4
Level 4
Level 4
Level 4
Level 4
Level 4
NOTE: The “Menu Access” cannot be set to <Disable>.
When the account does not have authority to access certain functions, an
error message will be displayed on the screen.
5.1.6.4 Load Default Setting
This item is for restoring the default settings. Select <Yes> to load default
setting or select <No> to exit.
5.1.7 Network Setup
The Network Setup menu allows the account with appropriate privilege to
configure the network by specifying the network related settings, such as IP
address and Netmask, etc.
See your network administrator and/or network service provider for more
specific information.
Some settings under the Network Setup menu, such as IP and PPPoE
Account, need to be configured through the virtual keyboard. The function key
usage pattern is slightly modified, please refer to section Key Usage in
Virtual Keyboard.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
69
User’s Manual
From the System Setup menu, select <Network Setup> and press ENTER.
The following menu displays. Items in this menu are described in the following
sections.
LAN Select
LAN Setup
Modem Setup
Trigger Port
Email Address
SMTP Setup
DDNS Setup
UPnP Setup
5.1.7.1 LAN Select
PPPoE stands for Point-to-Point Protocol over Ethernet, which is a
specification for connecting the users by Ethernet to the Internet through a
Network Setup
LAN
100
common broadband medium.
This item allows you to select your service type between <LAN>, <PPPoE> or
<None>; if you are using an intranet for communication, please select <LAN>,
if you are using a broadband medium, such as DSL Line or cable modem,
please select <PPPoE>.
If <None> is selected, then there is no need to set further LAN setting,
therefore, the second item <LAN Setup> will not be accessible.
5.1.7.2 LAN Setup
The network related settings in the LAN Setup menu should be associated
with the network service type. If you select <LAN> for <LAN Select>, then 6th
to 8th item will not be available. Select <LAN Setup> in Network Setup menu
and press ENTER for setting the parameters; the menu displays as follows.
DHCP
IP
Netmask
Gateway
DNS
PPPoE Account
PPPoE Password
PPPoE Max Idle
Connect At Booting
Network Restart
LAN Setup
OFF
192.168.1.150
255.255.255.0
192.168.1.1
0.0.0.0
35min
Yes
No
70
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
DHCP
This item allows the user to obtain a dynamic IP address from a DHCP
(Dynamic Host Configuration Protocol) server while the unit boots up. When
using DHCP, the settings are dynamic and they will change every time you
power up and power off the unit, depending on your network's setup.
If the DHCP is enabled (ON), a dynamic IP will be assigned to the DVR-4TH/
8TH/ 16TH series unit. In this case, the user does not need to configure a
static IP or the Ethernet settings including IP address, Netmask, Gateway,
and DNS settings will be “read only”. The default setting is <ON>.
If you are using permanent addressing, set DHCP to <OFF> for setting the IP
Address, Netmask, Gateway, and DNS. See your network system
administrator or IT personnel for appropriate values for these setting.
IP
This item is used to configure the IP (Internet Protocol) address of the unit.
The IP address is the identifier for your computer or device on a TCP/IP LAN
or WAN. Please note that to set a static IP address, DHCP must be set to
<OFF>.
Netmask
A netmask is a 32-bit mask used to divide an IP address into subnets and
specify the networks available hosts. Its value is defined by your network
administrator. It takes the form as ***.***.***.***, for example,
255.255.255.255.
This item allows the user to enter the value of the Netmask for the unit.
Please note that to configure the item, DHCP must be set to <OFF>.
Gateway
A Gateway is a node on a network that serves as an entrance to another
network.
Users are allowed to specify the IP address of the gateway or router
associated with this unit. To configure this item, DHCP must be set to <OFF>.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
71
User’s Manual
DNS
DNS is the abbreviation for “Domain Name System”, which is an Internet
service that translates domain names into IP addresses because domain
names are easier to remember.
This item allows the user to specify the IP address of the Domain Name
System associated with the unit. To configure this item, DHCP must be set to
<OFF>.
If the network server is unavailable when using DHCP, the unit searches for
the network server and boots up more slowly. This network search continues
until it times out.
PPPoE Account
This item allows the user to setup the PPPoE login username.
NOTE: For accessing the PPPoE settings, select <PPPoE> as the
Network Type in Network Setup menu.
To setup the login username, follow the steps below:
• Select <PPPoE Account> from the LAN Setup menu and press ENTER. A
virtual keyboard displays.
PPPoE Account
! @ # * - _ + = , . / Back
1 2 3 4 5 6 7 8 9 0 Del
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m
n o p q r s t u v w x y z
<< >> Space Cancel OK
72
• Use Direction keys to move the cursor to the desired character.
• Press ENTER to add the character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
PPPoE Password
This item allows the user to setup the PPPoE password. Follow these steps to
setup the login password.
• Select <PPPoE Password> from LAN Setup menu and press ENTER. A
virtual keyboard displays.
• Use Direction keys to select character.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
PPPoE Max Idle
This item indicates the time that the modem connection remains active if
there is no acknowledgement from the remote PC. You can select the idle
time from 0 to 600 minutes. The default is 35 minutes.
Connect At Booting
The unit can connect to the Internet automatically when powered up. Select
<YES> to connect at booting, otherwise select <NO>.
Network Restart
Network restart is required after changing network settings. Select
<Yes> to restart the network connection. After pressing ENTER, a message
“Network restarting Please stand by” will be shown on the screen. A message
box will be displayed within 30 seconds.
The “√” symbol indicates that the device is working properly whereas the “X”
symbol indicates that the device is NOT working properly. The definitions of
the items on the message box are described below.
Network restart…………………….….√
UPnP NAT setting………..……..…….X
DDNS submitted………………………√
WAN connection………………………√
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
73
User’s Manual
5.1.7.3 Modem Setup
The DVR-4TH/ 8TH/ 16TH series unit can connect to the internet via an
external installed modem.
Dial-in Setup
Dial-out Setup
Dial Port Selection
Modem Setup
NONE
Dial-in Setup
The Dial-in function enables the user to establish dial-up modem
communication to and from the DVR-4TH/ 8TH/ 16TH series unit for remote
software use. The user is allowed to connect only one modem to a DVR-4TH/
8TH/ 16TH series unit.
For more information on dial-up setting on PC, see appendix Dial-up
Connections via Modem.
NOTE: The Dial-in Service is not available if there is no modem
connected to the unit.
In Network Setup menu, select <Dial-in Setup> and press ENTER to enter the
Dial-in menu. The menu displays as follows.
Dial-in Service
Dial-in Account
Dial-in Password
Server IP
Client IP
Dial-in Idle Time
Dial-in Max Time
Dial-in Setup
OFF
User
XXXX
192.168. 0. 1
192.168. 0. 2
0 Min
0 Min
74
Dial-in Service
If the DVR-4TH/ 8TH/ 16TH series unit does not connect to the Internet, the
user can communicate to the unit from a remote PC through a modem as well.
Select <ON> to enable the Dial-in function, or <OFF> to disable.
Dial-in Account
This item enables user to protect access to the unit by establishing or
changing a dial-in user name for modem connection.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
To setup the Dial-in Account, follow these steps.
• Select <Dial-in Account> from Dial-in Setup menu and press ENTER. A
virtual keyboard displays.
Dial-in Account
! @ # * - _ + = , . / Back
1 2 3 4 5 6 7 8 9 0 Del
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m
n o p q r s t u v w x y z
<< >> Space Cancel OK
• Use Direction keys to move the cursor to the desired character.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
NOTE: The Server IP and the Client IP must not be identified as the
same IP address; but they have to be set in the same domain.
For example: Server IP= 192.168.0.1 ; Client IP= 192.168.0.2
Dial-in Password
This item allows the user to setup the Dial-in password. Follow these steps to
setup the login password.
• Select <Dial-in password> from Dial-in Setup menu and press ENTER. A
virtual keyboard displays.
• Use Direction keys to select character.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
Server IP
This item is for setting the IP address that identifies the DVR-4TH/ 8TH/ 16TH
series unit over a modem connection. To set the server IP, follow these steps:
• Select <Server IP>.
• Using LEFT/ RIGHT to move the cursor over the IP, and stop where you
want to make the change.
• Press ENTER, and then use UP/ DOWN to change the value.
• When done, press ENTER again to exit.
• Repeat the procedure until the IP is completely set.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
75
User’s Manual
Client IP
This item determines the remote PC’s IP address for connecting with the
DVR-4TH/ 8TH/ 16TH series unit. To set the Client IP, follow these steps:
• Select <Client IP> and use LEFT/ RIGHT to move the cursor over the IP,
and stop where you want to make the change.
• Press ENTER, then use UP/ DOWN to change the value.
• When done, press ENTER again to exit.
• Repeat the procedure until the IP is set completely.
Dial-in Idle Time
This item indicates the longest amount of time that the modem connection
remains active if there is no acknowledgement from the remote pc. The value
can be set from 0 min to 600 min.
Dial-in Max Time
The item indicates the longest amount of time that the connection via modem
remains active. The value can be set from 0 min to 600 min.
Dial-out Setup
The Dial-out function enables the user to establish dial-up modem
communication to and from the DVR-4TH/ 8TH/ 16TH series unit for remote
notification use. The user can connect one modem to the DVR-4TH/ 8TH/
16TH series unit. For more information for dial-up setting on PC, see
appendix Dial-up Connections via Modem.
NOTE: The Dial-out Service is not available if there is no modem
connected to the unit.
In the Network Setup menu, select <Dial-out Setup> and press ENTER to
enter the Dial-out menu. The menu displays as follows.
Dial-out DHCP
Dial-out IP
Dial-out Netmask
Dial-out Gateway
Dial-out DNS
Phone Number
Dial-out Account
Dial-out Password
Dial-out Idle Time
Dial-out Max Time
Connect
Dial-out Setup
OFF
0. 0. 0. 0
0. 0. 0. 0
0. 0. 0. 0
0. 0. 0. 0
0 Min
0 Min
No
76
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Dial-out DHCP
This item allows the user to obtain a dynamic IP address from a DHCP
(Dynamic Host Configuration Protocol) server over a modem connection. If
the item is enabled (ON), a dynamic IP will be assigned to the DVR-4TH/
8TH/ 16THseries unit. In this case, the user does not need to configure a
static IP and the following settings will be “read only.”
Select <ON> to enable the DHCP function, or <OFF> to set the dial-out IP
address, Netmask, Gateway and DNS manually. The default setting is <ON>.
Dial-out IP
This item is for setting a static IP address that identifies the DVR-4TH/ 8TH/
16TH series unit over a modem connection. Set the <Dial-out DHCP> to
<OFF> for accessing this item.
Move the cursor over <Dial-out IP> and press ENTER, then press UP /
DOWN keys to change the values in the selected field.
Dial-out Netmask
This item is for setting the Netmask that identifies the DVR-4TH/ 8TH/ 16TH
series unit over a modem connection. To configure the item, DHCP must be
set to <OFF>.
Move the cursor over <Dial-out Netmask> and press ENTER, and then press
UP / DOWN keys to change the values in the selected field.
Dial-out Gateway
Users are allowed to specify the IP address of the gateway or router
associated with this unit. To configure this item, DHCP must be set to <OFF>.
Move the cursor over <Dial-out Gateway> and press ENTER, and then press
UP / DOWN keys to change the values in the selected field.
Dial-out DNS
This item allows the user to specify the IP address of the Domain Name
System (DNS) associated with the unit. To configure this item, DHCP must be
set to <OFF>.
Move the cursor over <Dial-out DNS> and press ENTER, and then press UP /
DOWN keys to change the values in the selected field.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
77
User’s Manual
Phone Number
This item is used to set the dial-out phone number. Follow these steps to
setup the phone number.
• Select <Phone Number> from Dial-out Setup menu and press ENTER. A
virtual keyboard displays.
• Use Direction keys to move the cursor for selecting a number.
• Press ENTER to add the selected number to the entry field.
• When done, press ENTER to save the settings and exit.
Dial-out Account
This item enables the user to set the Dial-out user name, which is needed for
dialing out to Internet Service Provider server. Contact your network service
provider for more specific information.
To setup the Dial-out Account, follow these steps.
• Select <Dial-out Account> from the Dial-out Setup menu and press
ENTER. A virtual keyboard displays.
Dial-out Account
! @ # * - _ + = , . / Back
1 2 3 4 5 6 7 8 9 0 Del
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m
n o p q r s t u v w x y z
<< >> Space Cancel OK
• Use the Direction keys to move the cursor to the desired character.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit..
Dial-out Password
78
This item allows user to setup the Dial-out password. Follow these steps to
setup the login password.
• Select <Dial-out password> from Dial-out Setup menu and press ENTER.
A virtual keyboard displays.
• Use Direction keys to move the cursor for selecting a character.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
Dial-out Idle Time
This item indicates the longest amount of time that the modem connection
remains active if there is no acknowledgement from the remote pc. The value
can be set from 1 min to 600 min. If selecting <0>, the modem connection
keeps active continuously.
Dial-out Max Time
This item indicates the longest amount of time that the connection via modem
remains active. The value can be set from 1 min to 600 min, or <0> to keep
the connection indefinitely.
Connect
When the Dial-out related settings are configured, set this item to <YES> to
starting dial-out or select <NO> to disconnect.
Dial Port Selection
The Dial Port Selection enables users to assign the Dial-In/Out or Text to the
designated port of the DVR. For instance, when the cable of a modem is
inserted to the Serial Port of the DVR, enter the Dial Port Selection menu and
assign Dial-In/Out to the Serial Port, the DVR-4TH/ 8TH/ 16TH series unit will
now be able to use the modem to connect to the internet.
Serial Port
USB Port-Front
USB Port-Rear Top
USB Port-Rear Bottom
5.1.7.4 Trigger Port
To avoid the possibility of the default service port (port 100)being blocked, this
item enables the user to change port 100 into another port. To change the
trigger port, move the cursor over <Trigger Port> and press ENTER, then
adjust the setting by UP / DOWN keys. After you have entered a different port
Dial Port Selection
Dial-In/Out
NONE
NONE
NONE
and pressed ENTER, a message “Network restarting Please stand by” will be
shown on the screen. A message box will be displayed in approximately 30
seconds.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
Port allocated………………….……√
UPnP NAT setting…………….……
DDNS submitted……………………√
WAN connection……………………
X
X
79
User’s Manual
When the trigger port that you have just modified can be allocated, the 1st
item “Port allocated” will be followed by a “√” symbol indicating that the
designated port is allocated. “X” indicates that the port cannot be allocated.
Note that the DDNS port will be automatically changed to the same port as
the trigger port. For instance, when you have set the trigger to 123, the DDNS
port will be automatically changed to port 123. Therefore, when the ports are
allocated, “Port allocated” and “DDNS submitted” will both be followed by the
√” symbol. The 2
“
nd
5.1.7.5 Email Address
This item is used to edit the e-mail address where alarm event information will
be sent. Follow these steps to setup the e-mail address.
• Select <Email Address> from Network Setup menu and press ENTER. A
virtual keyboard displays.
• Use Direction keys to move the cursor for selecting character.
to 4
th
item will be discussed in section Network Restart.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
5.1.7.6 SMTP Setup
Simple Mail Transfer Protocol (SMTP) is a protocol for sending e-mail
messages between servers. SMTP is a relatively simple, text-based protocol,
where one or more recipients of a message are specified and the message
text is transferred.
Select < SMTP Setup> from Network Setup menu and press ENTER; the
menu displays as follows.
Email via SMTP
SMTP Server
SMTP Port
SMTP Account
SMTP Password
SMTP Setup
On
Email via SMTP
This item enables the user to determine if the unit sends e-mail via SMTP.
Select <On> to send e-mail via SMTP using direction keys; if not, select
<Off>.
80
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
SMTP Server
This item enables the user to set the SMTP server. Contact your network
service provider for more specific information.
Follow these steps to setup the SMTP Server.
• Select <SMTP Server> from SMTP Setup menu and press ENTER. A
virtual keyboard displays.
SMTP Server
! @ # * - _ + = , . / Back
1 2 3 4 5 6 7 8 9 0 Del
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m
n o p q r s t u v w x y z
<< >> Space Cancel OK
• Use Direction keys to move the cursor to the desired character.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
SMTP Port
This item is used to change the SMTP port to another port, if necessary.
SMTP is usually assigned to operate over Internet port 25.
To change the SMTP port, move the cursor to <SMTP Port> in SMTP Setup
menu and press ENTER. Use UP / DOWN keys to change the values in the
selected field.
SMTP Account
This item allows user to setup the SMTP username. Follow these steps to
setup the login password.
• Select <SMTP Account> from SMTP Setup menu and press ENTER. A
virtual keyboard displays.
• Use Direction keys to move the cursor for selecting character.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
81
User’s Manual
SMTP Password
This item allows the user to setup the SMTP password. Follow these steps to
setup the password.
• Select <SMTP password> from SMTP Setup menu and press ENTER. A
virtual keyboard displays.
• Use Direction keys to move the cursor for selecting a character.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
5.1.7.7 DDNS Setup
Dynamic Domain Name System (DDNS) allows a DNS name to be constantly
synchronized with a dynamic IP address. In other words, it allows those using
a dynamic IP address to be associated with a static domain name so others
can connect to it by the static name.
Once the setting is completed, the DDNS address will be:
http://yourhostname.ddns.specoddns.net
Fore example, if the chosen Host name is “SPECO”, then the address will be:
http://speco.ddns.specoddns.net
Select <DDNS Setup> from Network Setup and press ENTER. The menu
displays as below figure.
Enable DDNS
Host Name
DDNS Port
Submit/Update
ezDDNS
Enable DDNS
This item is used to enable or disable the Dynamic Domain Name Service.
DDNS Setup
On
XXXXXX
80
No
No
Select <On> to enable the service, or <Off> to disable.
Host Name
This item allows the user to setup a domain name, which is used when
entering the DVR-4TH/ 8TH/ 16TH series unit through the Internet on your
remote PC.
82
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
To setup the Host Name of the unit, follow the steps.
• Select <Host Name> from DDNS Setup menu and press ENTER. A virtual
keyboard displays as shown.
Host Name
! @ # * - _ + = , . / Back
1 2 3 4 5 6 7 8 9 0 Del
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m
n o p q r s t u v w x y z
<< >> Space Cancel OK
• Use Direction keys to select a character.
• Press ENTER to add the selected character to the entry field.
• When done, move the cursor to <OK> and press ENTER to save the
settings and exit.
NOTE: No any two DVR-4TH/ 8TH/ 16TH series units should be set to
the same Host Name.
DDNS Port
This item allows the user to setup the port for DDNS. Press UP / DOWN
Direction keys to change the port.
Submit/ Update
When done, move the cursor to this item and press ENTER to submit the
settings.
NOTE: If there are two DVR-4TH/ 8TH/ 16TH series units set with the
same domain name, the later setting will not be submit successfully.
ezDDNS
ezDDNS enables the users to register for the host name automatically. Press
ENTER and select YES. The following screen will be displayed:
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
ezDDNS Submit/update ok!
Host name is XXXX_XXXXXX
Press any key to return
83
User’s Manual
NOTE: The DVR must be connected to the *Real IP address, or be
assigned a specific port using **Port Forwarding technique.
*A "Real IP" is the IP address that is assigned to you by your ISP.
**A "Virtual IP" is the IP address assigned either manually or through
DHCP. When the user is assigned a Virtual IP, the user must use Port
Forwarding technique to assign a specific port to the DVR.
5.1.7.8 UPnP Setup
Universal Plug and Play (UPnP) integrates a universal protocol for
widespread plug-and-play devices to ease the network implementation. When
a PC and the DVR-4TH/ 8TH/ 16TH series unit both installed the UPnP
function, the PC can automatically recognize the DVR-4TH/ 8TH/ 16TH series
unit in the same local area network.
UPnP
UPnP NAT Traversal
UPnP Setup
ON
No
UPnP
Select <ON> to enable the UPnP function, or select <OFF> to disable UPnP.
UPnP NAT Traversal
The UPnP NAT traversal function will help to automatically setup a router if
the DVR-4TH/ 8TH/ 16TH series unit connects to the internet via a router.
Select <Yes> to enable, or else select <No> to disable.
5.1.8 RS485 Setup
This menu allows the user to setup the parameters of the unit’s RS-485
communications port. From the Main menu, select <RS485 Setup> and press
ENTER. The following menu is displayed.
Unit ID
Baud Rate
Bits
Stop
Parity
RS485 Setup
224
9600
8
1
None
5.1.8.1 Unit ID
This item is used to change the RS-485 ID address of the unit. The ID is with
the range of <1> to <255>. The default is <224>.
84
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.1.8.2 Baud Rate
The Baud rate options for association with the protocol are <2400>, <4800>,
<9600>, <19200>, <38400> and <57600>. The default is <9600> baud.
5.1.8.3 Bits
The user can specify the bits in a word that are associated with this protocol.
The available options are <6>, <7> and <8> bits. The default is <8> bits.
5.1.8.4 Stop
The user can specify the stop bit associated with this protocol. Options are
<1> and <2> stop bits. The default is <1> stop bit.
5.1.8.5 Parity
This item is used to specify the parity associated with this protocol. Options
are <ODD>, <EVEN>, and <NONE>. The default is <NONE>.
5.1.9 Audio Output/ Key Beep
Enter this menu to setup the audio output or key beep.
Audio Output/ Key Beep
Audio Output
Key Beep
5.1.9.1 Audio Output
The item is used to set the audio output mode. The available options are as
listed as follows.
<Live/PB>
Select this item to play the recording sounds of live image in live mode, and
sounds of recorded video in playback mode respectively.
Live/PB
ON
<Always Live>
Select this item to play live sounds in both live mode and playback mode.
<OFF>
Select this item to disable the audio output function.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
85
User’s Manual
5.1.9.2 Key Beep
This item is used to enable or disable the key tone. Select <ON> to enable the
key tone, or <OFF> to disable.
5.1.10 User Graphic Interface
The OSD system can be displayed in graphic mode or text mode according to
users’ preference. Set this menu to <Graphic> and the OSD system will be
displayed in GUI mode. Alternatively, set this menu to <Text> and the OSD
system will be displayed in text mode.
5.1.11 IP Camera Support
Enter this item to add IP cameras to the DVR. The DVR supports up to 4 IP
cameras. Select <0> will make the DVR act as a traditional analog DVR.
Select <1> to <4> allows users to add 1 to 4 IP cameras to the DVR.
After the <IP Camera Support> is set to <1> to <4>, the following message
will be displayed. Press ENTER to apply the changes, or ESC to exit.
Notice!!
DVR must reboot to apply the change
ENTER: Yes ESC: No
NOTE:
1. The existing database will NOT be re-formatted after switching to
this function.
2. Alarm I/O, Motion detection function, and audio of the IP camera
are NOT currently supported
86
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.2 Monitor Setup
The Monitor Setup menu allows user to set the quality of the displayed image.
Select <Monitor Setup> from the Main menu and press ENTER. The following
menu is displayed.
Monitor Setup
Show Camera Title
Title Position
Monitor Brightness
Monitor Contrast
Monitor Chrominance
VGA Resolution
VGA Frequency
Show Color Bar
The following sections describe the items found in the Monitor Setup menu.
Yes
Fit VGA
0
0
0
800x600
60Hz
5.2.1 Show Camera Title
This item allows the user to choose whether to display the camera title on the
screen or not. The default is <Yes>, which displays the camera titles with the
video.
5.2.2 Title Position
This item sets the DVR to display the proper screen size either on a PC
Monitor (VGA) or a CRT CCTV Monitor (BNC). For instance, if you are using
a CRT CCTV monitor, set this item to <Fit BNC>; or set this item to <Fit VGA>
for PC monitor.
CH1 CH2 CH3 CH4
CH5 CH6 CH7 CH8
CH9 CH10 CH11 CH12
After switching to
<Fit VGA> mode.
H1
H5
H9
H2
H6
H10
H3
H7
H11
H4
H8
H12
CH13 CH14 CH15 CH16
<Wrong Setting> <Correct Setting>
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
H13
H14
H15
H16
87
User’s Manual
PC Monitor was used in the example above. In the <Wrong Setting>, the Title
Position was set to <Fit BNC>, which was supposed to be set to <Fit VGA>.
Since it was not the right setting, the titles of CH1, CH5, CH9, and CH13 were
shifted slightly toward the middle of each channel. After switching to <Fit
VGA>, the titles have been shifted back to the proper position as shown in the
<Correct Setting>.
5.2.3 Monitor Brightness
This function allows the user to adjust the brightness of the image displayed
on the monitor. Move the cursor to the item then press ENTER, and use UP /
DOWN keys to adjust the numeric value. The range of brightness values is
<-32> to <31>. The default setting is <0>.
5.2.4 Monitor Contrast
This item is used to adjust the color contrast of image. The range of contrast
values is <-32> to <31>; the default setting is <0>.
5.2.5 Monitor Chrominance
Move the cursor over this item and press ENTER for adjusting the
chrominance of the image displayed on the monitor. Use UP / DOWN keys to
adjust the numeric value. The range of chrominance values is <-32> to <31>;
the default setting is <0>.
5.2.6 VGA Resolution
This item allows the user to select appropriate VGA resolution for the VGA
monitor connected to the unit. The options are <800x600> (default),
<1024x768>, <1280x1024>, and <720p>. When the resolution is set to
88
<1024x768>, <1280x1024>, and <720p>, the BNC and S-Vide monitors will
be unavailable.
NOTE: if the selected VGA resolution is too high for the monitor, the
message “No Signal” will be shown on the screen. Then please press
ESC on the front panel to restore the original setting.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.2.7 VGA Frequency
This item allows the user to select appropriate VGA frequency for the VGA
monitor connected to the unit. The options are <60Hz> and <70Hz>.
5.2.8 Show Color Bar
Choose this item to display a color bar pattern on the screen. The color bar
helps to adjust the monitor hue, saturation, text color, and display options.
Press ESC to exit the color bar pattern and return to the OSD menu.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
89
User’s Manual
5.3 Camera Setup
The items in the Camera Setup menu enable the user to set camera
parameters, including camera title, dome protocol and ID for each connected
camera. Note that there will be separated menus for analog camera and IP
camera. Please refer to <Analog Camera> section if you are using an analog
camera, or refer to <IP Camera> when you are using an IP camera.
5.3.1 Analog Camera
If you are using an analog camera, please continue with this section. Items in
this menu are described in the following subsections.
Analog Camera Select
Dome Protocol
Dome ID
Camera Title
Covert/Privacy Mask
Termination
Brightness
Contrast
Saturation
Hue
Audio Association
Copy Settings
Analog Camera
CH01
None
0
Ch1
On
0
0
0
0
Yes
5.3.1.1 Camera Select
This item is used to select a camera for setting its parameters. The settings
can be set for the selected camera are dome protocol, camera title, and etc.
Move the cursor to <Camera Select> and press ENTER, then select a
channel using UP / DOWN keys.
5.3.1.2 Dome Protocol
Select the communications protocol associated with your dome camera using
the ENTER and Direction keys.
5.3.1.3 Dome ID
This item is used to assign an ID number to the selected dome camera. Note
that ID number must match the ID address set by the dome.
90
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.3.1.4 Camera Title
This item allows the user to change the title of each camera connected to the
unit. By default, the titles of cameras are numbered from 1 through 16
respectively. The title is displayed on screen after the title changes are set.
Follow these steps to enter a new title for a camera.
• In the Camera setup Menu, move the cursor to Camera Title and press
ENTER. A virtual keyboard with alphanumeric characters is displayed.
Camera Title
! @ # * - _ + = , . / Back
1 2 3 4 5 6 7 8 9 0 Del
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m
n o p q r s t u v w x y z
<< >> Space Cancel OK
• Use Direction keys to position the cursor in the entry field above the virtual
keyboard.
• Use Direction keys to move the cursor through the lists of characters to
the one you need. Press ENTER to select a character. Continue until the
name is established. Each title can contain up to 11 characters in it.
• After the title entry is finished, move the cursor to <OK> and press ENTER;
otherwise, either press ESC, or move the cursor to <Cancel> and press
ENTER to abort.
5.3.1.5 Covert/Privacy Mask
Enter this menu to configure settings of covert and privacy mask functions.
Covert
Privacy Mask
Privacy Mask Select
Covert/Privacy Mask
No
Off
Covert
This function allows the user to set the selected camera to be covert when the
unit still continues to record video. Choose <Yes> to covert the selected
camera. Alternatively, select <No> to allow the selected camera remains
non-covert.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
91
User’s Manual
Privacy Mask
The privacy mask function allows the user to block selected regions that
might involve privacy issue. Select <On> to enable the function, or select
<Off> to disable the function.
Privacy Mask Select
Enter this menu to setup privacy mask regions. Use Direction keys to select
any grid and press ENTER to select or deselect the grid. If a mouse is
connected, follow the special operation described in appendix USB Mouse
Operation for faster setup steps.
5.3.1.6 Termination
This item is used to enable / disable the 75-termination resistor inside the unit
that adjusts the image quality of each camera. <Yes> = termination resistor
enabled (default), <No> = termination resistor disabled.
NOTE: If the camera loop-out connectors have not been used, the
termination resistor should be enabled for appropriate signal
termination.
5.3.1.7 Brightness
Move the cursor to this item and press ENTER to adjust the brightness of the
camera. Use UP / DOWN keys to adjust the numeric value. The range of
brightness values is <-128> to <127>. The default setting is <0>.
5.3.1.8 Contrast
Move the cursor to this item and press ENTER to adjust the contrast of the
camera. Use UP / DOWN keys to adjust the value.
92
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.3.1.9 Saturation
Move the cursor to this item and press ENTER to adjust the color saturation
of the camera using UP / DOWN keys. This value will be ignored on
monochrome monitors. The range of saturation values is <-128> to <127>.
The default setting is <0>.
5.3.1.10 Hue
Move the cursor to this item and press ENTER to adjust the hue of the
camera. Use UP / DOWN keys to adjust the value.
5.3.1.11 Audio Association
This item is used to establish the connection between the selected camera
and the its audio-in channel. Move the cursor to <Audio Association> and
press ENTER, then select <Yes> to set up the connection. Alternatively,
select <No> to disable the connection.
5.3.1.12 Copy Settings
This item allows the user to copy the settings set on the current selected
camera to any other connected cameras. Enter this menu and select one or
more cameras to copy the settings. Then select <CONFIRM> to apply the
settings.
COPY TO:
01 02 03 04 05 06 07
SELECT ALL DESELECT ALL CONFIRM CANCEL
5.3.2 IP Camera
If you are using an IP camera, please continue with this section. Items in this
menu are described in the following subsections.
Copy Settings
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
IP Camera Select
IP Camera Title
Search Via UPnP
Hostname/IP
Model
Connection Setup
Device Setup
Activated
Status
Copy Settings
IP Camera
CH16
CH16
No
93
User’s Manual
5.3.2.1 IP Camera Select
Select the corresponding channel. If <IP Camera Support> is set to <1>, then
the last channel will be the corresponding channel for the IP camera. When
<IP Camera Support> is set to <2>, the last two channels can be used to
setup the IP cameras.
5.3.2.2 IP Camera Title
This item allows the users to change the title of each connected camera. By
default, the titles of cameras are numbered from 1 through 16 respectively.
The title will be displayed on screen after the changes of the titles are set.
Follow these steps to enter a new title for a camera.
• Move the cursor to <Camera Title> and press ENTER. A virtual keyboard
with alphanumeric characters is displayed as below.
! @ # * - _ + = , . / Back
1 2 3 4 5 6 7 8 9 0 Del
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m
n o p q r s t u v w x y z
<< >> Space Cancel OK
• Use Direction keys to select character.
• Press ENTER to add the selected character to the entry field.
• When it’s done, move the cursor to <OK> and press ENTER to save the
settings and exit.
5.3.2.3 Search Via UPnP
If the IP camera is UPnP compatible and is in the local area network, select
this item and press ENTER to automatically search for the IP camera
IP Camera Title
attached to the DVR.
5.3.2.4 Hostname/IP
This item allows users to enter the hostname or IP address of the IP camera
(e.g. 192.168.1.123).
94
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.3.2.5 Model
Enter this item to select matching model of the IP camera. The DVR supports
the following IP camera models: <Speco SIP Cameras>, <NH Series>, <ACTi
Series>, <SONY SNC>, <AXIS 200>, <ViVoTek 7000>, <D7521>, <HUNT>,
<SANYO>, and <LUXON>.
5.3.2.6 Connection Setup
This item allows users to setup the connection of the IP camera. Enter this
item and the following menu will be displayed.
Connection Setup
Account
Password
Management Port
Streaming Format
Advance Streaming Option
Streaming Port
Streaming Protocol
IP Dome Protocol
RTP+RTSP
****
****
80
MPEG4
OFF
554
NONE
Account
Enter the login account name of the IP camera.
Password
Enter the login password of the IP camera.
Management Port
The management port is the default port of the IP camera. Different IP
cameras may have different management ports.
Streaming Format
Enter this item to select the streaming format of the IP camera. The DVR
supports three types of streaming format: <MPEG4>, <MJPEG> and <H264>.
Advance Streaming Option
Select <OFF> and the Streaming Port and Streaming Protocol will be set
automatically according to the camera model selected. Alternatively, select
<ON> to manually set the Streaming Port and Streaming Protocol.
Streaming Port
Streaming port is used for transmitting video and related commands.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
95
User’s Manual
Streaming Protocol
Enter this item to select the streaming protocol of the IP camera. The DVR
supports the following streaming protocols: <RTP+RTSP>, <RTP/RTSP>,
<RTP/RTSP/HTTP>, and <HTTP>.
NOTE: Please contact manufacturer of the IP camera for assistance if
the IP camera’s Management Port/ Streaming Port/ Streaming Format/
Streaming Protocol are unknown.
IP Dome Protocol
If the connected device is an IP Dome Camera, then select an appropriate IP
Dome Protocol from the provided options.
5.3.2.7 Device Setup
Enter this item to setup the basic settings of the IP camera. Upon entering this
item, the following message will be displayed.
Collecting data
Please wait!
If the connection cannot be detected, the following message will be displayed.
Please check the <Hostname/IP>, <Model>, and <Connection Setup> again
to make sure the settings are correct.
Cannot get config from the IP device
When the connection is detected, the following menu will be displayed.
Device Setup
Product ID
Image Resolution
FPS
Compression
Quality
Quality
Sharpness
Brightness
Contrast
Hue
Apply
****
CIF
15
40
Best
0
20
50
30
40
No
96
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
NOTE: The contents of the Device Setup menu differ from camera
model to camera model. For instance, when IP Camera Brand A is
connected, all items may be available. However, when IP Camera
Brand B is connected, the menu may contain only 8 items. Refer to the
following comparing table for example.
<IP Camera Brand A> <IP Camera Brand B>
Product ID
This item will display the product name of the IP camera.
Image Resolution/ FPS/ Compression/ Quality
These can be used to setup the Image Resolution/ FPS (Frames Per
Second)/ Compression/ Quality of the IP camera.
Sharpness/ Brightness/ Contrast/ Saturation/Hue
Move the cursor to the items and press ENTER to adjust the Sharpness/
Brightness/ Contrast/ Saturation/ Hue of the camera. Use UP / DOWN keys to
adjust the numeric value.
Apply
Select <Yes> to apply the above settings, and the following message will be
displayed.
Re-collecting data
Please wait!
When the settings cannot be applied, the following message will be displayed.
Try to reduce the resolution or FPS of the IP camera. Note that the login
account of the IP camera should have appropriate privilege.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
Cannot set the IP device
97
User’s Manual
Otherwise, the <Device Setup> setting is completed.
NOTE: After changing any item under Device Setup menu, users
MUST set <Apply> to <Yes> to apply the changes, or the settings will
remain unchanged.
5.3.2.8 Activated
Access this item and select <Yes> to activate the connection to the IP camera.
To deactivate the connection, select <No>
NOTE: Once the connection to the IP camera is activated, menu items
<Hostname/IP>, <Model>, <Connection Setup> will be grayed out and
cannot be accessed.
5.3.2.9 Status
After the connection to the IP camera is activated, users can check the
connection status. The menu will be shown as below
Model
Resolution
PPS
Bandwidth
Pkg. lost rate
The information shown on the monitor is “ready only”.
5.3.2.10 Copy Settings
This item allows the user to copy the settings set on the current selected
camera to any other connected cameras. Enter this menu and select one or
more cameras to copy the settings. Then select <CONFIRM> to apply the
settings.
Status
****
720*480
10
20 KB/Sec
0.1%
98
Copy Settings
COPY TO:
10 11 12 13 14 15 16
SELECT ALL DESELECT ALL CONFIRM CANCEL
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
User’s Manual
5.4 Record Setup
The following three factors will effect the total record time of the DVR-4TH/
8TH/ 16TH series unit:
• HDD capacity
• Recording rate (Picture per Second)
• Image quality settings
The greater the recording rate and the higher the quality setting, the shorter
the recording time. Most of the related factors can be set here in this
submenu.
The Record Setup menu allows user to set recording quality, recording
schedules, and other recording parameters. The account with appropriate
privilege is required to access Record Setup menu. In the Main menu, move
the cursor to <Record Setup> and press ENTER. The following menu is
displayed.
Record Mode Setup
Schedule Setup
Preset Config
Per Camera Config
ezRecord Setup
Data Lifetime Setup
Pre-Alarm Recording
Circular Recording
Audio Recording
Purge Data
5.4.1 Record Mode Setup
The Record Mode Setup menu is for selecting resolution and recording format.
The relative record settings, such as preset configuration, will follow the
record mode setting. The menu displayed as the following.
Record Setup
Best Quality
15 Sec
On
On
Record Resolution
Record Format
Max Rec. PPS
5.4.1.1 Record Resolution
Select resolution of the recorded video. If the recording is set to NTSC system,
the selections are 720*480, 720*240, and 352*240. If the recording is set to
PAL system, the selections are 720*576, 720*288, and 352*288.
DVR-4TH/8TH/16TH Series
SPECO TECHNOLOGIES 07/10
Record Mode Setup
352*240
H264
60
99
