Speco Technologies 550TVL User Manual

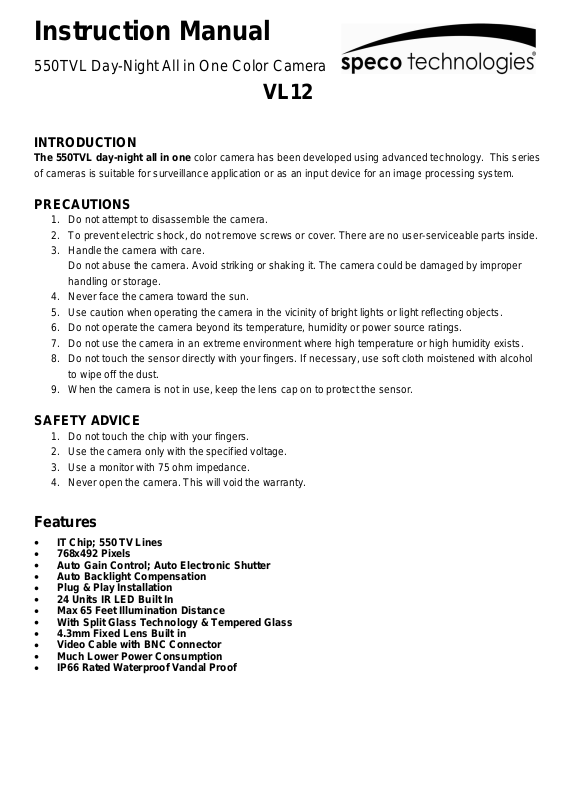

Instruction Manual

550TVL Day-Night All in One Color Camera

VL12

INTRODUCTION

The 550TVL day-night all in one color camera has been developed using advanced technology. This series

of cameras is suitable for surveillance application or as an input device for an image processing system.

PRECAUTIONS

1. Do not attempt to disassemble the camera.

2. To prevent electric shock, do not remove screws or cover. There are no user-serviceable parts inside.

3. Handle the camera with care.
Do not abuse the camera. Avoid striking or shaking it. The camera could be damaged by improper
handling or storage.

4. Never face the camera toward the sun.

5. Use caution when operating the camera in the vicinity of bright lights or light reflecting objects.

6. Do not operate the camera beyond its temperature, humidity or power source ratings.

7. Do not use the camera in an extreme environment where high temperature or high humidity exists.

8. Do not touch the sensor directly with your fingers. If necessary, use soft cloth moistened with alcohol
to wipe off the dust.

9. When the camera is not in use, keep the lens cap on to protect the sensor.

SAFETY ADVICE

1. Do not touch the chip with your fingers.

2. Use the camera only with the specified voltage.

3. Use a monitor with 75 ohm impedance.

4. Never open the camera. This will void the warranty.

Features

IT Chip; 550 TV Lines
768x492 Pixels
Auto Gain Control; Auto Electronic Shutter
Auto Backlight Compensation
Plug & Play Installation
24 Units IR LED Built In
Max 65 Feet Illumination Distance
With Split Glass Technology & Tempered Glass

4.3mm Fixed Lens Built in
Video Cable with BNC Connector
Much Lower Power Consumption
IP66 Rated Waterproof Vandal Proof

Model No.

VL12

Image Pick-up Device

IT Chip

Effective Picture Elements

768*492

Synchronization

Internal

Horizontal Resolution

550 TV Lines

S/N Ratio

50 dB

Minimum Illumination

0 Lux (IR ON)

Auto Electronic Shutter

Auto. 1/50 (60) ~ 1/100,000 Sec.

Gamma Characteristic

0.45

Gain Control

Automatic Gain Control

White Balance

Automatic White Balance (2500K~9500K)

Backlight Compensation

Automatic Backlight Compensation

Lens Furnished

4.3mm Fixed Lens Built in

Infrared Luminary

24 Units of 850nm IR LED

IR Project Distance

65 Feet

Video Output

1 Vp-p / 75 Ohms. BNC Connector.

Power Supply

DC 12V ± 10 %

Power Consumption

Max. 90mA (IR Off); Max. 240mA (IR On)

Operating Temp.

+4°F to 140° F

Protection Ratings

IP66

SPECIFICATIONS

Specifications are subject to change without prior notice.
