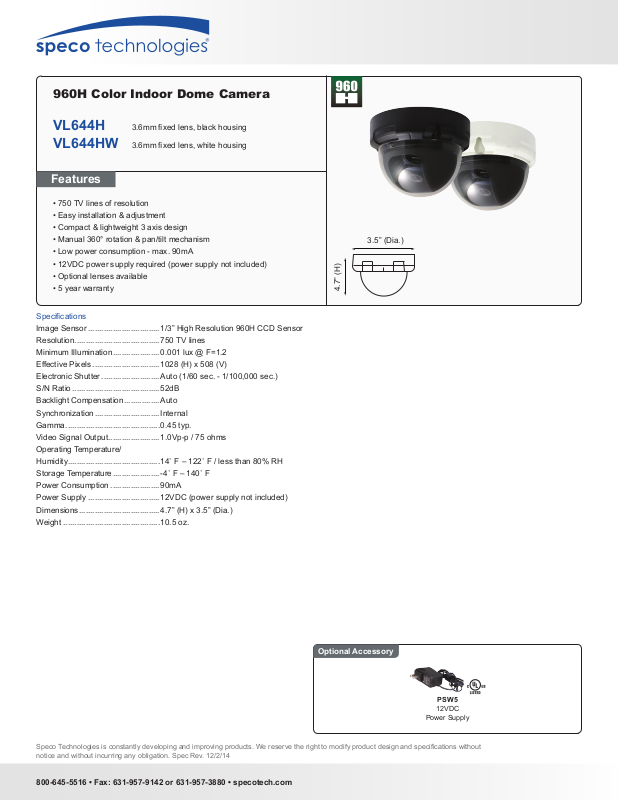

Speco VL644HW Specsheet

960H Color Indoor Dome Camera

VL644H 3.6mm xed lens, black housing
VL644HW 3.6mm xed lens, white housing

Features

• 750 TV lines of resolution

• Easy installation & adjustment

• Compact & lightweight 3 axis design

• Manual 360° rotation & pan/tilt mechanism

• Low power consumption - max. 90mA

• 12VDC power supply required (power supply not included)

• Optional lenses available

• 5 year warranty

Specications

Image Sensor ................................1/3” High Resolution 960H CCD Sensor

Resolution......................................750 TV lines

Minimum Illumination .....................0.001 lux @ F=1.2

Effective Pixels ..............................1028 (H) x 508 (V)

Electronic Shutter ..........................Auto (1/60 sec. - 1/100,000 sec.)

S/N Ratio .......................................52dB

Backlight Compensation ................Auto

Synchronization ............................. Internal

Gamma ..........................................0.45 typ.

Video Signal Output .......................1.0Vp-p / 75 ohms

Operating Temperature/

Humidity.........................................14˚ F ‒ 122˚ F / less than 80% RH

Storage Temperature .....................-4˚ F ‒ 140˚ F

Power Consumption ......................90mA

Power Supply ................................12VDC (power supply not included)

Dimensions ....................................4.7” (H) x 3.5” (Dia.)

Weight ...........................................10.5 oz.

3.5” (Dia.)

4.7” (H)

Optional Accessory

PSW5

12VDC

Power Supply

Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specications without
notice and without incurring any obligation. Spec Rev. 12/2/14
