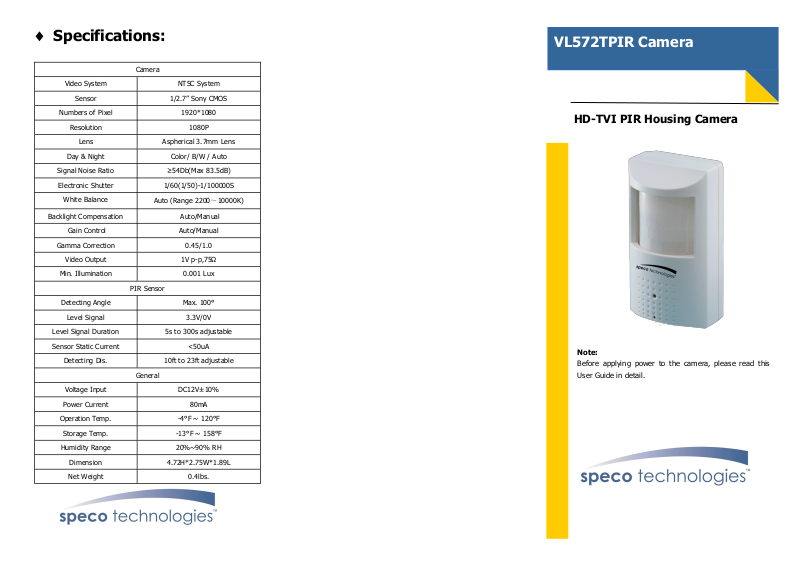

Speco VL572TPIR User Manual
Specifications:
Camera
Video System NTSC System
Sensor 1/2.7” Sony CMOS
Numbers of Pixel 1920*1080
Resolution 1080P
Lens Aspherical 3.7mm Lens
Day & Night Color/ B/W / Auto
Signal Noise Ratio ≥54Db(Max 83.5dB)
Electronic Shutter 1/60(1/50)-1/100000S
White Balance
Backlight Compensation Auto/Manual
Gain Control Auto/Manual
Gamma Correction 0.45/1.0
Video Output 1V p-p,75Ω
Min. Illumination 0.001 Lux
Detecting Angle Max. 100°
Level Signal 3.3V/0V
Level Signal Duration 5s to 300s adjustable
Sensor Static Current <50uA
Detecting Dis. 10ft to 23ft adjustable
Voltage Input DC12V± 10%
Power Current 80mA
Operation Temp. -4°F ~ 120°F
Storage Temp. -13°F ~ 158°F
Humidity Range 20%~90% RH
Dimension 4.72H*2.75W*1.89L
Net Weight 0.4lbs.
Auto (Range 2200～10000K)
PIR Sensor
General
VL572TPIR Camera
HD-TVI PIR Housing Camera
Note:
Before applying power to the camera, please read this
User Guide in detail.
Product Features:
1/2.7” SONY CMOS
1080P
3.7mm lens
0.001 Lux
Built-in PIR Motion Sensor
3pcs wires for PIR NO/NC optional connection
PIR Sensor:
Installation Notes:
PIR wires-White wire:COM/Purple wire: NO/Green wire:NC
To prevent shock or damage to the water-resistant body,
tighten all the screws and cover
Do not directly touch the front glass. To clean the dust by
wiping with soft cloth and alcohol.
Do not install camera where vibration is present.
Do not install camera where temperature is above 120°F or
below –4°F.
Do not expose power or video connection to moisture or
water.
If camera is not functioning properly, please power off and
contact the manufacturer.
Note:
Non-regulated power supply may cause damage to camera.
Product Features:
Trouble Shooting:
No picture after providing power
Check the power supply voltage, it may be outside specification.
Please check the connecting cables and monitors to determine if the
camera is connected correctly or not.
The picture has flowing interference ripples
Check the ground of the monitor and other peripheral equipment
that are being used is the same ground as the camera.
The background color continuously changes
A fluorescent bulb’s electromagnetic field can cause a color roll. This
is a proper phenomenon of the camera.
To improve the image, try to increase the distance between the cam-
era and the bulb, or change the angle such that it doesn’t face the
florescent bulb.
Introduction:
Congratulations on your purchase of this Speco product. This camera utilized the latest in sensors and drivers. The most appealing
characteristics of this camera are day & night features, and indoor
& outdoor applications. This product is a great addition to your
CCTV system.
Please read this manual carefully to ensure proper
use of the product.
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
The symbol is intended to alert the user to the presence
of
uninsulated dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to constant
RISK OF ELECTRONIC SHOCK
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFED SERVICE PERSONNEL
CAUTION:
DO NOT OPEN
