Speco VL562T User Manual
ITEM
VL562T
IP Rating
IP55
Type
Color
Signal System
NTSC/PAL
Pick Up Device
1/2.9" 2.2 Mega Pixels CMOS
Picture Elements
1920(H)X1080(V)
Min Illumination
0.001Lux
S/N Ratio
≥52dB
Lens
3.7mm pinhole lens
3D/2D
ON
SENS-UP
ON
IR SMART
ON
White Balance
ATW
Back Light Compensation
OFF
DWDR
ON/OFF
OSD
With UTC Signal(DVR Control OSD)
Video Output
HD-AHD/HD-TVI/HD-CVI/CVBS
Power Supply
DC12V ±10%
Current Consumption
95mA(MAX)
Dimension
ø125×54mm (4.92"×2.13")
Weight
300g (10.58oz)
Storage Temperature
-30～+60℃ (-22～+140℉)
Operating Temperature
-30～+40℃ (-22～+104℉)

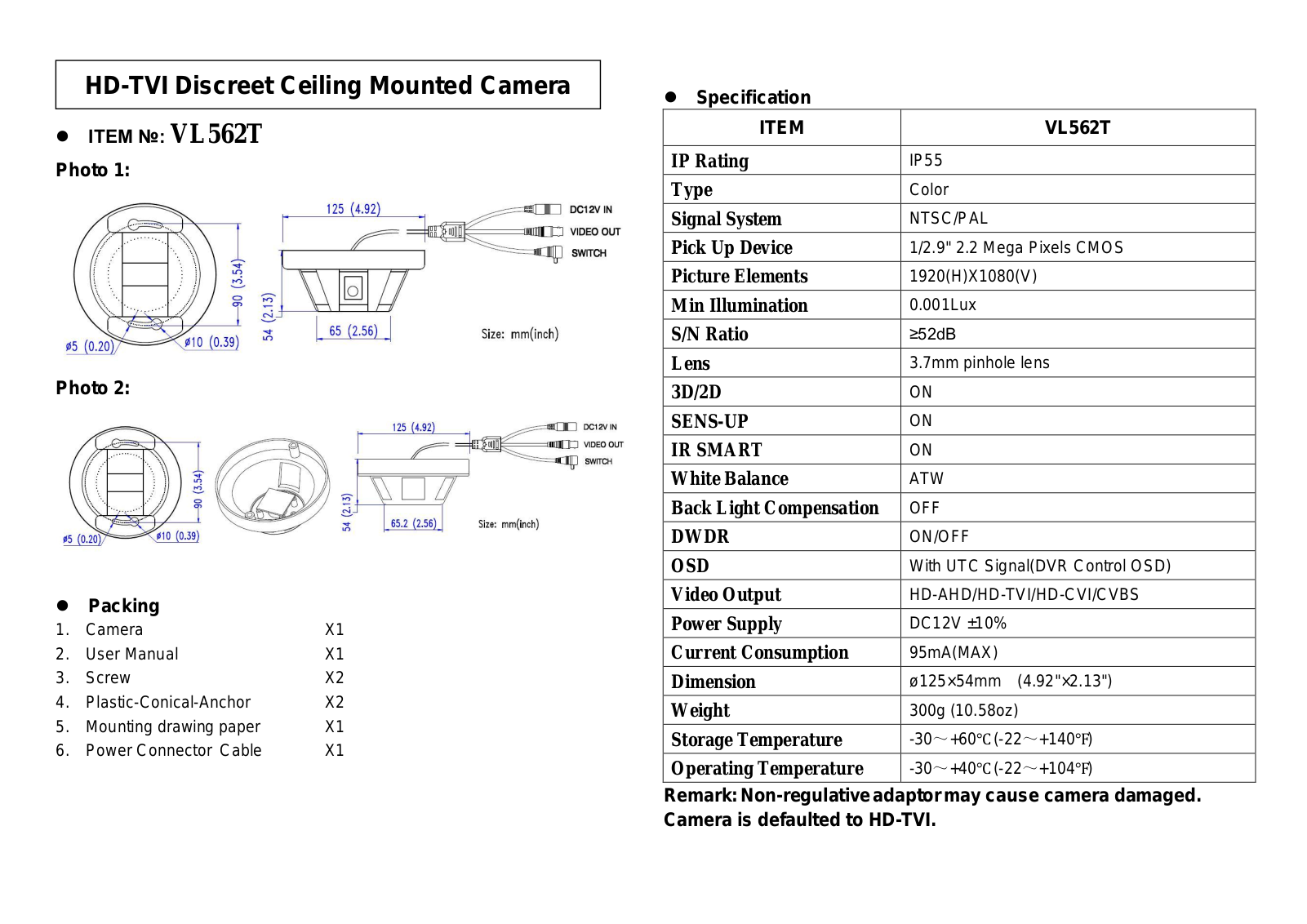

HD-TVI Discreet Ceiling Mounted Camera
ITEM №: VL562T
Photo 1:
Photo 2:
Specification
Packing
1. Camera X1
2. User Manual X1
3. Screw X2
4. Plastic-Conical-Anchor X2
5. Mounting drawing paper X1
6. Power Connector Cable X1
Remark: Non-regulative adaptor may cause camera damaged.
Camera is defaulted to HD-TVI.

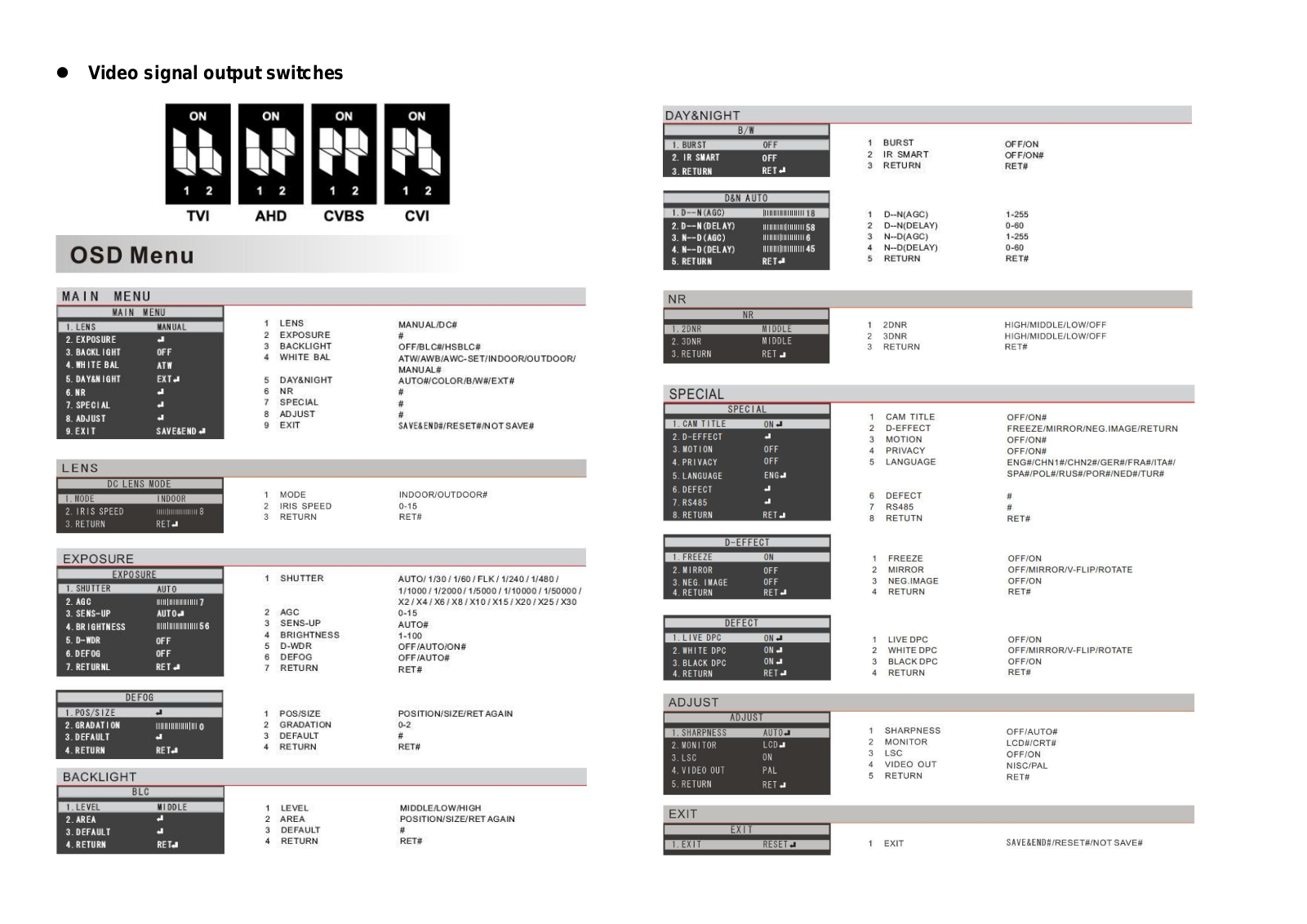

Video signal output switches
