INSTRUCTION MANUAL

VIP2C1N /

VIP2C1P

HD Mini Cube

Network Camera

Please read this manual thoroughly before use, and ke ep it handy for future reference.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

FCC COMPLIANCE STATEMENT

FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE

LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INT ERFERENCE IN A RESIDENTIAL INSTALLATION. THIS EQUIPMENT GENERATES, USES AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INT ERFERENCE WILL NOT OCCUR IN A PARTICULAR INSTALLATION. IF THIS EQUIPMENT DOES CAUSE HARMFUL INTERFERENCE TO RADIO OR TELEVISOION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THE EQUIPMENT OFF AND ON, THE USER IS ENCOURAGED TO TRY TO CORRECT THE INTERFERENCE BY ONE OR MORE OF THE FOLLOWING MEASURES:

-- REORIENT OR RELOCATE THE RECEIVING ANTENNA.

-- INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND RECEIVER.

-- CONNECT THE EQUIPMENT INTO AND OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH THE RECEIVER IS CONNECTED.

-- CONSULT THE DEALER OR AND EXPERIENCED RADIO/TV TECHNICIAN FOR HELP

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY

RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.

TO COMPLY WITH RF EXPOSURE COMPLIANCE REQUIREMENTS, THE ANTENNA USED FOR THIS TRANSMITTER MUST BE INSTALLED TO PROVIDE A SEPARATION DISTANCE OF AT LEAST 20cm (7.9in) FROM ALL PERSONS AND MUST NOT BE CO-LOCATED OR OPERATING IN CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified

by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE B Y QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE T HE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.

ITE is to be connected only to PoE networks without routing to the outside plant.

17.

Contents

1. Description ------------------------------------------------------------------6

1.1 Components - ------------------------------------------------------------------------------------------ 6

1.2 Key Features- ------------------------------------------------------------------------------------------ 6

1.3 Over View ---- ------------------------------------------------------------------------------------------ 8

2. Installation ----------------------------------------------------------------- 9

2.1 Connection ---- -----------------------------------------------------------------------------------------9

2.2 Network Connection and IP Assignment ----------------------------------------------------------11

3. Operation -------------------------------------------------------------------- 12

3.1 Access from a browser -------------------------------------------------------------------------------- 12

3.2 Access from the internet------------------------------------------------------------------------------13

3.3 Setting the admin password over a secure connection------------------------------------------- 13

3.4 Live View Page ----------------------------------------------------------------------------------------- 14

3.5 Network Camera Setup-------------------------------------------------------------------------------- 16

3.5.1 Basic Configuration ---------------------------------------------------------------------------- 16

1) Users------------------------------------------------------------------------------------------ 17

2) Network -------------------------------------------------------------------------------------- 18

3) Video & Image ------------------------------------------------------------------------------19

4) Audio------------------------------------------------------------------------------------------ 21

5) Date & Time ---------------------------------------------------------------------------------23

3.5.2 Video & Image---------------------------------------------------------------------------------- 24

3.5.3 Audio---------------------------------------------------------------------------------------------29

3.5.4 Event----------------------------------------------------------------------------------------------30

1) Event-In-------------------------------------------------------------------------------------- 30

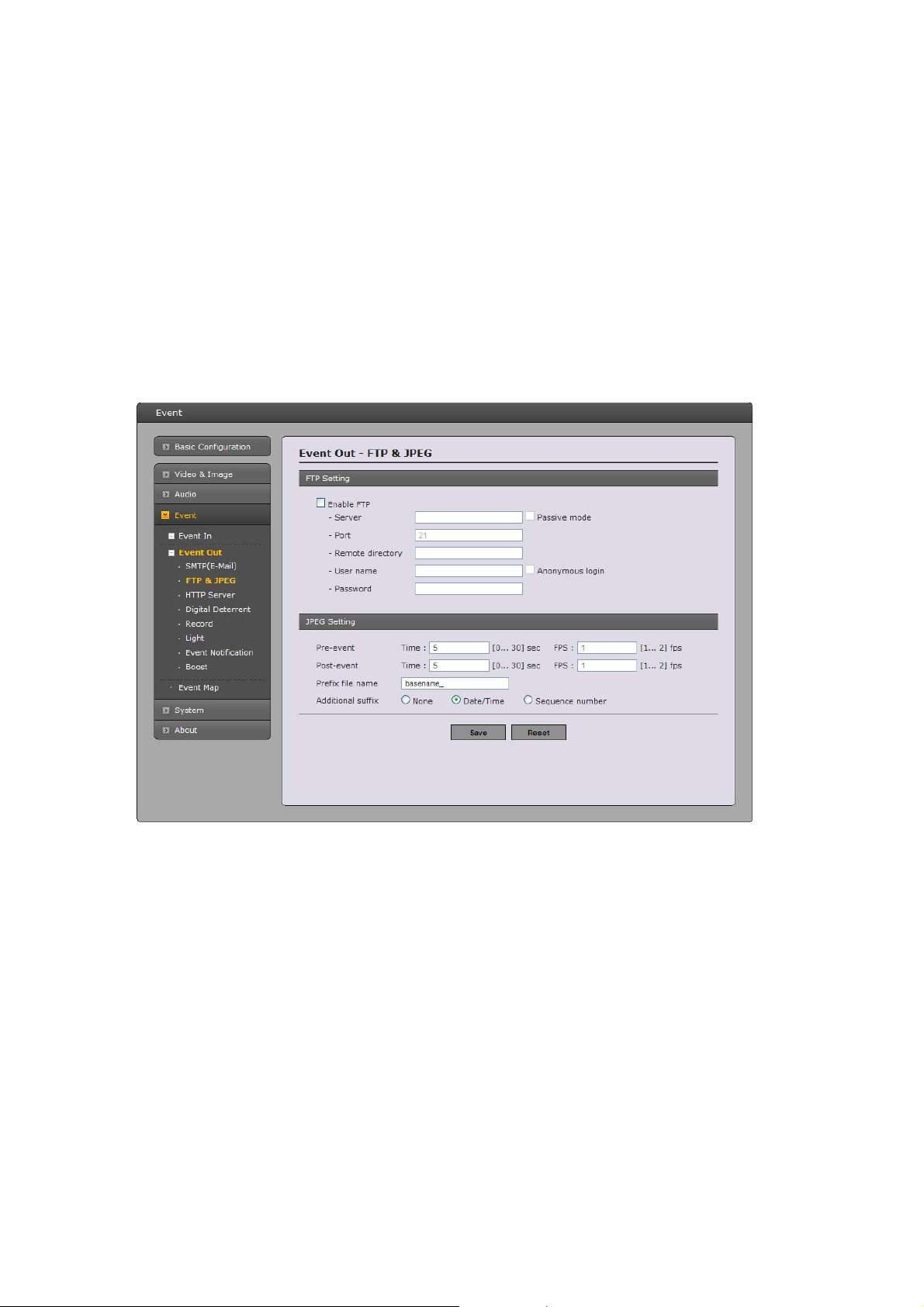

2) Event-Out ------------------------------------------------------------------------------------36

3) Event Map------------------------------------------------------------------------------------46

3.5.5 System ------------------------------------------------------------------------------------------ 47

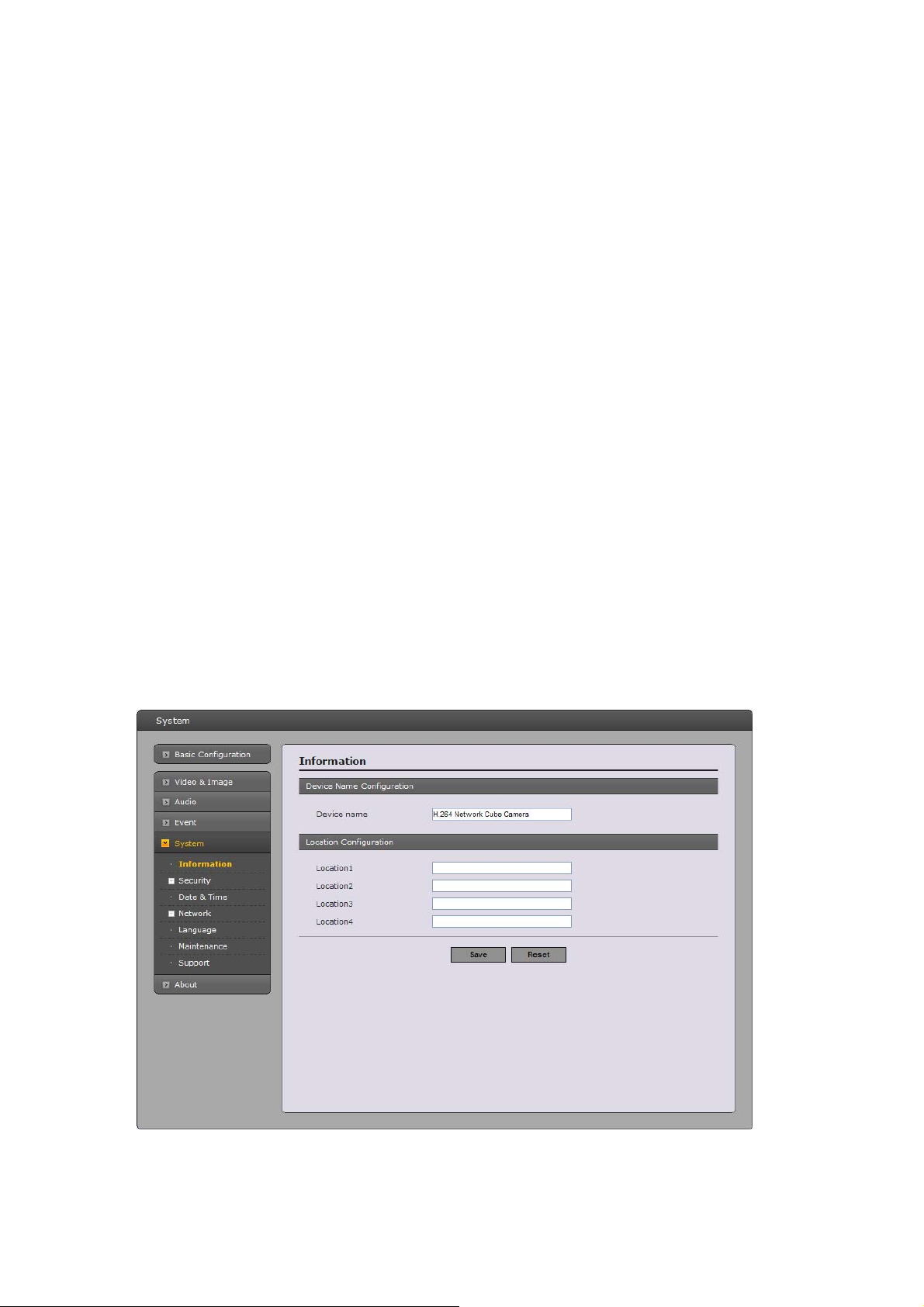

1) Information ----------------------------------------------------------------------------------47

2) Security--------------------------------------------------------------------------------------- 48

3) Date & Time --------------------------------------------------------------------------------- 51

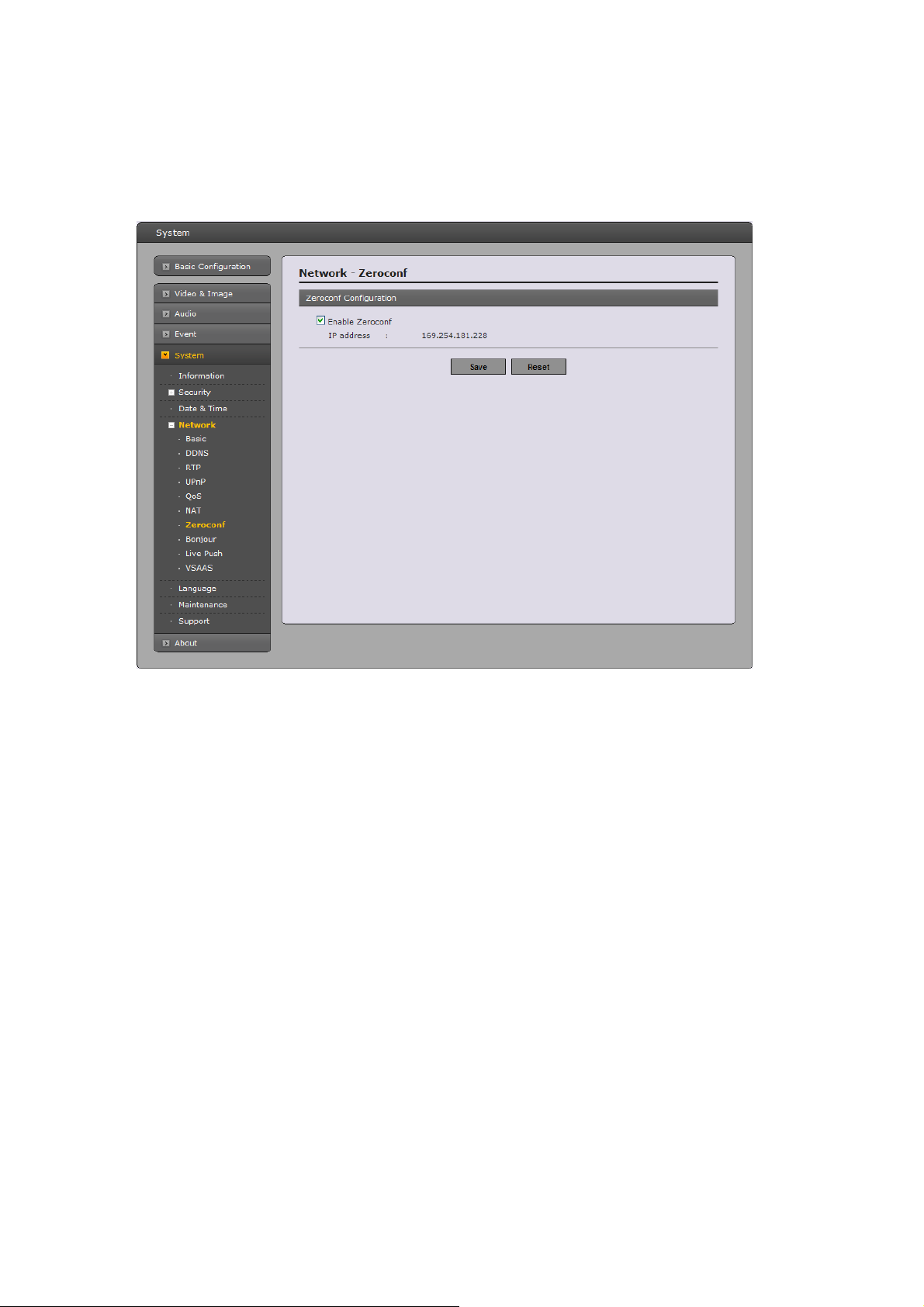

4) Network -------------------------------------------------------------------------------------- 52

5) Language------------------------------------------------------------------------------------- 66

6) Maintenance --------------------------------------------------------------------------------- 65

7) Support---------------------------------------------------------------------------------------66

3.5.6 About --------------------------------------------------------------------------------------------- 69

3.6 Playback----------------------------------------------------------------------------------------------------70

3.7 Help ------------------------------------------------------------------------------------------------------ 72

3.8 Resetting to the factory default settings ------------------------------------------------------------- 73

4. Appendix -------------------------------------------------------------------- 74

4.1 Troubleshooting ----------------------------------------------------------------------------------------- 74

4.2 Preventive Maintenance -------------------------------------------------------------------------------- 75

4.3 Product Specification ----------------------------------------------------------------------------------- 76

1. Description

The Network Camera supports the network service f or a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to ha ve an access to the Network Camera at once or a single user can monitor various network camera s at the same time. It also enables users to play, store and retrieve a monitoring image by using a PC. All the settings and real-time monitoring screens are also provided through an access to the web.

The Network Camera is fully featured f or security surveillance and remote monitoring needs. It is based on the DSP compression chip, and makes it available on the network as real-time, full frame rate Motion JPEG and H.264 (or MPEG-4) video streams.

1.1 Components

The system comes with the following components:

Cub

e Camera Installation CD Installation Guide Stand Adaptor

NOTE: Check your package to make sure that you received the complete system, including all

components shown above.

1.2 Key Features

• Brilliant video quality

The Network Camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.

• Dual or triple streams

The Network Camera can deliver dual or triple video streams simultaneously at full frame rate in all resolutions up to 2M(1600 x 1200) using Motion JPEG and H.264 (or MPEG-4). This means that several video streams can be configured with different compression formats, resolutions and frame rates for dif ferent needs.

• Image setting adjustment

The Network Camera also enables users to adjust image settings such as contrast, brightne ss and saturation to improve images before encoding takes place.

• Intelligent video capabilities

The Network Camera includes intelligent capabilities such as enhanced video motion detection. The network camera’s external inputs and outputs can be connected to devices such as sensors and relays, enabling the system to react to alarms an d activate lights or open/close doors.

• Micro-SD Recording support The Network Camera also supports a micro-SD memory slot for loc al recording with removable

storage.

• Improved Security

The Network Camera logs all user access, and lists currently connected users. Also, its full frame rate video can be provided over HTTPS.

• PIR Sensor (Full- featured model only)

Complementing the video motion detection capability of the cameras, the camera additionally integrates a PIR Sensor for detecting movements - even in the dark.

• Illuminations (Full-featured model only)

The camera offers a white LED for illuminating the scene automatically at an event or when requested by the user.

• Microphone and speaker (Full-featured model only)

The camera provides two-way audio support with integrated microphone and speaker, allowing remote listening in on an area as well as communication with persons entering the scene. An event can trigger the sound of an audio clip, stored in the camera, to be emitted through the speaker.

• Megapixel Resolution

2 Megapixel, Max 15fps@1600x1200

• PoE (Full-featured model only)

The camera can be powered through PoE, which simplifies installation since only one cable is needed for carrying power, as well as video controls.

• ONVIF

This is a global interface standard that makes it easier for end users, in tegrators, consultants, and manufacturers to take advantage of the possibilities offered by network video technology. ONVIF enables interoperability between different vendor products, increased flexibility, reduced cost, and future-proof systems.

1.3 Overview

• Front View

[BASIC MODEL] [FULL-FEATURED MODEL]

•

Rear View

NO Name Description

PIR Sensor(option)

Microphone/Speaker

(option) Light(option)

Network Connector

Power Connector

Reset Button

WPS Button

Network LED (Green)

Power LED (Green)

Status LED (Red)

The camera is equipped with a PIR Sensor that has a maximum range of 5 meters for detecting movement in the dark. The camera is equipped with a Microphone and Speaker. Two-way audio support allows for remote users to listen in on an area and communicate with visitors or intruders. The camera is equipped with White LED that illuminates the scene. Ethernet, RJ-45 port compatible with 10/100Mbps. Modular Jack

For connection of the 5V power adapter (included). Press and hold the Reset Button for one second using a paper clip or thin

object. Wait for the camera to reboot. WPS(Wi-Fi Protected Setup) Button, it finds and connects a wireless A P device automatically. Steady for connection to a 100Mbit/s network. Flashes for network activity. Steady green for normal operation or booting. Flashes green during firmware upgrade. Steady red for failed upgrade or booting.

 Camera Dimension

Dimensions Unit: inch

2. Installation

2.1 Connection

• Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Gener ally a

cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.

 Micro SD memory slot

Insert the SD memory card.

• Connecting the Power

Connect the supplied DC 5V power adaptor to the camera.

• Connecting the Wireless using WPS button (Basic featured model only)

The camera supports the wireless function.

Follow steps for a proper operation.

1. Make sure your AP (Access Point) and Operating System support WPS (Wi-Fi Protected Setup) functions. WPS enables easy setup with compatible APs.

2. Press the WPS button on the camera for more 2 seconds. You can then see the Status LED is blinking.

3. Press and hold down the WPS button on your AP (some router/AP will have a virtual button on their management software instead). Refer to your AP's documentation for details using its WPS functions

When WPS configuration is done, wireless connectivity will be established and the security encryption, such as WEP or WPA-PSK , will be synchronized with the AP. As for IP setting, the camera's use of DHCP or static IP is determined by your configuration on the network camera via the web- based configuration of firmware. The camera's default is DHCP.

Notes:

1. WPS m

2. If any WPS-enabled AP is not detected, the camera will search APs for 60 seconds after pressing the WPS button, and if the camera still can not detec t an AP after 1 minute, the wireless setup will be cancelled.

3. If a camera is assigned with a fixed IP outside the AP's network segment, wireless setup will fail.

ay not work if your AP is configured with a "hidden" SSID.

2.2 Network Connection and IP assignment

The Network Camera supports the operation through the network. When a camera is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Speco Manager” utility on the CD. (Default IP 192.168.30.220)

1. Connect the Network Camera / device to the network and power up.

2. Start Speco Manager utility (Start>All programs>Speco Manager>Speco Manager), the main window will be displayed, after a short while any network devices connected to the network will be displayed in the list.

Select the camera on the list and click right button of the mouse. You can see the pop-up menu below.

. Select Assign IP. You cam see a Assign IP window. Enter the required IP address.

Note: F

or more information, refer to the Speco Manager User’s Manual.

3. Operation

The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows.

NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

3.1 Access from a browser

1. Start a browser (Internet Explorer).

2. Enter the IP address or host name of the Network Camera in the Locati on/Address fi eld of your browser.

3. You can see a starting page. Click Live View or Setup to enter web page.

The network camera’s Live View page appears in your browser.

3.2. Access from the internet

Access from the internet once connected, the Network Camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the network camera. This is enabled from Setup > System > Network > NAT.

For more information, please see “3.5.5 System>Network>NAT” of User’s Manual.

3.3 Setting the admin password over a secure connection

To gain access to the product, the password for the default administrator user must be set. This is done in the “Admin Password” dialog, which is displayed when the network camera is accessed for the setup at the first time. Enter your admin name and password, set by the admini strator.

Note: The default administrator username is admin and password is 1234. If the password is lost, the Network Camera must be reset to the fa ctory default settings. See “3.8 Resetting to the Factory Default Settings” for more details.

To preve encrypted HTTPS connection, which requires an HTTPS certificate (see note below).

To set the password via a standard HTTP connection, enter it directly in the first dialog shown below. To set the password via an encrypted HTTPS connection, see “3.5.5 System >Security>HTTPS”.

Note: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the traffic between web browsers and servers. The HTTPS certificate controls the encrypted exchange of information.

nt network eavesdropping when setting the admin password, this can be done via an

3.4 Live View Page

The live view page comes in several screen modes: 1600x1200, 1280x1024, 1280x720, 800x600, 704x480(576), 640x480, 352x240(288), and 320x240. Users are allowed to select the most suitable one out of those modes. Please, adjust the mode in accordance with your PC specifications and monitoring purposes.

1) General

Live View Page Search & Playback Page Setup Page Help Page

video stream on the live view page. Stream profiles are configured under Setup > Basic Configuration > Video & Image. For more information, please see “3.5.1 Basic Configuration > Video & Image” of User’s Manual.

out of video resolutions to be displayed on live view page.

protocols and methods to use depends on your viewing requirements, and on the properties of your network.

2) Control

The live viewer toolbar is available in the web browser page only. It displays the following buttons:

start and stop. The Start button connects to the network camera or start playing a video stream.

controls

The video drop-down list allows you to select a customized or pre-programmed

The resolution drop-down list allows you to select the most suitable one

The protocol drop-down list allows you to select which combination of

toolbar

op button stops the video stream being played. Pressing the key again toggles the

The St

The Pause button pause the video stream being played. The Snapshot button takes a snapshot of the current image. The location where the

image is saved can be specified.

The digital zo om activates a zoom-in or zoom-out function for video image on the live screen.

windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full screen view.

The Full Screen button causes the video image to fill the entire screen area. No other

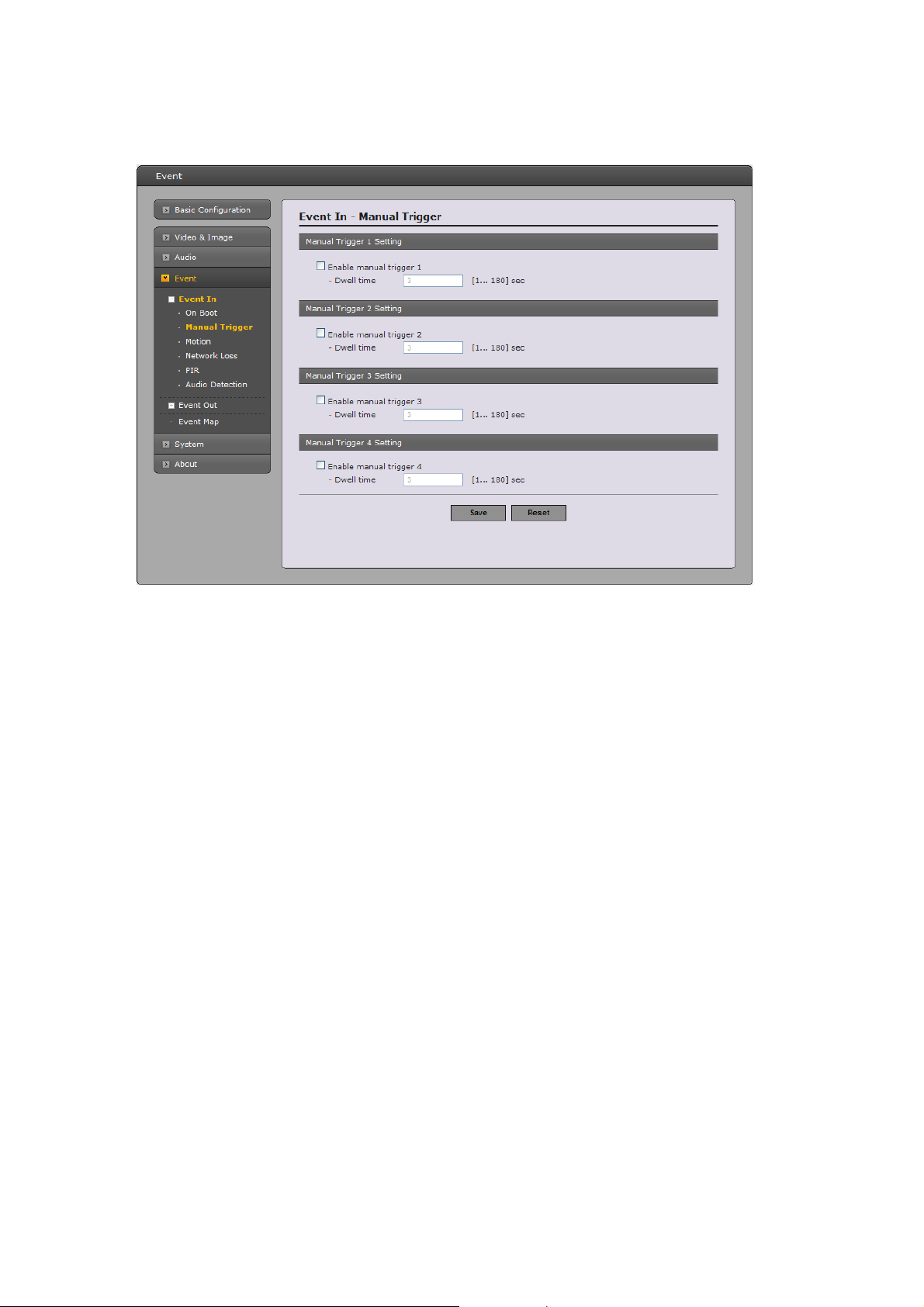

The Manual Trigger button activates a pop-up window to manually start or stop the event.

Use this scale to control the volume of the micr ophone. Use this scale to control the volume of the speakers and microphones.

3) Video Streams

The network camera provides several images and video stream formats. Your requirement s and the properties of your network will determine the type you use.

The Live View page in network camera provides access to H.264, MPEG-4 and Motion JPEG video streams, and to the list of available video streams. Other applications and clients can also access these video streams/images directly, without going via the Live View page.

Use this scale to control the volume of the speakers.

3.5 Network Camera Setup

This section describes how to configure the network camera, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have acce ss to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration.

You can configure the network camera by clicking Setup in the top right -hand corner of the Live View page. Click on this page to access the online help that explains the setup tools

When accessing the Network Camera for the first time, the “Admin Password” dialog appears. Enter your admin name and password, set by the administrator.

Note: If the p Camera must be reset to the factory default settings. See “3.8 Resetting to the Factory Default Settings”.

assword is lost, the Network

3.5.1 Basic Configuration

You can see the device information in this information page.

1) Users

User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below:

The user list display

s the authorized users and user groups (levels):

User Group Authority Guest

Provides the lowest level of access, which only allows access to the Live View page. An operator can view the Live View page, create and modify

Operator

events, and adjust certain other settings. Operators have no access to System Options.

Administrator

An administrator has unrestricted access to the Setup tools and can determine the registration of all other users.

 Enable anonymous viewer login: Check the box to use the webcasting feat ures. Refer to

“3.5.2 Video & Image” for more details.

2) Network

The network camera supports both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for the network camera can be set automatically via DHCP, or a static IP address can be set manually. If IPv6 is enabled, the network camera receives an IP address according to the configuration in the network router. There is also the option of using the Internet Dynamic DNS Service. For more information on setting the Network, please see Setup> System>Security>Network.

•

Obtain IP address via DHCP - Dynamic Host Configuration Protocol (DHCP) is a protocol

that lets network administrators centrally manage and automate the assignment of IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address.

• Use the following IP address - To use a static IP address for the Network Camera,

check the radio button and then make the following settings:

- IP address - Specify a unique IP address for your Network Camera.

- Subnet mask - Specify the mask for the subnet the Network Camera is located on.

- Default router - Specify the IP address of the default router (gateway) used for

connecting devices attached to different networks and network segments.

Notes:

1. DHCP should only be enabled if using dynamic IP address notification, or if your DHCP server can update a DNS server, which then allows you to access the Network Camera by name (host name). If DHCP is enabled and you cannot access the unit, you may have to reset it to the factory default settings and then perform the installation again.

2. The ARP/Ping service is automatically disabled two minutes after the unit is started, or

as soon as an IP address is set.

3. Pinging the unit is still possible when this service is disabled.

3) Video & Image

•

Sensor Setting

- Capture Mode:

Choose Capture Mode you wish to use from the drop-down list:

* 1600x1200 Max 15fps: Capture resolution is 1600x1200 and Maximum frame is 15. * 1280x720 Max 30fps: Capture resolution is 1280x720 and Maximum frame is 30. * 800x600 Max 30fps: Capture resolution is 800x600 and Maximum frame is 30.

Note: Maximum frame rate for each Stream is restricted under the one of the Capture Mode.

• Stream1 Setting

- Codec:

The codec settings are separated into MPEG4 and H.264.

H.264 is also known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate.

- Profile:

There are 4 pre-programmed stream profiles available for quick set-up. Choose the form of video encoding you wish to use from the drop-down list:

* H.264 MP(Main Profile):

Primarily for low-cost applications that requires additional err or robustness, this profile is used rarely in videoconferencing and mobile applications, it does add additional error resilience tools to the Constrained Baseline Profile. The importance of this profile is fading after the Constrained Baseline Profile has been defined.

* H.264 BP(Base Profile):

Originally intended as the mainstream consumer profile for broadcast and storage applications, the importance of this profile faded when the High profile was developed for those applications.

* MPEG4 SP(Simple Profile):

Mostly aimed for use in situations where low bit rate and low resolution are mandated by other conditions of the applications, like network bandwidth, device size etc.

- Resolution:

It enables users to determine a basic screen size when having an access through the Web Browser or PC program. The screen size control comes in seven modes like 1600x1200, 1280x1024, 1280x720, 800x600, 640x480, 352x240, and 320x240. Users can reset the selected screen size anytime while monitoring the screen on a real-time basis.

- Bitrate control:

Limiting the maximum bit rate helps control the bandwidth used by the H.264 or MPEG-4 video stream. Leaving the Maximum bit rate as unlimited maintains consistently good image quality but increases bandwidth usage when there is more activity in the image. Limiting the bit rate to a defined value prevents excessive bandwidth usage, but images are lost when the limit is exceeded.

Note that the maximum bit rate can be used for both variable and constant bit rates.

The bit rate can be set as Variable Bit Rate (VBR) or Constant Bit Rate (CBR). VBR adjusts the bit rate according to the image complexity, using up bandwidth for increased activity in the image, and less for lower activity in the monitored area.

CBR allows you to set a fixed target bitrate that consumes a predictable amoun t of bandwidth. As the bit rate would usually need to increase for increased image activity, but in this case cannot, the frame rate and image quality are affected negatively. To partly compensate for this, it is possible to prioritize either the frame rate or the image quality whenever the bit rate needs to be increased. Not setting a priority means the frame rat e and image quality are equally affected.

- Frame rate:

Upon the real-time play, users should select a frame refresh rate per second. If the rate is high, the image will become smooth. On the other hand, if the rate is low, the image will not be natural but it can reduce a network load.

- GOP size:

Select the GOP(Group of Picture) size. If users want to have a high quality of fast image one by one, please decrease the value. For the purpose of general monitoring, please do not change a basic value. Such act may cause a problem to the system performance. For the details of GOP setting, please contact the service center.

• Stream2 Setting

Sometimes the image size is large due to low light or complex scenery. Adjusting the frame rate and quality helps to control the bandwidth and storage used by the Motion JPEG video stream in these situations. Limiting the frame rate and quality optimizes bandwidth and storage usage, but may give poor image quality. To prevent increased bandwidth and storage usage, the Resolution, Frame rate, and Frame Quality should be set to an optimal value.

- JPEG resolution: Same as the Stream1 Setting.

- JPEG frame rate: Same as the Stream1 Setting.

- JPEG quality: Select the picture quality. If users want to have a high quality of fast image

one by one, please decrease the value. For the purpose of general monitoring, please do not change a basic value. Such act may cause a problem to the system performance.

• Stream3 Setting

Same as the Stream1 Setting. Click the checkbox to activate the 3

When satisfied with the settings, click Save, or click Reset to revert to previously saved settings.

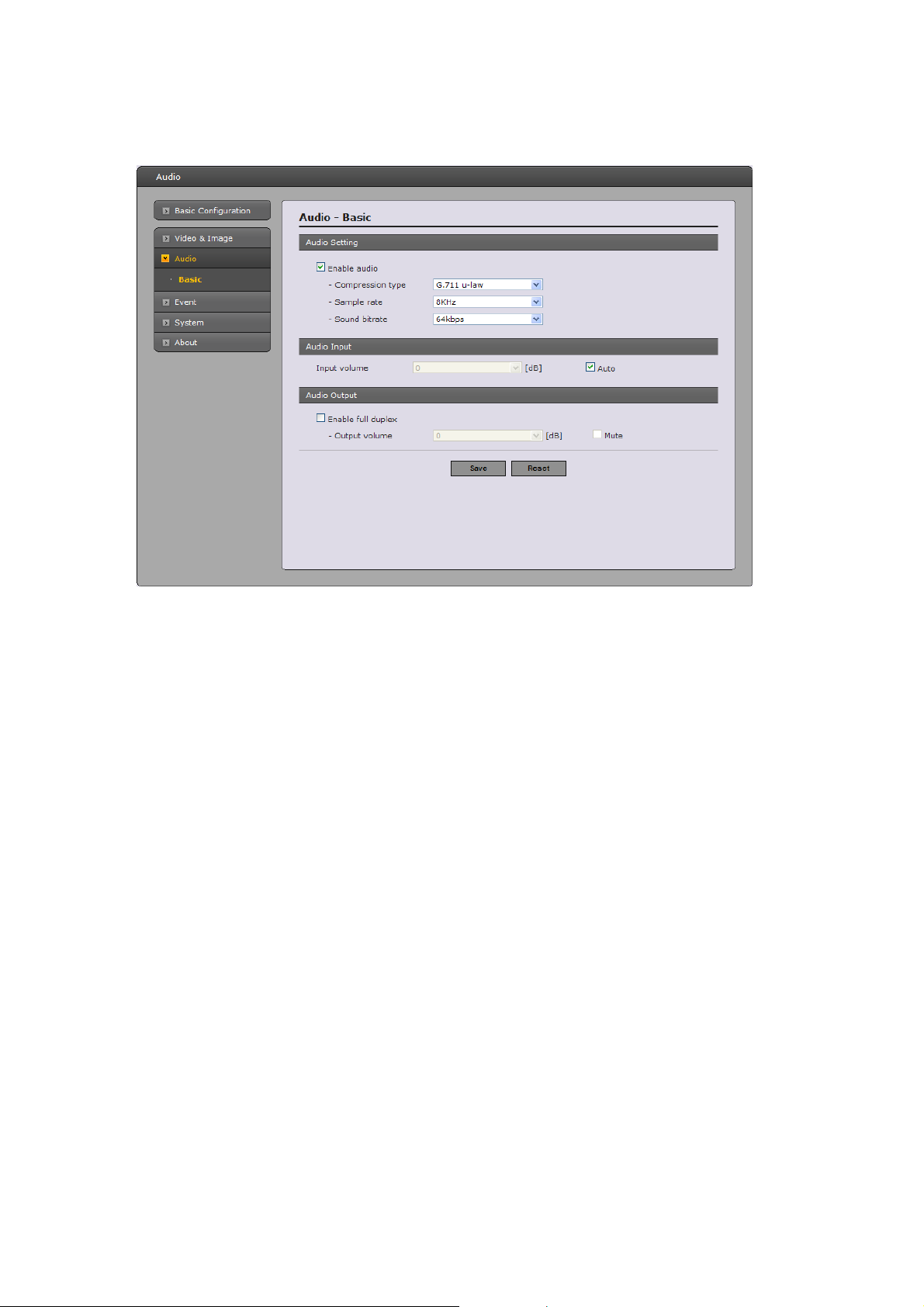

4) Audio(Full-featured model only)

The Network audio received from other clients by attaching a speaker. The Setup page has an additional menu item called Audio, which allows different audio configurations, such as, full duplex, and simplex.

Camera can transmit audio to other clients using an external microphone and can play

stream.

• Audio Setting

- Enable audio:

Check the box to enable audio in the video stream.

- Compression type:

Select the desired audio Compression format, G711.

- Sample rate:

Select the required Sample rate (number of times per second the sound is sampled). The higher the sample rate, the better the audio quality and the greater the bandwidth required.

- Sound bitrate:

Depending on the selected encoding, set the desired audio quality (bitrate). The settings affect the available bandwidth and the required audio quality.

• Audio Input

Audio from an external line source can be connected to the terminal I/O of the network camera.

- Input volume:

If there are problems with the sound input being too low or high, it is possible to adjust the input gain for the microphone attached to the network camera.

• Audio Output

- Enable full duplex:

Check the box to enable Full Duplex mode. It means that you can transmit and receive audio (talk and listen) at the same time, without having to use any of the controls. Th is is just like having a telephone conversation.

This mode requires that the client PC has a sound card with support for full-duplex audio.

Uncheck the box enable Simplex mode. The simplex mode only transmits audio from the network camera to any web client. It does not receive audio from other web clients.

- Output volume:

If the sound from the speaker is too low or high it is possible to adjust the output gain for the active speaker attached to the netw ork camera.

When satisfied with the settings, click Save, or click Reset to revert to previously saved settings

5) Date & Time

•

Current Server Time

It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below).

• New Server Time

Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select the “Automatically adjustment for daylight saving time changes”.

From the Time Mode section, select the preferred method to use for setting the time:

- Synchronize with computer time: sets the time from the clock on your computer.

- Synchronize with NTP Server: the network camera will obtain the time from an NTP

server every 60 minutes.

- Set manually: this option allows you to manually set the time and date.

• Date & Time Format

Specify the formats for the date and time (12h or 24h) displayed in the video streams. Select Date & Time format from the drop-down list.

- Date Format: Specify the date format. YYYY: Year, MM: Month, DD: Day

- Time Format: Specify the date format. 24Hours or 12 Hours

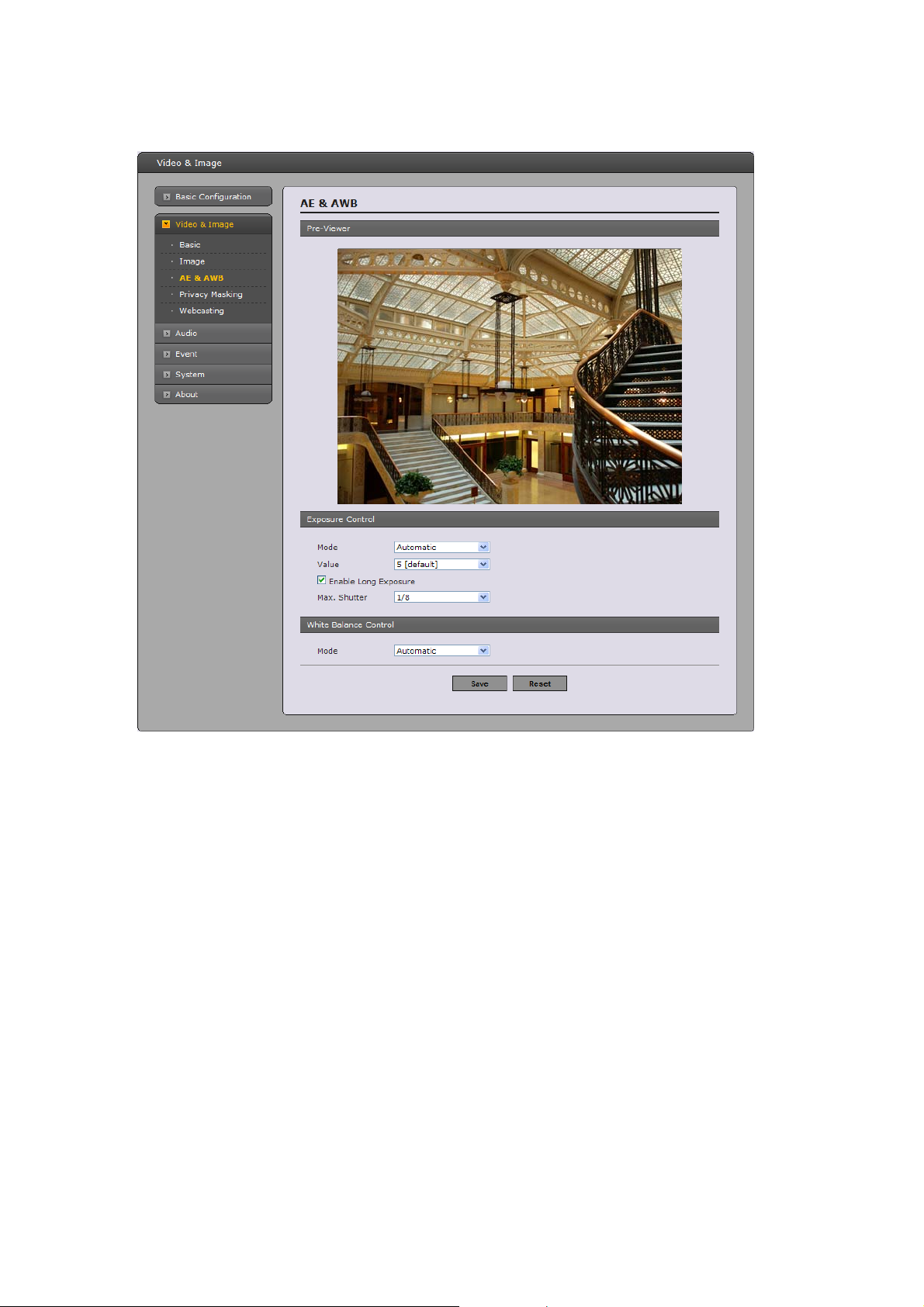

3.5.2 Video & Image

 Basic

efer to “3.5.1 Basic Configuration > Video & Image” for more details.

+ 55 hidden pages
