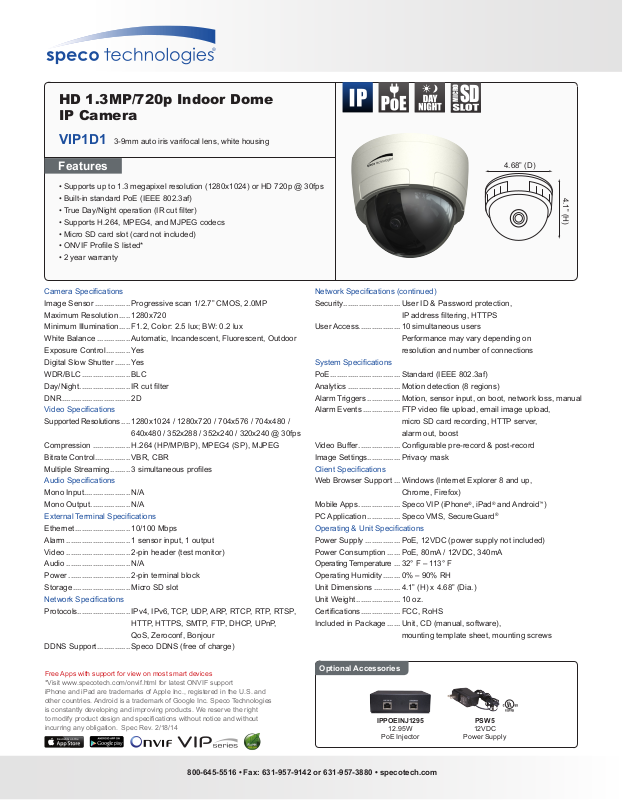

Speco VIP1D1 Specsheet

HD 1.3MP/720p Indoor Dome
SD
MICRO
IP Camera
VIP1D1 3-9mm auto iris varifocal lens, white housing
Features
• Supports up to 1.3 megapixel resolution (1280x1024) or HD 720p @ 30fps
• Built-in standard PoE (IEEE 802.3af)
• True Day/Night operation (IR cut lter)
• Supports H.264, MPEG4, and MJPEG codecs
• Micro SD card slot (card not included)
• ONVIF Prole S listed*
• 2 year warranty
Camera Specications
Image Sensor ................ Progressive scan 1/2.7” CMOS, 2.0MP
Maximum Resolution ..... 1280x720
Minimum Illumination ..... F1.2, Color: 2.5 lux; BW: 0.2 lux
White Balance ............... Automatic, Incandescent, Fluorescent, Outdoor
Exposure Control ........... Yes
Digital Slow Shutter ....... Yes
WDR/BLC ...................... BLC
DNR ............................... 2D
Video Specications
Supported Resolutions .... 1280x1024 / 1280x720 / 704x576 / 704x480 /
640x480 / 352x288 / 352x240 / 320x240 @ 30fps
Compression ................. H.264 (HP/MP/BP), MPEG4 (SP), MJPEG
Bitrate Control................ VBR, CBR
Multiple Streaming ......... 3 simultaneous proles
Audio Specications
Mono Input..................... N/A
Mono Output .................. N/A
External Terminal Specications
Ethernet ......................... 10/100 Mbps
Alarm ............................. 1 sensor input, 1 output
Video ............................. 2-pin header (test monitor)
Audio ............................. N/A
Power ............................ 2-pin terminal block
Storage .......................... Micro SD slot
Network Specications
Protocols........................ IPv4, IPv6, TCP, UDP, ARP, RTCP, RTP, RTSP,
HTTP, HTTPS, SMTP, FTP, DHCP, UPnP,
QoS, Zeroconf, Bonjour
DDNS Support ............... Speco DDNS (free of charge)
4.68” (D)
4.1” (H)
Network Specications (continued)
Security.......................... User ID & Password protection,
IP address ltering, HTTPS
User Access................... 10 simultaneous users
Performance may vary depending on
resolution and number of connections
System Specications
PoE ................................ Standard (IEEE 802.3af)
Analytics ........................ Motion detection (8 regions)
Alarm Triggers ............... Motion, sensor input, on boot, network loss, manual
Alarm Events ................. FTP video le upload, email image upload,
micro SD card recording, HTTP server,
alarm out, boost
Video Buffer ................... Congurable pre-record & post-record
Image Settings............... Privacy mask
Client Specications
Web Browser Support ... Windows (Internet Explorer 8 and up,
Chrome, Firefox)
Mobile Apps ................... Speco VIP (iPhone®, iPad® and Android™)
PC Application ............... Speco VMS, SecureGuard
Operating & Unit Specications
Power Supply ................ PoE, 12VDC (power supply not included)
Power Consumption ...... PoE, 80mA / 12VDC, 340mA
Operating Temperature ... 32° F ‒ 113° F
Operating Humidity ........ 0% – 90% RH
Unit Dimensions ............ 4.1” (H) x 4.68” (Dia.)
Unit Weight .................... 10 oz.
Certications .................. FCC, RoHS
Included in Package ...... Unit, CD (manual, software),
mounting template sheet, mounting screws
®
Free Apps with support for view on most smart devices
*Visit www.specotech.com/onvif.html for latest ONVIF support iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. Android is a trademark of Google Inc. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specications without notice and without incurring any obligation. Spec Rev. 2/18/14
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
Optional Accessories
IPPOEINJ1295
12.95W
PoE Injector
PSW5
12VDC
Power Supply
