ITEM NO.
P
UUTTPP44P
Features:
Transmit a full color standard analog video signal up to 984’ (300M).
Use 4 pairs CAT5 cable to transmit/receive 4 sets of video signals
Passive, no power required.
Eliminate coaxial cable.
Installation View:

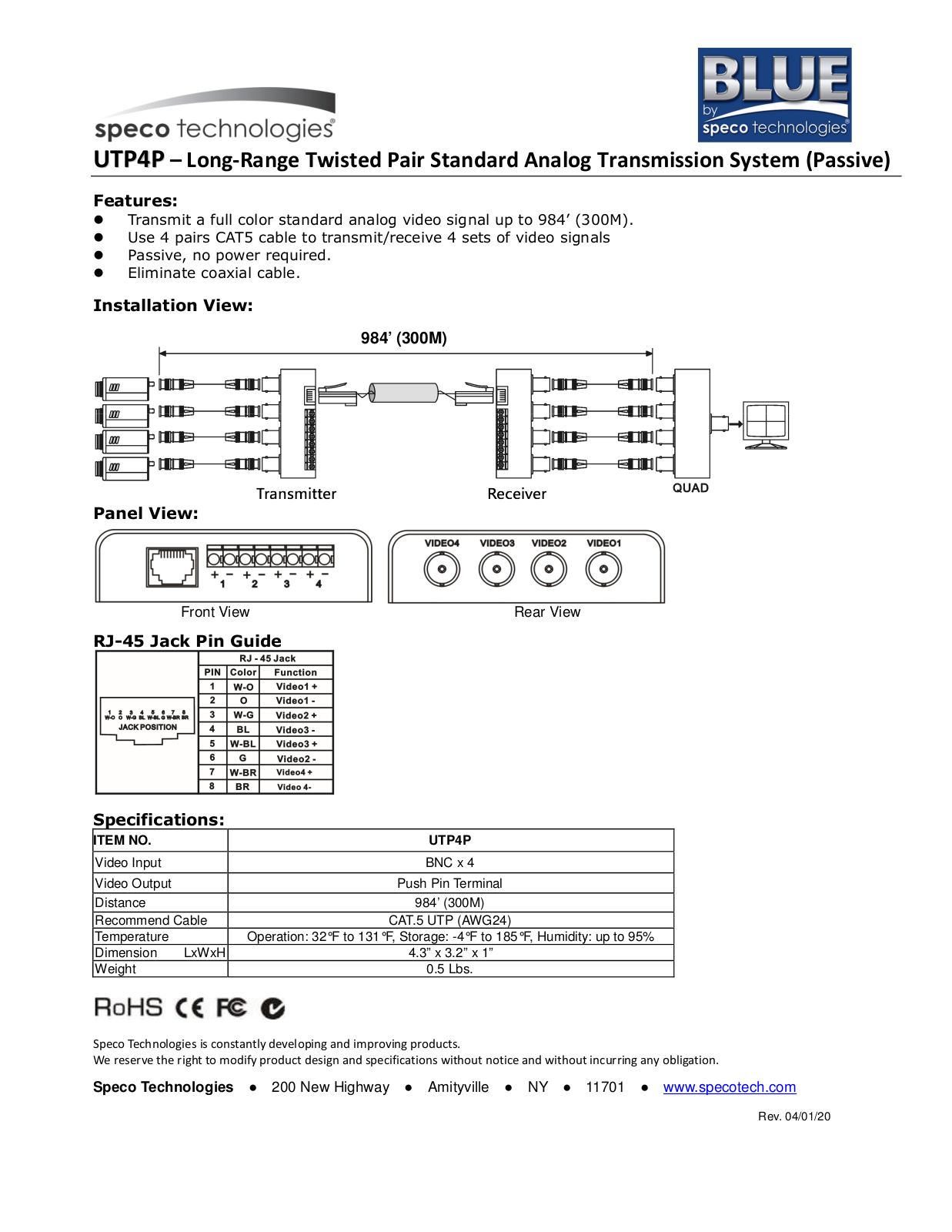

– Long-Range Twisted Pair Standard Analog Transmission System (Passive)
984’ (300M)
Panel View:
Transmitter
Receiver
RJ-45 Jack Pin Guide
Specifications:
Video Input BNC x 4
Video Output Push Pin Terminal
Distance 984’ (300M)
Recommend Cable CAT.5 UTP (AWG24)
Temperature Operation: 32°F to 131°F, Storage: -4°F to 185°F, Humidity: up to 95%
Dimension LxWxH
Weight 0.5 Lbs.
Front View Rear View
UTP4P
4.3” x 3.2” x 1”
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies ● 200 New Highway ● Amityville ● NY ● 11701 ● www.specotech.com
Rev. 04/01/20
