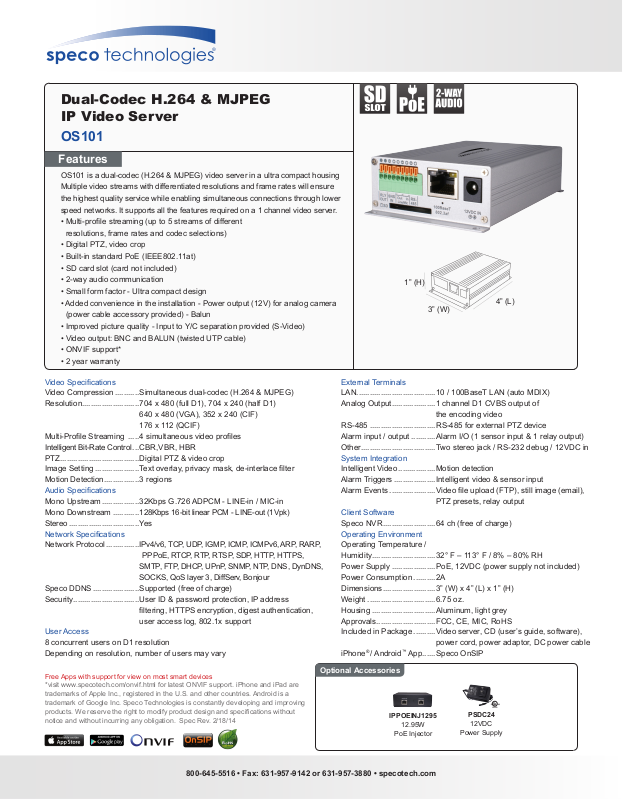

Speco OS101 Specsheet
Dual-Codec H.264 & MJPEG
IP Video Server
OS101
Features
OS101 is a dual-codec (H.264 & MJPEG) video server in a ultra compact housing
Multiple video streams with differentiated resolutions and frame rates will ensure
the highest quality service while enabling simultaneous connections through lower
speed networks. It supports all the features required on a 1 channel video server.
• Multi-prole streaming (up to 5 streams of different
resolutions, frame rates and codec selections)
• Digital PTZ, video crop
• Built-in standard PoE (IEEE802.11at)
• SD card slot (card not included)
• 2-way audio communication
• Small form factor - Ultra compact design
• Added convenience in the installation - Power output (12V) for analog camera
(power cable accessory provided) - Balun
• Improved picture quality - Input to Y/C separation provided (S-Video)
• Video output: BNC and BALUN (twisted UTP cable)
• ONVIF support*
• 2 year warranty
1” (H)
4” (L)
3” (W)
Video Specications
Video Compression ...........Simultaneous dual-codec (H.264 & MJPEG)
Resolution..........................704 x 480 (full D1), 704 x 240 (half D1)
640 x 480 (VGA), 352 x 240 (CIF)
176 x 112 (QCIF)
Multi-Prole Streaming .....4 simultaneous video proles
Intelligent Bit-Rate Control ...CBR,VBR, HBR
PTZ ....................................Digital PTZ & video crop
Image Setting ....................Text overlay, privacy mask, de-interlace lter
Motion Detection................3 regions
Audio Specications
Mono Upstream .................32Kbps G.726 ADPCM - LINE-in / MIC-in
Mono Downstream ............128Kbps 16-bit linear PCM - LINE-out (1Vpk)
Stereo ................................Ye s
Network Specications
Network Protocol ...............IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP,
PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS,
SMTP, FTP, DHCP, UPnP, SNMP, NTP, DNS, DynDNS,
SOCKS, QoS layer 3, DiffServ, Bonjour
Speco DDNS .....................Supported (free of charge)
Security..............................User ID & password protection, IP address
ltering, HTTPS encryption, digest authentication,
user access log, 802.1x support
User Access
8 concurrent users on D1 resolution
Depending on resolution, number of users may vary
External Terminals
LAN....................................10 / 100BaseT LAN (auto MDIX)
Analog Output....................1 channel D1 CVBS output of
the encoding video
RS-485 ..............................RS-485 for external PTZ device
Alarm input / output ...........Alarm I/O (1 sensor input & 1 relay output)
Other..................................Two stereo jack / RS-232 debug / 12VDC in
System Integration
Intelligent Video .................Motion detection
Alarm Triggers ...................Intelligent video & sensor input
Alarm Events .....................Video le upload (FTP), still image (email),
PTZ presets, relay output
Client Software
Speco NVR ........................64 ch (free of charge)
Operating Environment
Operating Temperature /
Humidity.............................32° F ‒ 113° F / 8% ‒ 80% RH
Power Supply ....................PoE, 12VDC (power supply not included)
Power Consumption ..........2A
Dimensions ........................3” (W) x 4” (L) x 1” (H)
Weight ...............................6.75 oz.
Housing .............................Aluminum, light grey
Approvals...........................FCC, CE, MIC, RoHS
Included in Package ..........Video server, CD (user’s guide, software),
power cord, power adaptor, DC power cable
iPhone® / Android™ App ......Speco OnSIP
Free Apps with support for view on most smart devices
*visit www.specotech.com/onvif.html for latest ONVIF support. iPhone and iPad are
trademarks of Apple Inc., registered in the U.S. and other countries. Android is a
trademark of Google Inc. Speco Technologies is constantly developing and improving
products. We reserve the right to modify product design and specications without
notice and without incurring any obligation. Spec Rev. 2/18/14
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
Optional Accessories
IPPOEINJ1295
12.95W
PoE Injector
PSDC24
12VDC
Power Supply
