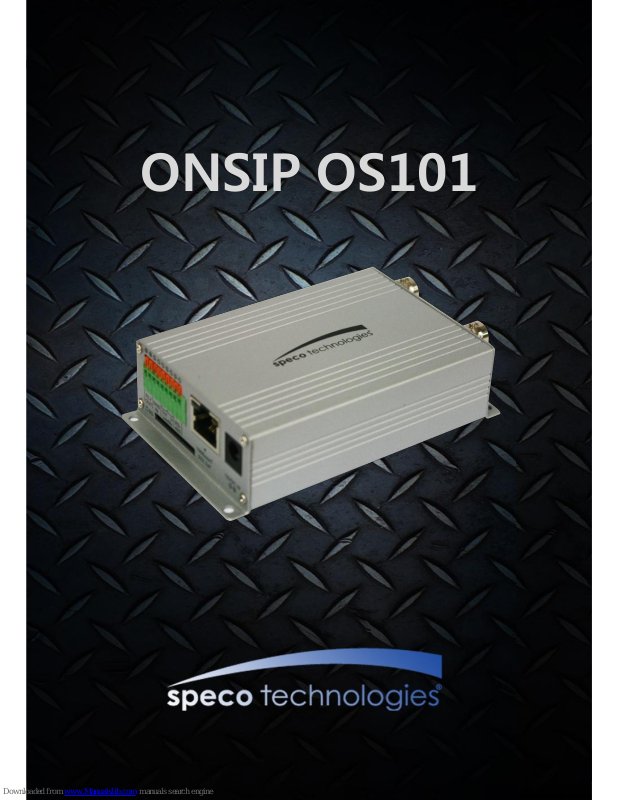

ONSIP OS101
Page 2
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
2
Directions
ONSIP OS101 is designed for indoor use only. When using ONSIP OS101 in outdoor or equivalent
environment, you must use a water-resistant housing for the installation.
Be careful not to cause any physical damage by dropping or throwing the ONSIP OS101. Especially keep
the device out of reach from children.
Do not disassemble ONSIP OS101. You will be excluded from After Service when disassembled.
Use only the power adapter provided with the ONSIP OS101.
If you would like to use the ONSIP OS101 for security, monitoring, please check the legal regulations within
the country.
Page 3
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
3
Revision History
Date
Rev No
Description
2011-11-01
1.0
First manual revision creation.
Caution
Any changes or modifications to this device could void the warranty.
Page 4
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
4
1. Introduction ................................................................................................................................................... 5
1.1. Overview ............................................................................................................................ 5
1.2. Specification ...................................................................................................................... 6
1.3. Applications of ONSIP OS101 ......................................................................................... 8
2. Product Description ..................................................................................................................................... 9
2.1. Contents ............................................................................................................................. 9
2.2. Preview ..............................................................................................................................10
2.3. Physical description ......................................................................................................... 11
2.3.2. Front & Rear View ........................................................................................................ 11
2.4. Functional Description ....................................................................................................12
3. Getting Started ........................................................................................................................................... 16
3.1. PC Requirement ................................................................................................ ...............16
3.2 Quick Installation Guide ..................................................................................................17
4. Trouble Shooting ........................................................................................................................................ 23
4.1. No power is applied.........................................................................................................23
4.2. Cannot connect to the Video .........................................................................................24

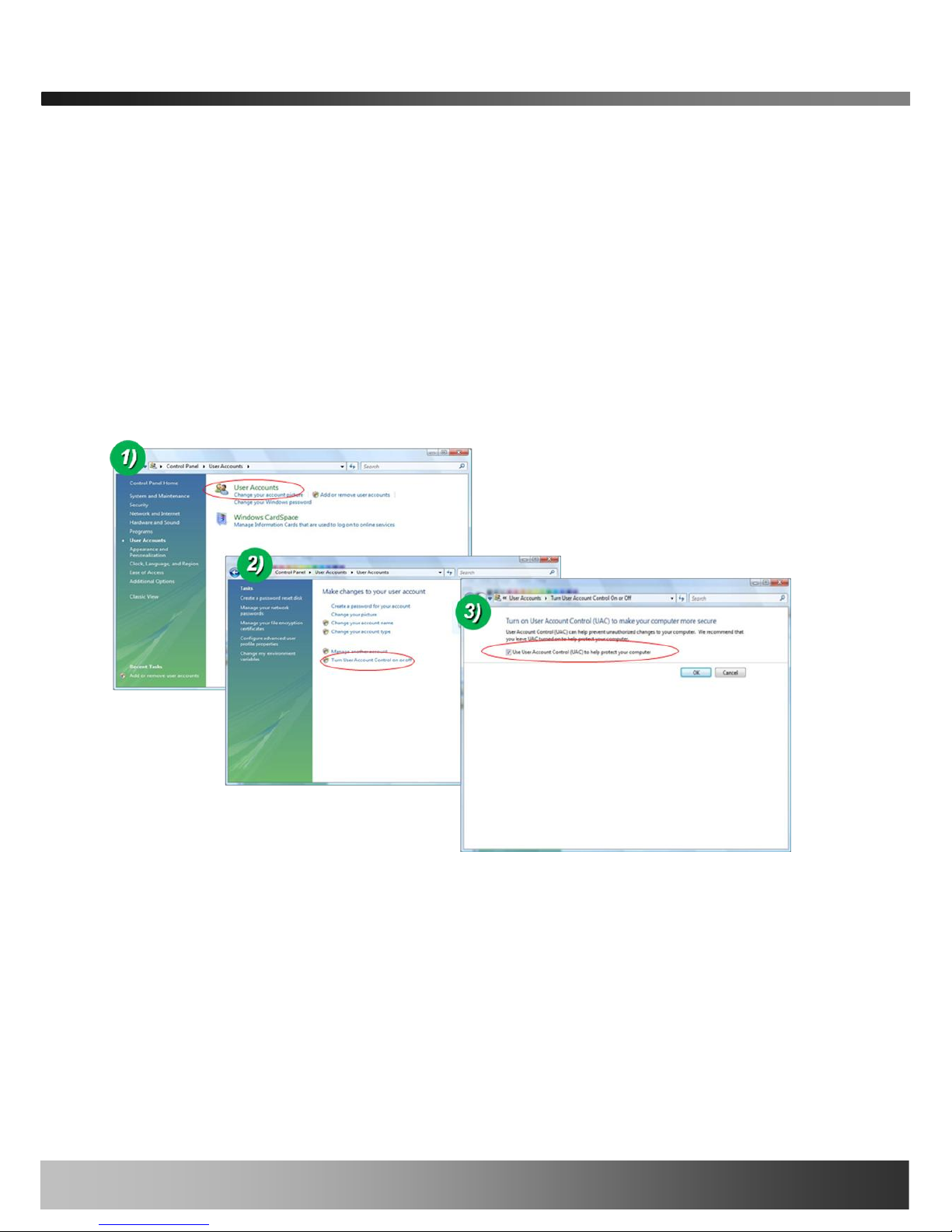

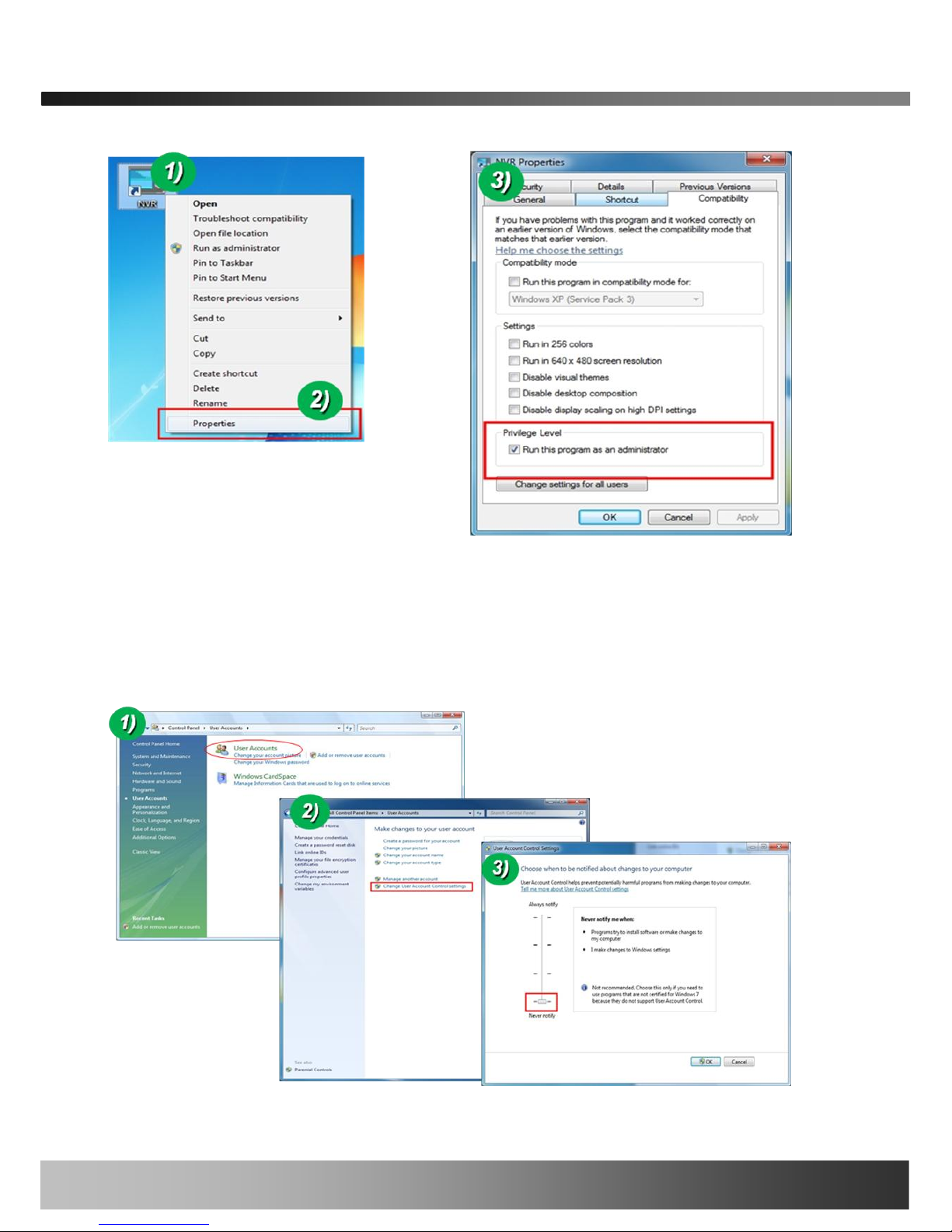

4.3. Windows Vista or Windows 7 .........................................................................................25
4.4. Technical Assistance........................................................................................................28
Table of Contents
Page 5
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
5
1. Introduction
1.1. Overview
The ONSIP OS101 is a state-of-the-art video server which transmits synchronized video and audio data in real
time with D1 resolution at full frame rate. This is possible through multi-codec (H.264/AVC, MJPEG) technology,
which provides high quality video with highly compressed data streams. The ONSIP OS101 can be connected,
controlled and monitored from a remote location through an IP connection over internet or intranet.
The ONSIP OS101 is easy to install and owner will experience cost and space savings in the installation owing to
the state of the art technologies embedded in the system. Based on Embedded Software Solution (Embedded
Web Server, Embedded Streaming Server, Network Protocol), the ONSIP OS101 ensures unprecedented
performance and stability to be an ideal video server solution for system integration solutions.
Embedded PoE (Power over Ethernet, IEEE 802.3af) will enable the owner to reduce TCO (Total Cost of
Ownership) by reducing on-site wiring works for the installation.
Page 6
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
6
1.2. Specification
Category
Sub-Category
Details
Video
Compression
H.264/MJPEG
Resolution
NTSC (30 frames/sec Max.) : 704x480,
640x480, 704x240, 352x240, 176x112
PAL/SECAM (25 frames/sec Max.) :
704x576, 640x480, 704x288, 352x288,
176x144
Audio
(Bi-
directional)
Up
32 Kbps G.726
Down
64 Kbps PCM
Network
Interface
RJ-45, 10/100 Mbps, PoE (802.3af)
Access network
Static, DHCP, PPP/PPPoE
Application
IPv4/6, TCP, UDP, IGMP, ICMP, ICMPv6 etc.
I/O
RS-485
For providing RS-485 device (PTZ device etc.)
Sensor In 1 NC, NO Selectable
Relay Output
1
For alarm annunciation or
remote ON/OFF control (30V, 1A)
Mic/Line In
Selectable in Admin page
Line Out
1 V p-p output for amplified speaker
CVBS output
BNC, BALUN
Power Supply
PoE
Power over Ethernet (IEEE802.3af)
DC Adaptor
12V DC adaptor
Motion Detection
3 zones
Arbitrary shape with independent sensitivity
Upgrade
Firmware upgrade over IP network
Administration
Remote administration over IP network
Client & Viewer
Web Viewer
Simple viewing over internet explorer
Speco-NVR
Standard CMS software
Dynamic IP support
DDNS support
Supported
Security
Video/Audio stream encryption
Page 7
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
7
ID and Password protection
IP filtering for restricting administrative
access for audio and bi-audio
Time management
Sync to PC
Synchronize to PC
Manual
Manual time setting
Internet Time
Server
Synchronize to Time Server
DLS
Day light saving
SDK support
Active-X
HTTP
Source filter
Page 8
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
8
1.3. Applications of ONSIP OS101
Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government
facilities, Military etc.)
• Real time Internet broadcasting
• Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)
• Teleconference (bi-directional audio conference)
• Remote Learning
• Weather and environmental observation
Page 9
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
9
2. Product Description
2.1. Contents
Open the package and check if you have the followings:
Components
Description
Remarks
ONSIP OS101
ONSIP OS101 Video server
Power adapter
Built in standard PoE (IEEE 802.3af)
12VDC adaptor
(Optional item)
DC power cable
Y-type cable to supply power to analog
camera.
1m
CD
Software & User’s Guide
Quick Reference Guide
Quick installation guide
Page 10
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
10

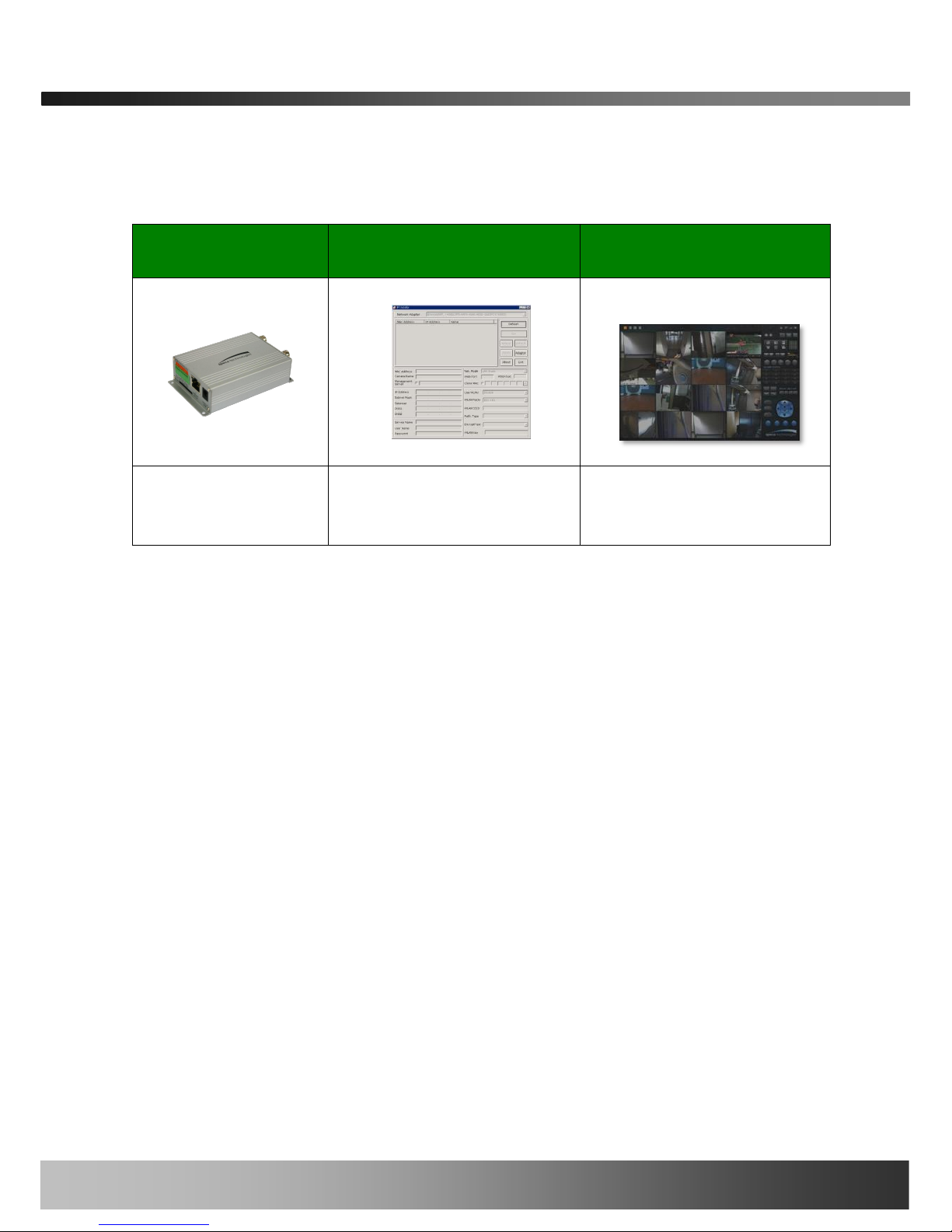

2.2. Preview
ONSIP OS101
IP-Installer
CMS Software
(Speco-NVR)
H.264 1CH Video Server
PC software to allocate an IP
address to the ONSIP OS101
PC software to view and record the
A/V streaming data transmitted from
ONSIP OS101
Page 11
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
11
2.3. Physical description
2.3.1. External View

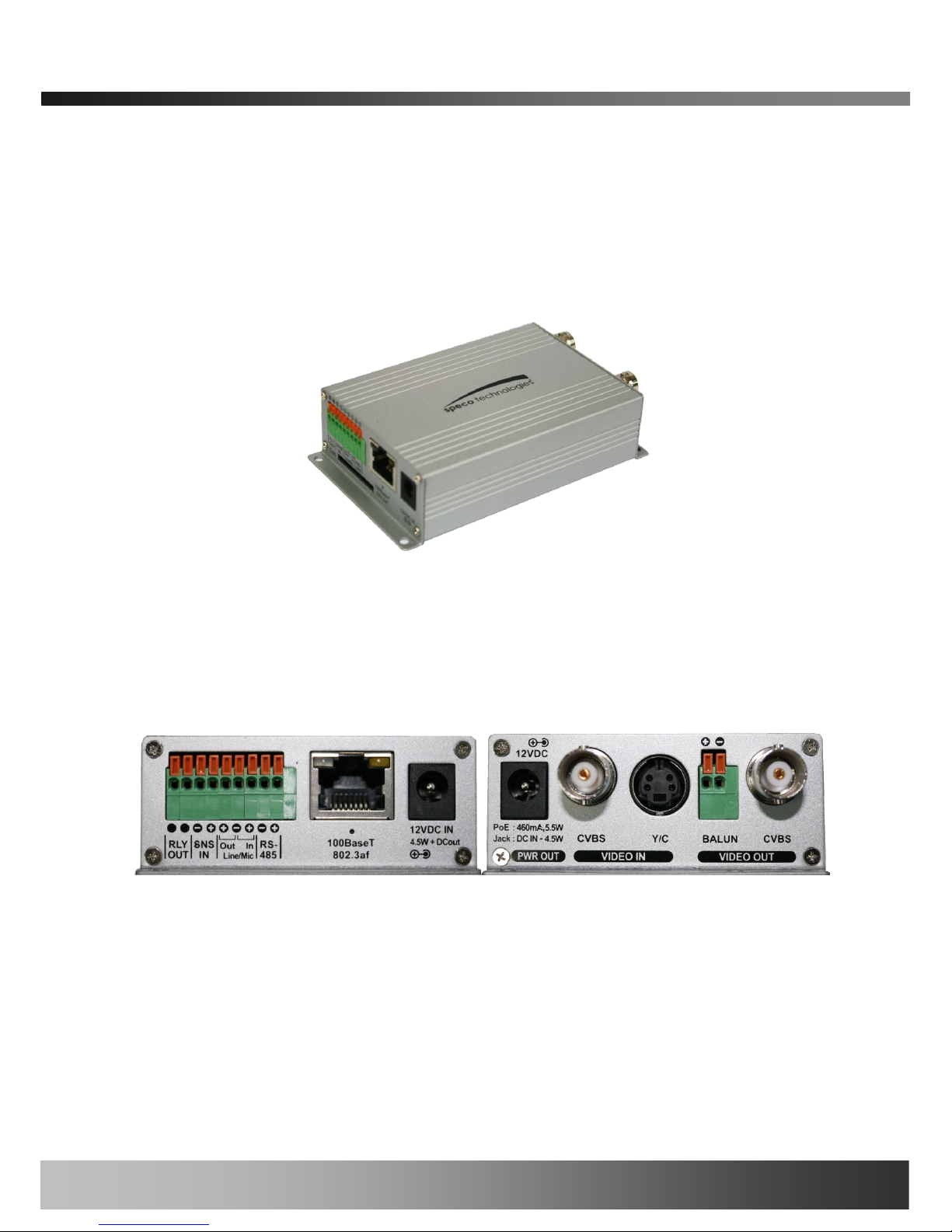

Figure 2-1. External view of ONSIP OS101
2.3.2. Front & Rear View
Figure 2-2. Front view Figure 2-3. Rear view
Page 12
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
12
2.4. Functional Description
Section
Description
Remarks
RJ-45
PoE
Power over Ethernet (IEEE802.3af)
10/100Base-T
12VDC In
Adapter
5W (A/V Server) + Max 25W (Camera)
0.5A ~ 2.5A
12VDC Out
PoE
5W
Adapter
Max 25W (Adapter minus 5W)
Dependent on the
capacity of the adapter
Video In
CVBS
BNC type
Cannot be used
simultaneously.
Y/C
S-Video type
Video Out
CVBS
BNC type
Cannot be used
simultaneously.
BALUN type
Audio
In
Line Level (1Vpk) or Microphone
Selectable through
Admin page
Out
Line Level (1Vpk)
SNS (Sensor)
In
Short / Open (Relay or Open-Drain Load)
12V, 10mA
RLY (Relay)
Out
Normal Open
30VDC/AC, 2A
RS-485
Master
Connection to PTZ control
Terminated
RJ-45: 100Mbps Ethernet (RJ-45) with Standard PoE.
- LINK LED: Continuous yellow light means that network cable is plugged in.
It will flicker when there is traffic.
- Status LED: Green color indicates that the product is in normal operation mode, while RED
color indicates that the product is in abnormal condition.
12VDC Input.
Apply power through 12VDC Input if PoE is not available or the power consumption of the
analog camera powered by the video server exceeds 5Watts.
Page 13
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
13

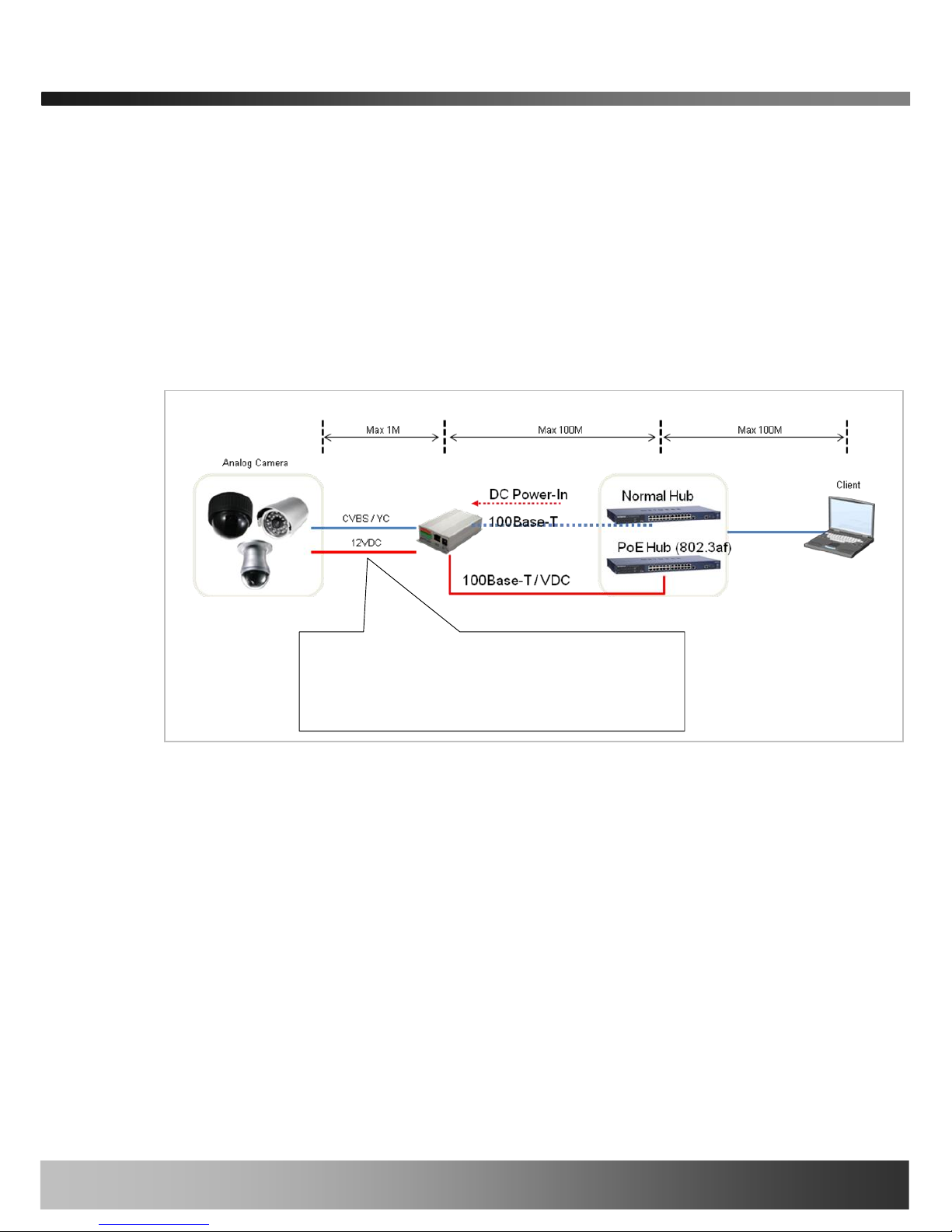

DC12V Power Output: Power output for analog camera
This output is intended to supply power to analog camera being installed with ONSIP OS1
01. Refer to the following table for available power to the analog camera of power in
put.
Type of power input spec
video server
consumption
Power Output
PoE(10W)
5W
5W
DC12V, 1.0A (12W)
7W
DC12V, 1.5A (18W)
13W
DC12V, 2.0A (24W)
19W
DC12V, 2.5A (30W)
25W
DC12V, 3A (36W)
Max 25W
There is a power cable for feeding power to the analog camera. Plug one end of the cabl
e into the DC power output of the video server and the other end into the DC power Inp
ut of the analog camera. Two sizes of the plug (2.0Φ and 2.5Φ) are available on camera
side.
Caution: If ONSIP OS101 is powered by PoE, do not plug in DC Jack with active DC
power into DC power input connector.
CVBS, Y/C Video In: Connect conventional analog video signal.
Simultaneous connection is not allowed.
Connection to D
C power i
nput of
Connection to D
C power o
utput of vi

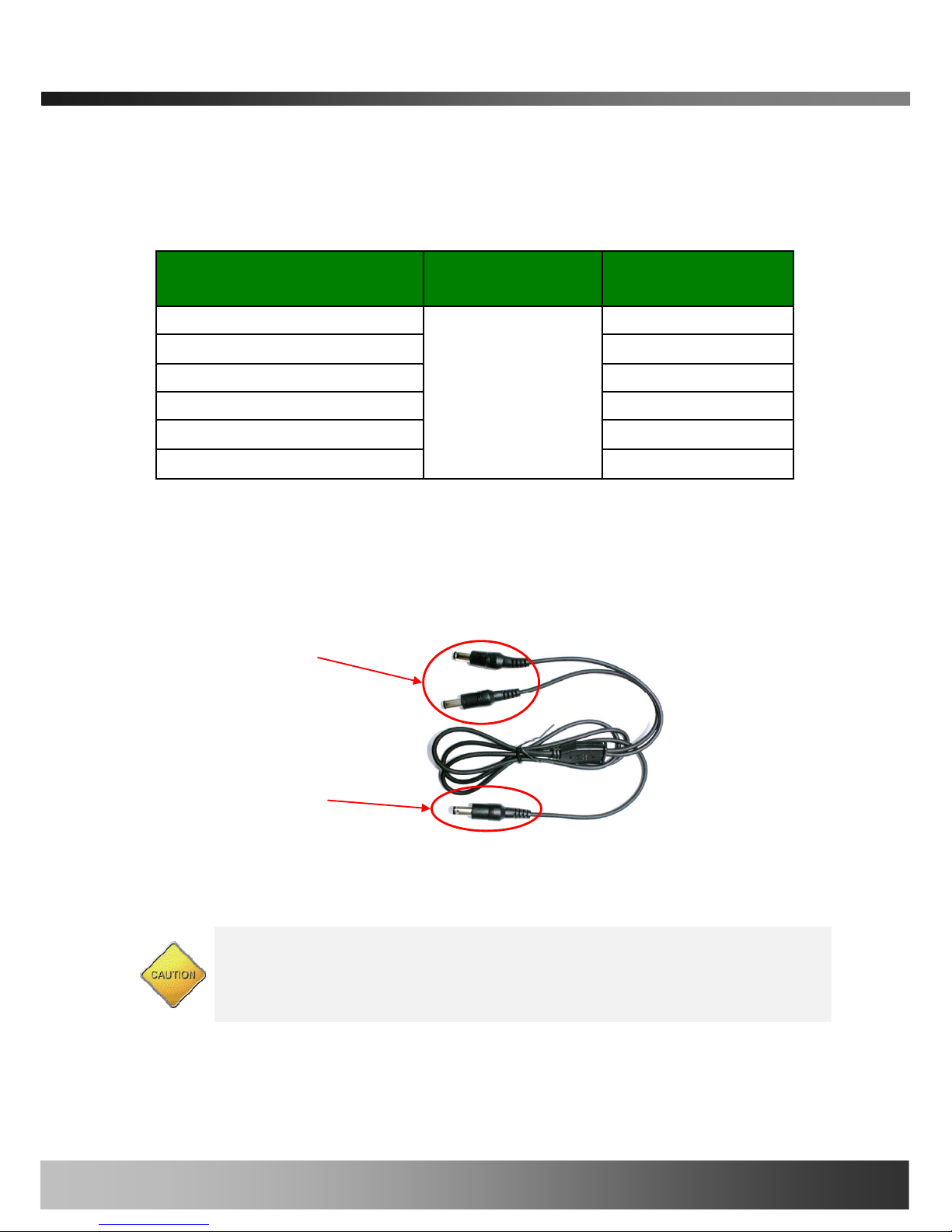

Figure 2-4. Power cable for analog came
Page 14
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
14
CVBS Out (BNC/BALUN): Support to connect external monitor.
Simultaneous connection is not allowed.
Factory Default Switch
There is a switch provided for returning the video server to factory default state. Press th
e switch through a tiny hole located below 100BaseT connector using a tool with sharp tip
for a few seconds while power is applied.
Caution: Restoring the factory default will erase all settings.

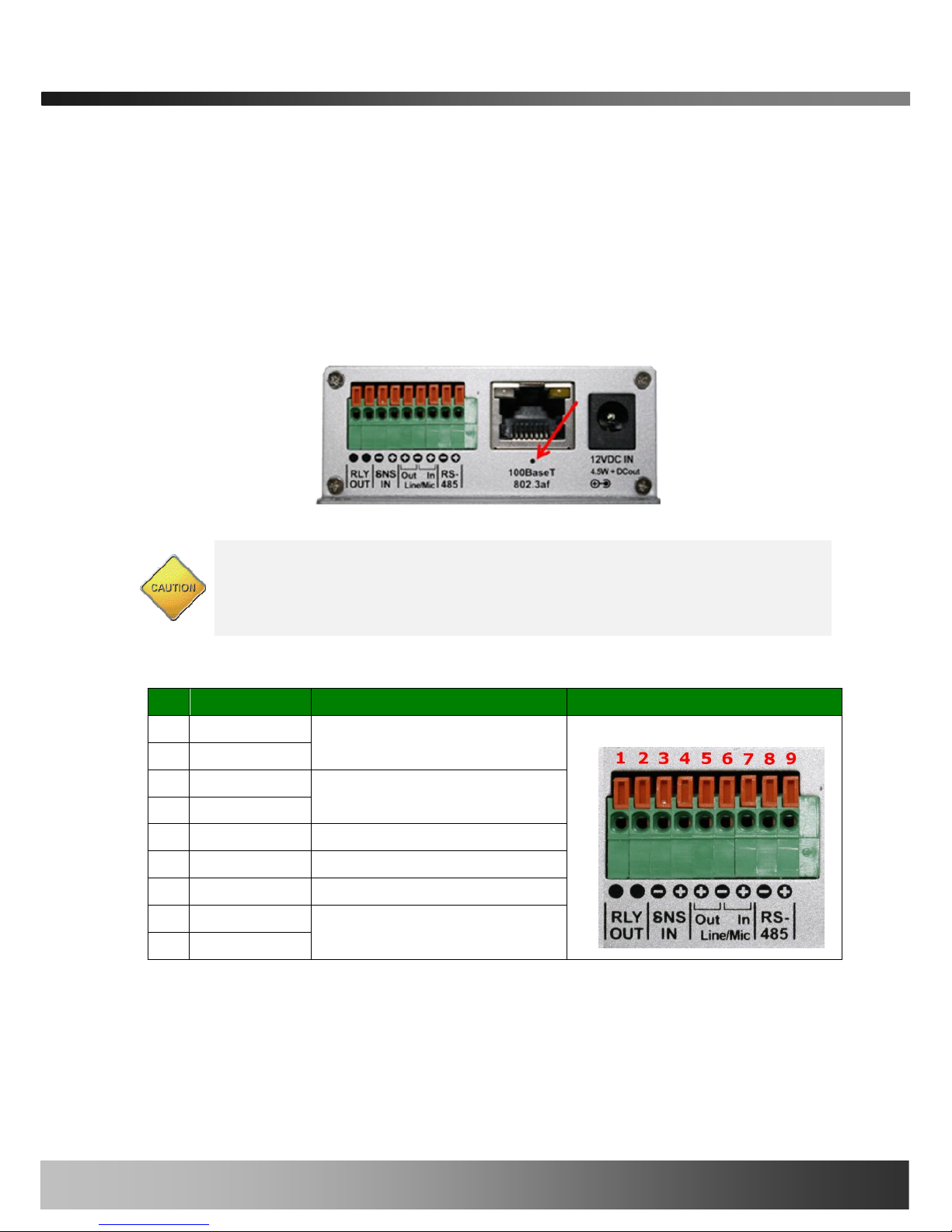

Terminal Block: Used for connecting P/T device, sensor, alarm devices and audio.
Pin
Description
Misc.
1
RLY OUT
Relay output: closed circuit in alarm
to indicate alarm status.
2
RLY OUT
3
SNS IN (-)
NC/NO selectable in admin page.
4
SNS IN (+)
5
Line Out
Line Level (1Vpk)
6
Audio GND
Audio In/Out Common Ground
7
Mic / Line In
Line Level (1Vpk) or Microphone
8
RS-485 (-)
Master Operation
Termination Fixed
9
RS-485 (+)
LINE OUT: Audio from remote site is output through Line-Out in bi-directional audio mode.
This output signal is 1Vpk. For speaker, it is required to an external amplifier.
MIC /LINE IN: Connect a microphone or the Line-Out (1Vpk) of an audio device.
Page 15
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
15
RS-485: Used for connecting Pan/Tilt and Zoom devices having RS-485 interface standard.
SNS (Sensor) IN
Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors, m
agnetic sensor, etc. Connect the two wires of the sensors to “SNS In”. When these pins
are short, the current is 10mA. Multiple sensor devices can connected in parallel.
Sensor
Device
Sensor
Power
Supp ly
NO/NCType
Sensor1-
Sensor1+
+12V
GND
Sensor
Device
Sensor
Power
Supp ly
Open CollectorType
Photo Coupler

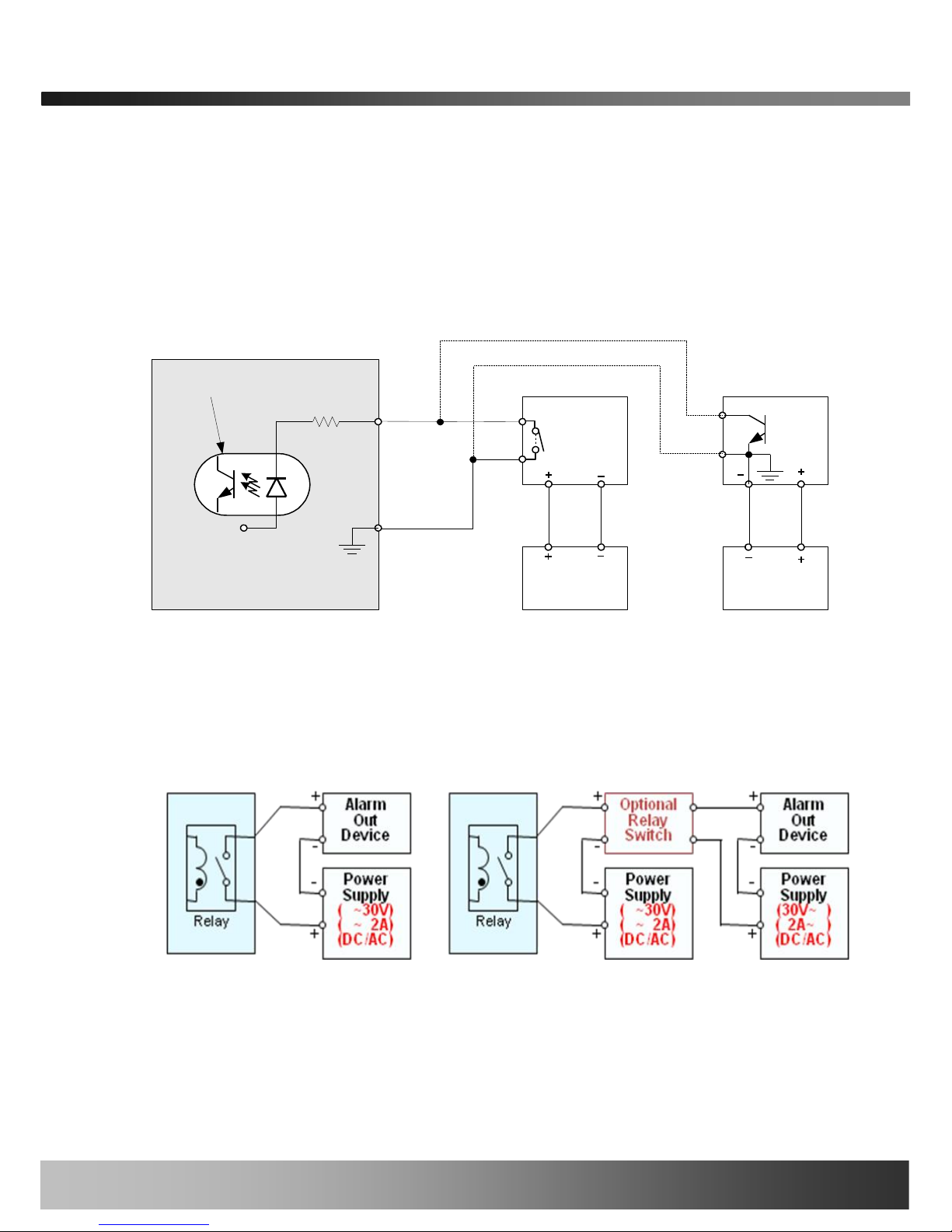

Figure 2-4. SENSOR input of ONSIP OS101
RLY (Relay) OUT
A Relay output is provided for connecting alarm devices or remote on/off control of device
such as light. Relay circuit is normal open and circuit is closed upon alarm output or rem
ote on. The relay is capable of switching 30V AC/DC, 2A.
Figure 2-5. RELAY Output of ONSIP OS101
Page 16
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
16
3. Getting Started
3.1. PC Requirement
AV streaming data received from ONSIP OS101 can be decoded or stored in a PC running Speco-
NVR program which is a viewing & recording program for a PC. Minimum requirement of the PC is
described below:
Minimum
Recommended
CPU
Pentium IV 3G above
Main Memory
1GB or above
Operating System*
Windows XP or later
Web Browser
Internet Explorer 6.0 or above
Graphic Card
64M above
Higher than 1600x1200
Network
100 Base-T Ethernet
* Operating Systems supported: Windows 2000 Professional, Windows XP / Vista / 7
Page 17
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
17
3.2 Quick Installation Guide

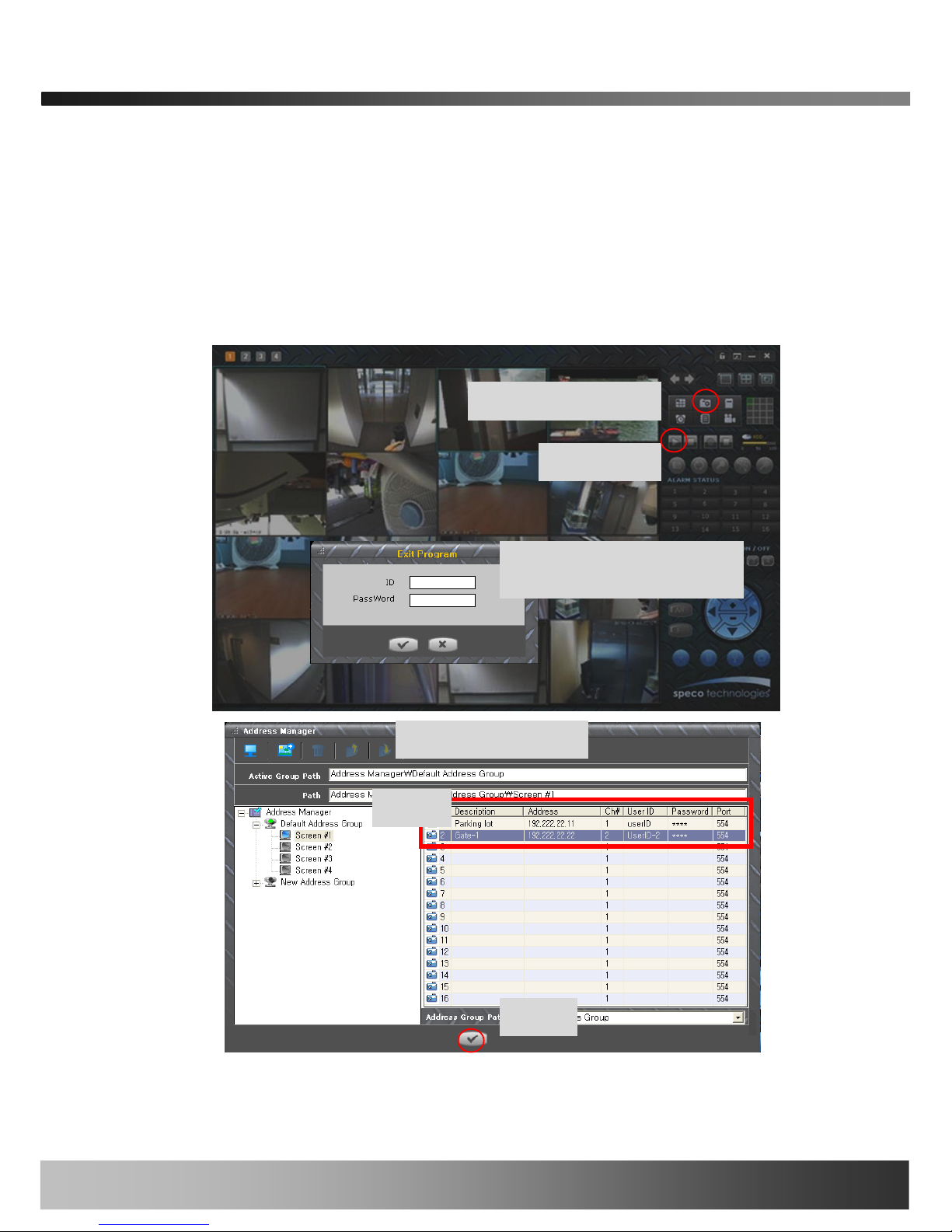

1. Connect PC and ONSIP OS101 to network.
1) Prepare a PC to run programs for the installation and video connection
(PC is needed to assign IP address to ONSIP OS101)
2) In case of using PoE, connect the PC and ONSIP OS101 to the network using one of the following ways.
If your LAN Switch does not support standard PoE, connect ONSIP OS101 as shown in dotted line in
Figure 3-1. The DC power is applied through DC adaptor.
Figure 3-1. Power and network connection
Power output depends on input power. For more
detailed information, please refer to Section
2.4 [Functional Description].
Page 18
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
18
2. Install Speco-NVR
Speco-NVR is a multi-channel CMS program for to IP camera or Video server. Install Spec
o-NVR on remote PC to connect to these products. It is needed to assign connection infor
mation to Speco-NVR program before connection. Insert the CD provided with product int
o the PC and install the Speco-NVR.
Figure 3-2. Speco-NVR

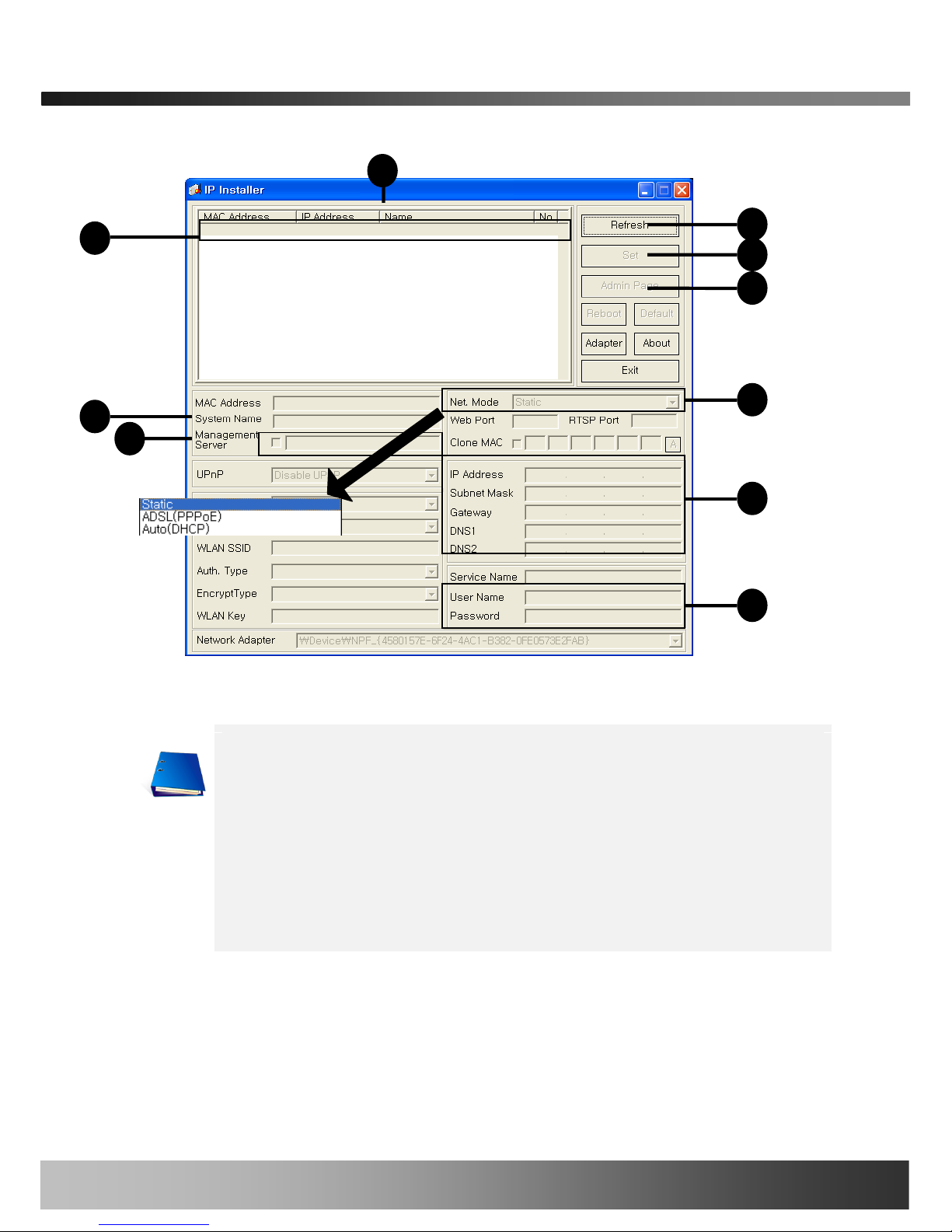

Follow the sequence below for setting the IP parameter
i) Run IP installer
ii) Click ① in IP installer window.> Double click on ② > Fill in ④ > make a selection in ⑤ > Fill the
parameters in ⑥
iii) Click on ⑨ to apply the settings.
iv) You can connect to admin page by clicking on ⑩.
Admin Page Button
IP installer
Page 19
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
19
Click on the field in ③ for sorting and rearranging the list.
Select network mode that best suits from the drop down list in ⑤. You can choose either
Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in
⑥ is deactivated.
In case of ADSL, fill the User Name and Password in ⑧ with the values provided by your
ISP.
If DDNS service is needed, Check at the box and fill the empty field with hostname you
want in ⑦.
1 2 3 6 4
9 5 7
8
1
Page 20
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
20
3. Remote video connection to ONSIP OS101
1) Connection through Web Viewer

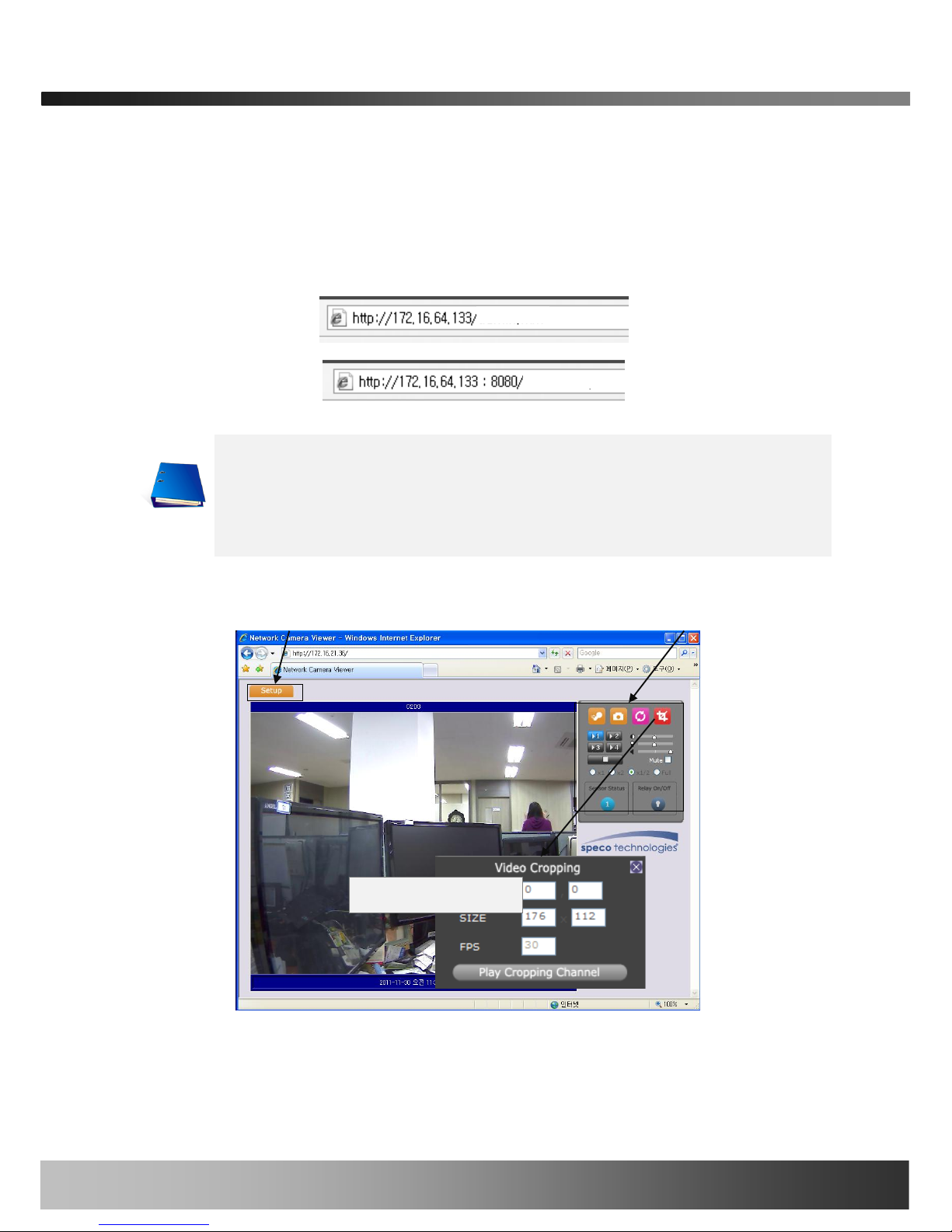

Web Viewer offers simplest way of video connection to ONSIP OS101. For video connection, enter the IP
address of ONSIP OS101 in the URL field of Internet Explorer as:
Note: Active-X module should be installed on your PC before actual connection. If your PC
is not connected to the internet, you cannot download Active-X module. Most
convenient way of installing the Active-X module is installing Speco-NVR which is
available from the CD or our web site.
Figure 3-3. Web Viewer
Default ID and password of Admin Page are root, admin. For more detailed information, please refer to the
[Configuration_Guide] Guide.
Connection to Admin Page
Basic Control Buttons
Video Crop Control
[e.g.] Port 8080
[e.g.] Port 80
Can be omitted the
default port of 80
Page 21
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
21
2) Connection through Speco-NVR

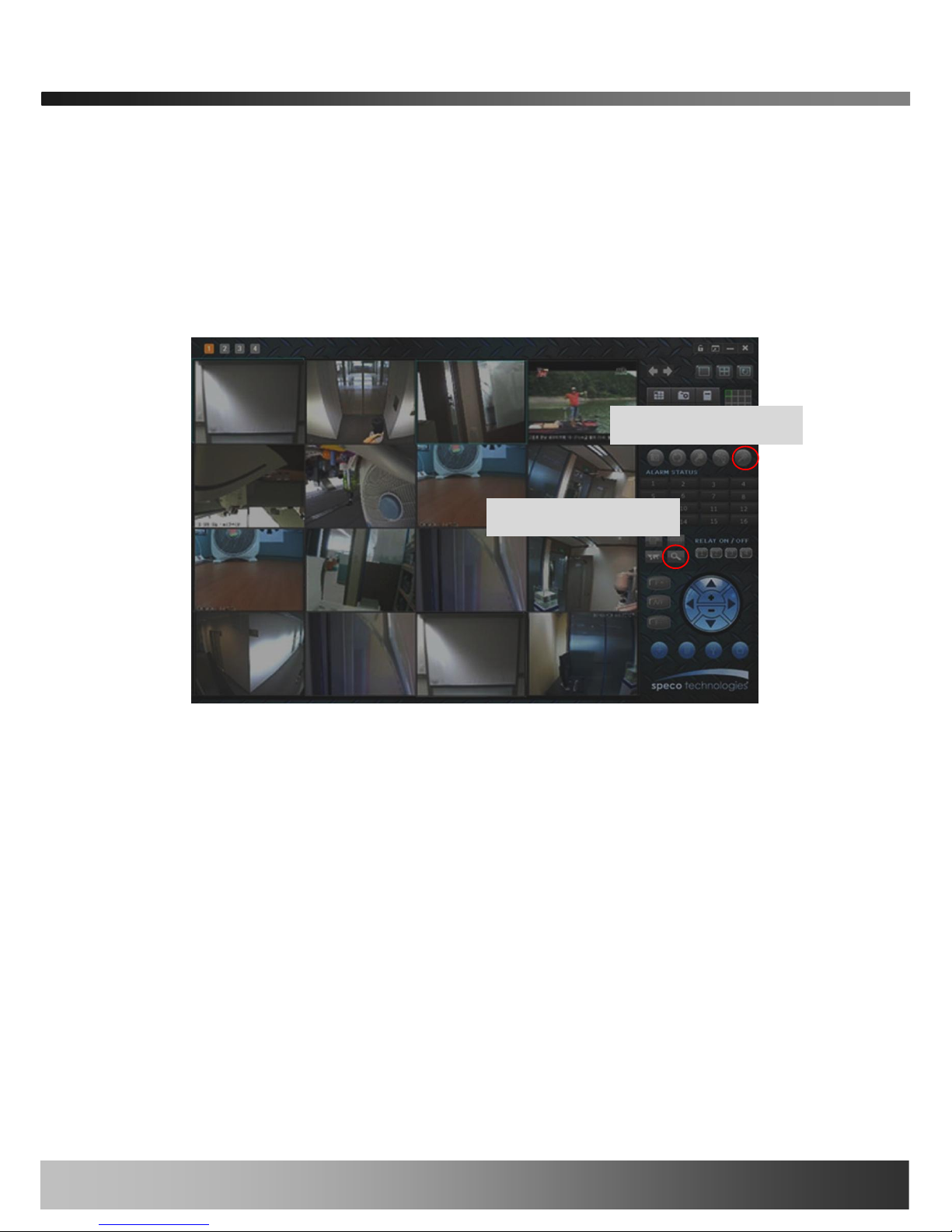

Click the camera assignment button for setting camera address. Input the description, address, Ch#,
User ID, Password and port and then click the save button. After assignment procedure, you must click
the SAVE button. You can see the live video when you click the live view button as below. When you exit
Speco-NVR, you have to input the ID/PW, admin/1234. Details for the Speco-NVR can be found in
[Speco-NVR User’s Guide].
Figure 3-4. Speco-NVR
Camera Assignment
Camera Assignment
Live view
Save
Example
Exit Program
Default ID/PW: admin/1234
Page 22
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
22
4. Additional settings through connection to the Admin Page
All the parameters of new Video server follows factory default values. For more sophisticated target application
it is needed to change parameters. The admin page can be connected through
”http://IP_address:HTTP_port_number”/admin.htm
It is needed to enter ID and password of the administrator. Default ID and password are root, admin. It is highly
recommended to change the ID and password to prevent illegal access to the Video server. For more
detailed information regarding of the Admin Page, please refer to the [Configuration_Guide].
Page 23
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
23
4. Trouble Shooting
4.1. No power is applied
In case of Standard PoE (Power over Ethernet)
Power supply through standard PoE is possible only when the following conditions are met.
1. Standard PoE is supported on the product.
2. The LAN switch supports standard PoE.
Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af)
In case of DC adaptor
If PoE is not applied, the power and network connection should be made through separate cables. It is
recommended to use DC adaptor supplied by Speco Technology for the feeding of the power. In case of
replacing the DC power supply, make sure that the power supply meets with the power requirement of
the IP camera to prevent damage or malfunction.
Page 24
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
24
4.2. Cannot connect to the Video

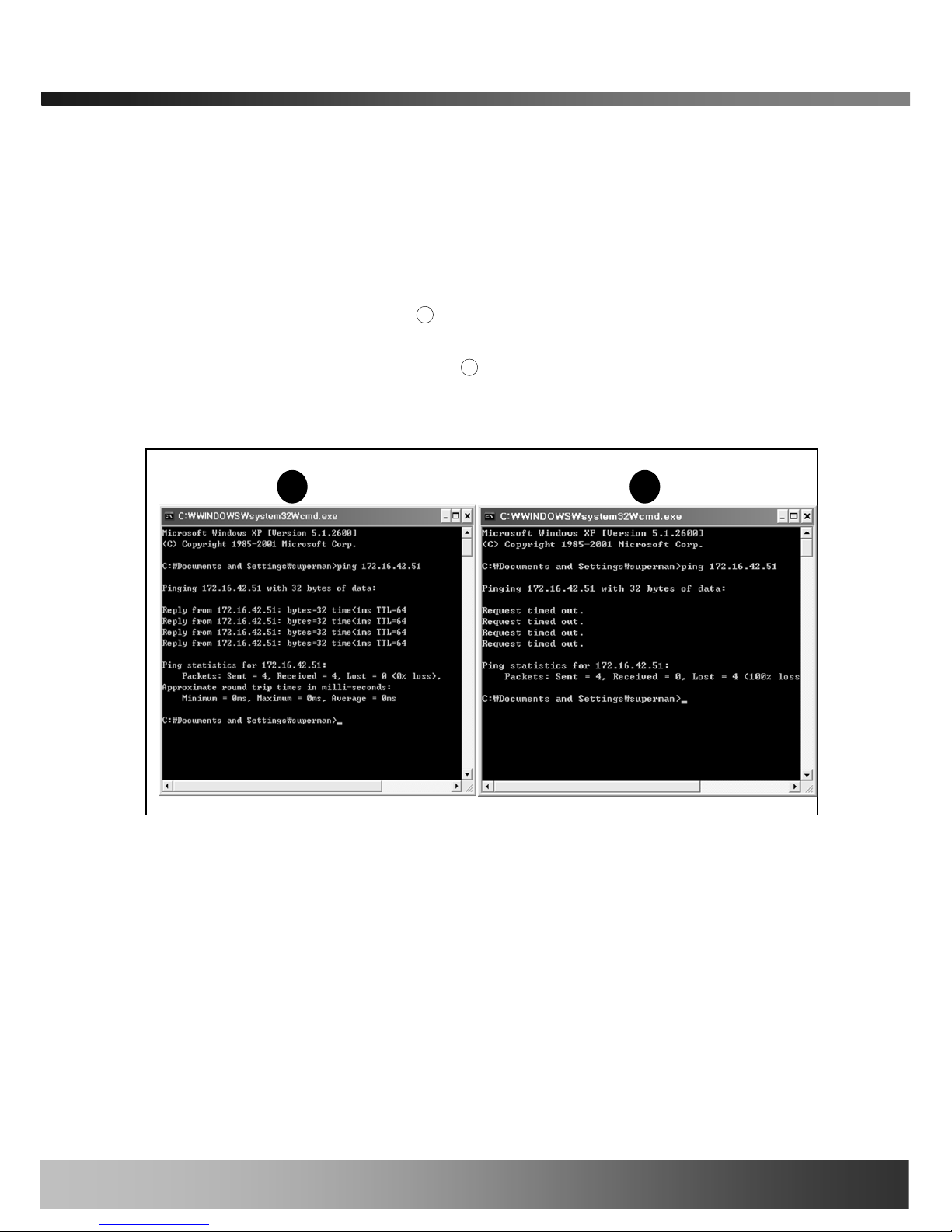

Check the status of the network connection through PING test.
Try the following on your PC:
- Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51)
- If “Reply from ~” message is returned ( in the figure below), the network connection is in normal state.
Try connection to the video again. If the problem persists, or refer to other trouble shooting notes.
- If “Request timed out” message is returned ( in the figure below), the network connection or network
setting is not in normal state. Check the network cable and settings.
1
2
Page 25
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
25
4.3. Windows Vista or Windows 7
Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for
proper recording and still video capture in Speco-NVR and Web Viewer.
<Windows Vista>
1. UAC (User Access Control) configuration
1) Double-click “User Accounts” in control panel
2) Double-click “Turn User Account Control on or off”
3) Uncheck “Use UAC to help protect your computer”

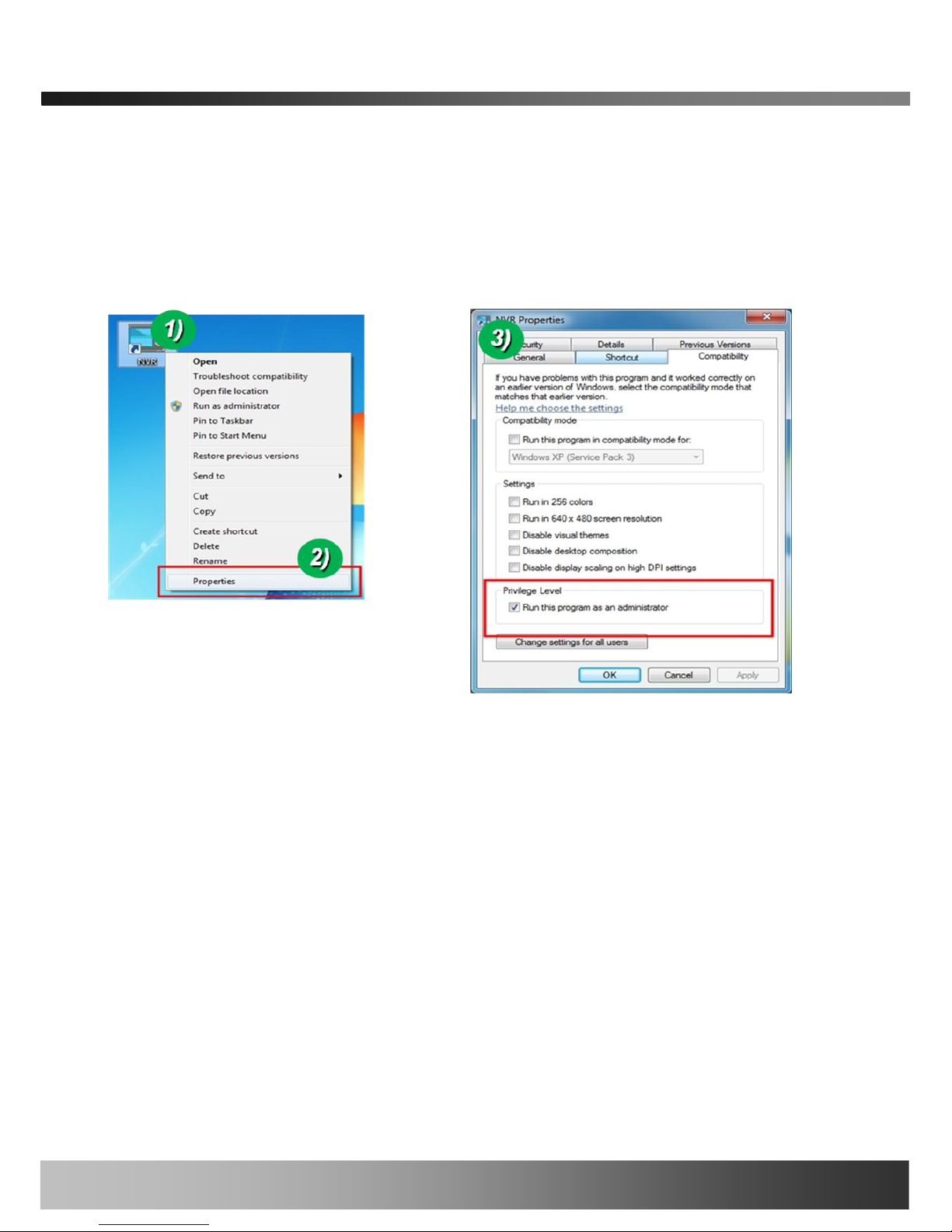

2. Privilege Level Control
1) Select “NVR” icon on the desktop
2) Click right mouse button and select “Properties”
3) Check “Privilege Level” in “Compatibility” tab
Page 26
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
26
<Windows 7>
1. UAC (User Access Control) configuration
1) Double-click “User Accounts” in control panel
2) Double-click “Change User Account Control setting”
3) Set to “Never notify”
Page 27
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
27
2. Privilege Level Control
1) Select “NVR” icon on the desktop
2) Click right mouse button and select “properties”
3) Check “Privilege Level” in “Compatibility” tab
Page 28
ONSIP OS101 User’s Guide
Rev.1.0 (Nov., 2011)
28
4.4. Technical Assistance
If you need any technical assistance, please contact your dealer. For immediate service please provide the
following information.
1. Model name
2. MAC address and Registration number
3. Purchase date
4. Description of the problem
5. Error message
Loading...
