Speco OINT03D1G User Manual
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
1
ONSIP
OINT03D
r
’
’
ss MMaannuuaall
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
2
Note
This equipment has been tested and found to comply with the limits for a Class a digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generate, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into and outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV technician for help.
Directions
Be careful not to cause any physical damage by dropping or throwing OINT03D. Especially keep the device
out of reach from children.
Do not disassemble OINT03D. No After Service is assumed when disassembled.
Use only the power adapter provided with OINT03D.
Be careful to prevent moisture or water penetration into the unit. Particular attention is needed when
installing OINT03D. The screw holes for the installation screws and pipe should be maintained water tight
during the whole life time of the product.
All the electrical connection wires running into the unit should be prepared so that water from the outside
cannot flow into the unit through the surface of the wires. Penetration of the moisture through the wire for
extended period can cause malfunction of the unit or deteriorated image.
r
’
’
ss MMaannuuaall
r
Rev.1.2 (April, 2012)
3
Date
Revision
Details
2011-11-01
1.0
First manual revision creation.
2012-04-20
1.2
Caution
Any changes or modifications to this device could void the warranty.
OOIINNTT0033DD OOwwnneer
’
’
ss MMaannuuaall
Revision History
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
4
’
’
ss MMaannuuaall
r
Contents
Contents.......................................................................................... 4
1. Introduction ................................................................................ 6
1.1. Overview ................................................................................................... 6
1.2. Specification .............................................................................................. 7
1.3. Applications of OINT03D .............................................................................. 9
2. Product Description ................................................................... 10
2.1. Contents ................................................................................................. 10
2.2. Product Preview ....................................................................................... 11
2.3. Physical description .................................................................................. 12
2.4. Functional Description ............................................................................... 14
2.5. Accessories for installation .......................................................................... 16
3. On Site Installation .................................................................... 17
3.1. Bracket ................................................................................................... 17
4. Getting Started ......................................................................... 18
4.1. PC Requirement ....................................................................................... 18
4.2. Quick Installation Guide ............................................................................. 19
5. Trouble Shooting ....................................................................... 25
5.1. No power is applied .............................................................................. 25
5.2. Cannot connect to the Video ....................................................................... 26

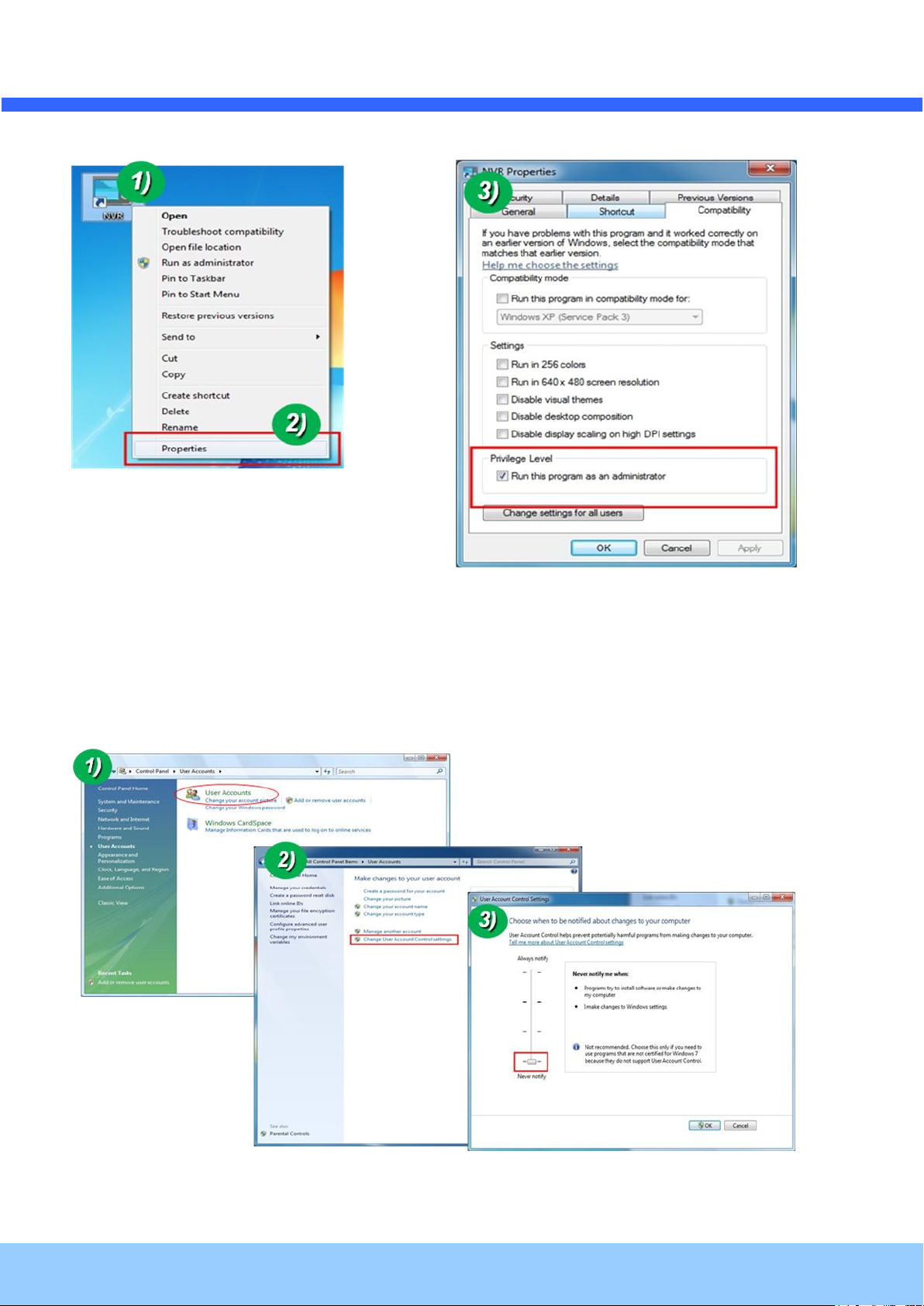

5.3. Windows Vista or Windows 7 ...................................................................... 27
5.4. Technical Assistance ................................................................................. 30
6. Appendix - OSD menu control .................................................... 31
6-1. OSD ..................................................................................................... 33
6-2. Preset Mode ......................................................................................... 33
6-3. Menu Setup .......................................................................................... 33
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
5
’
’
ss MMaannuuaall
r
6-4. Lens Setting ......................................................................................... 35
6-5. Exposure Setting .................................................................................. 36
6-6. White Balance (White Bal) Setting ........................................................ 38
6-7. WDR Setting ........................................................................................ 39
6-8. Backlight Setting .................................................................................. 40
6-9. SPECO DNR Setting .............................................................................. 42
6-10. Day/Night Setting .............................................................................. 43
6-11. Special Setting ................................................................................... 45
6-12. RETURN Setting ................................................................................. 50
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
6
’
’
ss MMaannuuaall
r
1. Introduction
1.1. Overview
The OINT03D is multi-codec (H.264, MJPEG) IP camera (or network camera) built with embedded software and
hardware technology. It enables real time transmission of synchronized video of up to D1 and audio data.
Remote clients can connect to OINT03D for the real time video/audio data through various client solutions
running on PC or smart device. Real time 2-way communication is available through bidirectional audio
communication feature.
Designed to be a stand-alone streaming audio & video transmission device, OINT03D can be applied to various
application area such as video security, remote video monitoring, distance education, video conference or
internet broadcasting system.
Vandal proof housing satisfying IP-67 will extend the application area to harsh environment of wide temperature
range.
r
Rev.1.2 (April, 2012)
7
Category
Sub-Category
Details
Video
Compression
H.264 / MJPEG
Resolution
* Refer to the datasheet.
Camera Module
Mounting Gimbal
3 Axis Gimbal
Audio
(Bi-directional)
Up
32 Kbps G.726
Down
128 Kbps PCM
Network
Interface
RJ-45, 10/100 Mbps
Access network
Static, DHCP, PPP/PPPoE, uPnP
Application
RTP, RTSP, SMTP, FTP, HTTP, SDP, NTP, DNS
I/O
Sensor In 1 NC, NO Selectable
Relay Output 0 N/A
RS-232C
N/A
Mic/Line In
Selectable in Admin page
Line Out
1 V p-p output for amplified speaker
CVBS output
For temporal use in installation
Power Supply
PoE
N/A
DC Adaptor
12V DC adaptor (1.5 Amp) - option
Housing
IP67 compliant Vandal Proof housing
Mounting
Bracket, Mounting
Wall, Ceiling
Motion Detection
3 zones
Arbitrary shape with independent sensitivity
Upgrade
Firmware upgrade over IP network
Administration
Remote administration over IP network
Client & Viewer
Web Viewer
Simple viewing over internet explorer
Speco-NVR
Standard CMS software
Dynamic IP support
DDNS support
Supported
Security
Video/Audio stream encryption
OOIINNTT0033DD OOwwnneer
’
’
1.2. Specification
ss MMaannuuaall
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
8
ID and Password protection
IP filtering for restricting administrative
access for audio and bi-audio
Time management
Sync to PC
Synchronize to PC
Manual
Manual time setting
Internet Time Server
Synchronize to Time Server
SDK support
Active-X
HTTP
Source filter
r
’
’
ss MMaannuuaall
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
9
’
’
ss MMaannuuaall
r
1.3. Applications of OINT03D
Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities,
military, etc.)
Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)
Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting
Weather and environmental observation
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
10
Contents
Description
Remarks
OINT03D
IP camera OINT03D main unit
Power Adaptor
12VDC Adaptor (option)
Tools and Mounting Screws
Screws, L-type wrench
CD
Software & User’s Guide
Quick Reference Guide
Quick installation guide
’
’
ss MMaannuuaall
r
2. Product Description
2.1. Contents
The product package contains followings:
r
Rev.1.2 (April, 2012)
11
OINT03D
IP-Installer
CMS Software
(NVR)
Weather proof
Bullet IP Camera
PC software to allocate an IP
address to the IP Camera
PC software to view and record
the A/V streaming data transmitted
from IP camera.
(Simultaneous support of up to 64
IP cameras)
OOIINNTT0033DD OOwwnneer
’
’
ss MMaannuuaall
2.2. Product Preview
r
Rev.1.2 (April, 2012)
12
Audio-In
LAN
Power
Sensor-In
Audio-Out
OOIINNTT0033DD OOwwnneer
’
’
ss MMaannuuaall
2.3. Physical description
2.3.1. External View
2.3.2. Connector information
Figure 2-1. External view of OINT03D
Figure 2-2. Connector information
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
13
Focus control
OSD control
Factory default
r
’
’
ss MMaannuuaall
Figure 2-3. Factory Default switch and Video output connector
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
14
Description
LINE OUT (+)
1 V p-p audio signal output for amplified speaker.
MIC/LINE GND (-)
Ground for audio signals.
MIC/LINE IN (+)
Audio input: Can be used either for microphone or applying audio
signals from other audio equipment.
SENSOR IN
Sensor In (+). NC/NO selectable in admin mode.
SENSOR IN GND
Ground for sensor
’
’
ss MMaannuuaall
r
2.4. Functional Description
DC 12V(option): Power input for supplying 12V DC power.
MIC/LINE IN
Connect external audio source or microphone.
Line Out
Connect speakers with built in amplifier. Audio from remote site is output through Line out in bi-directional
audio mode.
100Base-T
100Mbps Ethernet connector (RJ-45)
Alarm In/Out and Audio In
Used for connecting alarm sensor, microphone and speaker to OINT03D.
SENSOR IN
Connect external alarm sensor. Examples of sensing devices are infrared sensor, motion sensor,
heat/smoke sensor, magnetic sensor, etc. Connect the two wires of the sensors to “SNS In”. The
sensor type (NC/NO) can be set in admin page. 10 mA can be flown into sensor device. Multiple sensor
devices can be connected in parallel.
OOIINNTT0033DD OOwwnneer
Rev.1.2 (April, 2012)
15
Sensor
Device
Sensor
Power
Supp ly
NO/NCType
Sensor1-
Sensor1+
+12V
GND
Sensor
Device
Sensor
Power
Supp ly
Open CollectorType
Photo Coupler
Factory default
r
’
’
ss MMaannuuaall
Figure 2-4. SENSOR input and connection of the sensor
Factory Default Switch
A switch provided for returning the IP camera to factory default state. Open the dome cover to access
the switch. Press the switch for a few seconds while power is applied.
Figure 2-5. Factory Default Switch
