Speco OIMD1, OiMD1W User Manual

OiMD1

HD Megapi

Miniature Dome IP Camera

xel Indoor/Outdoor

Intensifier®

OOiiMMDD11 UUsseerr’’ss GGuuiiddee

Directions

Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the

device out of reach from children.

Do not disassemble the camera. No after service is assumed when disassembled.

Use only power adapters compatible with the unit.

Be careful to prevent moisture or water penetration into the unit. Particular attention is needed when

installing the unit. The screw holes for the installation screws and pipe should be maintained water tight

during the whole life time of the product.

All the electrical connection wires running into the unit should be prepared so that water from the outside

cannot flow into the unit through the surface of the wires. Penetration of the moisture through the wire for

extended period can cause malfunction of the unit or deteriorated image.

Note

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generate, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into and outlet on a circuit different from that to which the receiver is

connected

 Consult the dealer or an experienced radio/TV technician for help.

Caution

Any changes or modifications in construction of this device which are not explicitly approved by the

party responsible for compliance could void the user’s warranty.

Rev.1.0.2(Jul. 2014)

OOiiMMDD11 UUsseerr’’ss GGuuiiddee

Revision History

Date Revision Details

Jun 1st, 2014 1.0 First manual revision creation.

Jul 9th, 2014 1.0.1 Minor revisions

Jul 11th, 2014 1.0.2 Minor revisions

Rev.1.0.2(Jul. 2014)

OOiiMMDD11 UUsseerr’’ss GGuuiiddee

Contents

1. Introduction .................................................................................................................................................... 5

1.1. Overview ............................................................................................................................................... 5

1.2. Specifications ........................................................................................................................................ 6

1.3. Applications of OiMD1 .......................................................................................................................... 8

2. Product Description ...................................................................................................................................... 9

2.1. Contents ................................................................................................................................................ 9

2.2. Product Preview .................................................................................................................................... 9

2.3. Physical description ............................................................................................................................ 10

2.3.1. External View ............................................................................................................................ 10

2.3.2. Dimensions ............................................................................................................................... 10

2.3.3. External Connector ................................................................................................................... 11

2.3.4. Factory Default Switch .............................................................................................................. 11

2.4. Functional Description ........................................................................................................................ 12

3. On Site Installation ...................................................................................................................................... 14

4. Getting Started ............................................................................................................................................. 15

4.1. PC Requirement ................................................................................................................................. 15

4.2. Quick Installation Guide ...................................................................................................................... 16

4.2.1. Connect PC and OiMD1 to network. ........................................................................................ 16

4.2.2. Install Speco-NVR and set IP parameters on OiMD1 .............................................................. 16

4.2.3. Remote video connection to OiMD1 ......................................................................................... 18

4.2.4. Additional settings through connection to the Admin Page ...................................................... 20

5. Trouble Shooting ......................................................................................................................................... 21

5.1. No power is applied ............................................................................................................................ 21

5.2. Cannot connect to the Video ............................................................................................................... 22

5.3. Windows Vista or Windows 7 .............................................................................................................. 23

5.4. Technical Assistance ........................................................................................................................... 26

Appendix A – Important Notice in Exchanging SD Card (Micro SD) ......................................................................... 27

Rev.1.0.2(Jul. 2014)

OOiiMMDD11 UUsseerr’’ss GGuuiiddee

1. Introduction

1.1. Overview

The ONSIP OiMD1 is a state-of-the-art mega-pixel, dual-codec (H.264, MJPEG) IP/network camera built with

embedded software and hardware technology. It enables real time transmission of synchronized video of up to

1080p and audio data. Remote clients can connect to ONSIP OiMD1 for the real time video/audio data through

various client solutions running on PC, PDA or mobile phones. Real time 2-way communication is available

through bidirectional audio communication feature.

Intensifier® technology is the most optimized solution for indoor and outdoor surveillance in low-light conditions

by using superior CMOS sensor with low-light sensitivity ISP sensor. Intensifier® is especially beneficial in poor

lighting environments, efficiently reducing noise and ghosting while maintain a color image without the use of IR

LEDs.

Designed to be a stand-alone streaming audio & video transmission device, ONSIP OiMD1 can be applied to

various application area such as video security, remote video monitoring, distance education, video conference

or internet broadcasting system.

IP-66 compliant housing will extend the application area to harsh environments of wide temperature range.

Embedded PoE (Power over Ethernet, IEEE 802.3af) will enable the owner to reduce TCO (Total Cost of

Ownership) by reducing on-site wiring works for the installation.

Rev.1.0.2(Jul. 2014)

OOiiMMDD11 UUsseerr’’ss GGuuiiddee

1.2. Specifications

Camera

Image sensor Progressive scan 1/3 inch CMOS 1.3M pixels

Full resolution 1,280 x 720 pixels (HD)

Min. illumination Color : 0.0005 Lux (F1.2)

Sync System Internal

S/N Ratio 62dB or more

Lens 3.7mm

Day & Night AWB

Sensitivity (F1.2, 30 IRE , ICR B/W)

Back Light Compensation ON / OFF

White Balance ATW(2.000 K ~ 10,000 K) / MANUAL / PUSH

Exposure DC / ESC

WDR ON - 15 Frames / OFF - 30 Frames

3D-DNR DAY : 0~20, NIGHT : 0~20

Intensifier AUTO ON (Max 128x) / OFF

Privacy Mask ON / OFF (10 Programmable Zone)

Motion Detection ON / OFF (4 Programmable Zone)

Digital Zoom 1x ~ 12x

Mirror H / V / Rotate

DEFOG OFF / AUTO

OSD BUILT IN

Video

Compression method Simultaneous Dual Codec (H.264 / MJPEG)

Resolution 1,280 x 720@60fps

Intensifier OFF - 0.12 Lux Intensifier Max – 0.0005 Lux

Multi-Profile Streaming

Intelligent Bit-Rate Control VBR or CBR

PTZ Digital PTZ & Video crop

Image Setting Text overlay, Privacy mask, De-interlace filter

Motion detection 3 regions

- 5 simultaneous video profiles

- Select the codec type, resolution and frame rates for each profile.

Rev.1.0.2(Jul. 2014)

OOiiMMDD11 UUsseerr’’ss GGuuiiddee

Audio

Mono Upstream 32Kbps G.726 ADPCM, 64Kbps 16bit µ-law PCM ~ MIC/Line-in

Mono Downstream 64Kbps 16bit µ-law PCM ~ Line-out

Network

- IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP

Network Protocol

Dynamic IP Speco DDNS (free of charge)

- RTP, RTSP, SDP, HTTP, SMTP, FTP, DHCP, UPnP

- NTP, DNS, DynDNS

Security

Streaming method

External Terminals

LAN 10/100BaseT LAN (auto MDIX)

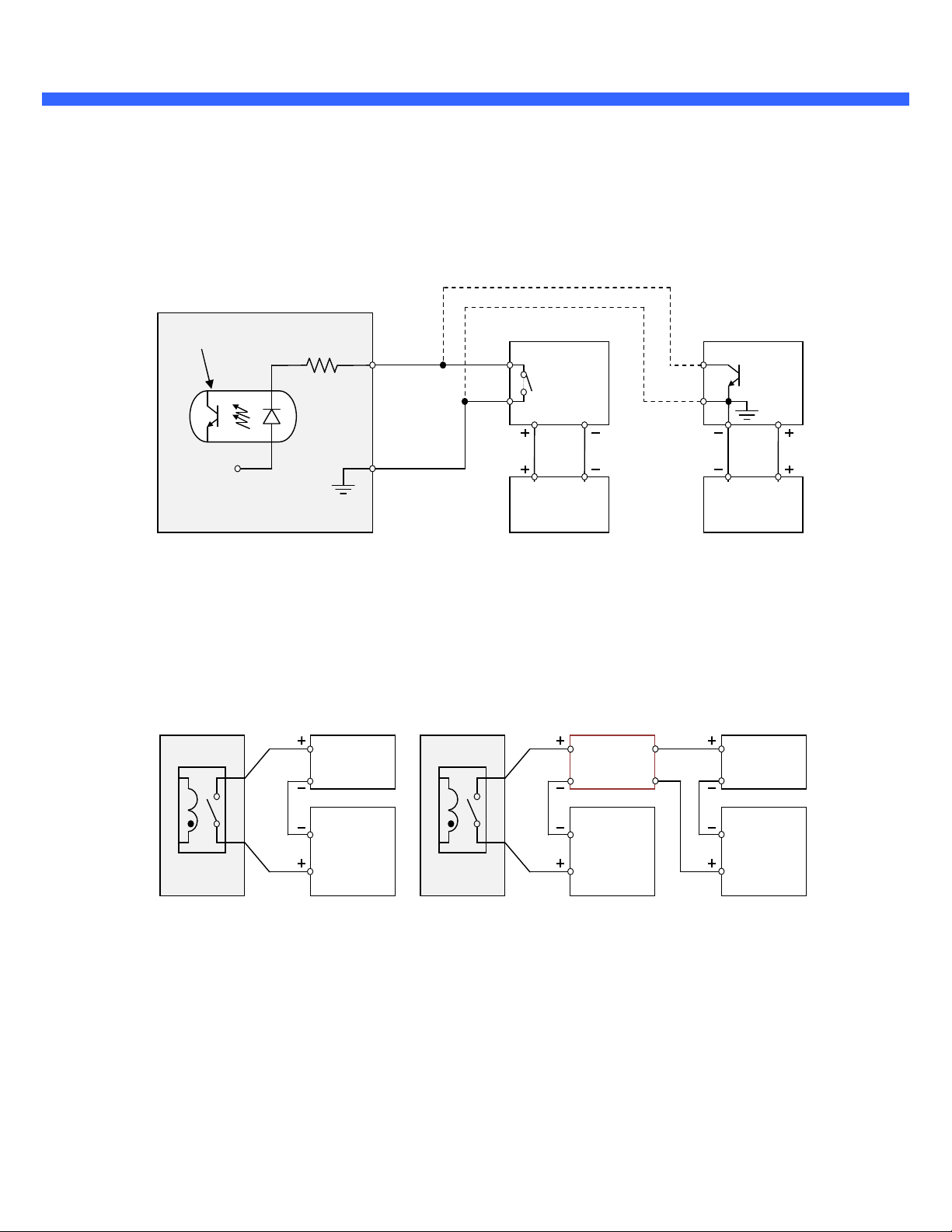

Alarm input / output Alarm I/O (1 Sensor input & 1 Relay output)

Factory Reset Supported

Audio MIC/Line in, Line out

Power DC 12V input

Alternate Power

Standard PoE IEEE802.3af Supported

Alarm & Event

Intelligent Video Motion Detection

Alarm Triggers Intelligent Video + Sensor Input

Alarm Events Video file upload(FTP), Still Image transmission(Email), Relay output

Alarm Buffer (Audio/Video) Configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)

Client Software

Speco NVR Windows XP/Vista/7 (free of charge)

Speco ONSIP Android™, iPhone®, iPad® (free of charge)

Miscellaneous

Operating Temperature -20°C ~ 45°C (-4°F~113°F)

Operation Humidity 8~80% RH

Power DC 12V, 0.6A

Dimensions(W x H x D) Ø122mm(4.8”) x 55mm(2.1”)

Weight 400g (0.88lbs)

Casing AL, PC, Vandal resistant, IP66

Approvals FCC, RoHS

Package information Unit, CD, mounting screws

- User ID & Password protection, IP address filtering

- Digest Authentication, User Access Log

- RTSP streaming with proprietary format for control information

- standard RTSP streaming

- HTTP streaming

Rev.1.0.2(Jul. 2014)

OOiiMMDD11 UUsseerr’’ss GGuuiiddee

1.3. Applications of OiMD1

 Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities,

military, etc.)

 Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)

 Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting

 Weather and environmental observation

Rev.1.0.2(Jul. 2014)

OOiiMMDD11 UUsseerr’’ss GGuuiiddee

contains followings :

PC software to allocate an IP

address to the IP Camera

PC software to view and record the

A/V streaming data

(Simultaneous support of up to 64

2. Product Description

2.1. Contents

The product package

Contents

OiMD1

Accessories

Quick Reference Guide

2.2. Product Preview

OiMD1

Description

OiMD1 main unit

CVBS Cable 1EA, Screws (3 pieces of 1 type), Anchors (3 pieces of 1 type), L-type wrench with six angles 1EA

Software & User’s Guide

Quick installation guide

ONSIP Installer VMS Software

Remarks

(Speco NVR)

Camera Unit

transmitted from

IP camera.

IP cameras@D1)

+ 18 hidden pages
