Directions
Be careful not to cause any physical damage by dropping or throwing ONSIP
O2DP7/O2IR24D7W. Especially keep the device out of reach from children.
Do not disassemble ONSIP O2DP7/O2IR24D7W. No After Service is assumed when
disassembled.
Use only the power adapter provided with ONSIP O2DP7/O2IR24D7W.
Be careful to prevent moisture or water penetration into the unit. Particular attention is
needed when installing ONSIP O2DP7/O2IR24D7W. The screw holes for the installation screws
and pipe should be maintained water tight during the whole life time of the product.
All the electrical connection wires running into the unit should be prepared so that water from
the outside cannot flow into the unit through the surface of the wires. Penetration of the
moisture through the wire for extended period can cause malfunction of the unit or
deteriorated image.
Note
This equipment has been tested and found to comply with the limits for a Class a digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generate, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures :
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into and outlet on a circuit different from that to which
the receiver is connected
Consult the dealer or an experienced radio/TV technician for help.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
3
Date
Revision
Details
Sept,1st, 2011
1.0
First manual revision creation.
Nov,5th, 2012
1.3
Updated Specifications
June, 19th, 2013
1.4
Updated package contents, drawings
Caution
Any changes or modifications to this device could void the warranty.
Revision History
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
4
Contents
Contents ........................................................................................... 4
1. Introduction ................................................................................... 5
1.1. Overview ................................................................................................... 5
1.2. Specification .............................................................................................. 6
1.3. Applications of ONSIP O2DP7/O2IR24D7W ..................................................... 8
2. Product Description......................................................................... 9
2.1. Contents ................................................................................................... 9
2.2. Product Preview ....................................................................................... 10
2.3. Physical description .................................................................................. 11
2.4. Functional Description ............................................................................... 12
3. On Site Installation ........................................................................ 16
3.1. Ceiling or Wall Mounting ............................................................................ 16
3.2. Embedded mount bracket .......................................................................... 17
4. Getting Started ............................................................................. 19
4.1. PC Requirement ....................................................................................... 19
4.2. Quick Installation Guide ............................................................................. 20
5. Trouble Shooting .......................................................................... 27
5.1. No power is applied ................................................................................... 27
5.2. Cannot connect to the Video ....................................................................... 28
5.3. Windows Vista or Windows 7 ...................................................................... 29
5.4. Technical Assistance ................................................................................. 32
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
5
1. Introduction
1.1. Overview
The ONSIP O2DP7/O2IR24D7W is a state-of-the-art (Megapixel), multi-codec (H.264, MJPEG) IP camera (or
network camera) built with embedded software and hardware technology. It enables real time transmission of
synchronized video of up to 2 M pixels and audio data. Remote clients can connect to ONSIP
O2DP7/O2IR24D7W for the real time video/audio data through various client solutions running on PC, PDA or
mobile phones. Real time 2-way communication is available through bidirectional audio communication feature.
Designed to be a stand-alone streaming audio & video transmission device, ONSIP O2DP7/O2IR24D7W can
be applied to various application area such as video security, remote video monitoring, distance education,
video conference or internet broadcasting system.
Embedded PoE (Power over Ethernet, IEEE 802.3af) will enable the owner to reduce TCO (Total Cost of
Ownership) by reducing on-site wiring works for the installation.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
6
Category
Sub-Category
Details
Video
Compression
H.264/MJPEG
Resolution
**Refer to the datasheet.
Audio
(Bi-directional)
Up
32 Kbps G.726
Down
64 Kbps PCM
Network
Interface
RJ-45, 10/100 Mbps, PoE (802.3af)
Access network
Static, DHCP, PPP/PPPoE
Protocol
IPv4/6, TCP, UDP, IGMP, ICMP, ICMPv6 etc.
I/O
Sensor In 1 NC, NO Selectable
Relay Output
1
For alarm annunciation or
remote ON/OFF control
RS-232C
For factory use only
Mic/Line In
Selectable in Admin page
Line Out
1 V p-p output for amplified speaker
CVBS output
For temporal use during installation
Power Supply
PoE
Power over Ethernet (IEEE802.3af)
DC Adaptor
12V DC adaptor (2A)
Mounting
Wall or Ceiling, Recessed Ceiling Mount Kit
Motion Detection
3 zones
Arbitrary shape with independent sensitivity
Upgrade
Firmware upgrade over IP network
Administration
Remote administration over IP network
Client & Viewer
Web Viewer
Simple viewing over internet explorer
Speco-NVR
Standard CMS software
Dynamic IP support
DDNS support
Supported
Security
Video/Audio stream encryption
ID and Password protection
IP filtering for restricting administrative
access for audio and bi-audio
1.2. Specification
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
7
Time management
Sync to PC
Synchronize to PC
Manual
Manual time setting
Internet Time Server
Synchronize to Time Server
DLS
Day light saving
SDK support
Active-X
HTTP
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
8
1.3. Applications of ONSIP O2DP7/O2IR24D7W
Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities,
military, etc.)
Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)
Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting
Weather and environmental observation
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
9
Contents
Description
Remarks
ONSIP O2DP7/O2IR24D7W
IP camera ONSIP
O2DP7/O2IR24D7W main unit
Mounting bracket
Ceiling mount bracket, RCA cable,
L-Wrench, Screws(4x30L 5EA, M3x6L 2EA)
Embedded
(Optional item)
CD
Software & User’s Guide
Quick Reference Guide
Quick installation guide
2. Product Description
2.1. Contents
The product package contains followings:
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
10
ONSIP
O2DP7/O2IR24D7W
ONSIP-Installer
CMS Software
(Speco-NVR)
(Megapixel) IP Camera
O2DP7(Varifocal Lens
3.6~16mm)
O2IR24D7W(Fixed Lens
4.3mm)
PC software to allocate an IP
address to the IP Camera
PC software to view and record
the A/V streaming data transmitted
from IP camera.
(Simultaneous support of up to 64
IP cameras@D1)
2.2. Product Preview
2.2.1. Preview
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
11
Sensor In
Relay Out
Video Out
Serial (pin 1
at leftmost)
Mic/Line In
Line Out
DC In
LAN
2.3. Physical description
2.3.1. External View
2.3.2. Rear panel
Figure 2-1. External view of ONSIP O2DP7/O2IR24D7W
Figure 2-2. Rear panel of ONSIP O2DP7/O2IR24D7W
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
12
Caution: If ONSIP O2DP7/O2IR24D7W is powered by PoE, do not plug in DC Jack with
active DC power into DC power connector.
Red/Green LED will be lit with red momentarily and it will be lit with green after a while when
power is applied into ONSIP O2DP7/O2IR24D7W
2.4. Functional Description
DC 12V: Power input for supplying 12V DC power.
MIC/LINE IN
Connect external audio source or microphone.
Line Out
Connect speakers with built in amplifier. Audio from remote site is output through Line out in bi-directional
audio mode.
100Base-T
100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af). 2 LEDs on the Ethernet connector
shows the status of ONSIP O2DP7/O2IR24D7W as the followings:
- Status LED (Dual Color - Red/Green): It will be lit in green or red depending on the status.
Green: Green color indicates that the camera is in normal operation mode. Continuous green
indicates that data transmission is possible. Blinking green means that someone is
connected to ONSIP O2DP7/O2IR24D7W.
Red: Continuous or blinking red indicates that hardware is in abnormal condition.
- LINK/LAN LED (Orange)
It will be lit with orange color when network cabling is all right. Blinking orange color indicates that
normal data transmission is under way. Off state indicates that there is trouble in network connection.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
13
Pin
Description
Misc.
1
Not used
2 Not used
3
RxD (Connect to TxD of the other end)
For debugging & factory use only.
4
TxD (RxD (Connect to RxD of the other end))
5
Ground of RS-232C
Pin
Description
Misc.
1
SNS IN (+)
Sensor In (+). NC/NO selectable in admin mode.
2
SNS In (-)
Sensor In (-). NC/NO selectable in admin mode.
3
CVBS OUT(+)
Composite video output
4
CVBS OUT(-)
Ground for composite video output
5
RLY OUT
Relay output : closed circuit in alarm to indicate alarm
status
6
RLY OUT
Relay Out
CVBS GND
CVBS Out
Sensor In -
Sensor In
RS-232C
3 Pins on the right of the connector are assigned for RS-232 port. Please note that left most pin is
numbered as 1.

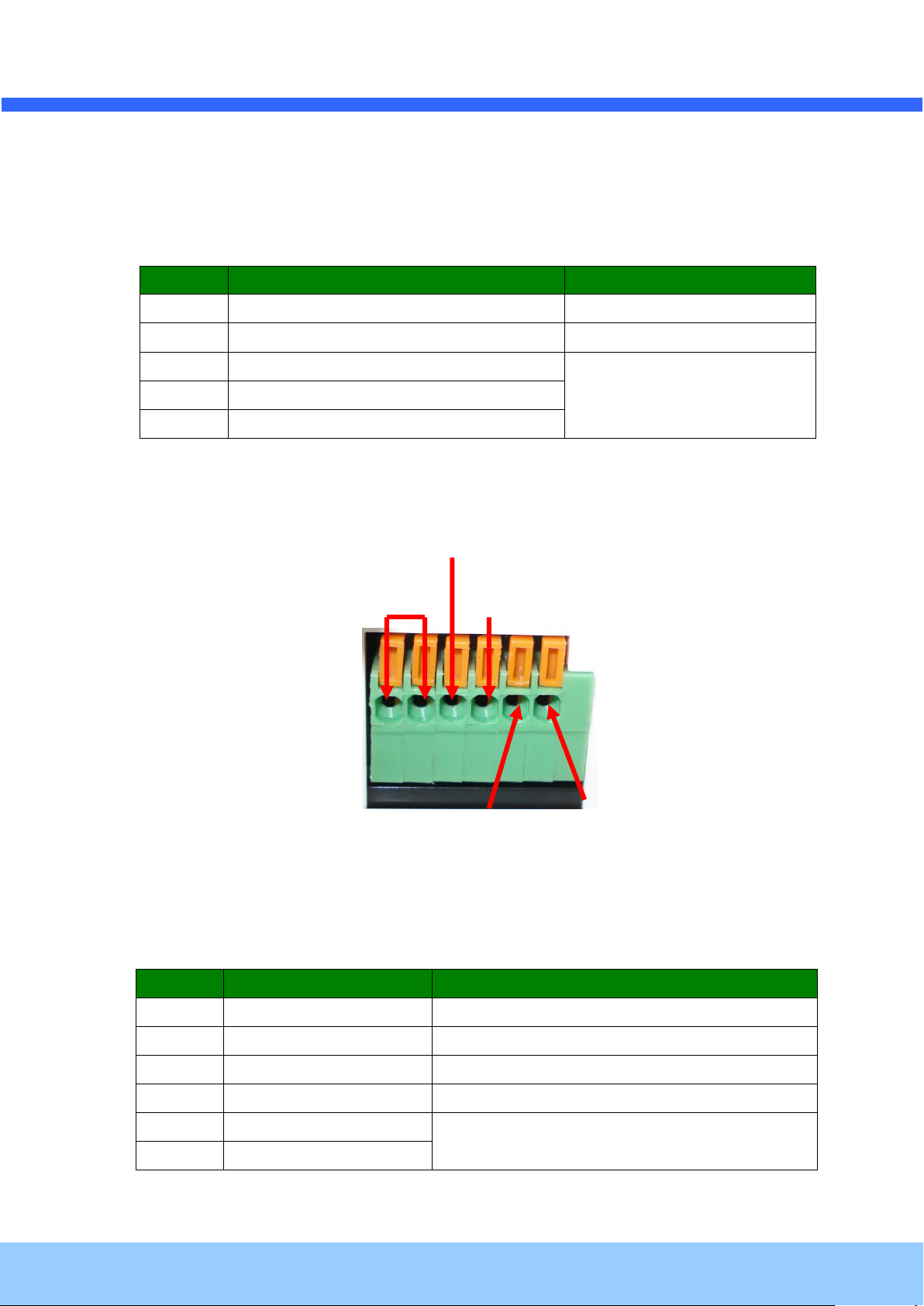

ALARM IN/OUT and Composite Video Output
Figure 2-3 ALARM IN/OUT and Composite Video Output Terminal of ONSIP O2DP7/O2IR24D7W
Used for connecting P/T device, sensor, and composite video output. Pin assignments are as follows.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
14
Senso r
Device
Senso r
Power
Supp ly
NO/NCType
Senso r1-
Senso r1+
+12V
GND
Sensor
Device
Senso r
Power
Supp ly
Open CollectorType
Photo Coupler

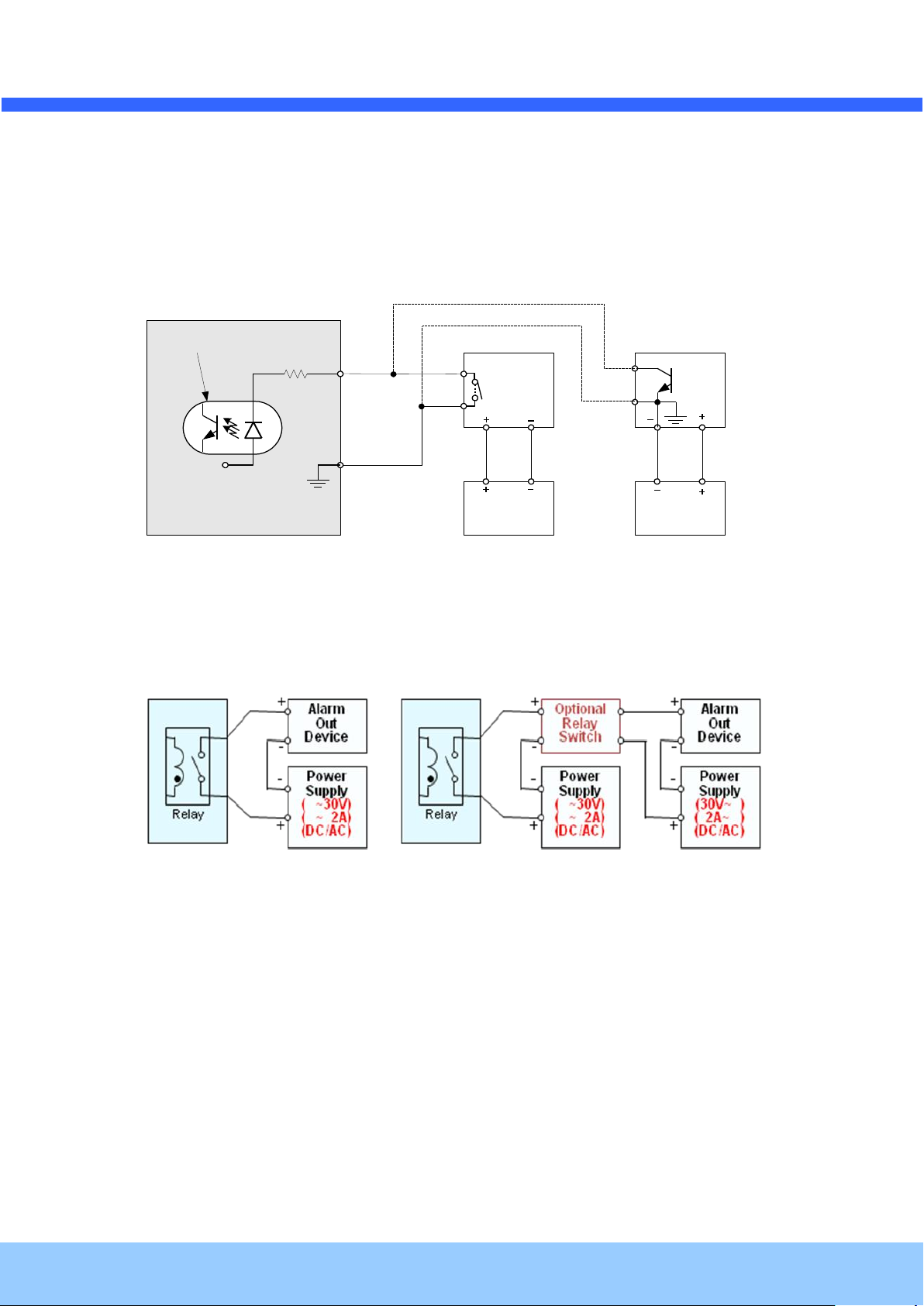

SNS IN: Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors,
magnetic sensor, etc. Connect the two wires of the sensors to “SNS In”. The sensor type
(NC/NO) can be set in Administrative mode. 10mA can be flown into sensor device. Multiple
sensor devices can be connected in parallel.
Figure 2-4. SENSOR Input connection
RLY OUT: A Relay output is provided for connecting alarm devices or for remote on/off devices
such as light. Relay is normal open and it will be closed upon alarm annunciation or remote on.
The relay is capable of switching 30V AC/DC, 2A.
Figure 2-5. RELAY Output connection
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
15
Caution: Restoring the factory default will erase all settings.
Factory Default Switch
A switch provided for returning the IP camera to factory default state. Open the dome cover to access
the switch. Press the switch for a few seconds while power is applied.
Figure 2-6 Factory Default switch of ONSIP O2DP7/O2IR24D7W
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
16
1. Fix the mounting bracket.
2. Seat the IP camera onto the mounting
bracket. Make sure to align the angular
positions of the “mounting knobs” and mating
“mounting bracket holes” properly. Once
seated, rotate the camera to the right until it is
locked.
3. Open the cover and apply a screw through
the hole indicated by the arrow to prevent the
camera from rotation.
4. Place the cover.
Mounting
Bracket
Mounting Knobs
Mounting Knob
Holes
3. On Site Installation
3.1. CCeeiilliinngg oorr WWaallll MMoouunnttiinngg
Please follow through the procedures in the order of the numbers for each procedure.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
17

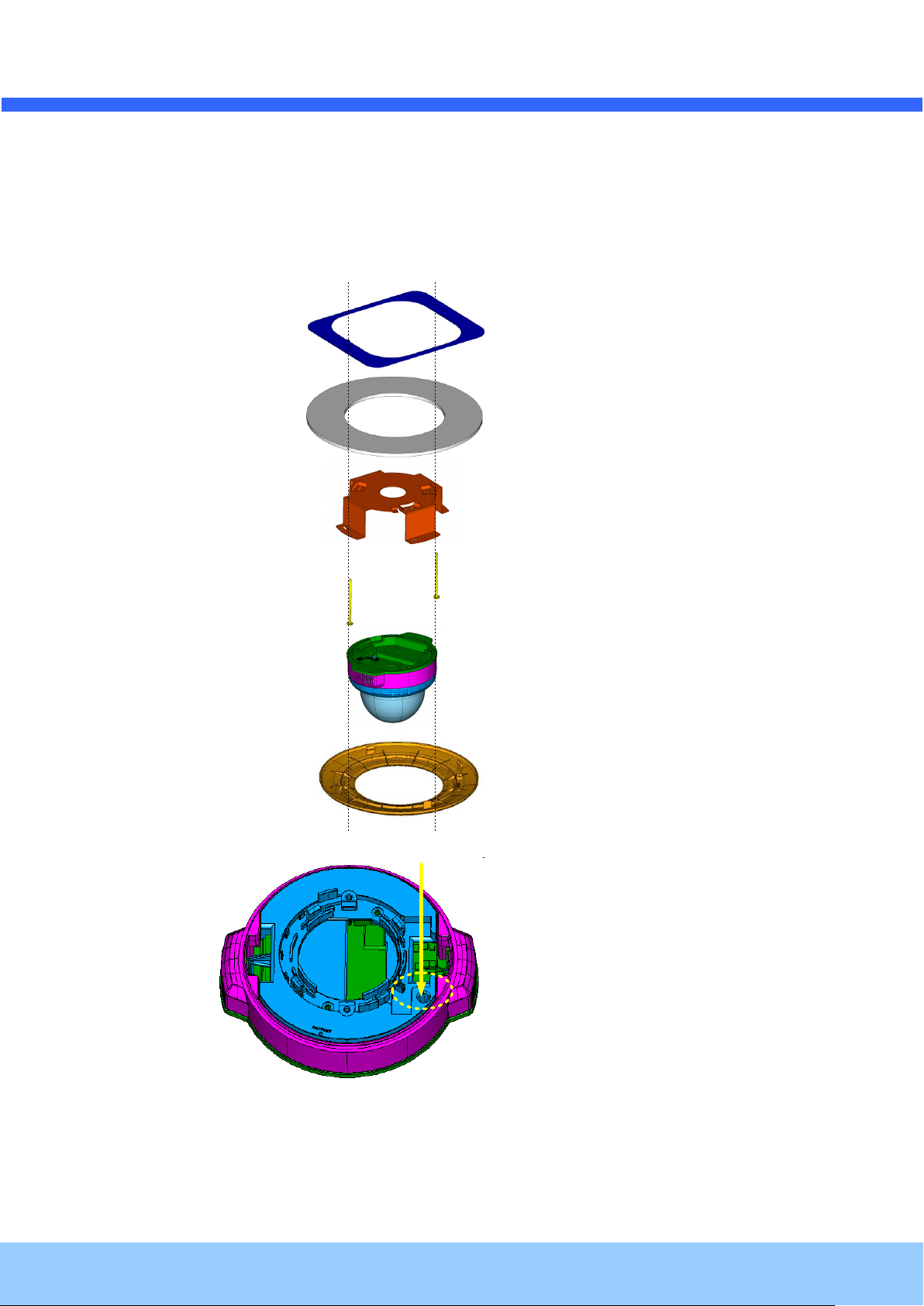

1. Prepare a 165mm diameter hole on the
ceiling
2. Place the bracket holder above the ceiling
panel through prepared hole.
Bracket Holder
Ceiling Panel
Recessed Mounting
Bracket
Fixing Screws
IP Camera
Decoration Panel
3. Plug in the recessed mounting bracket
through the hole.
4. Fix the mounting bracket and bracket
holder using two screws.
5. Slide in the IP camera into the mounting
bracket. Be careful to place the camera in the
right position by aligning the positions of the
“mounting knobs” and “mounting knob
holes”. (Note 1)
8. Place the decoration panel.
6. Open the cover and apply a screw through
the hole indicated by the arrow to prevent the
camera from rotation.
7. Place the cover.
3.2. EEmmbbeeddddeedd mmoouunntt bbrraacckkeett
Please follow through the procedures in the order of the numbers for each procedure.
Note 1: Aligning “Mounting Knobs” and “Mounting knob Holes”
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
18
Mounting Knobs
Mounting Knob
Holes
Make sure to align the positions of the “mounting knobs”
and “mounting knob holes” when you plug in the IP
camera into the mounting bracket.
Once it is firmly plugged in, twist the IP camera to the right
until it is locked.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
19
Recommended
Remark
CPU
Pentium IV 3G above
Main Memory
1GB above
Operating System*
Windows XP
Web Browser
Internet Explorer 6.0 above
Graphic Card
64M above
Higher than 1600x1200
Network
100 Base-T Ethernet
4. Getting Started
Brief information for first time operation of ONSIP O2DP7/O2IR24D7W is provided in this chapter.
4.1. PC Requirement
Audio/Video streaming data received from ONSIP O2DP7/O2IR24D7W can be displayed or stored in a PC
running client programs. Minimum requirement of the PC is described below:
* Operating Systems supported: Windows 2000 Professional / XP / Vista / 7
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
20
LAN switch with
standard POE
LAN switch
DC adaptor
4.2. Quick Installation Guide
1. Connect PC and ONSIP O2DP7/O2IR24D7W to network.
1) Prepare a PC to run programs for the installation and video connection
(PC is needed to assign IP address to ONSIP O2DP7/O2IR24D7W)
2) In case of using PoE, connect the PC and ONSIP O2DP7/O2IR24D7W to the network using one of the
following ways.
If your LAN Switch does not support standard PoE, connect ONSIP O2DP7/O2IR24D7W as shown in
dotted line in Figure 4-1. The DC power is applied through DC adaptor.
Figure 4-1. Power and network connection
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
21
Admin Page Button
ONSIP installer
2. Install Speco-NVR
Speco-NVR is a multi-channel CMS program for to IP camera or Video server. Install Speco-NVR
on remote PC to connect to these products. It is needed to assign connection information to
Speco-NVR program before connection.
Insert the CD provided with product into the PC and install the Speco-NVR.
Figure 4-2. Speco-NVR

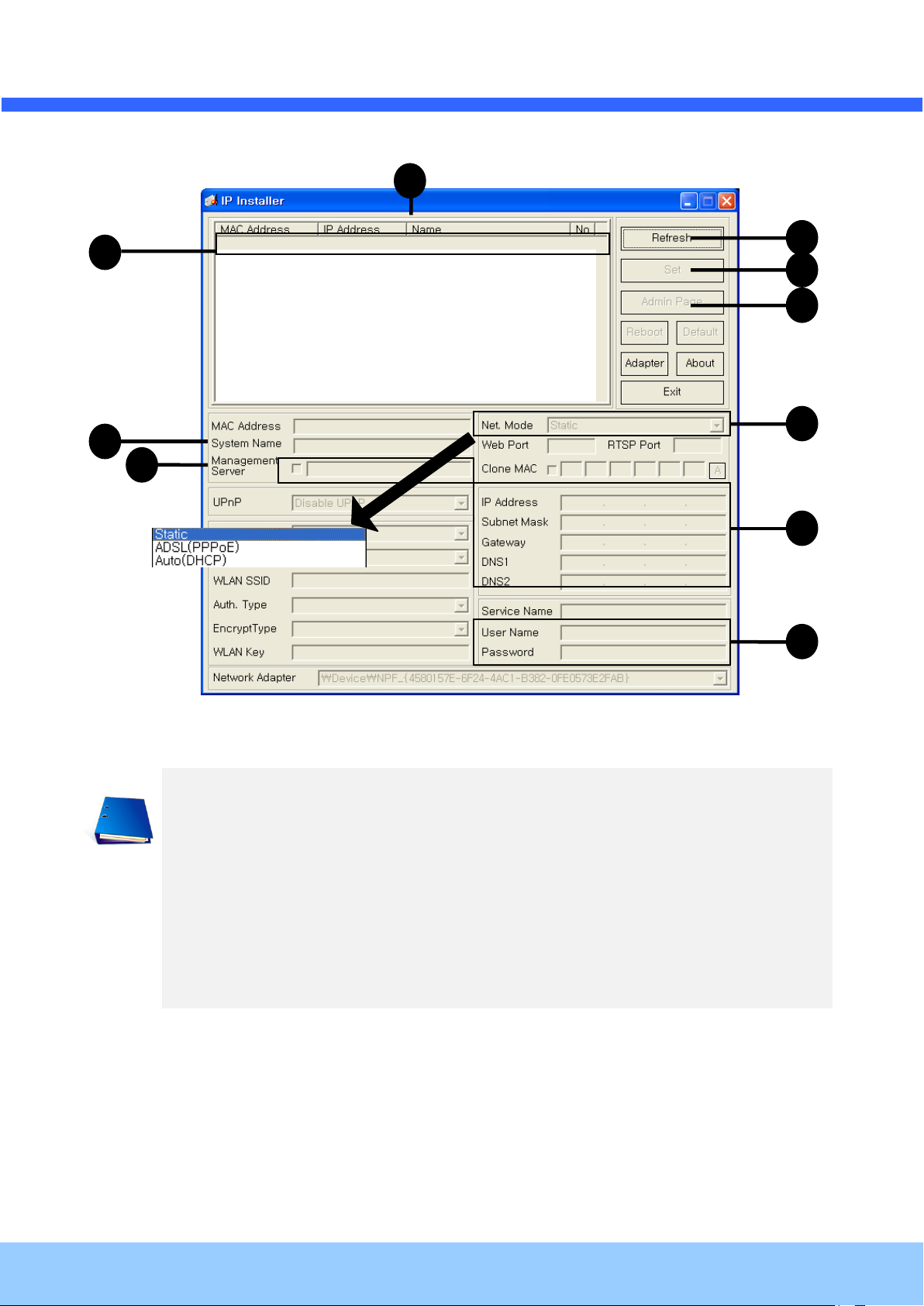

Follow the sequence below for setting the IP parameter
i) Run ONSIP installer
ii) Click ① in ONSIP installer window.> Double click on ② > Fill in ④ > make a selection in ⑤ > Fill the
parameters in ⑥
iii) Click on ⑨ to apply the settings.
You can connect to admin page by clicking on ⑩.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
22
Click on the field in ③ for sorting and rearranging the list.
Select network mode that best suits from the drop down list in ⑤. You can choose either
Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in ⑥
is deactivated.
In case of ADSL, fill the User Name and Password in ⑧ with the values provided by your ISP.
i) If DDNS service is needed, Check at the box and fill the empty field with hostname
you want in ⑦.
1 2 3
6 4 9
5 7 8
10
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
23
Note : Active-X module should be installed on your PC before actual connection. If your PC is
not connected to the internet, you cannot download Active-X module. Most convenient way of
installing the Active-X module is installing Speco-NVR which is available from the CD or our
web site.
Connection to Admin Page
Basic Control
Video Crop Control
[e.g.] Port 8080
[e.g.] Port 80
Can be omitted the
default port of 80

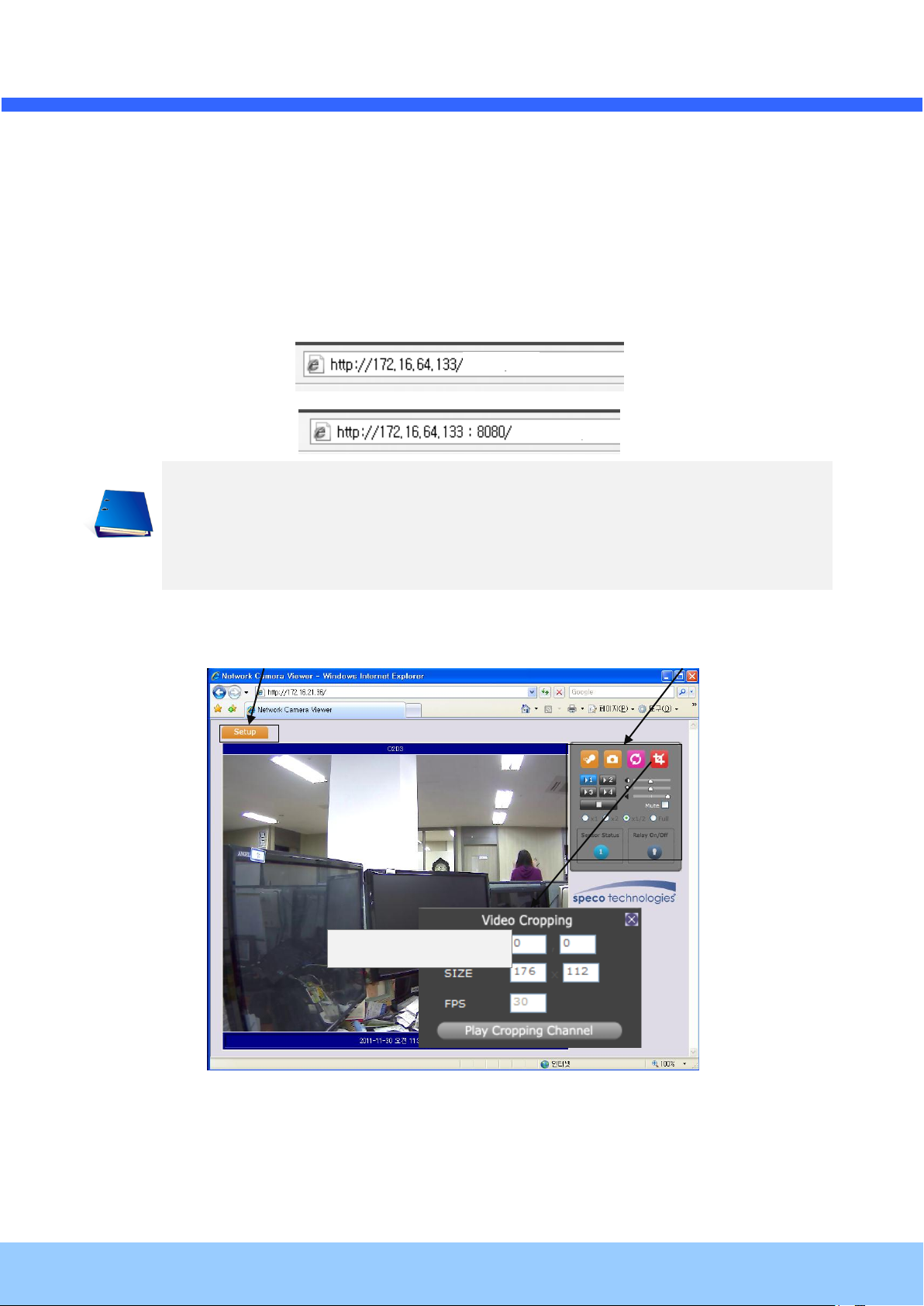

3. Remote video connection to ONSIP O2DP7/O2IR24D7W
1) Connection through Web Viewer
Web Viewer offers simplest way of video connection to ONSIP O2DP7/O2IR24D7W. For video
connection, enter the IP address of ONSIP O2DP7/O2IR24D7W in the URL window of Internet
Explorer as :
Figure 4-3. Web Viewer
Default ID and password of Admin Page are admin,1234. For more detailed information, please refer to the
[Configuration_Guide] Guide.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
24
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
25
Camera Assignment
Camera Assignment
Live view
Save
Example
Exit Program
Default ID/PW: admin/1234

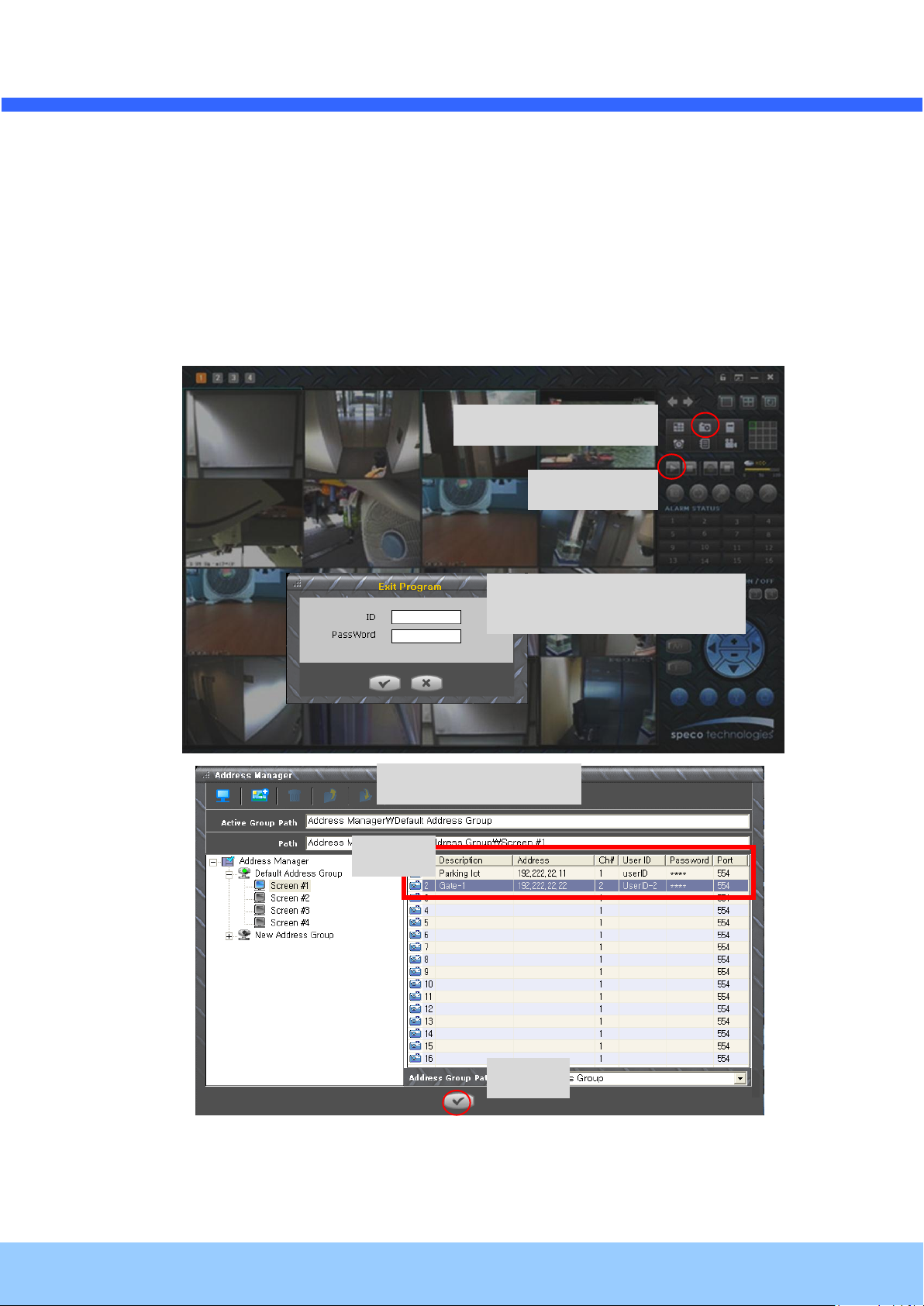

2) Connection through Speco-NVR
Click the camera assignment button for setting camera address. Input the description, address, Ch#,
User ID, Password and port and then click the save button. After assignment procedure, you must
click the SAVE button. You can see the live video when you click the live view button as below. When
you exit Speco-NVR, you have to input the ID/PW, admin/1234. Details for the Speco-NVR can be
found in [Speco-NVR User’s Guide].
Figure 4-4. Speco-NVR
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
26
4. Additional settings through connection to the Admin Page
All the parameters of new IP camera follows factory default values. For more sophisticated target application it
is needed to change parameters. The admin page can be connected through
”http://IP_address:HTTP_port_number”/admin.htm
It is needed to enter ID and password of the administrator. Default ID and password are admin,1234. It is highly
recommended to change the ID and password to prevent illegal access to the IP camera. For more detailed
information, please refer to the [Configuration_Guide] Guide.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
27
5. Trouble Shooting
5.1. No power is applied
In case of Standard PoE (Power over Ethernet)
Power supply through standard PoE is possible only when the following conditions are met.
1. Standard PoE is supported on the product.
2. The LAN switch supports standard PoE.
Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af)
In case of DC adaptor
If PoE is not applied, the power and network connection should be made through separate cables.
It is recommended to use DC adaptor supplied by Speco Technology for the feeding of the power.
In case of replacing the DC power supply, make sure that the power supply meets with the power
requirement of the IP camera to prevent damage or malfunction.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
28
1
2

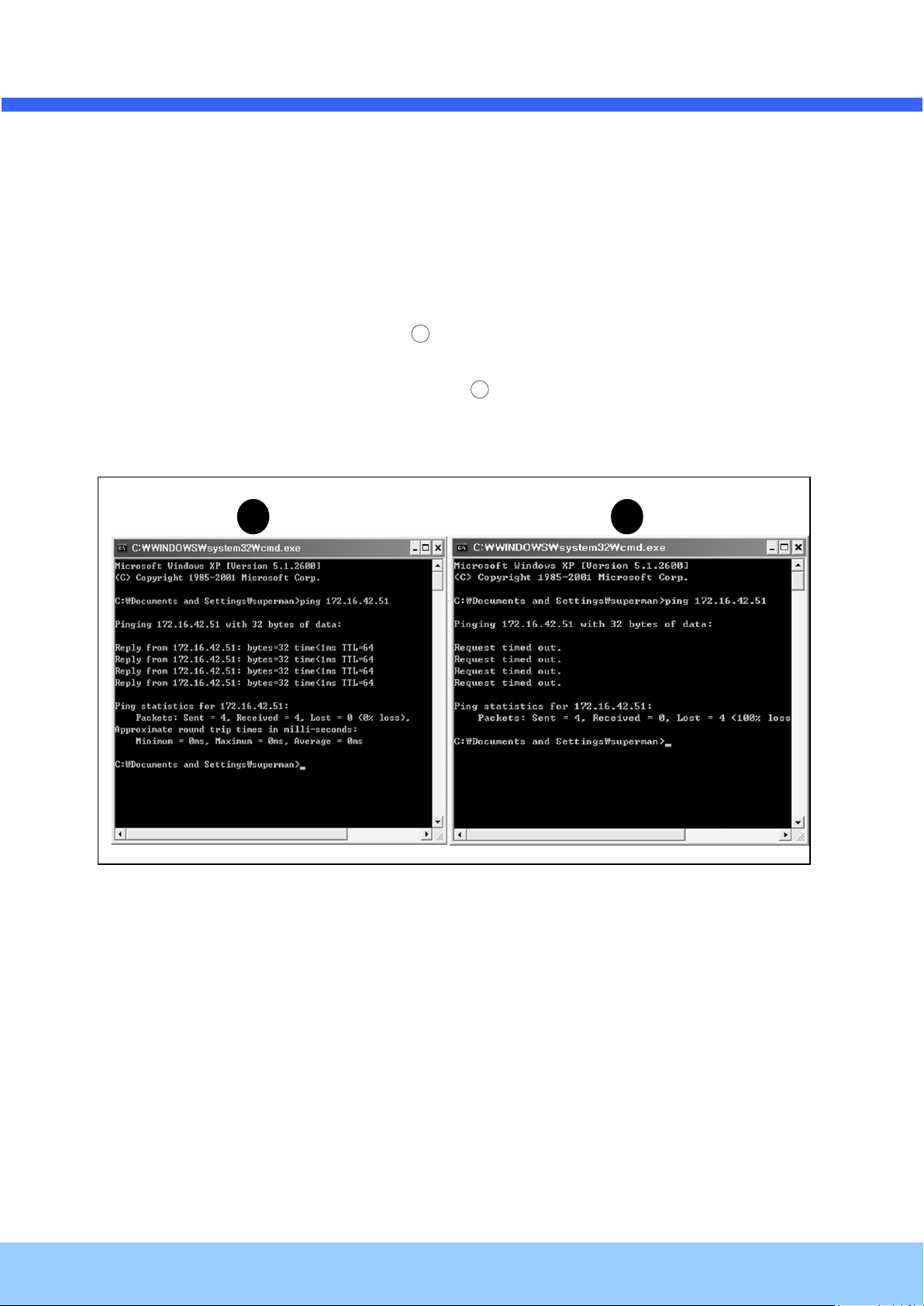

5.2. Cannot connect to the Video
Check the status of the network connection through PING test.
Try the following on your PC :
- Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51)
- If “Reply from ~” message is returned ( in the figure below), the network connection is in normal
state. Try connection to the video again. If the problem persists, or refer to other trouble shooting notes.
- If “Request timed out” message is returned. ( in the figure below), the network connection or
network setting is not in normal state. Check the network cable and settings.
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
29
5.3. Windows Vista or Windows 7
Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for
proper recording and still video capture in Speco-NVR and Web Viewer.
<Windows Vista>
1. UAC (User Access Control) configuration
1) Double-click “User Accounts” in control panel
2) Double-click “Turn User Account Control on or off”
3) Uncheck “Use UAC to help protect your computer”
2. Privilege Level Control
1) Select “NVR” icon on the desktop
2) Click right mouse button and select “Properties”
3) Check “Privilege Level” in “Compatibility” tab
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
30
<Windows 7>
1. UAC (User Access Control) configuration
1) Double-click “User Accounts” in control panel
2) Double-click “Change User Account Control setting”
3) Set to “Never notify”
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
31
2. Privilege Level Control
1) Select “NVR” icon on the desktop
2) Click right mouse button and select “properties”
3) Check “Privilege Level” in “Compatibility” tab
OONNSSIIPP OO22DDPP77//OO22IIRR2244DD77WW OOwwnneer
r
’
’
ss MMaannuuaall
Rev.1.4 (June., 2013)
32
1. Model name
2. MAC address and Registration number
3. Purchase date
4. Description of the problem
5. Error message
5.4. Technical Assistance
If you need any technical assistance, please contact your dealer. For immediate service please provide the
following information.
Loading...
