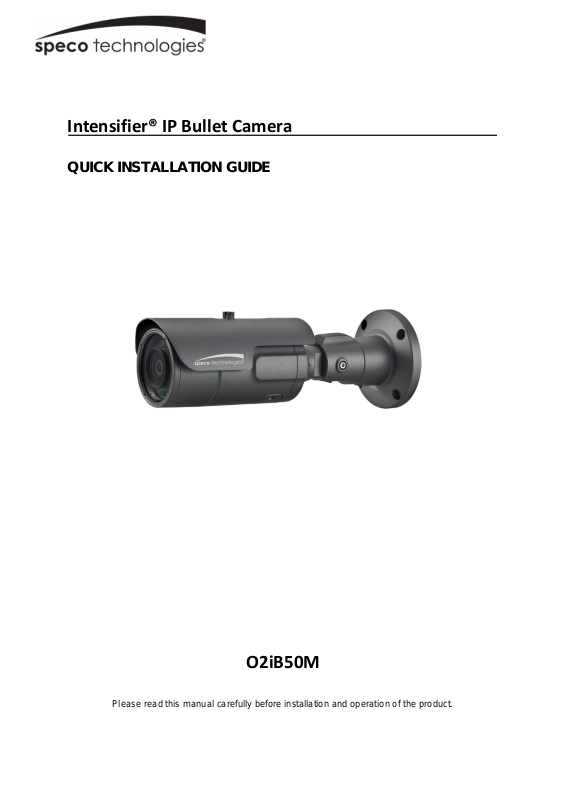

Intensifier® IP Bullet Camera
QUICK INSTALLATION GUIDE
O2iB50M
Please read this manual carefully before installation and operation of the product.
This installation should be made by a qualified service person and should conform to all local codes.
The lighting flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of non-insulated dangerous voltage within
the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION
Notice
Thank you for purchasing this product. This guide is designed to be a reference tool for the product. Please read
it carefully before operating the product and retain it for future reference. Should you require any technical
assistance, please contact Speco Technologies Technical Support.
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at its own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
CAUTION – To prevent electric shock and risk of the fire hazards
Do NOT use power source other than that specified.
Do NOT expose this appliance to rain or moisture.
1
PRECAUTIONS
Please read the manual carefully before the installation in order to set up the camera correctly and to obtain
the best picture quality.
Installation and services should only be carried out by an authorized personnel according to local safety
regulations.
If any liquid or solid matter gets into the housing, immediately disconnect the camera from power supply and
have it checked by your authorized dealer before reusing.
Avoid installing the camera in extremely hot or cold places.
If you are not a certified person, never try to dismantle the camera.
To avoid electric shock, never remove the screws or covers. There are no parts inside that need maintenance
by the user. All maintenance should be carried out by qualified personnel.
Avoid installing the camera in a place of high humidity.
Avoid installing the camera at a place exposed to gas or oil.
Don't point the camera directly at sunlight.
Please pay special attention to keep the unit from dropping or external shock during the process of
transportation or handling.
Never try to touch the camera with wet hands. It may cause an electric shock.
Do not expose the camera to radioactivity. It can cause a serious damage on the image sensor.
LIMITATION OF LIABILITY
This publication is provided “AS IS” without warranty of any kind, either express or implied, including but not
limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-infringement of
the third party's right.
This publication could include technical inaccuracies or typographical errors. Changes are added to the
information herein, at any time, for the improvements of this publication and / or the corresponding product(s).
DISCLAIMER OF WARRANTY
In no event shall seller be liable to any party or any person, except for replacement or reasonable maintenance
of the product, for the cases, including but not limited to below :
(1) Any damage and loss, including without limitation, direct or indirect, special, consequential or
exemplary, arising out of or relating to the product.
(2) Personal injury or any damage caused by inappropriate use or negligent operation of the user.
(3) Unauthorized disassembly, repair or modification of the product by the user.
(4) Inconvenience or any loss when images are not displayed, due to any reason or cause
including any failure or problem of the product.
(5) Any problem, consequential inconvenience, or loss or damage, when combined with third party devices.
(6) Any claim or action for damages, brought by any person or organization, due to a violation of privacy when
the surveillance footage, for some reason, becomes public or is used for the purpose other than
surveillance.
2
CLASSIFICATION
Night Vision Bullet Camera
2.7 ~ 12mm
5.0 ~ 50mm
General
CPU
ARM1176JZF-STM ( 400 MHz, Instruction cache : 32kbyte,
data cache : 16kbyte, MMU )
Flash
2Gbit Flash Memory
SDRAM
2Gbit DDR3 Memory
Image Pickup
Image Sensor
2.0 Megapixel 1/2.8" SONY progressive scan CMOS image
sensor
Total Pixels
1945(H) x 1109(V) 2.16 Megapixel
Effective Pixels
1945(H) x 1097(V) 2.13 Megapixel
S/N Ratio
More than 50dB
Min. Illumination
0Lux
Day & Night
ICR Filter Changer
Lens Control
Motorized Lens Control
Lens
2.7mm ~ 12mm Vari-focal
Motorized Megapixel Lens
5.0mm ~ 50mm Vari-focal
Motorized Megapixel Lens
Video
Video
Compression
H.264 High profile @ Level 5.0 (1920 x 1080),
4.1 (Other resolutions), Motion JPEG
Resolutions
Up to 1920 x 1080
Frame Rate
H.264 Up to 30fps with 1920 x 1080
H.264 Up to 30fps with VGA
MJPEG Up to 30fps with VGA resolution
Video Streaming
Support multi stream with H.264, MJPEG
Adjustable frame rate
VBR / CBR in H.264
Image Setting
Brightness, Contrast, Sharpness
Day & Night
Auto White Balance
Auto Exposure
Privacy Mask
1. PRODUCT OVERVIEW
Key Features
2.0 Mega pixel 1/2.8" SONY progressive sc an CMOS image sensor for excellent image quality
IP67 rated weather-proof
2.7 ~ 12mm / 5.0 ~ 50mm X10 Optical zoom
Cable managed bracket
Perfect 3-Axis mechanism
Triple Streaming of H.264 and M-JPEG
Up to 30 frames per second at all image resolutions
Supports image resolutions Full-HD (1920 x 1080)
Integrated motion detection with pre- and post-alarm image / video buffering
Supports CBR (constant bit rate) and VBR (variable bit rate) modes
Supports Tampering-Alarm in VA (video analytics) function
Controllable frame rate
Full Duplex Two-Way Audio support
External microphone input & speaker output connectors
Video access through any standard Web browser
Privacy Masking up to 8 areas
Supports IEEE 802.3af Power over Ethernet injectors, mid- and end-spans
Integrated HTTP Web server supporting 8 simultaneous user connections
HTTPS supported (Hyper Text Transfer Protocol Secured)
DDNS and DHCP client
Specification
3
DSS, Corridor-view (in H.264), Mirror / V-Flip, etc.
Backlight
WDR (Low / Middle / High)
Shutter Speed
1/4 ~ 1/2000
Noise Reduction
2D / 3DNR
Audio
Audio Streaming
Two-way, Full-Duplex
Audio
Compression
G.711
Data / Sample
Rate
64Kbps / 8KHz
Audio Input /
Output
Microphone input / 1x Line-In, Line-Output / 1x Line-Out
Network
Security
Password protection
User access log
HTTPS encryption
Supported Protocol
HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP,
SNMP, IP-FILTER
System
Integration
Intelligent Video
Motion detection 12 x 12 blocks
Alarm Trigger
Motion detection, External Input
Video Buffer
5MB pre-alarm and post-alarm-180sec
Alarm events
External Alarm Output (Normal open / close Type)
Firmware Upgrade
Remote upgrade via network
Physical
Etc
1x Factory Reset Button
Memory Slot
Micro-SD
Power Source
DC 12V / 1.5A, PoE (Power over Ethernet) : 802.3af
Power
Consumption
Max. 5.0W with IR & HEATER On (External DC 12V used)
Net Weight
1060g (Camera Only)
LED's
Power, Network Connection
Dimension(mm)
Ø98.5 x 262.5 Including Bracket
Environment
Operating
Temperature
-10 degree ~ 50 degree Celsius (-14F ~ 122F)
Storage
Temperature
-20 degree ~ 60 degree Celsius (-4F ~ 140F)
APPEARANCE
DESCRIPTION
IP Camera x 1
Installation Guide x 1
Tapping screw (Ø4 x 30) x 4
Plastic anchor x 4
Specifications are subject to change without prior notice for improvement.
2. NAME AND FUNCTION OF EACH PART
2.1 Package Contents
4
L-Wrench (4mm) x 1
L-Wrench (2.5mm) x 1
Junction Box x 1
Screw (M4 x 12L) x 4_ (Junction Box)
CD x 1
NO.
ITEM
DESCRIPTION
Power Connector
DC12V
Network and POE
Connector
POE (Power Over Ethernet) and LAN cable
Sensor In / Alarm Out
Sensor Input : White(Sensor_In), Yellow(GND)
Alarm Output : Black(Alarm_Out), Red(COM)
Audio-Out
Audio Out (WHITE)
Audio-In
Audio in (RED)
Lens
2.7 ~ 12 / 5.0 ~ 50mm Vari-focal Motorized
Megapixel Lens
Heater
Resistors reduce condensation on front glass
6
7
1 2 3 4 5 1 2 3 4 5 6
7
2.2 Name and Function
5
Tapping screw
(Ø4 x 30) x 4
Plastic anchor
x 4
Screw x 4
Closing Cap
SD Card
Factory Reset
L-Wrench (2.5mm)
Closing Cap Open
2.3 OSD cap detailed description
Open the Closing Cap and fasten the Closing Cap well.
3. INSTALLATION
3.1 How to mount to wall
Wall_Junction Box
Wall
① Drill four screw holes on the wall plate to fix four plastic anchors (supplied) in the holes.
② Fix the plastic anchors in the holes.
③ Position the bracket on the screw points.
④ Fix the bracket by tightening the screws.
3.2 3-Axis Adjustment
6
LAN Switch Router Internet Remote Access
Local Access E-Mail / FTP
Rotation
360°
Tilt
0°100°
Panning
360°
Rotation
Tilt
Pan
L-Wrench
① Panning 360˚
Slightly loosen Pan Bracket nut then
adjust pan of the camera and
tighten the Bracket nut.
② Tilt 0˚ ~ 100˚
Slightly loosen Tilt bolt then
adjust tilt of the camera and
tighten the bolt firmly.
③ Rotation 360˚
Slightly loosen Tilt bolt then adjust rotation of the camera
and tighten the bolt firmly.
3.3 Installation Example
3.3.1 Installation Example
3.3.2 Connecting Network
Open up IP Scanner.
IP Scanner can search for the device on the local network.
Please note that only devices that are on the same subnet can be discovered.
The device is set to DHCP mode by default.
In the device list, you can view the IP address, model number, and MAC address of each device. Select the
applicable device and double click to open up the web viewer.
7
Enter the IP
address here
3.3.3 Accessing the Camera or video server’s Homepage
1) Open the browser and enter the camera’s IP address in the address bar or double click the device in IP
Scanner.
2) Enter the user name and password when prompted.
3) Default user name is admin and password is 1234.
4) If prompted for installation of the Active-X plug-in, allow the installation. Active-X is needed to view video
from Internet Explorer.
8

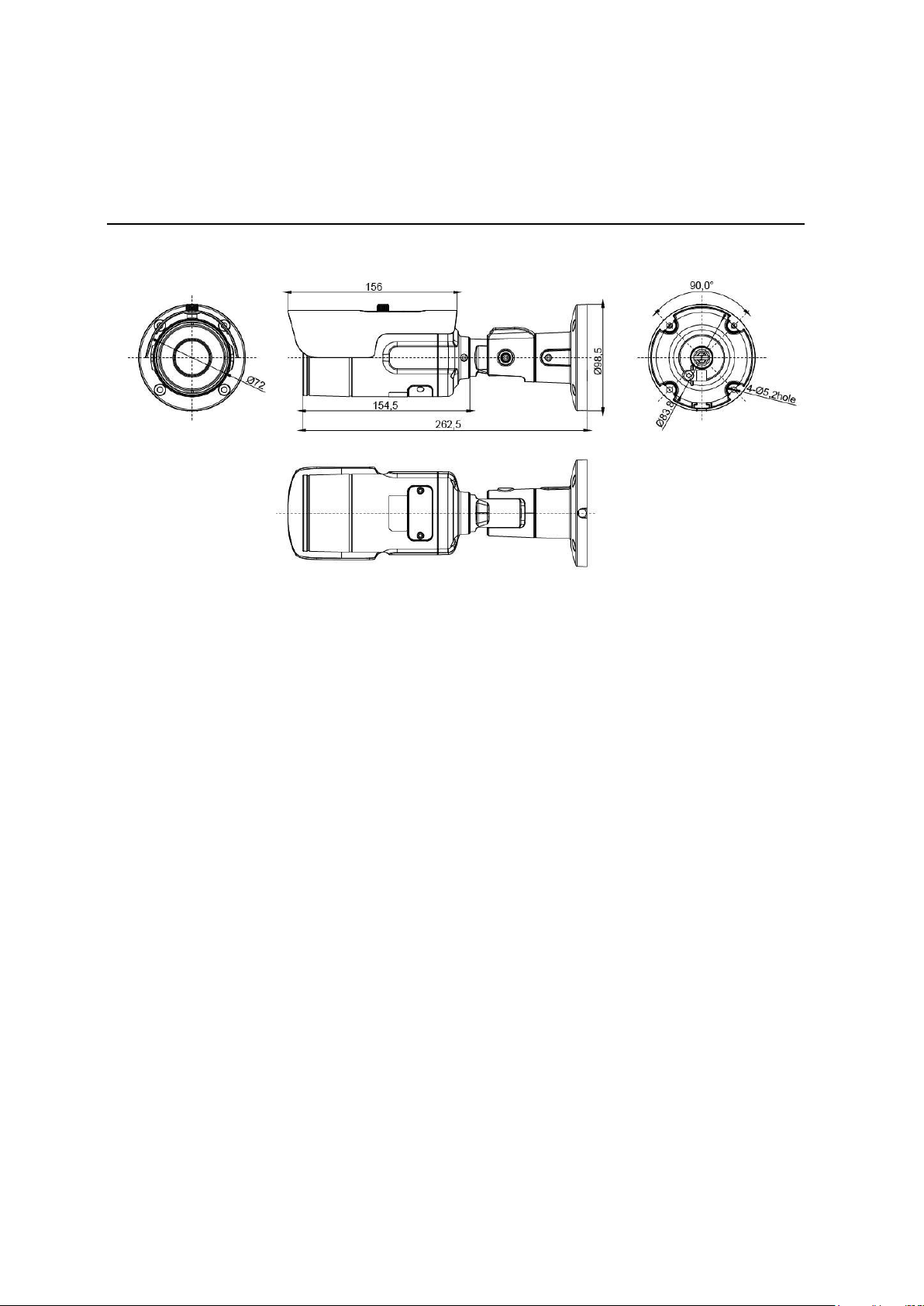

4. DIMENSIONS (mm)
9
