Speco O2iB3M User Manual
O2iB3M
Full
IP Camera
xel Indoor/Outdoor
with Motorized Lens
Intensifier IP®
Bullet
HD Megapi
OO22iiBB33MM UUsseerr’’ss GGuuiiddee
Directions
Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the
device out of reach from children.
Do not disassemble the camera. No after service is assumed when disassembled.
Use only power adapters compatible with the unit.
Be careful to prevent moisture or water penetration into the unit. Particular attention is needed when
installing the unit. The screw holes for the installation screws and pipe should be maintained water tight
during the whole life time of the product.
All the electrical connection wires running into the unit should be prepared so that water from the outside
cannot flow into the unit through the surface of the wires. Penetration of the moisture through the wire for
extended period can cause malfunction of the unit or deteriorated image.
Note
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generate, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into and outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV technician for help.
Caution
Any changes or modifications in construction of this device which are not explicitly approved by the
party responsible for compliance could void the user’s warranty.
Rev.1.0 (Feb. 2015)
2
OO22iiBB33MM UUsseerr’’ss GGuuiiddee
Revision History
Date Revision Details
Feb 25th, 2015 1.0 First manual revision creation.
Rev.1.0 (Feb. 2015)
3
OO22iiBB33MM UUsseerr’’ss GGuuiiddee
Contents
1. Introduction .................................................................................................................................................... 5
1.1. Overview ............................................................................................................................................... 5
1.2. Specifications ........................................................................................................................................ 6
1.3. Applications of O2iB3M ......................................................................................................................... 8
2. Product Description ...................................................................................................................................... 9
2.1. Contents ................................................................................................................................................ 9
2.2. Product Preview .................................................................................................................................... 9
2.3. Physical description ............................................................................................................................ 10
2.3.1. External View ............................................................................................................................ 10
2.3.2. Dimensions ............................................................................................................................... 10
2.3.3. External Connector ................................................................................................................... 11
2.3.4. Factory Default Switch .............................................................................................................. 11
2.4. Functional Description ........................................................................................................................ 12
3. On Site Installation ...................................................................................................................................... 14
4. Getting Started ............................................................................................................................................. 15
4.1. PC Requirement ................................................................................................................................. 15
4.2. Quick Installation Guide ...................................................................................................................... 16

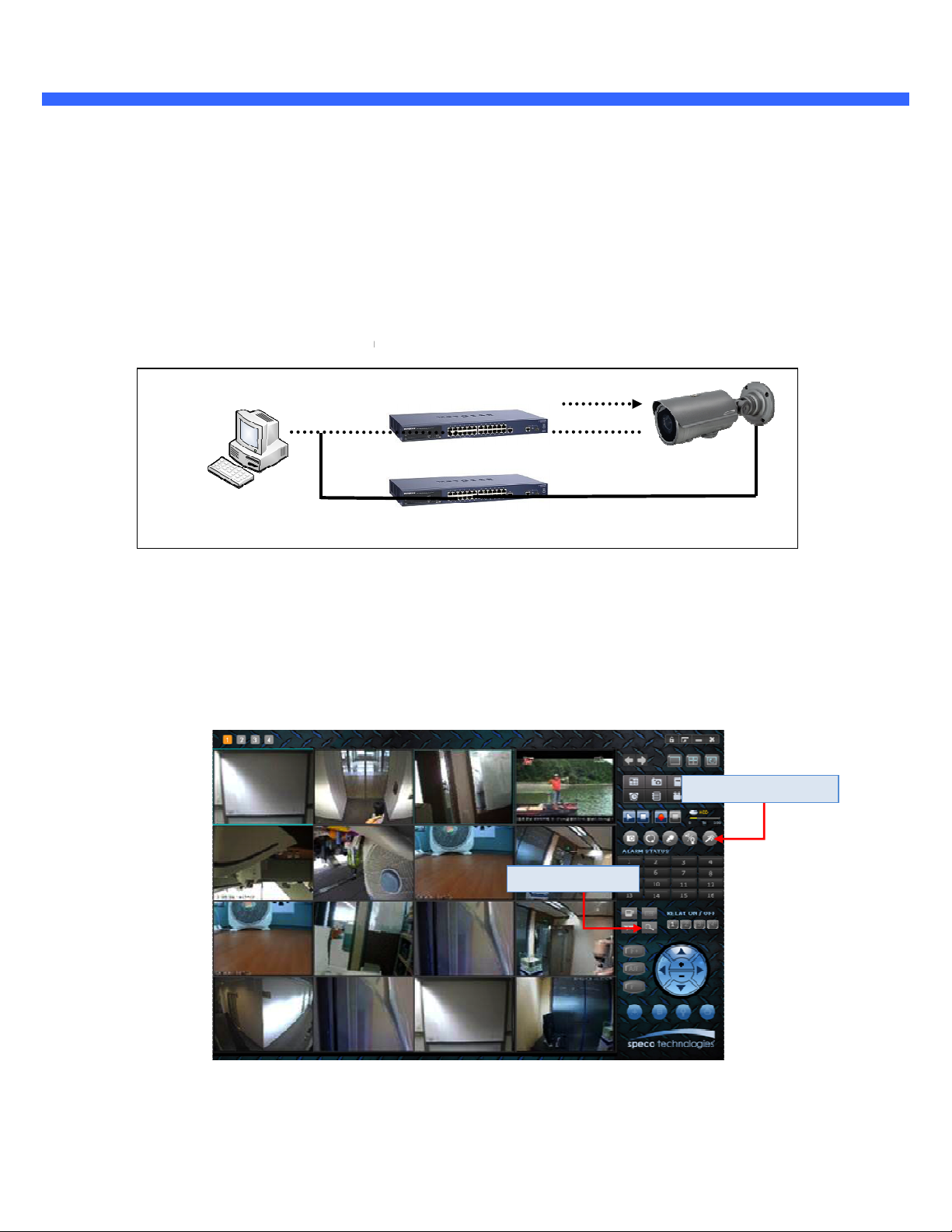

4.2.1. Connect PC and O2iB3M to network. ....................................................................................... 16

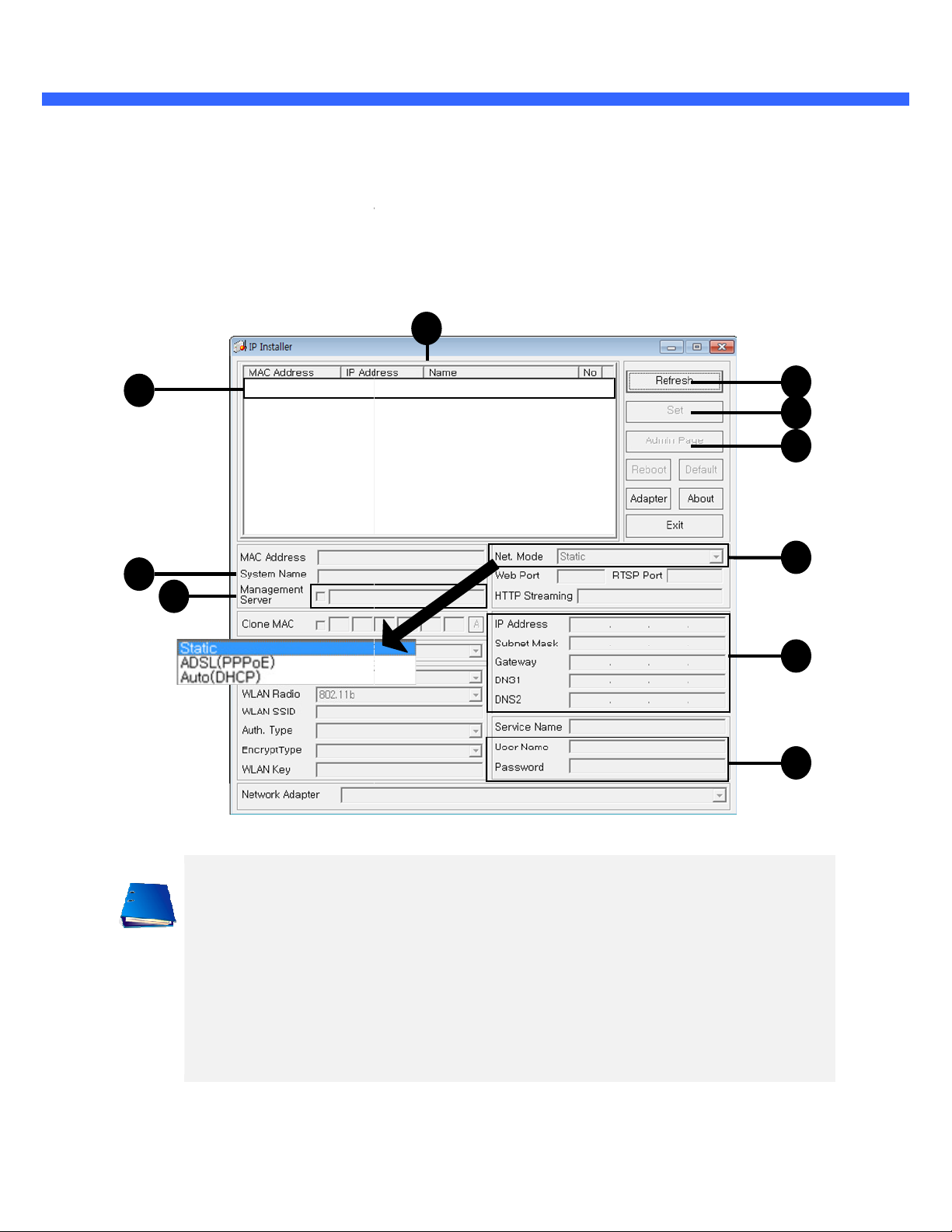

4.2.2. Install Speco-NVR and set IP parameters on O2iB3M ............................................................. 16
4.2.3. Remote video connection to O2iB3M ....................................................................................... 18
4.2.4. Additional settings through connection to the Admin Page ...................................................... 20
5. Troubleshooting ........................................................................................................................................... 21
5.1. No power is applied ............................................................................................................................ 21

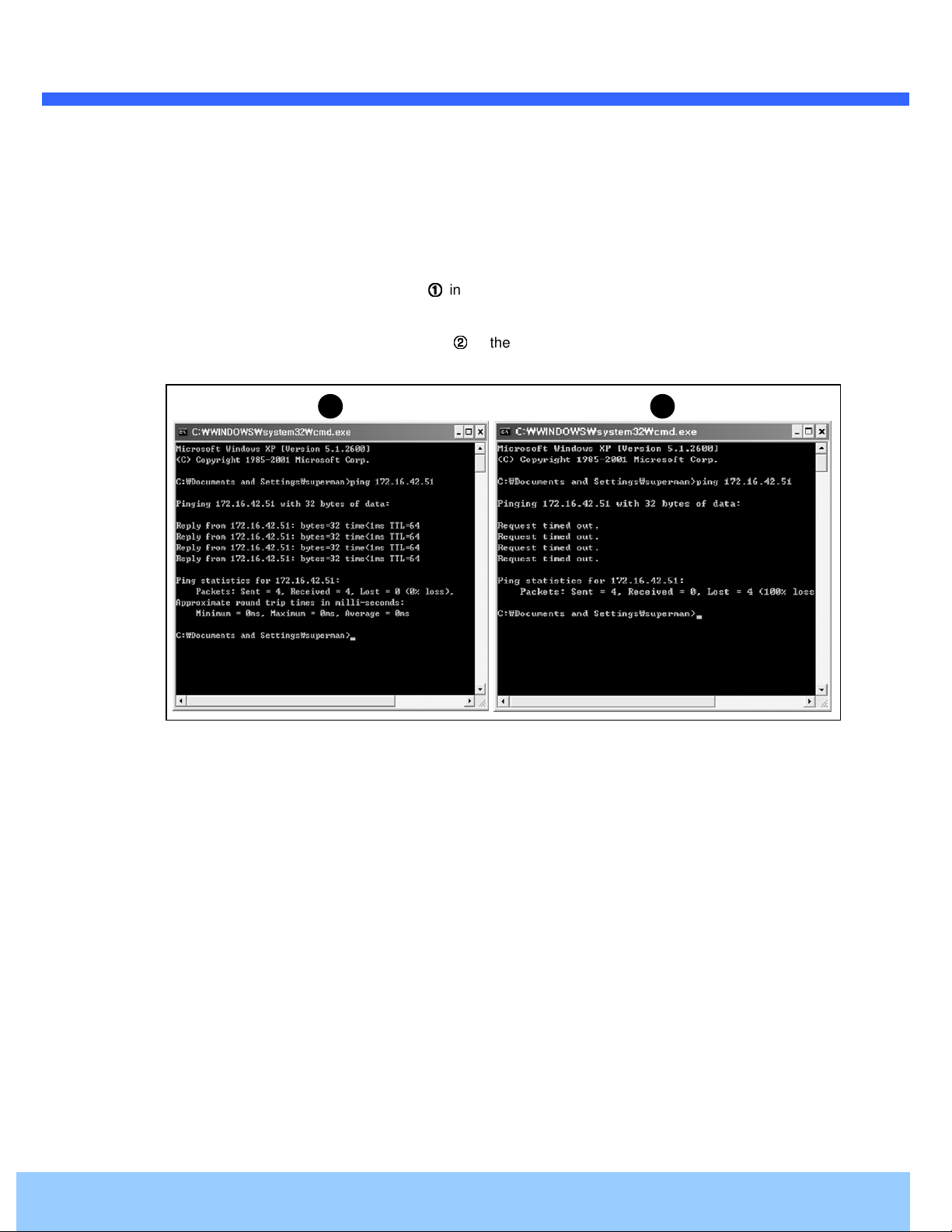

5.2. Cannot connect to the Video ............................................................................................................... 22

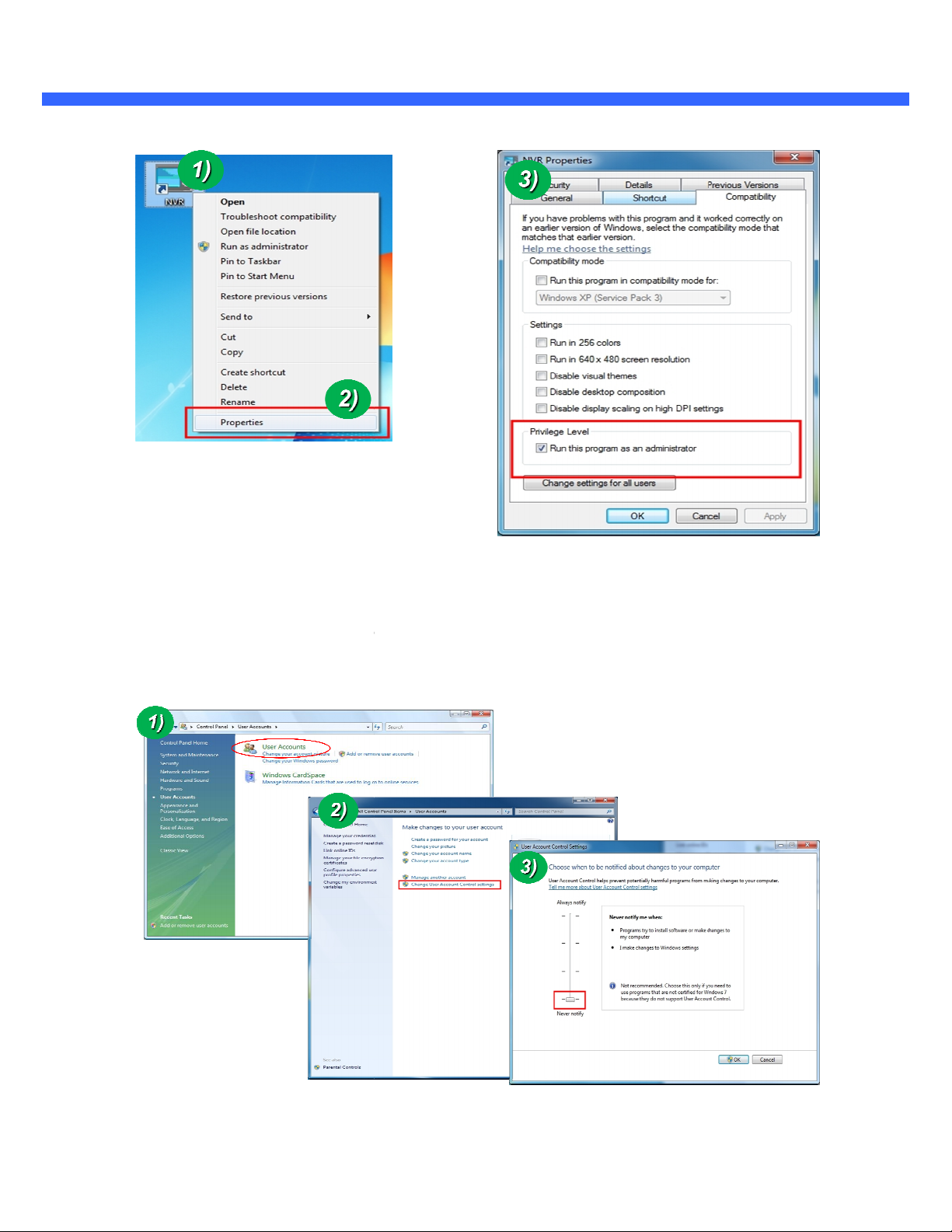

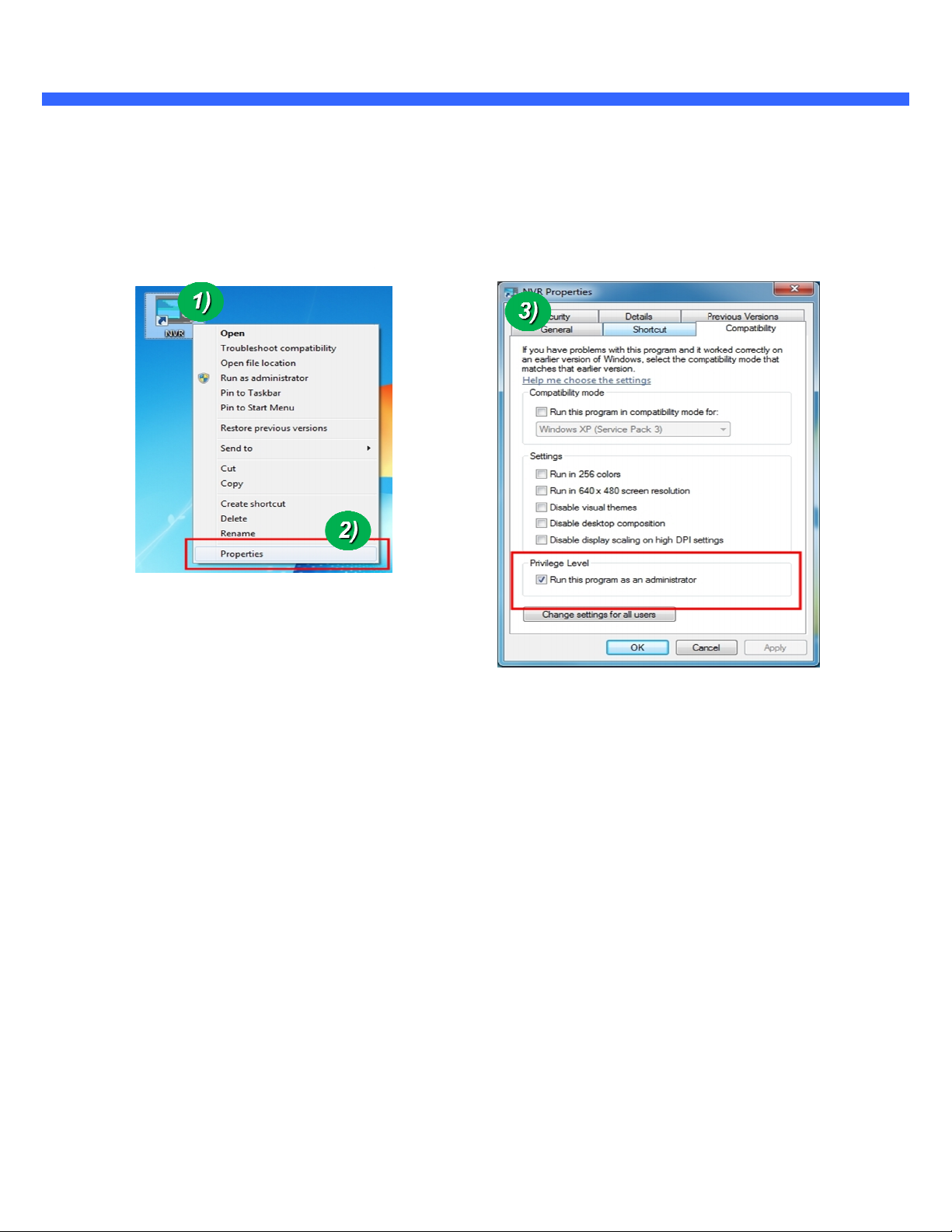

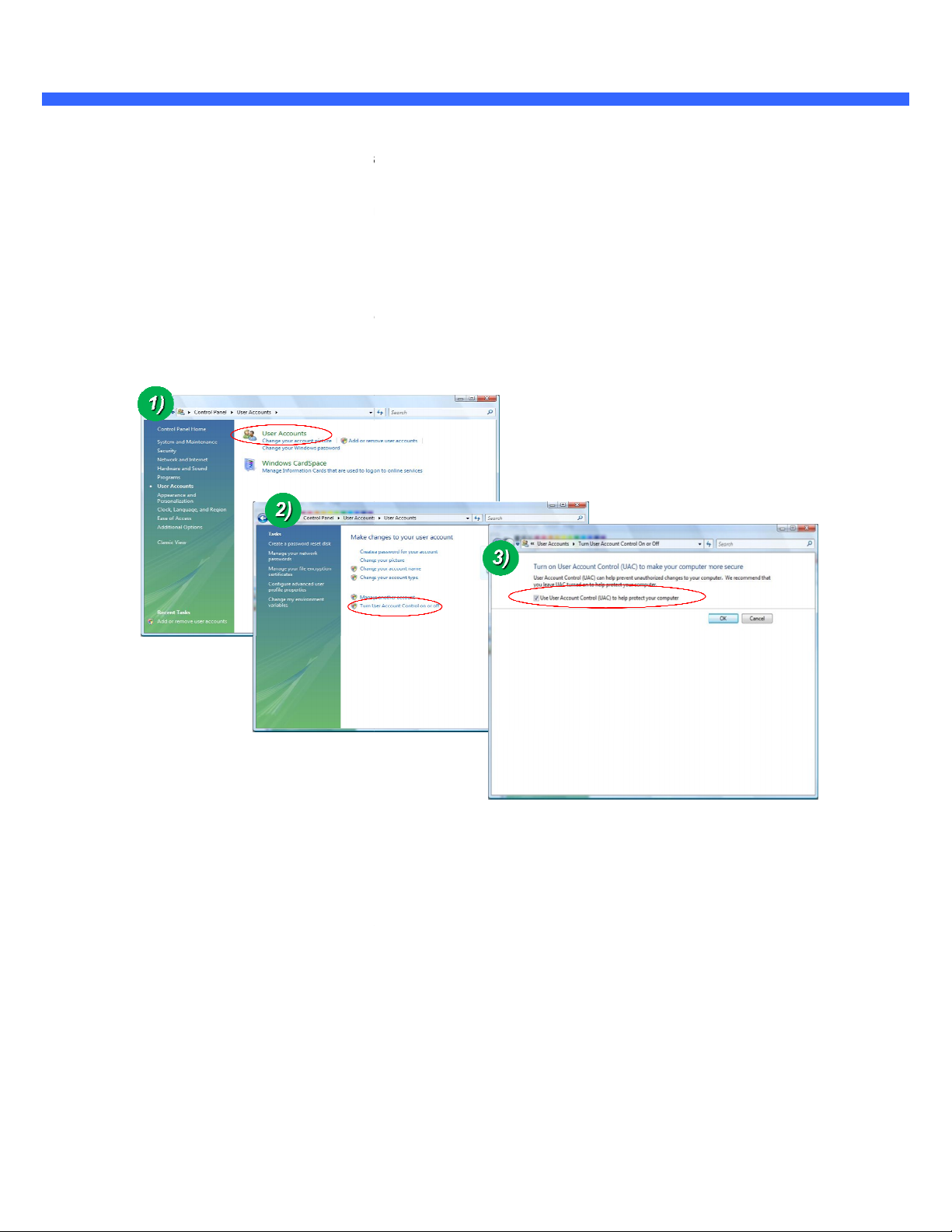

5.3. Windows Vista or Windows 7 .............................................................................................................. 23
5.4. Technical Assistance ........................................................................................................................... 26
Appendix A – Important Notice in Exchanging SD Card (Micro SD) ......................................................................... 27
Rev.1.0 (Feb. 2015)
4
OO22iiBB33MM UUsseerr’’ss GGuuiiddee
1. Introduction
1.1. Overview
The ONSIP O2iB3M is a state-of-the-art mega-pixel, dual-codec (H.264, MJPEG) IP/network camera built with
embedded software and hardware technology. It enables real time transmission of synchronized video of Full
HD resolution and audio data. Remote clients can connect to ONSIP O2iB3M for the real time video/audio data
through various client solutions running on PC, PDA or mobile phones. Real time 2-way communication is
available through bidirectional audio communication feature.
Intensifier IP® technology is the most optimized solution for indoor and outdoor surveillance in low-light
conditions by using superior CMOS sensor with low-light sensitivity ISP sensor. Intensifier IP® is especially
beneficial in poor lighting environments, efficiently reducing noise and ghosting while maintain a color image
without the use of IR LEDs.
Designed to be a stand-alone streaming audio & video transmission device, ONSIP O2iB3M can be applied to
various application area such as video security, remote video monitoring, distance education, video conference
or internet broadcasting system.
IP66 compliant housing will extend the application area to harsh environments of wide temperature range.
Embedded PoE (Power over Ethernet, IEEE 802.3af) will enable the owner to reduce TCO (Total Cost of
Ownership) by reducing on-site wiring works for the installation.
Rev.1.0 (Feb. 2015)
5
OO22iiBB33MM UUsseerr’’ss GGuuiiddee
1.2. Specifications
Camera
Image sensor Progressive scan 1/3 inch CMOS 2M pixels
Full resolution 1,920 x 1,080 pixels (Full HD)
Sync System Internal
Lens 2.8 ~ 11mm Motorized Focus & Zoom
Day & Night AUTO, DAY, NIGHT
Sensitivity Intensifier Max – 0.0005 Lux
Back Light Compensation ON / OFF
White Balance ATW(2.000K ~ 10,000K) / MANUAL / PUSH
Exposure DC / ESC
WDR ON / OFF
3D-DNR 0 ~ 20
Intensifier AUTO ON (Max 128x) / OFF
Privacy Mask ON / OFF (10 Programmable Zones)
Motion Detection ON / OFF (4 Programmable Zones)
Digital Zoom 1x ~ 12x
Mirror H / V / Rotate
DEFOG ON / OFF
OSD BUILT IN
Video
Compression method Simultaneous Dual Codec (H.264 / MJPEG)
Resolution 1,920 x 1,080@30fps
Multi-Profile Streaming
Intelligent Bit-Rate Control VBR or CBR
PTZ Digital PTZ & Video crop
Image Setting Text overlay, Privacy mask, De-interlace filter
Motion detection 3 regions
Audio
- 5 simultaneous video profiles
- Select the codec type, resolution and frame rates for each profile.
Mono Upstream 32Kbps G.726 ADPCM, 64Kbps 16bit µ-law PCM ~ MIC/Line-in
Mono Downstream 64Kbps 16bit µ-law PCM ~ Line-out
Rev.1.0 (Feb. 2015)
6
OO22iiBB33MM UUsseerr’’ss GGuuiiddee
Network
- IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP
Network Protocol
Dynamic IP Speco DDNS (free of charge)
- RTP, RTSP, SDP, HTTP, SMTP, FTP, DHCP, UPnP
- NTP, DNS, DynDNS
Security
Streaming method
External Terminals
LAN 10/100BaseT LAN (auto MDIX)
Analog output 1 channel D1 CVBS output of the encoding video
Alarm input / output Alarm I/O (1 Sensor input & 1 Relay output)
Factory Reset Supported
Audio MIC/Line in, Line out
Power DC 12V input
Alternate Power
Standard PoE IEEE802.3af Supported
Alarm & Event
Intelligent Video Motion Detection
Alarm Triggers Motion Detection + Sensor Input
Alarm Events Video file upload(FTP), Still Image transmission(Email), Relay output
Alarm Buffer (Audio/Video) Configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)
Client Software
Speco NVR Windows XP/Vista/7 (free of charge)
Speco ONSIP Android™, iPhone®, iPad® (free of charge)
Miscellaneous
Operating Temperature -10°C ~ 50°C
Operation Humidity 8 ~ 80% RH
Power DC 12V, 0.6A
Dimensions(W x H x D) Ø99.9mm x 254.4mm
Weight 1.1kg
Casing AL, PC, Vandal resistant, IP66
Approvals FCC, RoHS
Package information Unit, CD, mounting screws
- User ID & Password protection, IP address filtering
- Digest Authentication, User Access Log
- RTSP streaming with proprietary format for control information
- standard RTSP streaming
- HTTP streaming
Rev.1.0 (Feb. 2015)
7
OO22iiBB33MM UUsseerr’’ss GGuuiiddee
1.3. Applications of O2iB3M
Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities,
military, etc.)
Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)
Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting
Weather and environmental observation
Rev.1.0 (Feb. 2015)
8
OO22iiBB33MM UUsseerr’’ss GGuuiiddee
contains followings :
O2iB3M
Screws (
type wrench
Software & User’s Guide
Quick installation guide
PC software to allocate an IP
address to the IP Camera
Remarks
PC software to view and record the
A/V streaming data transmitted from
(Simultaneous support of up to 64
2. Product Description
2.1. Contents
The product package
Contents
O2iB3M
Accessories
CD
Reference Guide
2.2. Product Preview
O2iB3M
L-
Description
main unit
2 type)
(2 type), CVBS Cable
, Guide pattern
ONSIP Installer VMS Software
(Speco NVR)
Camera Unit
IP camera.
IP cameras@D1)
