2
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION:
CAUTION
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended.to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
3
IMPORTANT SAFEGUARDS
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the unit is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and usage instructions should be followed.
5. CLEANING
Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Clean only with a dry cloth.
6. ATTACHMENTS
The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.
7. WATER AND MOISTURE
Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool.
8. ACCESSORIES
Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious
damage to the unit. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combination to overturn.
9. VENTILATION
Slots and openings at the rear cabinet and bottom are provided for ventilation, these are to ensure reliable operation of the unit,
and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by
placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat
source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
10. POWER SOURCE
This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of
power supply to your home, consult your appliance dealer or local power company.
11. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
12. LIGHTNING
To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line
surges.
13. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or
where it can fall onto or against such power lines or circuits. When installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits, as contact with them might be fatal.
14. OVERLOADING
Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
15. OBJECT AND LIQUID ENTRY
Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could
result in fire or electric shock. Never spill or spray any type of liquid into the unit.
16. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
17. CONNECTING
When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure
to do so may cause a product damage. Read the owner's manual of the other equipment carefully and follow the instructions
when making any connections.
18. LCD
Do not press on or jolt the LCD panel. Doing so may cause the LCD panel glass to break and injury may occur. Should the LCD
panel be broken and liquid leaks out, do not inhale or swallow it. Doing so may cause poisoning. If you have got it into your
mouth, wash it out and consult your doctor. If your hands or clothes have touched it, wipe them with alcohol and a cleaning cloth
and then wash them well.
Important Information
4
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
Safety Precautions
This device complies with Part 15 FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including interference that may
cause undesired operation
5
Warning…………………………………………………………………………………………………… 2
Important Information……………… …………………………………………… … …………………… 3
Safety Precautions……………………………………………………………………………………….. 4
Table of Contents………………………………………………………………………………………… 5
Components………………………………………………………….. ……………… … …… …… … …. 5
Feature…………………………………………………………… …… …… … …… …… …… … …… …. 6
Exploring Your New Monitor……………………………………………………………………………..
7
Backside Connections…….………………………………………………………………………….…. 8
Setup your Monitor………………………………………………………………………………………. 9
Remote Controller………………………………………………………………………………………..10
Video/HDMI Setting……………………………………………………………………………….………15
VGA Setting………………………………………………………………………………………………. .16
Audio Setting……………………………………………………………………………………………… .17
PIP Setting…………………………………………………………………………………………….….. .18
System Setting…………………………………………………………………………………………… .19
Troubleshooting………………………………………………………………… …… …… …… … …..….
.20
Applicable Timing……………………………………………………………………………..…………...21

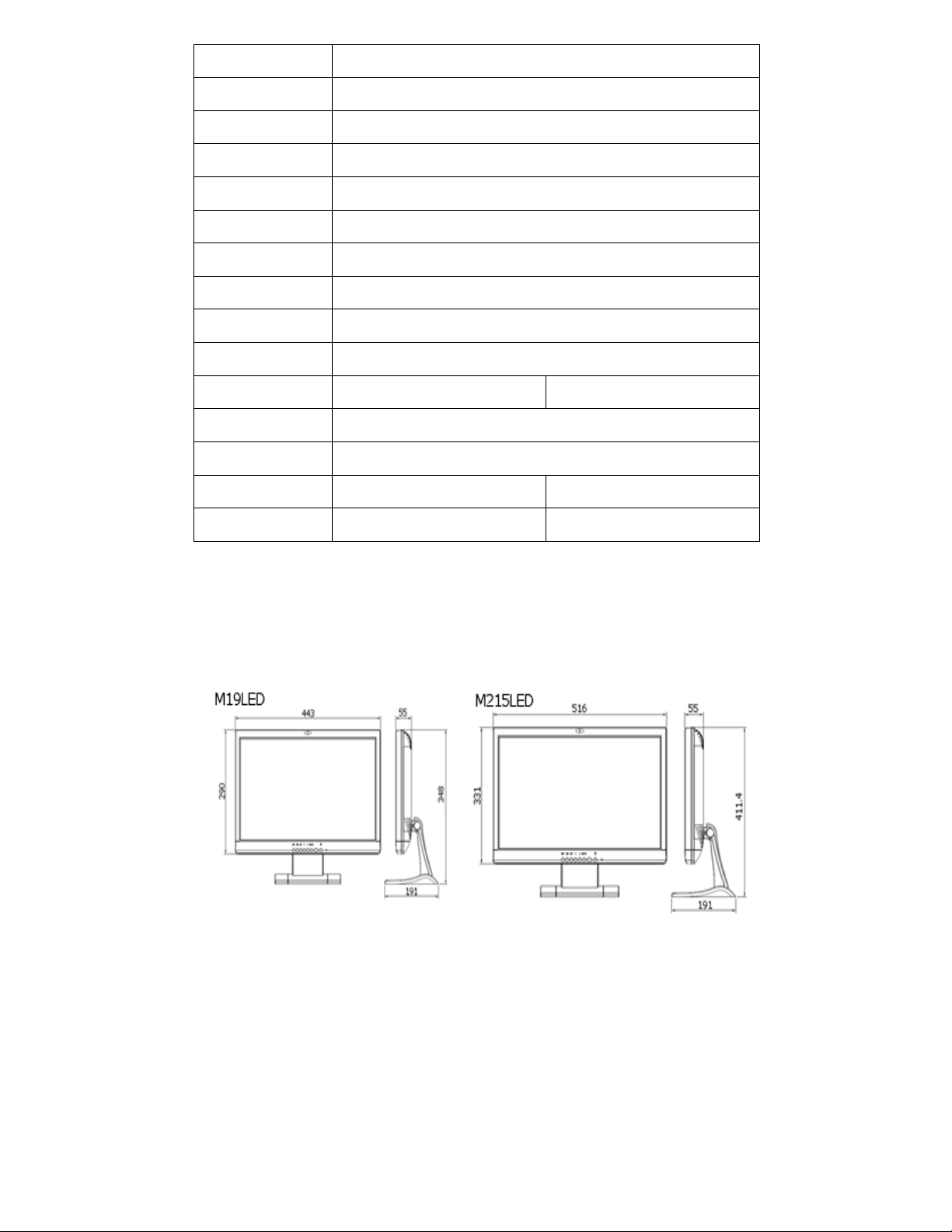

LCD Color Monitor Specifications………………………………………………………………….……
.22
Components
A. LCD Color Monitor x1
B. Accessories
I. Power cord x1
II. User Manual x1
C. VGA cord x1
D. PC audio cord x1
E. Adapter x1
F. Remote controller x1
*VGA cord (pin4 and pin11 N/A)
Table of Contents
6
1. Professional TFT LCD for surveillance.
2. Compatible with VGA(640 x 480), SVGA(800 x 600),XGA(1024 x 768), SXGA(1280 x 1024)
resolution, FULL HD (1920x1080)
3. All plastic case.
4. Video input HDMI x 1 / BNC x 1 / VGA x 1.
5. Video output BNC x 1.
6. Audio input RCA x 2 / phone jack x 1. Audio speaker x 2.
7. Picture-In-Picture feature that allow multi-picture display.
8. High brightness level and contrast ration with super wide viewing angle.
9. Built-in 3D comb filter and 3D de-interlace for crispy picture performance.
10. Fast response time and refresh rate without time lagging.
11. Provides 6500°K and 9300°K color temperature selection for user's preference.
12. Video Inputs support NTSC / PAL standards.
13. Video looping Output supports 75ohm auto termination.
14. VESA standards (100mm x 100mm) bracket.
15. Light detection sensor to save energy.
Feature
7
You can operate your monitor by using the buttons on the front panel. The side panels provide the
inputs to connect other equipment to your monitor.
Front Panel
1
Menu button
2
Menu return button and exit
3
Menu enter button
4
Menu item down button
5
Menu item up button
6
Video source select button
7
IR receiver
8
Power button
9
Light sensor
Back Side
Exploring Your New Monitor
8
Illustration：
1. Power in :DC 12V input
2. HDMI: HDMI input(1080p)
3. VGA: VGA input (VGA cord pin4 and pin11 N/A)
4. RS485 (Disabled)
5. PC AUDIO IN: PC audio input
6. AUDIO IN: Audio input. RCA jack.
7. VIDEO IN: Camera or DVR source input
VIDEO OUT: Video looping output
Backside Connections
9
MENU: OSD menu ON / OFF control.(EXIT Item)
RETURN: Return to last page
ENTER: Auto-optimize displaying picture under PC mode.
Enter: This “ Auto” Button can be either “Enter” function in OSD Menu)
ADJUST: Increase or decrease the value on OSD menu.
Up: Increase value or turn ON / OFF function.
Down: Decrease value or turn ON / OFF function
SOURCE: Select input signal from HDMI / AV1 or VGA (PC).
POWER: Monitor power ON / OFF. At OFF mode, monitor will be at standby status.
Green Light: ON Mode
Red Light: OFF Mode
Setup your Monitor
10
Remote Controller
11
Key
Define
LCD power on / off
RS485 menu setup
LCD / DVR / CAM OSD item select up/down/left/right key
DVR playback status
LCD / DVR / CAM control mode switch
Call desire LCD / DVR / CAM Device Menu
Displays the LCD source information
LCD volume setup
LCD audio soundless
VGA mode auto adjust
Quit desire DVR OSD setup or number wrong typing
LCD
Direct to select the AV1 source input
12
For SDI switch depends on model
Direct to select the VGA source input
For HDMI / DVI switch depends on model
Jump to Picture in picture of screen display
Picture in picture of screen source select
Picture in picture of screen source exchange
Picture ratio under / full / over select
DVR (Disabled)
Channel sequence
Quad screen select
9 split screen select
16 channel select
Jump to playback mode
13

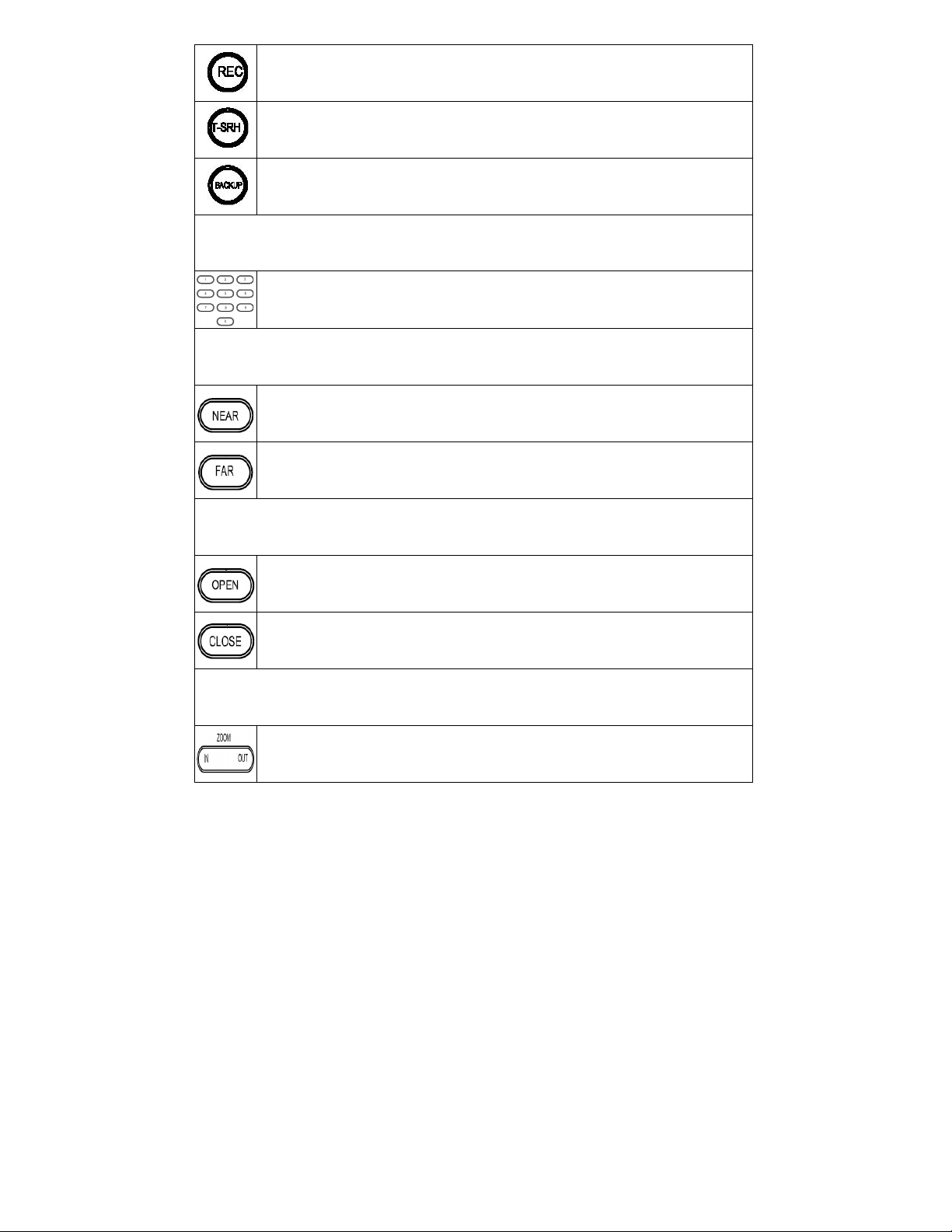

Manual record
Jump to time search of playback mode
Jump to backup mode
CAM (Disabled)
PTZ dome ID select / Set;Call;Clear preset
DVR full channel select
FOCUS
PTZ dome’s Lens in manual focus
PTZ dome’s Lens in manual focus
IRIS
PTZ dome’s Lens in manual Iris
PTZ dome’s Lens in manual Iris
ZOOM
Control PTZ dome’s Lens zoom in and out
14
PRESET
Set a preset point
Call a preset point
Clear a preset point
15
Brightness: Adjusts the overall picture shade and brightness.
Contrast: Permits adjustment of contrast between light and dark areas of the
picture.
Saturation: Adjusts the intensity of the color.
Hue: To determine the lightness and colorfulness of the picture.
Sharpness: Sets the desired sharpening enhancement to the picture.
Dynamic Contrast: To determine the luminosity of motions of an object
Image H Position: Allows adjustment for horizontal position.
Image V Position: Allows adjustment for vertical position.
Default: Settings return to factory default.
Video/HDMI Setting
16
Brightness: Adjusts the overall picture shade and brightness.
Contrast: Permits adjustment of contrast between light and dark areas of the
picture.
Auto Adjustment: Picture adjustment automatic correction, like clock and phase.
Image H Position: Allows adjustment for horizontal position.
Image V Position: Allows adjustment for vertical position.
Phase : Is used to adjust best picture quality. It adjusts the sampling phase
across one pixel time. When the phase is not adjusted properly, the
picture will be unclear. Therefore this value should be carefully
adjusted.
Note: improper adjustment will cause image failure.
Clock / Line : Is used to adjust best picture quality. It adjusts the numbers of the
pixel clock across one line time. Therefore it can affect the picture
position and size.
Note: improper adjustment will caused image failure.
Default:
VGA Setting
17
Volume: Controls built-in speakers’ output volume.
Balance: Adjusts the softness or loudness of notes in the sound.
Mute: Disables the audio function. To enable, press MUTE again.
Audio Setting
18
PIP Mode: This function allows the PIP mode to be selected.
PIP Source: This function allows the source of the PIP to be selected.
PIP Swap: This function allows the position of PIP to be exchanged.
POP Zoom: Only Operate under POP (Side By Side) mode.
User H-Position: Allows adjustment for horizontal position.
User V-Position: Allows adjustment for vertical position.
PIP Setting
19
Aspect Ratio: To change the display mode.
Auto Source Detection: The monitor will auto detect the video source when power ON.
Color Temperature: Selects color temperature of either 6500°K or 9300°K.
Key Lock: The Key-Lock function is provided to prevent tempering.
To unlock, press and .
Channel Display: This function is to allow the channel title to be displayed on the
monitor.
Language: English.
Power On Control: This function is to assign a specific video signal when power ON.
Light Sensor: LCD monitor brightness will vary with the environment brightness.
Light sensor on / off, power on level 50~80, power off level 0~30
Monitor ID: Monitor group ID set for management and remote controller
button key lock. Back to live, press remote button “0” to active lock
function.
System Setting
20
Troubleshooting
Before calling a service technician, please check the following table for a possible
cause of the problem and some solution.
Symptom Solution
Monitor will not turn on ● Make sure the power cord is plugged in, then press
POWER button
No picture, no sound ● Check cable connections.
No sound, picture OK ● Check audio Cable Connections
● Try pressing Volume up button in the Menu.
Poor color, sound OK ● Check cable connections
● Adjust Video set up menu.
Poor color or no color ● Adjust Color and / or TINT (NTSC only)
21
VGA Timing
There are a total of 11 timing modes that can be saved in memory by FIFO detecting architecture.
VGA Support Timing
Mode
Resolution
H Freq.
(kHz)
V Freq.
(Hz)
Pixel
clock
(MHz)
21.5”
VGA
640x480@60
31.469
59.940
25.175
ˇ
640x480@72
37.861
72.809
31.500
ˇ
640x480@75
37.500
75.000
31.500
ˇ
SVGA
800x600@60
37.879
60.317
40.000
ˇ
800x600@72
48.077
72.188
50.000
ˇ
800x600@75
46.875
75.000
49.500
ˇ
XGA
1024x768@60
48.363
60.004
65.000
ˇ
1024x768@70
56.576
70.069
75.000
ˇ
1024x768@75
60.023
75.029
78.750
ˇ
SXGA
1280x1024@60
63.980
60.000
108.000
ˇ
1280x1024@75
79.976
75.025
135.000
ˇ
Full HD
1920x1080@60
67.500
60.00
148.500
ˇ
HDMI Timing
Format
Resolution
Type
Vertical frequency
480i/p
720x480
SD
60Hz
720p
1280x720
HD
60Hz
1080p
1920x1080
Full HD
60Hz
PC RGB Input
Power Supply
Environment
Input Signal
Analog RGB 0.7Vp-p
Input Impedance
75 Ohm ± 2%
Polarity
Positive, Negative
Amplitude
0 ~0.7 ± 0.05Vp
Multi-mode Supported
Horizontal Frequency: 30~80KHz
Vertical Frequency: 50~75Hz
Input Voltage
100~240VAC, 50/60Hz
Output Voltage
+12V DC,5A
Operation Condition
Temperature
0°C to 50°C / 32°F to 122°F
Relative Humidity
20% to 85%
Storage Condition
Temperature
-10°C to 60°C / 14°F to 140°F
Relative Humidity
5% to 85%
Applicable Timing
22
Model
M19LED
M21LED
Button Control
Power / OSD Control / Source
Display Resolution
1920 x 1080
1920 x 1080
Supported Resolutions
640 x 480 @ 60/72/75
800 x 600 @ 56/60/72/75
1024 x 768 @ 60/70/75
1280 x 1024 @ 60/75
1280 x 720 @ 60
1360X768 @ 60
1440 x 900 @ 60
1680X1050 @ 60
1920 x 1080 @ 60
Active Area
409.8 (H) x 230.4 (V)mm
476.64(H) x 268.11(V)mm
LCD Panel Type
TN mode, Normally white
Dot Pitch
0.24825(H) x 0.24825(V)mm
Display Ratio
16:9
Display Color
16.7M colors
Brightness (Central)
250cd/m2
Contrast Ratio
1000:1
Viewing Angle
Left 85° / Right 85° / Up 80° / Down 80° CR>10
Response Time
5ms
Input Voltage
DC12V
Input Signal
1Vp-p composite video
LCD Color Monitor Specification
23
Input Impedance
75 ohm
Output Signal
1.0Vp-p±0.2Vp-p composite video ( Auto Termination)
Scanning system
NTSC:525 lines, 60 fields / sec ; PAL:625 lines, 50 fields / sec
Video Input / Output
HDMIx1, Video In x 1 (BNC), Video Out x 1 (BNC), VGA x 1,
Audio Input
RCA jack x 2(L/R), PC-Audio In x 1
RS485 jack
Disabled
Protocol
Disabled
Control device
Disabled
Control ID
Disabled
Speaker
1W + 1W
Power Consumption
20W (MAX)
25W (MAX)
Operating Temperature
-10℃ ~ 50℃ (14℉ ~ 122℉)
Storage Temperature
-20℃ ~ 60℃ (-4℉ ~ 140℉)
Dimension
443(W) x 348(H) x 60.5(D)mm
516(W) x 411.4(H) x 55(D)mm
Weight
N.W./G.W.: 3KG / 4.5KG
N.W./G.W.: 3.6KG / 5.3KG
(1) The brightness specification is from panel spec.
Design and Specifications are subject to change without notice.
(2) It is not guaranteed for all the specified range.
*VESA mount M4x10L
Dimensions
Loading...
