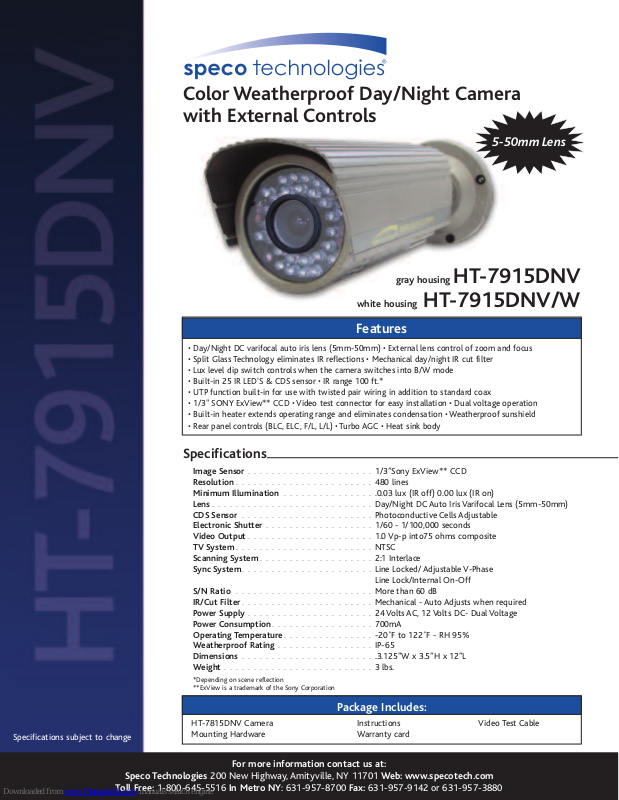

Color Weatherproof Day/Night Camera
with External Controls
5-50mm Lens
gray housing HT-7915DNV
white housing HT-7915DNV/W
Features
• Day/Night DC varifocal auto iris lens (5mm-50mm) • External lens control of zoom and focus
• Split Glass Technology eliminates IR reflections • Mechanical day/night IR cut filter
• Lux level dip switch controls when the camera switches into B/W mode
• Built-in 25 IR LED'S & CDS sensor • IR range 100 ft.*
• UTP function built-in for use with twisted pair wiring in addition to standard coax
• 1/3" SONY ExView** CCD • Video test connector for easy installation • Dual voltage operation
• Built-in heater extends operating range and eliminates condensation • Weatherproof sunshield
• Rear panel controls (BLC, ELC, F/L, L/L) • Turbo AGC • Heat sink body
Specifications subject to change
Specifications
Image Sensor . . . . . . . . . . . . . . . . . . . . . 1/3”Sony ExView** CCD
Resolution . . . . . . . . . . . . . . . . . . . . . . . 480 lines
Minimum Illumination . . . . . . . . . . . . . . . .0.03 lux (IR off) 0.00 lux (IR on)
Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . Day/Night DC Auto Iris Varifocal Lens (5mm-50mm)
CDS Sensor . . . . . . . . . . . . . . . . . . . . . . Photoconductive Cells Adjustable
Electronic Shutter . . . . . . . . . . . . . . . . . . 1/60 - 1/100,000 seconds
Video Output . . . . . . . . . . . . . . . . . . . . . 1.0 Vp-p into75 ohms composite
TV System. . . . . . . . . . . . . . . . . . . . . . . NTSC
Scanning System . . . . . . . . . . . . . . . . . . . 2:1 Interlace
Sync System. . . . . . . . . . . . . . . . . . . . . . Line Locked/ Adjustable V-Phase
Line Lock/Internal On-Off
S/N Ratio . . . . . . . . . . . . . . . . . . . . . . . More than 60 dB
IR/Cut Filter . . . . . . . . . . . . . . . . . . . . . . Mechanical - Auto Adjusts when required
P
o
wer Supply
er C
w
o
P
Operating
eather
W
Dimensions . . . . . . . . . . . . . . . . . . . . . . .3.125”W x 3.5”H x 12”L
eight
W
*Depending on scene r
**ExView is a trademark of the Sony Corporation
HT-7815DNV Camera Instructions Video Test Cable
Mounting Hardware Warranty card
. . . . . . . . . . . . . . . . . . . . .
onsumption
emper
T
proof Rating
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
e
atur
. . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
lection
ef
Package Includes:
24
Volts AC, 12 Volts DC- Dual Voltage
700mA
-20˚F to 122˚F - RH 95%
IP-65
3 lbs.
Speco Technologies
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880
ormation contact us at:
e inf
or mor
F
200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Dual Voltage Inputs
Composite Video and
UTP Outputs
HT-7915DNV
Color Weatherproof
Day/Night Camera with
External Controls
HT-7915DNV Diagram
Mechanical IR Cut
Filter Technology
CDS Sensor Activities
IR LEDs as Required
Heaters Extend Operating Range
While Eliminating Condensation
Split Glass
Technology
Eliminates
IR Reflection
BLC (Back Light Compensation)
ALC (Auto Light Control)
Test Monitor
Output
Day/Night Switchover Controls
(Back View)
F/L (Flickerless)
L/L (Line Lock)
External Focus
Adjustments
External Varifocal
Adjustments
V-Phase Adjustment
DC Auto Iris Adjustment
5-50mm Auto Iris
Varifocal Lens
IR LEDs For Perfect Long Range
Day/Night Oper
ation
with
Removable
sunshield
ies
g
hnolo
ec
T
Speco
Toll Free:
1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880
F
200 Ne
or mor
w H
ormation contact us at:
e inf
Amityville, NY 11701
,
y
a
ighw
W
eb:
www
.specotec
h.com
