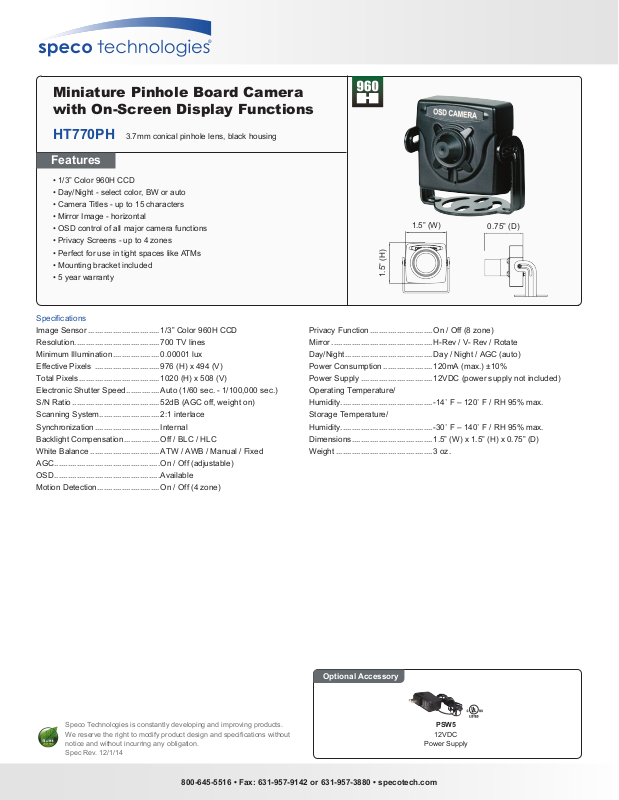

Speco HT770PH Specsheet

Miniature Pinhole Board Camera
with On-Screen Display Functions

HT770PH 3.7mm conical pinhole lens, black housing

Features

• 1/3” Color 960H CCD

• Day/Night - select color, BW or auto

• Camera Titles - up to 15 characters

• Mirror Image - horizontal

• OSD control of all major camera functions

• Privacy Screens - up to 4 zones

• Perfect for use in tight spaces like ATMs

• Mounting bracket included

• 5 year warranty

Specications

Image Sensor ................................1/3” Color 960H CCD

Resolution......................................700 TV lines

Minimum Illumination .....................0.00001 lux

Effective Pixels .............................976 (H) x 494 (V)

Total Pixels .................................... 1020 (H) x 508 (V)

Electronic Shutter Speed ...............Auto (1/60 sec. - 1/100,000 sec.)

S/N Ratio .......................................52dB (AGC off, weight on)

Scanning System...........................2:1 interlace

Synchronization ............................. Internal

Backlight Compensation ................Off / BLC / HLC

White Balance ...............................ATW / AWB / Manual / Fixed

AGC ...............................................On / Off (adjustable)

OSD ...............................................Available

Motion Detection............................On / Off (4 zone)

1.5” (W)

1.5” (H)

Privacy Function ............................ On / Off (8 zone)

Mirror .............................................H-Rev / V- Rev / Rotate

Day/Night .......................................Day / Night / AGC (auto)

Power Consumption ......................120mA (max.) ±10%

Power Supply ................................12VDC (power supply not included)

Operating Temperature/

Humidity.........................................-14˚ F ‒ 120˚ F / RH 95% max.

Storage Temperature/

Humidity.........................................-30˚ F ‒ 140˚ F / RH 95% max.

Dimensions ....................................1.5” (W) x 1.5” (H) x 0.75” (D)

Weight ...........................................3 oz.

0.75” (D)

Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specications without
notice and without incurring any obligation.
Spec Rev. 12/1/14

800-645-5516 • Fax: [phone] or 631-957-3880 • specotech.com

Optional Accessory

PSW5

12VDC

Power Supply
