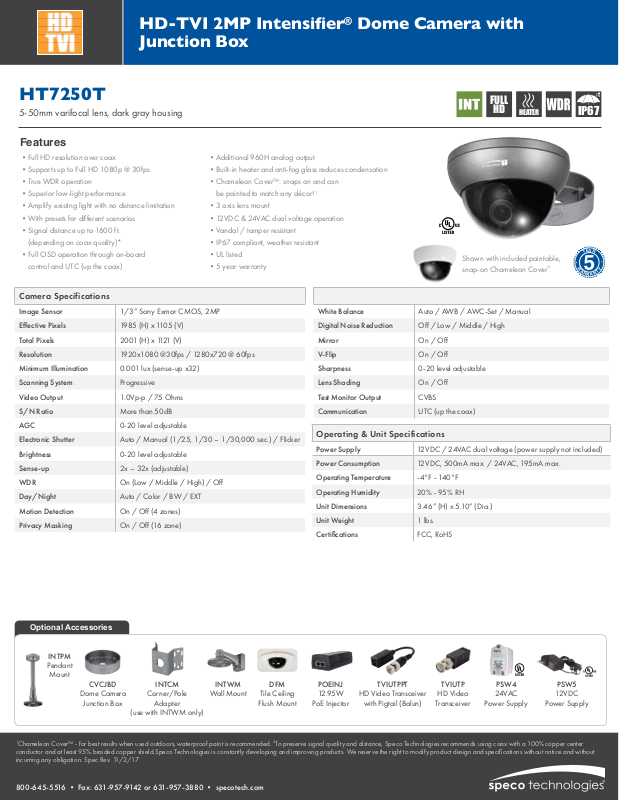

Speco HT7250T Specsheet
HD-TVI 2MP Intensier® Dome Camera with
IP6
7
HEATER
FULL
HD
Junction Box
HT7250T
5-50mm varifocal lens, dark gray housing
Features
•Full HD resolution over coax
•Supports up to Full HD 1080p @ 30fps
•True WDR operation
•Superior low-light performance
•Amplify existing light with no distance limitation
•With presets for different scenarios
•Signal distance up to 1600 ft.
(depending on coax quality)*
•Full OSD operation through on-board
control and UTC (up the coax)
Camera Specifications
Image Sensor 1/3” Sony Exmor CMOS, 2MP
Effective Pixels 1985 (H) x 1105 (V)
Total Pixels 2001 (H) x 1121 (V)
Resolution 1920x1080 @30fps / 1280x720 @ 60fps
Minimum Illumination 0.001 lux (sense-up x32)
Scanning System Progressive
Video Output 1.0Vp-p / 75 Ohms
S/N Ratio More than 50dB
AGC 0-20 level adjustable
Electronic Shutter Auto / Manual (1/25, 1/30 – 1/30,000 sec.) / Flicker
Brightness 0-20 level adjustable
Sense-up 2x – 32x (adjustable)
WDR On (Low / Middle / High) / Off
Day/Night Auto / Color / BW / EXT
Motion Detection On / Off (4 zones)
Privacy Masking On / Off (16 zone)
•Additional 960H analog output
•Built-in heater and anti-fog glass reduces condensation
•Chameleon Cover™: snaps on and can
be painted to match any décor!
•3 axis lens mount
•12VDC & 24VAC dual voltage operation
•Vandal / tamper resistant
•IP67 compliant, weather resistant
•UL listed
•5 year warranty
1
A
E
Shown with included paintable,
snap-on Chameleon Cover
™
Y
W
A
R
R
A
White Balance Auto / AWB / AWC-Set / Manual
Digital Noise Reduction Off / Low / Middle / High
Mirror On / Off
V-Flip On / Off
Sharpness 0-20 level adjustable
Lens Shading On / Off
Test Monitor Output CVBS
Communication UTC (up the coax)
Operating & Unit Specifications
Power Supply 12VDC / 24VAC dual voltage (power supply not included)
Power Consumption 12VDC, 500mA max. / 24VAC, 195mA max.
Operating Temperature -4°F - 140°F
Operating Humidity 20% - 95% RH
Unit Dimensions 3.46” (H) x 5.10” (Dia.)
Unit Weight 1 lbs.
Certifications FCC, RoHS
R
Y
T
N
Optional Accessories
INTPM
Pendant
Mount
CVCJBD
Dome Camera
Junction Box
INTCM
Corner/Pole
Adapter
INTWM
Wall Mount
DFM
Tile Ceiling
Flush Mount
POEINJ
12.95W
PoE Injector
TVIUTPPT
HD Video Transceiver
with Pigtail (Balun)
TVIUTP
HD Video
Transceiver
PSW4
24VAC
Power Supply
PSW5
12VDC
Power Supply
(use with INTWM only)
1
Chameleon Cover™ - for best results when used outdoors, waterproof paint is recommended. 2To preserve signal quality and distance, Speco Technologies recommends using coax with a 100% copper center
conductor and at least 95% braided copper shield.Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without
incurring any obligation. Spec Rev. 11/2/17
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
