Speco HT7049IRVF, HT7048IRVF User Manual

INSTRUCTION
MANUAL

DNR Hood Day/Night

Weather-proof Camera

HT7048IRVF
HT7049IRVF

Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 6/9/10

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.

WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

☞Do NOT use power sources other than those specified.

This installation should be made by a qualified service person and
should conform to all local codes.

Precautions

Do not install the camera in
extreme temperature conditions.

Only use the camera under conditions
where temperatures are between

-10°C and +50°C. Be especially careful to provide
ventilation when operating under high
temperatures.

Never keep the camera pointed
directly at strong light.

Do not install the camera under
unstable lighting conditions.

Severe lighting change or flicker can
cause the camera to work improperly.

Do not drop the camera or subject
it to physical shocks.

Do not touch the front lens of the
camera.

This is one of the most important parts of the
camera. Be careful not to leave
fingerprints on the lens cover.

Do not expose the camera to
radioactivity.

It can cause malfunctions to occur.

* If the camera is exposed to

spotlight or object reflecting strong light, smear or blooming may occur.

* please check that the power satisfies the normal specification before

connecting the camera.

Severe lighting change or flicker can
cause the camera to work improperly.

NOTE

If exposed to radioactivity the CCD
will fail.

W-5 DNR Hood Day/Night Weather-proof Camera

DC Auto Iris Varifocal Lens(2.8mm-12mm) / IR LED Built-in 98pcs

■

HT7048IRVF

600TV Lines
DC Auto Iris Varifocal
Lens(2.8mm-12mm)
True Day/Night Capability
ICR-IR Cut Filter Removable
850nm IR LEDs * 98pcs(ø5)
Temperature Sensor/Heater

Front Glass Heater:

Heater with Thermic
Rays Built in Temperature
Sensor Immediate Removal
of Condensation

SPECIFICATIONS

MODEL

Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
SSDR
BLC
Day & Night
Gain Control
White Balance
SENS-UP
Motion Detection
Privacy Masking
SSNR III (Digital Noise Reduction)
Digital Zoom
DIS (Digital Image Stabilizadion)
Sharpness
Filp / Mirror
Line Heater
Power Supply

Power Consumption

Lens
IR Distance
Operational Temp.
Storage Temp.
Dimension
Weight

HT7048IRVF

1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
600TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO / EXT
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
Upper 50° OFF / Uder 50° ON
DC 12V / AC24V(Dual Voltage)
DC 12V 220mA(CDS OFF,Heater OFF) / 300mA(CDS OFF,Heater ON) , 1000mA(CDS ON,Heater OFF) /1100mA(CDS ON,Heater ON)
Heater ON Adj:350~1110mA,Heater OFF Adj:250~1000mA
AC 24V 130mA(CDS OFF,Heater OFF),150mA(CDS OFF,Heater ON) , 480mA(CDS ON,Heater OFF),500mA(CDS ON,Heater ON)
Heater ON Adj:170~500mA,Heater OFF Adj:150~480mA
DC Auto Iris Varifocal Lens(2.8mm-12 mm)
40m

-10 ~ +50 Deg C. RH 95% Max.

-20 ~ +60 Deg C. RH 95% Max.
270mm(W) * 170mm(H) * 265mm(D)
2700g

W-5 DNR Hood Day/Night Weather-proof Camera

DC Auto Iris Varifocal Lens(6mm-50mm) / IR LED Built-in 30pcs

■

HT7049IRVF

600TV Lines
DC Auto Iris Varifocal
Lens(6mm-50mm)
True Day/Night Capability
ICR-IR Cut Filter Removable
850nm IR LEDs * 30pcs(ø10)
Temperature Sensor/Heater

Front Glass Heater:

Heater with Thermic
Rays Built in Temperature
Sensor Immediate Removal
of Condensation

SPECIFICATIONS

MODEL

Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
SSDR
BLC
Day & Night
Gain Control
White Balance
SENS-UP
Motion Detection
Privacy Masking
SSNR III (Digital Noise Reduction)
Digital Zoom
DIS (Digital Image Stabilizadion)
Sharpness
Filp / Mirror
Line Heater
Power Supply

Power Consumption

Lens
IR Distance
Operational Temp.
Storage Temp.
Dimension
Weight

HT7049IRVF

1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
600TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO / EXT
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
Upper 50° OFF / Uder 50° ON
DC 12V / AC24V(Dual Voltage)
DC 12V 220mA(CDS OFF,Heater OFF) / 300mA(CDS OFF,Heater ON) , 1000mA(CDS ON,Heater OFF) /1100mA(CDS ON,Heater ON)
Heater ON Adj:350~1110mA,Heater OFF Adj:250~1000mA
AC 24V 130mA(CDS OFF,Heater OFF),150mA(CDS OFF,Heater ON) , 480mA(CDS ON,Heater OFF),500mA(CDS ON,Heater ON)
Heater ON Adj:170~500mA,Heater OFF Adj:150~480mA
DC Auto Iris Varifocal Lens(6mm-50mm)
50m

-10 ~ +50 Deg C. RH 95% Max.

-20 ~ +60 Deg C. RH 95% Max.
270mm(W) * 170mm(H) * 265mm(D)
2700g

Contents

◑

Contents

◑

Safety Instructions

◑

General Features

◑

OSD Control Button

◑

Camera Menu Set Up

1. Menu Set Up

2. Lens Setting

3. Exposure Setting

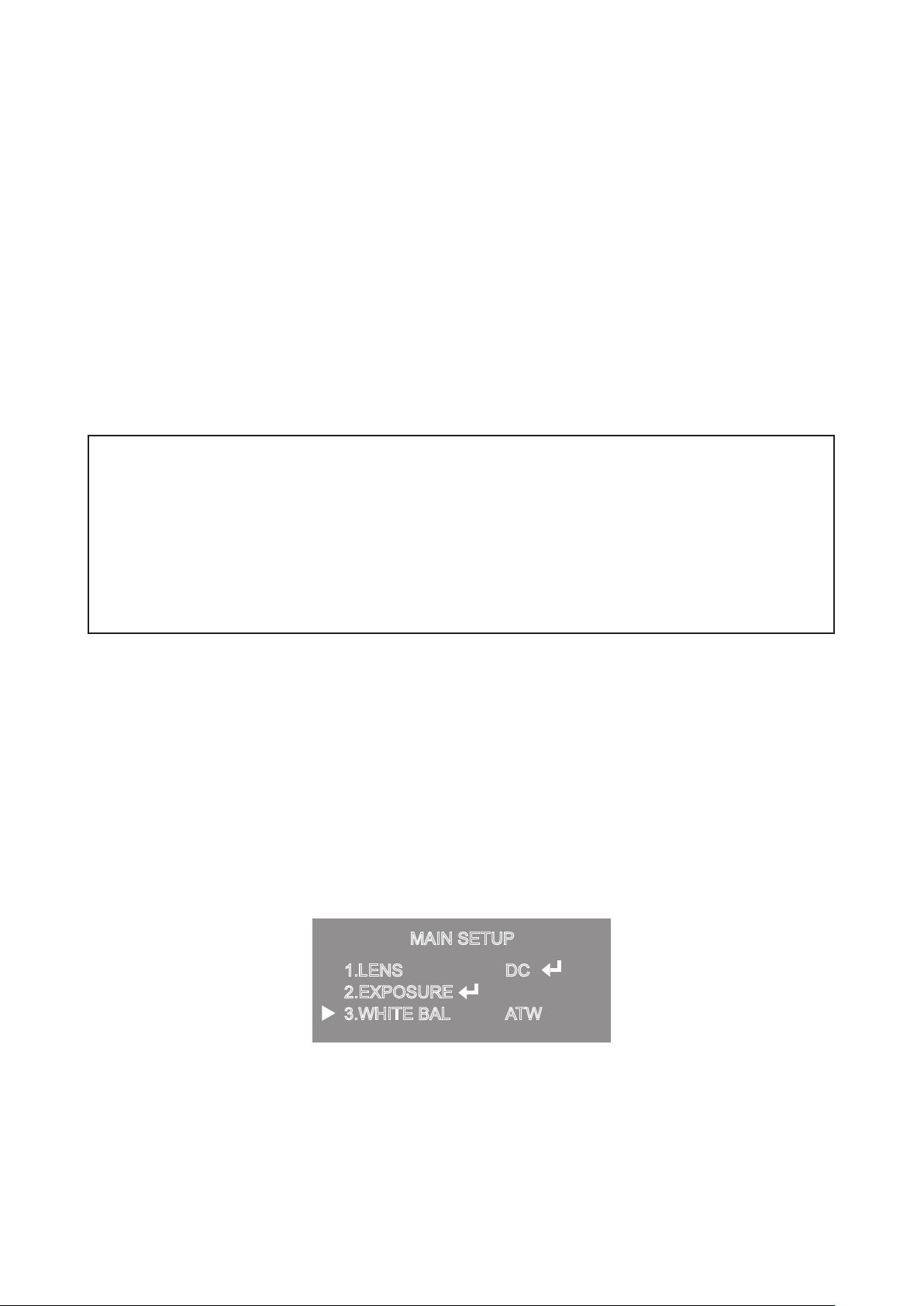

4. White Balance Setting

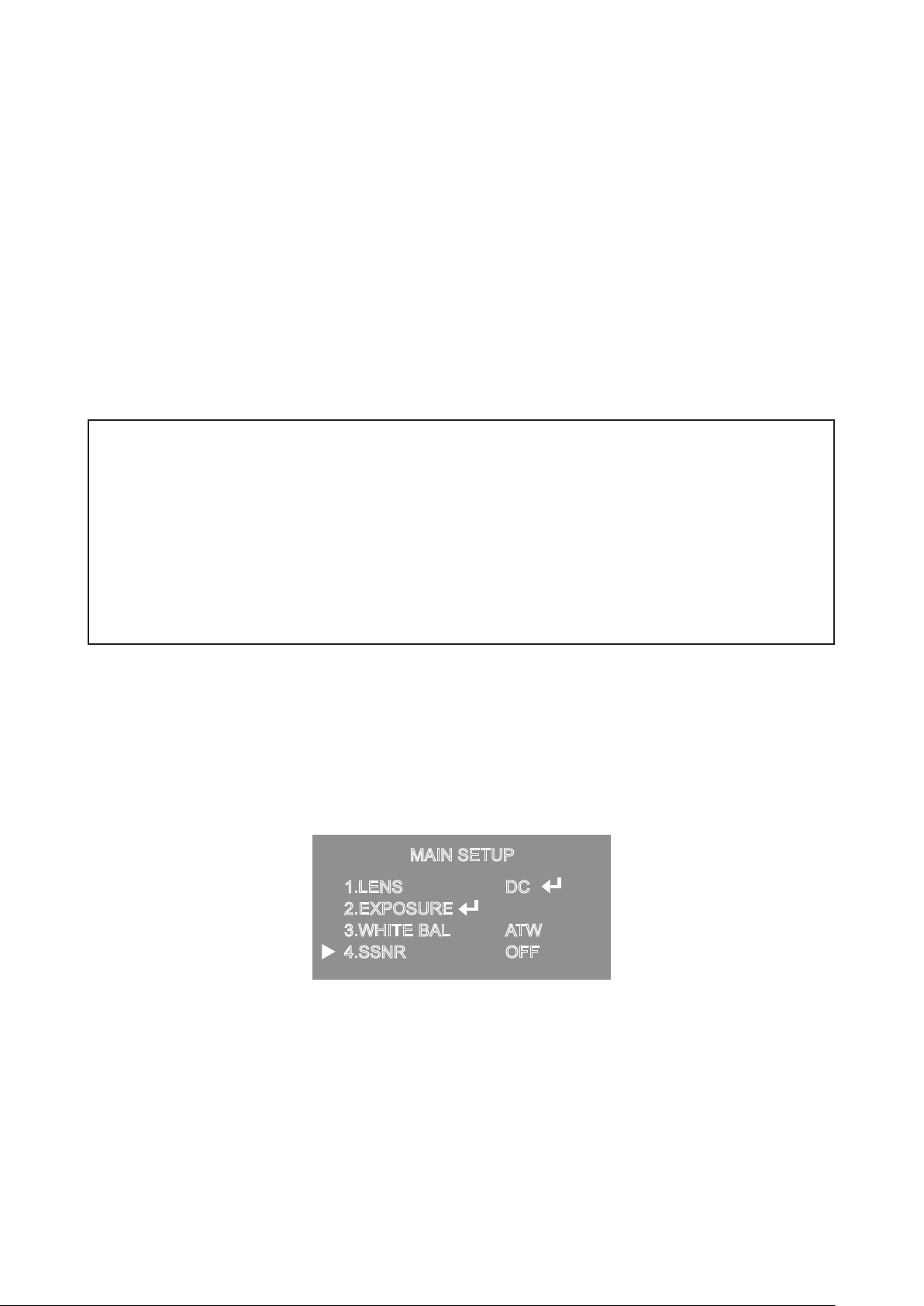

5. SSNR Setting

6. Backlight Setting

1

2

3

4

5

5

5

6

7

8

9

7. DNR3 Setting

8. Day/Night Setting

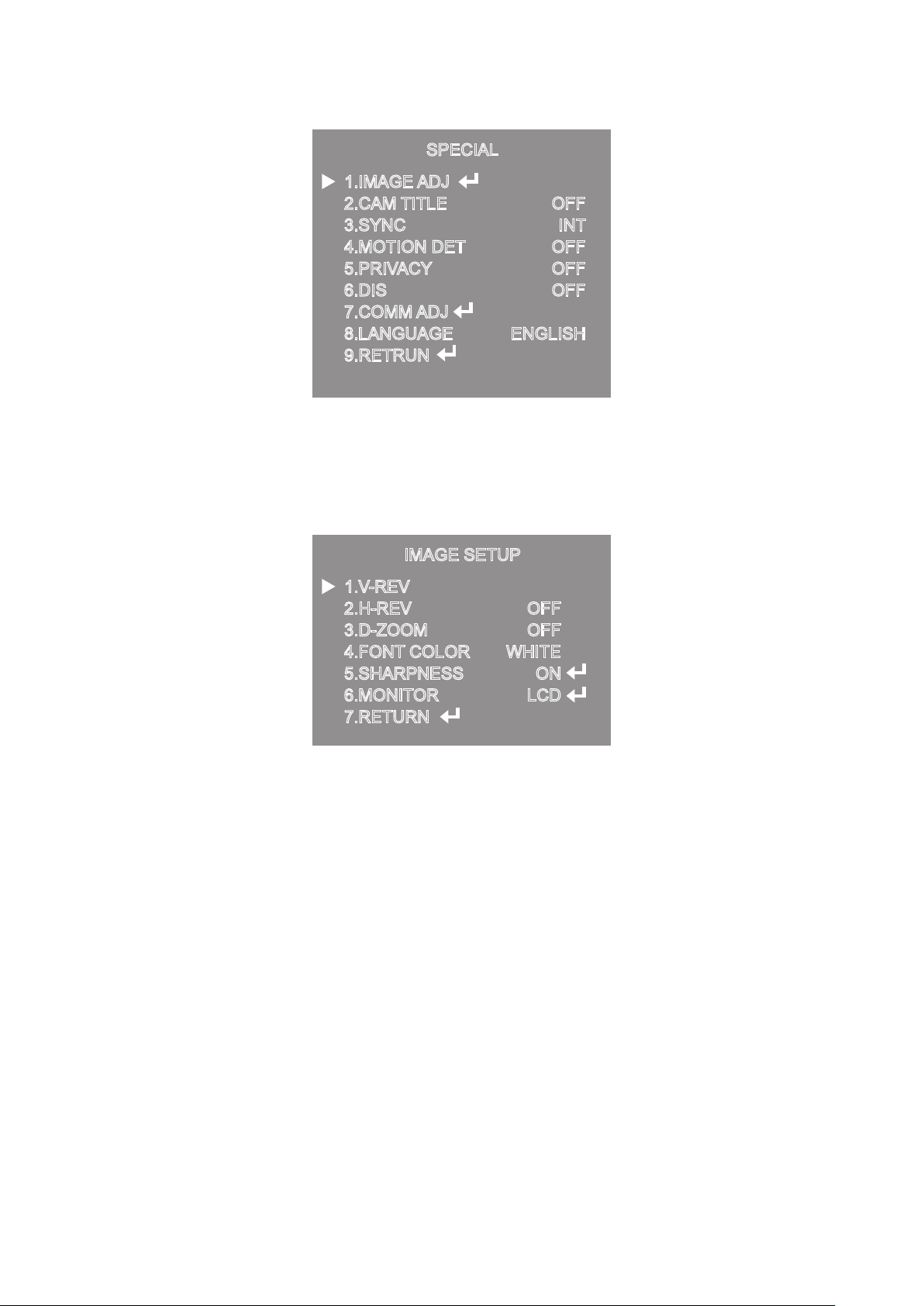

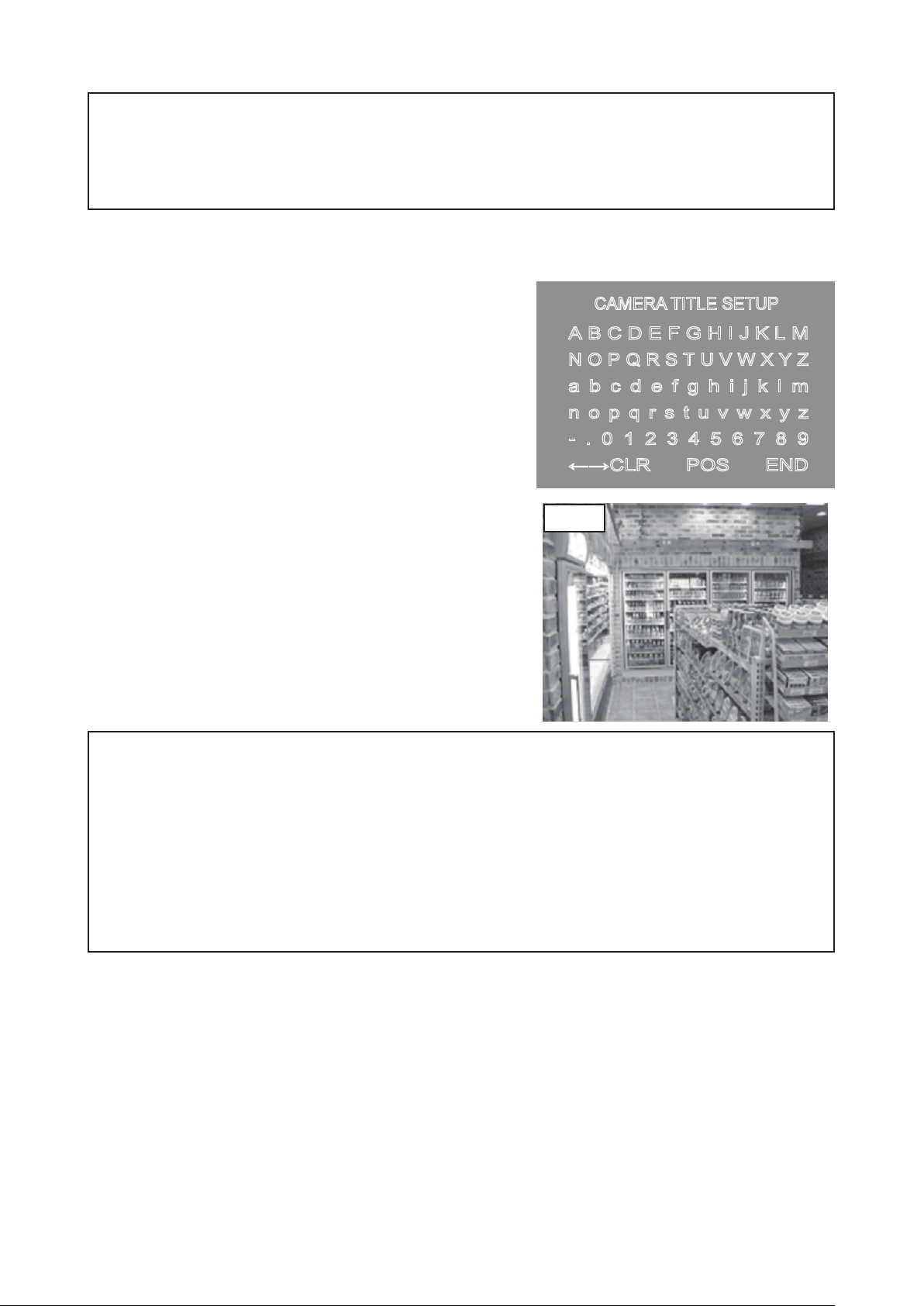

9. Special Setting

10. Exit Setting

◑

Trouble Shooting

10

11

12

17

18

1

Safety Instructions

Precautions for use

◑

This camera should be installed by qualied personnel only

◑

There are no user serviceable parts inside

◑

Do not disassemble this camera other than to make initial adjustments

◑

Use a UL approved regulated 24 volt AC or 12 volt DC power supply

◑

Use appropriate low voltage power cable to prevent re or electrical shock

◑

Please insure that your installation area can support the weight of the camera

Please handle this camera carefully :

◑

Do not use a strong or abrasive detergent when cleaning the camera

◑

Do not install near cooling or heating device

2

General Features

◑

Ultra High Sensitivity

- The built-in high sensitivity COLOR CCD produces a clear image even in 0Lux(B/W, IR-LED ON)or lower

illumination.

◑

600TV Lines

- By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD, the camera

produces clear picture quality with a horizontal resolution of 600 TV lines for color and a horizontal

resolution of 700TV lines for BW mode.

◑

DNR3

- The high-performance W-V DSP chip effectively removes low-light gain noise and ghosting to provide

clear images even in dark environments.

◑

Day & Night

- This camera has a function that automatically selects the mode that is appropriate for daytime or night-time

conditions.

The COLOR mode operates in daytime conditions to provide optimum colors, and BW mode operates in

night-time conditions to enhance the definition of the image.

◑

SSNR

- For images with high contrast between bright and dark Areas from difficult lighting conditions such as

backlighting, this camera selectively illuminates darker Areas while retaining the same light level for

brighter Areas to even out the overall brightness.

◑

Miscellaneous Functions

- HLC(High Light Compensation), SENS-UP, FLIP(H/V-REV), D-ZOOM, SHARPNESS, MOTION DETECTION and PRIVACY

functions are provided.

◑

Disk Saving Effects

- Up-most and advanced DNR technology camera picture quality has a disk saving effects due to Image sizes

are smaller than standard CCTV camera image.

◑

Controlled by OSD Menu

- The camera can be controlled by selecting the menu text displayed on the monitor screen.

3

OSD Control Button

1. Type A, Type B, Type C of OSD button could be used when it needs to
OSD control.

2. Type D is extra Option (wired Remote controller)

▲

Up button: Moves the cursor upwards. Use this button to select an item

or adjust the parameters.

▼

Down button: Moves the cursor downwards. Use this button to select an

item or adjust the parameters.

◀

Left button: Moves the cursor to the left. Use this button to select or
adjust the parameters of the selected item. The parameter changes
each time this button is pressed.

▶

Right button: Moves the cursor to the right. Use this button to select or
adjust the parameters of the selected item. The parameter changes each
time this button is pressed.

◎

Set button: Executes selections and displays a submenu for an item with
the mark.
