Speco HT5943T User Manual

INSTRUCTION
MANUAL

Speco 3MP-TVI IR Series

HT7043T

(IR Bullet Camera)

HT5943T

(IR Dome Camera)

Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 1/13/2017

Contents

◑



Contents ...................................................... 1

◑



Precautions ................................................. 2-3

◑



Safety Instructions ...................................... 4

◑



Package Contents ....................................... 5

◑



Camera Installation ..................................... 6-9

◑



Lens Adjustment ......................................... 10-11

◑



Specications .............................................. 12-13

◑



Camera Dimension ..................................... 14

◑



Features ...................................................... 15

◑



OSD Menu Details ...................................... 16-29

◑



Trouble Shooting ......................................... 30

1

Precautions

Do not install the camera in
extreme temperature conditions.

Only use the camera under conditions
where temperatures are between

-10°C and +50°C. Be especially careful to
provide ventilation when operating under
high temperatures.

Never keep the camera pointed
directly at strong light.

Do not install the camera under
unstable lighting conditions.

Severe lighting change or flicker can
cause the camera to work improperly.

Do not drop the camera or subject
it to physical shocks.

Do not touch the front lens of the
camera.

This is one of the most important parts of
the camera. Be careful not to leave
fingerprints on the lens cover.

Do not expose the camera to
radioactivity.

It can cause malfunctions to occur.

* If the camera is exposed to spotlight or object reflecting strong light,

smear or blooming may occur.

* please check that the power satisfies the normal specification before

connecting the camera.

Housing damage can compromise
weatherproof ratings.

NOTE

If exposed to radioactivity the CCD
will fail.

2

3

Safety Instructions

Precautions for use

◑

This camera should be installed by qualied personnel only

◑

There are no user serviceable parts inside

◑

Do not disassemble this camera other than to make initial adjustments

◑

Use a UL approved regulated 24 volt AC or 12 volt DC power supply

◑

Use appropriate low voltage power cable to prevent re or electrical shock

◑

Please insure that your installation area can support the weight of the camera

Please handle this camera carefully :

◑

Do not use a strong or abrasive detergent when cleaning the camera

◑

Do not install near cooling or heating device

4

Package Contents

Please make sure that the following items are included in the Package:

1) HT7043T

• 1 Video Test Connector, Power Jack

• 1 Focus Adjustment

• 1 Bracket Base

• 1 Wrench

• Set Screw

- 4 Tapping Screws 4x25

- 4 Hexagon Socket Screws M5x10

2) HT5943T

• 1 Video Test Connector, Power Jack

• 1 Chameleon Cover

• 1 Wrench

• Set Screw

- 3 Tapping Screws 3.5x20

5

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500mA)

2. WHEN USING 24 VOLTS AC (40 Volt Amps)

3. CONNECT VIDEO CABLE

CONNECT BLACK COLOR BNC CABLE TO THE BNC JACK.

DC 12V Powe r Supply

Power In put :R ED

Center : (+)

T V I

LBACK:(-)

RED(+)

Power Supply

AC 24V

6

Compatibility

1) HT7043T

CAMERA INSTALLATION

CVCJBB INTJBS INTCM

2) HT5943T

CVCJBD

Adaptor plate(59PLATE) with rubber

→

7

CAUTION : The installation instructions in this manual are for use by qualified service
personnel only. To reduce the risk of electric shock, do not perform any servicing other

than that contained in the operating instructions unless you are qualified to do so.

1. HT7043T

CAMERA INSTALLATION

WALL

SCREW TS T1, 4X25, TH, SUS, 4EA

3AXIS BRACKET

SCREW M5X10, HEXAGON SOCKET, SUS, BK, 4EA

8

2. HT5943T

VANDAL DOME BASE

VANDAL DOME BODY

BODY OUTER COVER SPECO

SCREW TS T1, 3.5X20, PH, SUS, 3EA

CAMERA INSTALLATION

9

1. HT7043T

LENS ADJUSTMENT

Open the cap

Focus adjustment

Lock screw

Zoom adjustment

10

2.

Focus adjustment

Zoom adjustment

Open the cap

HT5943T

LENS ADJUSTMENT

11

F

Speco 3MP-TVI IR Series

DC Auto Iris Varifocal Lens 2.8-12mm

SPECIFICATIONS

HT7043T (2.8-12mm)

■

MODEL

Image Sensor
Effective pixels

Total pixels
Resolution

Scanning system

Min. illumination

Video Output
S/N Ratio
Lens
AGC
Shutter Speed

Brightness

Sens-UP
Backlight Compensation(BLC)
HSBLC
ACE(D-WDR/ART-EX)
Motion Detection\
Alam Output
Privacy Masking
Day & Night
Smart-IR(IR OPTIMIZER)
White Balance
Digital Noise Reduction
Mirror
D-ZOOM(EZOOM)
Sharpness
DEFOG
GAMMA Correction
Language
Defect(White pix mask)
CVBS

Power Source

Power Consumption

Storage Temperature
Operating Temperature

Dimensions(WxHxD) or ØxH
Unit Weight

HT7043T

1/2.8" SONY 3Mega Exmor CMOS Sensor
2065(H) X 1553(V), 3.21M Pixels
2065(H) X 1565(V), 3.23M Pixels
2048X1536(1536p@18.75f)
Progressive Scan
B/W : 0.5Lux @ F1.4 (AGC Max)

0.01Lux @ F1.4 (AGC Max, Sens-up Max)

1.0Vp-p TVI(Transport Video Interface) 75 Ohms
More than 50dB
DC Auto Iris Varifocal Lens(2.8mm-12mm)
0~20 Level Adjustable
AUTO / Manual(1/18.75Sec~1/9,600Sec) / FLICKER
0~20 Level Adjustable
OFF / x2~x32
OFF/ON
OFF/ON
OFF/LOW/MIDDLE/HIGH
OFF/ON(4Zone)
Option
OFF/ON(16Zone)
AUTO / COLOR / B&W / EXTERN
0~20 Level Adjustable
AUTO(2,500K ~ 9,500K) / AWC →Set / Manual / AWB
2D, 3DNR(CVBS OFF)
MIRROR , V-FLIP
OFF/ON (x2 ~ x8)
0~20 Level Adjustable
OFF/ON
r=0.45~0.65
EBG/KOR/CHN1/CHA2/JPN
AUTO / Manual(1042EA)
ON(DNR:OFF / SEN-UP:OFF / Flip:OFF / D-ZOOM:OFF)OFF
DUAL
DC 12V: 770mA(LED ON) / 350mA(LED OFF)

AC 24V: 310mA(led on) / 180mA(LED OFF)

-20ºC ~ +60ºC(Humidity : 20%RH ~ 95%RH)

-10ºC ~ +50ºC(Humidity : 20%RH ~ 80%RH)

3.94"(W)*3.94"(H)*8.27"(D)

3.09Ibs

12

Speco 3MP-TVI IR Series

F

DC Auto Iris Varifocal Lens 2.8-12mm

SPECIFICATIONS

HT5943T (2.8-12mm)

■

MODEL

Image Sensor
Effective pixels

Total pixels
Resolution

Scanning system

Min. illumination

Video Output
S/N Ratio
Lens
AGC
Shutter Speed

Brightness

Sens-UP
Backlight Compensation(BLC)
HSBLC
ACE(D-WDR/ART-EX)
Motion Detection\
Alam Output
Privacy Masking
Day & Night
Smart-IR(IR OPTIMIZER)
White Balance
Digital Noise Reduction
Mirror
D-ZOOM(EZOOM)
Sharpness
DEFOG
GAMMA Correction
Language
Defect(White pix mask)
CVBS

Power Source

Power Consumption

Storage Temperature
Operating Temperature

Dimensions(WxHxD) or ØxH
Unit Weight

HT5943T

1/2.8" SONY 3Mega Exmor CMOS Sensor
2065(H) X 1553(V), 3.21M Pixels
2065(H) X 1565(V), 3.23M Pixels
2048X1536(1536p@18.75f)
Progressive Scan
B/W : 0.5Lux @ F1.4 (AGC Max)

0.01Lux @ F1.4 (AGC Max, Sens-up Max)

1.0Vp-p TVI(Transport Video Interface) 75 Ohms
More than 50dB
DC Auto Iris Varifocal Lens(2.8mm-12mm)
0~20 Level Adjustable
AUTO / Manual(1/18.75Sec~1/9,600Sec) / FLICKER
0~20 Level Adjustable
OFF / x2~x32
OFF/ON
OFF/ON
OFF/LOW/MIDDLE/HIGH
OFF/ON(4Zone)
Option
OFF/ON(16Zone)
AUTO / COLOR / B&W / EXTERN
0~20 Level Adjustable
AUTO(2,500K ~ 9,500K) / AWC →Set / Manual / AWB
2D, 3DNR(CVBS OFF)
MIRROR , V-FLIP
OFF/ON (x2 ~ x8)
0~20 Level Adjustable
OFF/ON
r=0.45~0.65
EBG/KOR/CHN1/CHA2/JPN
AUTO / Manual(1042EA)
ON(DNR:OFF / SEN-UP:OFF / Flip:OFF / D-ZOOM:OFF)OFF
DUAL

DC 12V: 560mA(LED ON) / 350mA(LED OFF)
AC 24V: 250mA(led on) / 180mA(LED OFF)

-20ºC ~ +60ºC(Humidity : 20%RH ~ 95%RH)

-10ºC ~ +50ºC(Humidity : 20%RH ~ 80%RH)

4.72"(Dia)*3.35"(H)

2.20Ibs

13

1) HT7043T

CAMERA DIMENSION

2) HT5943T

3.94”

3.38”

2.95”

3.01”

3.46”

4.80”

8.27”

4.72”

3.23”

3.35”

1.82”

14

General Features

●

Transfer Video Interface

The combination of a 3Mega CMOS image sensor and TVI DSP provides an excellent resolution
of TVI picture.

●

3D-DNR

Smart 3DNR prevents the image blurring of moving object and activates only if moving objects

are appearing on the scene.

●

Smart-IR

No saturation image, vivid image in darkness! "TVI" camera makes very sharp video image in
darkness! This technology eliminates saturation of video image of the closer object in darkness
by control of the IR sensitivity. Saturation never happens in our "TVI"cameras, you can enjoy
vivid image in any dark condition!

●

Sens-Up

Despite a limited & low light condition, Sens-Up - Max. x32 helps the viewer to get visible and

clear images.

●

Defog

Defog

or snow.

●

function improve the clarity of images taken in poor conditions such as fog, smoke, rain

Intelligent Function
An extra ordinary technology enables Speco Technologies TVI become an ultimate
and of solution by providing intelligent features based on motion detection. It
strengthens crime prevention and detection.

15

How to Set Up the camera menu

Setup Menu

●

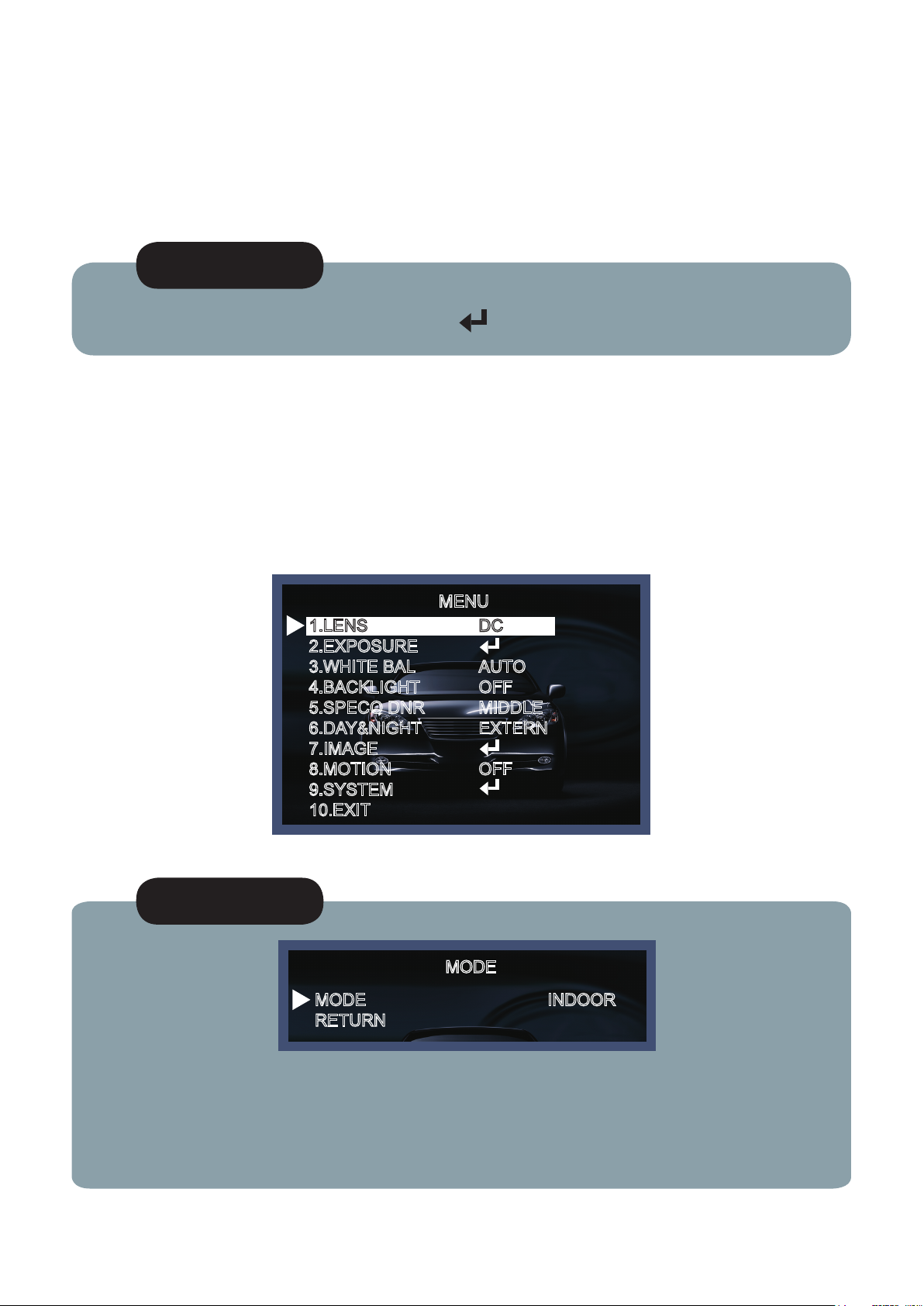

1.LENS

2.EXPOSURE

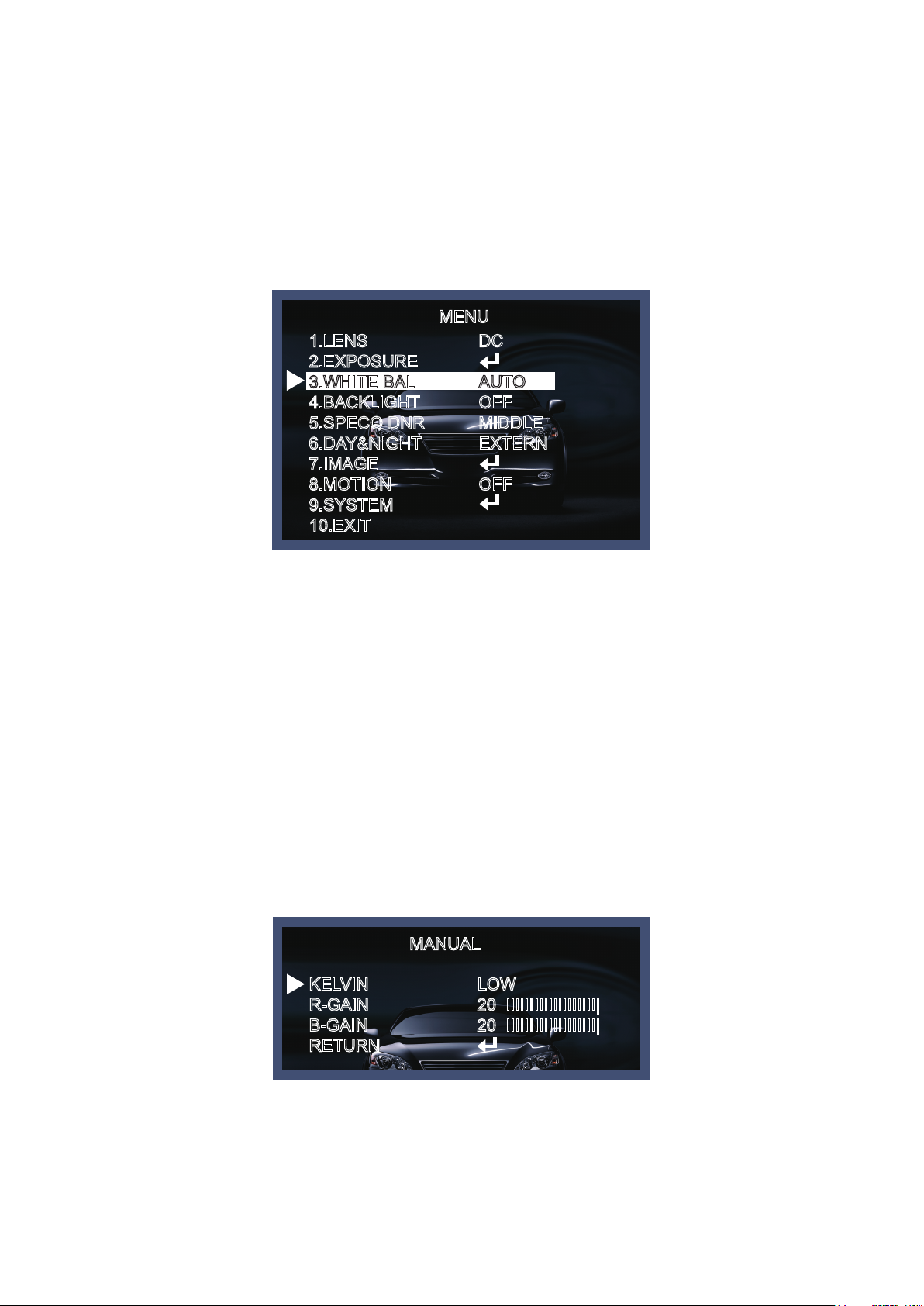

3.WHITE BAL

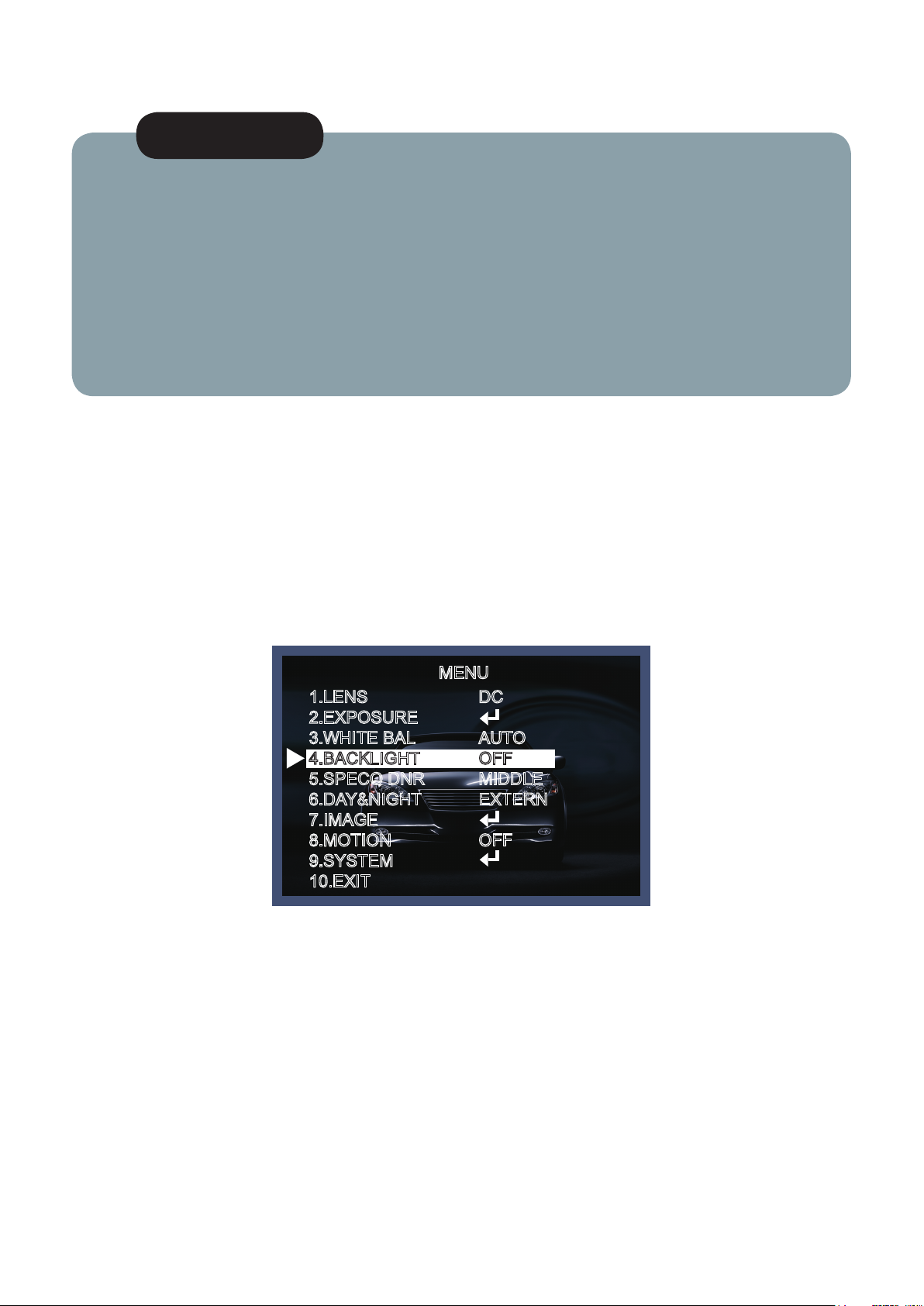

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

DC

MANUAL

AUTO
AWB
AWC-SET

MANUAL

OFF

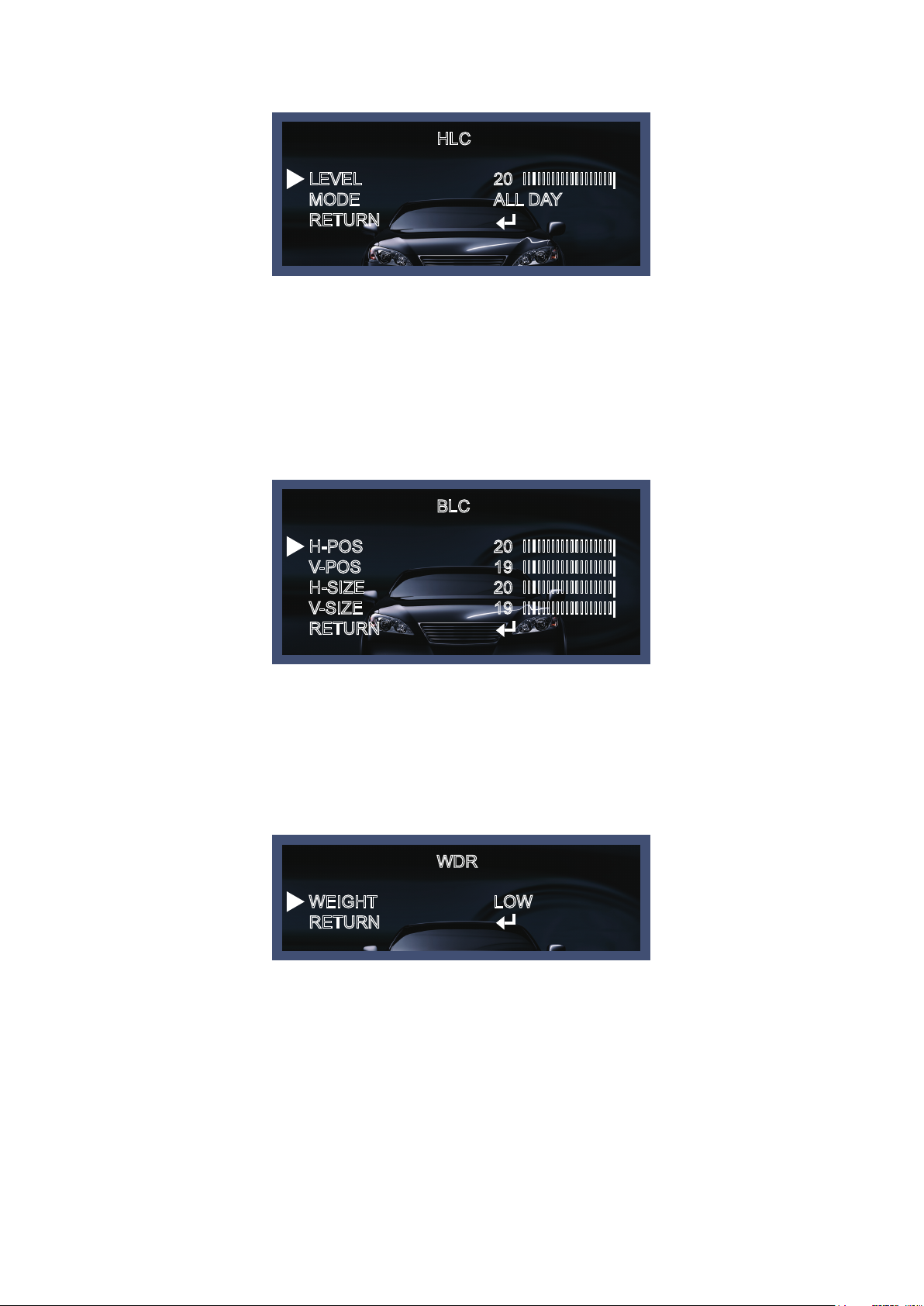

HLC

BLC

OFF / LOW / MIDDLE / HIGH

AUTO

COLOR

B/W

EXTERN

MODE
RETURN
MODE
RETURN
BRIGHTNESS

SHUTTER

SENS-UP
AGC
RETURN

KELVIN
R-GAIN
B-GAIN
RETURN

LEVEL
MODE
RETURN
H-POS
V-POS
H-SIZE
V-SIZE
RETURN

SMART IR
AGC THRES
AGC MARGIN
DELAY
RETURN

SMART IR
RETURN
SMART IR
DELAY
RETURN
SHARPNESS
GAMMA
COLOR GAIN
MIRROR
FLIP
D-ZOOM
ACE

DEFOG

MENU

INDOOR / OUTDOOR / DEBLUR

NORMAL / DEBLUR

0~20
AUTO

MANUAL

FLICKER
OFF ~ X32
0~20

LOW / MIDDLE / HIGH
0 ~ 20
0 ~ 20

0 ~ 20
ALL DAY / NIGHT ONLY

0 ~ 18

0 ~ 17

0 ~ 18

0 ~ 17

0~20
0~20
0~20
LOW / MIDDLE / HIGH

0~20

0~20
LOW / MIDDLE / HIGH

0 ~ 20

0.45 ~ 0.65
0 ~ 20
ON/OFF
ON/OFF
X 1.0 ~ X8.0
LOW/MIDDLE/HIGH
OFF

ON

SPEED
RETURN

MODE
LEVEL
RETURN

1/18.75~1/9600

AUTO / MANUAL

LOW / MIDDLE / HIGH

16

How to Set Up the camera menu

Setup Menu

●

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

OFF

ON

PRIVACY

RETURN

SENSITIVITY
DC MODE
WINDOW TONE
WINDOW USE
DET H-POS
DET V-POS
DET H-SIZE
DET V-SIZE
ALARM
RETURN

COM.

IMAGE RANGE

COLOR SPACE
VIDEO FREQ
CVBS
LANGUAGE
RESET
RETURN

MENU

OFF

ZONE NUM
ZONE DISP
H-POS
V-POS

ON

0 ~ 20
1 ~ 6

0 ~ 3

OFF/ON
1 ~ 63

1 ~ 47

1 ~ 64
1 ~ 48
OFF/ON

CAM ID
BAUDRATE
RETURN
FULL
COMP

USER

YUV / SD-CBCR / HD-CBCR
PAL / NTSC
OFF/ON
ENG / CHN / CHN(S) / JPN / KOR
ON

H-SIZE
V-SIZE
Y LEVEL
CR LEVEL
CB LEVEL
RETURN

0 ~ 255
2400 / 4800 / 9600 / 57600 / 115200

OFSET
RETURN

0~15

ON/OFF
0~64
0~46
0~65

0~47

0~20
0~20
0~20

0 ~ 20

17

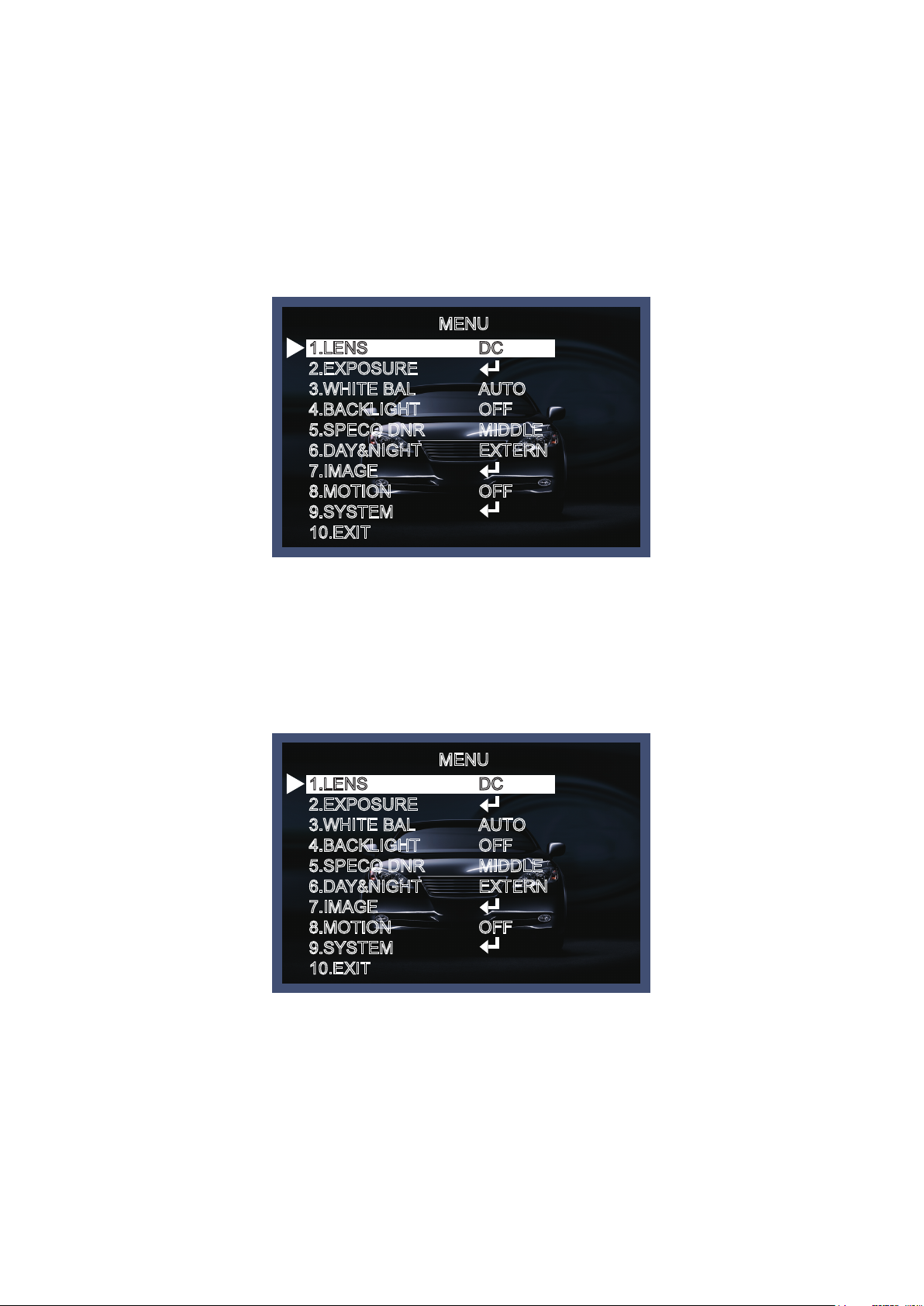

Menu Set Up

Menu setting can be selected by the button inside the camera.

1. Press the set button.

* The Set Up menu will be displayed on the monitor.

MENU

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

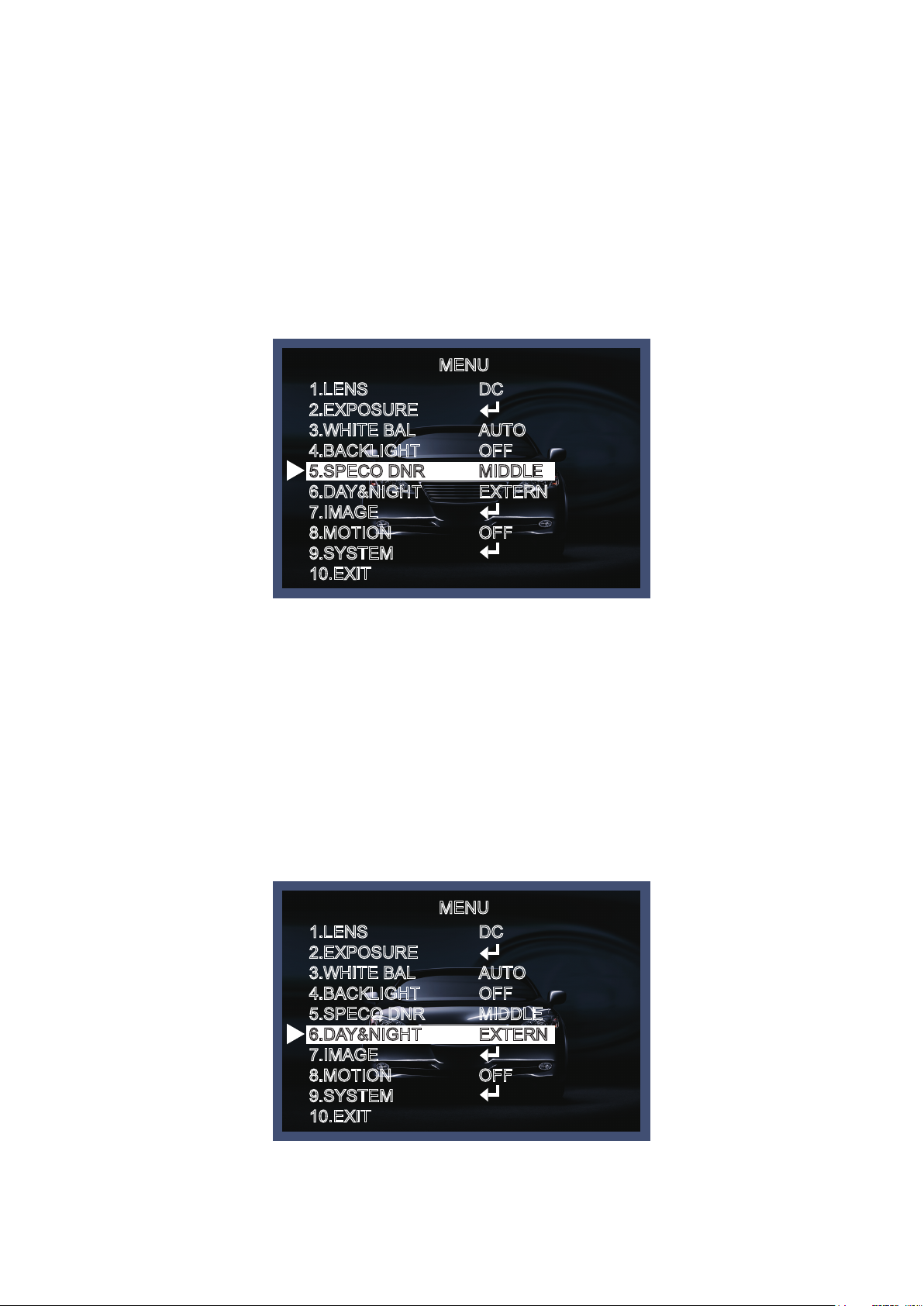

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

DCAUTO

AUTO
OFF
MIDDLE
EXTERN

OFF

2. Move and select the required function using the Up and Down button.

* Move the triangular indicator Up or Down to select the desired feature by pressing

the Up or Down button.

MENU

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

DCAUTO

AUTO
OFF
MIDDLE
EXTERN

OFF

3. Change menu settings using the Left or Right button.

* Available values or Status are displayed by pressing the Left or Right buttons.

Press the button until desired value / status is displayed.

18

4. After Changing the setting move the arrow indicator to EXIT and press the

SET button to EXIT.

NOTE

* Move to the available submenu by moving arrow to desired feature.

LENS

1. Move the triangular indicator to LENS using the Up and Down buttons on the Set Up menu screen.

2. Select the desired lens type by pressing the Left of Right button.

NOTE

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

MODE
RETURN

MENU

DCAUTO

AUTO
OFF
MIDDLE
EXTERN

OFF

MODE

INDOOR

* When you select the mode setup, you can select INDOOR, OUTDOOR or DEBLUR depending on
the installation environment.
* On manual mode, you can select NORMAL or DEBLUR depending on the installation
environment.

19

EXPOSURE

1. On the Set Up menu, Select EXPOSURE by using the Up or Down button.

MENU

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

2. Select the desired shutter mode by pressing the Left or Right button.

EXPOSURE

BRIGHTNESS
SHUTTER
SENSE-UP
AGC
RETURN

DC

AUTO
OFF
MIDDLE
EXTERN

OFF

20 IIIIIIIIIIIIIIIIIII|
AUTO
X32
20 IIIIIIIIIIIIIIIIIII|

◆ BRIGHTNESS : The brightness can be adjusted. The brightness control range is 1~20.

◆ SHUTTER : DC lens is launched with the setting of 1/30 and the manual lens is launched

with the setting of Auto shutter, but the shutter speed can be adjusted from 1/30 to 1/30,000.

→ FLK : Select FLK mode if flickering occurs ; caused by the unmatched frequency of electric light.

◆ SENSE-UP : The bright screen can be displayed by sensing the degree of the darkness automatically

under the circumstance of low light condition or at night.

→ Off ~x32 Level Adjustable.

◆ AGC (Auto Gain Control) : The higher the AGC level is, the more noises appear.

→ 0~20 Level selectable.

NOTE

* Sense-Up mode is not worked when Electronic shutter is selected as Manual.

20

White Balance

Use this function when the color adjustment of a screen is needed.

1. Move the triangular indicator to WHITE BAL on the SETUP menu screen using the Up and Down button.

2. Select the desired mode by using the left or Right button.

MENU

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

DC

AUTO

OFF
MIDDLE
EXTERN

OFF

◆ AUT0 : Use this mode when the color temperature is from 2,500k to 9,500k.

◆ AWB : The function to search for the color which is matched well with the ambient environment.

◆ AWC→SET : After letting camera focus on the blank white paper to the best condition of current

lighting environment, press the SET button. If the lighting condition is changed, Re-adjustment

should be needed.

◆ MANUAL : Manual compensation make the more detailed control possible. First, after adjusting the

white balance using the ATW or AWB mode, change the mode into the manual compensation mode
and then press Set button. While looking at the color change of the subject seen on the screen after
setting up the proper color temperature, increase the each value of the blue and the red.

MANUAL

KELVIN
R-GAIN
B-GAIN
RETURN

LOW
20 IIIIIIIIIIIIIIIIIII|
20 IIIIIIIIIIIIIIIIIII|

- KELVIN : LOW/MIDDLE/HIGH level adjustable.

- R-GAIN : 0~20 level adjustable.

- B-GAIN : 0~20 level adjustable.

- Return : Every function is set up at the EXPOSURE menu, and then return the previous menu.

21

NOTE

The White Balance may not be worked properly in the following conditions. If this doesn’t
work, use the AWB mode.
* When there is a very high color temperature in the circumstances of the subject.

( for example, clear sky, Sunset)

*▶It is very dark.
*▶If the camera is headed to the fluorescent light directly or if there is a drastic lighting

change, The operation of White balance may become unstable.

BACKLIGHT

On this menu, backlight image can be compensated by users selecting one of modees. (HLC, BLC, WDR)

1. Move the triangular indicator to BACKLIGHT on the SETUP menu screen using the Up and Down button.

2. Select the desired mode by using the left or Right button.

MENU

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

DC

AUTO

OFF

MIDDLE
EXTERN

OFF

◆ Off : Deactivated status.

◆ HLC : This function is used to surpress or strong light source (for example, headlights of cars during

nighttime) so that other subjects can be seen in more detail. If you select HCL, a submenu appears

where you can make finer adjustments.

- LEVEL : Adjust the brightness level from which on the light source is to be masked out.
0~20 level adjustable.

- MODE : All day/night only adjustable.

22

HLC

LEVEL
MODE
RETURN

20 IIIIIIIIIIIIIIIIIII|
ALL DAY

◆ BLC : This function is used to counterbalance the screen image by increasing the brightness so that a

subject which appears dark due to a strong backlight can be displayed in more detail. If you select BLC,

a submenu appears where you can make finer adjustments.

- H-POS/V-POS/H-SIZE/V-SIZE : Define the position and size of the area of interest by changing the position
& size.

BLC

H-POS
V-POS
H-SIZE
V-SIZE
RETURN

20 IIIIIIIIIIIIIIIIIII|
19 IIIIIIIIIIIIIIIIIII|
20 IIIIIIIIIIIIIIIIIII|
19 IIIIIIIIIIIIIIIIIII|

◆ WDR : The WDR (Wide Dynamic Range) function works to correct excessive light within the frame to

produce a usable image. When the image has simultaneous bright and dark areas, it makes both areas
distinct. If you select WDR, a submenu appears where you can make finer adjustments.

- WEIGHT [MIDDLE, HIGH, LOW] : Select the WDR level of the camera.

WDR

WEIGHT
RETURN

LOW

23

SPECO DNR

This function is used to improve the picture quality by filtering the noise which is generated under low

brightness conditions. You can set different levels here.

1. Move the triangular indicator to DNR by useing the Up and Down button.

2. Select the mode to use by pressing the left or Right button and OFF/LOW/MIDDLE/HIGH level selectable.

MENU

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

DC

AUTO
OFF

MIDDLE

EXTERN

OFF

Day&Night

You can change the color mode of color or black / white by setting up the mode.

1. Select Day&Night using the Up or Down button on the Set Up menu screen.

2. Select the desired mode using the Left or Right buttons.

MENU

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

DC

AUTO
OFF
MIDDLE

EXTERN

OFF

24

◆ AUTO : Automatically, It shifts into the color mode in the bright environment and the B/W mode in the

low light condition. It can adjust the delay time, starting brightness and end brightness according to the

ambient conditions by pressing the Set button.

DAY&NIGHT

SMART-IR
AGC THRES
AGC MARGIN
DELAY
RETURN

20 IIIIIIIIIIIIIIIIIII|
20 IIIIIIIIIIIIIIIIIII|
20 IIIIIIIIIIIIIIIIIII|
LOW

- SMART-IR : 0~20 SMART-IR level adjustable.

- AGC THRES : 0~20 AGC THRES level adjustable.

- AGC MARGIN : 0~20 AGC MARGIN level adjustable.

- DELAY [LOW/MIDDLE/HIGH] : Set the delay time for switching between COLOR and B/W

◆ COLOR : Making the video output color always.

◆ B / W : Making the video output B/W always.

◆ EXTERN : It can change the color or B/W mode automatically through the connection with the ground

terminal. (Option for box camera and IR camera)

- SMART-IR : It controls the IR LED (bright portion base), satuation is not expected.
0~20 level adjustable.

DAY&NIGHT

SMART-IR
DELAY
RETURN

20 IIIIIIIIIIIIIIIIIII|
LOW

- DELAY [LOW/MIDDLE/HIGH] : Set the delay time for switching between color and B/W .

25


When selecting, the following submenu will appear.

MENU

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

Here you can optimize the image quality by adjusting different options.

SHARPNESS
GAMMA
COLOR GAIN
MIRROR
FLIP
ACE
DEFOG
PRIVACY
RETURN

DC

AUTO
OFF
MIDDLE
EXTERN

OFF


20 IIIIIIIIIIIIIIIIIII|

0.65
20 IIIIIIIIIIIIIIIIIII|
ON
ON
OFF
OFF
OFF

◆ SHARPNESS [0 ~ 20] : Adjusts the image sharpness. If the level goes up excessively, it may affect the

video image and generate a noise.

◆ GAMMA [0.45 ~ 0.65] : Changes the gamma curve of the camera.

◆ COLOR GAIN [0 ~ 20] : Changes the color gain of the camera.

◆ MIRROR [ON, OFF] : Mirrors the image horizontally on the screen.

◆ FLIP [ON, OFF] : Flips the image vertically on the screen.

◆ ACE [OFF/LOW/MIDDLE/HIGH] : Intelligent lighting level control to over come even strong backlight

conditions.

◆ DEFOG [ON, OFF] : This function helps to recognize the object in a dusty weather condition.

ON, a submenu appears where you can make finer adjustments.

26

◆ PRIVACY [ON, OFF] : This is used to hide certain areas on the monitor. You can designate each different

16 area. The size of a designated area can be adjusted. The color of a privacy area can be selected
various colors. When you select the return, the setting values in this function menu are saved, then get

out of this menu.

PRIVACY

ZONE NUM
ZONE DISP
H-POS
V-POS
H-SIZE
V-SIZE
Y LEVEL
CR LEVEL
CB LEVEL
RETURN

15 IIIIIIIIIIIIIIIIIII|
ON
60 IIIIIIIIIIIIIIIIIII|
34 IIIIIIIIIIIIIIIIIII|
60 IIIIIIIIIIIIIIIIIII|
34 IIIIIIIIIIIIIIIIIII|
20 IIIIIIIIIIIIIIIIIII|
20 IIIIIIIIIIIIIIIIIII|
20 IIIIIIIIIIIIIIIIIII|

- ZONE NUM [0~15] : Select a mask out of the 16 mask areas and set the options below for the selected

mask.

- ZONE DISP [ON, OFF] : Choose ON to activate privacy masks and press OFF to deactivate masks.

- H-POS [0~60] : Define the horizontal start position of the privacy mask.

- V-POS [0~34] : Define the vertical start position of the privacy mask.

- H-SIZE [0~60] : Define the horizontal size of the privacy mask.

- V-SIZE [0~34] : Define the vertical size of the privacy mask.

- Y LEVEL [0~20] : Define the brightness of the mask color.

- CR LEVEL [0~20] : Define the red amount of the mask color.

- CB LEVEL [0~20] : Define the blue amount of the mask color.

MOTION

This function is used to detect moving objects in the monitored area. When choosing ON, the following

submenu will appear where you can adjust the settings for the MOTION function.

MENU

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

DC

AUTO
OFF
MIDDLE
EXTERN

OFF

27

MOTION

SENSITIVITY
WINDOW TONE
WINDOW ZONE
WINDOW USE
DET H-POS
DET V-POS
DET H-SIZE
DET V-SIZE
ALARM
RETURN

◆

SENSITIVITY [0~10] : The higher the setting value is, the higher the sensitivity gets, even though the movement of a subject.

10 IIIIIIIIIIIIIIIIIII|
4
3
OFF
60 IIIIIIIIIIIIIIIIIII|
34 IIIIIIIIIIIIIIIIIII|
60 IIIIIIIIIIIIIIIIIII|
34 IIIIIIIIIIIIIIIIIII|
OFF

◆ WINDOW TONE [0~4] : Set out area tone of motion zone.

◆ WINDOW ZONE [0~3] : Select the window area.

◆ WINDOW USE [ON, OFF]

◆ DET H-POS [0~60] : Define the horizontal start position of the monitoring area.

◆ DET V-POS [0~34] : Define the vertical start position of the monitoring area.

◆ DET H-SIZE [0~60] : Define the horizontal size of the monitoring area.

◆ DET V-SIZE [0~34] : Define the vertical size of the monitoring area.

◆ ALARM [ON, OFF] : In motion situation, you can select the detail of option setting.

SYSTEM

This can be used when you want to select the additional function control.

1.When the SETUP menu is displayed, select SYSTEM using the Up and Down button.

2. Select one of the mode using the Up and Down button.

SYSTEM

1.LENS

2.EXPOSURE

3.WHITE BAL

4.BACKLIGHT

5.SPECO DNR

6.DAY&NIGHT

7.IMAGE

8.MOTION

9.SYSTEM

10.EXIT

MENU

DC

AUTO
OFF
MIDDLE
EXTERN

OFF

COM.
IMAGE RANGE
COLOR SPACE
VIDEO FREQ
CVBS
LANGUAGE
RESET
RETURN

CAM ID
FULL
TUV
NTSC
PAL
ENG
ON

28

◆ COM. : This menu id used for RS-485 communication. Users are able to select 'CAM ID(0~255)'

and 'BAUDRATE(2400/4800/9600/57600/115200).

◆ IMAGE RANGE [FULL/COMP/USER] : Adjust the rate of YC signal to 100%(FULL), 75%(COMP) or

100%~75%(USER).

◆

COLOR SPACE [YUV/SD-CBCR/HD-CBCR] : Select different color settings for a warmer or a colder image.

◆

VIDEO FREQ: TV System is Switchable 'NTSC' or 'PAL'

◆ CVBS [PAL/NTSC] : Select the video format that matches the present TV system.

◆ LANGUAGE : ENG, CHN, CHN(S), JPN, KOR

◆ RESET [ON] : Return to factory default setting value.

Exit

Press the Set button in the exit menu to save the current settings and exit the Set Up menu.

29

●

Trouble Shooting

PROBLEM

Northing appears on

the screen.

The image on the

screen is dim.

The image on the

screen is dark.

The camera is not

working properly
and the surface of
the camera is hot.

POSSIBLE CAUSE

Check the power cable, power supply output and video

F

connection between the camera and monitor.

Are the camera lens or the lens glass dirty?

F

Clean the lens / glass with a soft clean cloth.

Adjust the monitor controls, as required.

F

If the camera is facing a very strong light, change

F

the camera position.

Adjust the lens focus.

F

Adjust the contrast control of the monitor.

F

If there is an intermediate device, correctly set the 75Ω/Hi-z.

F

Check the camera is correctly connected to an appropriate

F

regulated power source.

Motion Detection

is not activated.

The color of the

picture is not correct.

The image on the

screen ickers.

The INTENSIFY does

not work.

Has MOTION DET been set to ON in the menu?

F

Has MD AREA been properly dened?

F

Check the settings in WHITE BALANCE menu.

F

Make sure that the camera isn’t facing direct sunlight or

F

uorescent lighting. If necessary,change the camera position.

Check that the AGC setting in the EXPOSURE menu is not set to OFF.

F

Check the EXPOSURE menu and make sure SHUTTER is set to------.

F

30

31

MEMO

u

32

MEMO

u

33

MEMO

u

34

200 New Highway

Amityville, NY 11701

631-957-8700

1 800 645 5516

www.specotech.com
