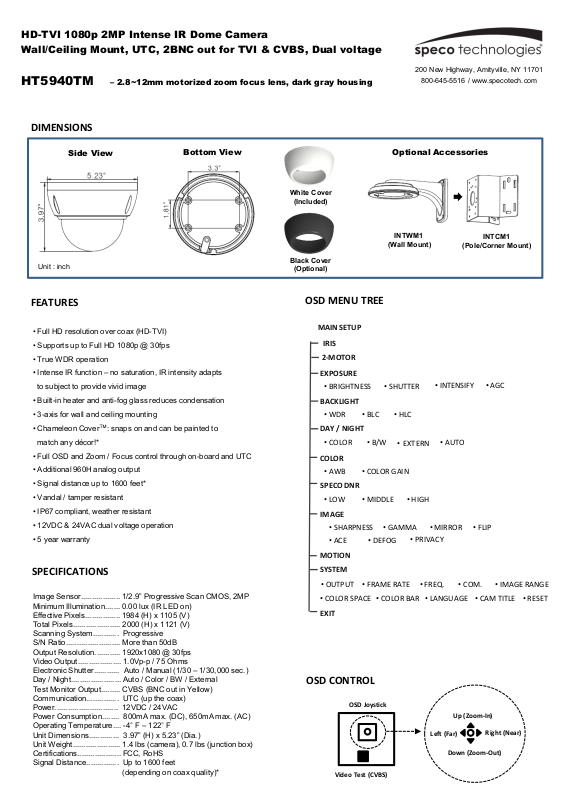

HD-TVI 1080p 2MP Intense IR Dome Camera
Wall/Ceiling Mount, UTC, 2BNC out for TVI & CVBS, Dual voltage
HT5940TM – 2.8~12mm motorized zoom focus lens, dark gray housing
DIMENSIONS
200 New Highway, Amityville, NY 11701
800-645-5516 / www.specotech.com
Side View
Unit : inch
Bottom View
FEATURES
• Full HD resolution over coax (HD-TVI)
• Supports up to Full HD 1080p @ 30fps
• True WDR operation
• Intense IR function – no saturation, IR intensity adapts
to subject to provide vivid image
• Built-in heater and anti-fog glass reduces condensation
• 3-axis for wall and ceiling mounting
• Chameleon Cover™: snaps on and can be painted to
match any décor!*
• Full OSD and Zoom / Focus control through on-board and UTC
• Additional 960H analog output
• Signal distance up to 1600 feet*
• Vandal / tamper resistant
• IP67 compliant, weather resistant
• 12VDC & 24VAC dual voltage operation
• 5 year warranty
SPECIFICATIONS
Image Sensor.................. 1/2.9” Progressive Scan CMOS, 2MP
Minimum Illumination....... 0.00 lux (IR LED on)
Effective Pixels................ 1984 (H) x 1105 (V)
Total Pixels...................... 2000 (H) x 1121 (V)
Scanning System............ Progressive
S/N Ratio......................... More than 50dB
Output Resolution............ 1920x1080 @ 30fps
Video Output.................... 1.0Vp-p / 75 Ohms
Electronic Shutter............ Auto / Manual (1/30 – 1/30,000 sec.)
Day / Night....................... Auto / Color / BW / External
Test Monitor Output......... CVBS (BNC out in Yellow)
Communication............... UTC (up the coax)
Power............................. 12VDC / 24VAC
Power Consumption........ 800mA max. (DC), 650mA max. (AC)
Operating Temperature.... -4° F – 122° F
Unit Dimensions.............. 3.97” (H) x 5.23” (Dia.)
Unit Weight...................... 1.4 lbs (camera), 0.7 lbs (junction box)
Certifications.................... FCC, RoHS
Signal Distance............... Up to 1600 feet
(depending on coax quality)*
White Cover
(Included)
Black Cover
(Optional)
OSD MENU TREE
MAIN SETUP
IRIS
2-MOTOR
EXPOSURE
• BRIGHTNESS
BACKLIGHT
• WDR
DAY / NIGHT
• COLOR
COLOR
• AWB • COLOR GAIN
SPECO DNR
• LOW • MIDDLE • HIGH
• SHARPNESS • GAMMA • MIRROR
• ACE • DEFOG
MOTION
SYSTEM
• OUTPUT • FREQ.
• COLOR SPACE
EXIT
OSD CONTROL
Video Test (CVBS)
• B/W
• FRAME RATE
• COLOR BAR
OSD Joystick
Optional Accessories
INTWM1
(Wall Mount)
• SHUTTER
(Pole/Corner Mount)
• INTENSIFY
• HLC• BLC
• EXTERN
• AUTO
• PRIVACY
• COM.
• LANGUAGE
Up (Zoom-In)
Left (Far)
Down (Zoom-Out)
INTCM1
• AGC
• FLIP
• IMAGE RANGE
• CAM TITLE
Right (Near)
• RESET
HD-TVI 1080p 2MP Intense IR Dome Camera
Wall/Ceiling Mount, UTC, 2BNC out for TVI & CVBS, Dual voltage
HT5940TM – 2.8~12mm motorized zoom focus lens, dark gray housing
OSD MENU Details
200 New Highway, Amityville, NY 11701
800-645-5516 / www.specotech.com
IRIS : ‘ALC’ as a default value
2-MOTOR : AF Mode, Scanning, OnepushAF, Sync TDN, Initial
EXPOSURE : adjusts exposure settings.
BRIGHTNESS : Adjusts image brightness. (0~ 20)
SHUTTER : Outdoor / Indoor / Deblur
INTENSIFY : Sets the desired multiple of the digital exposure length.
AGC(Auto Gain Control): Adjusts the AGC level. (0~10)
BACKLIGHT : Adjusts backlight options.
WDR : WDR illuminates darker areas of an image while retaining the
same light level for brighter areas to even out the overall brightness
of images with high contrast between bright and dark area
- Adjusts the WDR Weight (LOW/MIDDLE/HIGH)
* CVBS out cannot adjust this function.
BLC : Produces a clearer image of an object darkened by strong backlighting.
- H-POS : Adjusts the horizontal position(0~20)
- V-POS : Adjusts the Vertical position(0~20)
- H-SIZE : Adjusts the horizontal block size (0~20)
- V-SIZE : Adjusts the vertical block size (0~20)
HLC : Uses to contain extremely bright areas such as from car headlight,
the light can be masked out much of the on-screen details.
DAY / NIGHT : Adjust Day / Night options.
COLOR : Always Color mode, Default value for these cameras
B/W : Always B/W mode.
- ANTI-SAT. : Adjusts the Anti Saturation level (0~20)
EXT : This mode allows you to apply a desired filter to external signals.
- ANTI-SAT. : Adjusts the Anti Saturation level (0~20)
- EXTERN S/W : Selected at manufacturer side
- D N LEVEL (0~20) : Selected at manufacturer side
- N D LEVEL (0~20) : Selected at manufacturer side
- DELAY : Adjusts the changing delay time (LOW/MIDDLE/HIGH)
AUTO : this mode is not available for IR camera
SYSTEM : Adjusts various camera system options.
OUTPUT
MAIN OUTPUT ANALOG OUT0
ANALOG OUT0 TVI
Y GAIN
CB GAIN
CR GAIN
POSITION
BURST FREQ
BURST GAIN
B&W
UCC SELECT
720EX
FRAME RATE: 1080P 30 / 720P 60
FREQ 60Hz
COM.
IMAGE RANGE
COLOR SPACE
COLOR BAR : Manufacturer’s option
LANGUAGE : Sets the desired OSD language
CAM TITLE
RESET: Press with long to reset all settings to factory defaults.
COLOR : Adjusts white balancing options.
AWB : it goes to optimized color level automatically.
COLOR GAIN : Sets the desired Color Gain value (0~20)
SPECO DNR : Uses to reduce the background noise in a low luminance
IMAGE : Adjusts various image options.
SHARPNESS: Adjusts sharpness level. Increasing this value, the picture
GAMMA : Sets the desired Gamma value. (0.45 ~ 0.75)
MIRROR : Change the video direction horizontally.
FLIP:
ACE (D-WDR) : Uses a digital wide dynamic range to balance dark and over
DEFOG : Activated this mode when the video or the weather is foggy.
PRIVACY : Used to hide regions of the image.
MOTION : Adjust motion detection settings.
DET WINDOW
DET TONE
MDRECT FILL
SENSITIVITY : Sets the desired of “Motion” (0~20)
MOTION OSD
TEXT ALARM
SIGNAL OUT
environment with 2D + 3D filtering system.
outline becomes stronger and clear. (0~10)
Change the video direction perpendicularly.
saturated areas within the image.
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without
notice and without incurring any obligation.
Rev. 220415
