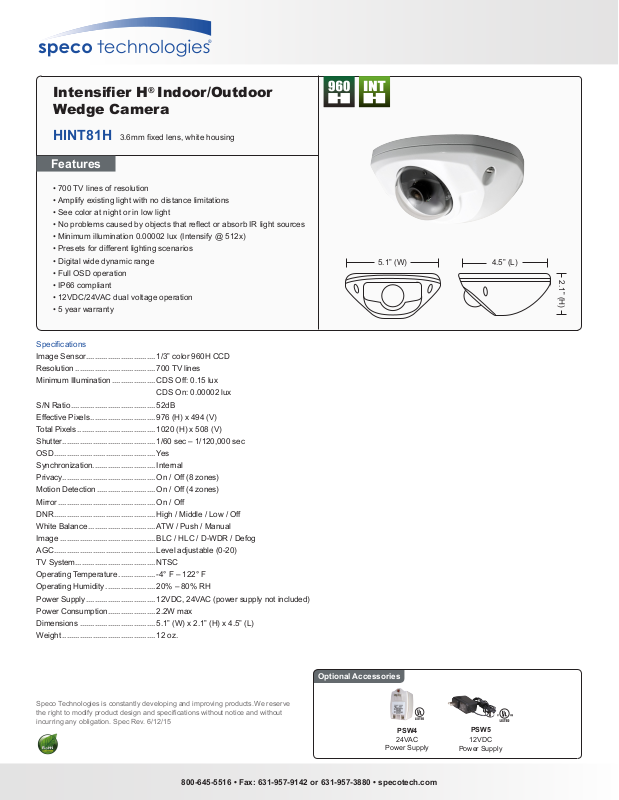

Speco HINT81H Specsheet
Intensier H® Indoor/Outdoor
Wedge Camera
HINT81H 3.6mm xed lens, white housing
Features
• 700 TV lines of resolution
• Amplify existing light with no distance limitations
• See color at night or in low light
• No problems caused by objects that reect or absorb IR light sources
• Minimum illumination 0.00002 lux (Intensify @ 512x)
• Presets for different lighting scenarios
• Digital wide dynamic range
• Full OSD operation
• IP66 compliant
• 12VDC/24VAC dual voltage operation
• 5 year warranty
Specications
Image Sensor ................................ 1/3” color 960H CCD
Resolution .....................................700 TV lines
Minimum Illumination .................... CDS Off: 0.15 lux
CDS On: 0.00002 lux
S/N Ratio ....................................... 52dB
Effective Pixels .............................. 976 (H) x 494 (V)
Total Pixels ....................................1020 (H) x 508 (V)
Shutter ........................................... 1/60 sec – 1/120,000 sec
OSD ...............................................Yes
Synchronization............................. Internal
Privacy ...........................................On / Off (8 zones)
Motion Detection ...........................On / Off (4 zones)
Mirror ............................................. On / Off
DNR ...............................................High / Middle / Low / Off
White Balance ............................... ATW / Push / Manual
Image ............................................BLC / HLC / D-WDR / Defog
AGC ...............................................Level adjustable (0-20)
TV System .....................................NTSC
Operating Temperature ................. -4° F – 122° F
Operating Humidity ....................... 20% – 80% RH
Power Supply ................................ 12VDC, 24VAC (power supply not included)
Power Consumption ......................2.2W max
Dimensions ...................................5.1” (W) x 2.1” (H) x 4.5” (L)
Weight ........................................... 12 oz.
5.1” (W) 4.5” (L)
2.1” (H)
Speco Technologies is constantly developing and improving products.We reserve
the right to modify product design and specications without notice and without
incurring any obligation. Spec Rev. 6/12/15
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
Optional Accessories
Power Supply
PSW4
24VAC
PSW5
12VDC
Power Supply
