Speco HINT13D7G User Manual

HINT13D7G
650Line Intensifier3TM
Tamperproof Dome
Vandal Resistant
w/Chameleon Cover
Wall/Ceiling Mount
(3.6mm)
Please read this manual thoroughly before operation and keep it handy for further reference.
WARNING & CAUTION
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK
DO N O T RE M O V E C O VE R (O R B A C K) . NO USER SERVICEABLE P A R T S I N S I D E R E F E R S E R V I CI N G TO Q U A L I F IE D SERVI CE P E RS O N N E L . _ _ _ _ _ _ _ _ _ _ __ ___
The lighting flash with an arrowhead symbol, within an equilateral triangle is Intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons____________________________________
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (serving) instructions in the literature accompanyi ng the appliance________ __________
IN F O R MATION -This equipment h a s been tested and found to company wi th li m i ts for a cl ass a dig it al dev i ce Pur s uant to p a rt 15 of th e FC C ru le s. These limits are desi g n ed to provide reaso n ab l e protec t i o n agai nst harmfu l Inter f er en ce W h en the equ i pment s ope r at ed in a com m e rcial envi ro nment . This e quipment generates, uses, and Can Radiat e radio frequency energy and if not installed and used in accordance with the instruction manual, may Cau se Harmful interference to radio communications. Operation of this equipment in a r es i de n t i a l a r e a is l ik e l y to c a u s e h ar m fu l i n t e r f e r e n c e in w h i c h Case the user will be requir ed to correct the i nterfer ence at hi s own expen se.
WARNING Change or modification not expressly approved by the manufacturer could void the user ’s authority to operate the equipment__________________________________
CAUTION : To prevent electric shock and risk of fire hazards. DO NOT use power sources other than that specified.______ DO NOT expose this appliance to rain or moisture.000
This installation should be made by a qualified service person and should conform to all local codes.
2
PACKAGE CONTENTS
Please make sure that the following items are included in the Package:
- 3 Mounting Screws and Anchors
- 1 Set Screw
- 1 Wrench
- 1 Video Test Connector
- 1 Power Cable
- 1 Chameleon Cover
3
CAMERA INSTALLATION
CHAMELEON COVER
Place the Chameleon Dome over the camera and push until it snaps into position.
Notes : Optional painting before installation
* Painting method for the Chameleon Dome
* Spray the color of your choice onto the Chameleon cover * If necessary, apply a second coat
4
FEATURES
Now with “PRESETS
PRESETS (Outdoor, Indoor, Elevator, Lobby, Hallway & Low Light) Used for a quick and easy setup for the installation environment.
650TVL Resolution
Horizontal resolution of 650 TV lines is achieved by using a SONY Super-HAD CCD with 410,000 pixels, and a custom DSP yielding pictures with a high S/N ratio.
INTENSIFIER 3
More Powerful Performance in low light condition. High quality Pictures to be captured in very low light condition.
WDR
More Powerful WDR in strong back lighting. Your camera allows you to get a clear image.
SPECO DNR
The Intensifier camera has a DSP chip that can remove image noise efficiently showing clean images in low light conditions.
HLC (High Light Compensation)
This function reverses bright spots in the picture (such as headlights). This enables the entire system to do a better job of resolving and displaying grayscale information such as a license plate.
5
FEATURES
PRIVACY MASK
It also has the ability to mask up to 8 areas of the image. Each zone can be independently programmed via the OSD.
STABILIZER
This function removes image jitter that is caused by vibration.
DIGITAL ZOOM
Additional Zoom capability beyond the analog.
DAY/NIGHT
The Intensifier camera can show color images in all lighting conditions or the camera may automatically switch to a B/W mode in low light conditions
OSD
All camera functions are menu driven for ease of programming.
6
OSD MENU TREE
MAIN MENU
PRESETS
INDOOR / OUTDOOR / LOW LIGHT / LOBBY / HALLWAY / ELEVATOR
ADVANCED EXIT
ADVANCED MENU
CAM NAME LENS
DC IRIS / MANUAL
INTENSIFIER
AGC / SHUTTER / INTENSIFY / INITIAL SET / PREVIOUS
DAY / NIGHT
AUTO / DAY / NIGHT / EXT
WDR / BLC / HLC COLOR TEMP
AWC-SET / MANUAL / ATW1 / ATW2
SPECO DNR
DNR LEVEL / SSC (Speco Sensitivity Control)
EFFECTS
DZOOM / IMAGE FREEZE / D-EFFECT / CONTRAST / SHARPNESS / COLOR ADJUST / INITIAL SET / PREVIOUS
SPECIAL
MOTION DET / PRIVACY MASK / LANGUAGE / STABILIZER / LL SYNC / MONITOR TYPE / FACTORY RESET / PREVIOUS
EXIT
7
OSD MENU DETAILS
1. PRESET
[INDOOR / OUTDOOR / LOW LIGHT / LOBBY / HALLWAY / ELEVATOR]
Quick & Easy Way to install without complicated OSD menu setting!
** Attention : Select any preset mode and push the set button once,
Blinking status means it is correctly set up at that mode.
* * If you need more detailed setting, click ‘ADVANCED’ to see more
OSD menu at every preset mode.
2. INTENSIFIER
[AGC / SHUTTER / INTENSIFY / INITIAL SET / PREVIOUS]
- AGC (Off / Low / Middle / High)
: Adjusts value of AGC gain.
- SHUTTER * FLK - Flicker-less mode (FLK) reduces on-screen flickering. * ESC - Electronic Shutter Control (AUTO) adjusts electronic shutter F
stop.
- INTENSIFIER: Automatically provides a clear image under low-
light conditions. You can control the maximum low-light magnification from 2x to 512x (increasing magnification may cause noise/distortion).
This function is deactivated when SHUTTER is set to FLK mode.
8
OSD MENU DETAILS
3. DAY/NIGHT
[AUTO / DAY / NIGHT]
- DAY : Full time color mode
- NIGHT : Full time black & white mode
- AUTO (D/N LEVEL / DWELL TIME / NIGHT BURST)
** Attention : AUTO is disabled when the AGC in INTENSIFIER is ‘Off’.
4. WDR / BLC / HLC
- WDR : Provides light level control to overcome severe back light conditions.
- HLC (High Light Compensation) : High Light Compensation removes the bright light conditions.
5. COLOR TEMP
[AWC SET / MANUAL / ATW1 / ATW2]
- AWC SET : Set while pointing the camera towards a sheet of white paper.
- MANUAL
: This setting allows for increasing or decreasing the red or blue factor
on screen.
Set the ATW1 before you adjust the manual settings.
- ATW 1
: Select Auto Tracking White Balance (ATW) when the color temperature is 2400°K~10500°K.
- ATW 2
: Adjust to reduce color shifting.
** Attention : White Balance may not work properly when in special
light condition such as clear sky, sunset, dim lighting, mixed lights providing different temp. etc.
9
OSD MENU DETAILS
6. SPECO DNR
- Reduces noise/distortion on the screen. Increasing the DNR level reduces noise
but may introduce video artifacts. DNR is deactivated if AGC is turned off.
** SSC (Speco Sensitivity Control)
- adjusts the brightness level in low light conditions only. Adjust this setting to achieve a good image in low light.
7. EFFECTS
[DZOOM / IMAGE FREEZE / D-EFFECT / CONTRAST / SHARPNESS /
COLOR ADJUST / INITIAL SET / PREVIOUS]
- DZOOM : Digital Zoom. Select this and set a desired zoom level to obtain an extended focal length.
- IMAGE FREEZE : Freezes the display image.
- D-EFFECT : Change the video direction. Vertical Flip, Mirror, and
Rotate
- CONTRAST : Adjusts contrast Levels.
- SHARPNESS : Adjusts Sharpness Level.
- COLOR ADJUST : Adjust various color options for the camera (Color toggle, Color Level, Color Hue, Red Gain, Blue Gain)
- INITIAL SET : Return to the default setting defined in the "EFFECT"
menu.
10
OSD MENU DETAILS
8. SPECIAL
[MOTION DET / PRIVACY MASK / LANGUAGE / STABILIZER / LL SYNC
/ MONITOR TYPE / FACTORY RESET / PREVIOUS]
- MOTION DET.
: Built in motion detector with adjustable areas of coverage. A motion
trigger will send a signal to an external alarm device when motion
is detected.
* Zone Number: Select MD area to activate: 8 Areas can be selected. * Zone Stat: Determine MD area selected. * Width / Height: Set the size of MD * Move X/Y: Set the coordinate for the MD position. * Sensitivity: 8 levels. When sensitivity number is high, motion detection
sensitivity is increased.
- PRIVACY MASK
Mask up to 8 areas of the screen from video monitoring.
* Mask Number: Select PM area to activate. 8 Areas can be selected.
* Mask Stat: Determine PM area selected. * Mask Color: Determine area color. Grey, White, Red, Green, Blue, Yellow, Black colors are available. * Width / Height: Set the size of PM * Move X/Y: Set the coordinate of the PM position.
- LANGUAGE
: ENGLISH / RUSSIAN / SPANISH / FRENCH / POLISH / GERMAN
-STABILIZER
: Stabilizes the image that may be subject to vibration. LL SYNC : Synchronizes the phase of multiple cameras that are operating
with AC power.
* INT : Internal Synchronization * L/L : Power Synchronization type, Line-Lock
*Remark : When using DC12V, SYNC menu is fixed to INT mode.
When using AC24V, the L/L is available.
- MONITOR TYPE
: LCD/ CRT monitor type is selectable.
11
SPECIFICATIONS
Item HINT13D7G Power Source 12VDC & 24VAC ( Dual Voltage ) Power Consumption 130mA (DC) / 1.8W (AC) Image Sensor 1/3”, SONY SUPER HAD II CCD, 410,000 pixels Total Pixels 811(H) x 508(V) , 1/3” CCD Effective Pixels 768(H) x 494(V) , 1/3” CCD Lens Type 3.6mm Maximum Aperture Ratio 1 : 1.3 ~2.0
Scanning System 2 : 1 Interlaced 525 Lines / 60 Fields / 30 Frames
Synchronization Internal / Line-Lock Video Output 1.0V [p-p] Composite, 75Ω Resolution 650 TV Line Gain Control Low / Middle / High / OFF selectable Electric Shutter Speed 1/60 ~ 1/90,000 sec INTENSIFIER 3 Built-in ( selectable limit ~ X512) COLOR TEMP (White
Balance) Min. Illumination 0.00002Lux (intensifier) 0.03Lux (shutter) S/N ( Y signal) 52dB (Weight On) SPECO DNR ON - DYNAMIC / OFF Motion Detection ON / OFF (8 Programmable Zone) OSD Built - in Privacy Function ON / OFF (8 Programmable Zone) Operational Temperature -29 ~ +50 ( - 20 ~122) Operational Humidity 30% ~90% RH Weight 1.54Ibs
ATW 1 / ATW 2 / AWC SET / MANUAL
12

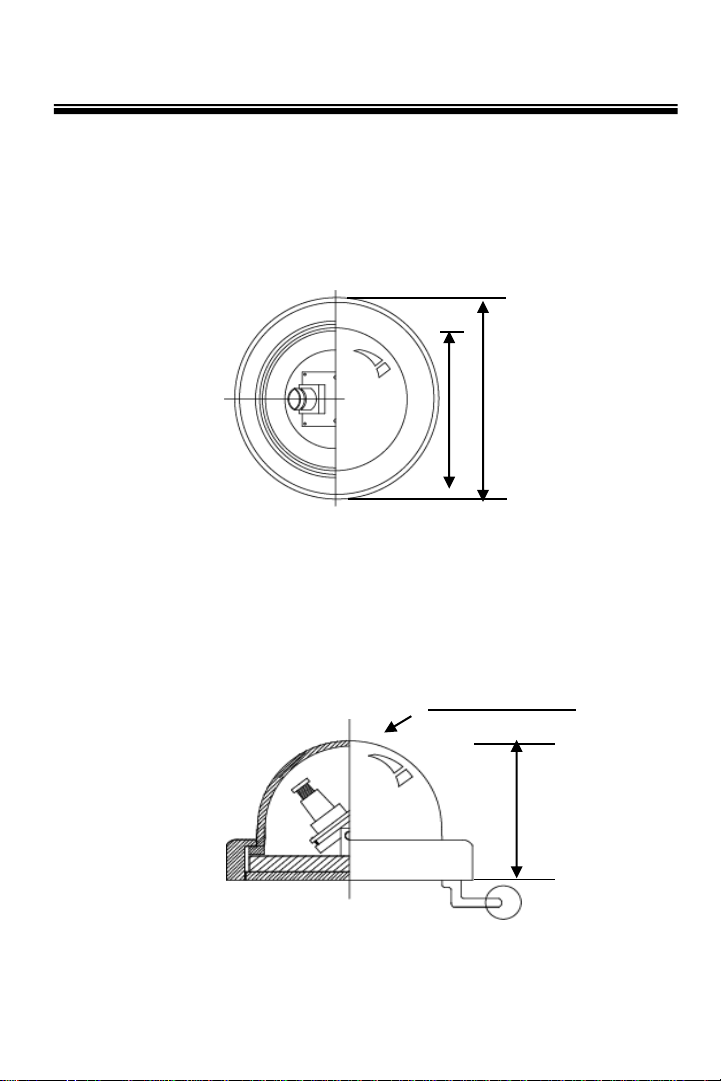

DIMENSIONS
* TOP VIEW
27
* SIDE VIEW
DIA 80
DIA 110
13
HIGH IMPACT DOME
78
WARRANTY
14
MEMO
200 New Highway
Amityville, NY 11701
631-957-8700
www.specotech.com
Rev. 120719
Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice
and without incurring any obligation.
