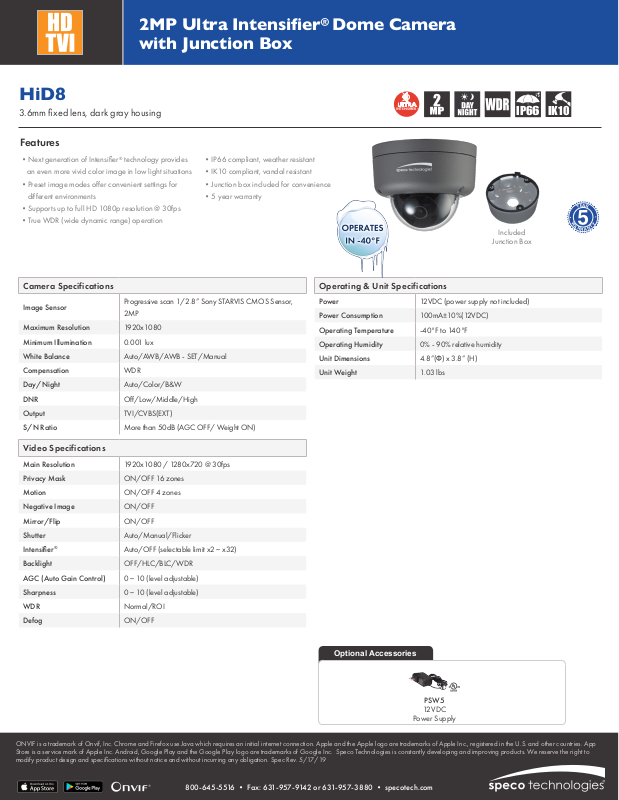

Speco HiD8 Specsheet
IP6
6
2MP Ultra Intensier® Dome Camera
IK10
with Junction Box
HiD8
3.6mm fixed lens, dark gray housing
Features
•Next generation of Intensifier® technology provides
an even more vivid color image in low light situations
•Preset image modes offer convenient settings for
different environments
•Supports up to full HD 1080p resolution @ 30fps
•True WDR (wide dynamic range) operation
Camera Specifications
Image Sensor
Maximum Resolution 1920x1080
Minimum Illumination 0.001 lux
White Balance Auto/AWB/AWB - SET/Manual
Compensation WDR
Day/Night Auto/Color/B&W
DNR Off/Low/Middle/High
Output TVI/CVBS(EXT)
S/N Ratio More than 50dB (AGC OFF/ Weight ON)
Progressive scan 1/2.8” Sony STARVIS CMOS Sensor,
2MP
•IP66 compliant, weather resistant
•IK10 compliant, vandal resistant
•Junction box included for convenience
•5 year warranty
®
INTENSIFIER
Included
Junction Box
Operating & Unit Specifications
Power 12VDC (power supply not included)
Power Consumption 100mA±10%(12VDC)
Operating Temperature -40°F to 140°F
Operating Humidity 0% - 90% relative humidity
Unit Dimensions 4.8”(Φ) x 3.8” (H)
Unit Weight 1.03 lbs
A
R
E
Y
W
Y
A
T
R
N
R
A
Video Specifications
Main Resolution 1920x1080 / 1280x720 @ 30fps
Privacy Mask ON/OFF 16 zones
Motion ON/OFF 4 zones
Negative Image ON/OFF
Mirror/Flip ON/OFF
Shutter Auto/Manual/Flicker
Intensifier
Backlight OFF/HLC/BLC/WDR
AGC (Auto Gain Control) 0 ~ 10 (level adjustable)
Sharpness 0 ~ 10 (level adjustable)
WDR Normal/ROI
Defog ON/OFF
®
Auto/OFF (selectable limit x2 ~ x32)
Optional Accessories
PSW5
12VDC
Power Supply
ONVIF is a trademark of Onvif, Inc. Chrome and Firefox use Java which requires an initial internet connection. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App
Store is a service mark of Apple Inc. Android, Google Play and the Google Play logo are trademarks of Google Inc. Speco Technologies is constantly developing and improving products. We reserve the right to
modify product design and specifications without notice and without incurring any obligation. Spec Rev. 5/17/19
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
