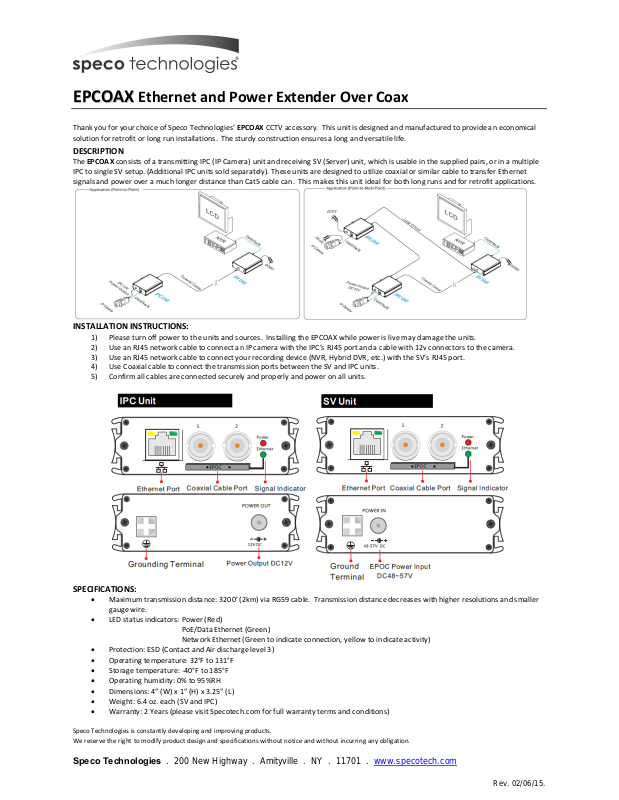

Speco EPCOAX User Manual
X
EEPPCCOOAAX
Ethernet and Power Extender Over Coax
Thank you for your choice of Speco Technologies’ EPCOAX CCTV accessory. This unit is designed and manufactured to provide an economical
solution for retrofit or long run installations. The sturdy construction ensures a long and versatile life.
DESCRIPTION
The EPCOAX consists of a transmitting IPC (IP Camera) unit and receiving SV (Server) unit, which is usable in the supplied pairs, or in a multiple
IPC to single SV setup. (Additional IPC units sold separately). These units are designed to utilize coaxial or similar cable to transfer Ethernet
signals and power over a much longer distance than Cat5 cable can. This makes this unit ideal for both long runs and for retrofit applications.
INSTALLATION INSTRUCTIONS:
1) Please turn off power to the units and sources. Installing the EPCOAX while power is live may damage the units.
2) Use an RJ45 network cable to connect an IP camera with the IPC’s RJ45 port and a cable with 12v connectors to the camera.
3) Use an RJ45 network cable to connect your recording device (NVR, Hybrid DVR, etc.) with the SV’s RJ45 port.
4) Use Coaxial cable to connect the transmission ports between the SV and IPC units.
5) Confirm all cables are connected securely and properly and power on all units.
SPECIFICATIONS:
· Maximum transmission distance: 3200’ (2km) via RG59 cable. Transmission distance decreases with higher resolutions and smaller
gauge wire.
· LED status indicators: Power (Red)
PoE/Data Ethernet (Green)
Network Ethernet (Green to indicate connection, yellow to indicate activity)
· Protection: ESD (Contact and Air discharge level 3)
· Operating temperature: 32°F to 131°F
· Storage temperature: -40°F to 185°F
· Operating humidity: 0% to 95%RH
· Dimensions: 4” (W) x 1” (H) x 3.25” (L)
· Weight: 6.4 oz. each (SV and IPC)
· Warranty: 2 Years (please visit Specotech.com for full warranty terms and conditions)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com
Rev. 02/06/15.
