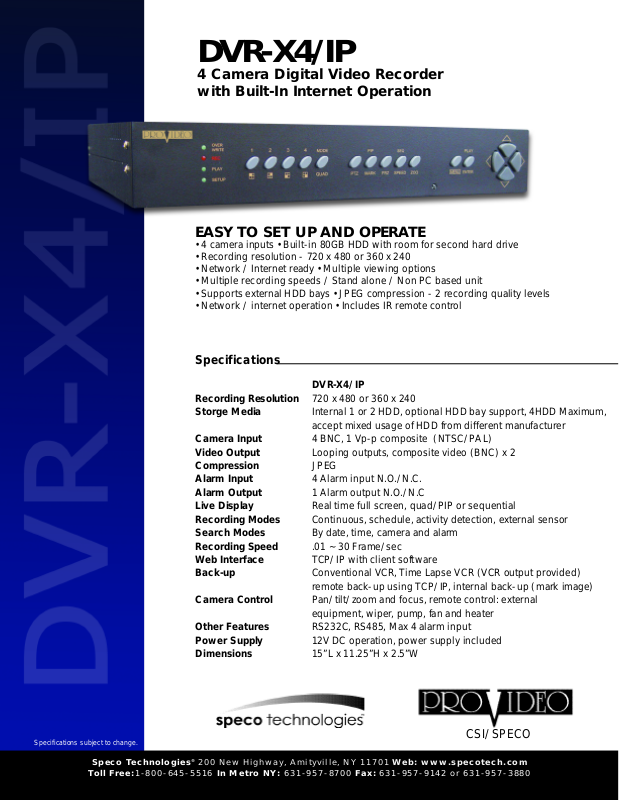

Speco DVR-X4IP SPECIFICATIONS

DVR-X4/IP

4 Camera Digital Video Recorder
with Built-In Internet Operation

EASY TO SET UP AND OPERATE

• 4 camera inputs • Built-in 80GB HDD with room for second hard drive

• Recording resolution - 720 x 480 or 360 x 240

• Network / Internet ready • Multiple viewing options

• Multiple recording speeds / Stand alone / Non PC based unit

• Supports external HDD bays • JPEG compression - 2 recording quality levels

• Network / internet operation • Includes IR remote control

Specifications

DVR-X4/IP

Recording Resolution 720 x 480 or 360 x 240
Storge Media Internal 1 or 2 HDD, optional HDD bay support, 4HDD Maximum,

accept mixed usage of HDD from different manufacturer

Camera Input 4 BNC, 1 Vp-p composite (NTSC/PAL)
Video Output Looping outputs, composite video (BNC) x 2
Compression JPEG
Alarm Input 4 Alarm input N.O./N.C.
Alarm Output 1 Alarm output N.O./N.C
Live Display Real time full screen, quad/PIP or sequential
Recording Modes Continuous, schedule, activity detection, external sensor
Search Modes By date, time, camera and alarm
Recording Speed .01 ~ 30 Frame/sec
Web Interface TCP/IP with client software
Back-up Conventional VCR, Time Lapse VCR (VCR output provided)

remote back-up using TCP/IP, internal back-up (mark image)

Camera Control Pan/tilt/zoom and focus, remote control: external

equipment, wiper, pump, fan and heater

Other Features RS232C, RS485, Max 4 alarm input
Power Supply 12V DC operation, power supply included
Dimensions 15”L x 11.25”H x 2.5”W

Specifications subject to change.

Speco Technologies®200 New Highway, Amityville, NY 11701 Web: www.specotech.com

Toll Free:1-800-645-5516 In Metro NY: 631-957-8700 Fax: [phone] or 631-957-3880

CSI/SPECO
