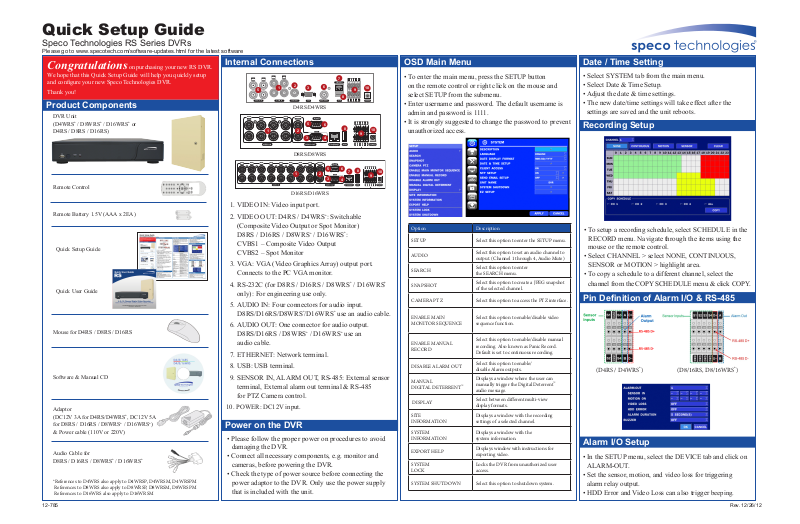

Speco D16RS2TB, D16WRS2TB, D4RS500, D8RS2TB, D8WRS250 Quick Setup Guide



Quick Setup Guide

Speco Technologies RS Series DVRs

Please go to www.specotech.com/software-updates.html for the latest software

Congratulations on purchasing your new RS DVR.

We hope that this Quick Setup Guide will help you quickly setup

and congure your new Speco Technologies DVR.

Thank you!

Product Components

DVR Unit (D4WRS* / D8WRS* / D16WRS* or D4RS / D8RS / D16RS)

Remote Control

Remote Battery 1.5V (AAA x 2EA)

Quick Setup Guide

Quick User Guide

Mouse for D4RS / D8RS / D16RS

Software & Manual CD

Adaptor (DC12V 3A for D4RS/D4WRS*, DC12V 5A for D8RS / D16RS / D8WRS* / D16WRS*) & Power cable (110V or 220V)

Audio Cable for D8RS / D16RS / D8WRS* / D16WRS

References to D4WRS also apply to D4WRSP, D4WRSM, D4WRSPM References to D8WRS also apply to D8WRSP, D8WRSM, D8WRSPM References to D16WRS also apply to D16WRSM

Internal Connections

CH1

CH2

CH3

CH1

CH2

CH3

CH4

AUDIO IN AUDIO OUT

CH4

VIDEO IN CVBS OUT POWER

VGA

ETHERNET

S1 S3 D+

G N

S2 S4 D-

USB

D4RS/D4WRS

D8RS/D8WRS

D16RS/D16WRS

1. VIDEO IN: Video input port.

2. VIDEO OUT: D4RS / D4WRS*: Switchable

(Composite Video Output or Spot Monitor) D8RS / D16RS / D8WRS* / D16WRS*: CVBS1 – Composite Video Output CVBS2 – Spot Monitor

3. VGA: VGA (Video Graphics Array) output port. Connects to the PC VGA monitor.

4. RS-232C (for D8RS / D16RS / D8WRS* / D16WRS* only): For engineering use only.

5. AUDIO IN: Four connectors for audio input. D8RS/D16RS/D8WRS*/D16WRS* use an audio cable.

6. AUDIO OUT: One connector for audio output.

D8RS/D16RS / D8WRS* / D16WRS* use an audio cable.

7. ETHERNET: Network terminal.

8. USB: USB terminal.

9. SENSOR IN, ALARM OUT, RS-485: External sensor

terminal, External alarm out terminal & RS-485

for PTZ Camera control.

10. POWER: DC12V input.

Power on the DVR

• Please follow the proper power on procedures to avoid

damaging the DVR.

• Connect all necessary components, e.g. monitor and

cameras, before powering the DVR.

• Check the type of power source before connecting the

power adaptor to the DVR. Only use the power supply that is included with the unit.

OSD Main Menu Date / Time Setting

• To enter the main menu, press the SETUP button on the remote control or right click on the mouse and select SETUP from the submenu.

• Enter username and password. The default username is

admin and password is 1111.

• It is strongly suggested to change the password to prevent

unauthorized access.

Option Description

SETUP Select this option to enter the SETUP menu.

AUDIO

SNAPSHOT

CAMERA PTZ Select this option to access the PTZ interface.

ENABLE MAIN MONITOR SEQUENCE

ENABLE MANUAL RECORD

DISABLE ALARM OUT

MANUAL DIGITAL DETERRENT

DI SPL AY

SITE INFORMATION

SYSTEM INFORMATION

Select this option to set an audio channel to output. (Channel 1 through 4, Audio Mute)

Select this option to enter the SEARCH menu.

Select this option to create a JPEG snapshot of the selected channel.

Select this option to enable/disable video sequence function.

Select this option to enable/disable manual recording. Also known as Panic Record. Default is set to continuous recording.

Select this option to enable/ disable Alarm outputs.

Displays a window where the user can manually trigger the Digital Deterrent™

™

audio message.

Select between dierent multi-view display formats.

Displays a window with the recording settings of a selected channel.

Displays a window with the system information.

• Select SYSTEM tab from the main menu.

• Select Date & Time Setup.

• Adjust the date & time settings.

• The new date/time settings will take effect after the settings are saved and the unit reboots.

Recording Setup

• To setup a recording schedule, select SCHEDULE in the RECORD menu. Navigate through the items using the

mouse or the remote control.

• Select CHANNEL > select NONE, CONTINUOUS, SENSOR or MOTION > highlight area.

• To copy a schedule to a different channel, select the channel from the COPY SCHEDULE menu & click COPY.

Pin Denition of Alarm I/O & RS-485

(D4RS / D4WRS*)

Alarm I/O Setup

EXPORT HELP

SYSTEM LOCK

SYSTEM SHUTDOWN Select this option to shutdown system.

Displays window with instructions for exporting video.

Locks the DVR from unauthorized user access.

• In the SETUP menu, select the DEVICE tab and click on ALARM-OUT.

• Set the sensor, motion, and video loss for triggering

alarm relay output.

• HDD Error and Video Loss can also trigger beeping.

(D8/16RS, D8/16WRS*)

12-785

Rev. 12/26/12



Quick Setup Guide

Speco Technologies RS Series DVRs

PTZ Camera Setup Mobile View Software

• Connect the RS-485 cables of PTZ camera

to the RS-485 port on the rear panel.

• In the SETUP menu, select the DEVICE tab and click on CONTROLLER & PTZ.

• Set the channel, name, speed and ID on the PTZ setup

screen.

• Right click on the PTZ channel and click on PTZ from

the Sub Menu.

Connect the DVR via Web-Browser Viewer

Setup Requirements

• Make sure PC is connected to the Internet.

• Make sure DVR is already setup following the Network

Setup steps. Internet Settings

• Start Internet Explorer; go to ‘Tools’ → ‘Internet Options’ → ‘Security’ tab.

• Select ‘Trusted sites’ and click ‘Sites’ to specify its

security setting.

• Uncheck ‘Require server verication (https:) for all sizes

in this zone”. Enter the IP address of the DVR in this

eld and click ‘Add’ to add this website to the zone.

• In the Security Level area, click ‘Custom Level’. Under ‘ActiveX controls and plug-ins’, set all items to ‘Enable’ or ‘Prompt’.

• Click ‘OK’ to accept the settings and close the ‘Security Settings’ screen.

Obtain Network Information of the DVR

The RS provides mobile surveillance software for the

iPhone® , iPad® and the Android™.

iPhone

/ iPad

• Search for ‘Speco Player’ in the Apple App Store

and install the app.

Network Setup

Connect the DVR via SpecoTech

Multi-Client Viewer Software

SpecoTech Multi-Client Viewer Software is a multiple

site monitoring client software that allows streaming of

video and audio, and transmission of alarm signals from the DVRs over the network. The SpecoTech Multi-Client

can display up to 16 DVRs and supports dual monitors.

PTZ camera control is also supported by this software.

• Select the NETWORK tab.

• For DHCP, set the Network Type for DHCP and exit from the menu. The IP address, Subnet Mask, Gateway and DNS settings are retrieved from network servers. DHCP is dynamic and the settings will change from

time to time.

• For Static, set the Network Type for Static. Enter the

IP address, Subnet Mask, Gateway and DNS. Obtain this

information from the network service provider.

• The Client Access must be ON for the DVR to be

accessed remotely.

• Enable/disable DDNS for free DDNS name server.

• Obtain IP address from System Information in the

Sub Menu.

• In the SETUP menu, select the SYSTEM tab and enable CLIENT ACCESS.

• In the SETUP menu, select the NETWORK tab and click on NETWORK PORT. Obtain the network and

web port number.

• Start Internet Explorer and enter the IP address and port

of the DVR.

- For example: http:// [ip address] : [port] →

http://192.168.80.6:80

• The ActiveX controls and plug-ins dialog will be

prompted for installation.

• Install the plug-ins.

• Click on ‘Connect’ and enter the username and

password of the DVR.

- The default usernames and passwords are

admin / 1111 and user1 / 1111.

• Press (+) on the upper right and enter site information.

• Click SAVE to save the site information.

• Select the saved site from “Devices”

• Select a channel(s) to view.

• Select Playback/Live then click CONNECT

Android

• Search for ‘Speco Player’ in the Android Market and

install the app.

• Select the ADD menu and enter site information.

• Click ADD to save the site information.

• Select the saved site from “Devices” for network connection. Select which channels to view and press Live View

• The app will now display the live streaming video.

™

By attaching a microphone and speaker system to

devices on site, the user may make bi-directional audio communication over the network.

Refer to the complete manual for more information.

The SpecoTech Multi-Client Viewer Software and manual are included on the CD.
