Digital Video Recorder
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the lite rature accompanying
the appliance.
COMPLIANCE NOTICE OF FCC:
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL
DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE
REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN
A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO
FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION
MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS
EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE
USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.
WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCECAUSING EQUIPMENT REGULATIONS.
The information in this manual is believed to be accurate as of the date of publication. We are not responsible for any
problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions
or new editions to this publication may be issued to incorporate such changes.
The software included in this product contains so me Open Source s. You may obta in the complet e corresponding sour ce
code from us. See the Open Source Guide on th e software CD (OpenSourceGu ide\OpenSourceGuide.pd f) or as a printed
document included along wit h the Oper atio n Instr uct ion.
i
Operation Instruction
Important Safeguards
1. Read Instructions
All the safety and operating instructions should be read before the
appliance is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future
reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do
not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipme nt without the a pproval
of the manufacturer as such additions may result in the risk of fire,
electric shock or other personal inju ry.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Placement and Accessories
Do not place this equipment on an unstable cart, stand or table. The
equipment may fall, causing serious injury to a child or adult, and
serious damage to the equipment.
This equipment and cart comb ination sh ould be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
equipment and cart combination to overturn.
Do not place this equipment on a closed space. Sufficient amount of
ventilation air is necessary to avoid increase of ambient temperature
which can cause improper operation or the risk of fire.
7. Power Sources
This equipment should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power,
please consult your equipment dealer or local power company.
8. Power Cords
Operator or installer must remove power and TNT connections before
handling the equipment.
9. Lightning
For added protection for this equipment during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug
it from the wall outlet and disconnect the antenna or cable system. This
will prevent damage to the equipment due to lightning and
power-line surges.
10. Overloading
Do not overload wall outlets and extension cords as this can result
in the risk of fire or electric shock.
11. Objects and Liquids
Never push objects of any kind through openi ngs of this equipm ent
as they may touch dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill liquid of any kind
on the equipment.
12. Servicing
Do not attempt to se rvi ce t hi s eq uipm en t your se lf. R efe r a ll se rvi ci ng
to qualified service personnel.
13. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have fallen into the equipment.
C. If the equipm ent has been exposed to rain or water.
D. If the equipment does not operate norm ally by following the operating
instructions, adjust only those controls that are covered by the
operating instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by a
qualified technician to restore the equipment to its normal operation.
E. If the equipment has been dropped, o r the cabinet damaged.
F. When the equipment exhibits a distinct change in performance –
this indicates a need for service.
14. Replacement Parts
When replacement parts are required, be sure the service technician
has used replacem ent pa rts spe ci fied by the ma nufa ctu rer o r that ha ve
the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock or other hazards.
15. Safety Check
Upon completion of any service or repairs to this equipment, ask the
service technician to per form safety checks to deter mine that the
equipment is in proper operating condit ion.
16. Field Installation
This installation should be made by a qualified service person and
should conform to all local codes.
17. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
18. Tmra
A manufacturer’s maximum recommended ambient temperature (Tmra)
for the equipment must be specified so that the customer and installer
may determine a suitable maximum operating environment for the
equipment.
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates t h at it sh ould n ot be di sposed with o ther ho usehold wastes at
the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where th ey purchased this pr oduct, or their local government office, for
details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the te rms and conditions of the purchase contract. This pro duct
should not be mixed with other commercial wastes for disposal.
ii
Digital Video Recorder
Table of Contents
Chapter 1 — Introduction ........................................................................................................... 1
Feature ................................................................................................................................... 1
Technical Overview ................................................................................................................ 1
Chapter 2 — Installation ............................................................................................................. 3
Package Contents .................................................................................................................. 3
Required Installation Tools .................................................................................................... 3
Video Input......................................................................................................................... 3
Audio In/Out ....................................................................................................................... 4
Alarm Input/Output ............................................................................................................ 4
RS485 Port ........................................................................................................................ 4
RS232 Port ........................................................................................................................ 4
Network Port ...................................................................................................................... 5
Video Out ........................................................................................................................... 5
Factory Reset Switch ......................................................................................................... 5
Power Cord Connector ...................................................................................................... 5
Chapter 3 — Configuration ........................................................................................................ 7
Front Panel Controls .............................................................................................................. 7
Menu Button ...................................................................................................................... 7
Copy Button ....................................................................................................................... 7
Esc Button ......................................................................................................................... 7
Play/Stop Button ................................................................................................................ 8
Camera Buttons ................................................................................................................. 8
Arrow Buttons .................................................................................................................... 8
Play/Pause Button ............................................................................................................. 8
HDD LED ........................................................................................................................... 8
Power LED......................................................................................................................... 8
USB Port ............................................................................................................................ 8
Remote Control Buttons......................................................................................................... 9
ID Button
Camera Buttons ................................................................................................................. 9
Sequence Button ............................................................................................................... 9
Login/Logout Button .......................................................................................................... 9
Arrow Buttons .................................................................................................................. 10
Menu Button .................................................................................................................... 10
Playback Buttons ............................................................................................................. 10
Alarm Button .................................................................................................................... 10
Layout Button .................................................................................................................. 10
Zoom Button .................................................................................................................... 10
PTZ Button....................................................................................................................... 10
Enter Button ..................................................................................................................... 10
Esc Button ....................................................................................................................... 11
PTZ Control Buttons ........................................................................................................ 11
Copy Button ..................................................................................................................... 11
Play/Stop Button .............................................................................................................. 11
Turning on the Power ........................................................................................................... 11
Initial Unit Setup ................................................................................................................... 11
............................................................................................................................ 9
iii
Operation Instruction
Setup Screen ....................................................................................................................... 12
System Setup ....................................................................................................................... 13
General ............................................................................................................................ 13
Date/Time ........................................................................................................................ 20
User ................................................................................................................................. 22
Storage ............................................................................................................................ 24
Capacity Estimator .......................................................................................................... 25
System Event .................................................................................................................. 25
Recording Setup .................................................................................................................. 27
General ............................................................................................................................ 27
Schedule .......................................................................................................................... 28
Pre-Event ......................................................................................................................... 30
Event Setup ......................................................................................................................... 31

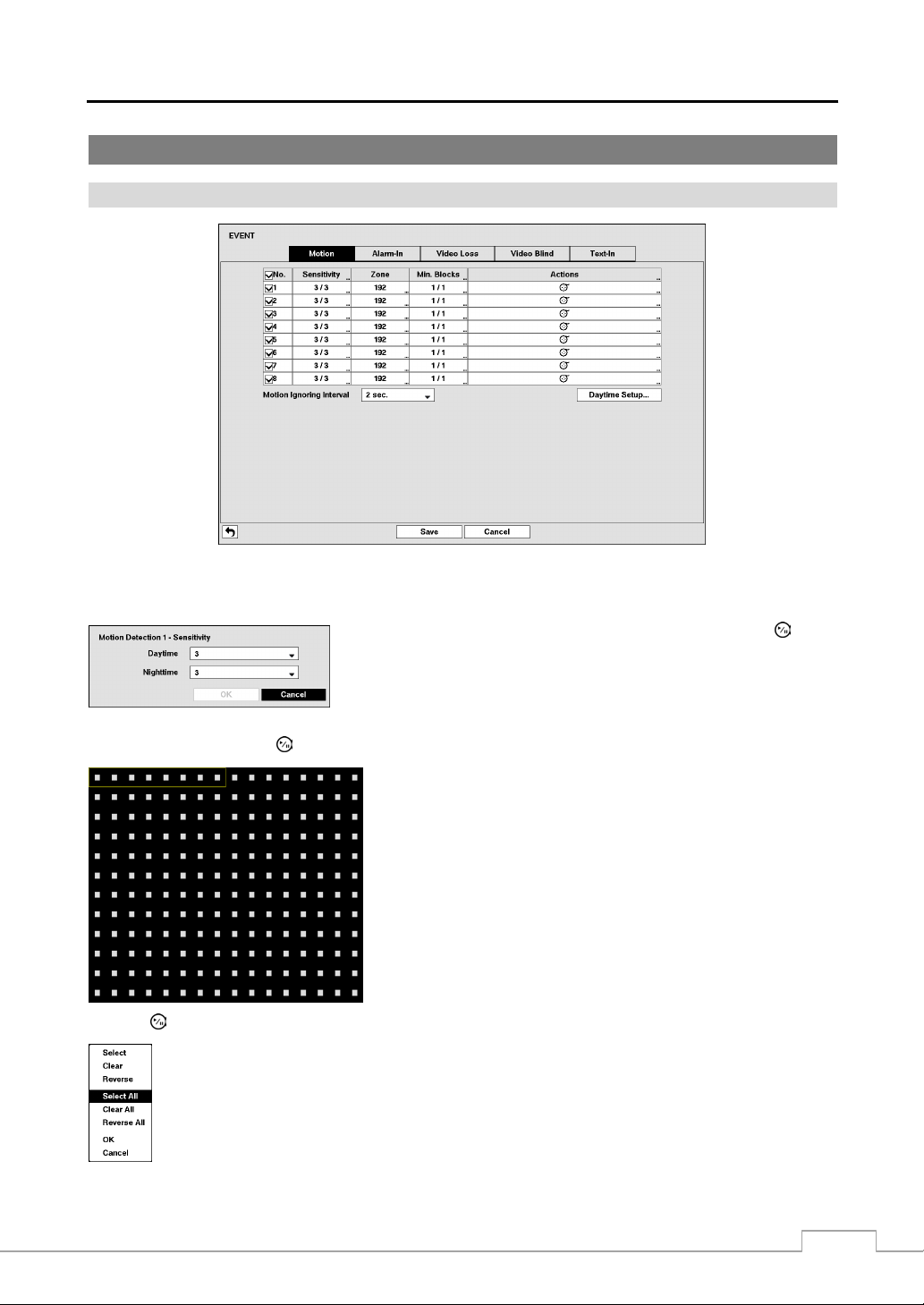

Motion .............................................................................................................................. 31
Alarm-In ........................................................................................................................... 32
Video Loss ....................................................................................................................... 33
Video Blind....................................................................................................................... 33

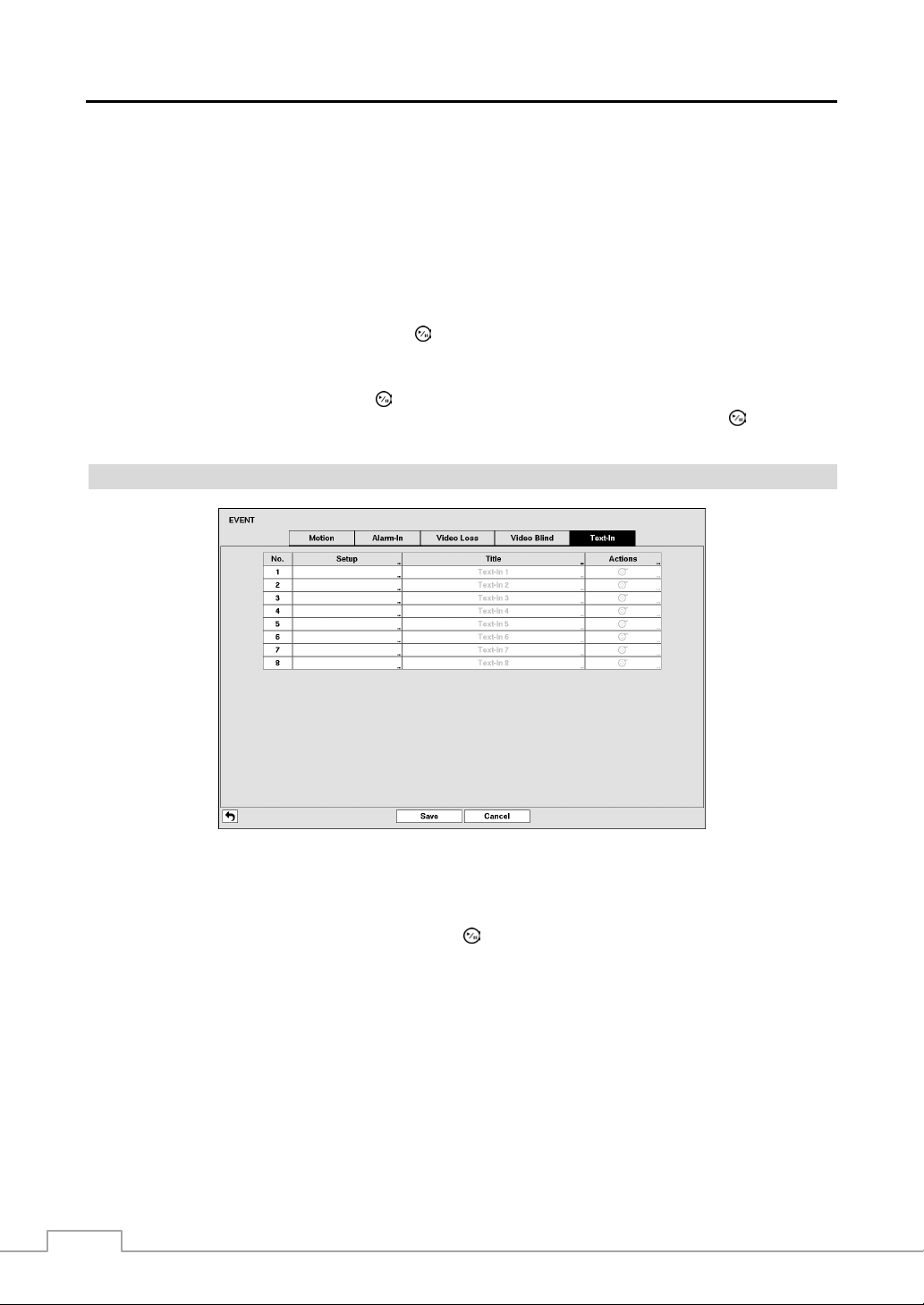

Text-In .............................................................................................................................. 34

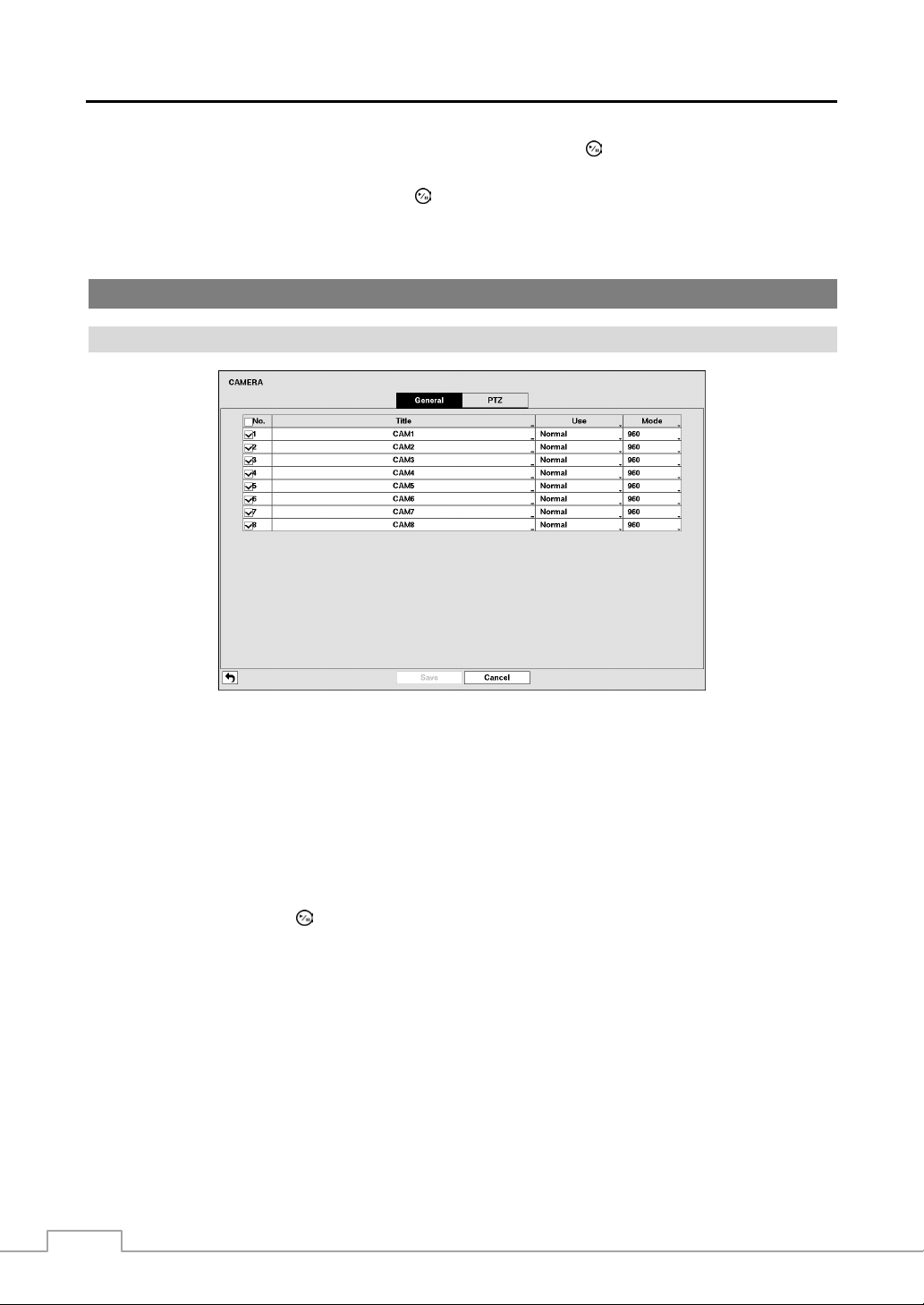

Camera Setup ...................................................................................................................... 36
General ............................................................................................................................ 36
PTZ .................................................................................................................................. 37
Device Setup ........................................................................................................................ 38
Audio ................................................................................................................................ 38
Digital Deterrent ............................................................................................................... 38
Alarm-Out ........................................................................................................................ 40
Remote Control ............................................................................................................... 41
Network Setup ..................................................................................................................... 41
General ............................................................................................................................ 41
LAN .................................................................................................................................. 42
DVRNS ............................................................................................................................ 44
RTSP ............................................................................................................................... 45
Speco Remote ................................................................................................................. 46
VNC ................................................................................................................................. 46
ation Setup ................................................................................................................. 47
Notific
Callback ........................................................................................................................... 47
Mail .................................................................................................................................. 48
SNS ................................................................................................................................. 50
Schedule .......................................................................................................................... 50
Display Setup ....................................................................................................................... 51
OSD ................................................................................................................................. 51
Main Monitor .................................................................................................................... 52
Chapter 4 — Operation ............................................................................................................ 55
Turning on the Power ........................................................................................................... 55
Live Monitoring ..................................................................................................................... 55
Live Monitoring Menu ...................................................................................................... 56
Active Cameo Mode ........................................................................................................ 58
Zoom Mode...................................................................................................................... 58
PTZ Mode ........................................................................................................................ 58
Event Monitoring .............................................................................................................. 59
Covert Camera ................................................................................................................ 60
iv
Digital Video Recorder
Status Monitoring ............................................................................................................. 60
Recording Video .................................................................................................................. 61
Panic Recording .............................................................................................................. 61
Recording Audio .................................................................................................................. 62
Playing Recorded Video ...................................................................................................... 62
Searching Video ................................................................................................................... 63
Search Menu ................................................................................................................... 63
Event Log Search ............................................................................................................ 65
Record Table Search ....................................................................................................... 67
Motion Search ................................................................................................................. 68
Text-In Search ................................................................................................................. 70
EZ Search ........................................................................................................................ 71
Bookmarks ....................................................................................................................... 72
Clip-Copy ......................................................................................................................... 72
Print ................................................................................................................................. 74
Appendix .................................................................................................................................. 75
USB Hard Disk Drive Preparation ........................................................................................ 75
Text-In Search Examples..................................................................................................... 75
Search Example I ............................................................................................................ 75
Search Example II ........................................................................................................... 76
Speco Remote ..................................................................................................................... 77
Web Monitoring Mode ..................................................................................................... 78
Web Search Mode ........................................................................................................... 79
Time Overlap ....................................................................................................................... 81
Error Code Notices .............................................................................................................. 81
System Log Notices ............................................................................................................. 82
Map of Screens .................................................................................................................... 83
Troubleshooting ................................................................................................................... 84
Specifications ....................................................................................................................... 84
List of Illustrations
Figure 1: Typical DVR installation. ............................................................................................................ 2
Figure 2: DVR rear panel. ......................................................................................................................... 3
Figure 3: DVR front panel. ........................................................................................................................ 7
Figure 4: Infrared remote control. .............................................................................................................. 9
Figure 5: Login screen. ........................................................................................................................... 11
Figure 6: Logout screen. ......................................................................................................................... 12
Figure 7: Setup screen. ........................................................................................................................... 12
Figure 8: System – General setup screen. .............................................................................................. 13
Figure 9: System – Date/Time setup screen. .......................................................................................... 20
Figure 10: System – User setup screen. ................................................................................................. 22
Figure 11: System – Storage setup screen. ............................................................................................ 24
Figure 12: System – Capacity Estimator setup screen. .......................................................................... 25
Figure 13: System – System Event setup screen. .................................................................................. 25
Figure 14: Record – General setup screen. ............................................................................................ 27
Figure 15: Record – Schedule setup screen. .......................................................................................... 28
Figure 16: Schedule – Settings (Advanced Mode) setup screen. ........................................................... 29
v
Operation Instruction
Figure 17: Record – Pre-Event setup screen. ......................................................................................... 30
Figure 18: Event – Motion setup screen.................................................................................................. 31
Figure 19: Event – Alarm-In setup screen. .............................................................................................. 32
Figure 20: Event – Video Loss setup screen. .......................................................................................... 33
Figure 21: Event – Video Blind setup screen. ......................................................................................... 33
Figure 22: Event – Text-In setup screen. ................................................................................................ 34
Figure 23: Camera – General setup screen. ........................................................................................... 36
Figure 24: Camera – PTZ setup screen. ................................................................................................. 37
Figure 25: Device – Audio setup screen. ................................................................................................ 38
Figure 26: Device – Digital Deterrent setup screen. ................................................................................ 38
Figure 27: Device – Alarm-Out setup screen. ......................................................................................... 40
Figure 28: Device – Remote Control setup screen. ................................................................................ 41
Figure 29: Network – General setup screen. ........................................................................................... 41
Figure 30: Network – LAN setup screen. ................................................................................................ 42
Figure 31: Network – DVRNS setup screen. ........................................................................................... 44
Figure 32: Network – RTSP setup screen. .............................................................................................. 45
Figure 33: Netw
ork – Speco Remote setup screen. ................................................................................ 46
Figure 34: Network – VNC setup screen. ................................................................................................ 46
Figure 35: Notification – Callback setup screen. ..................................................................................... 47
Figure 36: Notification – Mail setup screen. ............................................................................................ 48
Figure 37: Notification – SNS setup screen. ........................................................................................... 50
Figure 38: Notification – Schedule setup screen. .................................................................................... 50
Figure 39: Display – OSD setup screen. ................................................................................................. 51
Figure 40: Display – Main Monitor setup screen. .................................................................................... 52
Figure 41: Live Monitoring menu. ............................................................................................................ 55
Figure 42: PTZ Select Camera menu. .................................................................................................... 58
Figure 43: PTZ Preset menu. .................................................................................................................. 59
Figure 44: Event Status – Event Status screen. ...................................................................................... 60
Figure 45: Event Status – Storage screen. ............................................................................................. 61
Figure 46: Select Playback Camera menu. ............................................................................................. 62
Figure 47: Search menu. ......................................................................................................................... 63
Figure 48: Event Log Search screen. ...................................................................................................... 65
Figure 49: Record Table Search screen. ................................................................................................ 67

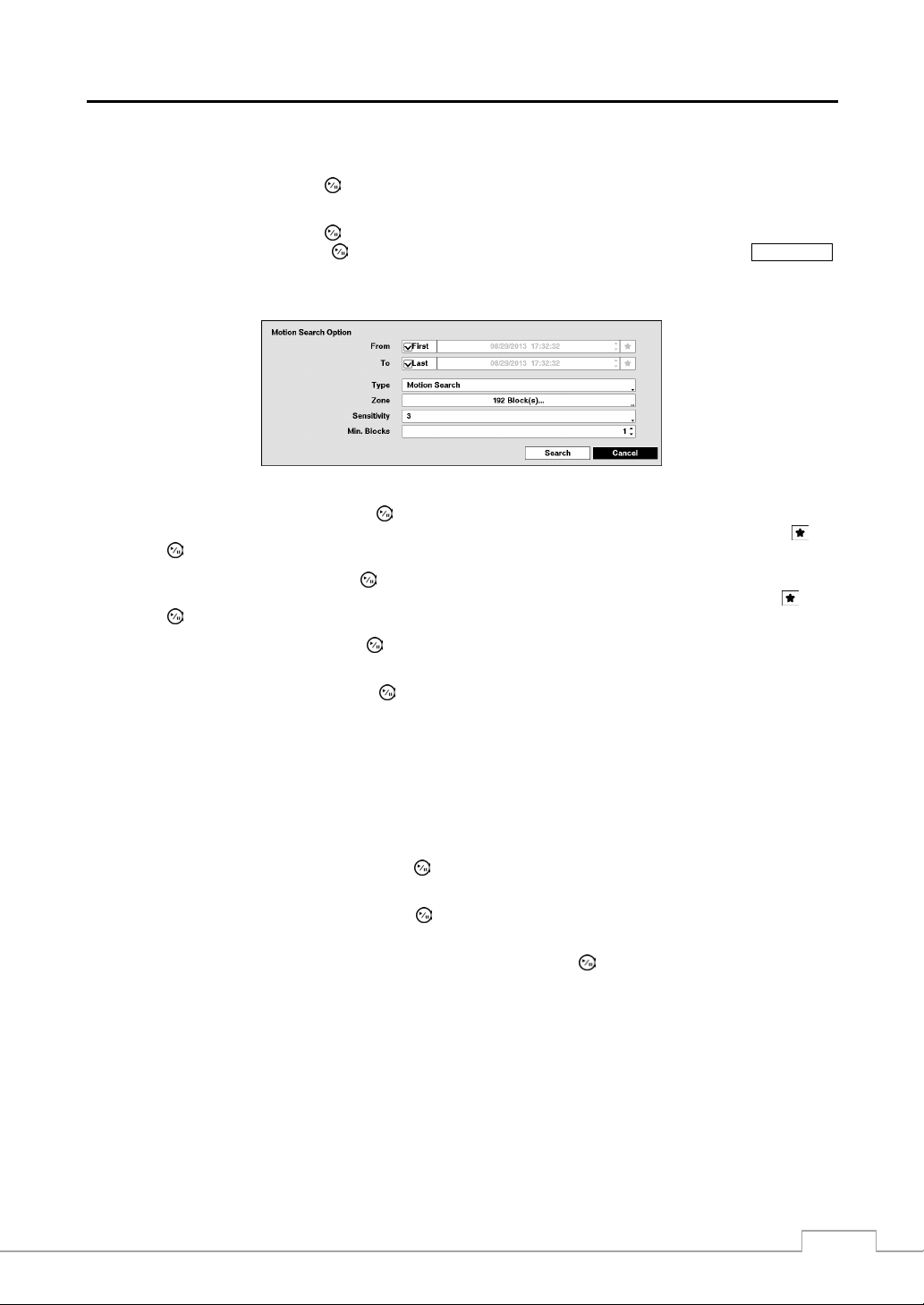

Figure 50: Motion Search screen. ........................................................................................................... 68
Figure 51: Text-In Search screen. ........................................................................................................... 70
Figure 52: Bookmarks screen. ................................................................................................................ 72
Figure 53: Clip-Copy screen. .................................................................................................................. 73
Figure 54: Print screen. ........................................................................................................................... 74
vi
Digital Video Recorder
Chapter 1 — Introduction
Feature
Your color digital video recorder (DVR) provides recording capabilities for four or eight camera inputs. It provides
exceptional picture quality in both live and playback modes, and offers the following features:
4 or 8 Composite Video Input Connectors
Compatible with Color (NTSC or PAL) and B&W (CCIR and EIA-170) Video Sources
Auto Detection for NTSC and PAL
H.264 Codec
Monitor Connectors: 1 HDMI, 1 VGA
Multiple Search Engines (Date/Time, Calendar, Record Table, Event, EZ Search)
Real-time Recording (240/200 Images per Second (NTSC/PAL) with Very High (D1/960H) Resolution)
Continuous Recording in Disk Overwrite Mode
2 USB 2.0 Ports
Continues Recording while Transmitting to Remote Site and during Playback
User-friendly Graphical User Interface (GUI) Menu System
Multiple Recording Modes (Time-lapse, Pre-event, Alarm, Motion and Panic)
Two-way Audio Communication
4-Channel Audio Recording and 1-Channel Audio Playback
Text Input for ATM and POS
Alarm Connections Include: Input, Output
Built-in Alarm Buzzer
Live or Recorded Video Access via Ethernet
Time Synchronization using industry standard protocol
IR Remote Control
Self-diagnostics with automatic notification including hard disk drive S.M.A.R.T. protocol
Technical Overview
In addition to replacing both a time-lapse VCR and a multiplexer in a security installation, your DVR has many features
that make it much more powerful and easier to use than even the most advanced VCR.
The DVR converts analog NTSC or PAL video to digital images and records them o n a hard disk drive. Using a hard
disk drive allows you to access recorded video almost instantaneously; there is no need to rewind tape. The technology
also allows you to view recorded video while the DVR continues recording video.
Digitally recorded video has several advantages over analog video recorded on tape. There is no need to adjust tracking.
You can freeze frames, fast forward, fast reverse, slow forward and slow reverse without image streaking or tearing .
Digital video can be indexed by time or events, and you can instantly view video after selecting the time or event.
Your DVR can be set up for event or time-lapse recording. You can define times to record, and the schedule can change
for different days of the week and user defined holidays.
The DVR can be set up to alert you when the hard disk drive is full, or it can be set to record over the oldest video once
the disk is full.
Your DVR uses a proprietary encryption scheme making it nearly impossible to alter video.
You can view video and control your DVR remotely by connecting via Ethernet. There are two USB ports that can
be used to upgrade the system or copy video clips to external hard disk and flash drives.
1
Operation Instruction
Figure 1: Typical DVR installation.
NOTE: This manual covers the 4- and 8-channel digital video recorders. The DVRs are identical except for the
number of cameras and alarms that can be conne cted and the n umber of cameras that can be disp layed.
For simplicity, the illustrations and descriptions in this manual refer to the 8-camera model.
2
Digital Video Recorder
Chapter 2 — Installation
Package Contents
The package contains the following:
Digital Video Recorder
Power Adaptor and Power Cord
Operation Instruction (This Document)
Speco Central Software CD and Operation Instruction
Infrared Remote Control
Required Installation Tools
No special tools are required to install the DVR. Refer to the installation manuals for the other items that make up part
of your system.
Video Input Audio In/Out Alarm Input/Output RS485 Port
RS232 Port Network Port Video Out Factory Reset Switch
Power Cord Connector
Your DVR can be used with either NTSC or PAL equipment.
NOTE: You cannot mix NTSC and PAL equipment. For example you cannot use a PAL camera and an NTSC
monitor.
Figure 2: 8-Channel DVR rear panel.
Video Input
Connect the coaxial cables from the video sources to the BNC Video In connectors .
3
Operation Instruction
Audio In/Out
Your DVR can record audio from up to four sources. Connect the audio sources to Audio
In 1, Audio In 2, Audio In 3 and Audio In 4 as needed using RCA jacks. Connect Audio
Out to your amplifier.
NOTE: It is the user’s responsibility to determine if local laws and regulations permit recording audio.
The DVR does not have amplified audio output, so you will need a speaker with an amplifier. The DVR
does not have a pre-amplifier for audio input, so the audio input should be from an amplified source,
not directly from a microphone.
Alarm Input/Output
Alarm In 1 to 8 : You can use external devices to signal the DVR to react to events . Mechanical or electrical switches
can be wired to the Alarm In and GND (Ground) connectors. The threshold voltage of electrical switches for NC
(Normally Closed) is above 2.4V and for NO (Normally Open) is below 0.3V, and should be stable at least 0.5 seconds
to be detected. The voltage range of alarm input is from 0V to 5V. See Chapter 3 ─ Configuration for configuring
alarm input.
GND (Ground): Connect the ground side of the Alarm input and/or alarm output to the GND connector.
NOTE: All the connectors marked GND are common.
NO (Normally Open): Connect the device to the COM and NO (Normally Open) connector. NO is a relay output
which sinks 1A@30VDC. See Chapter 3 ─ Configuration for configuring alarm output.
Connector Pin Outs:
NOTE: To make connections on the Alarm Connector St rip, press and hold the button and
insert the wire in the hole below the button. After releasing the button, tug gently on the
wire to make certain it is connected. To disconnect a wire, press and hold the bu tton above
the wire and pull out the wire.
Alarm In (1 to 8)
GND
COM
NO
Alarm Inputs 1 to 8
Chassis Ground
Relay Common
Relay Alarm Out (Normally Open)
RS485 Port
The DVR can be controlled remotely by an external d evice or control s ystem, such as a control ke yboard,
using RS485 half-duplex serial communications signals. The RS485 connector can also be used to control
Connector Pin Outs:
PTZ (pan, tilt, zoom) cameras. Connect RX+/TX+ and RX–/TX– of the control system to the + and –
(respectively) of the DVR. See Chapter 3 ─ Configuration and the PTZ camera or remote controller
manufacture’s manual for configuring the RS485 connection.
Master Unit Slave Unit
+ → To → TX+/RX+
– → To → TX–/RX–
RS232 Port
An RS232 port is provided to connect remote control devices such as a control keyboard. PTZ cameras or
text-in devices can also be connected to the RS232 port. See Chapter 3 ─ Configuration and the PTZ camera,
text-in device or remote controller manufacturer’s manual for configuring the RS232 connection.
4
Digital Video Recorder
Connector Pin Outs:
NOTE: Refer to the following for pin-out details for the 9-pin connector of the slave unit.
Male
Female
Master Unit Slave Unit
RX → To → TXD
TX → To → RXD
GND → To → GND
Pin 2
Pin 3
Pin 5
RXD (Receive Data)
TXD (Transmit Data)
GND (Ground)
Network Port
The DVR can be networked using the 10Mb/100Mb/1Gb Ethernet connector. Connect a Cat5 cable with
an RJ-45 jack to the DVR connector. The DVR can be networked with a computer for remote monitoring,
searching, configuration and software upgrades. See Chapter 3 ─ Configuration for configuring the
Ethernet connections.
CAUTION: The network connector is not designed to be connected directly with cable or wire
intended for outdoor use.
Video Out
A VGA connector is provided so that you can use a standard, multi-sync computer monitor
as your main monitor. Use the cable supplied with your monitor to connect it to the DVR.
An HDMI (High-Definition Multimedia Interface) connector is provided so that you can
NOTE: Connect the monitor before the DVR boots so that video can be displayed on the monitor with the resolution
you have set during system setup. If you want to use both the HDMI and VGA Monitor connectors, one
of the monitors should be connect ed be fo re th e D VR boo ts , and the other monitor should be connected
after the DVR boots.
use an HDMI monitor as your main monitor.
Factory Reset Switch
The DVR has a Factory Reset switch to the left of the HDMI connector on the rear panel. This
switch will only be used on the rare occasions that you want to return all the setting s to the origin al
factory settings.
CAUTION: When using the Factory Reset, you will lose any settings you have saved.
To reset the unit, you will need a straightened paperclip:
1. Turn the DVR off.
2. Turn it on again.
3. While the DVR is initializing, the front panel LEDs will blink. When the front panel LEDs blink, poke the
straightened paperclip into the unlabeled hole to the left of the HDMI connector.
4. Hold the reset switch until the DVR’s internal buzzer sounds twice.
5. Release the reset switch. All of the DVR’s settings are now at the original settings it had when it left the factory.
Power Cord Connector
Connect the connector of the adaptor to the DVR, and connect the AC power cord to the adaptor and then
to the wall outlet.
5
Operation Instruction
WARNING: ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD. MAKE
CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED BY FURNITURE.
DO NOT INSTALL POWER CORDS UNDER RUGS OR CARPET.
THE POWER CORD HAS A GROUNDING PIN. IF YOUR POWER OUTLET DOES NOT
HAVE A GROUNDING PIN RECEPTACLE, DO NOT MODIFY THE PLUG. DO NOT
OVERLOAD THE CIRCUIT BY PLUGGING TOO MANY DEVICES IN TO ONE CIRCUIT.
CAUTION: Ensure the DVR is not near any heat source that coul d cause overheating.
CAUTION: The DVR does not have an internal fan so leave a clearance of at least 6 inches near
ventilation hole areas on each side panel of the unit for proper ventilation.
Your DVR is now ready to operate. Refer to Chapter 3 ─ Configuration and Chapter 4 ─ Operation.
6
Digital Video Recorder
Chapter 3 — Configuration
NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation.
Front Panel Controls
Figure 3: 8-Channel DVR front panel.
Menu Button
Camera Buttons
Power LED
Copy Button
Arrow Buttons
USB Port
Esc Button
Play/Pause Button
Play/Stop Button
HDD LED
The front panel looks and operates much like a VCR combined with a multiplexer. The following describes each button
and control. Take a few minutes to review the descriptions. You will use these to initially set up your DVR and for
daily operations.
NOTE: A separate Alarm button on the front panel is not provided. P ressing any button on the f ront panel resets
alarm output including the internal buzzer when the alarm is activated. However, when you are in the
menu or PTZ mode, you have to exit the menu or PTZ mode first to reset alarm output.
The infrared sensor on the DVR is just to the right of the USB ports. Make certain that nothing blocks the
sensor, or the remote control will not function properly.
When you use wireless communication devices (such as Wi-Fi or Bluetooth) near the DVR, the remote
control might not function properly.
You can also use a USB mouse (not supplied) to navigate through the screens and menus much like
you would on a computer.
Menu Button
In the Live Monitoring mode and Search mode, pressing the MENU button displays the menu icons at the top of the screen.
Copy Button
Pressing the
COPY button allows you to copy video clips.
Esc Button
During menu setup, pressing the
ESC button closes the current menu or setup dialog box.
7
Operation Instruction
Play/Stop Button
Pressing the
PLAY/STOP button enters the playback mode, and pressing the button again exits the playback mode. When
entering the playback mode, video is paused. Pressing the (Play/Pause) button plays back video at regular speed. The
screen displays
when the DVR is in the Pause mode and the screen displays when the DVR is playing back video.
When in one of the multi-view formats, pressing this button enters the Triplex mode. The DVR supports the Triplex
function: monitoring, recording and playing back at the same time.
Camera Buttons
Pressing the individual camera buttons will cause the selected camera to display full screen. Buttons 1 to 9 are also
used to enter passwords.
Arrow Buttons
These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting
a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value.
When in the PIP display format, pressing the Up and Down arrow buttons moves the position of the small screen
counter-clockwise and clockwise, and pressing the Left and Right buttons changes the PIP screen size.
In the playback mode, pressing the button plays video backward at high speed. Pressing the button again toggles
the playback speed from
button plays video forward at high speed. Pressing the button again toggles the playback speed from
The screen displays
next image and pressing the
, and . The screen displays , and respectively. Pressing the
, and .
, and
respectively. When in the pause mode, pressing the
button moves to the
button moves to the previous image.
Play/Pause Button
In the live monitoring mode, pressing the
in the playback mode, pressing the
button plays back images at regular speed or pauses playing video.
button freezes the current screen and the screen displays
icon. When
Pressing the button selects a highlighted item or completes an entry that yo u have made during system setup.
HDD LED
The HDD LED flickers when the DVR is recording or searching video on the hard disk drive.
Power LED
The POWER LED is lit when the unit is On.
USB Port
Two USB ports on the front panel are provided to connect external hard disk or flash drives for video clip copying or
system upgrades. Position external drives close enough to the DVR so that you can make the cable connections, usually
less than 6 feet. Use the USB cable provided with the hard disk drive to connect it to the DVR.
A USB mouse (not supplied) can be connected to one of the ports. You can use the mouse to navigate through the
screens and menus much like you would on a computer.
A PostScript™ USB printer (not supplied) can be connected to one of the ports. You can print selected images resulting
from a search. Refer to Chapter 4 — Operation, Searching Video.
A USB to Serial converter can be connected to the USB port. Multiple text-in devices can be used with a USB to Serial
converter.
8
Remote Control Buttons
Digital Video Recorder
ID Button
Camera Buttons
Sequence Button
Login/Logout Button
Arrow Buttons
Menu Button
Playback Buttons
Alarm Button
Layout Button
Zoom Button
PTZ Button
Enter Button
Esc Button
PTZ Control Buttons
Copy Button
Play/Stop Button
Figure 4: Infrared remote control.
NOTE: For simplicity, the button descriptions in this manual refer to the front panel buttons.
ID Button
If a DVR System ID is set to 0, the infrared remote control will control that DVR without any additional operations.
(Refer to the System – General setup screen in this chapter for further information on setting the System ID.) If the
system ID is 1 to 16, you must to press the ID button and then press the number button (1 to 16 (+10 & 6)) in order to
control that DVR. If the System ID of two or more DVRs is set to 0, those DVRs will react to the infrared remote control
at the same time.
Camera Buttons
Pressing the individual camera buttons will cause the selected camera to display full screen. Buttons 1 to 9 are also
used to enter passwords.
Sequence Button
When in the Live Monitoring mode, pressing the
SEQUENCE button displays live channels sequentially.
Login/Logout Button
Pressing the LOGIN/OUT button displays the Login or Logout screen.
9
Operation Instruction
Arrow Buttons
These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting
a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value.
When in the PIP display format, pressing the Up and Down arrow buttons moves the position of the small screen
counter-clockwise and clockwise.
Pressing the Left and Right buttons moves through screen pages in the Live Monitoring mode and Search mode.
Menu Button
In the Live Monitoring mode and Search mode, pressing the
MENU button displays the menu icons on the right edge
of the screen.
Playback Buttons
Rewind: Pressing the button plays video backward at high speed. Pressing the button again toggles the playback
speed from
Play/Pause: Pressing the
The screen displays
, and .
button plays back video at regular speed and pressing the button again pauses video.
when the DVR is in the Pause mode and the screen displays when the DVR is playing back
video.
Fast Forward: Pressing the
playback speed from
, and .
button plays video forward at high speed. Pressing the button again toggles the
Stop: Pressing the button stops playback and enters the Live Monitoring mode.
Backward: When in the pause mode, pressing the button moves to the previous image.
Forward: When in the pause mode, pressing the button moves to the next image.
In the Live Monitoring mode, pressing any playback button enters to the Search mode.
Alarm Button
Pressing the
ALARM button resets the DVR’s outputs including the internal buzzer during an alarm.
Layout Button
Pressing the
LAYOUT button toggles between different display formats. The available formats are: 3x3, 1P7, 1P5,
2x2 and PIP.
Zoom Button
Pressing the
ZOOM button zooms the current image on the screen. A PIP with a rectangle temporarily displays showing
what area of the screen has been enlarged. You can use the arrow buttons to move the rectangle to another area.
PTZ Button
Pressing the PTZ button enters the PTZ (Pan/Tilt/Zoom) mode which allows you to control properly configured cameras.
Enter Button
The
(Enter) button selects a highlighted item or completes an entry that you have made during system setup. This
button is also used to enter the Cameo mode in the Live Monitoring mode or Search mode.
10
Digital Video Recorder
Esc Button
During menu setup, pressing the
ESC button closes the current menu or setup dialog box.
PTZ Control Buttons
While in the PTZ mode, the
PRESET buttons are used to save Presets and load a Preset View, the ZOOM buttons are used
to Zoom In and Zoom Out, and the FOCUS buttons are used for Near Focus and Far Focus.
Copy Button
Pressing the
COPY button allows you to copy video clips.
Play/Stop Button
Pressing the
PLAY/STOP button enters the playback mode, and pressing the button again exits the playback mode. When
entering the playback mode, video is paused. Pressing the button plays back video at regular speed. The screen
displays
when the DVR is in the Pause mode and the screen displays when the DVR is playing back video.
When in one of the multi-view formats, pressing this button enters the Triplex mode. The DVR supports the Triplex
function: monitoring, recording and playing back at the same time.
Turning on the Power
Connecting the power cord to the DVR turns on the unit. The unit takes approximately 50 seconds to initialize.
Initial Unit Setup
Before using your DVR for the first time, you will want to establish the initial settings. This includes items such as
time and date, display language, camera, remote control, r ecord mode, network an d password. Your DVR can be set
up using various screens and dialog boxes.
Throughout the screens you will see
reset that screen to its default settings.
. Highlighting the and pressing the button gives you the opportunity to
Highlighting This page or All pages and pressing the button resets the current page
or all pages of the screen to its or their default settings.
After you are finished with any setup screen, you can highlight Save and press the button to save th e changes an d
exit the screen. If you do not wish to save the changes, highlight Cancel and press the
button to exit the screen.
Press the
MENU button or move the mouse pointer on the right edge of the screen and then select (Login) in the Live
Monitoring menu to enter the setup screens. The Login screen appears.
Select a User and enter the password by pressing the appropriate
combination of Camer a n umbe r bu ttons and th en the
button. There
is no default password when logging in the admin user for the first
time. If you do not know the password, click the
Figure 5: Login screen.
button for guidance.
11
Operation Instruction
NOTE: To assure the secure management of the system, setting up a password is strongly recommended.
If you cannot use the front p an el but tons, click the
the virtual keyboard displays. See instructions below for using the virtual keyboard.
To log the user out of the system, press the
of the screen and then select (Logout) in the Live Monitoring menu. The Logout screen displays asking
you to confirm whether or not you want to log out the current user.
button using the mouse to enter a password, and
MENU button or move the mouse pointer on the right edge
Figure 6: Logout screen.
Setup Screen
System
Record
Event
Camera
Device
Network
Notification
Figure 7: Setup screen.
Display
Press the MENU button or move the mouse pointer on the right edge of the screen and then select (Setup) in the Live
Monitoring menu to enter the setup screen.
While setting up the DVR, there will be many opportunities to enter names and titles. When making these entr ies, a
Virtual Keyboard will appear.
Use the arrow keys to highlight the character you want in the name or title and press
button. That character appears in the title bar and the cursor moves to the next
the
position. Pressing
backspaces, and
keyboard layouts. You can use up to 31 characters including spaces in your title.
toggles between the upper and lower case keyboards,
deletes entered characters. Pressing toggles between different
Special characters can be created using ^ and a capital letter; e.g., ^J for NL (New
Line), ^M for CR (Carriage Return). Special characters are com monly used by text
input devices and will be useful when performing Text-In Searches.
12
System Setup
General
Digital Video Recorder
Figure 8: System – General setup screen.
Highlight the Site box and press the
you have entered your title, highlight OK and press the
button. A virtual keyboard appears that you can use to enter a Site Name. Once
button.
Highlight the box beside System ID and press the button. Change the number by highlighting it and using the Up
and Down arrow buttons to increase and decrease the number from 0 to 99.
NOTE: The System ID number is used to identify the unit when it is connected with other DVRs through the RS485
Highlight the box beside Language and press
the desired language and press the button.
port. You cannot use the same ID number for two or more DVRs that are in the same RS485 network.
It is possible to have multiple DVRs with System ID 0 that are in the same area as long as they are not
part of an RS485 network. If this is the case, all will be controlled at the same time when using the infrared
remote control.
button. A drop-down menu displays the available languages. Highlight
The box beside Version displays the software version of the DVR. To upgrade the software, connect a USB device
containing the upgrade package file to the DVR. Highlight Upgrade… and press the
button. The Upgrade screen
appears. The screen displays the upgrade package file names that are available. The “.rui” indicates that the file is for
software upgrades.
Select the desired file and press the button. Highlighting the Install button and pressing the button will install
the selected software package. Highlighting the Cancel button and pressing the
button will close the window without
upgrading the software. If the upgrade package file is not installed on the DVR properly, you will get an error message.
The system restarts automatically after completing the upgrade.
CAUTION: The USB device must be FAT16 or FAT32 format.
13
Operation Instruction
You can import saved DVR settings or export the current DVR settings. To import saved DVR settings, connect the
USB device containing the setup file (.dat) to the DVR. Highlight Setup – Import… and press th e
button. Select
the desired setup file and press the Import button to import the selected settings and change th e DVR settings accordingly.
Highlight Include Network Setup and press the
settings will not be changed.
button to toggle between On and Off. When set to Off, the network
To export the current DVR settings, connect the USB device to the DVR. Highlight Setup – Export… and press the
button. Highlight the box beside File name and press the button. A virtual keyboard allows you to enter the file
name. Selecting Export will save the current settings in .dat file format on the USB device.
NOTE: Even after changing the D VR s et tin gs by importing saved setting s, th e ti me- r el at ed s ett ings (Date/Time,
Time Zone and Daylight Saving Time) will NOT be changed.
CAUTION: The USB device must be FAT16 or FAT32 format.
Highlight Show System Log… and press the
button to display the System Log.
The System Log screen lists system activities (up to 5,000 from the latest) that have occurred along with the time and
date. The icon will be displayed in the last column for s ystem activities of the r emote site. You can scrol l through
the log pages by using the Up and Down arrows, or you can go directly to a log page by entering the log page number
in the box at the bottom left of the screen. Highlight Close and press the
button to exit the screen.
To export the system log information, connect the USB device to the DVR. Highlight Export… and press the button.
Highlight the box beside File name and press the
Selecting Export will save the log information in .txt file format on the USB device.
NOTE: When opening the saved .txt file, setting to the proper character encoding and using fixed width fonts
14
will be required to read the file properly.
button. A virtual keyboard allows you to enter the file name.
Digital Video Recorder
The box beside Recorded Data – From / To displays the time information of recorded data.
Highlighting Clear All Data… and pressing the button will clear all video data. You will be asked to verify that
you wish to clear all data before the DVR erases the video data. Clear All Data… will not clear the System Log.
Highlight EZ Setup and press the button. The EZ Setup screen appears. The EZ Setup guides you through
configuring the system for basic operation.
Select either EZ Record or EZ Network and select the Next button to start the selected setup.
NOTE: Selecting the Cancel button throughout the screens exits the EZ Setup without saving your changes
If you selected the EZ Record, selecting the Next button starts the EZ Record.
and returns to the main setup screen.
15
Operation Instruction
Date/Time Setup
Date: Set the system date and select the date format.
Time: Set the system time and select the time format.
Time Zone: Select your time zone. The Time Zone can be selected on the map.
Use Daylight Saving Time: Selecting the box sets the system to use daylight saving time.
NOTE: The Date/Time will be set, and the clock will start when you click the Next button.
Record Method Setup
Select the desired recording mode from:
– Motion Event Record (Recommended)
– Continuous & Motion Event Record
– Continuous Record
NOTE: You should understand each recording mode before setting the DVR’s recording method.
16
Digital Video Recorder
Record Video Quality Setup
Select the desired video quality profile from:
– Higher Video Quality Priority Profile
– Standard Recording Profile
– Longer Recording Time Priority Profile
NOTE: The higher quality setting requires more storage space.
The recording resolution will be set to Very High (D1/960H) when selecting High Video Quality Priority
Profile, High (2CIF/H960H) when selecting Standard Recording Profile, and Standard (CIF/Q96 0H) when
selecting Longer Recording Time Priority Profile.
The recording quality and recording speed of each camera channel will be set as show below according
to the Record Method and Record Video Quality you s et.
HVQPP* SRP* LRTPP*
Motion Event Record Very High / 30 ips High / 5 ips Standard / 3 ips
Continuous & Motion
Event Record
Continuous Record Very High / 30 ips High / 5 ips Standard / 3 ips
* Record Video Quality: HVQPP (High Video Quality Priori ty Profile), SRP (S tandard Recording Pro file), LRTPP (Longer Recording Time
Priority Profile)
Very High / 30 ips (Time)
Very High / 30 ips (Event)
High / 5 ips (Time)
Very High / 30 ips (Event)
Standard / 3 ips (Time)
High / 5 ips (Event)
Select the Finish button to finish the EZ Record and select the Go to EZ Network button to start the EZ Network.
17
Operation Instruction
If you selected the Go to EZ Network, select the Next button to start the EZ Network.
Internet Connection
Select whether or not your DVR is connected to the Internet.
18
Digital Video Recorder
LAN Setup
Select between Auto Configuration and Manual Configuration for network configuration, and then select the Test
button to test the network configuration you selected.
NOTE: Selecting Auto Configuration allows the DVR to automatically obtain LAN parameters (IP address, Gateway,
Subnet Mask and DNS Server address). Selecting Manual Conf igurati on allows you to set up LAN
parameters manually.
The network configuration you set should be tested by selecting Test, otherwise the Next button will
cannot be selected, and you cannot move to the next step.
Use DSL/PPPoE Setup: Selecting the box allows you to set up the DSL network. Entering the ID and password
for DSL connection is required.
DVRNS Setup
DVR Name: Enter the DVR name to be registered on the DVRNS server.
NOTE: The DVR Name you entered should be checked by selecting Test, otherwise the DVRNS changes will
not be saved.
Select the Finish button to finish the EZ Network.
When entering no name or a name already registered on the DVRNS server, an error message displays.
19
Operation Instruction
Highlight System Shutdown and press the
or not you want to shut the system down.
After selecting Shutdown and pressing the button, a screen will appear telling you
when it is safe to disconnect power.
Date/Time
button. The Shutdown screen displays asking you to confirm whether
Figure 9: System – Date/Time setup screen.
Highlight the first box beside Date and press the button. The individual sections of the date will highlight. Use
the Up and Down arrow buttons to change the number. Use the Left and Right arrow buttons to move between month,
date and year. Once you have the correct date, press the button.
Highlight the Format box beside Date and press the button. Select from the three available date formats and press
button to save your selected format.
the
Highlight the first box beside Time and press the button. The individual sections of the time will highlight. Use
the Up and Down arrow buttons to change th e number. Use the Left and Right arrow buttons to move between hour,
minutes and seconds. Once you have the correct time, press the
button.
Highlight the Format box beside Time and press the button. Select from the three available time formats and press
button to save your selected format.
the
NOTE: The clock will not start running until you have highlighted Save and pressed the button.
Highlight the box beside Time Zone and press the button. Select your time zone from the list and press the button.
NOTE: The Time Zone can also be selected on the map below by pressing the Le ft and Right buttons o r scrolling
Highlight Use Daylight Saving Time and press the button. Pressing the button toggles between On and Off.
the mouse wheel up and down.
Highlighting Time Sync.… and pressing the button displays the Time Sync. screen. You can set up time
synchronization between the DVR and standard time servers that are available in most time zones and countries, or
between the DVR and another DVR.
20
Digital Video Recorder
Highlight the box beside Automatic Sync. and press the button. This toggles between On and Off.
Highlight the box beside Time Server and press the button. A virtual keyboard appears that you can use to enter
the IP address or domain name of the time server. Highlighting
registered time servers.
NOTE: You can use the domain name instead of IP address if you already set up the DNS Server when setting
up the LAN.
allows you to select your time server from a list of
Highlight the box beside Interval and press the button. Set the time interval for synchronization from 30 minutes
to 1 day at various time intervals.
Last Sync-Time displays the last time the DVR was synchronized with the time server.
Highlight Run as Server and press the button. Pressing the button toggles between On and Off. When it is On,
the DVR you are setting up will run as a time server.
Highlighting Holiday… and pressing the button displays the Holiday screen.
You can set up holidays by highlighting + and pressing the
date appears.
button. The current
Highlight the month and day and change them by using the Up and Dow n arrow
buttons. Press the
beside the date and pressing the button.
the
NOTE: Holidays that do not f all on the same d ate each yea r shou ld b e updat ed
once the current year’s holiday has passed.
button to add the date. Dates can be deleted by highlighting
21
Operation Instruction
User
Figure 10: System – User setup screen.
The +/– column is used to collapse and expand user groups. If there is a + or – in this co lumn, it indicates the item is
a Group Name. If there is a – in front of the Group Name, it indicates that the group has been “expanded” and all of
the User Names within that group are displayed below the Group Name. If there is a + in front of the Group Nam e, it
indicates that the group has been “collapsed” and all of the User Names within that group are hidden . To collapse or
expand a group, highlight the +/– column in front of the desired group and press the
Highlighting a Group Name and pressing the
button allows you to change the authority levels assigned to the group.
button.
CAUTION: Write down the new password and save it in a secure place. If the password is forgotten,
the unit must be reset using the Factory Reset Button and all data settings will be lost.
Highlighting a User Name and pressing the
You can also change the group to which the user is assigned.
button allows you to add or change the password assigned to that user.
The column can be used to delete a User Name or an entire Group. If the is grayed out, that Group or User cannot
be deleted. Highlight the
and press the
button. You will be asked to confirm that you want to delete the User or
Group. To delete the User currently logged into the DVR on a local system or a PC running Speco Central II , log the
user out of the system first and then delete the user.
To add a Group, highlight the + Group… box and press the
button. A virtual keyboard appears allowing you to
enter the Group name. You can use up to 15 characters including spaces in the group name. Enter the name and assign
authority levels to the group.
22
Digital Video Recorder
Highlighting the Authority box and pressing the
button will toggle
between all authority levels being turned On and Off. Highlightin g
the individual authority level boxes and pressing the
button will
toggle between that authority level being turned On and Off. The
authority levels that can be turned On and Off are:
Shutdown – The user can shut the system down on a local system.
Upgrade – The user can upgrade the software on a local system or a PC
running Speco Central II.
Color Control – The user can control brightness, contrast, hue and saturati on
for cameras on a local system or a PC running Speco Central II.
System Check – The user can view the remote system status or check
the remote system status as a batch process on a PC runn ing Speco Central II.
PTZ Control – The user can control the PTZ camera on a local system or
a PC running Speco Central II.
Alarm-Out Control – The user can reset the DVR’s outputs including the
internal buzzer during an alarm by pressing the any button on the front
panel on a local system or alarm-out control button on a PC running Speco
Covert Camera View – The user can view video from cameras set as Covert while in the Live Monitoring or Search mode on
a local system or a PC running Speco Central II.
Digital Deterrent Control – The user can trigger the Digital Deterrent sound manually by selecting
Live Monitoring menu and Search menu on a local system.
Search – The user can access the Search mode on a local system or a PC running Speco Central II.
Clip-Copy – The user can copy video clips on a local system or a PC running Speco Central II.
Setup – The user without Setup authority cannot establish any system settings excluding system shutdown and logout on a local
system or a PC running Speco Central II.
System Time Change – The user can change the system date and time on a local system or a PC running Speco Central II.
Data Clear – The user can clear all video data or format disks on a local system or a PC running Speco Central II.
PTZ Setup – The user can establish all PTZ settings on a local system or a PC running Speco Central II.
Alarm-Out Setup – The user can establish all Alarm-Out settings on a local system or a PC running Speco Central II.
Covert Camera Setup – The user can establish all Covert Camera settings on a local system or a PC running Speco Central II.
Record Setup – The user can establish all Record settings on a local system or a PC running Speco Central II.
Setup Import – The user can import saved DVR settings from a local system or a PC running Speco Central II.
Setup Export – The user can export the current DVR settings to a local system or a PC running Speco Central II.
Digital Deterrent Setup – The user can establish all Digital Deterrent settings on a local system.
VNC Setup – The user can establish all VNC settings on a local system or a PC running Speco Central II.
Central II.
(Digital Deterrent) in the
To add a User, highlight the + User… box and press the
button. A
virtual keyboard appears allowing you to enter the User Name. Enter
the name and assign the User to a Group and password. You can use
camera buttons on the front panel to assign the password. The password
can be up to 8 digits. You will be asked to confirm the password.
NOTE: In addition to using the front panel buttons or the infrared remote control, you can use the virtual
keyboard to assign the password. To display the virtual keyboard click the
(not supplied).
button using the mouse
Highlighting the box beside Auto Login allows you to select a User to be automatically logged in when the DVR is
powered up. It can also be set to never automatically login a user.
Highlighting the box beside Auto Logout allows you to select from a l ist of t imes that the user will be autom aticall y
logged out. The options are: Never, 1 min., 3 min., 5 min., 10 min., 15 min., 20 min., 30 min. and 1 hr.
23
Operation Instruction
Storage
Figure 11: System – Storage setup screen.
The information in the Type column describes the storage device.
The capacity of the storage device is displayed in the Capacity column.
The Format column displays whether the device is used for recording (Record) or not (Not Using). Not formatted
indicates the device is not formatted.
Highlight the box in the Format column for the desired storage device and
press the button. You will be able to format the device for recording. When
selecting Not Using from Use As and highlighting the Format button, the
device will not be used for recording.
The Information column displays whether the device is being used or not. Other indicates the device has been used
for another DVR.
Highlight the box in the Information column for the desired storage device and press the
button.
You will be able to check the model name, serial number and the time information
about recorded data of the selected storage device.
If you want to erase recorded data on the selected device, highlight Clear and press
the button. You will be asked whether or not you want to delete the data.
24
Capacity Estimator
Digital Video Recorder
Figure 12: System – Capacity Estimator setup screen.
The Capacity Estimator screen allows you to calculate the available record time of the DVR’s storage device. Set
up the calculation conditions.
Video Format: Select the video format: NTSC or PAL.
Number of Cameras: Select the number of cameras.
Number of Audio-In: Select the number of audio inputs.
Average Event Rate: Set the average event rate.
Quality: Set the recorded image quality.
Resolution: Set the recorded image resolution.
Frame Rate: Set the images per second for recording.
Disk Capacity: Set the capacity of the storage device.
Estimated Recordable Time displays the estimated available record time.
NOTE: The estimated available record time can vary from the actual recording time.
System Event
Figure 13: System – System Event setup screen.
25
Operation Instruction
The DVR can be configured to run self-diagnostics and report the results.
Highlight the Settings box beside the desired event (System, Check Recording, Check Alarm-In, Disk Almost Full,
Disk Bad, or Disk Temperature), and press the
button.
Highlight the Settings box beside System and press the button. You can select the interval that you want the DVR
to run self-diagnostics on the system. You can select from 1 hr. to 30 days or Never.
Highlight the Settings box beside Check Recording and press the button. The Check Recording screen appears.
Highlighting Schedule On and pressing the button toggles On
and Off. When set to On, you can select the day, time range and
interval that you want the DVR to run self-diagnostics on the recorder.
The Interval can be selectable from 1 min. to 7 days or Never.
Highlight the + and press the button to add a schedule item. The
box allows you to delete a check recording schedule.
Highlight the Settings box beside Check Alarm-In and press the button. You can select the interval that you want
the DVR to run self-diagnostics on Alarm Inputs. You can select from 1 hr. to 30 days or Never.
Highlight the Settings box beside Disk Almost Full, and press the
at which you want the DVR to trigger an alert. Percentage levels range from 80% to 99%.
Highlight the Settings box beside Disk Bad, and press the
which you want the DVR to trigger an alert. Percentage levels range from 10% to 90%.
Highlight the Settings box beside Disk Temperature, and press the
button. Select the percentage level of disk usage
button. Select percentage level of bad disk sectors at
button. Select the temperature of hard disk
drive at which you want the DVR to trigger an alert if the temperature exceeds the defined threshold. Refer to the hard
disk drive manufacturer’s documentation for the correct temperature setting.
The DVR can be set to react to system events. Highlight the Actions box beside the desired event and press the
button. System events can be associated with an Alarm-Out connector, sound the DVR’s internal buzzer, and/or notify
a number of different devices.
NOTE: Alarm-Out action cannot be set to System, Boot Up, Restart, Shutdown and Panic Record events.
Mail notify is the only option available for the System event.
Alert Window notify cannot be set to System, Boot Up, Restart and Shutdown events.
For the Notify action to work, the DVR should be registered in the Speco Central II (Remote A dministration
System).
26
Recording Setup
General
Digital Video Recorder
Figure 14: Record – General setup screen.
Highlighting Recycle and pressing the
button toggles between On and Off. In the Recycle mode, the DVR records
over the oldest video data once all available storage space has been used. When Recycle is turned off, the DVR stops
recording once all available storage space has been used.
Highlight the Event Record Dwell box and set the length of time you would like to record for the associated event.
You can set the dwell from 5 seconds to 30 minutes. Refer to Event Actions screen in this chapter for information
regarding event recording.
The DVR can record up to four audio inputs. Highlighting Record Audio and pressing the button toggles between
On and Off.
Highlight the slide bar beside Auto Deletion, and use the Left and Right arrow buttons or Up and Down arrow buttons
to adjust the length of time recorded data will be kept from 1 to 999 days. The DVR automatically deletes video recorded
earlier than the user-defined period under three conditions: at midnight, whenev er the system reboots or whenever the
user changes the Auto Deletion settings. Selecting Never will disable the Auto Deletion function.
Highlight the slide bar beside Limit Time-Lapse Recording, and use the Left and Right arrow buttons to adjust the
length of the maximum storage time for time-lapse recording from 1 to 99 days. The Limit Time-Lapse Recording
feature will function when the storage device has enough space to record video data longer than the preset period. When
this feature is On, the DVR records over the oldest “time-lapse” v ideo once all available s torage h as been used i n th e
Recycle mode, so more event video can be saved. Selecting Never will disable the Limit Time-Lapse Recording function.
NOTE: When the storage device do es not have enough space to reco rd video data longer than the preset Lim it
Highlighting Use Panic Recording and pressing the button toggles between On and Off.
Time-Lapse Recording period, the DVR records over the oldest video data (time-lapse or event video)
as it would in the Recycle mode even if this feature is turned On.
The maximum storage time is only an estimate because the amount of space required to store video
varies depending on many factors such as motion and image complexity.
Highlight the Panic Recording – Duration box and set the duration of panic recording. Panic recording will stop
automatically after the preset duration as long as
recording. You can set the dwell from 5 minutes to 1 hour. Select No Limit if you want to stop panic recording manually.
(Panic) in the Live Monitoring menu is not selected to stop the panic
27
Operation Instruction
Highlighting the Panic Recording – ips and pressing the
recording. You can select from 1.00 to 30.00 ips (25.00 ips PAL).
button allows you to set the images per second for Panic
Highlighting the Panic Recording – Quality and pressing the button allows you to set the recorded image quality
for Panic recording. You can select from: Very High, High, Standard and Basic.
Highlighting the Panic Recording – Resolution and pressing the button allows you to set the recorded image
resolution for Panic recording. You can select from: Very High (D1/960H), High (2CIF/H960H) and Standard
(CIF/Q960H).
Schedule
< Simple Mode >
< Advanced Mode >
Figure 15: Record – Schedule setup screen.
You can program the DVR to record only during certain times based on time, day of the week, and holidays. The smallest
time segment you can use is 15 minutes.
Highlighting Schedule On and pressing the button toggles between On and Off. In the Schedule On mode, the DVR
records video based on the schedule established in the Schedule screen. When turning Schedule recording Off, you
will be asked to confirm your decision, and displays at the top-left corner of each camera screen. P anic recording
will function even when Schedule is turned off.
displays during panic recording.
Highlight the Schedule Mode box and press the button. You can select between Simple Mode and Advanced
Mode. Selecting Advanced Mode allows you to set up individual recording schedule for each event.
NOTE: Changing the schedule mode will reset all event and action statuses.
Highlight the + and press the
Highlight the box under the Day heading and press the
take place. Choose from: Sun, Mon, Tue, Wed, Thu, Fri, Sat, M~F, Hol and All.
Highlight the box under the Range heading and press the
will take place. The smallest time segment you can use is 15 minutes.
Highlight the box under the Mode heading and press the
Choose from: No Record, Time, Event and Time & Event. (Simple Mode Only)
button to add a schedule item.
button to change the days that the scheduled recording will
button to change the time range that the scheduled recording
button to change the recording mode that will be used.
When the DVR is in the No Record mode, it will not record during the preset day and time range as long as (Panic)
in the Live Monitoring menu is not selected. Use the No Record mode when you do NOT want the DVR to record
during certain times.
When the DVR is in the Time
and displays the icon at the top-left corner of the screen during the scheduled times.
, the icon displays at the top-left corner of the screen. The DVR will record
mode
28
Digital Video Recorder
When the DVR is in the Event mode, the red
and displays the
recoding mode, the yellow
in the Pre-Event mode, the red
icon at the top-left corner of the screen when any event occurs. When the DVR is in the Pre-Event
icon displays when there is no event, and the DVR is not recording. When the DVR is
and display when any event occurs and the DVR starts recoding.
icon displays at the top-left corner of the screen. The DVR will record
When the DVR is in the Time & Event mode, the DVR will follow the Time settings and the icon displays at the
top-left corner of the screen. The DVR follows the Event settings and the
Highlight the box under the Channels heading and press the
Mode Only)
Highlight the box under the Settings heading and press the
button to select which cameras will be recorded. (Simple
button to define the recording settings.
icon displays.
Figure 16: Schedule – Settings (Advanced Mode) setup screen.
You can set the ips, Quality and Resolution (ips, Quality, Resolu tion and Dwell for Advanced M ode setup) of th e recording
for any modes you set up in the Mode column. If you do not set the ips, Quality, Resolution and Dwell in the Settings
column, the DVR will follow the default settings. See below for details.
NOTE: Descriptions of the Record icons in the Type column are as follows:
Time-lapse (Time) Alarm-In Motion
Video Loss Video Blind Text-In
Highlight the box under the heading and press the
confirm that you want to delete the settings.
Highlight Default… and press the
Highlighting boxes under ips and pressing the button allows you to set the images per second for Time and Event
recording. You can select from 1.00 to 30.00 ips (25.00 ips PAL).
Channels that are not defined will use the setting values of the previous schedule item.
When multiple events are detected at the same time from a specific channel, the DVR will record event
video with the high setting values if the ips, Quali ty, Resolution and Dwell v al ue s of events are different
from each other. However, the ips will be reset to the supported maximum value when the ips, Quality,
Resolution and Dwell are all set to the highest value. (Advanced Mode Only)
button to delete the recording settings. You will b e asked t o
button. The Default screen appears.
29
Operation Instruction
Highlighting boxes under Quality and pressing the
and Event recording. You can select from: Very High, High, Standard and Basic.
button allows you to set the recorded image quality for Tim e
Highlighting boxes under Resolution and pressing the button allows you to set the recorded image resolution for Time
and Event recording. You can select from: Very High (D1/960H), High (2CIF/H960H) and Standard (CIF/Q960H).
Highlighting boxes under Dwell and pressing the button allows you to set the length of time you would like to record
for the associated event. (Advanced Mode Only)
Pre-Event
Figure 17: Record – Pre-Event setup screen.
When the DVR is in the Event Record mode it is possible to have it reco rd images befor e the event occ urs. The Pre -Event
screen allows you to define how to handle pre-event recording. If you do not have Event set up in the Record Schedule,
a message will display alerting you to this fact.
You can turn individual cameras On or Off for pre-event recording. The image speed can be set from 1.00 to 30.00 ips
(25.00 ips PAL), image quality can be selectable from Very High, High, Standard and Basic, and im age resolution
can be selectable from Very High (D1/960H), High (2CIF/H960H) and Standard (CIF/Q960H).
You can set the amount of time to record prior to the event by adjusting the Dwell. You can set the Dwell from 5 se conds
to 30 minutes. The longer the dwell set, the fewer maximum ips can be set.
NOTE: When the DVR is in the Time or Time & Event mode, it ignores the pre-event settings and follows the
time settings.
30
Event Setup
Motion
Digital Video Recorder
Your DVR has built-in video motion detection. Video motion detection can be turned On or Off for each camera.
Figure 18: Event – Motion setup screen.
Highlighting the box under the Sensitivity heading and pressing the
button
allows you to adjust the DVR’s sensitiv ity to m otion for Daytime and Nighttim e
independently. There are five settings with 1 being the least sensi tive and 5
being the most sensitive.
You can define the area of the image where you want to detect motion; e.g., a doorway. Highlight the box under the
Zone heading, and press the
button. The Motion Zone screen displays.
The Motion Zone screen is laid over the video for the selected camera.
You can set up motion zones by selecting or clearing blocks.
NOTE: You can set up motion zones one block at a time in groups
of four or eight individual block groups (4- and 8-channel DVR
respectively). A block group is positioned within the image area
using the Up and Down arrow buttons, and individual blocks within
the block groups are selected or c leared u sin g th e ca me ra bu tton s.
Press the button to display the menu screen. The menu on the setup screen has the following functions:
Select – Activates highlighted blocks to detect motion.
Clear – Deactivates highlighted blocks so that they will not detect motion.
Reverse – Activates inactive highlighted blocks and deactivates active highlighted blocks.
Select All – Activates all blocks to detect motion.
Clear All – Deactivates all blocks so that they will not detect motion.
Reverse All – Activates inactive blocks and deactivates active blocks.
OK – Accepts changes and closes Zone setup.
Cancel – Exits Zone setup without saving changes.
31
Operation Instruction
You can adjust the minimum number of detection blocks that must be
activated to trigger a motion alarm. Highlighting the box under the Min.
Blocks heading and pressing the
button allows you to adjust the minimum
number of detection blocks for Daytime and Nighttime independently.
Smaller numbers provide greater sensitivity because fewer detection blocks
Highlight the box under the Actions and press the
must be activated.
button. The DVR can be set to react to motion differently for
each camera. Each camera can be associated with another cam era, trigger an Alarm-Out connector, sound the DVR’s
internal buzzer, notify a number of different devices, move PTZ cameras to preset positions, and/or sound.
You can control excessive event logging and remote notification of motions detected after the motion dwell time by
adjusting the motion ignoring dwell intervals. Highlight the box beside Motion Ignoring Interval and press the
button. A list of intervals ranging from 1 to 10 seconds or Never appears. The DVR will not log and notify motion
events occurred during the preset interval range.
NOTE: The record action for motion events will not be affected by the Motion Ignoring function.
Highlighting Daytime Setup and pressing the button allows you to set up the Daytime range.
Highlight the box beside Daytime and press the button. Use the
Up and Down arrow buttons to set the Daytime range. The DVR will
consider the remaining time range as the Nighttime.
Alarm-In
Figure 19: Event – Alarm-In setup screen.
The alarm terminal strip on the back of the DVR has inputs associated with each alarm. You can set up each inpu t on
the Alarm-In screen. You can turn each input On or Off by highlighting the alarm number and pressing the
Each input can be given a title. Highlight the desired Title box and press the
allowing you to enter a title name.
Each input can be set as NO (normally open) or NC (normally closed).
Highlight the box under the Actions and press the
button. You can set the actions the DVR will take whenever it
button. A virtual keyboard appears
button.
senses an input on one of its alarm input connectors. Alarm input can be associated with cameras, trigger an Alarm-Out
connector, sound the DVR’s internal buzzer, notify a number of different devices, move PTZ cameras to preset positions,
and/or sound.
32
Video Loss
Digital Video Recorder
Figure 20: Event – Video Loss setup screen.
Highlighting the box under the Video Loss Interval heading allows you to set the du ration of a signal loss before the
DVR will report a Video Loss. The DVR will not consider any signal loss from a camera to be a Video Loss if the
detected signal loss is shorter than the interval set on this screen.
Highlight the box under the Actions and press the
button. The DVR can be set to react to video loss differently for
each camera. Each camera can be associated with another cam era, trigger an Alarm-Out connector, sound the DVR’s
internal buzzer, notify a number of different devices, and/or move PTZ cameras to preset positions.
Highlight Use Ignoring Time and press the button to toggle between On and Off. When set to On, the DVR will
ignore video loss events occurring during the preset period. Highlighting Time Setup and pressing the
button allows
you to set up event ignoring time.
Video Blind
Figure 21: Event – Video Blind setup screen.
33
Operation Instruction
The DVR checks to see if anything is blinding a camera.
Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to video blind for Black
and White independently from 0 (Never) and 1 (least sensitive) to 15 (most sensitive).
NOTE: Video blind might NOT be detected for a camera with a very noisy image especially when set for low
sensitivity values.
Highlighting the box under the Activation Time heading allows you to set the duration before the DVR will report a
Video Blind. The DVR will not consider any blinded camera to be a Video Bl ind if the detected blindness is less than
the Activation Time set on this screen.
Highlight the box under the Actions and press the
button. The DVR can be set to react to video blind differently
for each camera. Each camera can be associated with another camera, trigger an Alarm-Out connector, sound the DVR’s
internal buzzer, notify a number of different devices, and/or move PTZ cameras to preset positions.
Highlight Use Ignoring Time and press the button to toggle between On and Off. When set to On, the DVR will
ignore video blind events occurred during the preset period. Highlighting Time Se tu p and press the
button allows
you to set up event ignoring time.
Text-In
Figure 22: Event – Text-In setup screen.
The DVR can be set to react to text input from devices such as ATMs (Automated Tell er Machines) and POS (Point
of Sale; i.e., cash registers). This screen allows you to configure the DVR for each text-in device.
Highlight the box under the Setup heading, and press the button. Selecting the Setup heading changes all the
parameters excluding Port settings of all the text input channels.
NOTE: The system performance might be affected when a large quantity of text input s ar e dete cted from sev eral
34
channels at the same time.
Digital Video Recorder
Highlight the box beside Port, and press the
(1~8).
NOTE: If you have set the Port as None, you will not be able to make any changes to the screen.
Highlight Setup…, and press the
the RS232, RS485, USB-Serial or LAN ports.
Highlight the box beside Text-In Product, and press the
NOTE: The following description is for a Generic Text Device. The screen changes for different types of text
When using the USB to serial text-in d evice, do NOT r emove the USB cable from the port while th e system
is running.
button. Use the ATM or POS manufacturer’s recom mended settings when co nfiguring
input devices, and there will be different parameter boxes for you to enter information.
Highlight the box beside Transaction Start, and press the
button. Select from None, RS232, RS485, USB-Serial (1~8) and LAN
button. Select your device from the list.
button. Use the virtual keyboard to enter the Transaction
Start string. Refer to the device manufacturer’s documentation for the text string that the device first sends when a
transaction starts.
If you want the DVR to react to any character sent from the text input device, you will want to turn On Any Character.
Highlight Any Character, and press the
NOTE: If Any Character is turned On, you will not be able to enter any text in the Transaction Start box.
Highlight the box beside Transaction End, and press the
button to toggle between On and Off.
button. Use the virtual keyboard to enter the Transaction
End string. Refer to the device manufacturer’s documentation for the text string that the device sends when a transaction
ends.
Highlight the more line(s) box, and press the
the DVR to record. You can choose from 0 to 10.
Highlight the box beside Line Delimiter, and press the
button. Select the number of additional lines of text that you want
button. Use the virtual keyboard to enter the character(s)
that the device uses to indicate the end of a line . Speci al char acters can be created u sing ^ and a capi tal letter ; e.g., ^ J
for NL (New Line), ^M for CR (Carriage Return). Refer to the device manufacturer’s documentation for Line Delimiter
character(s).
Highlight the box beside Ignore String, and press the
button. Use the virtual keyboard to enter any strings of text
that you want the DVR to ignore. Refer to the device manufacturer’s documentation for text strings that the device
sends during transactions, so you will know which ones you do not want recorded.
Highlight the Case Sensitive box, and press the
button to toggle between On and Off. Refer to the device
manufacturer’s documentation to determine if the text strings are Case Sensitive. If the device distinguishes between
upper and lower case letters, make certain the Case Sensitive box is turned On.
Highlight the box beside Time Out, and press the button. Set the length of time to wait for the new text string. The
DVR will consider a transaction complete if no new text strings are entered between the last text in put and th e dwell
time out. You can adjust the Time Out dwell from 5 seconds to 15 minutes.
35
Operation Instruction
Each input can be given a title. Highlight the desired Title box and press the button. A virtual keyboard appears
allowing you to enter a title name.
Highlight the box under the Actions and press the
button. The DVR can be set to react to text input. Text input
can be associated with cameras, trigger an Alarm-Out connector, sound the DVR’s internal buzzer, notify a number
of different devices, and/or move PTZ cameras to preset positions.
Camera Setup
General
Figure 23: Camera – General setup screen.
You can turn the camera number On or Off, and you can change the T itle of each camera using the virtual keyboard.
You can also determine which cameras will display on the monitors by selecting Normal, Covert 1 or Covert 2 from
a drop-down list in the Use column.
NOTE: When selecting the Covert 1, the DVR displays the camera title and status icons on the covert video.
When selecting the Covert 2, the DVR displays only camera title on the covert video.
A user who does not have Covert Camera View authority cannot view video from cameras set to Covert 1
or Covert 2 in both the live monitoring and playback modes.
You can select the width resolution supported by the camera between 720 and 960 by highlighting the box und er the
Mode heading and pressing the
NOTE: The system restarts automatically after changing the resolution settings.
When selecting the 960 Mode, the total recording speed and playback speed will decrease.
button.
36
PTZ
Digital Video Recorder
Figure 24: Camera – PTZ setup screen.
NOTE: You will only be able to set up PTZ devices if the PTZ port is set to RS232 or RS485.
Highlight the box in the Product column for the PTZ camera you wish to configure
and press the
the list and press the
button. A list of PTZ devices appears. Select your camera from
button. You will need to connect the camera to the RS232
or RS485 connector on the back of the DVR following the camera manufacturer’s
instructions.
You can assign IDs to each camera by highlighting the box under the ID heading and pressing the button. Change the
number by highlighting it and using the Up and Down arrow buttons to increase and decrease the number. The PTZ
ID number can be set from 0 to 256.
Highlight the Setup… box and press the button. The Port Setup window appears.
Configure the port’s setting based on the PTZ camera manufacturer’s instructions.
37
Operation Instruction
Device Setup
Audio
Figure 25: Device – Audio setup screen.
The DVR can record up to four audio inputs. Highlight the box beside the input and press the
appears, and you can select which camera you want associated with that audio input.
button. A list of cameras
Highlight Enable Audio-Out and press the button. This toggles between enabling and disabling audio out.
Digital Deterrent
Figure 26: Device – Digital Deterrent setup screen.
Highlight the + and press the
Highlight the box under the Day heading and press the
will take place. Choose from: Sun, Mon, Tue, Wed, Thu, Fri, Sat, M~F, Hol and All.
button to add a digital deterrent schedule item.
button to change the days that the scheduled digital deterrent
38
Digital Video Recorder
Highlight the box under the Range heading and press the button to change the time range that the scheduled digital
deterrent will take place. The smallest time segment you can use is 15 minutes.
Highlight the box under the Associated Event heading and press the
associated with each digital deterrent.
button to select which events you want
You can select the audio files associate with each event. Highlight the box under
the Associated Audio and press the
and you can select which audio file you want to associated with that event.
button. A list of audio file name appears,
You can import saved audio files or export the current audio files. To
import saved audio files, connect the USB device containing the audio
file (.aaf or .wav) to the DVR. Highlight Digital Deterrent – Import…
and press the
button. Select the desired audio file and press the
Import button to import the selected audio file and change the audio
NOTE: File format has to be mono PCM 16KHz/16bit sampling.
The file names have to be "Sound_1.wav" ~ "Sound_16.wav" or "Sound_1.aaf" ~ "Sound_16.aaf" for
USB import. (USB has to be in FAT32)
The files have to be in the top folder of the USB flash drive.
The file name format is case insensitive.
If the audio file in .wave format, it will be converted to .aaf file in 10 seconds when imported.
file accordingly.
To export the current audio files, connect the USB device to the DVR.
Highlight Digital Deterrent – Export… and press the
Highlight the box beside File name and press the
button.
button. A virtual
keyboard allows you to en ter the file name. Selecting Export will save
the current audio file in .aaf file format on the USB device.
Highlight Digital Deterrent – Record… and press the button. You can extract audio files from recorded audio on
the DVR.
Highlight the box beside Channels and press the
button. You can select the cameras with record ed audio
you want to extract audio files from
Highlight the box beside From and press the
.
button
to toggle between On and Off. When set to Off, you can
enter a specific Date and Time . When set to On, th e search
will be from the first recorded audio. When highlighting
and pressing the
button the bookmark list displays
and the bookmark point you selected will be the starting
date and time.
39
Operation Instruction
Highlight the box beside To and press the button to toggle between On and Off. W hen set to Off, you can enter a
specific Date and Time. When set to On, the search will be to the last recorded audio
the
button the bookmark list displays and the bookmark point you selected will be the ending date and time.
Highlight the box beside File name and press the
by highlighting
and pressing the
button.
button to select the file name. The selected audio file can be listened
When highlighting
.
and pressing
Once you have selected the file name, highlight the Start button and press the button to record the extracted audio
file (up to 10 seconds).
Alarm-Out
Figure 27: Device – Alarm-Out setup screen.
Highlighting the box beside Dwell Time and pressing the
Dwell times range from 5 seconds to 30 minutes.
button allows you to set the dwell time of the alarm output.
Each alarm output can be given its own title by highlighting Title… and pressing the button. A virtual keyboard
appears allowing you to enter the title.
You can add and edit alarm output schedules on this screen. Highlight the + and press the button to add a schedule.
Highlighting the boxes under the Column heading and pressing the
those boxes.
button allows you to edit the information in
The Day box allows you to select the days that the alarm schedule will be active. The choices are: Sun, Mon, Tue,
Wed, Thu, Fri, Sat, M~F, Hol and All.
The Range box allows you to set the time that the alarm schedu le will b e active in 15-m inute increments from 00:00
to 24:00.
The Mode box allows you to set how the alarm reacts during the scheduled time. When set to On, the Alarm-Out is
active during the scheduled time. W hen set to Event, the Alarm- Out is onl y activ e when there is an Ev ent during the
scheduled time.
The Channels box allows you to set which alarm outputs will be active. You can also select the DVR’s internal buzzer.
The box allows you to delete an alarm output schedule. You will be asked to confirm whether or not you really wish
to delete the schedule.
40
Remote Control
Digital Video Recorder
Figure 28: Device – Remote Control setup screen.
Highlight the box beside Port and select from None, RS232 and RS485. If the RS232 port and RS485 port are in us e
for PTZ control, networking or text input, the remote keyboard cannot be configured.
Highlight Setup… and select the correct Baud Rate, Parity, Data Bits and Stop Bits for the device you are connecting
to the DVR.
Highlight the box beside Remote Control Product and select the device from the list.
Network Setup
General
Figure 29: Network – General setup screen.
41
Operation Instruction
r
Highlight the first box beside Remote Watch – bps/ips. You can select the Transfer Speed from 5 0Kbps to 1Gbps.
Highlight the second box beside Remote Watch – bps/ips. You can select the uni t of measure for the transfer speed
between: bps and ips. Press the
button to set the transfer speed.
Highlight the box beside Remote Watch – Quality and press the button. You can select the Quality from: Very
High, High, Standard and Basic. Press the
button to set the Quality.
Highlight the box beside Remote Watch – Resolution and press the button. You can select the Resolution from:
Very High, High and Standard. Press the
NOTE: The higher Quality and R eso lut ion settings require higher T ran sf e r Sp eed settings. The transfer spee d
you set is the maximum speed. Depending on the n etwork env ironment, thi s speed may not be achiev ed.
button to set the Resolution.
You can limit the network bandwidth settings so that the system does not consume too much network bandwidth. Highlight
the box beside Network Bandwidth Limit and press the Up and Down arrow buttons to set the desired maximum bandwidth
from 100Kbps to 1Gbps.
NOTE: When limiting the network bandwidth, the remote watch image on the PC running Speco Central II or
Speco Remote might not be displayed properly.
The DVR supports two-way audio communication between a local system and a PC running Speco Central II. Highlig hting
the box beside Remote Audio Channel and pressing the button allows you to select the audio channel that sends
audio to the remote site. Selecting Select From Speco Central will send audio of the channel select ed from Spec o
Central II.
NOTE: Depending on network conditions, audio might be interrupted or out of synchronization during
transmission.
Highlight Enable SSL for Transferring Data and press the button to toggle between On and Off. When it is On,
the security of data except video and audio transmitted for remote monitoring or remote recording can be enhanced by
using the SSL (Secure Sockets Layer) authentication. When using the SSL function, the DVR cannot be connected with
a remote program or a network keyboard which does not support the SSL function.
CAUTION: The
emote connection will be disconnected temporarilyafter changing the SSL settings.
NOTE: While the SSL function is enabled, the network transfer speed you selected may not be achieved.
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
LAN
42
Figure 30: Network – LAN setup screen.
Digital Video Recorder
Highlight the box beside Type and press the
DHCP and ADSL (with PPPoE). Select the desired type and press the
Selecting Manual from the Type allows you to set up LAN parameters manually.
button. You can select the type of network configuration from: Manual,
button.
Change the numbers by highlighting them and using the Up and Down arrow buttons to increase or decrease the number.
The factory default LAN settings are:
IP Address: 192.168.1.129
Gateway: 192.168.1.254
Subnet Mask: 255.255.255.0
NOTE: You will need to get the appropriate IP Address, Gateway and Subnet Mask from your network
Highlight the box beside DNS Server. Press the Up and Down arrow buttons to set the IP address of the DNS server.
Highlight the Port Number Setup… box and press the button. The Port Number Setup screen appears.
administrator.
NOTE: You will need to get the appropriate Port Numbers for each Speco Central II and Speco Remote related
program (Admin, Callback, Watch and Search) from your network administrator.
Change the numbers by highlighting them and using the Up and Down
arrow buttons to increase or decrease the number. The factory default
Port settings are:
Remote Admin: 8200
Remote Callback: 8205
Remote Watch: 8201
Remote Search: 8202
NOTE: The system restarts automatically after changing the port settings.
Do NOT use the same port number for two different programs, otherwise, the DVR cannot be connected
with the PC running Speco Central II or Speco Remote.
CAUTION: When changing the port settings, you must change the port settings on the PC running
Speco Central II as well. Refer to the Speco Central II manual for details.
Highlight Use UPnP and press the
button to toggle between On and Off. When it is On, port forwarding from the
NAT (Network Address Translation) device to the DVR will be enabled automati cally via UPnP (U niversal Plug and
Play) service. This function will be especially useful when accessing a port on a private IP address.
NOTE: For the UPnP service to work, the NAT device should support the UPnP Port Forwarding function and
the function should be set to enabled.
You cannot change the port settings when Use UPnP is On.
Highlight the Status box and press the button to display the port numbers forwarded from the NAT device via UPnP
service.
Highlight the Test box and press the button to test the current LAN settings you made.
43
Operation Instruction
Selecting DHCP from the Type and highlighting Save button reads the current IP address of the DVR configured b y
DHCP (Dynamic Host Configuration Protocol) network.
Highlight Auto (Default) and press the button to toggle between On and Off. When it is On, the DVR will obtain
the IP address of the DNS server automatically.
NOTE: Selecting Auto will only be enabled when the DVR is configured for DHCP or an ADSL network.
Selecting ADSL (with PPPoE) allows you to set up the ADSL network.
Highlight the box beside ID and press the button. A virtual keyboard appears allowing you to enter the ID for ADSL
connection.
Highlight the box beside Password and press the button. A virtual keyboard appears allowing you to enter the
password for ADSL connection.
NOTE: Entering the ID and Password and highlighting OK reads the current IP address of the DVR configured
by the ADSL network.
If the DVR is configured for DHCP or an A DSL network, the IP address of the D VR might change whenever
the unit is turned on.
DVRNS
Figure 31: Network – DVRNS setup screen.
Highlight Use DVRNS and press the
NOTE: DVRNS is the technology that automatically sets up your DVR to work seamlessly for remote viewing
via your network internet connection. For DVRNS to work, naming your DVR will be required.
button to toggle between On and Off.
Highlight the box beside DVRNS Server and press the button. A virtual keyboard appears allowing you to enter
the IP address or domain name of the DVRNS server.
NOTE: You will need to get the IP Address or domain name of the DVRNS Server from your network administrator.
You can use the domain name instead of IP address if you already set up the DNS Server when setting
up the LAN.
Highlight the box beside Port and press the button. Set the port number of the DVRNS server using the Up and
Down arrow buttons to increase or decrease the numbers.
Highlight the box beside DVR Name and press the button. A virtual keyboard appears allowing you to enter the
DVR name to be registered on the DVRNS server.
Highlight the Check box and press the button to check whether or not the name you entered can be used.
44
Digital Video Recorder
NOTE: The DVR Name you entered should be checked by selecting Check, otherwise the DVRNS changes will
not be saved.
When entering no name or a name already registered on the DVRNS server, an error message displays.
The box beside Status displays the current information of the R endezvous server and NAT (N etwork Address Translation)
device.
RTSP
Figure 32: Network – RTSP setup screen.
Highlight Enable RTSP (Real-Time Streaming Protocol) and press the
will be able to change the settings if Enable RTSP is enabled.
button to toggle between On and Off. You
Highlight the box beside RTSP Port and press the button. Set the port number of the RTSP server obtained from
your system administrator.
Highlight the box beside RTP Start Port and press the button. Set the start port number of the RTP server obtained
from your system administrator.
Highlight the box beside RTP End Port and press the button. Set the end port number of the RTP server obtained
from your system administrator.
Highlight Use Mobile and press the button to toggle between O n an d Of f. W hen set to o n, yo u ca n access a remote
DVR using a Blackberry or other mobile devices.
NOTE: Selecting Use Mobile sets the Speco Remote service to be enabled automatically regardless of your
Speco Remote settings.
When using NAT (Network Address Translation) or firewall services, opening all UDP ports allows you
to access a DVR using Blackberry and Android devices.
You can access a remote DVR and monitor live video images using media players, such as VLC Player,
supporting RTSP service. Start the media player on your local PC and enter “rtsp://ID:Password@IP
address:RTSP port number/trackID=‘channel number’”, or start Internet Explorer on your Blackberry or
other mobile devices and enter “http://IP address:Speco Remote port number/”.
Some media players might play video properly depending on network conditions.
RTSP service might not be supported, depending on the type of media player.
45
Operation Instruction
Speco Remote
Figure 33: Network – Speco Remote setup screen.
Highlight Use Speco Remote Service and press the button to toggle between On and Off. See Appendix – Speco
Remote for detailed descriptions of the Speco Remote service.
Highlight the box beside Port and press the button. Set the port number used when accessing Speco Remote by
using the Up and Down arrow buttons to increase or decrease the numbers.
VNC
Figure 34: Network – VNC setup screen.
Highlight Use VNC (Virtual Network Computing) and press the button to toggle between On and Off. You will
be able to change the settings if Use VNC is enabled.
NOTE: VNC service allows you to access the DVR and control it remotely using a PC or mobile devices via Ethernet.
Highlight the box beside Port and press the button. Set the port number of the VNC server obtained from your system
administrator.
46
Highlight the box beside Password and press the
password for VNC connection.
NOTE: Up to three users at a time can access a DVR remotely via VNC service.
When controlling the DVR remotely using a keyboard, shortcut keys perform the following functions as
described below:
Key Function
“←” or “h”
“→” or “l”
“↑ ” or “k”
“↓ ” or “j”
“m” or “” (Windows)
“Enter” or “Return”
“d” or “PageUp” or
“PageDown”
“c” or “Home”
“F5” Pressing the “F5" key refreshes the current VNC screen.
Pressing the “←” or “h” key moves to the left in the menu. It is the same as pressing the Left
arrow button on the front panel.
Pressing the “→” or “i” key moves to the right in the menu. It is the same as pressing the Right
arrow buttons on the front panel.
Pressing the “↑ ” or “k” key moves up in the menu. It is the same as pressing the Up arrow
button on the front panel.
Pressing the “↓ ” or “j" key moves down in the menu. It is the same as pressing the Down
arrow button on the front panel.
Pressing the “m” or “” key displays the Live Monitoring menu or Search menu on the screen.
It is the same as pressing the
Pressing the “Enter” or “Return” key selects the highlighted item or completes an entry that
you have made during system setup. It is the same as pressing the (Play/Pause) button
on the front panel.
Pressing the “d” or “PageUp” or “PageDown” key toggles between different display formats.
Pressing the “c” or “Home” key allows you to copy video clips. It is the same as pressing
COPY button on the front panel.
the
button. A virtual keyboard appears allowing you to enter the
MENU button on the front panel.
Notification Setup
Callback
Digital Video Recorder
Figure 35: Notification – Callback setup screen.
The DVR can be set up to contact a computer running Speco Central II (Remote Administration System) when an event
occurs. Highlight the box under the No. heading and press the
be able to change the IP addresses if No. is enabled.
button to toggle between On and Off. You will only
47
Operation Instruction
Highlight the IP Address box that you want to change and press the
address of the computer you want contacted during an event. You can enter up to five IP addresses.
button. Use the arrow buttons to enter the IP
Highlight the box beside Retry and enter the number of times you would like the DVR to try contacting the computer.
You can select from 1 to 10 retries.
Mail
Figure 36: Notification – Mail setup screen.
The DVR can be set up to send an email when an event occurs. The Mail Group and Recipient can be turned On or Off
by highlighting the boxes beside the individual mail group and recipient accounts and pressing the button. Highligh ting
the box beside “Group & Recipient” and pressing the button will toggle between all mail accounts being turned On
and Off.
The +/– column is used to collapse and expand recipient groups. If there is a + or – in this column, it indicates the item
is a Group Name. If there is a – in front of the Group Name, it indicates that the group has been “expanded” and all
of the Recipient Names within that group are displayed below the Group Name. If there is a + in front of the Group
Name, it indicates that the group has been “collapsed” and all of the Recipient Names within that group are hidden.
To collapse or expand a group, highlight the +/– column in front of the desired group and press the
button.
The column can be used to delete a Recipient Name or an entire Group. If the is grayed out, that Group or Recipient
cannot be deleted. Highlight the
Recipient or Group.
and press the
button. You will be asked to confirm that you want to d elete t he
Highlight the + Group and press the button to add a recipient Group and select the image f ile format attached to an
email.
Highlight the box beside Group and press the button. A virtual
keyboard appears allowing you to enter the Group name.
Highlight the box beside Attach Type and press the button. You
can select between CBF and JPG. When selecting CBF, the DVR
will attach an event detected vide o clip to an email. When selecting
JPG, the DVR will attach the event detected image file (JPEG format)
to an email.
Highlight the + Mail and press the button to add a mail Recipient.
48
Digital Video Recorder
Highlight Use and press the
button to toggle
between On and Off. Assign the Recipient to a
Group and enter the Recipient’s Display Name.
Highlight the box beside Address and enter the
recipient’s e-mail address and mail server provider.
Highlighting allows you to select the mail server
provider from a list of registered SMTP mail server
Highlight the box under the Attach Type heading and press the
an email.
NOTE: Attaching a image file to an email will not be available for the Text-In event.
Highlight SMTP Setup… and press the
button. The SMTP Setup screen appears.
Highlight the box beside SMTP Server and press the
providers.
button to change the image file format attached to
button.
A virtual keyboard appears that you can use to enter the IP addr ess
or domain name of the SMTP server. Highlighting
allows
you to select your SMTP server from a list of registered SMTP
servers.
NOTE: You will need to get the IP Address or domain name
of the SMTP Server from your network administrator.
NOTE: You can use the domain name instead o f IP address
if you already set up the DNS Server when setting up the LAN.
Highlight the box beside Port and press the button. Use the arrow buttons to enter the SMTP Server port number
obtained from your system administrator. The default port number is 25.
Highlight Use SSL/TLS and press the button to toggle between On and Off. When it is On, the D VR can send an
email via an SMTP server requiring SSL (Secure Sockets Layer) authentication.
NOTE: This product includes software developed b y the OpenSSL Project for use in the OpenSSL Toolki t
(http://www.openssl.org/).
Highlight the box beside Authentication and press the button.
An Authentication screen appears. Highlight Use and press the
button to toggle between On and Off. Highlight the box beside User/
Password and press the
button. A virtual keyboard appears allowing
you to enter the user ID and password.
Highlight the box beside Sender and enter the sender’s e-mail address. Use the v i rtual ke yboard to enter the e-mail
address.
Highlight the box beside Display Name and enter the
Sender’s Display Name. Highlight the box beside
Address and enter the sender’s e-mail address and
mail server provider. Highlighting
allows you to
select the mail serv er prov ider f rom a list o f regis ter ed
mail server providers.
Highlight the Test box and press the button to test emailing with the current settings you made.
49
Operation Instruction
SNS
Figure 37: Notification – SNS setup screen.
The DVR can be set up to post a mes sage via SNS (S ocial Network Service) when an ev ent occurs. You can add and
edit the SNS account on this screen. The SNS account can be turned On or Off by highlighting the boxes under the
No. heading and pressing the
button.
To add an SNS account, highlight the + and press the button. Highlight
the box beside Type and press the
Type allows you to post a tweet on Twitter when an event occurs.
button. Selecting Twitter from the
Highlight the box beside User Name/Password and press the button.
A virtual keyboard appears allowing you to enter the user name and
The SNS accounts can be deleted by highlighting the beside the account and pressing the button.
NOTE: Posting a tweet might fail because of Twitter limitations.
password.
Schedule
50
Figure 38: Notification – Schedule setup screen.
Digital Video Recorder
You can add and edit notification schedules on th is screen. High light the + and p ress the
Highlighting the boxes under the Column heading and pressing the
boxes.
button allows you to edit the information in those
button to add a schedule.
The Day box allows you to select the days that the notification schedule will be active. The choices are: Sun, Mon,
Tue, Wed, Thu, Fri, Sat, M~F, Hol and All.
The Range box allows you to set the time that the notification schedule will be active in 15-minute increments from
00:00 to 24:00.
Highlight the desired box under the Notify heading, and press the
button. The Schedule Notify menu appears.
You can toggle the entire list On and Off by highlighting Notification and
pressing the
highlighting that item and pressing the
button to accept your changes.
the
NOTE: For the Notify action, the notify item you select should be enabled
in the Notification setup screen and the DVR should be r egistered in th e
Speco Central II (Remote Administration System).
NOTE: The Notify action for system events you made in the System
Event setup screen on the System menu will not be affected by your
Notification Schedule settings.
button. You can toggle the individual items On and Off by
button. Highlight OK and press
Highlight the box beside Summary Email Interval and select the interval that you want the DVR to send a summary
email. The DVR will send an email containing a summary of events detected during the preset interval.
Display Setup
OSD
Figure 39: Display – OSD setup screen.
Highlighting an item and pressing the
in the box beside it. The following items can be turned On or Off:
Remote Control – The icon
Zoom – The icon
Network – The icon
when audio communication is available between the DVR and a PC running Speco Central II via Ethernet. The icon
when VNC service is running.
displays on the enlarged video.
displays when the unit is connected to a network via Ethernet. The icon
button toggles that item On and Off. When an item is On, there is a checkmark
displays when the DVR can be controlled by the infrared remote control.
displays on each camera
displays
51
Operation Instruction
Freeze & Sequence – The icon
Screen Group – The number of screen group displays when the DVR is not in the 3x3 and 1P7 display modes of the 8-channel
DVR, and 2x2 mode of the 4-channel DVR.
Free Space – The icon
when the DVR is not in the Recycle mode.
Date/Time – The current date and time information displays.
User Name – The name of the current user logged in displays.
Background Panel – The background panel at the bottom of the screen displays in black.
Camera No. – The camera number displays at the top-left corner of each camera screen.
Camera Title – The camera title displays at the top-left corner of each camera screen.
Record – The record related icons display on each camera screen.
Audio – The icon
PTZ – The icon
Text-In – The text input strings display on the screen. You can adjust the Display Dwell time (sec.) for the text input strings
displayed on the screen.
displays when the DVR is in the Recycle mode, and the perce ntage of availa ble stora ge space dis plays
displays on each camera screen for which the DVR can play live audio.
displays on each PTZ camera screen.
displays while in the Freeze mode, and the displays while in the Sequence mode.
You can adjust the transparency of the setup screens by highlighting Transparency and using the Left and Right arrow
buttons.
Highlighting OSD Margin… and pressing the button displays how OSD text will
be displayed on the monitor. You can adjust the horizontal and vertical margins so that
text and icons will not be hidden beyond the edges of the monitor.
Main Monitor
Figure 40: Display – Main Monitor setup screen.
Highlight the box beside Mode and press the
button. You can select between Full Sequence and Cameo Sequence.
Selecting (Sequence) in the Live Monitoring menu causes the DVR to sequence cameras, and the DVR can sequence
cameras in two modes: “Full” and “Cameo”. In the Full mode, the DVR sequences through the cameras and displays
them full screen. In the Cameo mode, the bottom right window in a multi-screen format sequences through the cameras.
NOTE: Any cameras that are Off, have lost video or are set to Covert (unless the user has autho rity to view covert
cameras) will be excluded from the Cameo sequence.
You can define the screen layout in a variety of formats and set the DVR to sequence through the different screen layouts
(pages) so that all the cameras will be displayed. You can also set up the DVR to display one camera or a group of
cameras all the time while cycling through the remaining cameras in a “cameo” window. This can be done with one
camera displayed full screen while displaying the cameo window as a PIP (picture in picture), or displaying the cameras
in a grid pattern with the bottom right window as the cameo.
52
Digital Video Recorder
NOTE: Sequence cannot be used in the 3x3 and 1P7 modes of the 8-channel DVR, and 2x2 mode of the 4-channel
DVR.
You can adjust the display dwell time by highlighting the box beside Interval and pressing the button. You can
select dwell intervals ranging from 1 second to 1 minute.
Highlight Event Monitoring On and press the button. Pressing the button toggles between On and Off. When
it is On, the DVR will display the camera associated with the event when an event occurs.
Highlight the box beside Resolution and press the button. You can select from 1280x1024, 1440x900 and 1920x108 0
for NTSC video, and 1280x1024, 1440x900 and 1920x1080 (@ 60Hz or 50Hz) for PAL video.
NOTE: When the individual main monitors are connected to the HDMI and VGA connectors for simultaneous
operation, it is recommended to use monitors supported with the same resolution. If monitors unsupported
with the same resolution are connected, video cannot be displayed on the monitor with the resolution
you have set.
Highlight Fit To Screen and press the button. Pressing the button toggles between On and Off. When it is On,
the DVR will resize video to fit the main monitor screen.
53
Operation Instruction
54
Digital Video Recorder
Chapter 4 — Operation
NOTE: This chapter assumes your DVR has been installed and configured . If it has not, plea se ref er to Chapte rs
The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video.
However, you have much greater control over recording and playing back video. You can establish recording schedules
based on time of day and day of the week. The DVR allows you to search through the recorded video using much more
sophisticated tools than those available with VCRs. Additional DVR features that are not available with VCRs are
remote control and viewing, and recording video at the same time you are watching previously recorded video.
The front panel controls are described in Chapter 3 — Configuration.
Once you have installed the DVR following the instructions in Chapter 2 — Installation, it is ready to record.
As soon as the DVR completes its initialization process, it will begin showing live video on the attached monitor and
playing live audio through the attached speaker. The default mode is to display all cameras at once. Pressing any
camera button will cause that camera to display full screen. It displays live video and plays live audio until the user
enters another mode.
While in the live monitoring mode, pressing the
right edge of the screen. Pressing the ESC button hides the menu. You can navigate through menus and items by
pressing the arrow buttons.
NOTE: The Live Monitoring menu also can be displayed by moving the mouse pointer on the right edge of the
2 and 3.
Turning on the Power
Live Monitoring
screen.
MENU button display s the following Live Monitoring menu on the
Login/Logout
Display
Previous Group
Next Group
Freeze
Alarm
Digital Deterrent
Panic
Sequence
Camera Menu
Search
Setup
Status
Figure 41: Live Monitoring menu.
55
Operation Instruction
Live Monitoring Menu
Login/Logout
Selecting (Login) in the Live Monitoring menu accesses the Login screen, and you will be asked to select a User
and enter the password to log into the system. Selecting
screen asking you to confirm whether or not you want to log out the current user.
Display
Full Screen: Selecting
(Display) →
(Full Screen) and choosing the camera number button displays the
selected camera full screen. It is the s ame as pressing the individu al camera button s on the front panel or clickin g
the left mouse button on a camera image when in one of the multiview formats (i.e., 2x2, 1P5, 1P7 or 3x3). Clicking
the left mouse button on the screen again returns to the previous display mode.
PIP, 2x2, 1P5, 1P7, 3x3: Selecting (Display) →
the cameras in the selected multiview screen mode (PIP, 2x2, 1P5, 1P7 or 3x3). Selecting each display mode is the
same as scrolling the mouse wheel up and down when in one of the multiview form ats (i.e., 2x2, 1P5, 1P7 or 3x3).
NOTE: In the 1P5 or 1P7 display mode, the main channel indicates the channel displayed on the large screen
Camera OSD, Status OSD: Selecting
which is displayed in the top-left. You can select the camera you want to display on the main channel
screen. Select a channel on the screen and click the right mouse button to display the Camera Menu.
Selecting Go To Main swaps the selected channel with the main channel. This function is supported only in
the 1P5 and 1P7 display modes and can be activated from any of channel screens except the main channel
screen.
(Display) → Camera OSD or Status OSD toggles Camera OSD
or Status OSD On and Off.
Previous Group, Next Group
Selecting
or (Previous Group or Next Group) in the Live Monitoring menu moves to the previous or next page.
Freeze
Selecting
It is the same as pressing the
(Freeze) in the Live Monitoring menu will freeze the current image on the screen until you select again.
(Play/Pause) button. Pressing any button except for the MENU button while in the
Freeze mode can also exit the Freeze mode. While in the Freeze mode, the icon displays in bottom-left corner if
Freeze is selected in the Display setup screen (OSD tab).
Alarm
Selecting (Alarm) in the Live Monitoring menu resets the DVR’s outputs including the internal buzzer during an alarm.
It is the same as pressing any button on the front panel when the alarm is activated.
Digital Deterrent
Selecting
to play manually.
(Digital Deterrent) in the Live Monitoring menu displays the following setup screen and allows the DVR
Highlight the box beside Source name and press the
file to play. Highlighting Trigger plays the selected file as the digi tal deterrent.
(Logout) in the Live Monitoring menu displays the Logout
, , , , or (PIP, 2x2, 1P5, 1P7 or 3x3) displays
button to select the source
Panic
Selecting
panic recording.
56
(Panic) in the Live Monitoring menu starts panic recording of a ll c ameras, and se lecting again stops
Digital Video Recorder
Sequence
Selecting
(Sequence) in the Live Monitoring menu causes the cameras to display sequentially. When in one of the
multi-view formats, selecting will cause the DVR to go through predefined screen layouts (Full Sequence). Or,
the bottom, right screen will display live cameras sequentially (Cameo Sequence). For example, if you select in
the 2x2 format, the DVR changes pages as follows:
< Full Sequence >
< Cameo Sequence >
Selecting again in the Live Monitoring menu exits the Sequence mode. While in the Sequence mode, the icon
displays in bottom-left corner if Sequence is selected in the Display setup screen (OSD tab). If all the cameras in a page
are Off, or have lost video or are set to Covert (unless the user has authority to view covert cameras), that page will be
excluded from the sequence.
NOTE: The Full Sequence for the full sequence monitoring and the Cameo Sequence for the cameo sequence
monitoring should be selected in the Display setup screen (Main Monitor tab).
Camera Menu
PTZ: Selecting
(Camera Menu) → PTZ and choosing the camera number allows you to control the selected
camera as long as it has Pan, Tilt and Zoom capabilities. Refer to the following PTZ Mode section for details.
Zoom: Selecting (Camera Menu) → Zoom and choosing the camera number zooms the current image of the
selected camera on the screen. Selecting Zoom again in the Camera Menu again exits the Zoom mode. Refer to
the following Zoom Mode section for details.
Audio: Selecting (Camera Menu) → Audio toggles audio output On and Off.
Color Control: Selecting
(Camera Menu) → Color Control and choosing the camera number allows you to
control brightness, contrast, hue and saturation for each camera for the selected camera if a user who has Color Control
authority logs into the system. It is the same as pressing and holding a camera button for a few seconds.
Edit Group: Selecting (Camera Menu) → Edit Group enters to the Active Cam eo mode. R efer to th e follow ing
Active Cameo Mode section for details.
NOTE: It is important that cameras and monitors are correctly installed and adjusted prior to making any image
adjustments using the DVR’s controls.
Any image adjustments you make will be applied to both the live video on the monitors and the recorded
video.
The Camera Menu also can be displayed by clicking the right mouse button on the screen while in the
live monitoring mode.
Search
All Channels : Selecting (Search) → All Channels exits the live monitoring mode and enters the search mode.
It is the same as pressing the
PLAY/STOP button.
Triplex: Selecting (Search) → Triplex enters the Triplex mode. Selecting the camera number plays back video
of the selected camera. It is the same as pressing the
PLAY/STOP button when in one of the multiview formats.
Setup
Selecting (Setup) in the Live Monitoring menu enters the Main Setup screen . Refer to Chap ter 3 ─ Configuration
for detailed descriptions of system setup.
Status
Selecting
Refer to the following Status Monitoring section for details.
NOTE: Selecting Status will only be enabled for a user who has System Check authority.
(Status) in the Live Monitoring menu allows you to check the status of the DVR’s system, inputs and storage.
57
Operation Instruction
Active Cameo Mode
You can enter the Active Cameo mode by selecting
(Display) Edit Group in the Live Monitoring m enu in any
multi-view format. The yellow outline surrounding the video indicates the active cameo, and pressing the arrow buttons
moves the active cameo. Pressing the
(Play/Pause) button exits the Active Cameo mode. Selecting Exit Group Edit
in the cameo menu displayed when pressing the MENU button also exits the Active Cameo mode. The active cameo
mode will remains in effect for 15 seconds if there is no further operation.
In active cameo mode, press the button for the camera you want to display in the active cameo. After setting the camera
number to active cameo, the DVR moves the active cameo to the next cameo. Wh en the camera numb er exists on the
current screen, the active cameo is changed with the existing camera number. When the camera number does not exist
on the current screen, the active cameo is replaced by the camera number. You can change the screen layout in this way.
Zoom Mode
You can enlarge an area of the video by selecting (Camera Menu) Zoom in the Live Monitoring menu. For a
few seconds after selecting
enlarged. You can move the rectangle around using the arrow buttons. Pressing the
mode enlarges the area in rectangle. Exit the Zoom mode by selecting
pressing the
MENU button. While in the Zoom mode, the icon displays if Zoom is selected in the Display setup
Zoom, a rectangle displays on the screen. A rectangle shows the area that will be
(Play/Pause) button in the Zoom
(Exit) in the Zoom menu displayed when
screen (OSD tab).
PTZ Mode
If a user who has PTZ Control authority logs into the system, the user can control PTZ cameras. The DVR will control
cameras with Pan, Tilt and Zoom capabilities. Select
display the PTZ camera menu and enter the PTZ mode. Selecting
MENU button exits the PTZ mode.
the
Select the PTZ camera you wish to control by selecting it from the menu. The icon
To use the remote control buttons, press the Left and Right arrow buttons to pan left and right. Press
the Up and Down arrow buttons to tilt the camera up and down. Press the
in, and press the ZOOM – button to zoom out. You can use the FOCUS and FOCUS buttons
to focus the image.
You can establish preset positions for PTZ cameras. Press the PRESET SET button to establish
Presets.
You can quickly move PTZ cameras to Preset positions. Press the PRESET SELECT button to
view an established camera Preset position.
Figure 42: PTZ Select Camera menu.
(Camera Menu) PTZ in the Live Monitoring menu to
(Exit) in the PTZ menu displayed when pressing
displays on the PTZ camera screen.
ZOOM + button to zoom
58
< Set Preset > < Move to Preset >
Figure 43: PTZ Preset menu.
While in the PTZ mode, pressing the MENU button and selecting (Advanced PTZ) in the menu
displaying at the top of the screen displays the Advanced PTZ menu.
Set the feature you wish to control by selecting it from the menu. Refer to the camera m anufacturer’s
instructions for the proper settings. Depending on the camera specifications, some features may
not be supported.
NOTE: The Pan/Tilt speed can be controlled by using the mouse. While in the PTZ mode,
clicking the left mouse butto n on the image and dragging t he mou se in th e pan/tilt direction
you want to move and then select the speed.
Digital Video Recorder
You can save camera position settings as “presets” so that you can go directly
to desired views.
Once you have the camera at the desired settings, press the the PRESET SET
button, and the Set Preset dialog box will appear. Select the number you
want to assign to the preset and press the
virtual keyboard to enter the preset name.
(Play/Pause) button. Use the
Press the PRESET SELECT button to load the PTZ preset and the Move to
Preset dialog box will appear. Select the desired preset and press the
button to load the preset.
You can use a mouse for convenient PTZ control. Click the left mouse button on the image and move that image in
the direction you want to by dragging the mouse. Use the mouse wheel to zoom in and out. Position the mouse pointer
at the bottom of the screen, and the following PTZ toolbar will display.
Clicking on the left side exits the toolbar. If you want to display the toolbar again,
position the mouse pointer at the bottom of the screen. Change the toolbar location
by clicking the empty space on th e left side of the toolbar and drag it to wh ere you
want it located on the screen. Use the arrow buttons on the toolbar to pan or tilt
the camera in the direction you want. The other controls on the toolbar perform as
described below:
Zoom In / Out Focus Near / Far
Iris Open / Close Set / Load Preset
Advanced PTZ
Event Monitoring
When an event occurs, the DVR will dis play the camera associated with the event and the icon
if Event Monitoring On is selected in the Display setup screen (Main Monitor tab).
How the cameras are displayed depends on the number of cameras associated with the event. If one camera is associated
with the event, the DVR will display the camera full scre en. If two to four cameras ar e as sociated with the event , the
DVR will display the cameras on a 2x2 screen. If five to eight cameras are associated with the event, the DVR will
display the cameras on a 1P5, 1P7 or 3x3 screen.
Event monitoring lasts for the dwell time set for event recording. After the dwell time has elapsed, the monitor returns
to the previous screen unless another event has occurred. If you want to r eturn to the live m onitoring mode before th e
dwell time has elapsed, press one of the camera buttons.
displays on screen
59
Operation Instruction
Covert Camera
If a camera is set up as Covert 1 in the Camera setup screen (General tab), that camera will no t be displayed unless a
user with Covert Camera View authority logs into the system. However the camera title and status icons will be
displayed on the monitor.
If a camera is set up as Covert 2 in the Camera setup screen (Gener al tab), that camera appears to b e Off unless a us er
with Covert Camera View authority logs into the system. The camera title will be grayed out and status icons will
not be displayed on the monitor.
NOTE: When a camera is set up as Covert 1, the DVR displays the camera title and status icons on the covert
video. When set up as Covert 2, the DVR displays only the camera title on the covert video.
If a user who has Covert Camera View authority logs into the system, the user can view video from cam eras set to
Covert 1 or Covert 2 including the camera titles and status icons.
Status Monitoring
Selecting
(Status) in the Live Monitoring menu or Search menu displays the Event Status screen.
Figure 44: Event Status – Event Status screen.
The Event Status screen displays the status of the DVR’s systems and inputs. Events will be highlighted, and related
channels or events will flicker for five seconds when detected.
(Alarm-In), (Motion), (Video Loss), (Video Blind) and (Text-In) will be highlighted when each event
is detected based on the settings you made in the Alarm-In, Motion, Video Loss, Video Blind and Text-In setup screen
on the Event menu.
(Check Alarm-In) and Check Recording will be highlighted when each event is detected based on the settings you
made in the System Event setup screen on the System menu.
Panic Record will be highlighted while the DVR is in the panic recording mode.
Disk Almost Full will be highlighted when the DVR is not in the Recycle mode and the level of disk usage reaches
the Disk Almost Full percentage you made in the System Event se tup screen on the System menu. Disk Full will be
highlighted when the DVR is not in the Recycle mode and all available storage space has been used. Disk Config Change
will be highlighted when the DVR reboots after the hard disk drive has been replaced.
Fan Error will be highlighted when the cooling fan to the left of the power cord on the rear panel is not working for
more than four seconds.
60
Highlighting the Storage tab will display the hard disk drive status.
Digital Video Recorder
Figure 45: Event Status – Storage screen.
The Type column displays the type of storage device.
The Disk Bad column displays the percentage of bad sectors. Not formatted indicates the device is not formatted.
The Temperature column displays the temperature of the storage device.
The S.M.A.R.T. column displays “Good”, “Bad” or “N/A”, depending on storage conditions.
Good – The storage condition is normal.
Bad – Data cannot be written on or read from the storage device.
N/A – Storage conditions are normal, however, the S.M.A.R.T. monitoring is not working or supported.
NOTE: When the storage condition is “Bad”, the Event Status – Storage screen displays and you can check
the storage condition for details. Once the “Bad” message displays, replacing the hard disk drive is
recommended, usually within 24 hours.
Temperature and S.M.A.R.T. information will be available only for internal hard disk drives supporting
the SMART (Self-Monitoring Analysis and Reporting Technology) monitoring program.
Recording Video
Once you have installed the DVR following the instructions in Chapter 2 — Installation, it is ready to record. The DVR
will start recording based on the settings you made in the Record setup screen. See Chapter3 — Configuration.
Recycle On or Recycle Off. The factory default is Recy cle On. It does this by recording over the oldest video once
the hard disk is full. Setting the DVR to Recycle Off causes it to stop recording once the hard disk is full.
Although you will be able to record without changing the unit from its original factor y settings, you will want to take
advantages of the DVR’s many tools. See Chapter 3 — Configuration for detailed descriptions of the recording mode
options.
Panic Recording
Selecting
panic recording. If you set the Panic Recording Duration in the Panic Re cord setup screen , panic r ecording will s top
automatically according to the preset duration as long as
(Panic) in the Live Monitoring menu starts panic recording of a ll c ameras, and se lecting again stops
is not selected.
61
Operation Instruction
NOTE: When the DVR is not in the Recycle mode and all available storage space has b een used, pani c reco rding
will not operate.
Recording Audio
If the DVR was set up to record audio, it will record audio from up to four inputs when video is recording.
NOTE: Make certain you comply with all local and federal laws and regulations when recording audio.
Playing Recorded Video
If a user who has Search authority logs into the system, the user can view recorded image. Once video has been recorded,
you can view it by pressing the PLAY/STOP button.
The DVR supports the Triplex function: monitoring, recordin g and playing back at the same time. Pressing the
button when in one of the multi-view formats enters the Triplex mode and displays the Select Playback Camera menu.
Selecting All Channels plays back video of all cameras. The DVR maintains the same display format
as it does in the live mode except for the PIP format. You can also change the screen layout in the same
way as you do in the live mode.
Selecting the camera number under Triplex enters the Triplex mode and plays back video of the selected
camera. When in the single-screen display format, the camera currently displayed on the screen will
be selected and when in the PIP display format, the camera displayed on the PIP screen will be selected
for the search channel. During the Triplex mode, the DVR maintains the same display format as it does
in the live mode. A red outline surrounding the video and the camera title indicates the search channel.
While in the Triplex Mode, the DVR continues r ecording cameras as they were set up in the recordi ng
schedule. Also, live monitoring will continue except for the camera that has been selected for playback.
Figure 46: Select Playback Camera menu.
When playing video for the first time, the DVR will display the m o st re cent image. When playing video subsequent
times, the DVR will start playing video from the last recalled image. Recorded audio will be played when the DVR
displays a camera with recorded audio in full screen mode.
NOTE: Only the administrator and users with Covert Camera View author ity can v iew video f rom covert cameras.
The covert cameras in the playback mode are determined by the current camera settings.
Camera Buttons: Pressing the individual camera buttons will caus e the s elected camera to display full screen, an d
pressing the button again toggles between different display formats. The available formats are: 2x2, 1P5, 1P7and 3x3.
Arrow Buttons: Pressing the
playback speed from
, and . Pressing the button plays video forward at high speed. Pressing the button
again toggles the playback speed from
the next image and pressing the
button plays video backward at high speed. Pressing the button again toggles the
, and . When in the pause mode, pressing the button moves to
button moves to the previous image.
Play/Pause Button: Pressing the
button plays back images at regular speed or pauses playing video.
Play/Stop Button: Pressing the PLAY/STOP button enters the playback mode, and pressing the button again exits
the playback mode. When entering the playback mode, video is paused. Pressing the (Play/Pause) button plays
back video at regular speed. The screen displays
when the DVR is in the Pause mode and the screen displays when
the DVR is playing back video.
PLAY/STOP
62
Digital Video Recorder
You can use a mouse for convenient playback control. Position the mouse pointer on the playback screen, and the
following Record Table Search (Compact View Mode) screen will display. The individual controls on the toolbar
perform the following functions as described below:
Go to the previous image Play/Pause Go to the next image
Fast backward play Fast forward play
Searching Video
While in the search mode, pressing the MENU button displays the following Search menu on the right edge of the screen.
Pressing the ESC button hides the menu. You can navigate through menus and items by pressing the arrow buttons.
Search
Go To
Bookmark
Display
Previous Group
Next Group
Alarm
Digital Deterrent
Panic
Camera Menu
Export
Status
Data Source
Figure 47: Search menu.
Exit
NOTE: The Search menu also can be displayed by moving the mouse pointer on the right edge of the screen.
Search Menu
Search
Event Log Search: Selecting
Event Log Search section for details.
Record Table Search: Selecting (Search) → Record Table Search selects using a recording table. See
the following Record Table Search section for details.
Motion Search: Selecting
section for details.
Text-In Search: Selecting
Search section for details.
EZ Search: Selecting (Search) → EZ Search selects video in 4x4 display format using day, hour or minute
precision. See the following EZ Search section for details.
Go To
Go to the First: Selecting
Go to the Last: Selecting
Go to the Date/Time: Selecting (Go To) → Go to the Date/Time displays the Go to the Date/Time screen.
(Search) → Event Log Search sel ects video from the event log. See the followin g
(Search) → Motion Search selects motion events. See the following Motion Search
(Search) → Text-In Search selects text input strings. See the following Text-In
(Go To) → Go to the First displays the first recorded image.
(Go To) → Go to the Last displays the last recorded image.
63
Operation Instruction
Move the cursor over the date and time and press the (Play/Pause) button.
You can use the Left and Right arrow buttons to highlight the year, month, day,
hours, minutes and seconds. Use the Up and Down arrow buttons to change
to the date and time you want to search for video.
Once you have set the date and time you want, press the button. Then highlight Go and press the button. The
selected date and time will display. (If no video was recorded during the selected time, a message appears alerting you
that no image was recorded at that time.) The
button and arrow buttons can now be used to review the surrounding video.
Bookmark
Selecting
(Bookmark) in the Search menu adds the current playback point to the bookmark list. See the following
Bookmarks section for details.
Display
Full Screen: Selecting
(Display) →
(Full Screen) and choosing the camera number button displays the
selected camera full screen. It is the s ame as pressing the individu al camera button s on the front panel or clickin g
the left mouse button on a camera image when in one of the multiview formats (i.e., 2x2, 1P5, 1P7 or 3x3). Clicking
the left mouse button on the screen again returns to the previous display mode.
2x2, 1P5, 1P7, 3x3: Selecting (Display) →
, , , or (2x2, 1P5, 1P7 or 3x3) displays the cameras
in the selected multiview screen mode (2x2, 1P5, 1P7 or 3x3). Selecting each display mode is the same as scrolling
the mouse wheel up and down when in one of the multiview formats (i.e., 2x2, 1P5, 1P7 or 3x3).
Camera OSD, Status OSD: Selecting
(Display) → Camera OSD or Status OSD toggles Camera OSD
or Status OSD On and Off.
Previous Group, Next Group
Selecting
or (Previous Group or Next Group) in the Search menu moves to the previous or next page.
Alarm
Selecting (Alarm) in the Search menu resets the DVR’s outputs including the internal buzzer during an alarm. It
is the same as pressing any button on the front panel when the alarm is activated.
Digital Deterrent
Selecting (Digital Deterrent) in the Search menu displays the following setup screen and allows the DVR to play
manually.
Highlight the box beside Source name and press the
button to select the source
file to play. Highlighting Trigger plays the selected file as the digi tal deterrent.
Panic
Selecting
(Panic) in the Search menu starts panic recording of all cameras, and selecting again stops panic recording.
Camera Menu
Zoom: Selecting
(Camera Menu) → Zoom and choosing the camera number zooms the current playback image
of the selected camera on the screen. Selecting Zoom again exits the Zoom mode.
Audio: Selecting
(Camera Menu) → Audio toggles audio playback On and Off. Recorded audio will be played
when the DVR displays a camera with recorded audio in full screen mode.
Show/Hide Text-In: Selecting (Camera Menu) → Show Text-In or Hide Text-In shows or hides the text-in
data on the screen if the video was recorded with text-in data.
64
Digital Video Recorder
Edit Group: Selecting (Camera Menu) → Edit Group enters to the Ac tive Cam eo mo de . Ref er to the pre vious
Live Monitoring – Active Cameo Mode section for details.
NOTE: The Camera Menu also can be displayed by clicking the right mouse button on the screen while in the
search mode.
Export
EZ Copy: Selecting
(Export) → EZ Copy will set the starting point of the vid eo to be clip copied, and the
icon displays at the bottom-left corner of the screen. Selecting EZ Copy again will set the ending point of the video
to be clip copied and displays the Clip-Copy screen. See the following Clip Copy section for details.
Clip-Copy: Select
(Export) → Clip-Copy, and the Clip-Copy screen appears to allow clip copy setup. See
the following Clip Copy section for details.
Print: Selecting
(Export) → Print allows you to print a sel ected ima ge. See the fo llowing Print section for details.
Digital Deterrent Recording: Selecting (Export) → Digi tal Deterrent R ecording allows you to extract audio
files from recorded audio on the DVR. Refer to Chapter 3 – Con figuration – Digital Deterrent section for details.
Status
Selecting
to the previous Live Monitoring – Status Monitoring section for details.
NOTE: Selecting Status will only be enabled for a user who has System Check authority.
(Status) in the Search menu allows you to check the status of the DVR’s system, inputs and storage. Refer
Data Source
Selecting (Data Source) in the Search menu allows you to select th e data source to be searched. Selecting Record
searches recorded data on primary storage installed in the DVR, and selecting Other searches recorded data on storage
used for another DVR then installed in this DVR.
Exit
Selecting
(Exit) in the Search menu exits the search mode and enters the live monitoring mode.
Event Log Search
Figure 48: Event Log Search screen.
65
Operation Instruction
The DVR maintains a log of each time the Alarm Input port is activated. The Event Log Search screen displays this
list. Use the arrow buttons to highlight the event for which you would like to see video.
There is no determined user authority to display the Event Log Search screen, however, the event video will not be
played unless a user with Search authority logs into the system
.
Pressing the (Play/Pause) button will extract the event video and display the first image of the even t. Pressing the
button will start playing the “event” video segment. Pressing PLAY/STOP returns to live monitoring.
NOTE:
You can also narrow your event search by selecting the Option… button and setting up the new search condition.
It is possible that no recorded image displays on the current screen. Select
the Live Monitoring menu and choose the 3x3 (8-channel DVR) or 2x2 (4-channel DVR) screen mode.
You will be able to easily see the camera have recorded video during target time.
(Display) Screen in
You can search video from the first to last recorded images, or you can set the start and stop times and dates.
Highlight the box beside From and press the
button to toggle between On and Off. When set to Off, you can enter
a specific Date and Time. When set to On, the search will be from the first recorded image. When highlighting and
pressing the
Highlight the box beside To and press the
specific Date and Time. When set to On, the search will be from the last r ecorded image
pressing the button the bookmark list displays and the bookmark point you selected will be the ending date and time.
Highlight the box beside Check Time Overlap and press the
button the bookmark list displays and the bookmark point you selected will be the starting date and time.
button to toggle between On and Off. W hen set to Off, you can enter a
When highlighting
.
button. It toggles between On and Off. You will only
and
be able to turn the Check Time Overlap on or off if a user-defined date and time is set to From and To. If the DVR’s
date and time have been reset, it is possible for the DVR to h ave more than one overlapping star t and stop time. When
set to On, you will be asked to select one of the overlapping start and stop time. When set to Off, the DVR will display
search results from all start times to all stop times.
Highlight the box beside Alarm-In and press the
in your search.
Highlight the box beside Motion and press th e
of motion.
Highlight the box beside Video Loss and press the
reports of lost video.
Highlight the box beside Video Blind and press the
reports of blind video.
Highlight the box beside Text-In and press the
of text input.
Highlight the box beside Record Channels and press the
button. You can select the alarm inputs that you want to include
button. You can select the cameras for which you want any repor ts
button. You can select the cameras for which you want any
button. You can select the cameras for which you want any
button. You can select the text-in devices which you want any reports
button. You can select the cameras that you want to search
for any reports of event recorded data. The DVR will display the e vents (not the cam era channels) that oc curred and
that also are recorded on the camera channel that you selected. If you do not select a camera ch annel in this field, the
DVR will search events that are not associated with cameras.
66
Digital Video Recorder
You can also toggle On and Off self-diagnostic System Events as part of your search. The choices are:
Panic Record
Check Recording
Check Alarm-In
Disk Almost Full
Disk Bad
Disk Temperature
Disk S.M.A.R.T.
Fan Error
Disk Config Change
Once you set your desired search conditions, highlight Search and press the
button to display the search results in
the Event Log Search screen. Selecting Cancel exits the screen without saving the changes.
Record Table Search
< Compact View >
< Standard View >
< Expanded View >
Figure 49: Record Table Search screen.
Recording information about video images currently displayed on the screen displays on the recording status bar. A
grey vertical line indicates the current search position. To search specific video, move the vertical line by using the
Left or Right arrow buttons on the front panel or by clicking the mouse on the desired segment.
If the DVR’s time and date have been reset to a time that is earlier than some recorded video, it is possible for the DVR
to have more than one video stream in the same time range. In this case, the overlapping time range in the record table
will be separated by a yellow vertical line
NOTE: The recorded data in the time range located after the yellow vertical line is the latest.
.
There are three view modes. Standard view, Expanded view and Compact view. Standard view (default) displays
combined recording information of all camera channels currently displayed on the screen. In the Standard view mode,
selecting the icon located at the bottom switches to the Expanded view mode. The Expanded view displays the
recording information of each camera channel currently displayed on the screen. Selecting the
view mode switches to the Compact view mode which displays only the toolbar. Selecting the
view mode switches to the Standard view mode, and selecting the
Standard view mode.
Selecting
resolution) (1-minute based), and selecting
located at the bottom zooms the record tab le. Selecting
or
displays 24 hours (3-minute based) at once. To move to earlier or later
icon in the Expanded view mode switches to the
displays eight hours (12 hours with 1920x1080
icon in the Standard
icon in the Compact
times that are not shown in the current record table screen, select the arrows located at the end of the times by using
the arrow buttons on the front panel.
67
Operation Instruction
NOTE: If the DVR has images recorded in more than one recording mode in the same time range, the recording
Selecting
status bar displays recording information in the following priority order: P an ic Pre-Event Event
Time. The color of the bar indicates different recording modes: Red for Panic, Yellow for Pre-Event,
Purple for Event, and Blue for Time.
located at the bottom displays the Calendar Search screen.
Days with recorded video display on the calendar with white numbers. You can highlight
the days with recorde d video by using the arrow buttons. Once you have highlighted
a day, press the (Play/Pause) button to select it. The first recorded image of the selected
date will pause on the screen. Once you have selected the date you want to search, review
the surrounding video by using the playback controls located at the bottom of the Record
Table Search screen.
Selecting
The individual playback controls at the bottom perform the following functions as described below:
Selecting in the top-right corner displays the Search menu.
located at the bottom displays the Bookmarks screen. See the following Bookmarks section for details.
Go to the previous image Play/Pause Go to the next image
Fast backward play Fast forward play
Go To: Displays the first or last recorded image, or searches by date and time (see the previous
Searching Video – Go To section of this chapter for more details).
Clip-Copy: Clips a video segment and saves it (see the following Clip Copy section for more
details).
Print: Prints the current playback image.
Digital Deterrent Record: Extracts audio files from recorded audio on the DVR see Chapter 3
– Configuration – Digital Deterrent section for more details).
Zoom: Zooms the current playback image.
Selecting
in the top-left corner exits the Record Table Search screen.
Slow Play: Plays video at low speed (x1/2, x1/3, x1/4, x1/6 and x1/8).
Motion Search
68
Figure 50: Motion Search screen.
Digital Video Recorder
The Motion Search… can be selected from the Search menu while the DVR displays the camera full screen. The
Motion Search screen displays a list of motion events. Use the arrow buttons to highlight the event for which you
would like to see video and press the
the small search screen.
(Play/Pause) button to display the video associated with the selected ev ent on
Highlighting Close and pressing the button will extract the video associated with the Motion event and display the
first image of the event. Pressing the button will start playing the “event” video segment. Pressing PLAY/STOP
returns to live monitoring.
You can also narrow your event search by selecting the Option… button and setting up the new search condition.
You can search video from the first to last recorded images, or you can set the start and stop times and dates.
Highlight the box beside From and press the
button to toggle between On and Off. When set to Off, you can enter
a specific Date and Time. When set to On, the search will be from the first recorded image. When highlighting
pressing the
Highlight the box beside To and press the
button the bookmark list displays and the bookmark point you selected will be the starting date and time.
button to toggle between On and Off. W hen set to Off, you can enter a
specific Date and Time. When set to On, the search will be from the last recorded image. When highlighting
pressing the
Highlight the box beside Type and press the
Motion Search detects motion in the defined area. Museum Search detects if a defined object has moved.
Highlight the box beside Zone and press the
can turn sensor blocks On and Off to define the area of the picture in which you want to search for motion.
NOTE: Defining the area of the image in which you want to search for motion is nearly identical to setting up the
The zone should be placed or focused on the centre or, at least, within the outline of targeted object.
Highlight the box beside Sensitivity and press the
(high sensitivity).
Highlight the box beside Min. Blocks and press the
must be activated.
Once you set your desired search conditions, highlight Search and press the
the Motion Search screen. Selecting Cancel exits the screen without saving the changes.
button the bookmark list displays and the bookmark point you selected will be the ending date and time.
button. You can select between Motion Search and Museum Search.
button. An image from the video appears with a grid overlaid. You
DVR for Motion. Please refer to Motion Screen in Chapter 3 — Configuration for more detailed instructions
on setting up the detection blocks.
When setting the Museum Search Zone, the zone should be placed inside of the bo rder line of the target
object. If the selected block is placed on the border line, the sensitivity of the Museum Search may decrease.
button. You will be able to select from 1 (low sensitivity) to 5
button. You will be able to set the number of sensor blocks that
button to display the search results in
and
and
When you search for motion events of another camera, you will be asked whether or not you want to delete the previous
search results from the list.
69
Operation Instruction
Text-In Search
Figure 51: Text-In Search screen.
The DVR maintains a log of each time there is Text Input. The Text-In Search screen displays this list. Use the arrow
buttons to highlight the event for which you would like to see video.
Pressing the (Play/Pause) button will extract the v ideo associated with th e Text Input and displa y the first image of
the event. Pressing the
monitoring.
NOTE:
You can also narrow your event search by selecting the Option… button and setting up the new search condition.
It is possible that no recorded image displays on the current screen. Select
the Live Monitoring menu and choose the 3x3 (8-channel DVR) or 2x2 (4-channel DVR) screen mode.
You will be able to easily see the camera have recorded video during target time.
Text Input information will be overlaid on the image while the recorded video is played at regular speed.
button will start playing the “event” video segment. Pressing PLAY/STOP returns to live
(Display) Screen in
You can search video from the first to last recorded images, or you can set the start and stop times and dates.
Highlight the box beside From and press the
button to toggle between On and Off. When set to Off, you can enter
a specific Date and Time. When set to On, the search will be from the first recorded image. When highlighting
pressing the
70
button the bookmark list displays and the bookmark point you selected will be the starting date and time.
and
Digital Video Recorder
Highlight the box beside To and press the button to toggle between On and Off. W hen set to Off, you can enter a
specific Date and Time. When set to On, the search will be from the last r ecorded im age. When highlighting
pressing the
Highlight the Channel and press the
Highlight the Text Input Device box and press the
button the bookmark list displays and the bookmark point you selected will be the ending date and time.
button. Select the text-in devices that you want to search for text input.
button. Select your Text Input Device from the list.
and
Highlighting the + and pressing the button allows you to add a new set of search parameter. Set up the desired search
parameter. Refer to the Appendix – Text-In Search Examples for fu rther information on setting up search parameters.
The column can be used to delete a set of search parameter or entire sets of search parameters.
Highlighting the Option… box and pressing the
button allows you to select
whether or not the search will find only text strings in which the case matches,
find only exact words that match with the word you entered during text-in setup,
or delete transactions duplicated within text input strings.
Highlight Load and press the button to load saved search option settings. Select the desired search option settings.
Highlight Save and press the button to save the current search option settings. A virtual keyboard appears that you
can use to enter the search option name.
Once you set your desired search conditions, highlight Search and press the
button to display the search results in
the Text-In Search screen. Selecting Cancel exits the screen without saving the changes.
EZ Search
You can enter the EZ Search mode by selecting
the camera full screen. When entering the EZ Search mode, the DVR will play video in 4x4 display format starting
with the first recorded image using the Day precision (default). There are three precision levels: Day, Hour and Minute.
Exit the EZ Search mode by pressing the
pressing the MENU button.
While in the EZ Search mode, selecting (Precision) from the EZ Search menu, displayed when pressing the MENU
button, displays the following Precision Menu.
Previous Precision: Selecting Previous Precision moves to the pr evious pr ecis ion level st arting
with the window currently selected on the screen (Day Minute Hour Day …). It is
the same as pressing the
Next Precision: Selecting Next Precision moves to the next precision level starting with the
window currently selected on the screen (Day Hour Minute Day …). It is the same
as pressing the
PLAY/STOP button on the front panel when in the EZ Search mode.
Search Forward: Selecting Search Forward moves to the next page while maintaining the current precision level.
Search Backward: Selecting Search Backward moves to the previous page wh ile maintaining the current precision
level.
While in the EZ Search mode, pressing the MENU button displays the EZ Search menu. Select (Go to) from the
EZ Search menu to display the following Go to Menu.
Go to the First: Selecting Go to the First displays video using day precision starting with the
first recorded image.
Select from the Calendar: Selecting Select from the Calendar displays video using day
precision starting with the date selected on the Calendar.
In the EZ Search mode, pressing the camera number button on the front panel displays video starting with that window
number using the current precision setting. Arrow buttons on the front panel are used to navigate through windows
and pressing the
the Minute precision mode, pressing the
(Play/Pause) button moves to the next precision level starting with the selected window. When in
button exits the EZ S earch m ode and displ ays t he s elect ed w in dow f ul l sc reen .
(Search) EZ Search in the Search menu while the DVR displays
ESC button or selecting (Exit) in the EZ Search menu displayed when
COPY button on the front panel when in the EZ Search mode.
71
Operation Instruction
NOTE: While in the Day precision mode, “…” after the date information displayed on the camera screen indicates
that the DVR has more than one video stream for the same date. Selecting the window and pressing
the
button allows you to select the video stream you want to search and move to the next precision
level. The highest Segment number indicates the latest video.
Bookmarks
The Bookmarks screen can also be accessed by selecting Bookmark in the Search menu.
Figure 52: Bookmarks screen.
Highlight + and press the
(Play/Pause) button to add the current playback point to the bookmark list. Highlight the
Title box and enter the name of the register ed bookmark. Use the virtual keyboard to enter the bookmark name. The
column can be used to delete a Bookmark.
NOTE: Up to 64 bookmarks can be registered.
Use the arrow buttons to highlight the bookmark point for which you would like to see video. Th e selected bookmark
will display on the screen by pressing the
button.
Clip-Copy
Video clips can be copied on an external USB hard disk or flash drive. The copied video clips can be viewed on
computers running Microsoft W indows 2000, XP , Vista or 7. Refer to the Appendix – USB Hard Disk Drive Preparation
for information on preparing the external drive for clip copy.
Selecting EZ Copy in the Search – Export menu or pressing the COPY button during playback will set the starting
point of the video to be clip copied, and the
in the Search – Export menu or pressing the
by displaying the Clip-Copy screen.
Pressing and holding the COPY button for more than three seconds while in the Search mode or Live Monitoring mode
initiates the One-Touch Clip Copy function. The last recorded image will be the ending point of video to be clip copied,
and the system will automatically begin to calculate the possible video data size that the selected storage media can handle.
Select Clip-Copy in the Search – Export menu, press the COPY button while in the Live Monitoring mode, and the
Clip-Copy screen appears to allow clip copy setup.
icon displays at the bottom-left corner of the screen. Selecting EZ Copy
COPY button again will set the ending point of the video to be clip copied
72
Digital Video Recorder
Figure 53: Clip-Copy screen.
You can search video from the first to last recorded images, or you can set the start and stop times and dates.
Highlight the box beside From and press the
(Play/Pause) button to toggle between On and Off. When set to Off, you
can enter a specific Date and Time. When set to On, the search will be from the first recorded image. When highlighting
and pressing the button the bookmark list displays and the bookmark point you selected will be the starting date
and time.
Highlight the box beside To and press the
specific Date and Time. When set to On, the search will be from the last r ecorded im age. When highlighting
pressing the
button the bookmark list displays and the bookmark point you selected will be the ending date and time.
Highlight the box beside Channels and press the
in your video clip
.
Highlight the box beside Password and press the
password for reviewing the video clips.
Highlight the box beside Dest. and press the
button to toggle between On and Off. W hen set to Off, you can enter a
and
button. You can select the cameras that you would like to include
button. A virtual keyboard appears allowing you to enter the
button. You can select the storage device on which you would like to
record the video clip.
CAUTION: The USB device for clip copy must be FAT 16 or FAT32 format.
The DVR automatically assigns a file name to the video clip. However, you can give the video clip file a different name.
Highlight the box beside File Name and press the
button. A virtual keyboard appears. Enter a file name for the
video you are backing up and select Close. The DVR will automatically add the camera number (for exam ple “01”)
and “.exe” to the file name.
NOTE: When naming a file, you cannot use the following characters: \, /, :, *, ?, “, <, >, |.
Highlight Include Text-In Data and press the button. This will toggle between On and Off. When this feature is
On, you can include text-in data when copying video if the video was recorded with text-in data.
Highlight Use Site Info and press the button. This will toggle between On and Off. When this feature is On, you
can add the site information to the file name for the video you are backing up.
NOTE: When the site information is added to the file name, some special characters (\, /, :, *, ?, “, <, >, |) in the
site information will be converted to “_”.
Once you have given the video clip a file name, highlight the Start button and press the button. The confirmation
screen displaying data size will appear. When the storage device does not have enough space, the DVR will ask if you
want to copy as much of the video clip as possible in the available space. Highlight the Continue button and press
button to continue clip copy.
the
Once the clip copy starts, you can cancel it by selecting Cancel or hide the screen by selecting Close. When selecting
Close, Clip Copy continues and a confirmation screen will display when complete.
73
Operation Instruction
NOTE: The file size for clip copy is limited to 30GB. When copying video clips larger than 2GB, the video clips
will be save in units of 2GB. For example, 3 individual 2GB files will be created when saving a 6GB video
clip. However, the file size for the One-Touch Clip Copy is limited to 2GB.
You can use other functions on the DVR while video is being backed up. To do this, high light th e Close button an d
press the button. You can return to the Clip-Copy screen at any time to check the progress.
You do not need to install any special software on your personal computer to review the video clips. Refer to Speco
Central II manual for instructions on how to review video clips you have copied.
NOTE: During Clip Copy, you cannot shut the system down, clear data on the storage device, or format the
storage device.
CAUTION: Do NOT disconnect the USB cable or the power from the external drive while copying
video clips. If the external drive is shut down or the USB cable is disconnected while
copying video clips, THE DVR SYSTEM MAY NOT WORK NORMA LLY OR THE EXTER NAL
DRIVE COULD BE DAMAGED, and you will get an error message the next time you try
to copy video clips. You will need to power down the DVR and restart it to get rid of the
error message. Once the file system of the USB hard disk drive has been corrupted, this
error message cannot be dismissed. Even after restarting the DVR it may automatically
restart while preparing to clip copy. You must recover the file system using the recovery
program, or you must reformat the hard disk drive.
Print
You can print images on a printer. Connect a PostScript™ printer, or external hard disk drive or flas h drive to one of
the USB ports.
Highlight the box beside Printer Model and press the button. Selecting
PostScript Printer will print images on a PostScript™ printer connected to
the DVR. Selecting File Printer will save the current image as a PDF file on
an external USB hard disk drive or flash drive.
NOTE: Images saved as PDF files can be printed on any printer connected
to your PC.
Highlight the box beside Paper Size and press the button. You can select
the paper size.
Figure 54: Print screen.
Once you have selected the printer model and paper size, highlight the Print button and press the
appears asking you if you want to print the current image. Highlight the Continue button and press the
NOTE: If your printer only supports an LPT connection (parallel), use an LPT to USB converter cable. The printer
cable is not provided.
button. A message
button to print.
74
Digital Video Recorder
Appendix
USB Hard Disk Drive Preparation
NOTE: The following description is for preparing a USB hard disk drive under Windows 2000. Preparing a USB
NOTE: The partition size should be les s than 32GB because of Microsoft limitations.
1 2 3 4 5 6
123456789012345678901234567890123456789012345678901234567890
Item Unit price Qty amount
==================================================
Coke | $ 2.20 | 1(s) | $ 2.20
Fanta | $ 2.20 | 1(s) | $ 2.20
Hotdog | $ 3.50 | 3(s) | $ 10.50
Pepsi | $ 1.95 | 1(s) | $ 1.95
==================================================
total : $ 16.85
Thank you~~
In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored
automatically), 28th (Qty) and 40th (amount) characters (including spaces) from the left. In this case, you can enter
“17”, “28” and “40” in each Column box.
For example, if you want to search for Coke with a Qty (Quantity) of more than 1 and Hotdog with an amount totaling
over $8, the following search condition can be set.
hard disk drive under Windows XP, Window Vista and Window 7 is almost identical to Windows 2000.
1. Connect the USB hard disk drive to your computer using the USB Cable.
2. Turn on your computer.
3. The USB device icon should display on the Taskbar.
4. If the USB hard disk drive is partitioned or has data, it will show up in My Computer as a hard disk drive
icon. Check the file system by right clicking on the icon and checking under Properties > General > File
System. If the file system is NOT FAT32 format, format the USB hard disk drive using the FAT32 format.
5. If the USB hard disk drive is not partitioned, go to Administrative Tools in Control Panel and launch Computer
Management. Open Disk Management in Storage and right click an unallocated region of the USB hard
disk drive. Then, click Create Partition.
6. In the Create Partition wizard, click Next then Primary Partition, and follow the instructions on the screen.
Make sure that the FAT32 is selected for the file system.
After formatting is complete, the USB hard disk drive will be added to My Computer.
7. Connect the USB hard disk drive to the DVR.
Text-In Search Examples
Search Example I
75
Operation Instruction
Search Example II
1 2 3 4 5 6
123456789012345678901234567890123456789012345678901234567890
Item Unit price Qty amount
==================================================
Coke | $ 2.20 | 1(s)
$ 2.20
Fanta | $ 2.20 | 1(s)
$ 2.20
Hotdog | $ 3.50 | 3(s)
$ 10.50
Pepsi | $ 1.95 | 1(s)
$ 1.95
==================================================
total : $ 16.85
Thank you~~
In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored
automatically), 28
category is located on a different line from Item . In this case, you can enter “17”, “2 8” and “40” in each Column box
and enter “1” in the Line box for the next line.
For example, if you want to search for Coke with a Qty (Quantity) of more than 1 and Hotdog with an amount totaling
over $8, the following search condition can be set.
th
(Qty) and 40th (amount) characters (including spaces) from the left, but the value of amount
76
Digital Video Recorder
Speco Remote
Speco Remote allows you to access a remote DVR, monitor live video images and search recorded video using Internet
Explorer web browser anytime from virtually anywhere.
Computer system requirements for using the Speco Remote program are:
Operating System: Microsoft
Microsoft
CPU: Intel Pentium III (Celeron) 600MHz or faster
RAM: 128MB or higher
VGA: 8MB or higher (1024x768, 24bpp or higher)
Internet Explorer: Version 6.0 or later (32-Bit)
®
Windows® 7 (Home Premium, Professional, Ultimate) or Microsoft® Windows® 8 (Pro, Enterprise)
Start Internet Explorer on your local PC. You can run the Speco Remote program by entering the following information
in the address field.
– “http://IP address:port number” (The DVR IP address and the Speco Remote port number (default: 8204) set in the
Network setup screen (Speco Remote tab))
– Or, “http://DVRNS server address/DVR name” (The DVRNS server address and the DVR name registered on the
DVRNS server)
NOTE: You will need to get the appropriate IP address for the DVR you want to connect to and the Speco Remote
port number from your network administrator.
Speco Remote only works with Microsoft Internet Explorer and will NOT work with other browsers.
Speco Remote does not work in Microsoft
®
Windows® XP (Service Pack 3), Microsoft® Windows® Vista (Service Pack 1),
®
Windows® 8 metro UI.
Select between the Re mote Watch (Web monitoring) and Remote Search
(Web search) modes. Entering ID and PASSWORD and clicking the
[LOGIN] button logs in using the selected mode.
NOTE: Do NOT close the LOGIN window during the Speco Remote operation, otherwise, it will cause a script
error when switching between Web monitoring and Web search modes, and you will need to restart the
Speco Remote program.
When running the updated Speco Remote for the first time, Internet Explorer might occasionally load
the information of the previous version. In this case, delete the temporary internet files by selecting
Tools Internet Options General tab, and then run Speco Remote again.
There might be a problem that the bottom of Speco Remote page is cropped due to the address or
status bars. In this s it uation, it is recommended th at websites open windows without a dd re ss or status
bars by changing the internet setting. (Go to the Tools Internet Options Security tab Click the
Custom level… button Select Enable for the Allow websites to open windows without address or
status bars option)
When running Speco Remote in the Microsoft Windows Vista or higher operating system, it is recommended
to start Internet Explorer with elev ated adm inistr ato r perm ission s. Cli ck the right mous e button on the
Internet Explorer icon and select the Run as administrator op ti on fr om the con text menu. Otherwise,
some functions of the Speco Remote might be limited to use.
77
Operation Instruction
NOTE: There might be a problem with screen display or screen update due to low image transmission speed
when using the Microsoft Windows Vista or higher operating system. In this situation, it is recommended
that you disable the Auto Tuning capability of your computer.
Run the Command Prompt with elevated administrator permissions (Go to the Start Menu
Accessories Command Prompt Click the right mouse button and select the Run as administ rator
option). Then enter “netsh int tcp set globa l autotuni nglev el=disable” and hit the ent er key. Re start
your computer to apply the changes.
If you want to enable the Auto Tuning capability again, enter “netsh int tcp set global autotuninglevel=
normal” after running the Command Prompt with elevated administrator permissions. Restart your
computer to apply the changes.
Web Monitoring Mode
Remote Watch is a remote web monitoring program that allows you to monitor live video transmitted in real-time from
the remote DVR.
① Click the
② Click the to access to the web search mode.
③ Position the mouse pointer on the Remote Watch logo to see the version of the Speco Remote program.
④ The DVR information window displays the login information of Speco Remote.
to log out the Speco Remote program.
⑤ Click the screen format to select the desired display mode. When changing the screen format, the selected camera
on the current screen will be located in the first cell of the new layout.
⑥ Click the camera button to select the camera to be viewed.
⑦ Click the to adjust the brightness, contrast, saturation and hue of monitoring image.
⑧ Click the
⑨ Click the to control alarm out devices at the remote site.
78
to control pan, tilt and zoom of the camera from a remote site.
Digital Video Recorder
⑩ Click the
the image drawing mode, and select OSD information to be displayed on the screen.
⑪ Click the to save the current image as a bitmap or JPEG file format.
⑫ The event status window at the bottom displays a list of events that were detected from the remote site.
⑬ Selecting a camera on the screen and clicking the right mouse button displays the text menu screen.
to set up the image drawing mode and OSD display. You can adjust the display speed by changing
Change Camera Title: Changes the camera name.
Enable Audio: Enables audio communication with the remote site. When the audio
control panel displays, click the to send audio to the connected remote site and
click the button again to stop sending audio. Click the
to monitor live audio from
the connected remote site through the attached speaker and click the button again
stop monitoring live audio. Clicking both
Clicking the
disables audio communication.
and allows two-way communication.
Aspect Ratio: Changes the image aspect ratio.
Anti-Aliasing Screen: Enhances image display quality by eliminating stair stepping
NOTE: A camera name change in the Remote Watch mode does not affect the camera name set up on the remote
site. Leaving the Camera Title blank causes the camera name set up on the remote site to display.
The
icon will display on each camera screen when audio communication is available between the
Speco Remote system and a DVR.
(aliasing) effects in the enlarged image.
Web Search Mode
Remote Search is a remote web search program that allows you to search recorded video on the remote DVR.
NOTE: The remote site connection in the Remote Search mode will automatically be disconnected if there is
no activity for 30 minutes.
① Click the
② Click the to access to the web monitoring mode.
③ Position the mouse pointer on the Remote Search logo to see the version of the Speco Remote program.
to log out the Speco Remote program.
④ The DVR information window displays the time information of recorded data on the remote DVR and login information
of Speco Remote.
79
Operation Instruction
⑤ Click the
out or zoom in the recorded image. Click the
NOTE: Image processing works only in the pause mode.
to blur, sharpen, equalize and interpolate playback images. Click the to zoom
to adjust the brightn ess of th e record ed images .
⑥ The playback function buttons include fast backward, pause, play, fast forward, go to the first image,
go to the previous image, go to the next image, and got to the last image.
⑦ Click the screen format to select the desired display mode.
⑧ Click the to enter the time-lapse search mode which allows you to search for recorded data by
time and then play back images found within the time parameters. The Timetable window located
at the bottom displays the time information for the image of the date selected on the calendar.
If more than one video stream in the same time range, you can select the video stream you want
to search. Clicking a specific time displays the image recorded at that time on the screen. Selecting
allows you to display an image from a specific time.
the
⑨ Click the to enter the event search mode which allows you to search for event log entries using s pecific conditions
and play back the images associated with those event entries.
⑩ Click the to set up the image drawing mode and OSD display. You can adjust the display speed by changing
the image drawing mode, and select OSD information to be displayed on the screen.
⑪ Click the to save any video clip of recorded data as an executable file, or click the to save the current image in
a bitmap or JPEG file format. Click the
NOTE: When saving as an executable file, selecting the Exclude Player option will reduce the file size and its
saving time. You can download the Player program to review the video clip by entering the following
information in the address field of Internet Explorer.
– When using the DVRNS: “http:// DVRNS serv er address/DVR Na me/ClipPlay er.exe” (The DVRNS serv er
address and the DVR name registered on the DVRNS server)
– When not u sing the D VRNS: “http: //I P add ress:po rt number /ClipPlay er. exe” (The DVR I P addres s and
⑫ Click the to reload the recording data.
⑬ The Timetable displays recorde d data of the selecte d ca mera by time (in hour segments).
⑭ Selecting a camera on the screen and clicking the right mouse button displays the text menu screen.
the Speco Remote port number (d efault: 12088) set in the Net work setup screen (S peco Remot e tab))
to print the current image on a printer connected to your computer.
Change Camera Title: Changes the camera name.
Enable Audio: Plays audio while playing back recorded video that has recorded
audio. (Single-Screen Layout Only)
Aspect Ratio: Changes the image aspect ratio.
Anti-Aliasing Screen: Enhances image display quality by eliminating stair stepping
NOTE: A camera name change in the Remote Search mode does not affect the camera name set up on the remote
site. Leaving the Camera Title blank causes the camera name set up on the remote site to display.
(aliasing) effects in the enlarged image.
80
Digital Video Recorder
Time Overlap
If the DVR’s time and date have been reset to a time that is earlier than the existing recorded video, it is possible for
the DVR to have more than one video stream in the same time range. In this case, you can search overlapping video
streams individually by selecting a specific segment. For example, when the DVR has recorded video from one to
five o’clock and the user changes the tim e backward from five to three o’ clock and th en continues re cording until six
o’clock, there will be two video streams and segments from three to five o’clock.
You can search overlapping video streams by selecting a specific time or time range. If you want to search recorded
video at four o’clock during the overlapping time range using a sear ch menu such as Go to the Date/Time, select the
segment you want to search.
If you want to search recorded video from four to five o’clock during the overlapping time range usi ng a search menu
such as Event Log Search, Text-In Search or Motion Search, it is possible for the DVR to have two overlapping
start and stop times. You will be asked to select one of the overlapping start and stop times from the search time ranges
as follows:
From four o’clock of the first segment to five o’clock of the first segment
From four o’clock of the first segment to five o’clock of the second segment
From four o’clock of the second segment to five o’clock of the second segment
Error Code Notices
System Upgrade Related Clip Copy Related
No. Description No. Description
Unknown error.
0
File version error.
1
Operating system version error.
2
Software version error.
3
Kernel version error.
4
Upgrade device mounting failed.
100
Package is not found.
101
Extracting package failed.
102
LILO failed.
103
Rebooting failed.
104
Invalid package.
105
Remote connection failed.
300
Remote network error.
301
Unknown error.
0
Device error.
1
Mounting failed.
2
No media.
3
Invalid media.
4
File already existed.
5
Not enough space.
6
Creating temporary file failed.
7
Opening disk failed.
8
Formatting disk failed.
9
Database has been changed.
10
Appending failed.
11
Bad sector.
12
81
Operation Instruction
System Upgrade Related Clip Copy Related
No. Description No. Description
Remote upgrade is not authorized.
302
Saving remote package failed.
303
Remote upgrade is cancelled by the user.
304
USB device mounting failed.
400
Reading upgrade package on the USB device
401
failed.
Copying upgrade package on the USB device
402
failed.
USB device is not connected.
403
USB device is being used.
404
Unsupported file system.
405
System is busy clip copying.
500
No executable file.
13
Opening executable file failed.
14
Writing executable file failed.
15
Creating image failed.
16
Connecting device failed.
19
Device is busy.
20
Unsupported file system.
21
Verify failed.
22
System Log Notices
Boot Up Format Disk
Shutdown Disk Full
Restart Disk Config Change
Upgrade Disk ‘No.’ : ‘serial number’
Upgrade Fail Disk ‘No.’ : Removed
Power Failure Auto Deletion
Time Change Search Begin
Time Zone Change Search End
Time Sync Clip-Copy Begin
Time Sync Fail Clip-Copy End
Disk Bad Clip-Copy Cancel
Login Clip-Copy Fail
Logout Clip-Copy User:
Setup Begin Clip-Copy From:
Setup End Clip-Copy To:
Remote Setup Change Clip-Copy Duration of Video:
Remote Setup Fail Clip-Copy Camera:
Setup Imported Callback Fail
Setup Import Failure Print Begin
Setup Exported Print End
Setup Export Failure Print Cancel
Setup Export Cancel Factory Reset
Schedule On Login : VNC (server address)
Schedule Off Logout : VNC (server address)
Panic On Import Digital Deterrent file complete
Panic Off Import Digital Deterrent file error
Clear All Data Export Digital Deterrent file complete
Clear Disk Export Digital Deterrent file error
82
Map of Screens
MENU
SYSTEM
Date/Time
Capacity Estimator
System Event
RECORD
Schedule
Pre-Event
EVENT
Video Loss
Video Blind
CAMERA
DEVICE
Digital Deterrent
Alarm-Out
Remote Control
NETWORK
Speco Remote
NOTIFICATION
Schedule
DISPLAY
Main Monitor
General
User
Storage
General
Motion
Alarm-In
Text-In
General
PTZ
Audio
General
LAN
DVRNS
RTSP
VNC
Callback
Mail
SNS
OSD
Digital Video Recorder
83
Operation Instruction
Troubleshooting
Problem Possible Solution
No Power
No Live Video
DVR has stopped recording
The icon displays,
however, the DVR is not
recording.
While upgrading the system,
the DVR keeps rebooting and
the upgrade fails.
Check power cord connections.
Confirm that there is power at the outlet.
Check camera video cable and connections.
Check monitor video cable and connections.
Confirm that the camera has power.
Check camera lens settings.
Check the current main monitor resolution.
If hard disk drive is full, you will either need to delete video or set the DVR to the
Overwrite Mode.
When the DVR is in the Pre-Event recording mode, the yellow
when there is no event, and the DVR is not recording. The red
when any event occurs and the DVR starts recording.
If the current system version is higher than the upgrade package file version, you
should reset the DVR first using the Factory Reset. When using the Factory Reset,
you will lose any settings you have saved.
Specifications
VIDEO
Signal Format NTSC or PAL (Auto Detect)
Video Input Composite: 4 or 8 inputs, 1 Vp-p, auto-terminating, 75 Ohms
Monitor Outputs
Video Resolution
Record Speed
(images per second)
Playback Speed
(images per second)
Alarm Input
Alarm Output 1 relay output, terminal blocks, 1A@30VDC (NO)
Internal Buzzer 80dB at 10cm
Network Connectivity 10/100Mbps, 1Gbps Ethernet (RJ-45)
Audio Input RCA Input: 4 Line In
Audio Output RCA Output: 1, Line Out
Text Input POS Interface, ATM Interface
HDMI: 1 HDMI
VGA: 1
HDMI: 1920x1080, 1440x900, 1280x1024
VGA: 1920x1080, 1440x900, 1280x1024
Real-time: 240ips (NTSC), 200ips (PAL) @ D1/960H (8-ch Model)
Real-time: 120ips (NTSC), 100ips (PAL) @ D1/960H (4-ch Model)
Full Duplex: 240ips (NTSC), 200ips (PAL) @ CIF/Q960H (8-ch Model)
Full Duplex: 120ips (NTSC), 100ips (PAL) @ D1/960H (4-ch Model)
INPUTS/OUTPUTS
4 or 8 terminal, programmable as NC or NO, 2.4V (NC) or 0.3V (NO) threshold,
5VDC
and display
and display
84
CONNECTORS
Video Input Composite: 4 or 8 BNC
Monitor Output
HDMI: 1 HDMI
VGA: 1 VGA
Audio In 4 RCA connector
Audio Out 1 RCA connector
Alarm Input/Output Terminal Blocks
Ethernet Port RJ-45
RS232 Serial Port Two-connector terminal block
RS485 Serial Port Two-connector terminal block
IR Port 1 Remote Control
USB Port 2 (USB 2.0)
STORAGE
Primary Storage SATA hard disk drive
Secondary Storage USB hard disk drive or flash drive
GENERAL
Dimensions (W x H x D) 10.4" x 2.0" x 7.5" (265mm x 52mm x 191mm)
Unit Weight 3.3 lbs. (1.48kg)
Shipping Weight 6.0 lbs. (2.73kg)
Shipping Dimensions
(W x H x D)
14.0" x 4.1" x 13.4" (355mm x 103mm x 340mm)
Operating Temperature 41°F to 104°F (5°C to 40°C)
Operating Humidity 0% to 90%
Power 12V , 2A (Adaptor: 100-240V~, 50/60Hz, 1.5A, 12V , 5A)
Power Consumption Max. 25W
Approvals FCC, CE
Specifications are subject to change without notice.
Digital Video Recorder
V1.0
85
