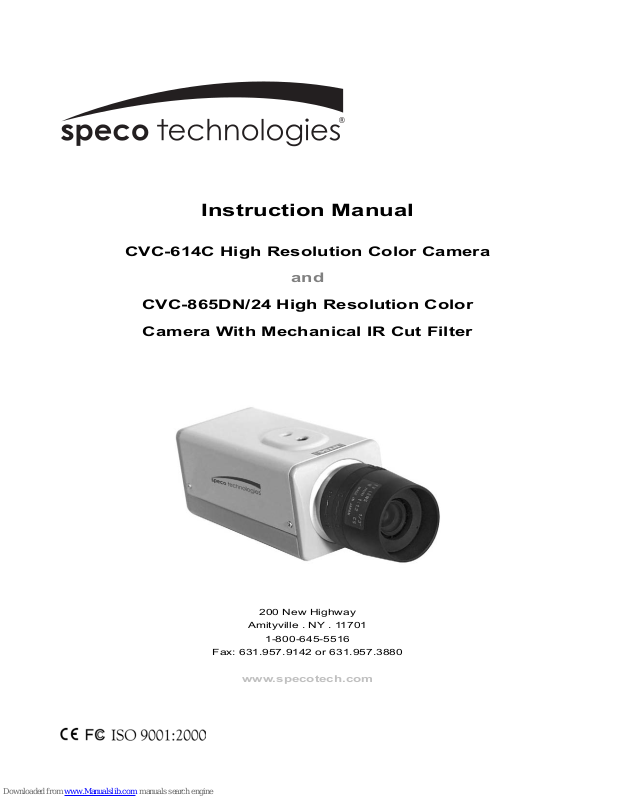

Instruction Manual
CVC-614C High Resolution Color Camera
and
CVC-865DN/24 High Resolution Color
Camera With Mechanical IR Cut Filter
200 New Highway
Amityville . NY . 11701
1-800-645-5516
Fax: 631.957.9142 or 631.957.3880
www.specotech.com
CONTENTS
Description .................................................................................................... 1
Warning......................................................................................................... 2
Camera Layout.............................................................................................. 3
Function Description ..................................................................................... 4
Connections .................................................................................................. 5
Troubleshooting.............................................................................................5
Installing The Lens ........................................................................................ 6
Auto Iris Lens Connection ............................................................................. 6
Specifications................................................................................................7
DESCRIPTION
This 1/3" Color CCD video camera is designed to operate as part of a monitoring system.
The product includes the following features:
◎High resolution and high sensitivity with HQ-1 and matching DSP.
◎AGC (Automatic Gain Control)
◎Accepts C or CS mount lens.
◎Low light, high sensitivity.
◎Back light compensation.
◎External Sync (Line Lock)
●Accessories:
This package includes:
1×Camera
1×Instruction Manual
1×C/CS Mount adjusting ring
1×Auto Iris Lens connector
1×Adjustment tool
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
The user's manual or instruction manual for an intentional or unintentional radiator shall
caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the users' authority to operate the equipment.
Speco Technologies CVC-614C : CVC-865DN/24
Instruction Manual
1
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture without using
a proper housing.
This symbol alerts the user to the presence of non-insulated dangerous voltage within
the product's enclosure that may be of sufficient magnitude to constitute a risk of
electric shock.
This symbol alerts the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
●Handle the camera with care.
Be careful while handling or installing the camera. Do not drop it or subject it to
strong shock or vibration. Do not disassemble it or place it on an unstable base.
●Never face the camera toward the sun.
The camera's picture may be influenced when working in an unusually bright
Environment. Sun light may influence the picture quality or the camera itself.
Never aim the camera at the sun or other extremely bright objects.
●Cleaning
Do not touch the surface of the CCD sensor by hand. Use lens tissue or a cotton tipped
applicator and ethanol to clean the CCD sensor and camera lens.
Speco Technologies CVC-614C : CVC-865DN/24
Instruction Manual
2
Camera Layout
A.
User Supplied Lens – If using a C mount lens be sure to install the
“C” mount adaptor ring that is packaged with the camera
B.
Flange back adjusting ring
If back focus adjustment is required, loosen the
flange back locking screw, and adjust back focus
by rotating the ring.
C
. Mounting bracket screw hole (1/4" -20 UNC)
D.
Auto iris lens connector
E.
Video output terminal (BNC)
F.
G.
Power supply indicator
Power input terminal
12 Volts DC/24 Volts AC – Dual Voltage
H.
Video / DC drive auto iris lens selector
I.
J.
ALC level adjuster - for DC-DRIVE lens
Function control DIP switch
Speco Technologies CVC-614C : CVC-865DN/24
Instruction Manual
3
FUNCTION DESCRIPTION
There are 4 control switches that are used for setting the special features.
The switches are for Line Lock, Auto Electronics Shutter, Back Light Compensation,
Auto White Balance and Lens Type Choice.
1. Internal Line Lock (INT/LL)
The Line Lock is designed to stabilize the color picture. Always switch
it to the down side to have this function on. Line Lock sync is only available
when using an AC Power source. It is unavailable with 12 volt DC power.
2. Auto Electronics Shutter (AES)
When using a DC Drive or Video Drive Auto Iris Lens, turn off the AES.
When a Fixed iris or Manual Iris Lens is used, turn the AES on to
adjust the shutter speed automatically.
3. Back Light Compensation (BLC)
Under AES mode, this function can adjust the auto exposure to make
the object clear when it is too dark or the back light is too bright.
4. Automatic Gain Control (AGC)
AGC can automatically amplify the video signal to compensate for low
light environments.
Speco Technologies CVC-614C : CVC-865DN/24
Instruction Manual
4
CONNECTIONS
1. Keep the camera's power OFF during installation.
2. Make sure that the input voltage is correct before installation.
The camera may be damaged if the voltage is incorrect.
3. Terminate the camera output to 75ohms. Use 75-ohm coaxial cable
(RG-59/U, RG-6/U, RG-11/U). Always set the last monitor termination
switch to 75 ohms, and set the termination switches of intermediate
monitors to HIGH (HI-Z).
4. The table below shows the maximum recommended cable length.
Type
of coaxial
Cable
Recommended
maximum cable
length
RG-59U
(3C-2V)
1000 ft.
RG-6U
(5C-2V)
1500 ft.
RG-11U
(7C-2V)
2000 ft.
Troubleshooting
Problem
- No picture appears on the
monitor
- The picture is not clear
◎Note:
If dust adheres to the lens, the picture quality will suffer. To clean the lens,
wipe lightly with a soft cloth or a commercially available lens cleaning paper.
What to Check
Is the system power on?
Is the cable connected properly?
Has the lens cap been removed?
Is the monitor properly adjusted?
Is the lens mount ring correct?
Is the lens clean?
Is the lens properly focused?
Is the monitor terminated properly?
Speco Technologies CVC-614C : CVC-865DN/24
Instruction Manual
5
INSTALLING THE LENS
1. Remove the lens cap from the front of the camera.
2. If you are using a C mount lens, make sure that the C mount adaptor ring is in place.
3. If you are using a CS mount lens, remove the C mount lens ring adapter.
4. When using a fixed iris lens, switch the shutter control to AES ON.
5. When using a manual adjustable iris lens, switch the shutter control to AES ON.
6. When using a Video servo auto iris lens or DC servo auto iris lens, switch the
shutter control to AES OFF.
AUTO IRIS LENS CONNECTIONS
1. When using auto iris lens (with EE amp)
Set the lens selector to the "Video" position.
PIN
DEFINITION
LENS CABLE LEAD
1
2
3
4
DC +12 V Red
Video iris White
NC
Ground Black
2. DC servo auto iris lens (without EE amp)
Set the lens selector to the "DC" position.
PIN
DEFINITION
1
2
3
4
Damping Damping +
Driving+
Driving-
To ensure correct lead connection, please refer to the instructions on the lens.
Speco Technologies CVC-614C : CVC-865DN/24
Instruction Manual
6
Specifications
Item CVC-614C CVC-865DN/24
Description 1/3" Color HQ1 Camera 1/3" Color HQ1 Camera with ICR
DSP Sony HQ1
Pick up Element Sony Super-HAD CCD Image Sensor
Number of Pixels <NTSC> 768 (H) × 494 (V)
Lens Amount C / CS Mount
Video / DC Drive Auto Iris Video or DC Drive
Auto Electronics Shutter ON-OFF
Back Light Compensation ON-OFF
AGC ON-OFF
ATW ON
ALC Low-High
(Mechanical IR Cut Filter)
Link Lock LL-INT
ICR - YES
Sync. Mode Internal Sync.
Scanning System 2:1 Interlace
Resolution 580TV Lines
S/N Ratio More than 50dB
Gamma 0.45
Minimum illumination 0.5 Lux, F 1.4
Horizontal Sync. Frequency <NTSC> 15.734 KHz
Video Output 1.0 Volt p-p, into 75 ohms
Power Source 12 V DC/ 24 V AC– Dual Voltage
Power Consumption 3.6W 3.8W
Operating Temperature -14 F to +122 F
Shutter Control <NTSC> 1/60~1/100,000 sec.
Dimension 4.6”(L) × 2.25(W) 2.25(H) mm
Net Weight 1.5 lbs.
* Specifications are subject to change without prior notice.
* Line Lock is available when AC Voltage is used.
