Speco CVC6146SCFF Instruction Manual

INSTRUCTION
MANUAL

550 Line Color Dome Camera

Focus Free

Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 6/9/10

CVC6146SCSFF

- 2 -

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.

WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.

This installation should be made by a qualified service person and
should conform to all local codes.

CAUTION : To prevent electric shock and risk of fire hazards:

☞Do NOT use power sources other than those specified.
☞Do NOT expose this appliance to rain or moisture.

- 3 -

Contents

Contents

3

4

Precautions

5

Sefety Instructions

6

SPECIFICATIONS

7

General Features

30

Trouble Shooting

Menu Set Up

8

▶

Adjust

▶

Reset

▶

Exit

28
29
29

▶

Menu Set Up

▶

Lens Set Up

▶

Exposure

▶

Back Light

▶

D-WDR

▶

White Bal.

▶

Day & Night

▶

3DNR

▶

Special

10
11
12

14

17
18

19

20

21

◈

Camera Title

◈

D - Effect

◈

Motion

◈

Privacy

◈

Sync

◈

Return

21
24
26

27

28
28

- 4 -

Precautions

Do not install the camera in
extreme temperature conditions.

Do not touch the front lens of the
camera.

Never keep the camera pointed
directly at strong light.

Do not expose the camera to
radioactivity.

Do not install the camera under
unstable lighting conditions.

Do not drop the camera or subject
it to physical shocks.

Only use the camera under conditions
where temperatures are between

-10°C and +50°C. Be especially careful to provide
ventilation when operating under high
temperatures.

This is one of the most important parts of the
camera. Be careful not to leave
fingerprints on the lens cover.

It can cause malfunctions to occur.

If exposed to radioactivity the CCD
will fail.

Severe lighting change or flicker can
cause the camera to work improperly.

Severe lighting change or flicker can
cause the camera to work improperly.

NOTE

* If the camera is exposed to

spotlight or object reflecting strong light, smear or blooming may occur.

* please check that the power satisfies the normal specification before

connecting the camera.

- 5 -

Sefety Instructions

Precautions for use

Please handle this camera carefully :

◑

This camera should be installed by qualied personnel only

◑

There are no user serviceable parts inside

◑

Do not disassemble this camera other than to make initial adjustments

◑

Use a UL approved regulated 24 volt AC or 12 volt DC power supply

◑

Use appropriate low voltage power cable to prevent re or electrical shock

◑

Please insure that your installation area can support the weight of the camera

◑

Do not use a strong or abrasive detergent when cleaning the camera

◑

Do not install near cooling or heating device

CVC6146SCSFF

■

SPECIFICATIONS

550 Line color dome camera

Focus free AI Motorized zoom Lens(2.8-10mm)

1/3" SONY Super HAD CCD
NTSC=811(H) * 508(V) / PAL=795(H) * 595(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
2:1 Interlace
Internal / Line Lock
Available
BLC / HSBLC / Off Selectable
550TV Lines(Color), 600TV Lines(B/W)
52dB (AGC Off, Weight On)

0.00001Lux(Sens-Up * 256)
ATW / AWB / Manual / AWC → SET
AUTO (1/50sec, 1/60sec ~ 1/120,000sec)
Off / Auto(Selectable limit *2 ~ *256)
High, Middle, Low, Off Selectable
Off/On (1~50 Level Adjustable)
Indoor / Outdoor / Off
On/Off (4 Zone, Alarm Output)
On/Off (8 Zone)
Off / Mirror / V-Rev / Rotate
On/Off
0~31’(Level Adjustable)
Color /BW /Auto
On(*32) / Off
256 Point (Even 128 Point, ODD 128 Point)
DC 12V
DC 12V 250mA
Focus free AI Motorized zoom Lens(2.8-10mm)
14~122ºF RH 95% Max

-4~140ºF RH 95% Max

5.47"(W) * 3.82"(H) * 5.47"(D)

1.54 lb

Sensor
Total Pixels
Effective Pixels
Scanning System
Synchronization
O.S.D
Backlight
Resolution
S/N (Y signal)
Min. Illumination
White Balance
Electronic Shutter Speed
Sense-Up
Gain Control
3 DNR
D-WDR
Motion Detection
Privacy
Mirror
Freeze
Sharpness
D&N Selection
Digital Zoom
Blemish Compensation
Power
Power Consumption
Lens
Operating Temperature/Humidity
Storage Temperature/Humidity
Dimension
Weight

MODEL

CVC6146SCSFF

0.00001LUX

x256

550

Focus Free

- 7 -

General Features

3D Filtering Method of Newly Advanced DNR Function

Newly developed 3D filtering enhances Digital Noise reduction at low light levels. 3D Filtering of
the Video Signal Optimises the Signal to Noise ratio, giving vastly improved low light visivility
and a powerful Sens-Up function (up to 256 times magnification).

550TV Lines

The combination of a Sony Super HAD CCD image sen-sor and DNR DSP provides an excellent
resolution of 550 TV lines.

D-WDR(Digital Wide Dynamic Range)

D-WDR is a powerful and ultra advanced technology that captures cleaner and superior high
Resolution pic-tures even where images appear dark because there is a strong back light present.

High Spotlight BLC Function

High Spotlight BLC Function is Especially Effective to Read the Number Plate of the Vehicles in
the Street or Parking Lot at Night Time. Especially Users Can Adjust and Select the Special
Required Area to Observe the Target Object Under the Strong Spots of Light Exist.

Illumination

With an Incredibly Minimum Illumination of Amazing 0.00001Lux can Capture Good Images Even in Extremely
Low Light Conditions and Related Noises are Significantly Reduced by the Ultra Advanced DNR(Digital Noise
Reduction) Technology.

Disk Saving Effects

Advanced 3DNR technology improves picture quality and saves hard drive space, as less
noise means much smaller file sizes - much smaller than standard CCTV camera images.

Additional Functions

OSD - On Screen Display menu with multi-Language support.
Privacy Masking - 8 zones, Sens-Up - x256 times, Digital Zoom - x32

☞

☞

☞

☞

☞

☞

☞

3D-DNR

Digital

R

eduction

Noise

Resolution

Horizontal

550

DSP

3D-DNR

3D-DNR

Digital

R

eduction

Noise

Resolution

Horizontal

550

Wide Dynamic Range

Digital

WDR

DSP

3D-DNR

3D-DNR

Digital

R

eduction

Noise

Resolution

Horizontal

550

Wide Dynamic Range

Digital

WDR

Backlight
Compensation

BLC

DSP

3D-DNR

3D-DNR

Digital

R

eduction

Noise

0.00001 Lux

Illumination

Minimum

Resolution

Horizontal

550

Wide Dynamic Range

Digital

WDR

Backlight
Compensation

BLC

DSP

3D-DNR

3D-DNR

Digital

R

eduction

Noise

DSP

3D-DNR

3D-DNR

Digital

R

eduction

Noise

0.00001 Lux

Illumination

Minimum

Resolution

Horizontal

550

Wide Dynamic Range

Digital

WDR

Backlight
Compensation

BLC

DISK SAVING

DSP

3D-DNR

3D-DNR

Digital

R

eduction

Noise

0.00001 Lux

Illumination

Minimum

Resolution

Horizontal

550

Wide Dynamic Range

Digital

WDR

Backlight
Compensation

BLC

DISK SAVING

DSP

3D-DNR

OSD

- 8 -

SET UP MENU DEFAULT SET MENU

LENS

EXPOSURE

WHITE BAL.

DAY / NIGHT.

3D-DNR

SPECIAL

ADJUST

RESET

EXIT

DC / MANUAL

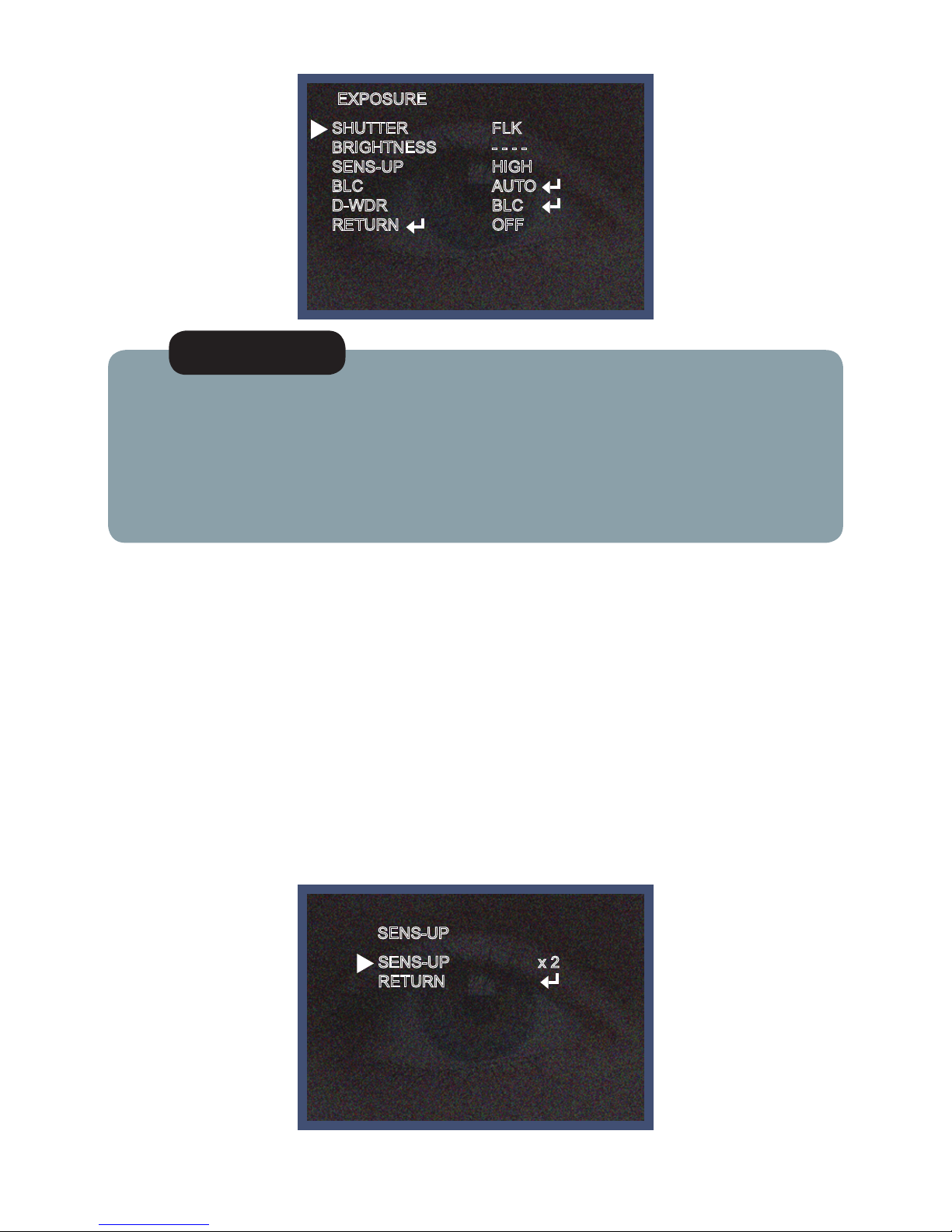

SHUTTER
BRIGHTNESS
AGC: --­SENS-UP
BLC
D-WDR
RETURN

SHARPNESS
BLUE
RED
RETURN

ATW

AUTO/B/W COLOR/EXT

ON

Refer to the next page

FACTORY

DC : LEVEL (0 ~100 Adjustable)

ON (RANGE : 0 ~100 Level Selectable) / OFF

Save the SETUP Menu and exit

SHUTTER : FLK/ 1/60 / 1/250, 1/500, 1/2000, 1/5000,
1/10000, 1/100000
BRIGHTNESS

(0 ~100 Adjustable)
AGC : OFF / LOW / MIDDLE/ HIGH
SENS-UP : x2~ x256 Level Selectable
BLC : OFF / BLC (GAIN : LOW, MIDDLE, HIGH/ DEFAULT :

LEFT/RIGHT, WIDTH, TOP/

BOTTOM, HEIGHT, RTURN) /

HSBLC (LEVEL : RANGE 1~8 Selectable/ DEFAULT :

LEFT/RIGHT, WIDTH, TOP/BOTTOM,

HEIGHT, RETURN)
D-WDR : OFF / INDOOR/ OUTDOOR
RETURN
ATW/ AWB/ MANUAL(R Gain : 0 ~100 Level Selectable,
B Gain : 0 ~100 Level Selectable)
/ AWC SET

SHARPNESS : (RANGE : 0 ~ 31 Level Adjustable)
BLUE : (RANGE : 0 ~ 100 Level Adjustable)
RED : (RANGE : 0 ~ 100 Level Adjustable)
RETURN

COLOR
AUTO : DELAY (0~63) / S-LEVEL(0~100)/ E-LEVEL(0~100)
RESET

Menu Set-Up

- 9 -

SPECIAL MENU DEFAULT SET MENU

CAMERA TITLE OFF

D - EFFECT ON

MOTION ON

PRIVACY ON

SYNC INT

RETUEN

ON / OFF

END

FREEZE / MIRROR/ D-ZOOM/ GAMMA/ NEG. IMAGE

AREA SELECT : AREA 1
AREA DISPLAY : ON / OFF
LEFT / RIGHT : 0 ~ 100 Level Adjustable
WIDTH : 0 ~ 100 Level Adjustable
TOP / BOTTOM : 0 ~ 100 Level Adjustable
HEIGHT : 0 ~ 100 Level Adjustable
SENSITIVITY : 0 ~ 40 Level Adjustable
RETURN

AREA SELECT : AREA 1
AREA DISPLAY : ON / OFF
LEFT / RIGHT : 0 ~ 100 Level Adjustable
WIDTH : 0 ~ 100 Level Adjustable
TOP / BOTTOM : 0 ~ 100 Level Adjustable
HEIGHT : 0 ~ 100 Level Adjustable
COLOR : Selectable in 15 Color
RETURN

Special Menu

- 10 -

Menu items can be selected by using the OSD buttons of the camera

1. Press the Set Up button.

* The Set Up menu will be displayed on the monitor.

2. Move and select the required function using the Up and Down button.

* Move the arrow indicator Up or Down to select the desired feature by pressing

the Up or Down button.

SETUP

SETUP

LENS

EXPOSURE

WHITE BAL
DAY / NIGHT

3DNR

SPECIAL
ADJUST

RESET
EXIT

LENS

EXPOSURE

WHITE BAL
DAY / NIGHT

3DNR

SPECIAL
ADJUST

RESET
EXIT

DC

ATW
COLOR

ON

DC

ATW
COLOR

ON

Menu Set Up
