INSTRUCTION
MANUAL
HD-TVI
Intensifier T Corner Mount Camera
CVC605CMT
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Rev. 02/01/17
Page 2
• To avoid electrical shock, do not open the case of this product.
• Only use a regulated DC 12V Power supply to operate this product.
• Do not overload electrical outlets or extension cords. This can result in a fire or
electrical shock.
• Keep this product away from strong magnetic fields.
• Do not expose this product in direct sunlight or strong reflected rays.
• Refer servicing to qualified personnel only.
• Do not change or modify this product. This will void the warranty.
Precautions
Features
Installation
• 1/2.9 Inch SONY 2Mega CMOS Sensor
• Privacy Masking (16 Zones)
• No Noise, Ghosting Effect with DNR
• Highest Resolution:Vivid Sharp Picture in complete darkness
• UTC Built-in
• DC 12V
BOLT
BOLT
FRONT PLATE
FRONT PLATE
NUT
NUT
CAMERA MODULE ASSEMBLY
CAMERA MODULE ASSEMBLY
BASE BRACKET
BASE BRACKET
ELEVATOR
SCREW
1.Loosen the bolt and separate front plate.
Loosen the nut and separate camera module and base bracket.
3.Use nut screw to fixate camera module
on base bracket.
2.Fix the base bracket to the corner.
4.Use bolt screw to fixate front plate. 5.Finish install.
Page 3
Specifications
1/2.9 Inch SONY 2Mega CMOS Sensor
2001 (H) X 1121 (V)
1985 (H) X 1105 (V)
1920X1080(1080p@30f / 1080p@25f)
1280X720_CROP(720p@60f / 720p@50f)
1280X720_CROP(720p@30f / 720p@25f)
Progressive Scan
50 dB
1.0Vp-p Composite. 75 Ohms / 1.0Vp-p TVI(Transport Video Interface) 75 Ohms
0.001 Lux @ F1.4(Sens-Up X32)
AUTO / Manual(1/25,1/30Sec ~ 1/30000Sec) / FLICKER
0
0
ON / OFF (Low,Middle,High) (15 Fram)
O(OFF/LOW/MIDDLE/HIGH)
AUTO / COLOR / BW / EXT
AUTO/AWB/AWC-SET/MANUAL
0
x2 ~ x32
ON / OFF (4 Area)
3DNR (OFF/LOW/MIDDLE/HIGH)
O (AUTO/MANUAL)
0 ~ 20
0~20(Level Adjustable)
ON / OFF (16 Area)
MIRROR,V-FLIP
Image Sensor
Pixels - total
Pixels - Effective
Resolution
Scanning System
S/N Ratio
Video Output
Minimum Illumination
Shutter Speed
BLC
HSBLC
WDR(Wide Dynamic Range)
ACE(D-WDR)
(Adaptive Contrast Enhancement)
Day&Night
White Balance
Smart-IR
Sense-Up
Motion
Digital Noise Reduction
De-Fog
brightness
AGC
Privacy
Mirror
0~20(Level Adjustable) Sharpness
AUTO DETECT Defect
0Coaxial Communication (UTC)
ENG/KOR/CHN/CHA(S)/JPNLanguage
DC12VPower
DC12V 110mA ±10%(MAX) Power Consumption
-4ºF ~ +140ºF(Humidity : 20%RH ~ 95%RH)Operating Temperature
-4ºF ~ +140ºF(Humidity : 20%RH ~ 95%RH)Storage Temperature

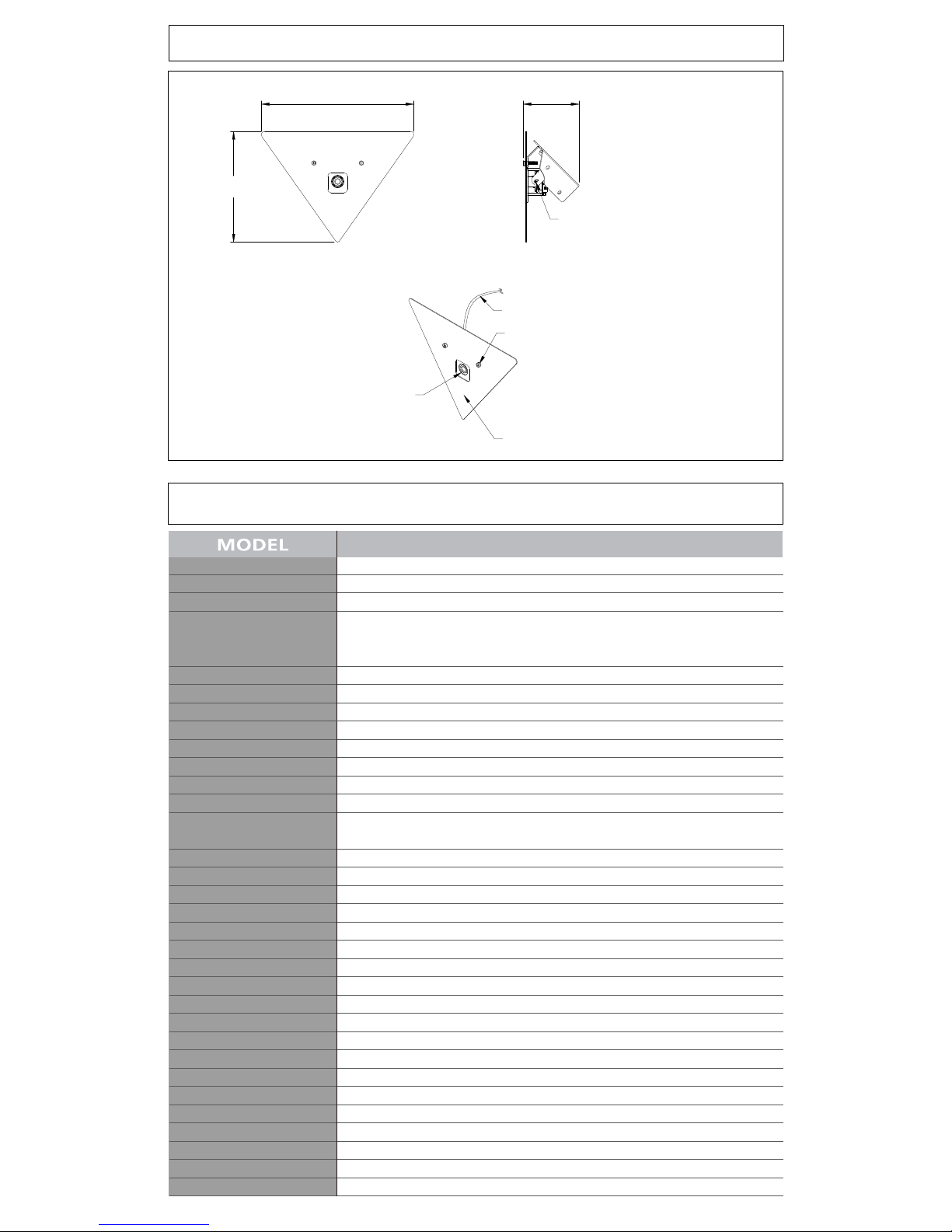

Dimension & Camera Connection
CVC605CMT
9.24”
6.71”
3.40”
Change height based on angle
FRONT PLATE
FRONT SIDE
3.6mm Fixed Board Lens
Bolt
Main Cable
