16-Channel Digital Video Recorder
i
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated "dangerous voltage" within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
COMPLIANCE NOTICE OF FCC:
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL
DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE
PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL
ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND
IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA
IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT
THE INTERFERENCE AT THEIR OWN EXPENSE.
WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCECAUSING EQUIPMENT REGULATIONS.
The information in this manual is believed to be accurate as of the date of publication. We are not responsible for any
problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions
or new editions to this publication may be issued to incorporate such changes.
The software included in this product contains some Open Sources. You may obtain the complete corresponding source
code from us. See the Open Source Guide on the software CD (OpenSourceGuide\Ope nSourceGuide.p df) or as a printed
document included along with the Operation Instruction.
Page 4
Operation Instruction
ii
Important Safeguards
1. Read Instructions
All the safety and operating instructions should be read before the
appliance is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future
reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do
not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipment without the approval
of the manufacturer as such additions may result in the risk of fire,
electric shock or other personal injury.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Placement and Accessories
Do not place this equipment on an unstable cart, stand or table. The
equipment may fall, causing serious injury to a child or adult, and
serious damage to the equipment.
This equipment and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
equipment and cart combination to overturn.
Do not place this equipment on a closed space. Sufficient amount of
ventilation air is necessary to avoid increase of ambient temperature
which can cause improper operation or the risk of fire.
7. Power Sources
This equipment should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power,
please consult your equipment dealer or local power company.
8. Power Cords
Operator or installer must remove power and TNT connections before
handling the equipment.
9. Lightning
For added protection for this equipment during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug
it from the wall outlet and disconnect the antenna or cable system. This
will prevent damage to the equipment due to lightning and
power-line surges.
10. Overloading
Do not overload wall outlets and extension cords as this can result
in the risk of fire or electric shock.
11. Objects and Liquids
Never push objects of any kind through openings of this equipment
as they may touch dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill liquid of any kind
on the equipment.
12. Servicing
Do not attempt to service this equipment yourself. Refer all servicing
to qualified service personnel.
13. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have fallen into the equipment.
C. If the equipment has been exposed to rain or water.
D. If the equipment does not operate normally by following the operating
instructions, adjust only those controls that are covered by the
operating instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by a
qualified technician to restore the equipment to its normal operation.
E. If the equipment has been dropped, or the cabinet damaged.
F. When the equipment exhibits a distinct change in performance –
this indicates a need for service.
14. Replacement Parts
When replacement parts are required, be sure the service technician
has used replacement parts specified by the manufacturer or that have
the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock or other hazards.
15. Safety Check
Upon completion of any service or repairs to this equipment, ask the
service technician to perform safety checks to determine that the
equipment is in proper operating condition.
16. Field Installation
This installation should be made by a qualified service person and
should conform to all local codes.
17. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
18. Tmra
A manufacturer’s maximum recommended ambient temperature (Tmra)
for the equipment must be specified so that the customer and installer
may determine a suitable maximum operating environment for the
equipment.
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at
the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for
details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
should not be mixed with other commercial wastes for disposal.
Page 5
16-Channel Digital Video Recorder
iii
Table of Contents
Chapter 1 — Introduction ........................................................................................................... 1
Feature ................................................................................................................................... 1
Technical Overview ................................................................................................................ 1
Chapter 2 — Installation ............................................................................................................. 3
Package Contents .................................................................................................................. 3
Required Installation Tools .................................................................................................... 3
Video Input......................................................................................................................... 3
Video Out ........................................................................................................................... 4
Audio In/Out ....................................................................................................................... 4
Power Cord Connector ...................................................................................................... 4
RS232 Port ........................................................................................................................ 4
RS485 Port ........................................................................................................................ 5
Alarm Input/Output ............................................................................................................ 5
Network Port ...................................................................................................................... 5
Factory Reset Switch ......................................................................................................... 5
Chapter 3 — Configuration ........................................................................................................ 7
Front Panel Controls .............................................................................................................. 7
Menu Button ...................................................................................................................... 7
Copy Button ....................................................................................................................... 7
Esc Button ......................................................................................................................... 7
Play/Stop Button ................................................................................................................ 8
Camera Buttons ................................................................................................................. 8
Arrow Buttons .................................................................................................................... 8
Play/Pause Button ............................................................................................................. 8
HDD LED ........................................................................................................................... 8
Power LED......................................................................................................................... 8
USB Port ............................................................................................................................ 8
Remote Control Buttons......................................................................................................... 9
ID Button ............................................................................................................................ 9
Camera Buttons ................................................................................................................. 9
Sequence Button ............................................................................................................... 9
Login/Logout Button .......................................................................................................... 9
Arrow Buttons .................................................................................................................. 10
Menu Button .................................................................................................................... 10
Playback Buttons ............................................................................................................. 10
Alarm Button .................................................................................................................... 10
Layout Button .................................................................................................................. 10
Zoom Button .................................................................................................................... 10
PTZ Button....................................................................................................................... 10
Enter Button ..................................................................................................................... 10
Esc Button ....................................................................................................................... 10
PTZ Control Buttons ........................................................................................................ 11
Copy Button ..................................................................................................................... 11
Play/Stop Button .............................................................................................................. 11
Turning on the Power ........................................................................................................... 11
Initial Unit Setup ................................................................................................................... 11
Page 6
Operation Instruction
iv

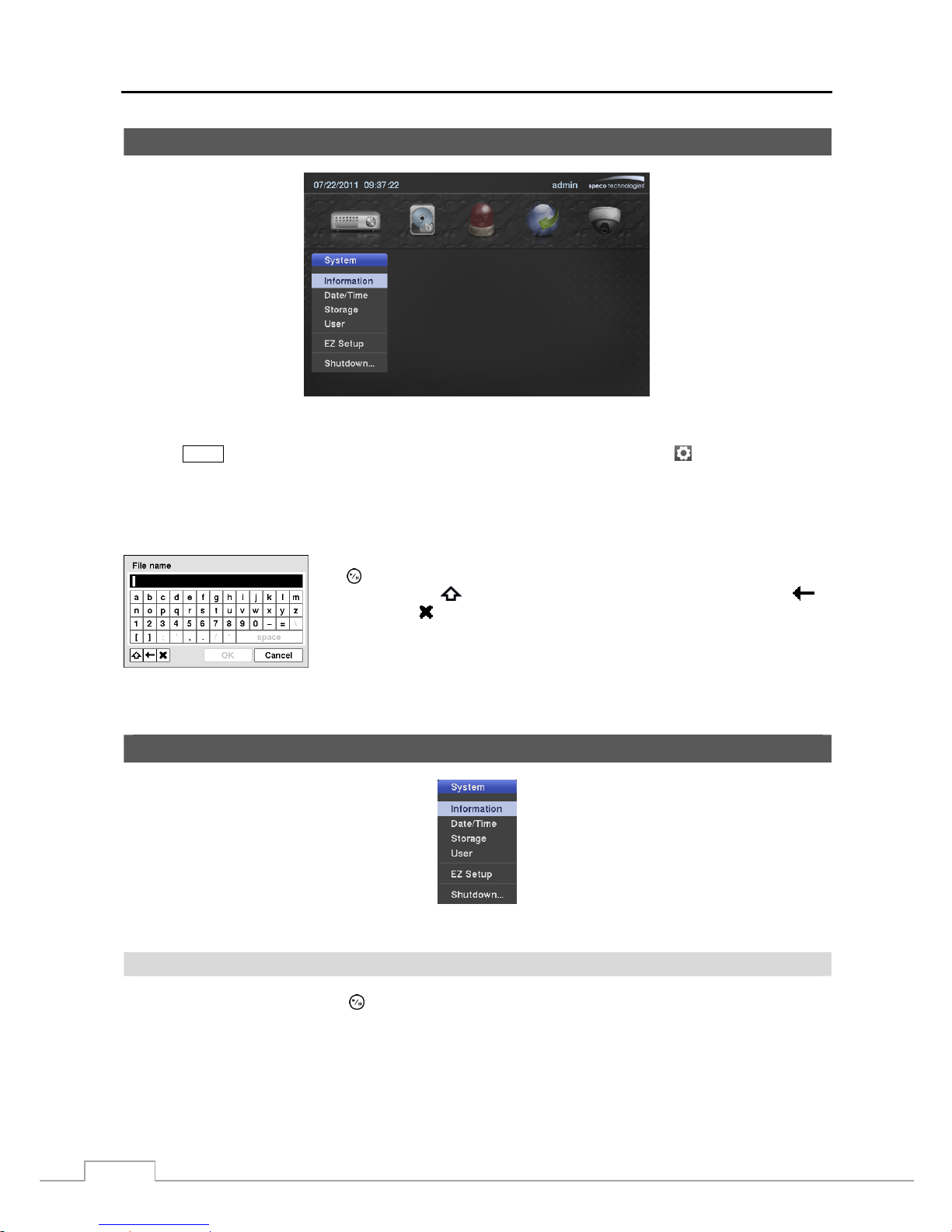

Setup Screen ....................................................................................................................... 12
System Setup ....................................................................................................................... 12

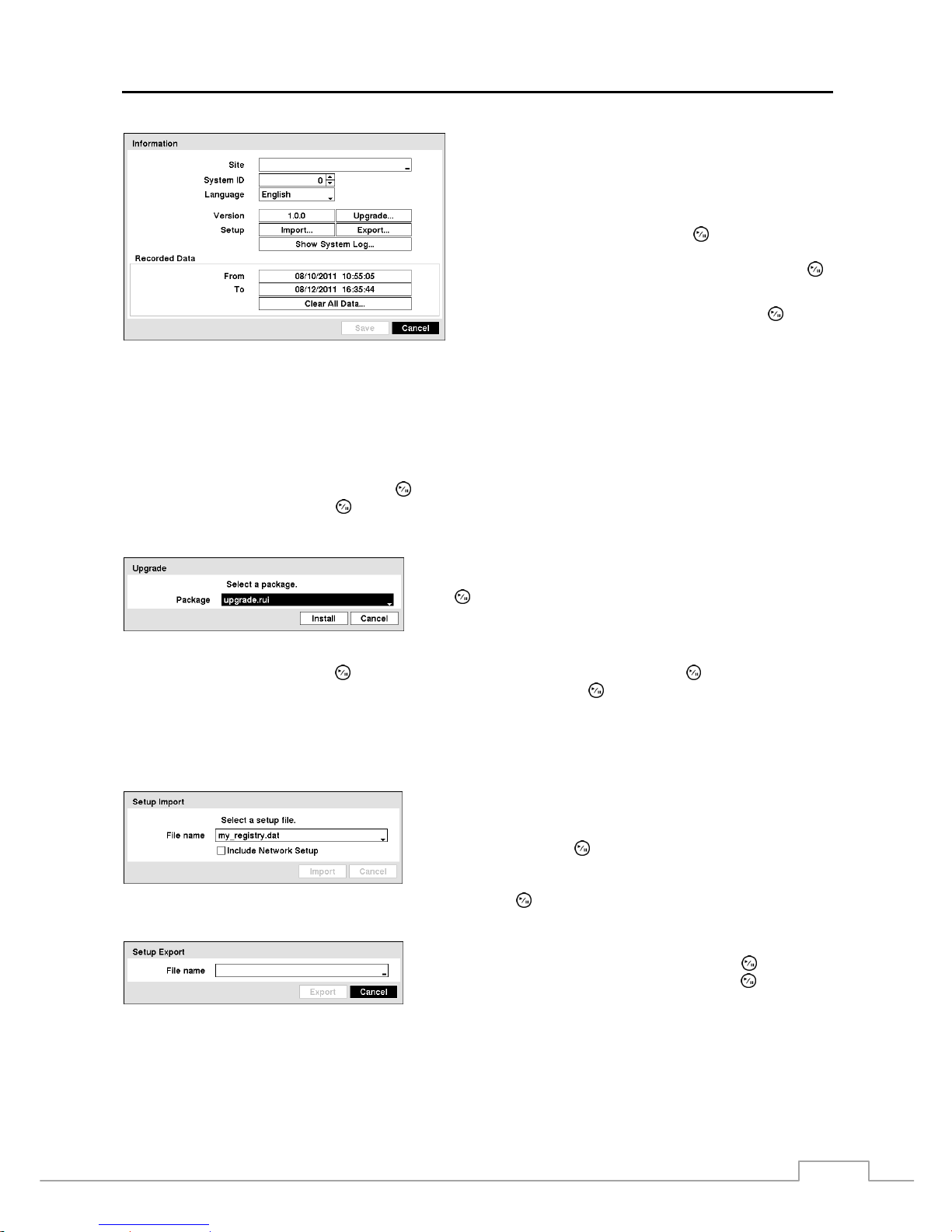

Information ....................................................................................................................... 12
Date/Time ........................................................................................................................ 14
Storage ............................................................................................................................ 15
User ................................................................................................................................. 16
EZ Setup .......................................................................................................................... 18
Shutdown ......................................................................................................................... 21
Recording Setup .................................................................................................................. 21
Record ............................................................................................................................. 21
Schedule .......................................................................................................................... 23
Pre-Event ......................................................................................................................... 24
Event Setup ......................................................................................................................... 25
Alarm-In ........................................................................................................................... 25
Motion Detection .............................................................................................................. 26
Video Loss ....................................................................................................................... 28
Video Blind....................................................................................................................... 29
Text-In .............................................................................................................................. 31
System Event .................................................................................................................. 32
Event Status .................................................................................................................... 34
Network Setup ..................................................................................................................... 35
Network ............................................................................................................................ 35
Notification ....................................................................................................................... 38
Devices Setup ...................................................................................................................... 41
Camera ............................................................................................................................ 41
Audio ................................................................................................................................ 43
Alarm-Out ........................................................................................................................ 43
Digital Deterrent ............................................................................................................... 44
Display ............................................................................................................................. 45
Remote Control ............................................................................................................... 47
Chapter 4 — Operation ............................................................................................................ 49
Turning on the Power ........................................................................................................... 49
Live Monitoring ..................................................................................................................... 49
Live Monitoring Menu ...................................................................................................... 49
Active Cameo Mode ........................................................................................................ 52
Zoom Mode...................................................................................................................... 52
PTZ Mode ........................................................................................................................ 52
Event Monitoring .............................................................................................................. 53
Covert Camera ................................................................................................................ 54
Recording Video .................................................................................................................. 54
Panic Recording .............................................................................................................. 54
Recording Audio .................................................................................................................. 54
Playing Recorded Video ...................................................................................................... 54
Searching Video ................................................................................................................... 55
Search Menu ................................................................................................................... 56
Event Log Search ............................................................................................................ 58
Record Table Search ....................................................................................................... 59
Calendar Search .............................................................................................................. 60
Motion Search ................................................................................................................. 61
Text-In Search ................................................................................................................. 62
Page 7
16-Channel Digital Video Recorder
v
Bookmarks ....................................................................................................................... 63
Clip-Copy ......................................................................................................................... 63
Appendix .................................................................................................................................. 65
USB Hard Disk Drive Preparation ........................................................................................ 65
Preparing the USB hard disk drive in Windows 2000 ..................................................... 65
Preparing the USB hard disk drive in Windows 98.......................................................... 65
Text-In Search Examples..................................................................................................... 66
Search Example I ............................................................................................................ 66
Search Example II ........................................................................................................... 66
Speco Remote ..................................................................................................................... 67
Web Monitoring Mode ..................................................................................................... 68
Web Search Mode ........................................................................................................... 69
Time Overlap ....................................................................................................................... 71
Map of Screens .................................................................................................................... 72
Troubleshooting ................................................................................................................... 73
System Log Notices ............................................................................................................. 73
Error Code Notices .............................................................................................................. 74
Specifications ....................................................................................................................... 74
List of Illustrations
Figure 1 — Typical DVR installation. ......................................................................................................... 2
Figure 2 — DVR rear panel. ....................................................................................................................... 3
Figure 3 — DVR front panel. ...................................................................................................................... 7
Figure 4 — Infrared remote control. ........................................................................................................... 9
Figure 5 — Login screen. ......................................................................................................................... 11
Figure 6 — Logout screen. ....................................................................................................................... 11
Figure 7 — Setup screen. ........................................................................................................................ 12
Figure 8 — System menu. ....................................................................................................................... 12
Figure 9 — Information setup screen. ...................................................................................................... 13
Figure 10 — Date/Time setup screen. ..................................................................................................... 14
Figure 11 — Holiday setup screen. .......................................................................................................... 15
Figure 12 — Time Sync. screen. .............................................................................................................. 15
Figure 13 — Storage Information screen. ................................................................................................ 15
Figure 14 — Storage Status screen. ........................................................................................................ 16
Figure 15 — User setup screen. .............................................................................................................. 17
Figure 16 — EZ Setup screen. ................................................................................................................. 18
Figure 17 — EZ Record screen. .............................................................................................................. 18
Figure 18 — EZ Network screen. ............................................................................................................. 20
Figure 19 — Shutdown screen. ................................................................................................................ 21
Figure 20 — Record menu. ...................................................................................................................... 21
Figure 21 — Record Settings screen. ...................................................................................................... 22
Figure 22 — Panic Record screen. .......................................................................................................... 22
Figure 23 — Schedule setup screen. ....................................................................................................... 23
Figure 24 — Schedule – Settings (Advanced Mode) setup screen. ......................................................... 24
Figure 25 — Pre-Event setup screen. ...................................................................................................... 25
Figure 26 — Event menu. ........................................................................................................................ 25
Figure 27 — Alarm-In Settings screen. .................................................................................................... 25
Figure 28 — Alarm-In Actions 1 screen. .................................................................................................. 26
Figure 29 — Alarm-In Actions 2 screen. .................................................................................................. 26
Page 8
Operation Instruction
vi
Figure 30 — Motion Detection Settings screen. ....................................................................................... 27
Figure 31 — Motion Detection Actions 1 screen. ..................................................................................... 28
Figure 32 — Motion Detection Actions 2 screen. ..................................................................................... 28
Figure 33 — Video Loss Settings screen. ................................................................................................ 29
Figure 34 — Video Loss Actions screen. ................................................................................................. 29
Figure 35 — Video Blind Settings screen. ................................................................................................ 30
Figure 36 — Video Blind Actions screen. ................................................................................................. 30
Figure 37 — Text-In Settings screen. ...................................................................................................... 31
Figure 38 — Text-In Device screen. ........................................................................................................ 31
Figure 39 — Text-In Actions screen. ........................................................................................................ 32
Figure 40 — Health Check screen ........................................................................................................... 33
Figure 41 — Storage screen. ................................................................................................................... 33
Figure 42 — System Event Actions screen. ............................................................................................. 34
Figure 43 — Event Status screen. ........................................................................................................... 34
Figure 44 — Network menu. .................................................................................................................... 35
Figure 45 — Network setup screen. ......................................................................................................... 35
Figure 46 — LAN (Manual) setup screen. ................................................................................................ 36
Figure 47 — DVRNS setup screen. ......................................................................................................... 37
Figure 48 — RTSP setup screen. ............................................................................................................ 38
Figure 49 — Speco Remote setup screen. ........................................................................................
...... 38
Figure 50 — Notification Callback setup screen. ..................................................................................... 39
Figure 51 — Notification Mail setup screen. ............................................................................................. 39
Figure 52 — Notification SNS setup screen. ............................................................................................ 40
Figure 53 — Notification Schedule setup screen. .................................................................................... 41
Figure 54 — Devices menu. ..................................................................................................................... 41
Figure 55 — Camera setup screen. ......................................................................................................... 42
Figure 56 — Camera PTZ setup screen. ................................................................................................. 42
Figure 57 — Audio setup screen. ............................................................................................................. 43
Figure 58 — Alarm-Out Settings screen. ................................................................................................. 43
Figure 59 — Alarm-Out Schedule screen. ............................................................................................... 43
Figure 60 — Digital Deterrent setup screen. ............................................................................................ 44
Figure 61 — Display OSD screen. ........................................................................................................... 45
Figure 62 — Main Monitor screen. ........................................................................................................... 46
Figure 63 — VGA screen. ........................................................................................................................ 46
Figure 64 — Remote Control setup screen. ............................................................................................. 47
Figure 65 — Live Monitoring menu. ......................................................................................................... 49
Figure 66 — PTZ Select Camera menu. .................................................................................................. 52
Figure 67 — PTZ Preset menu. ............................................................................................................... 53
Figure 68 — Select Playback Camera menu. .......................................................................................... 55
Figure 69 — Search menu. ......................................................................................................
................ 56
Figure 70 — Event Log Search screen. ................................................................................................... 58
Figure 71 — Record Table Search screen. .............................................................................................. 59
Figure 72 — Calendar Search screen. ..................................................................................................... 60
Figure 73 — Motion Search screen. ........................................................................................................ 61
Figure 74 — Text-In Search screen. ........................................................................................................ 62
Figure 75 — Bookmarks screen. .............................................................................................................. 63
Figure 76 — Clip-Copy screen. ................................................................................................................ 63
Page 9
16-Channel Digital Video Recorder
1
Chapter 1 — Introduction
Feature
Your color digital video recorder (DVR) provides recording capabilities for 16 camera inputs. It provides exceptional
picture quality in both live and playback modes, and offers the following features:
16 Composite Video Input Connectors
Compatible with Color (NTSC or PAL) and B&W (CCIR and EIA-170) Video Sources
Auto Detection for NTSC and PAL
H.264 Codec
Monitor Connectors: 1 BNC Video Out, 1 VGA
Multiple Search Engines (Date/Time, Calendar, Record Table, Event)
Real-time Recording (480/400 Images per Second (NTSC/PAL) with Standard (CIF) Resolution)
Continuous Recording in Disk Overwrite Mode
2 USB 2.0 Ports
Continues Recording while Transmitting to Remote Site and during Playback
User-friendly Graphical User Interface (GUI) Menu System
Multiple Recording Modes (Time-lapse, Pre-event, Alarm, Motion and Panic)
Two-way Audio Communication
4-Channel Audio Recording and 1-Channel Audio Playback
Text Input for ATM and POS
Alarm Connections Include: Input and Output
Built-in Alarm Buzzer
Live or Recorded Video Access via Ethernet
Time Synchronization using industry standard protocol
IR Remote Control
Self-diagnostics with automatic notification including hard disk drive S.M.A.R.T. protocol
Technical Overview
In addition to replacing both a time-lapse VCR and a multiplexer in a security installation, your DVR has many features
that make it much more powerful and easier to use than even the most advanced VCR.
The DVR converts analog NTSC or PAL video to digital images and records them on a hard disk drive. Using a hard
disk drive allows you to access recorded video almost instantaneously; there is no need to rewind tape. The technology
also allows you to view recorded video while the DVR continues recording video.
Digitally recorded video has several advantages over analog video recorded on tape. There is no need to adjust tracking.
You can freeze frames, fast forward, fast reverse, slow forward and slow reverse without image streaking or tearing.
Digital video can be indexed by time or events, and you can instantly view video after selecting the time or event.
Your DVR can be set up for event or time-lapse recording. You can define times to record, and the schedule can change
for different days of the week and user defined holidays.
The DVR can be set up to alert you when the hard disk drive is full, or it can be set to record over the oldest video once
the disk is full.
Your DVR uses a proprietary encryption scheme making it nearly impossible to alter video.
You can view video and control your DVR remotely by connecting via Ethernet. There are two USB ports that can
be used to upgrade the system or copy video clips to external hard disk and flash drives.
Page 10
Operation Instruction
2
Figure 1 — Typical DVR installation.
Page 11
16-Channel Digital Video Recorder
3
Chapter 2 — Installation
Package Contents
The package contains the following:
Digital Video Recorder
Power Adaptor and Power Cord
Operation Instruction (This Document)
Speco Central Software CD and Operation Instruction
Infrared Remote Control
Required Installation Tools
No special tools are required to install the DVR. Refer to the installation manuals for the other items that make up part
of your system.
Figure 2 — DVR rear panel.
Video Input Video Out Audio In/Out
Power Cord Connector RS232 Port RS485 Port
Alarm Input/Output
Network Port
Factory Reset Switch
Your DVR can be used with either NTSC or PAL equipment.
NOTE: You cannot mix NTSC and PAL equipment. For example you cannot use a PAL camera and an NTSC
monitor.
Video Input
Connect the coaxial cables from the video sources to the BNC Video In connectors.
Page 12
Operation Instruction
4
Video Out
NOTE: The VGA and Video Out (BNC) connectors may be connected to individual monitors for simultaneous
operation.
Audio In/Out
NOTE: It is the user’s responsibility to determine if local laws and regulations permit recording audio.
The DVR does not have amplified audio output, so you will need a speaker with an amplifier. The DVR
does not have a pre-amplifier for audio input, so the audio input should be from an amplified source, not
directly from a microphone.
Power Cord Connector
WARNING: ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD. MAKE
CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED BY FURNITURE.
DO NOT INSTALL POWER CORDS UNDER RUGS OR CARPET.
THE POWER CORD HAS A GROUNDING PIN. IF YOUR POWER OUTLET DOES NOT
HAVE A GROUNDING PIN RECEPTACLE, DO NOT MODIFY THE PLUG. DO NOT
OVERLOAD THE CIRCUIT BY PLUGGING TOO MANY DEVICES IN TO ONE CIRCUIT.
RS232 Port
Connector Pin Outs:
Master Unit Slave Unit
RX → To → TXD
TX → To → RXD
GND → To → GND
NOTE: Refer to the following for pin-out details for the 9-pin connector of the slave unit.
Male
Female
Pin 2
RXD (Receive Data)
Pin 3
TXD (Transmi
Data)
Pin 5
GND (Gr
und)
Connect the main monitor to the Video Out connector.
A VGA connector is provided so that you can use a standard, multi-sync computer monitor as your
main monitor. Use the cable supplied with your monitor to connect it to the DVR.
Your DVR can record audio from up to four sources. Connect the audio sources to Audio In 1,
Audio In 2, Audio In 3 and Audio In 4 as needed using RCA jacks. Connect Audio Out to your
amplifier.
Connect the connector of the adaptor to the DVR, and connect the AC power cord to the adaptor and then
to the wall outlet.
An RS232 port is provided to connect remote control devices such as a control keyboard. PTZ cameras
or text-in devices can also be connected to the RS232 port. See Chapter 3 ─ Configuration and the PTZ
camera, text-in device or remote controller manufacturer’s manual for configuring the RS232 connection.
Page 13
16-Channel Digital Video Recorder
5
RS485 Port
Connector Pin Outs:
Master Unit Slave Unit
P → To → TX+/RX+
N → To → TX-/RX-
GND → To → GND
Alarm Input/Output
AI 1 to 16 (Alarm-In): You can use external devices to signal the DVR to react to events. Mechanical or electrical
switches can be wired to the AI (Alarm-In) and GND (Ground) connectors. The threshold voltage of electrical switches
for NC (Normally Closed) is above 2.4V and for NO (Normally Open) is below 0.3V, and should be stable at least 0.5
seconds to be detected. The voltage range of alarm input is from 0V to 5V. See Chapter 3 ─ Configuration for
configuring alarm input.
GND (Ground): Connect the ground side of the Alarm input and/or alarm output to the GND connector.
NOTE: All the connectors marked GND are common.
NO (Normally Open): Connect the device to the COM and NO (Normally Open) connector. NO is a relay output
which sinks 1A@30VDC (NO). See Chapter 3 ─ Configuration for configuring alarm output.
Connector Pin Outs:
Alarm In(1 to 16)
Alarm In
p
uts 1 to 16
GND
Chassis Groun
d
COM
Commo
n
NO
Alarm Out
(
Normally Open
)
Network Port
CAUTION: The network connector is not designed to be connected directly with cable or wire
intended for outdoor use.
Factory Reset Switch
The DVR has a Factory Reset switch to the right of the VGA connector on the rear panel.
This switch will only be used on the rare occasions that you want to return all the settings to
the original factory settings.
CAUTION: When using the Factory Reset, you will lose any settings you have saved.
The DVR can be controlled remotely by an external device or control system, such as a control keyboard,
using RS485 half-duplex serial communications signals. The RS485 connector can also be used to control
PTZ (pan, tilt, zoom) cameras or text-in devices. Connect RX+/TX+ and RX-/TX- of the control system
to the P (+) and N (–) (respectively) of the DVR. See Chapter 3 ─ Configuration and the PTZ camera,
text-in device or remote controller manufacture’s manual for configuring the RS485 connection.
NOTE: To make connections on the Alarm Connector Strip, press and hold the
button and insert the wire in the hole below the button. After releasing the
button, tug gently on the wire to make certain it is connected. To disconnect
a wire, press and hold the button above the wire and pull out the wire.
The DVR can be networked using the 10/100Mb Ethernet connector. Connect a Cat5 cable with an RJ-45
jack to the DVR connector. The DVR can be networked with a computer for remote monitoring, searching,
configuration and software upgrades. See Chapter 3 ─ Configuration for configuring the Ethernet
connections.
Page 14
Operation Instruction
6
To reset the unit, you will need a straightened paperclip:
1. Turn the DVR off.
2. Turn it on again.
3. While the DVR is initializing, the front panel LEDs will blink. When the front panel LEDs blink, poke the
straightened paperclip into the unlabeled hole to the right of the VGA connector.
4. Hold the switch until all the LEDs on the front panel are lit.
NOTE: When the DVR successfully resets to factory defaults all the LEDs on the front panel flash five times.
5. Release the reset switch. All of the DVR’s settings are now at the original settings it had when it left the factory.
CAUTION: Ensure the DVR is not near any heat source that could cause overheating.
Your DVR is now ready to operate. Refer to Chapter 3 ─ Configuration and Chapter 4 ─ Operation.
Page 15
16-Channel Digital Video Recorder
7
Chapter 3 — Configuration
NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation.
Front Panel Controls
Figure 3 — DVR front panel.
Menu Button
Copy Button
Esc Button
Play/Stop Button
Camera Buttons
Arrow Buttons
Play/Pause Button
HDD LED
Power LED
USB Port
The front panel looks and operates much like a VCR combined with a multiplexer. The following describes each button
and control. Take a few minutes to review the descriptions. You will use these to initially set up your DVR and for
daily operations.
NOTE: A separate Alarm button on the front panel is not provided. Pressing any button on the front panel resets
alarm output including the internal buzzer when the alarm is activated. However, when you are in the
menu or PTZ mode, you have to exit the menu or PTZ mode first to reset alarm output.
The infrared sensor on the DVR is just to the right of the USB ports. Make certain that nothing blocks
the sensor, or the remote control will not function properly.
When you use wireless communication devices (such as Wi-Fi or Bluetooth) near the DVR, the remote
control might not function properly.
You can also use a USB mouse (not supplied) to navigate through the screens and menus much like
you would on a computer.
Menu Button
In the Live Monitoring mode and Search mode, pressing the
MENU button displays the menu icons at the top of the screen.
Copy Button
Pressing the
COPY button allows you to copy video clips.
Esc Button
During menu setup, pressing the
ESC button closes the current menu or setup dialog box.
Page 16
Operation Instruction
8
Play/Stop Button
Pressing the
PLAY/STOP button enters the playback mode, and pressing the button again exits the playback mode. When
entering the playback mode, video is paused. Pressing the (Play/Pause) button plays back video at regular speed. The
screen displays
when the DVR is in the Pause mode and the screen displays when the DVR is playing back video.
When in one of the multi-view formats, pressing this button enters the Triplex mode. The DVR supports the Triplex
function: monitoring, recording and playing back at the same time.
Camera Buttons
Pressing the individual camera buttons will cause the selected camera to display full screen. Buttons 1 to 9 are also
used to enter passwords.
NOTE: When selecting camera channels 10 to 16, press the 10+ and then 0 to 6.
Arrow Buttons
These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting
a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value.
When in the PIP display format, pressing the Up and Down arrow buttons moves the position of the small screen
counter-clockwise and clockwise, and pressing the Left and Right buttons changes the PIP screen size.
In the playback mode, pressing the button plays video backward at high speed. Pressing the button again toggles
the playback speed from
, and . The screen displays , and respectively. Pressing the
button plays video forward at high speed. Pressing the button again toggles the playback speed from
, and .
The screen displays
, and
respectively. When in the pause mode, pressing the
button moves to the
next image and pressing the
button moves to the previous image.
Play/Pause Button
In the live monitoring mode, pressing the
button freezes the current screen and the screen displays
icon. When
in the playback mode, pressing the
button plays back images at regular speed or pauses playing video.
Pressing the button selects a highlighted item or completes an entry that you have made during system setup.
HDD LED
The HDD LED flickers when the DVR is recording or searching video on the hard disk drive.
Power LED
The POWER LED is lit when the unit is On.
USB Port
Two USB ports on the front panel are provided to connect external hard disk or flash drives for video clip copying or
system upgrades. Position external drives close enough to the DVR so that you can make the cable connections, usually
less than 6 feet. Use the USB cable provided with the hard disk drive to connect it to the DVR.
A USB mouse (not supplied) can be connected to one of the ports. You can use the mouse to navigate through the
screens and menus much like you would on a computer.
A USB to Serial converter can be connected to the USB port. Multiple text-in devices can be used with a USB to Serial
converter.
Page 17
16-Channel Digital Video Recorder
9
Remote Control Buttons
ID Button
Camera Buttons
Sequence Button
Login/Logout Button
Arrow Buttons
Menu Button
Playback Buttons
Alarm Button
Layout Button
Zoom Button
PTZ Button
Enter Button
Esc Button
PTZ Control Buttons
Copy Button
Play/Stop Button
Figure 4 — Infrared remote control.
NOTE: For simplicity, the button descriptions in this manual refer to the front panel buttons.
ID Button
If a DVR System ID is set to 0, the infrared remote control will control that DVR without any additional operations.
(Refer to the System Information setup screen in this chapter for further information on setting the System ID.) If the
system ID is 1 to 16, you must to press the
ID button and then press the number button (1 to 16 (+10 & 6)) in order to
control that DVR. If the System ID of two or more DVRs is set to 0, those DVRs will react to the infrared remote control
at the same time.
Camera Buttons
Pressing the individual camera buttons will cause the selected camera to display full screen. Buttons 1 to 9 are also
used to enter passwords.
Sequence Button
When in the Live Monitoring mode, pressing the
SEQUENCE button displays live channels sequentially.
Login/Logout Button
Pressing the
LOGIN/OUT button displays the Login or Logout screen.
Page 18
Operation Instruction
10
Arrow Buttons
These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting
a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value.
When in the PIP display format, pressing the Up and Down arrow buttons moves the position of the small screen
counter-clockwise and clockwise.
Pressing the Left and Right buttons moves through screen pages in the Live Monitoring mode and Search mode.
Menu Button
In the Live Monitoring mode and Search mode, pressing the MENU button displays the menu icons at the top of the screen.
Playback Buttons
Rewind: Pressing the button plays video backward at high speed. Pressing the button again toggles the playback
speed from
, and .
Play/Pause: Pressing the
button plays back video at regular speed and pressing the button again pauses video.
The screen displays
when the DVR is in the Pause mode and the screen displays when the DVR is playing back
video.
Fast Forward: Pressing the
button plays video forward at high speed. Pressing the button again toggles the
playback speed from
, and .
Stop: Pressing the
button stops playback and enters the Live Monitoring mode.
Backward: When in the pause mode, pressing the
button moves to the previous image.
Forward: When in the pause mode, pressing the
button moves to the next image.
In the Live Monitoring mode, pressing any playback button enters to the Search mode.
Alarm Button
Pressing the ALARM button resets the DVR’s outputs including the internal buzzer during an alarm.
Layout Button
Pressing the LAYOUT button toggles between different display formats. The available formats are: 4x4, 3x3, 1P7, 1P5,
2x2 and PIP.
Zoom Button
Pressing the ZOOM button zooms the current image on the screen. A PIP with a rectangle temporarily displays showing
what area of the screen has been enlarged. You can use the arrow buttons to move the rectangle to another area.
PTZ Button
Pressing the PTZ button enters the PTZ (Pan/Tilt/Zoom) mode which allows you to control properly configured cameras.
Enter Button
The (Enter) button selects a highlighted item or completes an entry that you have made during system setup. This
button is also used to enter the Cameo mode in the Live Monitoring mode or Search mode.
Esc Button
During menu setup, pressing the ESC button closes the current menu or setup dialog box.
Page 19
16-Channel Digital Video Recorder
11
PTZ Control Buttons
While in the PTZ mode, the PRESET buttons are used to save Presets and load a Preset View, the ZOOM buttons are used
to Zoom In and Zoom Out, and the FOCUS buttons are used for Near Focus and Far Focus.
Copy Button
Pressing the COPY button allows you to copy video clips.
Play/Stop Button
Pressing the PLAY/STOP button enters the playback mode, and pressing the button again exits the playback mode. When
entering the playback mode, video is paused. Pressing the button plays back video at regular speed. The screen
displays
when the DVR is in the Pause mode and the screen displays when the DVR is playing back video.
When in one of the multi-view formats, pressing this button enters the Triplex mode. The DVR supports the Triplex
function: monitoring, recording and playing back at the same time.
Turning on the Power
Connecting the power cord to the DVR turns on the unit. The unit takes approximately 60 seconds to initialize.
Initial Unit Setup
Before using your DVR for the first time, you will want to establish the initial settings. This includes items such as
time and date, display language, camera, remote control, record mode, network and password. Your DVR can be set
up using various screens and dialog boxes.
Throughout the screens you will see . Highlighting the and pressing the (Play/Pause) button gives you the
opportunity to reset that screen to its default settings. After you are finished with any setup screen, you can highlight
Save and press the
button to save the changes and exit the screen. If you do not wish to save the changes, highlight
Cancel and press the
button to exit the screen.
Press the MENU button or move the mouse pointer to the top of the screen and then select (Login) in the Live
Monitoring menu to enter the setup screens. The Login screen appears.
Select a User and enter the password by pressing the appropriate combination of
Camera number buttons and then the
button. There is no default password when
logging in the admin user for the first time. If you do not know the password, click
the
button for guidance.
Figure 5 — Login screen.
NOTE: To assure the secure management of the system, setting up a password is strongly recommended.
If you cannot use the front panel buttons, click the
button using the mouse to enter a password, and
the virtual keyboard displays. See instructions below for using the virtual keyboard.
To log the user out of the system, press the
MENU button or move the mouse pointer to the top of the
screen and then select (Logout) in the Live Monitoring menu. The Logout screen displays asking you
to confirm whether or not you want to log out the current user.
Figure 6 — Logout screen.
Page 20
Operation Instruction
12
Setup Screen
Figure 7 — Setup screen.
Press the
MENU button or move the mouse pointer to the top of the screen and then select (Setup) in the Live
Monitoring menu to enter the setup screen.
While setting up the DVR, there will be many opportunities to enter names and titles. When making these entries, a
Virtual Keyboard will appear.
Use the arrow keys to highlight the character you want in the name or title and press
the
button. That character appears in the title bar and the cursor moves to the next
position. Pressing
toggles between the upper and lower case keyboards,
backspaces, and
deletes entered characters. You can use up to 31 characters including
spaces in your title.
Special characters can be created using ^ and a capital letter; e.g., ^J for NL (New
Line), ^M for CR (Carriage Return). Special characters are commonly used by text
input devices and will be useful when performing Text-In Searches.
System Setup
Figure 8 — System menu.
Information
Highlight Information and press the
button. The Information screen appears.
Page 21
16-Channel Digital Video Recorder
13
Figure 9 — Information setup screen
.
In the Information screen, you can name the site location,
assign a System ID number, select the language the screens
are displayed in, display software version number, upgrade
the software, show the System Log, display recorded time
data, and clear all data.
Highlight the Site box and press the button. A virtual
keyboard appears that you can use to enter a Site Name. Once
you have entered your title, highlight OK and press the
button.
Highlight the box beside System ID and press the button.
Change the number by highlighting it and using the Up and
Down arrow buttons to increase and decrease the number
from 0 to 99.
NOTE: The System ID number is used to identify the unit when it is connected with other DVRs through the
RS485 port. You cannot use the same ID number for two or more DVRs that are in the same RS485
network. It is possible to have multiple DVRs with System ID 0 that are in the same area as long as they
are not part of an RS485 network. If this is the case, all will be controlled at the same time when using
the infrared remote control.
Highlight the box beside Language and press
button. A drop-down menu displays the available languages. Highlight
the desired language and press the
button.
The box beside Version displays the software version of the DVR.
To upgrade the software, connect a USB device containing the
upgrade package file to the DVR. Highlight Upgrade… and press
the
button. The Upgrade screen appears. The screen displays
the upgrade package file names that are available. The “.rui”
indicates that the file is for software upgrades and “.ofi” indicates
that the file is for optical drive firmware upgrades.
Select the desired file and press the button. Highlighting the Install button and pressing the button will install the
selected software package. Highlighting the Cancel button and pressing the
button will close the window without
upgrading the software. If the upgrade package file is not installed on the DVR properly, you will get an error message.
The system restarts automatically after completing the upgrade.
CAUTION: The USB device must be FAT16 or FAT32 format.
You can import saved DVR settings or export the current DVR
settings. To import saved DVR settings, connect the USB device
containing the setup file (.dat) to the DVR. Highlight Setup –
Import… and press the
button. Select the desired setup file and
press the Import button to import the selected settings and change
the DVR settings accordingly. Highlight Include Network Setup
and press the
button to toggle between On and Off. When set
to Off, the network settings will not be changed.
To export the current DVR settings, connect the USB device to the
DVR. Highlight Setup – Export… and press the
button.
Highlight the box beside File name and press the
button. A
virtual keyboard allows you to enter the file name. Selecting Export
will save the current settings in .dat file format on the USB device.
NOTE: Even after changing the DVR settings by importing saved settings, the time-related settings (Date/Time,
Time Zone and Daylight Saving Time) will NOT be changed.
CAUTION: The USB device must be FAT16 or FAT32 format.
Page 22
Operation Instruction
14
Highlight Show System Log… and press the
button to display the System Log.
The System Log screen lists system activities (up to 5,000
from the latest) that have occurred along with the time and
date. The
icon will be displayed in the last column for
system activities of the remote site. You can scroll through
the log pages by using the Up and Down arrows, or you can
go directly to a log page by entering the log page number in
the box at the bottom left of the screen. Highlight Close and
press the
button to exit the screen.
To export the system log information, connect the USB device to
the DVR. Highlight Export… and press the
button. Highlight the
box beside File name and press the
button. A virtual keyboard
allows you to enter the file name. Selecting Export will save the
log information in .txt file format on the USB device.
NOTE: When opening the saved .txt file, setting to the proper character encoding and using fixed width fonts
will be required to read the file properly.
The box beside Recorded Data – From / To displays the time information of recorded data.
Highlighting Clear All Data… and pressing the button will clear all video data. You will be asked to verify that
you wish to clear all data before the DVR erases the video data. Clear All Data… will not clear the System Log.
Date/Time
Highlight Date/Time in the System menu and press the
button. The Date/Time setup screen appears.
Figure 10 — Date/Time setup screen.
Highlight the first box beside Date and press the
button.
The individual sections of the date will highlight. Use the Up
and Down arrow buttons to change the number. Use the Left
and Right arrow buttons to move between month, date and
year. Once you have the correct date, press the
button.
Highlight the Format box beside Date and press the button.
Select from the three available date formats and press the
button to save your selected format.
Highlight the first box beside Time and press the button.
The individual sections of the time will highlight. Use the Up
and Down arrow buttons to change the number. Use the Left
and Right arrow buttons to move between hour, minutes and
seconds. Once you have the correct time, press the
button.
Highlight the Format box beside Time and press the
button. Select from the three available time formats and press
the
button to save your selected format.
NOTE: The clock will not start running until you have highlighted Save and pressed the button.
Highlight the box beside Time Zone and press the button. Select your time zone from the list and press the button.
NOTE: The Time Zone can also be selected on the map below by pressing the Left and Right buttons or scrolling
the mouse wheel up and down.
Highlight Use Daylight Saving Time and press the button. Pressing the button toggles between On and Off.
Highlight the Holiday tab, and the Holiday setup screen appears.
Page 23
16-Channel Digital Video Recorder
15
You can set up holidays by highlighting + and pressing the
button. The current date appears.
Highlight the month and day and change them by using the
Up and Down arrow buttons. Press the
button to add the
date. Dates can be deleted by highlighting the
beside the
date and pressing the
button.
NOTE: Holidays that do not fall on the same date each
year should be updated once the current year’s
holiday has passed.
Figure 11 — Holiday setup screen.
Highlighting the Time Sync. tab causes the Time Sync. screen to display. You can set up time synchronization between
the DVR and standard time servers that are available in most time zones and countries, or between the DVR and another
DVR.
Figure 12 — Time Sync. screen.
Highlight the box beside Automatic Sync. and press the
button. This toggles between On and Off.
Highlight the box beside Time Server and press the button.
A virtual keyboard appears that you can use to enter the IP
address or domain name of the time server. Highlighting
allows you to select your time server from a list of registered
time servers.
NOTE: You can use the domain name instead of IP address
if you already set up the DNS Server when setting
up the LAN.
Highlight the box beside Interval and press the button. Set
the time interval for synchronization from 30 minutes to 1 day
at various time intervals.
Last Sync-Time displays the last time the DVR was synchronized with the time server.
Highlight Run as Server and press the button. Pressing the button toggles between On and Off. When it is On,
the DVR you are setting up will run as a time server.
Storage
Highlight Storage in the System menu and press the
button. The Storage setup screen appears and displays
information about the DVR’s storage devices.
The information in the Type column describes the storage
device.
The capacity of the storage device is displayed in the Capacity
column.
The Format column displays whether the device is used for
recording (Record) or not (Not Using). Not formatted
indicates the device is not formatted.
Figure 13 — Storage Information screen.
Page 24
Operation Instruction
16
Highlight the box in the Format column for the desired storage device and press the
button. You will be able to format the device for recording. When selecting Not
Using from Use As and highlighting the Format button, the device will not be used
for recording.
NOTE: The DVR does NOT support USB hard disk drives with a version lower than 2.0.
The Information column displays whether the device is being used or not. Other indicates the device has been used
for another DVR.
Highlight the box in the Information column for the desired storage device and press the
button.
You will be able to check the model name, serial number and the time
information about recorded data of the selected storage device.
If you want to erase recorded data on the selected device, highlight Clear
and press the
button. You will be asked whether or not you want to delete
the data.
CAUTION: Do NOT disconnect the USB cable or the power from the device while copying video clips.
If the USB cable is disconnected while copying video clips, archived data might be lost.
Highlight the Status tab, and the Storage Status screen displays.
Figure 14 — Storage Status screen.
The Type column displays the type of storage device.
The Disk Bad column displays the percentage of bad sectors.
Not Formatted – The device is not formatted.
Good – Less than user-defined percentage of bad disk sections
is damaged.
Bad – More than user-defined percentage of bad disk sections
is damaged.
The Temperature column displays the temperature of the
storage device.
Good – The temperature does not exceed the user-defined
temperature threshold.
Bad – The temperature is exceeds the user-defined temperature
threshold.
N/A – The DVR cannot read the temperature.
The S.M.A.R.T. column displays “Good”, “Bad” or “N/A”, depending on storage conditions.
Good – The storage condition is normal.
Bad – Data cannot be written on or read from the storage device.
N/A – Storage conditions are normal, however, the S.M.A.R.T. monitoring is not working or supported.
NOTE: When the storage condition is “Bad”, the Event Status –Storage screen displays and you can check
the storage condition for details. Once the “Bad” message displays, replacing the hard disk drive is
recommended, usually within 24 hours.
Temperature and S.M.A.R.T. information will be available only for internal hard disk drives supporting
the SMART (Self-Monitoring Analysis and Reporting Technology) monitoring program.
User
Highlight User in the System menu and press the
button. The User setup screen displays the authorized groups
and users. You can add and delete groups and users. When adding a group, you can assign authority levels to the group.
Page 25
16-Channel Digital Video Recorder
17
Figure 15 — User setup screen.
The +/- column is used to collapse and expand user groups.
If there is a + or – in this column, it indicates the item is a
Group Name. If there is a – in front of the Group Name, it
indicates that the group has been “expanded” and all of the
User Names within that group are displayed below the Group
Name. If there is a + in front of the Group Name, it indicates
that the group has been “collapsed” and all of the User Names
within that group are hidden. To collapse or expand a group,
highlight the +/- column in front of the desired group and press
the
button.
Highlighting a Group Name and pressing the
button allows
you to change the authority levels assigned to the group.
CAUTION: Write down the new password and save it in a secure place. If the password is forgotten,
the unit must be reset using the Factory Reset Button and all data settings will be lost.
Highlighting a User Name and pressing the
button allows you to add or change the password assigned to that user.
You can also change the group to which the user is assigned.
The column can be used to delete a User Name or an entire Group. If the is grayed out, that Group or User cannot
be deleted. Highlight the
and press the
button. You will be asked to confirm that you want to delete the User or
Group. To delete the User currently logged into the DVR on a local system or a PC running Speco Central, log the user
out of the system first and then delete the user.
To add a Group, highlight the + Group… box and press the
button. A virtual keyboard appears allowing you to
enter the Group name. You can use up to 15 characters including spaces in the group name. Enter the name and assign
authority levels to the group.
Highlighting the Authority box and pressing the
button will toggle between
all authority levels being turned On and Off. Highlighting the individual authority
level boxes and pressing the
button will toggle between that authority level
being turned On and Off. The authority levels that can be turned On and Off are:
Shutdown – The user can shut the system down on a local system.
Upgrade – The user can upgrade the software on a local system or a PC running Speco
Central.
Color Control – The user can control brightness, contrast, hue and saturation for cameras
on a local system or a PC running Speco Central.
System Check – The user can view the remote system status or check the remote system
status as a batch process on a PC running Speco Central.
PTZ Control – The user can control the PTZ camera on a local system or a PC running Speco Central.
Alarm-Out Control – The user can reset the DVR’s outputs including the internal buzzer during an alarm by pressing the any
button on a local system or alarm-out control button on a PC running Speco Central.
Covert Camera View – The user can view video from cameras set as Covert while in the Live Monitoring or Search mode on
a local system or a PC running Speco Central.
Digital Deterrent Control – The user can trigger the Digital Deterrent sound manually by selecting
(Digital Deterrent) in the
Live Monitoring menu and Search menu on a local system.
Search – The user can access the Search mode on a local system or a PC running Speco Central.
Clip-Copy – The user can copy video clips on a local system or a PC running Speco Central.
Setup – The user without Setup authority cannot establish any system settings excluding system shutdown and logout on a local
system or a PC running Speco Central.
System Time Change – The user can change the system date and time on a local system or a PC running Speco Central.
Data Clear – The user can clear all video data or format disks on a local system or a PC running Speco Central.
PTZ Setup – The user can establish all PTZ settings on a local system or a PC running Speco Central.
Alarm-Out Setup – The user can establish all Alarm-Out settings on a local system or a PC running Speco Central.
Covert Camera Setup – The user can establish all Covert Camera settings on a local system or a PC running Speco Central.
Record Setup – The user can establish all Record settings on a local system or a PC running Speco Central.
Digital Deterrent Setup – The user can establish all Digital Deterrent settings on a local system.
Setup Import – The user can import saved DVR settings from a local system or a PC running Speco Central.
Setup Export – The user can export the current DVR settings to a local system or a PC running Speco Central.
Page 26
Operation Instruction
18
To add a User, highlight the + User… box and press the
button. A virtual
keyboard appears allowing you to enter the User Name. Enter the name and assign
the User to a Group and password. You can use camera buttons 1 to 9 on the front
panel to assign the password. The password can be up to 8 digits. You will be
asked to confirm the password.
NOTE: In addition to using the front panel buttons or the infrared remote control, you can use the virtual
keyboard to assign the password. To display the virtual keyboard click the
button using the mouse
(not supplied).
Highlighting the box beside Auto Login allows you to select a User to be automatically logged in when the DVR is
powered up. It can also be set to never automatically login a user.
Highlighting the box beside Auto Logout allows you to select from a list of times that the user will be automatically
logged out. The options are: Never, 1 min., 3 min., 5 min., 10 min., 15 min., 20 min., 30 min. and 1 hr.
EZ Setup
Highlight EZ Setup and press the
button. The EZ Setup screen appears. The EZ Setup guides you through configuring
the system for basic operation.
NOTE: This EZ Setup screen can only be accessed when logged on as the admin user.
Figure 16 — EZ Setup screen.
Select either EZ Record or EZ Network and select the Next
button to start the selected setup.
NOTE: Selecting the Cancel button throughout the screens
exits the EZ Setup without saving your changes
and returns to the main setup screen.
Figure 17 — EZ Record screen.
If you selected the EZ Record, selecting the Next button
starts the EZ Record.
Page 27
16-Channel Digital Video Recorder
19
Date/Time Setup
Date: Set the system date and select the date format.
Time: Set the system time and select the time format.
Time Zone: Select your time zone. The Time Zone can be
selected on the map.
Use Daylight Saving Time: Selecting the box sets the
system to use daylight saving time.
NOTE: The Date/Time will be set, and the clock will start
when you click the Next button.
Record Method Setup
Select the desired recording mode from:
– Motion Event Record (Recommended)
– Continuous & Motion Event Record
– Continuous Record
NOTE: You should understand each recording mode before
setting the DVR’s recording method.
Record Video Quality Setup
Select the desired video quality profile from:
– Higher Video Quality Priority Profile
– Standard Recording Profile
– Longer Recording Time Priority Profile
NOTE: The higher quality setting requires more storage
space.
NOTE: The recording resolution will be set to Very High
when selecting High Video Quality Priority Profile,
High when selecting Standard Recording Profile,
and Standard when selecting Longer Recording
Time Priority Profile.
NOTE: The recording quality and recording speed of each camera channel will be set as shown below according
to the Record Method and Record Video Quality you set.
HVQPP* SRP* LRTPP*
Motion Event Record Very High / 30 ips High / 5 ips Standard / 3 ips
Continuous &
Motion Event Record
Very High / 30 ips (Time)
Very High / 30 ips (Event)
High / 5 ips (Time)
Very High / 30 ips (Event)
Standard / 3 ips (Time)
High / 5 ips (Event)
Continuous Record Very High / 30 ips High / 5 ips Standard / 3 ips
* Record Video Quality: HVQPP (High Video Quality Priority Profile), SRP (Standard Recording Profile), LRTPP (Longer Recording Time
Priority Profile)
Page 28
Operation Instruction
20
Select the Finish button to finish the EZ Record and select
the Go to EZ Network button to start the EZ Network.
Figure 18 — EZ Network screen.
If you selected the Go to EZ Network, select the Next button
to start the EZ Network.
Internet Connection
Select whether or not your DVR is connected to the Internet.
LAN Setup
Select between Auto Configuration and Manual Configuration
for network configuration, and then select the Test button to
test the network configuration you selected.
NOTE: Selecting Auto Configuration allows the DVR to
automatically obtain LAN parameters (IP address,
Gateway, Subnet Mask and DNS Server address).
Selecting Manual Configuration allows you to set
up LAN parameters manually.
NOTE: The network configuration you set should be tested
by selecting Test, otherwise the Next button will
cannot be selected, and cannot move to the next
step.
Use DSL/PPPoE Setup: Selecting the box allows you to
set up the DSL network. Entering the ID and password for
DSL connection is required.
Page 29
16-Channel Digital Video Recorder
21
DVRNS Setup
Use DVR Name Service: Select the box to use the DVR
Name Service.
DVRNS Server: Enter the IP address or domain name of
the DVRNS server.
Port: Set the port number of the DVRNS server.
Use NAT: Select the box to use the NAT (Network Address
Translation) device.
DVR Name: Enter the DVR name to be registered on the
DVRNS server.
Check: Select the box to check whether or not the name you
entered can be used.
NOTE: The DVR name you entered should be checked by selecting Check, otherwise the DVRNS changes will
not be saved.
When entering no name or a name already registered on the DVRNS server, an error message displays.
Select the Finish button to finish the EZ Setup.
Shutdown
Highlight Shutdown in the System menu and press the
button. The Shutdown screen displays asking you to confirm
whether or not you want to shut the system down.
After selecting Shutdown and pressing the
button, a screen will appear telling
you when it is safe to disconnect power.
Figure 19 — Shutdown screen.
Recording Setup
Figure 20 — Record menu.
Record
Highlight Record in the Record menu and press the
button. The Record setup screen appears.
Page 30
Operation Instruction
22
Figure 21 — Record Settings screen.
Highlighting Recycle and pressing the
button toggles
between On and Off. In the Recycle mode, the DVR records
over the oldest video data once all available storage space
has been used. When Recycle is turned off, the DVR stops
recording once all available storage space has been used.
Highlight the Event Record Dwell box and set the length of
time you would like to record for the associated event. You
can set the dwell from 5 seconds to 30 minutes. Refer to Event
Actions screen in this chapter for information regarding event
recording.
Highlighting De-Interlace and pressing the button toggles
between On and Off. When set to On, the DVR will turn the
de-interlace filter on while recording video with Very High
(D1) resolution.
NOTE: The video signal has a time difference of 1/60 second (1/50 second for PAL) between odd and even fields
because it is composed of 60 interlaced fields per second (50 fields for PAL). When recording video with
Very High (D1) resolution, video is made up of frame units combining two fields – one odd field and one
even field. This can cause horizontal scan lines or flashes in areas with motion because of the time
difference between the two fields. Turning on the de-interlace filter provides clearer video by eliminating
these horizontal scan lines and flashes.
The DVR can record up to four audio inputs. Highlighting Record Audio and pressing the button toggles between
On and Off.
Highlight the slide bar beside Auto Deletion, and use the Left and Right arrow buttons or Up and Down arrow buttons
to adjust the length of time recorded data will be kept from 1 to 999 days. The DVR automatically deletes video
recorded earlier than the user-defined period under three conditions: at midnight, whenever the system reboots or
whenever the user changes the Auto Deletion settings. Selecting Never will disable the Auto Deletion function.
Highlight the slide bar beside Limit Time-Lapse Recording, and use the Left and Right arrow buttons to adjust the
length of the maximum storage time for time-lapse recording from 1 to 99 days. The Limit Time-Lapse Recording
feature will function when the storage device has enough space to record video data longer than the preset period.
When this feature is On, the DVR records over the oldest “time-lapse” video once all available storage has been used
in the Recycle mode, so more event video can be saved. Selecting Never will disable the Limit Time-Lapse Recording
function.
NOTE: When the storage device does not have enough space to record video data longer than the preset Limit
Time-Lapse Recording period, the DVR records over the oldest video data (time-lapse or event video)
as it would in the Recycle mode even if this feature is turned On.
The maximum storage time is only an estimate because the amount of space required to store video varies
depending on many factors such as motion and image complexity.
Highlight the Panic Record tab, and the Panic Record setup screen appears.
Figure 22 — Panic Record screen.
Highlighting Use Panic Recording and pressing the
button toggles between On and Off.
Highlight the Panic Recording – Duration box and set the
duration of panic recording. Panic recording will stop
automatically after the preset duration as long as
(Panic)
in the Live Monitoring menu is not selected to stop the panic
recording. You can set the dwell from 5 minutes to 1 hour.
Select No Limit if you want to stop panic recording manually.
Highlighting the Panic Recording – ips and pressing the
button allows you to set the images per second for Panic
recording. You can select from 1.00 to 30.00 ips (25.00 ips
PAL).
Page 31
16-Channel Digital Video Recorder
23
Highlighting the Panic Recording – Quality and pressing the
button allows you to set the recorded image quality
for Panic recording. You can select from: Very High, High, Standard and Basic.
Highlighting the Panic Recording – Resolution and pressing the button allows you to set the recorded image
resolution for Panic recording. You can select from: Very High (D1), High (Half D1) and Standard (CIF).
Schedule
Highlight Schedule in the Record menu and press the
button, and the Schedule setup screen appears.
< Simple Mode >
< Advanced Mode >
Figure 23 — Schedule setup screen.
You can program the DVR to record only during certain times based on time, day of the week, and holidays. The smallest
time segment you can use is 15 minutes.
Highlighting Schedule On and pressing the button toggles between On and Off. In the Schedule On mode, the
DVR records video based on the schedule established in the Schedule screen. When turning Schedule recording Off,
you will be asked to confirm your decision, and
displays at the top-left corner of each camera screen. Panic recording
will function even when Schedule is turned off.
displays during panic recording.
Highlight the Schedule Mode box and press the button. You can select between Simple Mode and Advanced
Mode. Selecting Advanced Mode allows you to set up individual recording schedule for each event.
NOTE: Changing the schedule mode will reset all event and action statuses.
Highlight the + and press the
button to add a schedule item.
Highlight the box under the Day heading and press the
button to change the days that the scheduled recording will
take place. Choose from: Sun, Mon, Tue, Wed, Thu, Fri, Sat, M~F, Hol and All.
Highlight the box under the Range heading and press the
button to change the time range that the scheduled recording
will take place. The smallest time segment you can use is 15 minutes.
Highlight the box under the Mode heading and press the
button to change the recording mode that will be used. Choose
from: No Record, Time, Event and Time & Event. (Simple Mode Only)
When the DVR is in the No Record mode, it will not record during the preset day and time range as long as (Panic)
in the Live Monitoring menu is not selected. Use the No Record mode when you do NOT want the DVR to record
during certain times.
When the DVR is in the Time
mode
, the icon displays at the top-left corner of the screen. The DVR will record
and displays the
icon at the top-left corner of the screen during the scheduled times.
When the DVR is in the Event mode, the red icon displays at the top-left corner of the screen. The DVR will record
and displays the
icon at the top-left corner of the screen when any event occurs. When the DVR is in the Pre-Event
recoding mode, the yellow
icon displays when there is no event, and the DVR is not recording. When the DVR is
in the Pre-Event mode, the red
and display when any event occurs and the DVR starts recoding.
Page 32
Operation Instruction
24
When the DVR is in the Time & Event mode, the DVR will follow the Time settings and the
icon displays at the
top-left corner of the screen. The DVR follows the Event settings and the
icon displays.
Highlight the box under the Channels heading and press the
button to select which cameras will be recorded. (Simple
Mode Only)
Highlight the box under the Settings heading and press the
button to define the recording settings.
You can set the ips, Quality and Resolution (ips, Quality,
Resolution and Dwell for Advanced Mode setup) of the
recording for any modes you set up in the Mode column. If
you do not set the ips, Quality, Resolution and Dwell in the
Settings column, the DVR will follow the default settings.
See below for details.
NOTE: Descriptions of the Record icons in the Type
column are as follows:
Time-lapse (Time) Alarm-In
Motion Video Loss
Video Blind Text-In
Figure 24 — Schedule – Settings (Advanced Mode) setup screen.
NOTE: Day, Range and Channels that are not defined will use the setting values of the previous schedule item.
When more than two schedule items are registered in the same day and time range, the DVR will follow the
latest registered schedule item.
When multiple events are detected at the same time from a specific channel, the DVR will record event
video with the high setting values if the ips, Quality, Resolution and Dwell values of events are different
from each other. However, the ips will be reset to the supported maximum value when the ips, Quality,
Resolution and Dwell are all set to the highest value. (Advanced Mode Only)
Highlight the box under the heading and press the
button to delete the recording settings. You will be asked to
confirm that you want to delete the settings.
Highlight Default… and press the
button. The Default screen appears.
Highlighting boxes under ips and pressing the button allows
you to set the images per second for Time and Event recording.
You can select from 1.00 to 30.00 ips (25.00 ips PAL).
Highlighting boxes under Quality and pressing the button allows you to set the recorded image quality for Time and
Event recording. You can select from: Very High, High, Standard and Basic.
Highlighting boxes under Resolution and pressing the button allows you to set the recorded image resolution for
Time and Event recording. You can select from: Very High (D1), High (Half D1) and Standard (CIF).
Highlighting boxes under Dwell and pressing the button allows you to set the length of time you would like to record
for the associated event. (Advanced Mode Only)
Pre-Event
Highlight Pre-Event in the Record menu and press the
button, and the Pre-Event setup screen appears. If you do
not have Event set up in the Record Schedule, a message will display alerting you to this fact.
Page 33
16-Channel Digital Video Recorder
25
Figure 25 — Pre-Event setup screen.
When the DVR is in the Event Record mode it is possible to
have it record images before the event occurs. The Pre-Event
screen allows you to define how to handle pre-event recording.
You can turn individual cameras On or Off for pre-event
recording. The image speed can be set from 1.00 to 30.00 ips
(25.00 ips PAL), image quality can be selectable from Very
High, High, Standard and Basic, and image resolution can
be selectable from Very High (D1), High (Half D1) and
Standard (CIF).
You can set the amount of time to record prior to the event
by adjusting the Dwell. You can set the Dwell from 5 seconds
to 30 minutes. The longer the dwell set, the fewer maximum
ips can be set.
NOTE: When the DVR is in the Time or Time & Event mode, it ignores the pre-event settings and follows the
time settings.
Event Setup
Figure 26 — Event menu.
Alarm-In
Highlight Alarm-In in the Event menu and press the
button. The Alarm-In setup screen appears.
Figure 27 — Alarm-In Settings screen.
The alarm terminal strip on the back of the DVR has inputs
associated with each alarm. You can set up each input on the
Alarm-In screen. You can turn each input On or Off by
highlighting the alarm number and pressing the
button.
Each input can be given a title. Highlight the desired Title box
and press the
button. A virtual keyboard appears allowing
you to enter a title name.
Each input can be set as NO (normally open) or NC (normally
closed).
You can set up the DVR to start panic recording whenever it senses an input on one of its alarm input connectors. Highlight
the box beside Panic Record and press the
button. A list of Alarm Inputs appears, and you can select which alarm
input you want associated with panic recording. The DVR will continue panic recording until an input on the selected
alarm input is released as long as
(Panic) in the Live Monitoring menu is not selected to stop the panic recording.
Page 34
Operation Instruction
26
Highlight the Actions 1 and Actions 2 tabs, and the Actions 1 and Actions 2 setup screens appear.
You can set the actions the DVR will take whenever it senses
an input on one of its alarm input connectors.
Highlight the desired box under the Record heading, and press
the
button. A list of cameras appears. Select the cameras
that you want the DVR to record whenever it detects an input
on the associated alarm input.
NOTE: For the Record action, the camera you select should
be set to the Event or Time & Event recording mode
in the Record Schedule setup screen.
Figure 28 — Alarm-In Actions 1 screen.
Highlight the desired box under the Alarm-Out heading, and press the
button. A list of Alarm Outputs and Beep
appear. Select the Alarm Output connectors that you would like to activate whenever the DVR detects an input on the
associated alarm input. You can also set the DVR’s internal buzzer to sound.
NOTE: For the Alarm-Out action, the alarm output and beep you select should be set to the Event mode in the
Alarm-Out setup screen (Schedule tab).
Highlight the desired box under the Notify heading, and press the
button. The Alarm-In Notify menu appears.
You can toggle the entire list On and Off by highlighting Notification and pressing the
button. You can toggle the individual items On and Off by highlighting that item
and pressing the
button. Highlight OK and press the
button to accept your changes.
NOTE: For the Notify action, the notify item you select should be enabled in the
Notification setup screen and the DVR should be registered in the Speco
Central (Remote Administration System).
Highlight the desired box under the PTZ heading, and press
the
button. A list of PTZ presets appear. Select the preset
position for each PTZ camera, where you want PTZ cameras
to move to whenever the DVR detects an input on the
associated alarm input.
Highlight the desired box under the Digital Deterrent heading,
and press the
button to toggle between On and Off. When
set to On, the DVR will sound whenever it detects an input
on the associated alarm input.
Figure 29 — Alarm-In Actions 2 screen.
Motion Detection
Highlight Motion Detection in the Event menu and press the
button. The Motion Detection setup screen appears.
Page 35
16-Channel Digital Video Recorder
27
Your DVR has built-in video motion detection. Video motion
detection can be turned On or Off for each camera.
Figure 30 — Motion Detection Settings screen.
Highlighting the box under the Sensitivity heading and pressing the
button allows
you to adjust the DVR’s sensitivity to motion for Daytime and Nighttime independently.
There are five settings with 1 being the least sensitive and 5 being the most sensitive.
You can define the area of the image where you want to detect motion; e.g., a doorway. Highlight the box under the
Zone heading, and press the
button. The Motion Detection Zone screen displays.
The Motion Detection Zone screen is laid over the video for the selected
camera. You can set up motion detection zones by selecting or clearing
blocks.
NOTE: You can set up motion zones one block at a time in groups of
16 individual block groups. A block group is positioned within
the image area using the Up and Down arrow buttons, and
individual blocks within the block groups are selected or cleared
using the camera buttons.
Press the button to display the menu screen. The menu on the setup screen has the following functions:
Select — Activates highlighted blocks to detect motion.
Clear — Deactivates highlighted blocks so that they will not detect motion.
Reverse — Activates inactive highlighted blocks and deactivates active highlighted blocks.
Select All — Activates all blocks to detect motion.
Clear All — Deactivates all blocks so that they will not detect motion.
Reverse All — Activates inactive blocks and deactivates active blocks.
OK — Accepts changes and closes Zone setup.
Cancel — Exits Zone setup without saving changes.
You can adjust the minimum number of detection blocks that must be activated to
trigger a motion alarm. Highlighting the box under the Min. Blocks heading and
pressing the
button allows you to adjust the minimum number of detection blocks
for Daytime and Nighttime independently. Smaller numbers provide greater sensitivity
because fewer detection blocks must be activated.
Turning Zone View On will allow you to observe how the DVR is reacting to motion. When in the motion viewing
mode, the detection zone of video will be displayed. Any detected motion within the zone will be displayed in red.
You can control excessive event logging and remote notification of motions detected after the motion dwell time by
adjusting the motion ignoring dwell intervals. Highlight the box beside Motion Ignoring Interval and press the
button. A list of intervals ranging from 1 to 10 seconds or Never appears. The DVR will not log and notify motion
events occurred during the preset interval range.
NOTE: The record action for motion events will not be affected by the Motion Ignoring function.
Highlighting Daytime Setup and pressing the button allows you to set up the Daytime range.
Page 36
Operation Instruction
28
Highlight the box beside Daytime and press the button. Use the Up and Down
arrow buttons to set the Daytime range. The DVR will consider the remaining
time range as the Nighttime.
Highlight the Actions 1 and Actions 2 tabs, and the Motion Detection Actions 1 and Actions 2 setup screens appear.
The DVR can be set to react to motion detection differently
for each camera. Each camera can be associated with another
camera, trigger an Alarm-Out connector, sound the DVR’s
internal buzzer, notify a number of different devices, and/or
move PTZ cameras to preset positions.
NOTE: You can associate multiple cameras with a camera
that detects motion.
Highlight the box under the Record heading and press the
button. A list of cameras appears. You can associate as many
cameras with that camera as you wish. If the DVR detects
motion on the selected camera, it starts recording video from
all the associated cameras.
Figure 31 — Motion Detection Actions 1 screen.
NOTE: For the Record action, the camera you select should be set to the Event or Time & Event recording mode
in the Record Schedule setup screen.
Highlight the box under the Alarm-Out heading and press the button. A list of Alarm Outputs appears. You can
associate as many Alarm-Outs with that camera as you wish. When the DVR detects motion on the selected camera’s
input, it triggers output signals on all the associated Alarm-Out connectors. You can also have the DVR’s internal
buzzer sound if motion is detected on the selected camera.
NOTE: For the Alarm-Out action, the alarm output and beep you select should be set to the Event mode in the
Alarm-Out setup screen (Schedule tab).
Highlight the box under the Notify heading and press the button. You can toggle the entire list On and Off by
highlighting Notification and pressing the
button. You can toggle the individual items On and Off by highlighting
that item and pressing the
button. Highlight OK and press the button to accept your changes.
NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and
the DVR should be registered in the Speco Central (Remote Administration System).
Highlight the desired box under the PTZ heading, and press
the
button. A list of PTZ presets appear. Select the preset
position for each PTZ camera, where you want PTZ cameras
to move to whenever the DVR detects motion on the selected
camera’s input.
Highlight the desired box under the Digital Deterrent heading,
and press the
button to toggle between On and Off. When
set to On, the DVR will sound whenever it detects motions
on the selected camera.
Figure 32 — Motion Detection Actions 2 screen.
Video Loss
Highlight Video Loss in the Event menu and press the
button. The Video Loss setup screen appears.
Page 37
16-Channel Digital Video Recorder
29
Figure 33 — Video Loss Settings screen.
Highlighting the box under the Video Loss Interval heading
allows you to set the duration of a signal loss before the DVR
will report a Video Loss. The DVR will not consider any signal
loss from a camera to be a Video Loss if the detected signal
loss is shorter than the interval set on this screen.
Highlight Use Ignoring Time and press the button to toggle
between On and Off. When set to On, the DVR will ignore
video loss events occurring during the preset period.
Highlighting Time Setup and pressing the
button allows
you to set up event ignoring time.
Highlight the Actions tab, and the Video Loss Actions setup screen appears.
Figure 34 — Video Loss Actions screen.
The DVR can be set to react to video loss differently for each
camera. Each camera can be associated with another camera,
trigger an Alarm-Out connector, sound the DVR’s internal
buzzer, notify a number of different devices, and/or move
PTZ cameras to preset positions.
Highlight the box under the Record heading and press the
button. A list of cameras appears. You can associate as many
cameras with that camera as you wish. If the DVR detects
video loss on the selected camera, it starts recording video
from all the associated cameras.
NOTE: For the Record action, the camera you select
should be set to the Event or Time & Event
recording mode in the Record Schedule setup
screen.
Highlight the box under the Alarm-Out heading and press the
button. A list of Alarm Outputs appears. You can
associate as many Alarm-Outs with that camera as you wish. When the DVR detects video loss on the selected camera,
it will trigger output signals on all the associated Alarm-Out connectors. You can also have the DVR’s internal buzzer
sound if video is lost on the selected camera.
NOTE: For the Alarm-Out action, the alarm output and beep you select should be set to the Event mode in the
Alarm-Out setup screen (Schedule tab).
Highlight the box under the Notify heading and press the button. You can toggle the entire list On and Off by
highlighting Notification and pressing the
button. You can toggle the individual items On and Off by highlighting
that item and pressing the
button. Highlight OK and press the button to accept your changes.
NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and
the DVR should be registered in the Speco Central (Remote Administration System).
Highlight the desired box under the PTZ heading, and press the
button. A list of PTZ presets appear. Select the
preset position for each PTZ camera, where you want PTZ cameras to move to when the DVR detects video loss on
the selected camera’s input.
Video Blind
Highlight Video Blind in the Event menu and press the
button. The Video Blind setup screen appears.
Page 38
Operation Instruction
30
Figure 35 — Video Blind Settings screen.
The DVR checks to see if anything is blinding a camera.
Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s
sensitivity to video blind for Black and White independently from 0 (Never) and 1
(least sensitive) to 15 (most sensitive).
NOTE: Video blind might NOT be detected for a camera with a very noisy image
especially when set for low sensitivity values.
Highlighting the box under the Activation Time heading allows you to set the duration before the DVR will report a
Video Blind. The DVR will not consider any blinded camera to be a Video Blind if the detected blindness is less than
the Activation Time set on this screen.
Highlight Use Ignoring Time and press the button to toggle between On and Off. When set to On, the DVR will
ignore video blind events occurred during the preset period. Highlighting Time Setup and press the
button allows
you to set up event ignoring time.
Highlight the Actions tab, and the Video Blind Actions setup screen appears.
Figure 36 — Video Blind Actions screen.
The DVR can be set to react to video blind differently for each
camera. Each camera can be associated with another camera,
trigger an Alarm-Out connector, sound the DVR’s internal
buzzer, notify a number of different devices, and/or move
PTZ cameras to preset positions.
Highlight the box under the Record heading and press the
button. A list of cameras appears. You can associate as many
cameras with that camera as you wish. If the DVR detects
video blind on the selected camera, it starts recording video
from all the associated cameras.
NOTE: For the Record action, the camera you select
should be set to the Event or Time & Event
recording mode in the Record Schedule setup
screen.
Highlight the box under the Alarm-Out heading and press the
button. A list of Alarm Outputs appears. You can
associate as many Alarm-Outs with that camera as you wish. When the DVR detects video blind on the selected camera,
it will trigger output signals on all the associated Alarm-Out connectors. You can also have the DVR’s internal buzzer
sound if video is blinded on the selected camera.
NOTE: For the Alarm-Out action, the alarm output and beep you select should be set to the Event mode in the
Alarm-Out setup screen (Schedule tab).
Highlight the box under the Notify heading and press the button. You can toggle the entire list On and Off by
highlighting Notification and pressing the
button. You can toggle the individual items On and Off by highlighting
that item and pressing the
button. Highlight OK and press the button to accept your changes.
Page 39
16-Channel Digital Video Recorder
31
NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and
the DVR should be registered in the Speco Central (Remote Administration System).
Highlight the desired box under the PTZ heading, and press the
button. A list of PTZ presets appears. Select the
preset position for each PTZ camera, where you want PTZ cameras to move to when the DVR detects video blind on
the selected camera’s input.
Text-In
Highlight Text-In in the Event menu and press the
button. The Text-In setup screen appears.
Figure 37 — Text-In Settings screen.
The DVR can be set to react to text input from devices such
as ATMs (Automated Teller Machines) and POS (Point of
Sale; i.e., cash registers). This screen allows you to configure
the DVR for each text-in device.
Highlight the box under the Setup heading, and press the
button. Selecting the Setup heading changes all the parameters
excluding Port settings of all the text input channels.
NOTE: The system performance might be affected when
a large quantity of text inputs are detected from
several channels at the same time.
Figure 38 — Text-In Device screen.
Highlight the box beside Port, and press the
button. Select
from None, RS232, RS485, USB-Serial (1~8) and LAN (1~16).
NOTE: If you have set the Port as None, you will not be able
to make any changes to the screen.
NOTE: When using the USB to serial text-in device, do NOT
remove the USB cable from the port while the system
is running.
NOTE: Text-in data might be lost when the text-in buffer is
filled by simultaneous text-in transactions from all
16 LAN channels.
Highlight Setup…, and press the
button. Use the ATM or
POS manufacturer’s recommended settings when configuring
the RS232, RS485, USB-Serial or LAN ports.
Highlight the box beside Text-In Product, and press the
button. Select your device from the list.
NOTE: The following description is for a Generic Text Device. The screen changes for different types of text
input devices, and there will be different parameter boxes for you to enter information.
Highlight the box beside Transaction Start, and press the
button. Use the virtual keyboard to enter the Transaction
Start string. Refer to the device manufacturer’s documentation for the text string that the device first sends when a
transaction starts.
If you want the DVR to react to any character sent from the text input device, you will want to turn On Any Character.
Highlight Any Character, and press the
button to toggle between On and Off.
NOTE: If Any Character is turned On, you will not be able to enter any text in the Transaction Start box.
Highlight the box beside Transaction End, and press the
button. Use the virtual keyboard to enter the Transaction
End string. Refer to the device manufacturer’s documentation for the text string that the device sends when a transaction
ends.
Page 40
Operation Instruction
32
Highlight the more line(s) box, and press the
button. Select the number of additional lines of text that you want
the DVR to record. You can choose from 0 to 10.
Highlight the box beside Line Delimiter, and press the
button. Use the virtual keyboard to enter the character(s)
that the device uses to indicate the end of a line. Special characters can be created using ^ and a capital letter; e.g., ^J
for NL (New Line), ^M for CR (Carriage Return). Refer to the device manufacturer’s documentation for Line Delimiter
character(s).
Highlight the box beside Ignore String, and press the
button. Use the virtual keyboard to enter any strings of text
that you want the DVR to ignore. Refer to the device manufacturer’s documentation for text strings that the device
sends during transactions, so you will know which ones you do not want recorded.
Highlight the Case Sensitive box, and press the
button to toggle between On and Off. Refer to the device
manufacturer’s documentation to determine if the text strings are Case Sensitive. If the device distinguishes between
upper and lower case letters, make certain the Case Sensitive box is turned On.
Highlight the box beside Time Out, and press the button. Set the length of time to wait for the new text string. The
DVR will consider a transaction complete if no new text strings are entered between the last text input and the dwell
time out. You can adjust the Time Out dwell from 5 seconds to 15 minutes.
Highlight the Actions tab, and the Text-In Actions setup screen appears.
Figure 39 — Text-In Actions screen.
The DVR can be set to react to text input. Text input can be
associated with cameras, trigger an Alarm-Out connector,
sound the DVR’s internal buzzer, notify a number of different
devices, and/or move PTZ cameras to preset positions.
Highlight the box beside Record and press the button. A
list of cameras appears. You can associate as many cameras
with the Text Input as you wish. If the DVR detects text
input, it starts recording video from all the associated cameras.
NOTE: For the Record action, the camera you select
should be set to the Event or Time & Event
recording mode in the Record Schedule setup
screen.
Highlight the box beside Alarm-Out and press the
button. A list of Alarm Outputs appears. You can associate as
many Alarm-Outs with the Text Input as you wish. When the DVR detects text input, it triggers output signals on all
the associated Alarm-Out connectors. You can also have the DVR’s internal buzzer sound if text input is detected.
NOTE: For the Alarm-Out action, the alarm output and beep you select should be set to the Event mode in the
Alarm-Out setup screen (Schedule tab).
Highlight the box beside Notify and press the button. You can toggle the entire list On and Off by highlighting
Notification and pressing the
button. You can toggle the individual items On and Off by highlighting that item and
pressing the
button. Highlight OK and press the
button to accept your changes.
NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and
the DVR should be registered in the Speco Central (Remote Administration System).
Highlight the desired box under the PTZ heading, and press the
button. A list of PTZ presets appear. Select the
preset positions for each PTZ camera, where you want PTZ cameras to move to when the DVR detects text input.
System Event
Highlight System Event in the Event menu and press the
button. The System Event setup screen appears.
Page 41
16-Channel Digital Video Recorder
33
Figure 40 — Health Check screen
The DVR can be configured to run self-diagnostics and report
the results.
Highlighting the box beside System and pressing the button
allows you to select the interval that you want the DVR to run
self-diagnostics on the system. You can select from 1 hr. to
30 days or Never.
Highlight the Setup... box beside Check Recording and press the
button. The Check Recording screen appears.
Highlighting Schedule On and pressing the button toggles On and
Off. When set to On, you can select the day, time range and interval that
you want the DVR to run self-diagnostics on the recorder. The Interval
can be selectable from 1 min. to 7 days or Never. The
box allows
you to delete a check recording schedule.
Highlighting the box under the Interval heading beside each alarm-in and pressing the button allows you to change
the interval that you want the DVR to run self-diagnostics on Alarm Inputs. You can select from 1 hr. to 30 days or Never.
Highlight the Storage tab, and the Storage screen displays.
Figure 41 — Storage screen.
Highlight the box beside Disk Bad Notify, and press the
button. Select percentage level of bad disk sectors at which
you want the DVR to trigger an alert. Percentage levels range
from 10% to 90%.
Highlight the box beside Disk Almost Full Notify, and press
the
button. Select the percentage level of disk usage at
which you want the DVR to trigger an alert. Percentage levels
range from 80% to 99%.
Highlight the first box beside Disk Temperature, and press
the
button. Use the Up and Down arrow buttons to scroll
through the numbers. Refer to the hard disk drive
manufacturer’s documentation for the correct temperature
setting. If the temperature of hard disk drive exceeds the
defined threshold, the system triggers an alert.
Highlight the second box beside Disk Temperature, and press the
button. Select either ºF (Fahrenheit) or ºC
(Celsius), and press the
button.
Highlight the Actions tab, and the System Event Actions screen displays.
Page 42
Operation Instruction
34
Figure 42 — System Event Actions screen.
The DVR can be set to react to system events. System events
can be associated with an Alarm-Out connector, sound the
DVR’s internal buzzer, and/or notify a number of different
devices.
Highlight the Alarm-Out box beside the desired event (Check
Recording, Check Alarm-In, Disk Almost Full, Disk Full,
Disk Bad, Disk Temperature, or Disk S.M.A.R.T.), and
press the
button. A list of Alarm Outputs appears. You
can associate as many Alarm-Outs with the Event as you wish.
If the DVR detects that event, it triggers output signals on all
the associated Alarm-Out connectors. You can also have the
DVR’s internal buzzer sound if an event is detected
.
NOTE: Alarm-Out action cannot be set to System, Boot Up, Restart, Shutdown and Panic Record events.
Highlight the Notify box beside the desired event (System, Boot Up, Restart, Shutdown, Panic Record, Check
Recording, Check Alarm-In, Disk Almost Full, Disk Full, Disk Bad, Disk Temperature, or Disk S.M.A.R.T.), and
press the
button. You can toggle the entire list On and Off by highlighting Notification and pressing the
button.
You can toggle the individual items On and Off by highlighting that item and pressing the
button. Highlight OK and
press the
button to accept your changes.
NOTE: For the Notify action to work, the DVR should be registered in the Speco Central (Remote Administration
System).
Event Status
Highlight Event Status in the Event menu and press the
button. The Event Status screen appears.
Figure 43 — Event Status screen.
The Event Status screen displays the status of the DVR’s
systems and inputs. Events will be highlighted, and related
channels or events will flicker for five seconds when detected.
(
Alarm-In),
(Motion), (Video Loss), (Video Blind)
and (Text-In) will be highlighted when each event is detected
based on the settings you made in the Alarm-In, Motion
Detection, Video Loss, Video Blind and Text-In setup screen
on the Event menu.
(Check Alarm-In) and Check Recording will be
highlighted when each event is detected based on the settings
you made in the System Event setup screen on the Event menu.
Panic Record will be highlighted while the DVR is in the
panic recording mode.
Disk Almost Full will be highlighted when the DVR is not in the Recycle mode and the level of disk usage reaches
the Disk Almost Full percentage you made in the System Event setup screen on the Event menu. Disk Full will be
highlighted when the DVR is not in the Recycle mode and all available storage space has been used.
Fan Error will be highlighted when the cooling fan to the left of the power cord on the rear panel is not working for
more than four seconds.
Disk Config Change will be highlighted when the DVR reboots after the hard disk drive has been replaced.
Highlighting the Storage tab will display the hard disk drive status. Refer to the Storage section for details.
Page 43
16-Channel Digital Video Recorder
35
Network Setup
Figure 44 — Network menu.
Network
Highlight Network in the Network menu and press the
button.
Highlight the first box beside Remote Watch – bps/ips.
Press the Up and Down arrow buttons to set the Transfer
Speed from 50Kbps to 100Mbps.
Highlight the second box beside Remote Watch – bps/ips.
You can select the unit of measure for the transfer speed
between: bps and ips. Press the
button to set the transfer
speed.
Highlight the box beside Remote Watch – Quality and press
the
button. You can select the Quality from: Very High,
High, Standard and Basic. Press the
button to set the
Quality.
Figure 45 — Network setup screen.
Highlight the box beside Remote Watch – Resolution and press the
button. You can select the Resolution from:
Very High (D1), High (Half D1) and Standard (CIF). Press the
button to set the Resolution.
NOTE: The higher Quality and Resolution settings require higher Transfer Speed settings. The transfer speed
you set is the maximum speed. Depending on the network environment, this speed may not be achieved.
You can limit the network bandwidth settings so that system does not consume too much network bandwidth. Highlight the
box beside Network Bandwidth Limit and press the Up and Down arrow buttons to set the desired maximum bandwidth
from 10Kbps to 100Mbps.
NOTE: When limiting the network bandwidth, the remote watch image on the PC running Speco Central or Speco
Remote might not be displayed properly.
The DVR supports two-way audio communication between a local system and a PC running Speco Central. Highlighting
the box beside Remote Audio Channel and pressing the
button allows you to select the audio channel that sends
audio to the remote site. Selecting Select From Speco Central will send audio of the channel selected from Speco
Central.
NOTE: Depending on network conditions, audio might be interrupted or out of synchronization during
transmission.
Highlight Enable SSL for Transferring Data and press the button to toggle between On and Off. When it is On,
the security of data except video and audio transmitted for remote monitoring or remote recording can be enhanced
by using the SSL (Secure Sockets Layer) authentication. When using the SSL function, the DVR cannot be connected
with a remote program or a network keyboard which does not support the SSL function.
CAUTION: The
r
emote connection will be disconnected temporarilyafter changing the SSL settings.
NOTE: While the SSL function is enabled, the network transfer speed you selected may not be achieved.
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
Page 44
Operation Instruction
36
Highlight the LAN tab, and the LAN screen displays.
Figure 46 — LAN (Manual) setup screen.
Highlight the box beside Type and press the
button. You
can select the type of network configuration from: Manual,
DHCP and ADSL (with PPPoE). Select the desired type
and press the
button.
Selecting Manual from the Type allows you to set up LAN
parameters manually.
Change the numbers by highlighting them and using the Up
and Down arrow buttons to increase or decrease the number.
The factory default LAN settings are:
IP Address: 192.168.1.129
Gateway: 192.168.1.254
Subnet Mask: 255.255.255.0
NOTE: You will need to get the appropriate IP Address, Gatewayand Subnet Mask from your network administrator.
Highlight the box beside DNS Server. Press the Up and Down arrow buttons to set the IP address of the DNS server.
Highlight Use UPnP and press the button to toggle between On and Off. When it is On, port forwarding from the
NAT (Network Address Translation) device to the DVR will be enabled automatically via UPnP (Universal Plug and
Play) service. This function will be especially useful when accessing a port on a private IP address.
NOTE: For the UPnP service to work, the NAT device should support the UPnP Port Forwarding function and
the function should be set to enabled.
You cannot change the port settings when Use UPnP is On.
Highlight the Status box and press the button to display the port numbers forwarded from the NAT device via UPnP
service.
Highlight the Port Number Setup… box and press the button. The Port Number Setup screen appears.
NOTE: You will need to get the appropriate Port Numbers for each Speco Central and Speco Remote related
program (Admin, Callback, Watch, Search and Audio) from your network administrator.
Change the numbers by highlighting them and using the Up and Down arrow
buttons to increase or decrease the number. The factory default Port settings are:
Remote Admin: 8200
Remote Callback: 8201
Remote Watch: 8016
Remote Search: 10019
Remote Audio: 8116
NOTE: Do NOT use the same port number for two different programs, otherwise, the DVR cannot be connected
with the PC running Speco Central or Speco Remote.
CAUTION: When changing the port settings, you must change the port settings on the PC running
Speco Central as well. Refer to the Speco Central Operation Instruction for details.
Page 45
16-Channel Digital Video Recorder
37
Selecting DHCP from the Type and highlighting Save button
reads the current IP address of the DVR configured by DHCP
(Dynamic Host Configuration Protocol) network.
Highlight Auto (Default) and press the button to toggle
between On and Off. When it is On, the DVR will obtain the
IP address of the DNS server automatically.
NOTE: Selecting Auto will only be enabled when the DVR
is configured for DHCP or an ADSL network.
Selecting ADSL (with PPPoE) allows you to set up the ADSL
network.
Highlight the box beside ID and press the button. A
virtual keyboard appears allowing you to enter the ID for
ADSL connection.
Highlight the box beside Password and press the button.
A virtual keyboard appears allowing you to enter the password
for ADSL connection.
NOTE: Entering the ID and Password and highlighting OK
reads the current IP address of the DVR configured
by the ADSL network.
NOTE: If the DVR is configured for DHCP or an ADSL network, the IP address of the DVR might change whenever
the unit is turned on.
Highlight the DVRNS tab, and the DVRNS screen displays.
Highlight Use DVR Name Service and press the
button
to toggle between On and Off.
NOTE: The DVRNS (DVR Name Service) allows the DVR to
use Dynamic IP addresses for remote connection.
When this feature is On, you can access your DVR
remotely using the DVR name instead of its IP
address. For the DVRNS feature, the DVR should
be registered on the DVRNS server.
Highlight the box beside DVRNS Server and press the
button. A virtual keyboard appears allowing you to enter the
IP address or domain name of the DVRNS server.
Figure 47 — DVRNS setup screen.
NOTE: You will need to get the IP Address or domain name of the DVRNS Server from your network administrator.
You can use the domain name instead of IP address if you already set up the DNS Server when setting
up the LAN.
Highlight the box beside Port and press the button. Set the port number of the DVRNS server using the Up and
Down arrow buttons to increase or decrease the numbers.
Highlight Use NAT and press the button to toggle between On and Off.
NOTE: When using the NAT (Network Address Translation) device, refer to the NAT manufacturer’s instructions
for the proper network settings.
Highlight the box beside DVR Name and press the button. A virtual keyboard appears allowing you to enter the
DVR name to be registered on the DVRNS server.
Page 46
Operation Instruction
38
Highlight the Check box and press the
button to check whether or not the name you entered can be used.
NOTE: The DVR name you entered should be checked by selecting Check, otherwise the DVRNS changes will
not be saved.
When entering no name or a name already registered on the DVRNS server, an error message displays.
Highlighting Save and pressing the button registers the DVR on the DVRNS server. Proper DVRNS settings will
display the help desk information of the DVRNS server in the box beside Help Desk.
Highlight the RTSP tab, and the RTSP setup screen displays.
Figure 48 — RTSP setup screen.
Highlight Enable RTSP (Real-Time Streaming Protocol) and
press the
button to toggle between On and Off. You will
be able to change the settings if Enable RTPS is enabled.
Highlight the box beside RTSP Port and press the button.
Set the port number of the RTSP server obtained from your
system administrator.
Highlight the box beside RTP Start Port and press the
button. Set the start port number of the RTP server obtained
from your system administrator.
Highlight the box beside RTP End Port and press the
button. Set the end port number of the RTP server obtained
from your system administrator.
Highlight Use Mobile and press the
button to toggle between On and Off. When set to on, you can access a remote
DVR using a Blackberry or other mobile devices.
NOTE: Selecting Use Mobile sets the Speco Remote service to be enabled automatically regardless of Speco
Remote settings.
You can access a remote DVR and monitor live video images using media players, such as VLC Player,
supporting RTSP service. Start the media player on your local PC and enter “rtsp://ID:Password@IP
address:RTSP port number/track ID=‘channel number’”, or start Internet Explorer on your Blackberry
or other mobile devices and enter “http://IP address:Speco Remote port number/”.
Some media players might play video properly depending on network conditions.
RTSP service might not be supported, depending on the type of media player.
Highlight the Speco Remote tab, and the Speco Remote screen displays.
Highlight Use Speco Remote Service and press the
button to toggle between On and Off. See Appendix – Speco
Remote for detailed descriptions of the Speco Remote service.
Highlight the box beside Port and press the button. Set
the port number used when accessing Speco Remote by using
the Up and Down arrow buttons to increase or decrease the
numbers.
Figure 49 — Speco Remote setup screen.
Notification
Highlight Notification in the Network menu and press the
button. The Notification screen displays.
Page 47
16-Channel Digital Video Recorder
39
The DVR can be set up to contact a computer running Speco
Central (Remote Administration System) when an event occurs.
Highlight the box under the No. heading and press the
button to toggle between On and Off. You will only be able
to change the IP addresses if No. is enabled.
Highlight the IP Address box that you want to change and
press the
button. Use the arrow buttons to enter the IP
address of the computer you want contacted during an event.
You can enter up to five IP addresses.
Highlight the box beside Retry and enter the number of times
you would like the DVR to try contacting the computer. You
can select from 1 to 10 retries.
Figure 50 — Notification Callback setup screen.
Highlight the Mail tab, and the Mail screen displays.
Figure 51 — Notification Mail setup screen.
The DVR can be set up to send an email when an event occurs.
The Mail account can be turned On or Off by highlighting
the boxes under the No. heading and pressing the
button.
Highlight the + and press the button to add a mail recipient.
Highlight the first box under Recipient and press the button. A virtual keyboard
appears that you can use to enter the recipient’s e-mail address.
Highlight the second box under Recipient and press the button. You can select
between Manual and listed SMTP mail server providers.
NOTE: The e-mail address must include the “@” character to be a valid address.
Highlight the box under the heading and press the
button to toggle between On and Off. The DVR will clip an
event detected video segment and attach it to an email when the
box is turned On.
NOTE: Attaching a video clip to an email will not be available for the Text-In event.
The Mail accounts can be deleted by highlighting the beside the account and pressing the button.
Highlight SMTP Setup… and press the
button. The SMTP Setup screen appears.
Highlight the box beside Type and press the button. You can select
between Manual and listed SMTP mail server providers.
Highlight the box beside SMTP Server and press the button. A virtual
keyboard appears that you can use to enter the IP address or domain name
of the SMTP server.
NOTE: You will need to get the IP Address or domain name of the
SMTP Server from your network administrator.
NOTE: You can use the domain name instead of IP address if you
already set up the DNS Server when setting up the LAN.
Page 48
Operation Instruction
40
Highlight the box beside Port and press the
button. Use the arrow buttons to enter the SMTP Server port number
obtained from your system administrator. The default port number is 25.
Highlight Use SSL/TLS and press the button to toggle between On and Off. When it is On, the DVR can send an
email via an SMTP server requiring SSL (Secure Sockets Layer) authentication.
NOTE: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
Highlight the box beside Authentication and press the button. An Authentication
screen appears. Highlight Use and press the
button to toggle between On and Off.
Highlight the box beside User/Password and press the
button. A virtual keyboard
appears allowing you to enter the user ID and password.
Highlight the box beside Sender and enter the sender’s e-mail address. Use the virtual keyboard to enter the e-mail
address.
NOTE: The e-mail address must include the “@” character to be a valid address.
Highlight the Test box and press the button to test emailing with the current settings you made.
Highlight the SNS tab, and the SNS screen displays.
Figure 52 — Notification SNS setup screen.
The DVR can be set up to post a message via SNS (Social
Network Service) when an event occurs. You can add and edit
the SNS (Social Network Service) account on this screen. The
SNS account can be turned On or Off by highlighting the boxes
under the No. heading and pressing the
button.
To add an SNS account, highlight the + and press the button. Highlight the
box beside Type and press the
button. Selecting Twitter from the Type allows
you to post a tweet on Twitter when an event occurs.
Highlight the box beside User Name/Password and press the button. A virtual
keyboard appears allowing you to enter the user name and password.
The SNS accounts can be deleted by highlighting the beside the account and pressing the button.
NOTE: Posting a tweet might fail because of Twitter limitations.
Highlight the Schedule tab, and the Schedule screen displays.
Page 49
16-Channel Digital Video Recorder
41
Figure 53 — Notification Schedule setup screen.
You can add and edit notification schedules on this screen.
Highlight the + and press the
button to add a schedule.
Highlighting the boxes under the Column heading and pressing
the
button allows you to edit the information in those boxes.
The Day box allows you to select the days that the notification
schedule will be active. The choices are: Sun, Mon, Tue, Wed,
Thu, Fri, Sat, M~F, Hol and All.
The Range box allows you to set the time that the notification
schedule will be active in 15-minute increments from 00:00
to 24:00.
Highlight the desired box under the Notify heading, and press the
button. The Schedule Notify menu appears.
You can toggle the entire list On and Off by highlighting Notification and pressing
the
button. You can toggle the individual items On and Off by highlighting that
item and pressing the
button. Highlight OK and press the
button to accept your
changes.
NOTE: For the Notify action, the notify item you select should be enabled in the
Notification setup screen and the DVR should be registered in the Speco
Central (Remote Administration System).
Highlight the box beside Summary Email Interval and select the interval that you want the DVR to send a summary
email. The DVR will send an email containing a summary of events detected during the preset interval.
Devices Setup
Figure 54 — Devices menu.
Camera
Highlight Camera in the Devices menu and press the
button. The Camera setup screen appears.
Page 50
Operation Instruction
42
Figure 55 — Camera setup screen.
You can turn the camera number On or Off, and you can
change the Title of each camera using the virtual keyboard.
You can also determine which cameras will display on the
monitors by selecting Normal, Covert 1 or Covert 2 from
a drop-down list in the Use column.
NOTE: When selecting the Covert 1, the DVR displays the
camera title and status icons on the covert video.
When selecting the Covert 2, the DVR displays only
camera title on the covert video.
NOTE: A user who does not have Covert Camera View
authority cannot view video from cameras set to
Covert 1 or Covert 2 in both the live monitoring
and playback modes.
Highlight the PTZ tab, and the PTZ setup screen displays.
NOTE: You will only be able to set up PTZ devices if the
PTZ port is set to RS232 or RS485.
Figure 56 — Camera PTZ setup screen.
Highlight the box in the Product column for the PTZ camera you wish to configure and
press the
button. A list of PTZ devices appears. Select your camera from the list and
press the
button. You will need to connect the camera to the RS232 or RS485 connector
on the back of the DVR following the camera manufacturer’s instructions.
You can assign IDs to each camera by highlighting the box under the ID heading and pressing the button. Change
the number by highlighting it and using the Up and Down arrow buttons to increase and decrease the number. The
PTZ ID number can be set from 0 to 256.
Highlight the Setup… box and press the button. The Port Setup window appears.
Configure the port’s setting based on the PTZ camera manufacturer’s instructions.
Page 51
16-Channel Digital Video Recorder
43
Audio
Highlight Audio in the Devices menu and press the
button. The Audio setup screen appears.
The DVR can record up to four audio inputs. Highlight the
box beside the input and press the
button. A list of cameras
appears, and you can select which camera you want associated
with that audio input.
Highlight Enable Audio-Out and press the button. This
toggles between enabling and disabling audio out.
Figure 57 — Audio setup screen.
Alarm-Out
Highlight Alarm-Out in the Devices menu and press the
button. The Alarm-Out screen allows you to change the
settings and establish a schedule for the alarm output from the DVR.
The alarm output can be given its own title by highlighting
the box under the Title heading and pressing the
button.
A virtual keyboard appears allowing you to enter the title.
Highlighting the box beside Dwell Time and pressing the
button allows you to set the dwell time of the alarm output.
Dwell times range from 5 seconds to 30 minutes.
Figure 58 — Alarm-Out Settings screen.
Highlighting the Schedule tab causes the Schedule screen to display.
You can add and edit alarm output schedules on this screen.
Highlight the + and press the
button to add a schedule.
Highlighting the boxes under the Column heading and
pressing the
button allows you to edit the information in
those boxes.
The Day box allows you to select the days that the alarm
schedule will be active. The choices are: Sun, Mon, Tue, Wed,
Thu, Fri, Sat, M~F, Hol and All.
The Range box allows you to set the time that the alarm
schedule will be active in 15-minute increments from 00:00
to 24:00.
Figure 59 — Alarm-Out Schedule screen.
Page 52
Operation Instruction
44
The Mode box allows you to set how the alarm reacts during the scheduled time. When set to On, the Alarm-Out is
active during the scheduled time. When set to Event, the Alarm-Out is only active when there is an Event during the
scheduled time.
The Channels box allows you to set which alarm outputs will be active. You can also select the DVR’s internal buzzer.
The box allows you to delete an alarm output schedule. You will be asked to confirm whether or not you really wish
to delete the schedule.
Digital Deterrent
Highlight Digital Deterrent in the Devices menu and press the
button. The Digital Deterrent setup screen allows
you to set up the DVR to sound when events are detected.
Figure 60 — Digital Deterrent setup screen.
Highlight the + and press the
button to add a digital deterrent
schedule item.
Highlight the box under the Day heading and press the
button to change the days that the scheduled digital deterrent
will take place. Choose from: Sun, Mon, Tue, Wed, Thu,
Fri, Sat, M~F, Hol and All.
Highlight the box under the Range heading and press the
button to change the time range that the scheduled digital
deterrent will take place. The smallest time segment you can
use is 15 minutes.
Highlight the box under the Associated Event heading and
press the
button to select which events you want associated
with each digital deterrent.
You can select the audio files associate with each event. Highlight the box under the
Associated Audio and press the
button. A list of audio file name appears, and you
can select which audio file you want to associated with that event.
You can import saved audio files or export the current audio files. To
import saved audio files, connect the USB device containing the audio
file (.aaf or .wav) to the DVR. Highlight Digital Deterrent – Import…
and press the
button. Select the desired audio file and press the
Import button to import the selected audio file and change the audio
file accordingly.
NOTE: The .wav format audio file should be saved as mono 16-bit PCM audio sampled at 16Khz.
The .wav format audio file will be converted to max. 10 seconds .aaf format audio file when imported.
To export the current audio files, connect the USB device to the DVR.
Highlight Digital Deterrent – Export… and press the
button.
Highlight the box beside File name and press the
button. A virtual
keyboard allows you to enter the file name. Selecting Export will save
the current audio file in .aaf file format on the USB device.
Highlight Digital Deterrent – Record… and press the button. You can extract audio files from recorded audio on
the DVR.
Page 53
16-Channel Digital Video Recorder
45
Highlight the box beside Channels and press the
button. You can
select the cameras with recorded audio you want to extract audio files
from
.
Highlight the box beside From and press the
button to toggle between
On and Off. When set to Off, you can enter a specific Date and Time.
When set to On, the search will be from the first recorded audio. When
highlighting
and pressing the
button the bookmark list displays
and the bookmark point you selected will be the starting date and time.
Highlight the box beside To and press the
button to toggle between On and Off. When set to Off, you can enter a
specific Date and Time. When set to On, the search will be to the last recorded audio
.
When highlighting
and pressing
the
button the bookmark list displays and the bookmark point you selected will be the ending date and time.
Highlight the box beside File name and press the
button to select the file name. The selected audio file can be listened
by highlighting
and pressing the
button.
Once you have selected the file name, highlight the Start button and press the button to record the extracted audio
file (up to 10 seconds).
NOTE: Any audio file used for Digital Deterrent should be named “Sound_1” to “Sound 16.” (Not Case Sensitive)
Display
Highlight Display in the Devices menu and press the
button. The Display screen allows you to select what
information will be displayed on the monitor.
Figure 61 — Display OSD screen.
Highlighting an item and pressing the button toggles that
item On and Off. When an item is On, there is a checkmark
in the box beside it. The following items can be turned On
or Off:
Remote Control – The icon
displays when the DVR can be
controlled by the infrared remote control.
Zoom – The icon
displays on the enlarged video.
Network – The icon
displays when the unit is connected to
a network via Ethernet. The icon
displays when audio
communication is available between the DVR and a PC running
Speco Central via Ethernet.
Freeze & Sequence – The icon
displays while in the Freeze
mode, and the
displays while in the Sequence mode.
Screen Group – The number of screen group displays when the
DVR is not in the 4x4 display mode.
Free Space – The icon
displays when the DVR is in the Recycle mode, and the percentage of available storage space displays
when the DVR is not in the Recycle mode.
Date/Time – The current date and time information displays.
User Name – The name of the current user logged in displays.
Camera No. – The camera number displays at the top-left corner of each camera screen.
Camera Title – The camera title displays at the top-left corner of each camera screen.
Record – The record related icons display on each camera screen.
Audio – The icon
displays when the DVR can play live audio.
PTZ – The icon
displays on each PTZ camera screen.
Text-In – The text input strings display on the screen. You can adjust the Display Dwell time (sec.) for the text input strings displayed
on the screen.
You can adjust the transparency of the setup screens by highlighting Transparency and using the Left and Right arrow
buttons.
Page 54
Operation Instruction
46
Highlighting OSD Margin… and pressing the button displays how OSD text will
be displayed on the monitor. You can adjust the horizontal and vertical margins so
that text and icons will not be hidden beyond the edges of the monitor.
Highlight the Main Monitor tab to switch to the Sequence screen.
Figure 62 — Main Monitor screen.
Highlight the box beside Mode and press the button. You
can select between Full Sequence and Cameo Sequence.
Selecting (Sequence) in the Live Monitoring menu causes
the DVR to sequence cameras, and the DVR can sequence
cameras in two modes: “Full” and “Cameo”. In the Full mode,
the DVR sequences through the cameras and displays them
full screen. In the Cameo mode, the bottom right window in
a multi-screen format sequences through the cameras.
NOTE: Any cameras that are Off, have lost video or are set
to Covert (unless the user has authority to view
covert cameras) will be excluded from the Cameo
sequence.
You can define the screen layout in a variety of formats and set the DVR to sequence through the different screen layouts
(pages) so that all the cameras will be displayed. You can also set up the DVR to display one camera or a group of
cameras all the time while cycling through the remaining cameras in a “cameo” window. This can be done with one
camera displayed full screen while displaying the cameo window as a PIP (picture in picture), or displaying the cameras
in a grid pattern with the bottom right window as the cameo.
NOTE: Sequence cannot be used in the 4x4 display mode.
You can adjust the display dwell time by highlighting the box beside Interval and pressing the button. You can select
dwell intervals ranging from 1 second to 1 minute.
Highlight Event Monitoring On and press the button. Pressing the button toggles between On and Off. When
it is On, the DVR will display the camera associated with the event when an event occurs.
Highlight the VGA tab to switch to the VGA screen.
Highlight the box beside Resolution and press the
button.
You can select from 800x600, 1024x768 and 1280x1024.
Figure 63 — VGA screen.
Highlight the box Test box and press the
button to test how the screen will be displayed with the resolution you set.
Highlighting OK and pressing the button applies resolution changes.
Page 55
16-Channel Digital Video Recorder
47
Remote Control
Highlight Remote Control in the Devices menu and press the
button. The Remote Control setup screen allows
you to select a port and make correct settings for a remote keyboard.
Highlight the box beside Port and select from None, RS232
and RS485. If the RS232 port and RS485 port are in use for
PTZ control, networking or text input, the remote keyboard
cannot be configured.
Highlight Setup… and select the correct Baud Rate, Parity,
Data Bits and Stop Bits for the device you are connecting to
the DVR.
Highlight the box beside Remote Control Product and select
the device from the list.
Figure 64 — Remote Control setup screen.
Page 56
Operation Instruction
48
Page 57
16-Channel Digital Video Recorder
49
Chapter 4 — Operation
NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapters
2 and 3.
The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video.
However, you have much greater control over recording and playing back video. You can establish recording schedules
based on time of day and day of the week. The DVR allows you to search through the recorded video using much more
sophisticated tools than those available with VCRs. Additional DVR features that are not available with VCRs are
remote control and viewing, and recording video at the same time you are watching previously recorded video.
The front panel controls are described in Chapter 3 — Configuration.
Turning on the Power
Once you have installed the DVR following the instructions in Chapter 2 — Installation, it is ready to record.
Live Monitoring
As soon as the DVR completes its initialization process, it will begin showing live video on the attached monitor and
playing live audio through the attached speaker. The default mode is to display all cameras at once. Pressing any camera
button will cause that camera to display full screen. It displays live video and plays live audio until the user enters
another mode.
While in the live monitoring mode, pressing the
MENU button displays the following Live Monitoring menu at the top
of the screen. Pressing the ESC button hides the menu. You can navigate through menus and items by pressing the
arrow buttons.
Display
Freeze
Sequence
Camera Menu
Alarm
Digital Deterrent
Panic
Setup
Search Mode
Login/Logout
Figure 65 — Live Monitoring menu.
NOTE: The Live Monitoring menu also can be displayed by moving the mouse pointer to the top of the screen.
Live Monitoring Menu
Display
Selecting
(Display) in the Live Monitoring menu displays the following Display Menu.
Page 58
Operation Instruction
50
NOTE: The location of camera screen can be changed by using the mouse. When in one of the multiview formats,
click the left mouse button on the camera screen and dragging it to where you want it located, and the
location of two camera screens will be switched each other.
In the 1P5 or 1P7 display mode, the main channel indicates the channel displayed on the large screen
which is displayed in the top-left. You can select the camera you want to display on the main channel
screen. Select a channel on the screen and click the right mouse button to display the Camera Menu.
Selecting Go To Main swaps the selected channel with the main channel. This function is supported
only in the 1P5 and 1P7 display modes and can be activated from any of channel screens except the main
channel screen.
You can change the location of the PIP (Picture-in-Picture) counterclockwise or clockwise
by pressing the Up and Down arrow buttons and change its size by pressing the Left
and Right arrow buttons. To change its location and size by using the mouse, select
the PIP and then click the right mouse button to display the following menu. Select the
options you want. You can also change the location of the PIP by clicking the left mouse
button on the PIP window and dragging it to where you want it located, and change the
size of the PIP by clicking the left mouse button at the corner of the PIP window and
dragging it until it is the desired size.
Previous Group, Next Group: Selecting Previous Group or Next Group moves to the previous or next page.
Edit Group: Selecting Edit Group enters the cameo mode. Refer to the following Active Cameo Mode section for details.
OSD: Selecting OSD toggles OSD On and Off.
Freeze
Selecting
(Freeze) in the Live Monitoring menu will freeze the current image on the screen until you select again.
It is the same as pressing the
(Play/Pause) button. Pressing any button except for the MENU button while in the
Freeze mode can also exit the Freeze mode. While in the Freeze mode, the icon displays in bottom-left corner if
Freeze is selected in the Display setup screen (OSD tab).
Sequence
Selecting
(Sequence) in the Live Monitoring menu causes the cameras to display sequentially. When in one of the
multi-view formats, pressing this button will cause the DVR to go through predefined screen layouts (Full Sequence).
Or, the bottom, right screen will display live cameras sequentially (Cameo Sequence). For example, if you select
(Sequence) in the Live Monitoring menu in the 2x2 format, the DVR changes pages as follows:
< Full Sequence >
< Cameo Sequence >
Selecting again in the Live Monitoring menu exits the Sequence mode. While in the Sequence mode, the icon
displays in bottom-left corner if Sequence is selected in the Display setup screen (OSD tab). If all the cameras in a page
are Off, or have lost video or are set to Covert (unless the user has authority to view covert cameras), that page will be
excluded from the sequence.
NOTE: The Full Sequence for the full sequence monitoring and the Cameo Sequence for the cameo sequence
monitoring should be selected in the Display setup screen (Main Monitor tab).
Camera Menu
Selecting
(Camera Menu) in the Live Monitoring menu displays the following Camera Menu.
Camera: Selecting Camera and choosing the camera number displays the selected camera full
screen. It is the same as pressing the individual camera buttons on the front panel or clicking the
left mouse button on a camera image when in one of the multiview formats (i.e., 2x2, 1P5, 1P7, 3x3
or 4x4). Clicking the left mouse button on the screen again returns to the previous display mode.
Screen: Selecting Screen and choosing the screen mode (PIP, 2x2, 1P5, 1P7, 3x3 or 4x4) displays
the cameras in the selected multiview screen mode. Selecting each display mode is the same as
scrolling the mouse wheel up and down when in one of the multiview formats (i.e., 2x2, 1P5, 1P7,
3x3 or 4x4).
Page 59
16-Channel Digital Video Recorder
51
Audio: Selecting Audio toggles audio output On and Off.
Color Control: Selecting Color Control and choosing the camera number allows you to control brightness, contrast,
hue and saturation for each camera for the selected camera if a user who has Color Control authority logs into the
system. It is the same as pressing and holding a camera button for a few seconds.
NOTE: It is important that cameras and monitors are correctly installed and adjusted prior to making any image
adjustments using the DVR’s controls.
Any image adjustments you make will be applied to both the live video on the monitors and the recorded
video.
The Camera Menu also can be displayed by clicking the right mouse button on the screen while in the
live monitoring mode.
Alarm
Selecting
(Alarm) in the Live Monitoring menu resets the DVR’s outputs including the internal buzzer during an
alarm. It is the same as pressing any button on the front panel when the alarm is activated.
Digital Deterrent
Selecting
(Digital Deterrent) in the Live Monitoring menu displays the following setup screen and allows the DVR
to play manually.
Highlight the box beside Source name and press the
button to
select the source file to play. Highlighting Trigger plays the selected
file as the digital deterrent.
Panic
Selecting
(Panic) in the Live Monitoring menu starts panic recording of all cameras, and displays
on the screen.
Selecting
again stops panic recording.
Setup
Selecting
(Setup) in the Live Monitoring menu enters the Main Setup screen. Refer to Chapter 3 ─ Configuration
for detailed descriptions of system setup.
Search Mode
Selecting
(Search Mode) in the Live Monitoring menu exits the live monitoring mode and enters the search mode.
It is the same as pressing the
PLAY/STOP button.
Login/Logout
Selecting
(Login) in the Live Monitoring menu accesses the Login screen, and you will be asked to select a User
and enter the password to log into the system. Selecting
(Logout) in the Live Monitoring menu displays the Logout
screen asking you to confirm whether or not you want to log out the current user.
PTZ: Selecting PTZ and choosing the camera number allows you to control the selected camera
as long as it has Pan, Tilt and Zoom capabilities. Refer to the following PTZ Mode section for details.
Zoom: Selecting Zoom and choosing the camera number zooms the current image of the selected
camera on the screen. Refer to the following Zoom Mode section for details.
Page 60
Operation Instruction
52
Active Cameo Mode
You can enter the Active Cameo mode by selecting
(Display) Edit Group in the Live Monitoring menu in any
multi-view format. The yellow outline surrounding the video indicates the active cameo, and pressing the arrow buttons
moves the active cameo. Selecting
(Display) Edit Group again in any multi-view format, or pressing the
(Play/Pause) button exits the Active Cameo mode. Selecting Exit Group Edit in the cameo menu displayed when
pressing the
MENU button also exits the Active Cameo mode. The active cameo mode will remains in effect for 15
seconds if there is no further operation.
In active cameo mode, press the button for the camera you want to display in the active cameo. After setting the camera
number to active cameo, the DVR moves the active cameo to the next cameo. When the camera number exists on the
current screen, the active cameo is changed with the existing camera number. When the camera number does not exist
on the current screen, the active cameo is replaced by the camera number. You can change the screen layout in this way.
Zoom Mode
You can enlarge an area of the video by selecting
(Camera Menu) Zoom in the Live Monitoring menu. For a
few seconds after
(Camera Menu) Zoom, a rectangle displays on the screen. A rectangle shows the area that
will be enlarged. You can move the rectangle around using the arrow buttons. Pressing the
(Play/Pause) button in
the Zoom mode enlarges the area in rectangle. Exit the Zoom mode by selecting the
(Exit) icon in the Zoom menu
displayed when pressing the
MENU button. While in the Zoom mode, the icon displays if Zoom is selected in the
Display setup screen (OSD tab).
PTZ Mode
If a user who has PTZ Control authority logs into the system, the user can control PTZ cameras. The DVR will control
cameras with Pan, Tilt and Zoom capabilities. Select
(Camera Menu) PTZ in the Live Monitoring menu to display
the PTZ camera menu and enter the PTZ mode. Selecting the
(Exit) icon in the PTZ menu displayed when pressing
the
MENU button exits the PTZ mode.
Select the PTZ camera you wish to control by selecting it from the menu. The icon
displays on the PTZ camera
screen.
To use the remote control buttons, press the Left and Right arrow buttons to pan left and right.
Press the Up and Down arrow buttons to tilt the camera up and down. Press the
ZOOM + button
to zoom in, and press the ZOOM – button to zoom out. You can use the FOCUS and FOCUS
buttons to focus the image.
You can establish preset positions for PTZ cameras. Press the PRESET SET button to establish
Presets.
You can quickly move PTZ cameras to Preset positions. Press the PRESET SELECT button to
view an established camera Preset position.
Figure 66 — PTZ Select Camera menu.
Page 61
16-Channel Digital Video Recorder
53
You can save camera position settings as “presets” so that you can go directly
to desired views.
Once you have the camera at the desired settings, press the PRESET SET button,
and the Set Preset dialog box will appear. Select the number you want to
assign to the preset and press the
(Play/Pause) button. Use the virtual
keyboard to enter the preset name.
Press the PRESET SELECT button to load the PTZ preset and the Move to
Preset dialog box will appear. Select the desired preset and press the button
to load the preset.
< Set Preset > < Move to Preset >
Figure 67 — PTZ Preset menu.
While in the PTZ mode, pressing the
MENU button and selecting (Advanced PTZ) in the menu
displaying at the top of the screen displays the Advanced PTZ menu.
Set the feature you wish to control by selecting it from the menu. Refer to the camera manufacturer’s
instructions for the proper settings. Depending on the camera specifications, some features may not
be supported.
NOTE: The Pan/Tilt speed can be controlled by using the mouse. While in the PTZ mode, clicking
the left mouse button on the image and dragging the mouse in the pan/tilt direction you
want to move and then select the speed.
You can use a mouse for convenient PTZ control. Click the left mouse button on the image and move that image in
the direction you want to by dragging the mouse. Use the mouse wheel to zoom in and out. Position the mouse pointer
at the bottom of the screen, and the following PTZ toolbar will display.
Clicking
on the left side exits the toolbar. If you want to display the toolbar again, position
the mouse pointer at the bottom of the screen. Change the toolbar location by clicking the empty
space on the left side of the toolbar and drag it to where you want it located on the screen. Use
the arrow buttons on the toolbar to pan or tilt the camera in the direction you want. The other
controls on the toolbar perform as described below:
Zoom In / Out
Focus Near / Far
Iris Open / Close
Set / Load Preset
Event Monitoring
When an event occurs, the DVR will display the camera associated with the event if Event Monitoring On is selected in
the Display setup screen (Main Monitor tab).
How the cameras are displayed depends on the number of cameras associated with the event. If one camera is associated
with the event, the DVR will display the camera full screen. If two to four cameras are associated with the event, the
DVR will display the cameras on a 2x2 screen. If five to nine cameras are associated with the event, the DVR will display
the cameras on a 1+5, 1+7 or 3x3 screen. If 10 or more cameras are associated with the event, the DVR will display
the cameras on a 4x4 screen.
Event monitoring lasts for the dwell time set for event recording. After the dwell time has elapsed, the monitor returns
to the previous screen unless another event has occurred. If you want to return to the live monitoring mode before the
dwell time has elapsed, press one of the camera buttons.
Page 62
Operation Instruction
54
Covert Camera
If a camera is set up as Covert 1 in the Camera setup screen (Settings tab), that camera will not be displayed unless a
user with Covert Camera View authority logs into the system. However the camera title and status icons will be
displayed on the monitor.
If a camera is set up as Covert 2 in the Camera setup screen (Settings tab), that camera appears to be Off unless a user
with Covert Camera View authority logs into the system. The camera title will be grayed out and status icons will
not be displayed on the monitor.
NOTE: When a camera is set up as Covert 1, the DVR displays the camera title and status icons on the covert
video. When set up as Covert 2, the DVR displays only the camera title on the covert video.
If a user who has Covert Camera View authority logs into the system, the user can view video from cameras set to
Covert 1 or Covert 2 including the camera titles and status icons.
Recording Video
Once you have installed the DVR following the instructions in Chapter 2 — Installation, it is ready to record. The DVR
will start recording based on the settings you made in the Record setup screen. See Chapter3 — Configuration.
Recycle On or Recycle Off. The factory default is Recycle On. It does this by recording over the oldest video once
the hard disk is full. Setting the DVR to Recycle Off causes it to stop recording once the hard disk is full.
Standard (CIF), High (Half D1) or Very High (D1). The factory default resolution is Standard. When set to Standard,
the DVR has a maximum recording speed of 480 ips. When set to High, the DVR has a maximum recording speed of
240 ips. When set to Very High, the DVR has a maximum recording speed of 120 ips.
Although you will be able to record without changing the unit from its original factory settings, you will want to take
advantages of the DVR’s many tools. See Chapter 3 — Configuration for detailed descriptions of the recording mode
options.
Panic Recording
Selecting
(Panic) in the Live Monitoring menu starts panic recording of all cameras, and selecting again stops
panic recording. If you set the Panic Recording Duration in the Panic Record setup screen, panic recording will stop
automatically according to the preset duration as long as
is not selected.
NOTE: When the DVR is not in the Recycle mode and all available storage space has been used, panic recording
will not operate.
Recording Audio
If the DVR was set up to record audio, it will record audio from up to four inputs when video is recording.
NOTE: Make certain you comply with all local and federal laws and regulations when recording audio.
Playing Recorded Video
If a user who has Search authority logs into the system, the user can view recorded image. Once video has been recorded,
you can view it by pressing the
PLAY/STOP button.
The DVR supports the Triplex function: monitoring, recording and playing back at the same time. Pressing the
PLAY/STOP
button when in one of the multi-view formats enters the Triplex mode and displays the Select Playback Camera menu.
Page 63
16-Channel Digital Video Recorder
55
Selecting All Channels plays back video of all cameras. The DVR maintains the same display format
as it does in the live mode except for the PIP format. You can also change the screen layout in the same
way as you do in the live mode.
Selecting the camera number under Triplex enters the Triplex mode and plays back video of the selected
camera. When in the single-screen display format, the camera currently displayed on the screen will
be selected and when in the PIP display format, the camera displayed on the PIP screen will be selected
for the search channel. During the Triplex mode, the DVR maintains the same display format as it does
in the live mode. A red outline surrounding the video and the camera title indicates the search channel.
While in the Triplex Mode, the DVR continues recording cameras as they were set up in the recording
schedule. Also, live monitoring will continue except for the camera that has been selected for playback.
Figure 68 — Select Playback Camera menu.
When playing video for the first time, the DVR will display the most recent image. When playing video subsequent
times, the DVR will start playing video from the last recalled image. Recorded audio will be played when the DVR
displays a camera with recorded audio in full screen mode.
NOTE: Only the administrator and users with Covert Camera View authority can view video from covert cameras.
The covert cameras in the playback mode are determined by the current camera settings.
Camera Buttons: Pressing the individual camera buttons will cause the selected camera to display full screen.
Arrow Buttons: Pressing the
button plays video backward at high speed. Pressing the button again toggles the
playback speed from
, and . Pressing the button plays video forward at high speed. Pressing the
button again toggles the playback speed from
, and . When in the pause mode, pressing the button
moves to the next image and pressing the
button moves to the previous image.
Play/Pause Button: Pressing the
button plays back images at regular speed or pauses playing video.
Play/Stop Button: Pressing the PLAY/STOP button enters the playback mode, and pressing the button again exits
the playback mode. When entering the playback mode, video is paused. Pressing the (Play/Pause) button plays
back video at regular speed. The screen displays
when the DVR is in the Pause mode and the screen displays when
the DVR is playing back video.
You can use a mouse for convenient playback control. Position the mouse pointer on the playback screen, and the
following Record Table Search (Compact View Mode) screen will display. The individual controls on the toolbar perform
the following functions as described below:
Go to the previous image Play/Pause Go to the next image
Fast backward play Fast forward play
Searching Video
While in the search mode, pressing the
MENU button displays the following Search menu at the top of the screen. Pressing
the ESC button hides the menu. You can navigate through menus and items by pressing the arrow buttons.
Page 64
Operation Instruction
56
Display
Search
Go To
Bookmark
Export
Camera Menu
Alarm
Digital Deterrent
Panic
Data Source
Exit
Figure 69 — Search menu.
NOTE: The Search menu also can be displayed by moving the mouse pointer to the top of the screen.
Search Menu
Display
Selecting
(Display) in the Search menu displays the following Display Menu.
Previous Group, Next Group: Selecting Previous Group or Next Group moves to the previous or next page.
Edit Group: Selecting Edit Group enters the cameo mode.
OSD: Selecting OSD toggles OSD On and Off.
Search
Selecting
(Search) in the Search menu displays the following Search menu. See the following Event Log Search,
Record Table Search, Calendar Search, Motion Search and Text-In Search sections for details.
Event Log Search: Selecting Event Log Search selects video from the event log.
Record Table Search: Selecting Record Table Search selects using a recording table.
Calendar Search: Selecting Calendar Search selects using a calendar.
Motion Search: Selecting Motion Search selects motion events.
Text-In Search: Selecting Text-In Search selects text input strings.
Go To
Selecting
(Go To) in the Search menu displays the following Go to menu.
Go to the First: Selecting Go to the First displays the first recorded image.
Go to the Last: Selecting Go to the Last displays the last recorded image.
Go to the Date/Time: Selecting Go to the Date/Time displays the Go to the Date/Time screen.
Camera: Selecting Camera and choosing the camera number displays the selected camera full
screen. It is the same as pressing the individual camera buttons on the front panel or clicking the left
mouse button on a camera image when in one of the multiview formats (i.e., 2x2, 3x3 or 4x4).
Clicking the left mouse button on the screen again returns to the previous display mode.
Screen: Selecting Screen and choosing the screen mode (2x2, 3x3 or 4x4) displays the cameras
in the selected multiview screen mode. Selecting each display mode is the same as
scrolling the
mouse wheel up and down when in one of the multiview formats (i.e., 2x2, 3x3 or 4x4).
Page 65
16-Channel Digital Video Recorder
57
Move the cursor over the date and time and press the (Play/Pause) button. You can use
the Left and Right arrow buttons to highlight the year, month, day, hours, minutes and
seconds. Use the Up and Down arrow buttons to change to the date and time you want
to search for video.
Once you have set the date and time you want, press the button. Then highlight Go and press the button. The
selected date and time will display. (If no video was recorded during the selected time, a message appears alerting you
that no image was recorded at that time.) The
button and arrow buttons can now be used to review the surrounding video.
Bookmark
Selecting
(Bookmark) in the Search menu adds the current playback point to the bookmark list. See the following
Bookmarks section for details.
Export
Selecting
(Export) in the Search menu displays the following Export menu. See the following Clip Copy section
for details.
EZ Copy: Selecting EZ Copy will set the starting point of the video to be clip copied,
and the
icon displays at the bottom-left corner of the screen. Selecting EZ Copy again
will set the ending point of the video to be clip copied and displays the Clip-Copy screen.
Clip-Copy: Select Clip-Copy, and the Clip-Copy screen appears to allow clip copy setup.
Digital Deterrent Recording: Selecting Digital Deterrent Recording allows you to extract audio files from recorded
audio on the DVR. Refer to Chapter 3 – Configuration – Digital Deterrent section for details.
Camera Menu
Selecting
(Camera Menu) in the Search menu displays the following Camera Menu.
NOTE: The Camera Menu also can be displayed by clicking the right mouse button on the screen while in the
search mode.
Alarm
Selecting
(Alarm) in the Search menu resets the DVR’s outputs including the internal buzzer during an alarm. It
is the same as pressing any button on the front panel when the alarm is activated.
Digital Deterrent
Selecting
(Digital Deterrent) in the Search menu displays the following setup screen and allows the DVR to sound
manually.
Highlight the box beside Source name and press the
button to
select the source file to sound. Highlighting Trigger sounds the
selected file for digital deterrent.
Panic
Selecting
(Panic) in the Search menu starts panic recording of all cameras, and selecting again stops panic recording.
Zoom: Selecting Zoom and choosing the camera number zooms the current playback image of
the selected camera on the screen.
Audio: Selecting Audio toggles audio playback On and Off. Recorded audio will be played when
the DVR displays a camera with recorded audio in full screen mode.
Page 66
Operation Instruction
58
Data Source
Selecting
(Data Source) in the Search menu allows you to select the data source to be searched. Selecting Record
searches recorded data on primary storage installed in the DVR, and selecting Other searches recorded data on storage
used for another DVR then installed in this DVR.
Exit
Selecting
(Exit) in the Search menu exits the search mode and enters the live monitoring mode.
Event Log Search
Figure 70 — Event Log Search screen.
The DVR maintains a log of each time the Alarm Input port
is activated. The Event Log Search screen displays this list.
Use the arrow buttons to highlight the event for which you
would like to see video.
There is no determined user authority to display the Event Log
Search screen, however, the event video will not be played
unless a user with Search authority logs into the system
.
Pressing the (Play/Pause) button will extract the event video
and display the first image of the event. Pressing the
button
will start playing the “event” video segment. Pressing the
PLAY/STOP button returns to live monitoring.
NOTE:
It is possible that no recorded image displays on the current screen. Select
(Display) Screen in
the Live Monitoring menu and choose the 4x4 screen mode. You will be able to easily see the camera
have recorded video during target time.
You can also narrow your event search by selecting the Option… button and setting up the new search condition.
You can search video from the first to last recorded images,
or you can set the start and stop times and dates.
Highlight the box beside From and press the
button to
toggle between On and Off. When set to Off, you can enter a
specific Date and Time. When set to On, the search will be from
the first recorded image. When highlighting
and pressing
the
button the bookmark list displays and the bookmark
point you selected will be the starting date and time.
Highlight the box beside To and press the
button to toggle between On and Off. When set to Off, you can enter a
specific Date and Time. When set to On, the search will be to the last recorded image
.
When highlighting
and pressing
the
button the bookmark list displays and the bookmark point you selected will be the ending date and time.
Highlight the box beside Check Time Overlap and press the
button. It toggles between On and Off. You will only
be able to turn the Check Time Overlap on or off if a user-defined date and time is set to From and To. If the DVR’s
date and time have been reset, it is possible for the DVR to have more than one overlapping start and stop time. When
set to On, you will be asked to select one of the overlapping start and stop time. When set to Off, the DVR will display
search results from all start times to all stop times.
Highlight the box beside Alarm-In and press the
button. You can select the alarm inputs that you want to include
in your search.
Highlight the box beside Motion and press the
button. You can select the cameras for which you want any reports
of motion detection.
Page 67
16-Channel Digital Video Recorder
59
Highlight the box beside Video Loss and press the
button. You can select the cameras for which you want any
reports of lost video.
Highlight the box beside Video Blind and press the
button. You can select the cameras for which you want any
reports of blind video.
Highlight the box beside Text-In and press the
button. You can select the text-in devices which you want any reports
of text input.
Highlight the box beside Record Channels and press the
button. You can select the cameras that you want to search
for any reports of event recorded data. The DVR will display the events (not the camera channels) that occurred and
that also are recorded on the camera channel that you selected. If you do not select a camera channel in this field, the
DVR will search events that are not associated with cameras.
You can also toggle On and Off self-diagnostic System Events as part of your search. The choices are:
Panic Record
Check Recording
Check Alarm-In
Disk Almost Full
Disk Bad
Disk Temperature
Disk S.M.A.R.T.
Fan Error
Disk Config Change
Once you set your desired search conditions, highlight Search and press the
button to display the search results in
the Event Log Search screen. Selecting Cancel exits the screen without saving the changes.
Record Table Search
< Compact View >
< Standard View >
< Expanded View >
Figure 71 — Record Table Search screen.
Recording information about video images currently displayed on the screen displays on the recording status bar. A
grey vertical line indicates the current search position. To search specific video, move the vertical line by using the
Left or Right arrow buttons on the front panel or by clicking the mouse on the desired segment.
If the DVR’s time and date have been reset to a time that is earlier than some recorded video, it is possible for the DVR
to have more than one video stream in the same time range. In this case, the overlapping time range in the record table
will be separated by a yellow vertical line.
NOTE: The recorded data in the time range located after the yellow vertical line is the latest.
There are three view modes. Standard view, Expanded view and Compact view. Standard view (default) displays
combined recording information of all camera channels currently displayed on the screen. In the Standard view mode,
selecting the
icon located at the bottom switches to the Expanded view mode. The Expanded view displays the
recording information of each camera channel currently displayed on the screen. Selecting the
icon in the Standard
view mode switches to the Compact view mode which displays only the toolbar. Selecting the
icon in the Compact
view mode switches to the Standard view mode, and selecting the
icon in the Expanded view mode switches to the
Standard view mode.
Page 68
Operation Instruction
60
Selecting
or
located at the bottom zooms the record table. Selecting
displays eight hours (1-minute based),
and selecting
displays 24 hours (3-minute based) at once. To move to earlier or later times that are not shown in the
current record table screen, select the arrows located at the end of the times by using the arrow buttons on the front panel.
NOTE: If the DVR has images recorded in more than one recording mode in the same time range, the recording
status bar displays recording information in the following priority order: Panic Pre-Event Event
Time. The color of the bar indicates different recording modes: Red for Panic, Yellow for Pre-Event,
Purple for Event, and Blue for Time.
Selecting
located at the bottom displays the Calendar Search screen. See the following Calendar Search section for
details.
Selecting
located at the bottom displays the Search menu.
Go To: Displays the first or last recorded image, or searches by date and time (see the previous
Searching Video – Go To section of this chapter for more details).
Clip-Copy: Clips a video segment and saves it (see the following Clip Copy section for more
details).
Digital Deterrent Record: Extracts audio files from recorded audio on the DVR see Chapter 3
– Configuration – Digital Deterrent section for more details).
Zoom: Zooms the current playback image.
Slow Play: Plays video at low speed (x1/2, x1/3, x1/4, x1/6 and x1/8).
NOTE: Playing video at low speed will be supported for video recorded 10 images or more per second.
The individual playback controls at the bottom perform the following functions as described below:
Go to the previous image Play/Pause Go to the next image
Fast backward play Fast forward play
Selecting
located at the bottom displays the Bookmarks screen. See the following Bookmarks section for details.
Selecting
in the top-left corner exits the Record Table Search screen.
Calendar Search
Figure 72 — Calendar Search screen.
Days with recorded video display on the calendar with white
numbers. You can highlight the days with recorded video by
using the arrow buttons. Once you have highlighted a day,
press the
(Play/Pause) button to select it.
A time bar displays at the bottom of the calendar. Hours in
which video was recorded will be highlighted with blue. You
can use the Up and Down arrow buttons to highlight the time
bar. Once the time bar is highlighted, you can select the time
by using the Left and Right arrow buttons
.
NOTE: The time bar is in one-hour segments. If a segment
is highlighted, it means that some video was
recorded during that hour. However, it does NOT
mean video was recorded for the entire hour.
If the DVR’s time and date have been reset to a time that is earlier than some recorded video, it is possible for the DVR
to have more than one video stream in the same time range. Move to Select a Segment, and select the video stream you
want to search. Refer to the Appendix – Time Overlap for further information on searching time-overlapped video streams.
NOTE: The lower number of the Segment indicates the latest recorded video.
Once you have set the date and time you want to search, highlight Go and press the button. The selected date and
time will display.
NOTE:
It is possible that no recorded image displays on the current screen. Select
(Display) Screen in the
Live Monitoring menu and choose the 4x4 screen mode. You will be able to easily see the camera have
recorded video during target time.
Page 69
16-Channel Digital Video Recorder
61
Motion Search
Figure 73 — Motion Search screen.
The Motion Search… can be selected from the Search menu
while the DVR displays the camera full screen. The Motion
Search screen displays a list of motion events. Use the arrow
buttons to highlight the event for which you would like to see
video and press the
(Play/Pause) button to display the video
associated with the selected event on the small search screen.
Highlighting Close and pressing the button will extract the
video associated with the Motion event and display the first
image of the event. Pressing the
button will start playing
the “event” video segment. Pressing the
PLAY/STOP button
returns to live monitoring
.
You can also narrow your event search by selecting the Option… button and setting up the new search condition.
You can search video from the first to last recorded images, or
you can set the start and stop times and dates.
Highlight the box beside From and press the
button to toggle
between On and Off. When set to Off, you can enter a specific Date
and Time. When set to On, the search will be from the first recorded
image. When highlighting
and pressing the button the
bookmark list displays and the bookmark point you selected will
be the starting date and time.
Highlight the box beside To and press the
button to toggle between On and Off. When set to Off, you can enter a
specific Date and Time. When set to On, the search will be to the last recorded image. When highlighting
and pressing
the
button the bookmark list displays and the bookmark point you selected will be the ending date and time.
Highlight the box beside Type and press the
button. You can select between Motion Search and Museum Search.
Motion Search detects motion in the defined area. Museum Search detects if a defined object has moved.
Highlight the box beside Zone and press the
button. An image from the video appears with a grid overlaid. You
can turn sensor blocks On and Off to define the area of the picture in which you want to search for motion.
NOTE: Defining the area of the image in which you want to search for motion is nearly identical to setting up
the DVR for Motion Detection. Please refer to Motion Detection Screen in Chapter 3 — Configuration for
more detailed instructions on setting up the detection blocks.
When setting the Museum Search Zone, the zone should be placed inside of the border line of the target
object. If the selected block is placed on the border line, the sensitivity of the Museum Search may decrease.
The zone should be placed or focused on the centre or, at least, within the outline of targeted object.
Highlight the box beside Sensitivity and press the
button. You will be able to select from 1 (low sensitivity) to 5
(high sensitivity).
Highlight the box beside Min. Blocks and press the
button. You will be able to set the number of sensor blocks that
must be activated. Setting the Min Blocks will only be available if Motion Search is selected.
Once you set your desired search conditions, highlight Search and press the
button to display the search results in
the Motion Search screen. Selecting Cancel exits the screen without saving the changes.
When you search for motion events of another camera, you will be asked whether or not you want to delete the previous
search results from the list.
Page 70
Operation Instruction
62
Text-In Search
Figure 74 — Text-In Search screen.
The DVR maintains a log of each time there is Text Input.
The Text-In Search screen displays this list. Use the arrow
buttons to highlight the event for which you would like to
see video.
Pressing the (Play/Pause) button will extract the video
associated with the Text Input and display the first image of
the event. Pressing the
button will start playing the “event”
video segment. Pressing the
PLAY/STOP button returns to
live monitoring
.
NOTE:
It is possible that no recorded image displays on the current screen. Select
(Display) Screen in the
Live Monitoring menu and choose the 4x4 screen mode. You will be able to easily see the camera have
recorded video during target time.
Text Input information will be overlaid on the image while the recorded video is played at regular speed.
You can also narrow your event search by selecting the Option… button and setting up the new search condition.
You can search video from the first to last recorded images,
or you can set the start and stop times and dates.
Highlight the box beside From and press the
button to
toggle between On and Off. When set to Off, you can enter
a specific Date and Time. When set to On, the search will
be from the first recorded image. When highlighting
and
pressing the
button the bookmark list displays and the
bookmark point you selected will be the starting date and time.
Highlight the box beside To and press the
button to toggle
between On and Off. When set to Off, you can enter a specific
Date and Time. When set to On, the search will be to the last
recorded image. When highlighting
and pressing the
button the bookmark list displays and the bookmark point you
selected will be the ending date and time.
Highlight the Channel and press the
button. Select the text-in devices that you want to search for text input.
Highlight the Text Input Device box and press the
button. Select your Text Input Device from the list.
Highlighting the + and pressing the button allows you to add a new set of search parameter. Set up the desired search
parameter. Refer to the Appendix – Text-In Search Examples for further information on setting up search parameters.
The
column can be used to delete a set of search parameter or entire sets of search parameters.
Highlight Case Sensitive and press the
button. This will toggle between On and Off. When this feature is On,
the search will find only those text strings in which the case matches.
Highlight Load and press the button to load saved search option settings. Select the desired search option settings.
Highlight Save and press the button to save the current search option settings. A virtual keyboard appears that you
can use to enter the search option name.
Once you set your desired search conditions, highlight Search and press the
button to display the search results in
the Text-In Search screen. Selecting Cancel exits the screen without saving the changes.
Page 71
16-Channel Digital Video Recorder
63
Bookmarks
The Bookmarks screen can also be accessed by selecting
(Bookmark) in the Search menu when in playback mode.
Highlight + and press the (Play/Pause) button to add the current
playback point to the bookmark list. Highlight the Title box and
enter the name of the registered bookmark. Use the virtual keyboard
to enter the bookmark name.
NOTE: Up to 64 bookmarks can be registered.
Use the arrow buttons to highlight the bookmark point for which
you would like to see video. The selected bookmark will display
on the screen by pressing the
button.
Figure 75 — Bookmarks screen.
Clip-Copy
Video clips can be copied on an external USB hard disk or flash drive. The copied video clips can be viewed on computers
running Microsoft Windows 98, ME, 2000, XP, Vista or 7. Refer to the Appendix – USB Hard Disk Drive Preparation
for information on preparing the external drive for clip copy.
Selecting EZ Copy in the Search – Export menu or pressing the COPY button during playback will set the starting
point of the video to be clip copied, and the
icon displays at the bottom-left corner of the screen. Selecting EZ Copy
in the Search – Export menu or pressing the
COPY button again will set the ending point of the video to be clip copied
by displaying the Clip-Copy screen.
Pressing and holding the COPY button for more than three seconds while in the Search mode or Live Monitoring mode
initiates the One-Touch Clip Copy function. The last recorded image will be the ending point of video to be clip copied,
and the system will automatically begin to calculate the possible video data size that the selected storage media can handle.
Select Clip-Copy in the Search – Export menu, press the COPY button while in the Search mode or Live Monitoring
mode, and the Clip-Copy screen appears to allow clip copy setup.
Figure 76 — Clip-Copy screen.
You can search video from the first to last recorded images, or you can
set the start and stop times and dates.
Highlight the box beside From and press the
(Play/Pause) button to
toggle between On and Off. When set to Off, you can enter a specific Date
and Time. When set to On, the search will be from the first recorded image.
When highlighting
and pressing the button the bookmark list displays
and the bookmark point you selected will be the starting date and time.
Highlight the box beside To and press the
button to toggle between
On and Off. When set to Off, you can enter a specific Date and Time.
When set to On, the search will be to the last recorded image. When
highlighting
and pressing the button the bookmark list displays and
the bookmark point you selected will be the ending date and time.
Highlight the box beside Channels and press the
button. You can select the cameras that you would like to include
in your video clip.
Highlight the box beside Password and press the
button. A virtual keyboard appears allowing you to enter the
password for reviewing the video clips.
Highlight the box beside Dest. and press the
button. You can select the storage device on which you would like to
record the video clip.
Page 72
Operation Instruction
64
CAUTION: The USB device for clip copy must be FAT 16 or FAT32 format.
The DVR automatically assigns a file name to the video clip. However, you can give the video clip file a different name.
Highlight the box beside File Name and press the
button. A virtual keyboard appears. Enter a file name for the
video you are backing up and select Close. The DVR will automatically add the camera number (for example “01”)
and “.exe” to the file name.
NOTE: When naming a file, you cannot use the following characters: \, /, :, *, ?, “, <, >, |.
Highlight Include Text-In Data and press the button. This will toggle between On and Off. When this feature is
On, you can include text-in data when copying video if the video was recorded with text-in data.
Highlight Use Site Info and press the button. This will toggle between On and Off. When this feature is On, you
can add the site information to the file name for the video you are backing up.
NOTE: When the site information is added to the file name, some special characters (\, /, :, *, ?, “, <, >, |) in the
site information will be converted to “_”.
Once you have given the video clip a file name, highlight the Start button and press the button. The confirmation
screen displaying data size will appear. When the storage device does not have enough space, the DVR will ask if you
want to copy as much of the video clip as possible in the available space. Highlight the Continue button and press
the
button to continue clip copy.
Once the clip copy starts, you can cancel it by selecting Cancel or hide the screen by selecting Close. When selecting
Close, Clip Copy continues and a confirmation screen will display when complete.
NOTE: The file size for clip copy is limited to 30GB. When copying video clips larger than 2GB, the video clips will
be save in units of 2GB. For example, 3 individual 2GB files will be created when saving a 6GB video clip.
However, the file size for the One-Touch Clip Copy is limited to 2GB.
You can use other functions on the DVR while video is being backed up. To do this, highlight the Close button and
press the
button. You can return to the Clip-Copy screen at any time to check the progress.
You do not need to install any special software on your personal computer to review the video clips. Refer to Speco
Central Operation Instruction for instructions on how to review video clips you have copied.
NOTE: During Clip Copy, you cannot shut the system down, clear data on the storage device, or format the
storage device.
CAUTION: Do NOT disconnect the USB cable or the power from the external drive while copying
video clips. If the external drive is shut down or the USB cable is disconnected while
copying video clips, THE DVR SYSTEM MAY NOT WORK NORMALLY OR THE EXTERNAL
DRIVE COULD BE DAMAGED, and you will get an error message the next time you try
to copy video clips. You will need to power down the DVR and restart it to get rid of the
error message. Once the file system of the USB hard disk drive has been corrupted, this
error message cannot be dismissed. Even after restarting the DVR it may automatically
restart while preparing to clip copy. You must recover the file system using the recovery
program, or you must reformat the hard disk drive.
Page 73
16-Channel Digital Video Recorder
65
Appendix
USB Hard Disk Drive Preparation
Preparing the USB hard disk drive in Windows 2000
NOTE: Preparing a USB hard disk drive under Windows XP, Window Vista and Window 7 is almost identical to
Windows 2000.
1. Connect the USB hard disk drive to your computer using the USB Cable.
2. Turn on your computer.
3. The USB device icon should display on the Taskbar.
4. If the USB hard disk drive is partitioned or has data, it will show up in My Computer as a hard disk drive
icon. Check the file system by right clicking on the icon and checking under Properties > General > File
System. If the file system is NOT FAT32 format, format the USB hard disk drive using the FAT32 format.
5. If the USB hard disk drive is not partitioned, go to Administrative Tools in Control Panel and launch Computer
Management. Open Disk Management in Storage and right click an unallocated region of the USB hard disk
drive. Then, click Create Partition.
6. In the Create Partition wizard, click Next then Primary Partition, and follow the instructions on the screen.
Make sure that the FAT32 is selected for the file system.
NOTE: The partition size should be less than 32GB because of Microsoft limitations.
After formatting is complete, the USB hard disk drive will be added to My Computer.
7. Connect the USB hard disk drive to the DVR.
Preparing the USB hard disk drive in Windows 98
NOTE: Preparing a USB hard disk drive under Windows ME is almost identical to Windows 98.
1. Connect the USB hard disk drive to your computer using the USB Cable.
2. Turn on your computer. The Add New Hardware wizard window will appear.
3. Install the device driver for the USB backup device following the instructions provided with your USB hard
disk drive.
4. If the USB hard disk drive is partitioned or contains data, it will show up in My Computer as a hard disk drive
icon. Check the file system in Properties > General > File System. If the file system is NOT FAT32 format,
format the USB hard disk drive with FAT32 format.
5. Run the FDISK utility by clicking Start then RUN. Type “fdisk” and click OK.
6. When the MS-DOS command prompt appears, type “Y” and hit the enter key.
7. In the FDISK Option menu, choose “5. Change current fixed disk drive.”
8. Choose the appropriate letter corresponding to the USB hard disk drive.
9. In the FDISK Option menu, choose “1. Create DOS partition or Logical DOS Drive.”
10. In the Create DOS Partition or Logical DOS Drive menu, choose “1. Create Primary DOS Partition.” And
Type “Y” to use all available space and hit the enter key. Hit ESC to exit the screen after the USB hard disk
drive partition is created.
11. Restart your computer and verify the newly created drive is in My Computer.
12. Right click the newly created hard disk drive icon and select “Format”.
13. In the Format Screen, select “Full” as the “Format type” and click “Start”.
14. After formatting is complete, connect the USB hard disk drive to the DVR.
Page 74
Operation Instruction
66
Text-In Search Examples
Search Example I
1 2 3 4 5 6
123456789012345678901234567890123456789012345678901234567890
Item Unit price Qty amount
==================================================
Coke | $ 2.20 | 1(s) | $ 2.20
Fanta | $ 2.20 | 1(s) | $ 2.20
Hotdog | $ 3.50 | 3(s) | $ 10.50
Pepsi | $ 1.95 | 1(s) | $ 1.95
==================================================
total : $ 16.85
Thank you~~
In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored
automatically), 28
th
(Qty) and 40th (amount) characters (including spaces) from the left. In this case, you can enter “17”,
“28” and “40” in each Column box.
For example, if you want to search for Coke with a Qty (Quantity) of more than 1 and Hotdog with an amount totaling
over $8, the following search condition can be set.
Search Example II
1 2 3 4 5 6
123456789012345678901234567890123456789012345678901234567890
Item Unit price Qty amount
==================================================
Coke | $ 2.20 | 1(s)
$ 2.20
Fanta | $ 2.20 | 1(s)
$ 2.20
Hotdog | $ 3.50 | 3(s)
$ 10.50
Pepsi | $ 1.95 | 1(s)
$ 1.95
==================================================
total : $ 16.85
Thank you~~
In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored
automatically), 28
th
(Qty) and 40th (amount) characters (including spaces) from the left, but the value of amount category
is located on a different line from Item. In this case, you can enter “17”, “28” and “40” in each Column box and enter
“1” in the Line box for the next line.
Page 75
16-Channel Digital Video Recorder
67
For example, if you want to search for Coke with a Qty (Quantity) of more than 1 and Hotdog with an amount totaling
over $8, the following search condition can be set.
Speco Remote
Speco Remote allows you to access a remote DVR, monitor live video images and search recorded video using Internet
Explorer web browser anytime from virtually anywhere.
Computer system requirements for using the Speco Remote program are:
Operating System: Microsoft
®
Windows® XP x86 (32 Bit) (Service Pack 3), Microsoft® Windows® Vista x86 (32 Bit)
(Service Pack 1), Microsoft
®
Windows® 7 x86 (32 Bit)
CPU: Intel Pentium III (Celeron) 600MHz or faster
RAM: 128MB or higher
VGA: 8MB or higher (1024x768, 24bpp or higher)
Internet Explorer: Version 6.0 or later
Start Internet Explorer on your local PC. You can run the Speco Remote program by entering the following information
in the address field.
– “http://IP address:port number” (The DVR IP address and the WebGuard port number (default: 12088) set in the
Network setup screen (WebGuard tab))
– Or, “http://DVRNS server address/DVR name” (The DVRNS server address and the DVR name registered on the
DVRNS server)
NOTE: You will need to get the appropriate IP address for the DVR you want to connect to and the Speco Remote
port number from your network administrator.
Speco Remote only works with Microsoft Internet Explorer and will NOT work with other browsers.
Select between the Remote Watch (Web monitoring) and Remote Search
(Web search) modes. Entering ID and PASSWORD and clicking the
[LOGIN] button logs in using the selected mode.
NOTE: Do NOT close the LOGIN window during the Speco Remote operation, otherwise, it will cause a script
error when switching between Web monitoring and Web search modes, and you will need to restart the
Speco Remote program.
When running the updated Speco Remote for the first time, Internet Explorer might occasionally load
the information of the previous version. In this case, delete the temporary internet files by selecting
Tools Internet Options General tab, and then run Speco Remote again.
Page 76
Operation Instruction
68
NOTE: There might be a problem that the bottom of Speco Remote page is cropped due to the address or status
bars in Microsoft Internet Explorer 7.0. In this situation, it is recommended that websites open windows
without address or status bars by changing the internet setting. (Go to the Tools Internet Options
Security tab Click the Custom level… button Select Enable for the Allow websites to open windows
without address or status bars option)
When running Speco Remote in the Microsoft Windows Vista or higher operating system, it is recommended
to start Internet Explorer with elevated administrator permissions. Click the right mouse button on the
Internet Explorer icon and select the Run as administrator option from the context menu. Otherwise,
some functions of the Speco Remote might be limited to use.
There might be a problem with screen display or screen update due to low image transmission speed
when using the Microsoft Windows Vista or higher operating system. In this situation, it is recommended
that you disable the Auto Tuning capability of your computer.
Run the Command Prompt with elevated administrator permissions (Go to the Start Menu
Accessories Command Prompt Click the right mouse button and select the Run as administrator
option). Then enter “netsh int tcp set global autotuninglevel=disable” and hit the enter key. Restart
your computer to apply the changes.
If you want to enable the Auto Tuning capability again, enter “netsh int tcp set global autotuninglevel=
normal” after running the Command Prompt with elevated administrator permissions. Restart your
computer to apply the changes.
Web Monitoring Mode
Remote Watch is a remote web monitoring program that allows you to monitor live video transmitted in real-time from
the remote DVR.
① Click the
to log out the Speco Remote program.
② Click the to access to the web search mode.
③ Position the mouse pointer on the Remote Watch logo to see the version of the Speco Remote program.
④ The DVR information window displays the login information of Speco Remote.
⑤ Click the screen format to select the desired display mode. When changing the screen format, the selected camera
on the current screen will be located in the first cell of the new layout.
⑥ Click the camera button to select the camera to be viewed.
Page 77
16-Channel Digital Video Recorder
69
⑦ Click the
to adjust the brightness, contrast, saturation and hue of monitoring image.
⑧ Click the
to control pan, tilt and zoom of the camera from a remote site.
⑨ Click the to control alarm out devices at the remote site.
⑩ Click the to set up the image drawing mode and OSD display. You can adjust the display speed by changing
the image drawing mode, and select OSD information to be displayed on the screen.
⑪ Click the to save the current image as a bitmap or JPEG file format.
⑫ The event status window at the bottom displays a list of events that were detected from the remote site.
⑬ Selecting a camera on the screen and clicking the right mouse button displays the text menu screen.
Change Camera Title: Changes the camera name.
Enable Audio: Enables audio communication with the remote site. When the audio control
panel displays, click the
to send audio to the connected remote site and click the button
again to stop sending audio. Click the
to monitor live audio from the connected remote
site through the attached speaker and click the button again stop monitoring live audio.
Clicking both
and allows two-way communication. Clicking the disables audio
communication.
Aspect Ratio: Changes the image aspect ratio.
Deinterlacing: Using a deinterlace filter for interlaced video enhances image display quality
by eliminating horizontal scan lines and noise in areas with motion.
Anti-Aliasing Screen: Enhances image display quality by eliminating stair stepping
(aliasing) effects in the enlarged image.
NOTE: A camera name change in the Remote Watch mode does not affect the camera name set up on the remote
site. Leaving the Camera Title blank causes the camera name set up on the remote site to display.
The
icon will display on each camera screen when audio communication is available between the
Speco Remote system and a DVR.
Web Search Mode
Remote Search is a remote web search program that allows you to search recorded video on the remote DVR.
NOTE: The remote site connection in the Remote Search mode will automatically be disconnected if there is
no activity for 30 minutes.
Page 78
Operation Instruction
70
① Click the
to log out the Speco Remote program.
② Click the to access to the web monitoring mode.
③ Position the mouse pointer on the Remote Search logo to see the version of the Speco Remote program.
④ The DVR information window displays the time information of recorded data on the remote DVR and login information
of Speco Remote.
⑤ Click the to blur, sharpen, equalize and interpolate playback images. Click the to zoom
out or zoom in the recorded image. Click the
to adjust the brightness of the recorded images.
NOTE: Image processing works only in the pause mode.
⑥ The playback function buttons include fast backward, pause, play, fast forward, go to the first image,
go to the previous image, go to the next image, and got to the last image.
⑦ Click the screen format to select the desired display mode.
⑧ Click the to enter the time-lapse search mode which allows you to search for recorded data by
time and then play back images found within the time parameters. The Timetable window located
at the bottom displays the time information for the image of the date selected on the calendar.
If more than one video stream in the same time range, you can select the video stream you want
to search. Clicking a specific time displays the image recorded at that time on the screen. Selecting
the
allows you to display an image from a specific time.
⑨ Click the to enter the event search mode which allows you to search for event log entries using specific conditions
and play back the images associated with those event entries.
⑩ Click the to set up the image drawing mode and OSD display. You can adjust the display speed by changing
the image drawing mode, and select OSD information to be displayed on the screen.
⑪ Click the to save any video clip of recorded data as an executable file, or click the to save the current image
in a bitmap or JPEG file format. Click the
to print the current image on a printer connected to your computer.
⑫ Click the to reload the recording data.
⑬ The Timetable displays recorded data of the selected camera by time (in hour segments).
Page 79
16-Channel Digital Video Recorder
71
⑭ Selecting a camera on the screen and clicking the right mouse button displays the text menu screen.
Change Camera Title: Changes the camera name.
Enable Audio: Plays audio while playing back recorded video that has recorded audio.
(Single-Screen Layout Only)
Aspect Ratio: Changes the image aspect ratio.
Deinterlacing: Using a deinterlace filter for interlaced video enhances image display
quality by eliminating horizontal scan lines and noise in areas with motion.
Anti-Aliasing Screen: Enhances image display quality by eliminating stair stepping
(aliasing) effects in the enlarged image.
NOTE: A camera name change in the Remote Search mode does not affect the camera name set up on the remote
site. Leaving the Camera Title blank causes the camera name set up on the remote site to display.
Time Overlap
If the DVR’s time and date have been reset to a time that is earlier than the existing recorded video, it is possible for
the DVR to have more than one video stream in the same time range. In this case, you can search overlapping video
streams individually by selecting a specific segment. For example, when the DVR has recorded video from one to
five o’clock and the user changes the time backward from five to three o’clock and then continues recording until six
o’clock, there will be two video streams and segments from three to five o’clock.
You can search overlapping video streams by selecting a specific time or time range. If you want to search recorded
video at four o’clock during the overlapping time range using a search menu such as Go to the Date/Time, select the
segment you want to search.
If you want to search recorded video from four to five o’clock during the overlapping time range using a search menu
such as Event Log Search, Text-In Search or Motion Search, it is possible for the DVR to have two overlapping
start and stop times. You will be asked to select one of the overlapping start and stop times from the search time ranges
as follows:
From four o’clock of the first segment to five o’clock of the first segment
From four o’clock of the first segment to five o’clock of the second segment
From four o’clock of the second segment to five o’clock of the second segment
Page 80
Operation Instruction
72
Map of Screens
Page 81
16-Channel Digital Video Recorder
73
Troubleshooting
Problem Possible Solution
No Power
Check power cord connections.
Confirm that there is power at the outlet.
No Live Video
Check camera video cable and connections.
Check monitor video cable and connections.
Confirm that the camera has power.
Check camera lens settings.
DVR has stopped recording
If hard disk drive is full, you will either need to delete video or set the DVR to the
Overwrite Mode.
The icon displays,
however, the DVR is not
recording.
When the DVR is in the Pre-Event recording mode, the yellow
and display when
there is no event, and the DVR is not recording. The red
and display when any
event occurs and the DVR starts recording.
While upgrading the system,
the DVR keeps rebooting and
the upgrade fails.
If the current system version is higher than the upgrade package file version, you
should reset the DVR first using the Factory Reset. When using the Factory Reset,
you will lose any settings you have saved.
System Log Notices
Boot Up Panic Off
Shutdown Clear All Data
Restart Clear Disk
Upgrade Format Disk
Upgrade Fail Disk Full
Power Failure Disk Config Change
Time Change Disk ‘No’: ‘serial number’
Time Zone Change Disk ‘No’: Removed
Time Sync Auto Deletion
Time Sync Fail Search Begin
Disk Bad Search End
Login Clip-Copy Begin
Logout Clip-Copy End
Setup Begin Clip-Copy Cancel
Setup End Clip-Copy Fail
Remote Setup Change Clip-Copy User:
Remote Setup Fail Clip-Copy From:
Setup Imported Clip-Copy To:
Setup Import Failure Clip-Copy Duration of Video:
Setup Exported Clip-Copy Camera:
Setup Export Failure Callback Fail
Setup Export Cancel Import Digital Deterrent file complete
Schedule On Import Digital Deterrent file error
Schedule Off Export Digital Deterrent file complete
Panic On Export Digital Deterrent file error
Page 82
Operation Instruction
74
Error Code Notices
System Upgrade Related Clip Copy Related
No. Description No. Description
0
Unknown error.
0
Unknown error.
1
File version error.
1
Device error.
2
Operating system version error.
2
Mounting failed.
3
Software version error.
3
No media.
4
Kernel version error.
4
Invalid media.
100
Upgrade device mounting failed.
5
File already existed.
101
Package is not found.
6
Not enough space.
102
Extracting package failed.
7
Creating temporary file failed.
103
LILO failed.
8
Opening disk failed.
104
Rebooting failed.
9
Formatting disk failed.
105
Invalid package.
10
Database has been changed.
300
Remote connection failed.
11
Appending failed.
301
Remote network error.
12
Bad sector.
302
Remote upgrade is not authorized.
13
No executable file.
303
Saving remote package failed.
14
Opening executable file failed.
304
Remote upgrade is cancelled by the user.
15
Writing executable file failed.
400
USB device mounting failed.
16
Creating image failed.
401
Reading upgrade package on the USB device
failed.
19
Connecting device failed.
402
Copying upgrade package on the USB device
failed.
20
Device is busy.
403
USB device is not connected.
21
Unsupported file system.
404
USB device is being used.
405
Unsupported file system.
500
System is busy clip copying.
Specifications
VIDEO
Signal Format NTSC or PAL (Auto Detect)
Video Input Composite: 16 inputs, 1 Vp-p, auto-terminating, 75 Ohms
Monitor Outputs
Composite: 1 BNC, 1 Vp-p, 75 Ohms
VGA: 1
Video Resolution
Composite: 720x480 (NTSC), 720x576 (PAL)
VGA: 800x600, 1024x768, 1280x1024 @ 60Hz
Record Speed
(images per second)
Real-time: 480ips (NTSC), 400ips (PAL) @ CIF
Playback Speed
(images per second)
Full Duplex: 480ips (NTSC), 400ips (PAL) @ CIF
Page 83
16-Channel Digital Video Recorder
V1.0
75
INPUTS/OUTPUTS
Alarm Input 16 terminal, programmable as NC or NO, 2.4V (NC) or 0.3V (NO) threshold, 5VDC
Alarm Output 1 relay output, 2A@125VAC, 1A@30VDC (NO)
Internal Buzzer 80dB at 10cm
Network Connectivity 10/100 Mbps Ethernet (RJ-45)
Audio Input RCA Input: 4 Line In
Audio Output RCA Output: 1, Line Out
Text Input POS Interface, ATM Interface
CONNECTORS
Video Input Composite: 16 BNC
Monitor Output
Composite: 1 BNC
VGA: 1 VGA
Audio In 4 RCA connector
Audio Out 1 RCA connector
Alarm Input/Output Terminal Blocks
Ethernet Port RJ-45
RS232 Serial Port Two-connector terminal block
RS485 Serial Port Two-connector terminal block
IR Port 1 Remote Control
USB Port 2 (USB 2.0)
STORAGE
Primary Storage SATA hard disk drive
Secondary Storage USB hard disk drive or flash drive
GENERAL
Dimensions (W x H x D) 11.8" x 2.4" x 9.1" (300mm x 62mm x 232mm)
Unit Weight 5.5 lbs. (2.5kg)
Shipping Weight 8.5 lbs. (3.85kg)
Shipping Dimensions
(W x H x D)
14.2" x 4.4" x 15.4" (360mm x 113mm x 390mm)
Operating Temperature 41°F to 104°F (5°C to 40°C)
Operating Humidity 0% to 90%
Power 12V , 1.9A (Adaptor: 100-240V~, 50/60Hz, 1.5A, 12V , 5A)
Power Consumption Max. 25W
Approvals FCC, CE
Specifications are subject to change without notice.
