Speco N8, 16NS, N4, 16WNS, 16NSP User Manual

...

User Guide (Ver. 1.1)

Models: Desktop - N4/8/16NS, N4/8/16NSP

Wall Mount - N4/8/16WNS, N4/8/16WNSP

4/8/16 Channel Network Video Recorder

About This User’s Guide

Before operating the unit, please read this user‟s guide thoroughly and retain it for future reference.

Cautions

Explanation of Graphical Symbols

WARNING

To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.

CAUTION

Changes or modifications not approved by the manufacture will void the warranty of the product. Using an incompatible battery may increase the risk of fire or explosion. Replace only with the same or equivalent type battery recommended by the manufacture. Discard used batteries according to manufacturer‟s instructions.

This symbol indicates the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the product.

This symbol indicates the presence of “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a risk of electric

shock, property damage, personal injury, or death.

These precautions must be followed for safety reasons

Warning

 Do not use if the unit emits smoke.  Do not disassemble the unit.  Do not place any heavy or sharp objects on the unit.  Do not place on uneven surface.  Do not expose to shock or vibration.  Do not move the unit when the unit is powered on.  Do not block, and allow dust to accumulate in the air vents.  Do not restrict airflow of the unit; doing so can damage the unit.  Only qualified and experienced personnel should perform installation and

servicing.

 Turn off the power of the NS when connecting Cameras, Audio or Sensor

Cables.

 The manufacturer is not responsible for any damage caused by improper use

of the product or failure to follow instructions for the product.

 The manufacturer is not responsible for any problems caused by or resulting

from the user physically opening the NS for examination or attempting to repair the unit.

 For NSP models with the PoE Switch, it is strongly recommended that the 48V

connector is inserted to the PoE Switch before the AC cable is attached to the adaptor.

Product Components

Please make sure the following components are included as specified below.

Desktop: N4NS / N8NS / N16NS N4NSP / N8NSP / N16NSP

Wall Mount: N4WNS/ N8WNS / N16WNS N4WNSP / N8WNSP / N16WNSP

Remote Control

Battery 1.5V (AAA x 2 EA)

Quick Setup Guide & User Guide

Mouse for NS

Software & Manual CD Rack mount (x 2EA) &

Screws (x 6EA)

Power Adaptor (DC12V 5A for NS) & Power cable (110V or 220V)

Power Adaptor (DC48V 2A for POE) & Power cable (110V or 220V)

Audio Cable for NS

Specifications

MODEL

N4NS

N8NS

N16NS

N4NSP

N8NSP

N16NSP

Video

Input

IP Cameras

Max Bit Rate

20Mbps

40Mbps

20Mbps

40Mbps

Resolution

Max. 1920x1080

Output

Main Monitor

VGA and HDMI

Sub Monitor

CVBS (BNC)

Audio

Input

IP Cam Audio

16 4 8

RCA Input

16 4 8

Output

RCA Output 1 Audio Codec

G.711

Event

Sensor In

IP Cam Sensor

16 4 8

Local Input

4 (Terminal Block)

Local Alarm Output (Terminal Block)

IP Camera Motion Detection

Yes

Serial

RS-232C

Yes

RS-485

Yes

Network

Private (IP Camera, Auto Connection)

10/100 Base-T

10/100/1000 Base-T

4 Port PoE

8 Port PoE

LAN (Remote Access, IP Camera)

10/100 Base-T

10/100/1000 Base-T

10/100 Base-T

10/100/1000 Base-T

Protocols

TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP, ONVIF

Recording

Compression

H.264 (Baseline, Main, High Profile)

Resolution & Frame

Rate

120fps

240fps

480fps

120fps

240fps

480fps

1280x720

120fps

240fps

400fps

120fps

240fps

400fps

1920x1080

100fps

192fps

100fps

192fps

Recording Mode

Continuous / Motion / Sensor / Schedule / Manual

Pre Recording

Max. 20 Minutes

Post Recording

Max. 60 Seconds

Playback

Quick Search, Date/Time, Event, Archive, Log

Multi-Decoding

1, 4

1, 4, 8

1, 4, 8, 16

1, 4

1, 4, 8

1, 4, 8, 16

Playback Speed

x0.25, x0.5, x2, x4, x8, x16, x32, x64

Backup

Media

USB drive, External HDD, Network, DVD-R (via USB)

File Format

BMP, AVI, Proprietary Format

Large Backup

Yes (Max. 24 hours)

Storage

HDD

1 HDD Max Size

3TB

Internal HDDs 3 2

e-SATA

USB

Front 2 Rear

User I/F

Input Method

Front Buttons, IR, Mouse, Keyboard Controller

Features

Dynamic DNS

Yes (Free DDNS)

Digital Zoom

Yes

DLS (Day Light Savings)

Yes

NTP (Network Time Protocol)

Yes

S.M.A.R.T.

Yes

Internal Beep

Yes

Multi-Language

Yes

e-mail Notification

Yes

Network

Access

3G Mobile

iPad / iPhone / Android

Web Viewer

Windows (IE, Chrome, Firefox, Safari), MAC(TBD)

PC Client

Single / Multi Client and CMS (64 channels)

Remote Setup and Upgrade

Yes

Power

Power Supply Voltage

DC12V 5A

DC12V 5A & DC48V 2A

Temperature

Operating Temperature

41°F ~ 104°F (5°C ~ 40°C)

Storage Temperature

14°F ~ 122°F (-10°C ~ 50°C)

Weight

Desktop Unit Weight (Gross weight)

Approximately 11 lbs

Approximately 12 lbs

Wall Mount (Gross weight)

Approximately 16 lbs

Approximately 17 lbs

Dimension

Unit Dimension (W x D x H)

15”W x 13.4”D x 2.8”H (380mm x 340mm x 72mm)

Wall Mount (W x D x H)

13.5” x 3.5” x 17”

Please note that specifications and unit exterior design are subject to change without notification.

Table of Contents

1. Main Features ............................................................................................................................. 10

2. Initial Boot-up Process .................................................................................................................. 11

2-1. Initial Boot up and Basic Time Setup ..................................................................................... 11

2-2. Setting up Daylight Savings Time .......................................................................................... 11

2-3. Setting NTP (Network Time Protocol) .................................................................................... 12

2-4. EZ SETUP ............................................................................................................................ 15

2-5. PoE Port SETUP ................................................................................................................... 18

2-6. Non PoE Port SETUP ........................................................................................................... 20

2-7. IP Camera SETUP (through Web Viewer page) .................................................................... 21

2-8. Dual Streaming ..................................................................................................................... 21

3. Front and Rear Panels ................................................................................................................ 22

3-1. Desktop Front Panel ............................................................................................................. 22

3-2. Connectors ........................................................................................................................... 23

3-3. Remote Control ..................................................................................................................... 24

4. Setting up the NS ........................................................................................................................ 25

4-0. Setup – Main Live Screen ..................................................................................................... 25

4-1. Setup – IP CAMERA ............................................................................................................. 26

4-1-1. SCAN Menu ................................................................................................................. 28

4-1-2. ONVIF .......................................................................................................................... 28

4-2. Setup – SYSTEM .................................................................................................................. 31

4-3. Setup – RECORD Mode ....................................................................................................... 34

4-3-1. Recording Schedules ................................................................................................... 36

4-4. Setup – DEVICE Mode ......................................................................................................... 37

4-4-1. Alarm-Out ..................................................................................................................... 38

4-4-2. Digital Deterrent ........................................................................................................... 39

4-5. Setup – DISPLAY Mode ........................................................................................................ 40

4-6. Setup – NETWORK Mode ..................................................................................................... 41

4-6-1. Network Types ............................................................................................................. 42

4-6-2. DDNS ........................................................................................................................... 42

4-6-3. Network Port and Web Port .......................................................................................... 43

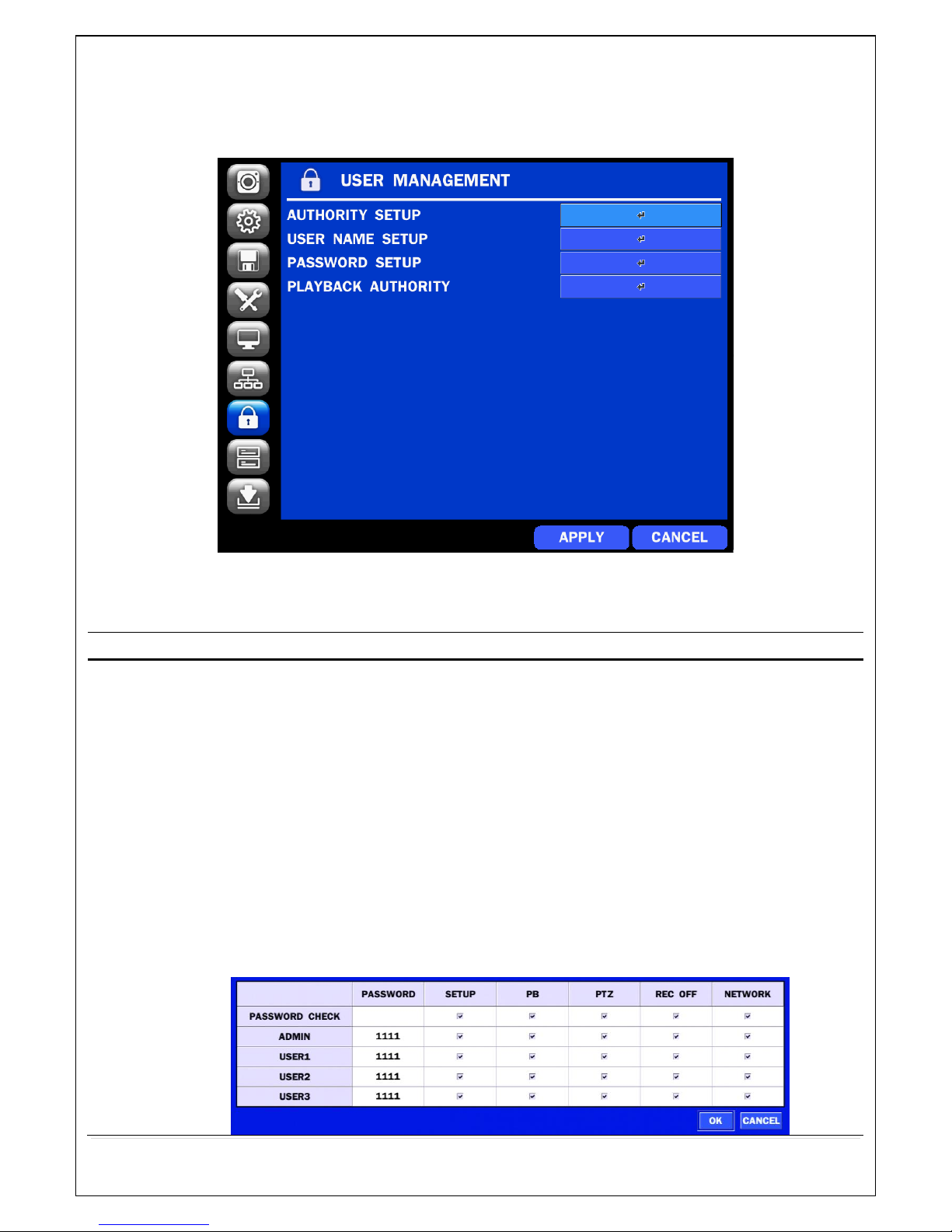

4-7. Setup – USER MANAGEMENT Mode ................................................................................... 44

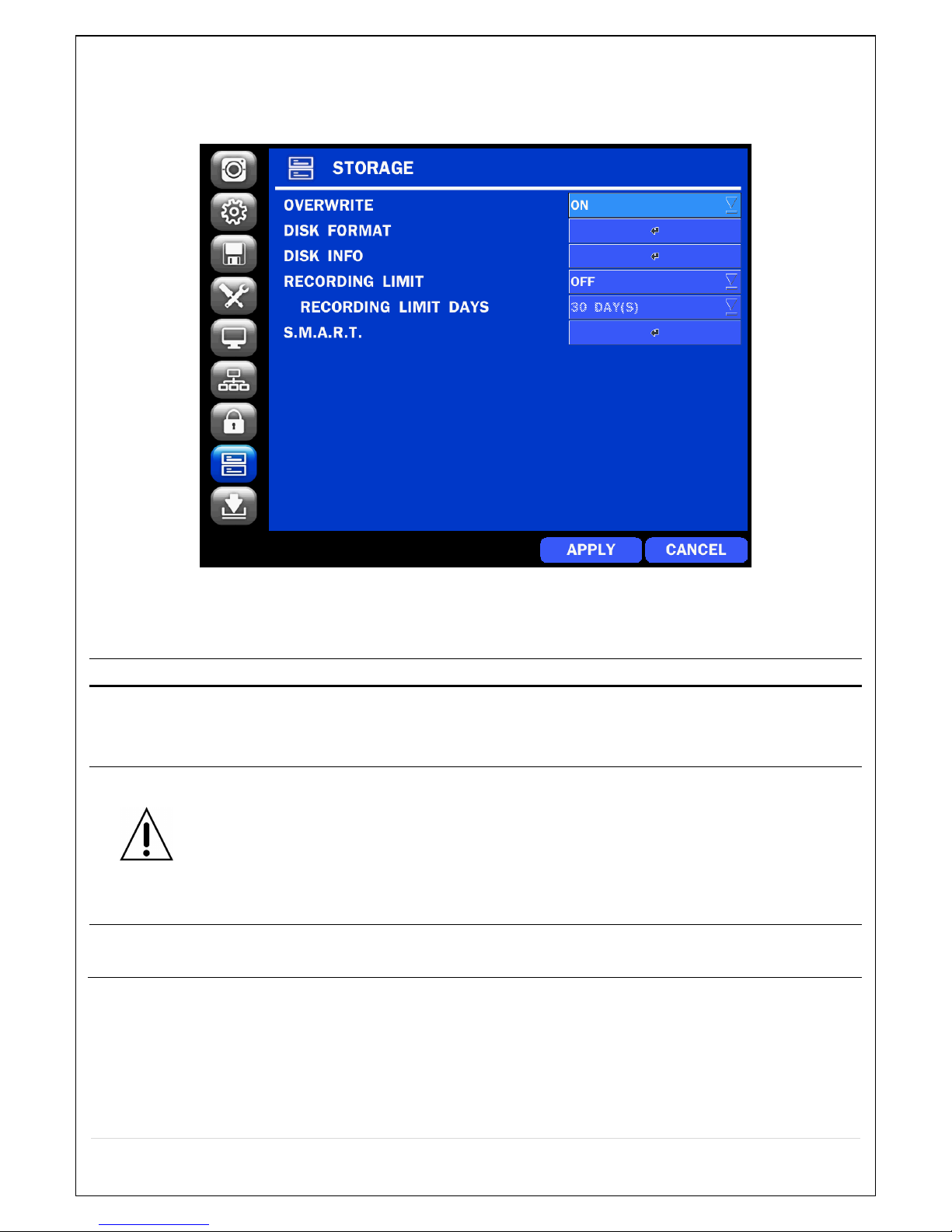

4-8. Setup – STORAGE Mode ..................................................................................................... 46

4-9. Setup - CONFIG Mode .......................................................................................................... 48

4-9-1. Firmware Upgrade ....................................................................................................... 49

5. Live, Search and Playback .......................................................................................................... 50

5-1. Live View .............................................................................................................................. 50

5-1-1. PTZ Control .................................................................................................................. 54

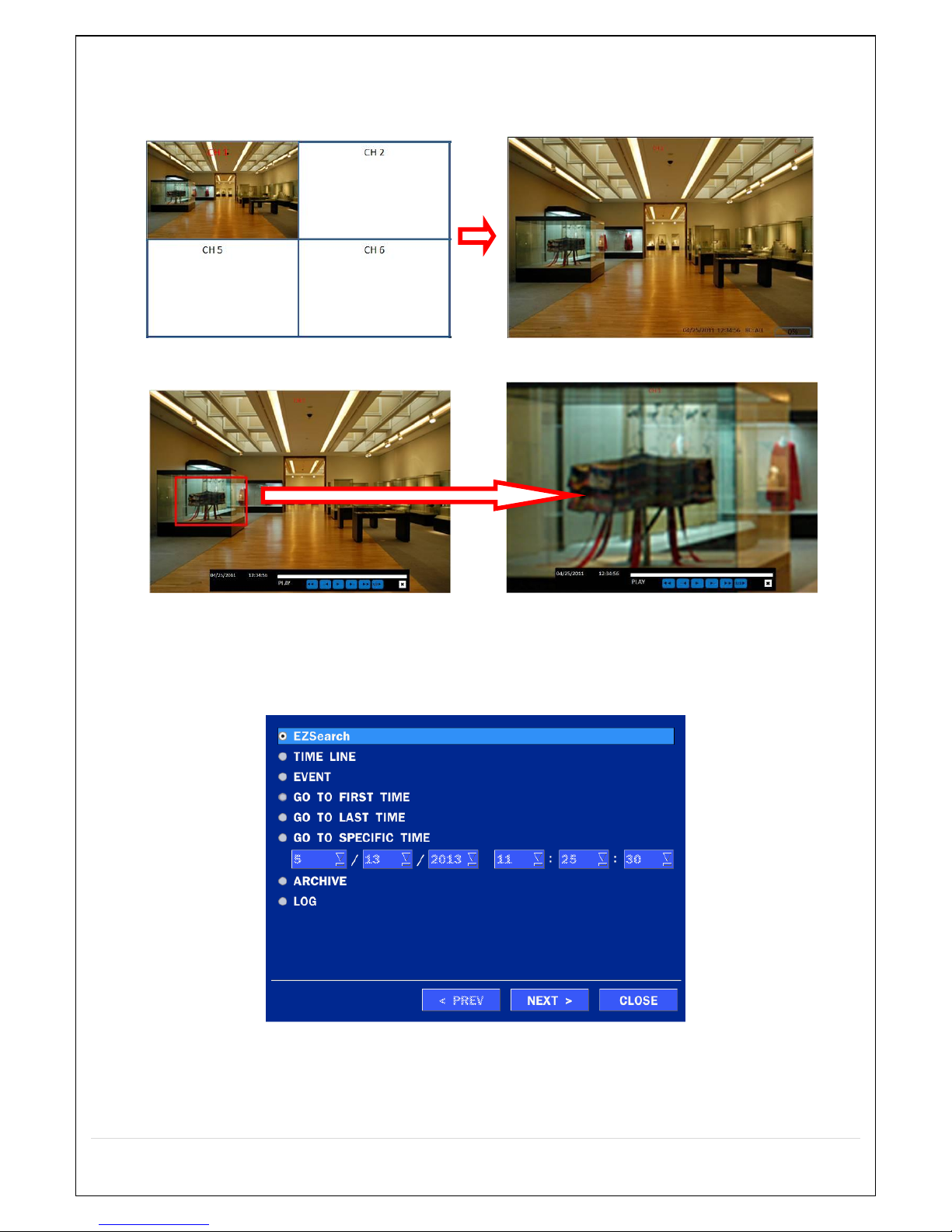

5-2. Digital Zoom in Live and Playback Screen ............................................................................ 55

5-3. SEARCH Screen ................................................................................................................... 55

5-3-1. EZSearch ..................................................................................................................... 56

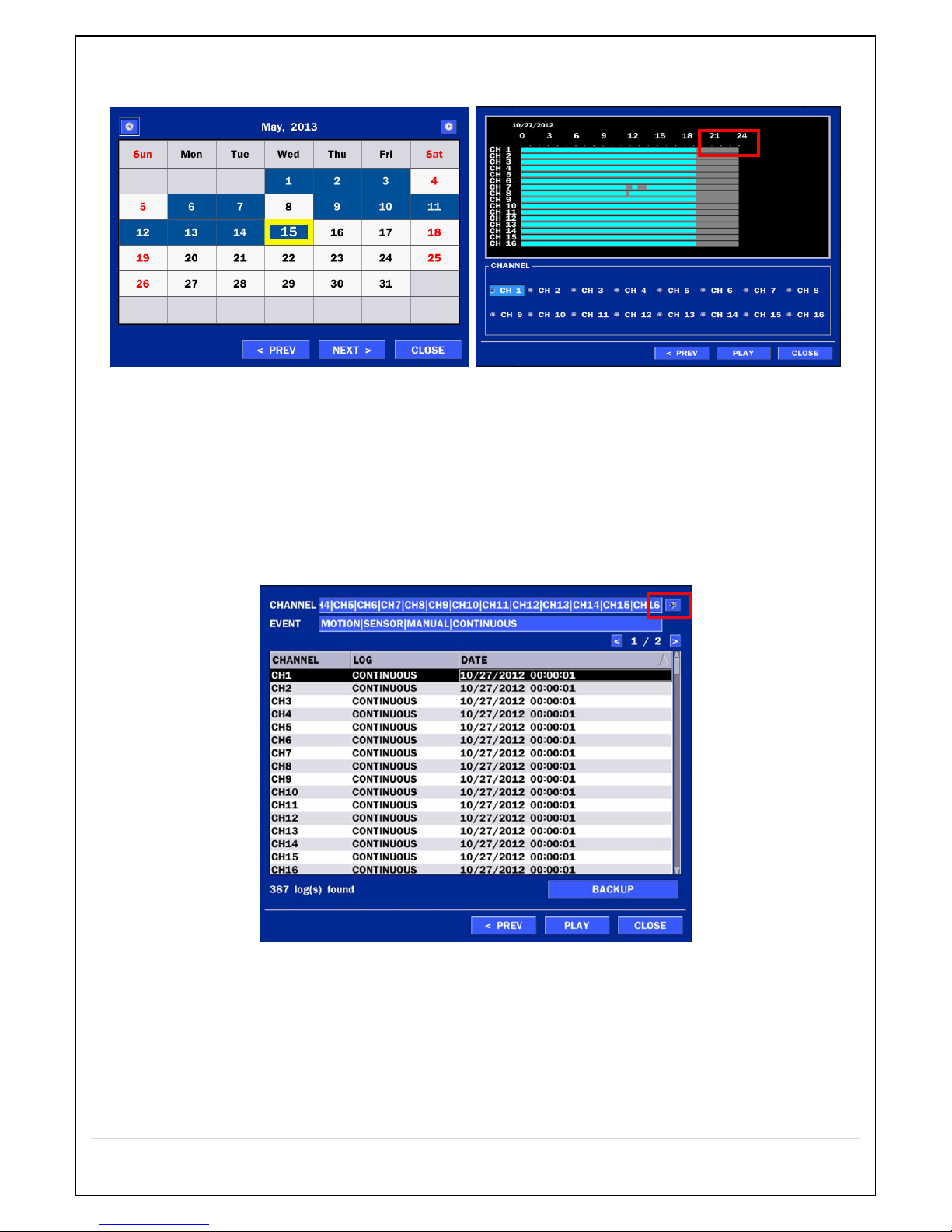

5-3-2. Time Line Search ......................................................................................................... 57

5-3-3. Event Search ............................................................................................................... 57

5-3-4. Go To First Time ........................................................................................................... 58

5-3-5. Go To Last Time ........................................................................................................... 58

5-3-6. Go To Specific Time ..................................................................................................... 58

5-3-7. Archive List ................................................................................................................... 58

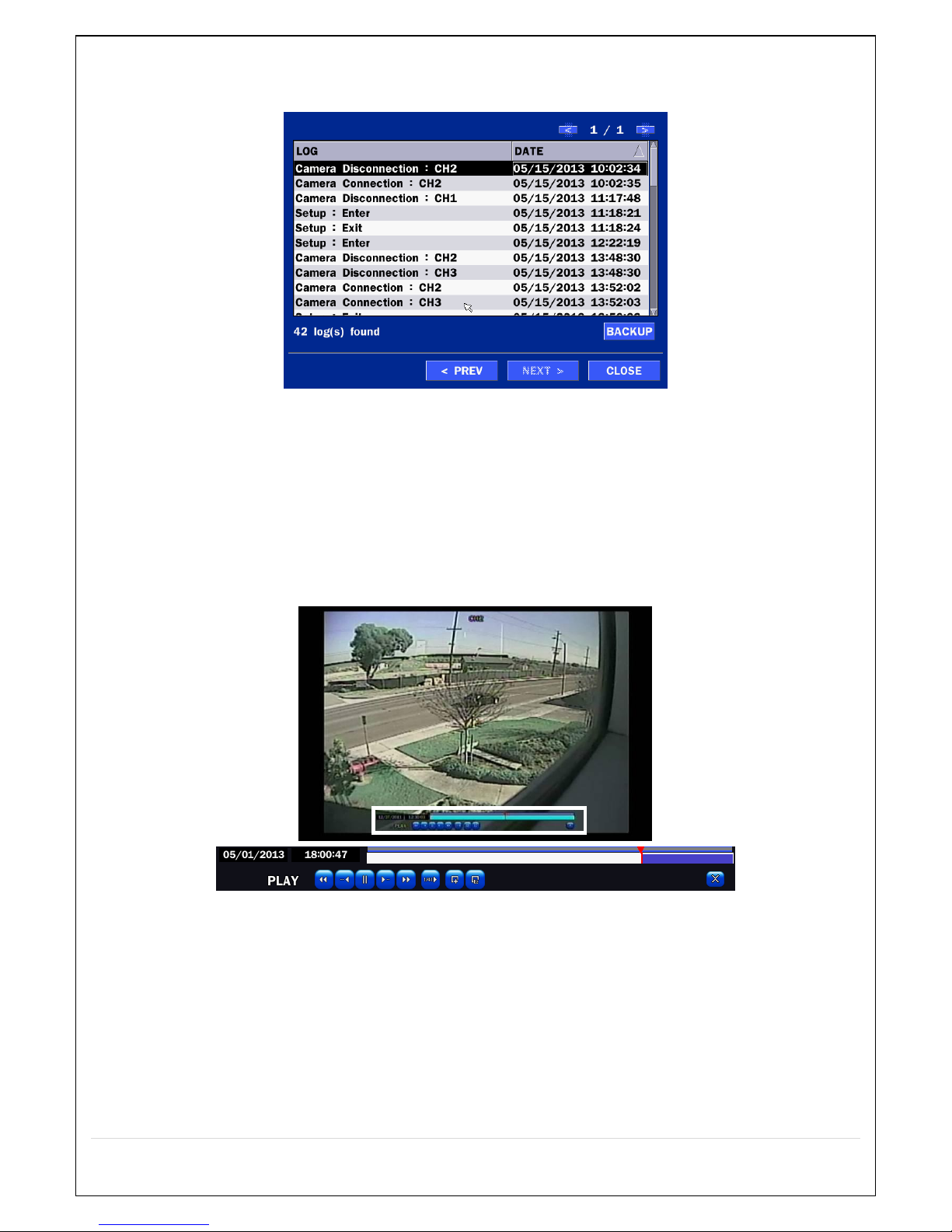

5-3-8. Log List ........................................................................................................................ 59

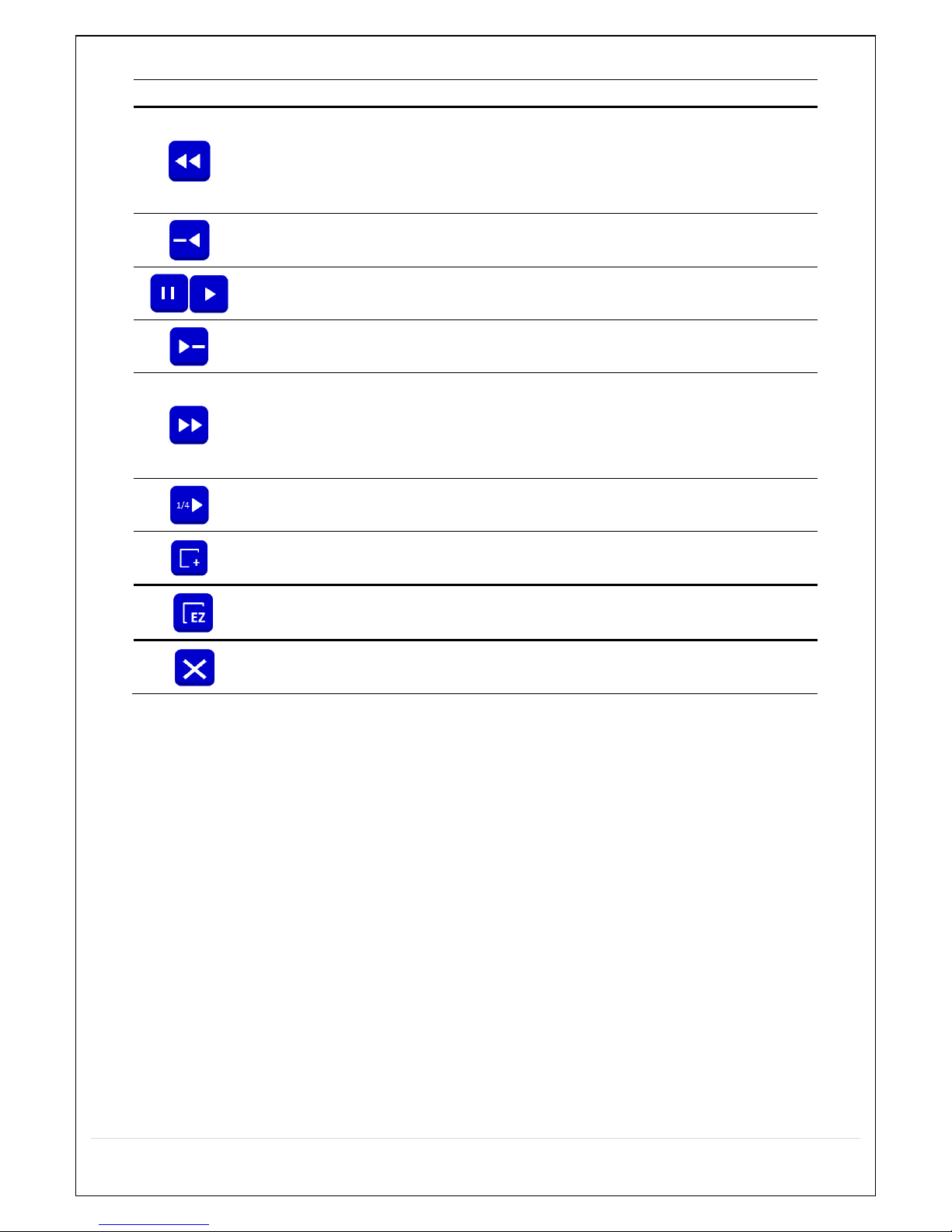

5-4. Play Mode ............................................................................................................................. 59

6. Back Up ........................................................................................................................................... 61

6-1. Video Backup onto USB Flash Drive during playback ........................................................... 61

6-2. EZCopy: Video Backup onto USB Flash Drive during playback............................................. 62

6-3. Transferring Still Images or Video from the ARCHIVE List ..................................................... 63

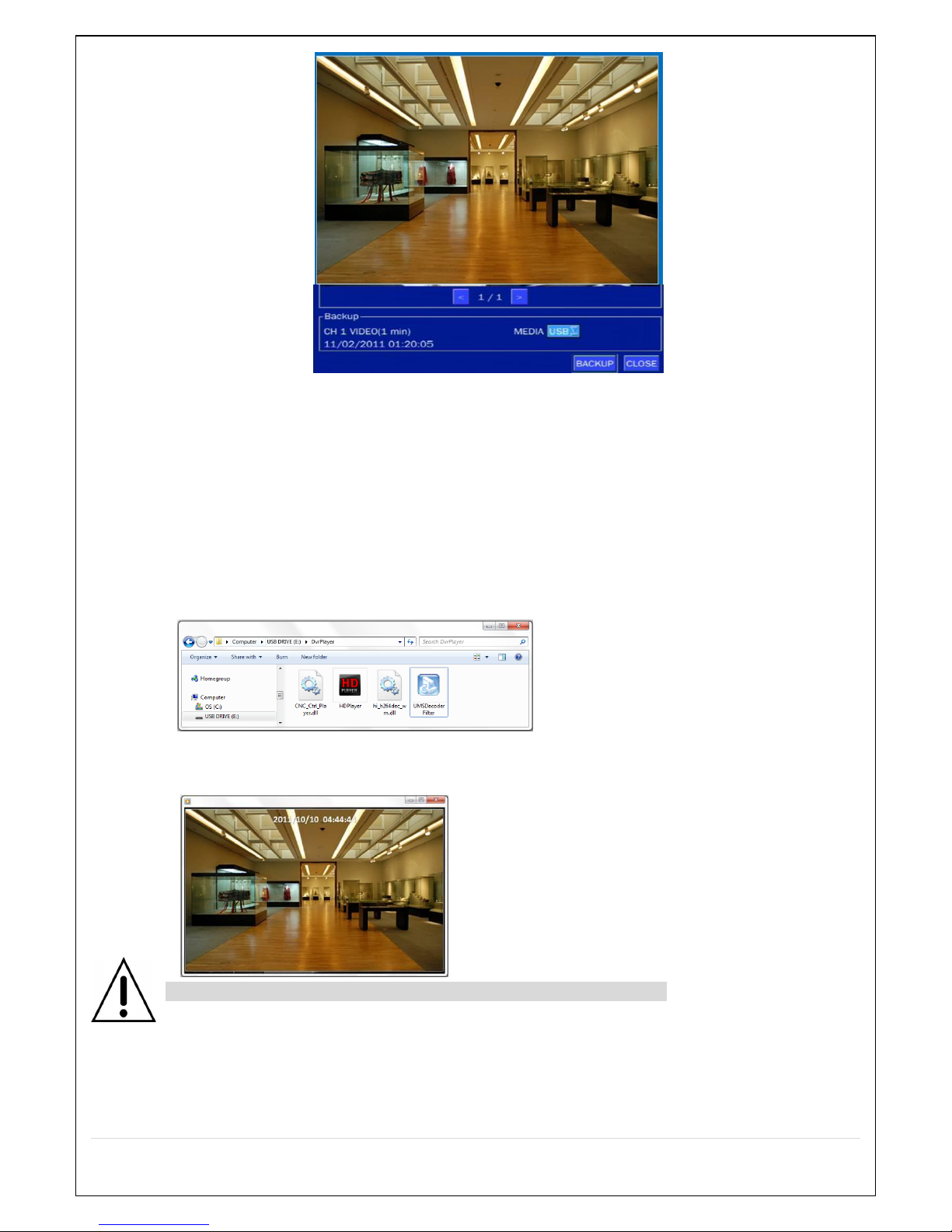

6-4. Playback of Backup Video ..................................................................................................... 64

6-5-1. AVI Format ................................................................................................................... 64

6-5-2. NSF Format ................................................................................................................. 65

7. Network Access Using the Multi-Sites Network Viewer .................................................................... 66

7-1. Overview ............................................................................................................................... 66

7-2. PC Requirements .................................................................................................................. 66

7-3. Installation of the Program .................................................................................................... 67

7-4. Live Window.......................................................................................................................... 68

7-4-1. Main User Interface ...................................................................................................... 68

7-4-2. Control Buttons ............................................................................................................ 68

7-5. Search and Playback Window ............................................................................................... 69

7-5-1. Main User Interface ...................................................................................................... 69

7-5-2. Main Control Panel ....................................................................................................... 70

7-6. Setup of SpecoTech Multi Client ............................................................................................ 71

7-6-1. General ........................................................................................................................ 71

7-6-2. Event ................................................................................................ ............................ 72

7-6-3. Record ......................................................................................................................... 73

7-6-4. Display ......................................................................................................................... 74

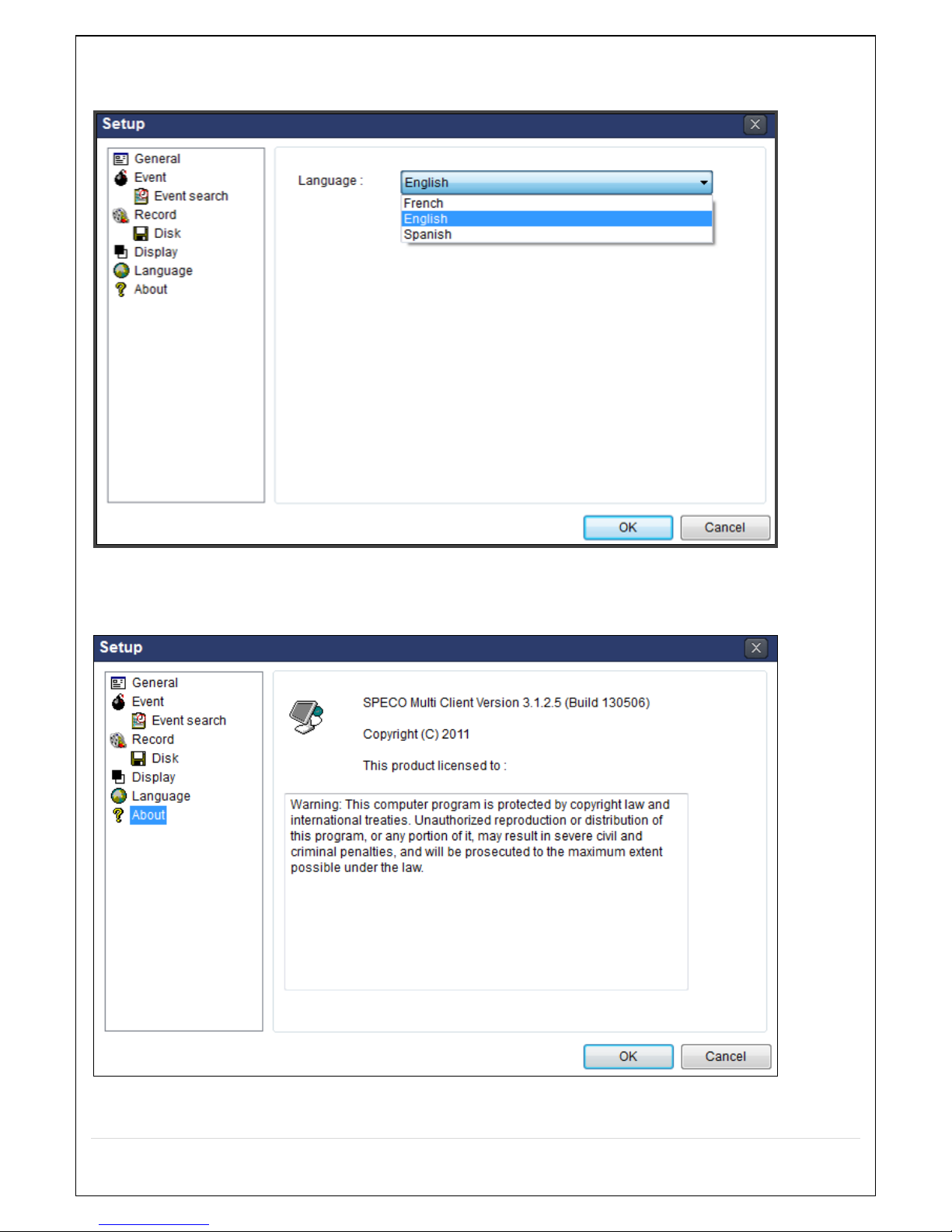

7-6-5. Language ..................................................................................................................... 75

7-6-6. About ............................................................................................................................ 75

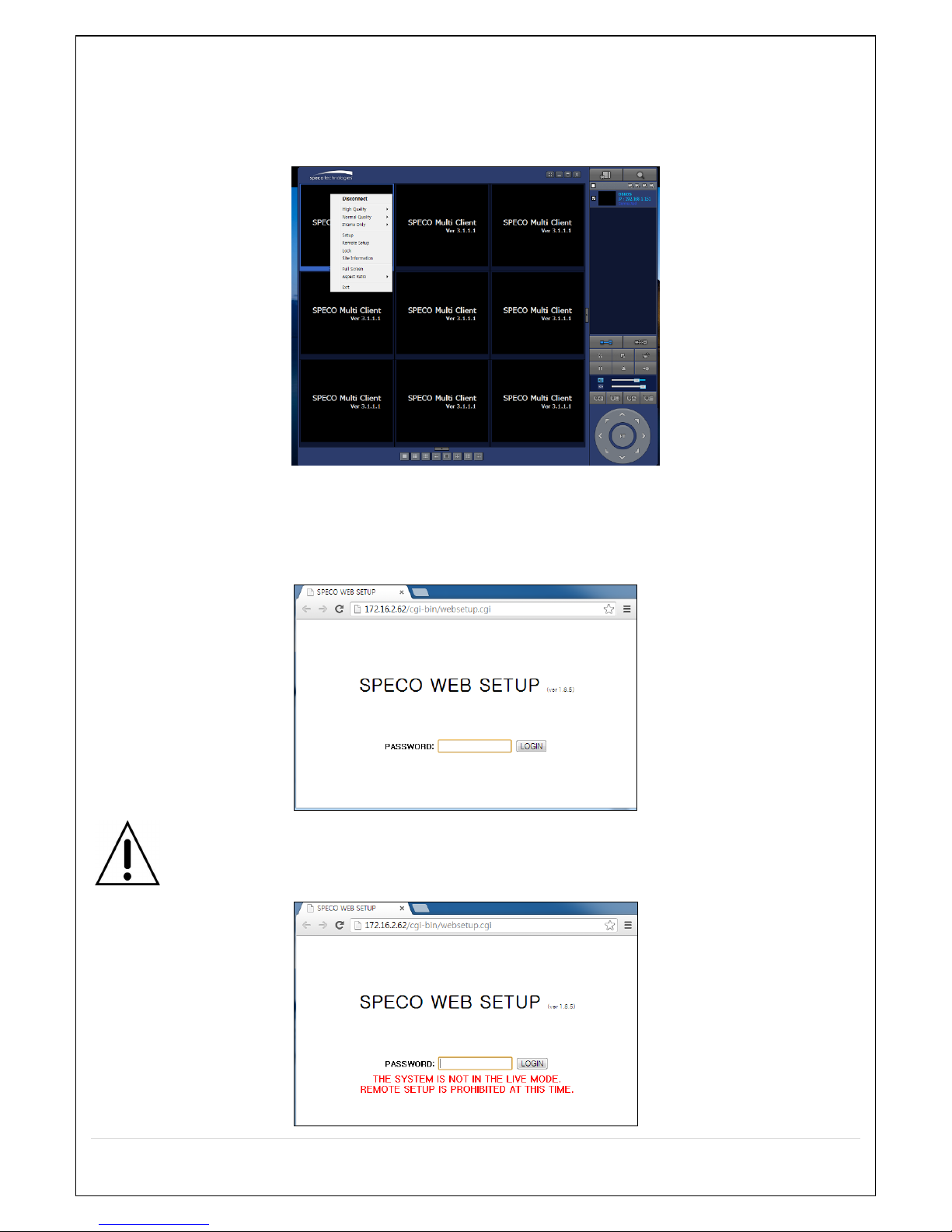

7-7. Remote Setup ....................................................................................................................... 76

7-7-1. IP Camera .................................................................................................................... 77

7-7-2. System ......................................................................................................................... 77

7-7-3. Record ......................................................................................................................... 78

7-7-4. Device .......................................................................................................................... 79

7-7-5. Display ......................................................................................................................... 80

7-7-6. Network ........................................................................................................................ 80

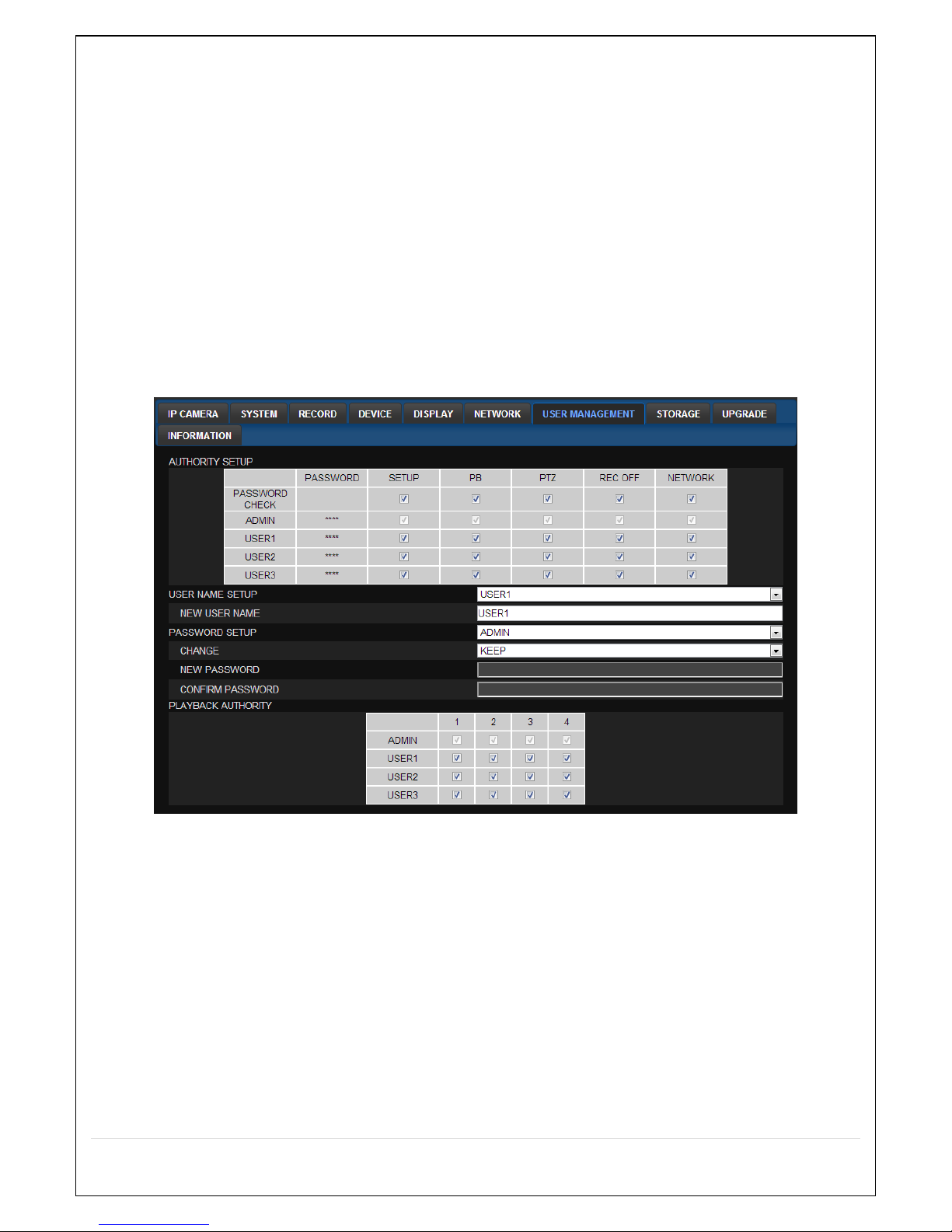

7-7-7. User Management ........................................................................................................ 81

7-7-8. Storage ........................................................................................................................ 82

7-7-9. Remote Upgrade .......................................................................................................... 82

7-7-10. Information ................................................................................................................. 82

7-8. Operation ................................................................................................ .............................. 83

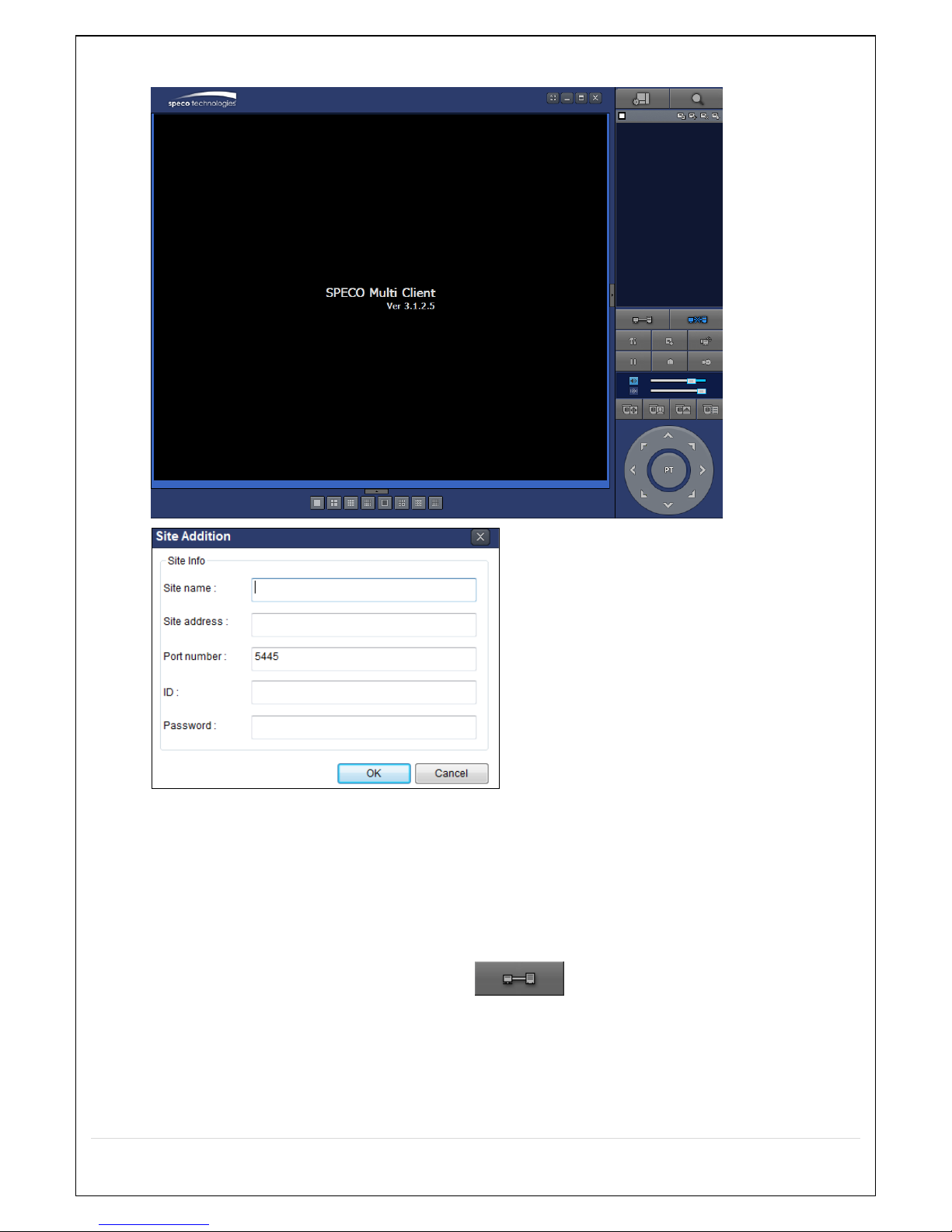

7-8-1. Addition, Delete, and Modify of NS Sites ...................................................................... 83

7-8-2. Connect and Disconnect .............................................................................................. 85

7-8-3. Still-image Capture During Live .................................................................................... 86

7-8-4. Recording Video on Local PC During Live .................................................................... 86

7-8-5. Local Playback and Remote Playback ......................................................................... 88

7-8-6. AVI Backup during Playback ......................................................................................... 90

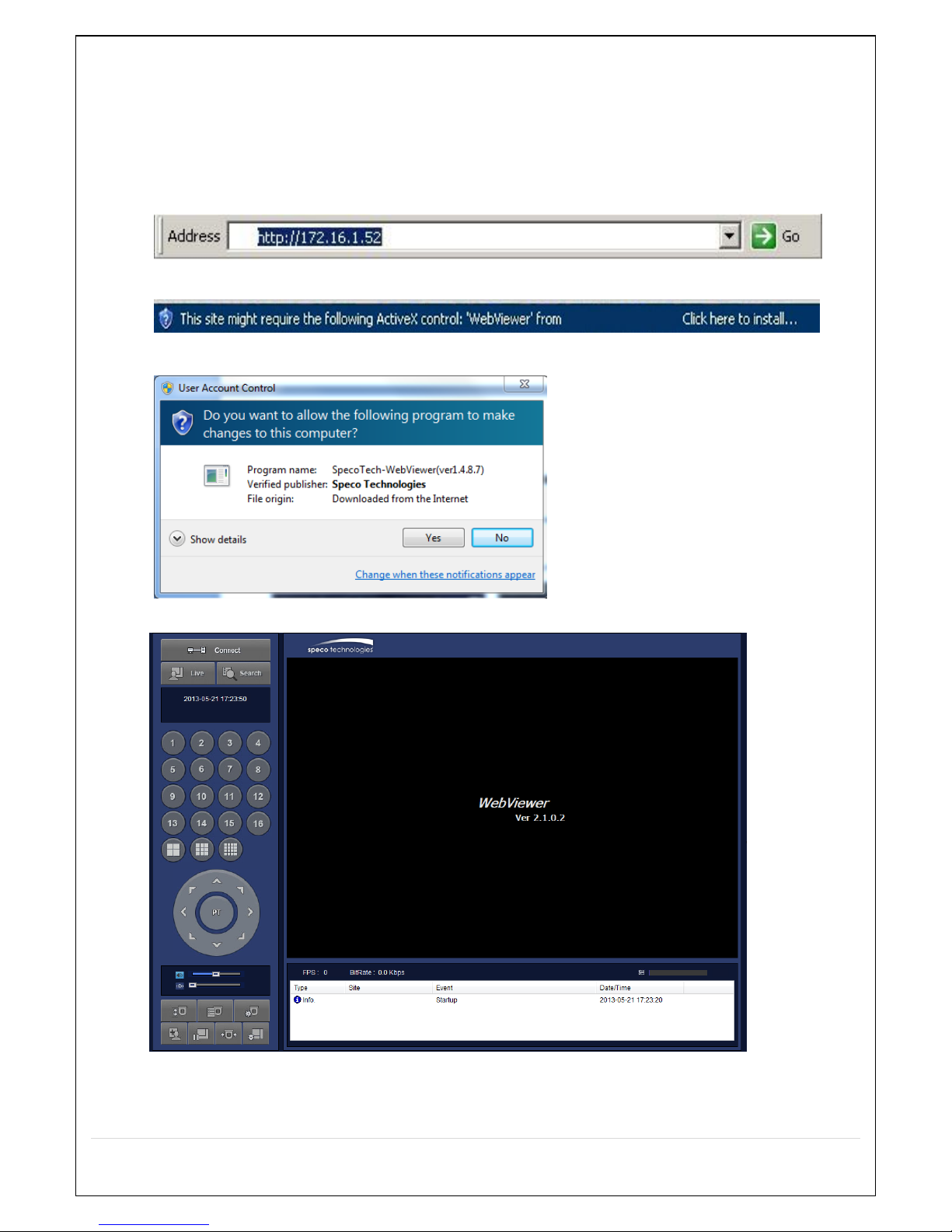

8. Network Access Using the Web-Browser Viewer .............................................................................. 92

9. Network Access Using the Smart Phone Viewer .............................................................................. 94

9-1. App Viewer for iPhone ................................................................ ........................................... 94

9-1-1. Live .............................................................................................................................. 94

9-1-2.PTZ Control ................................................................................................................... 96

9-1-3. Playback ...................................................................................................................... 96

9-2. App Viewer for Android Phone............................................................................................... 97

9-2-1. Live .............................................................................................................................. 97

9-2-2. Playback ...................................................................................................................... 98

9-2-3. PTZ Control .................................................................................................................. 99

APPENDIX: Network Connection - LAN ............................................................................................... 99

APPENDIX: Network Connection – Internet and DDNS ..................................................................... 102

APPENDIX: E-SATA CONNECTION .................................................................................................. 105

1. Main Features

 Automatic IP Camera Detection and connection (Plug & Play)  Easy Record, Copy and Setup  Easy Search by Thumbnail Preview  Easy Copy  Easy Network  Easy IP Camera Setup

 Individual Channel Operation

 Covert camera operation provides enhanced security and administrator control  Dynamically programmable recording priority, motion detection, alarms and scheduling  Simple and Easy Graphic User Interface  Simple Scheduler  HDMI Output  VGA Output  Password to secure installation authorization  Network software supports 10/100Mbps  USB 2.0 port for video clip exporting and easy firmware upgrade via USB Flash Drive

NOTE: Under federal law, The Fourth Amendment to the U.S. Constitution, Title III of the Omnibus Crime

Control and Safe Streets Act of 1968, as amended by the Electronic Communications Privacy Act of 1986 (18 U.S.C. § 2510, et seq.), and the Foreign Intelligence Surveillance Act of 1978 (50 U.S.C. 1801, et seq.) permit government agents, acting with the consent of a party to a communication, to engage in warrantless interceptions of telephone communications, as well as oral and electronic communications.

2. Initial Boot-up Process

2-1. Initial Boot up and Basic Time Setup

1. During the first boot up, the following logo will be displayed.

2. After the logo, select the language and set date and time as specified below.

2-2. Setting up Daylight Savings Time

To enable Daylight Saving feature/NTP synchronization, take the following steps.

1. Enter the SETUP mode. The default Username is “ADMIN” and Password is “1111”.

2. Go to SETUP > SYSTEM > DATE & TIME SETUP

3. Select ON from the DAYLIGHT SAVING dropdown menu.

2-3. Setting NTP (Network Time Protocol)

1. SETUP > SYSTEM > NTP SETUP > ON

2. Select the proper TIME ZONE time.

Table2.3.1. GMT Time Zone

State

Standard Time

Daylight-Saving Time

Alabama

GMT-6

GMT-5

Alaska

GMT-9

GMT-8

Alaska (Aleutian Islands)

GMT-10

Arizona

GMT-7

Arizona (Navajo)

GMT-7

GMT-6

Arkansas

GMT-6

GMT-5

California

GMT-8

GMT-7

Colorado

GMT-7

GMT-6

Connecticut

GMT-5

GMT-4

District of Columbia

GMT-5

GMT-4

Delaware

GMT-5

GMT-4

Florida

GMT-5

GMT-4

Florida (W)

GMT-6

GMT-5

Georgia

GMT-5

GMT-4

Hawaii

GMT-10

Idaho (N)

GMT-8

GMT-7

Idaho (S)

GMT-7

GMT-6

Illinois

GMT-6

GMT-5

Indiana

GMT-5

GMT-4

Indiana (SW / NW)

GMT-6

GMT-5

Iowa

GMT-6

GMT-5

Kansas

GMT-6

GMT-5

Kansas (W)

GMT-7

GMT-6

Kentucky (E)

GMT-5

GMT-4

Kentucky (W)

GMT-6

GMT-5

Louisiana

GMT-6

GMT-5

Maine

GMT-5

GMT-4

Maryland

GMT-5

GMT-4

Massachusetts

GMT-5

GMT-4

Michigan

GMT-5

GMT-4

Michigan (W)

GMT-6

GMT-5

Minnesota

GMT-6

GMT-5

Mississippi

GMT-6

GMT-5

Missouri

GMT-6

GMT-5

Montana

GMT-7

GMT-6

Nebraska

GMT-6

GMT-5

Nebraska (W)

GMT-7

GMT-6

Nevada

GMT-8

GMT-7

New Hampshire

GMT-5

GMT-4

New Jersey

GMT-5

GMT-4

New Mexico

GMT-7

GMT-6

New York

GMT-5

GMT-4

North Carolina

GMT-5

GMT-4

North Dakota

GMT-6

GMT-5

North Dakota (W)

GMT-7

GMT-6

Ohio

GMT-5

GMT-4

Oklahoma

GMT-6

GMT-5

Oregon

GMT-8

GMT-7

Oregon (E)

GMT-7

GMT-6

Pennsylvania

GMT-5

GMT-4

Rhode Island

GMT-5

GMT-4

South Carolina

GMT-5

GMT-4

South Dakota (E)

GMT-6

GMT-5

South Dakota (W)

GMT-7

GMT-6

Tennessee (E)

GMT-5

GMT-4

Tennessee (W)

GMT-6

GMT-5

Texas

GMT-6

GMT-5

Texas (W)

GMT-7

GMT-6

Utah

GMT-7

GMT-6

Vermont

GMT-5

GMT-4

Virginia

GMT-5

GMT-4

Washington

GMT-8

GMT-7

West Virginia

GMT-5

GMT-4

Wisconsin

GMT-6

GMT-5

Wyoming

GMT-7

GMT-6

NOTE: If you want the unit to automatically synchronize the local time, the Time Zone must be properly set according to your local time zone.

2-4. EZ SETUP

Quick installation Menu for NS and IP Camera Easy installation(Right-Click on the Main Screen)

Figure 2.4. EZ Setup Screen

2.4.1. Setup DATE & TIME, IP CAMERA configurations.

Figure 2.4.1. EZ CAMERA Setup Procedure

① Select EZ Camera for Date/Time and Camera Setup, Click NEXT to proceed. ② Description of EZ Camera Setup is displayed, Click NEXT to proceed. ③ Set up the Date/Time settings and click NEXT to get to the camera setup. ④ Configure individual cameras in the EZ Camera Setup.

 Select the Channel to configure.  Select the Camera Manufacturer and then click on the scan button; this will scan the

networks for any cameras from the particular manufacturer.

 Select on the desired Camera from the list, and then check on register.  If necessary, click on Preview to Preview the camera, or Setup to change camera settings.

1 2 3

2.4.2. EZ NETWORK (Using an internet connection)

Figure 2.4.2. EZ NETWORK Setup Procedure

① Select YES in case of setting the network using an internet connection ② Select Auto Configuration(DHCP) or Manual Configuration(STATIC) and then click TEST

Button. It will automatically setup the network for the system(NS)

③ Setup DDNS setting. DDNS(Dynamic Domain Name System) allows a DNS name to be

constantly synchronized with a dynamic IP address. It allows using a dynamic IP address to be associated with a static domain name. Refer to the full version manual for more information.

④ Click Finish to save the setup.

1 2 4 5 3

2.4.3. EZ NETWORK setting (Not using internet connection)

Figure 2.4.3. EZ NETWORK Setup – Manual Configuration Screen

① Select NO if the NVR is not using an internet connection. ② Select Auto Configuration(DHCP) or Manual Configuration(STATIC) and then click TEST

button when ready.

③ Input the Network Settings if Manual Configuration was selected, and click TEST ④ Select OFF for ENABLE DDNS and click NEXT button. ⑤ Click Finish to save the setup.

4 5 1 2 3

2-5. PoE Port SETUP

Figure 2.5. PoE Port (N4NSP / N8NSP & N16NSP)

2.5.1 Connecting the Camera(NSP Model)

Figure 2.5.1.1 IP Camera Connection Diagram (N8NSP)

Figure 2.5.1.2 IP Camera Connection Diagram (N16NSP)

Table 2.5.1. Factory Default of the IP Camera

Private Network

- IP Cameras only

WAN

Clients

IP Cameras

Internet

Router

LAN

Switch Hub

Clients

The following IP Camera settings are recommended for optimal connection with the NS Series

Setup Items

Default

Description

Network Type

DHCP

The IP Camera must act as a DHCP client for the “Plug and Play”.

Encoding Type

CBR

The “CBR” is recommended because of the internal buffer design of the NS Series

Resolution

1280x720

The maximum performance of the N16NS/NSP is 1080p@192fps or 720p@400fps. To get higher frame rates per channel, 1280x720 is the recommended resolution.

Frame Rate

25fps

The maximum performance of the N16NS/NSP is 720p@400fps. Therefore 25fps per channel is recommended. (25fps x 16 = 400fps)

Bit Rate

2Mbps

The maximum throughput of the N16NS/NSP is 40Mbps. Therefore 2Mbps per channel is recommended. (2Mbps x 16 = 32Mbps)

Sub Stream

CIF 512Kbps

For “Dual Streaming”, the sub stream should be turned on. And for the proper streaming through the WAN connection, CIF@512Kbps or lower bitrates per channel is recommended.

 The NSP Series features a "Plug and Play" function with a PoE Switch.  The “Plug and Play” functionality requires the IP Camera to be in DHCP mode.  The NS automatically assigns an IP Address to the IP Camera. (10.20.30.11 ~ 10.20.30.254)  The NSP models will automatically map the camera on the PoE Port to the corresponding NVR

channel number.

Figure 2.5.1.2. Incorrect connection with the PoE Ports

With the NSP Models, it is prohibited to connect a router to the POE Ports to connect the IP

Camera, the NSP will not be able to find and connect to the camera. The LAN Port can be connected to a router, but not the PoE Ports.

2-6 . Non PoE Port SETUP

2.6.1 Connecting the Camera (Non - PoE Model)

Figure 2.6.1.1. Proper connection example of the NS (No PoE Switch).

 The NS Series features a "Plug and Play" function (on board PoE Switch not included).  Setting up cameras can be done through the EZ CAMERA menu, refer to Figure 2.4.1.

Figure 2.6.1.2. Improper connection of the NS (No PoE switch).

Private Network

- IP Camera only

- Plug and Play

LAN

Clients

2-7 . IP Camera SETUP (through Web Viewer page)

NS / NSP Series allow remote access to the IP Cameras through an "IP Camera Setup" menu. The PC Web Client features the "IP Camera Setup" menu that can be accessed remotely.

① Click the mouse right button ② Select “IP Camera Setup”. ③ Select Channel Number. ④ It launches the camera‟s web setup page.

In order for the web pages to launch from the “IP Camera Setup” menu when accessed from the WAN, Ports 59011 to

59254 on the router must be port forwarded to the NVR. The local address of the NVR can be found in the system information

2-8 . Dual Streaming

 High Quality (Main Profile) Video Stream is used for both Recording and Live Display.  High Quality (Main Profile) Video Stream can be viewed through the network, when selected.  Normal (Secondary) Quality Video Stream is used by default when viewing through the network.

Network Clients

Monitoring

IP Camera

HDD

Live Display

Recording

High/Normal

Selection

Network

High Quality Video Stream (Full HD)

Normal Quality Video Stream (D1/CIF)

3. Front and Rear Panels

3-1. Desktop Front Panel

Figure 3.1.1. Desktop NS Front panel

Table 3.1.1. Front LED and Port of NS

Name

Description

POWER

LED light is on when power is applied to the system.

HDD

LED light is on when the system is recording video data.

USB Port

This USB port for archiving footage into a USB device. (USB 2.0)

Table 3.1.2. Front Buttons

Name

Description

Number1~16

Select a channel from CH1 to CH16.

Buttons from 9 to 16 are used as function keys in PTZ control mode. To escaping PTZ mode, press the ESC button.

Enters the Setup Menu.

COPY

Takes a screenshot on Live and Backup button on Playback.

ALARM

Activates the external alarm device.

SEQ

Enable the sequence mode on Live.

ESC

Exits the current mode or cancel an operation.

PLAYBACK

Goes to search menu.

PTZ

Activate Pan, Tilt and Zoom menu operation.

MODE

Select the screen display mode (1x1, 2x2, 3x3, if applicable: 4x4, 1+7)

POWER

Initiates system shut down.

LIVE mode – Up SEARCH mode - Jump 1min ahead on playback and 1 frame ahead on pause.

LIVE mode – Right SEARCH mode - Control the play speed (Fast Forward).

LIVE mode – Down SEARCH mode - Jump 1min back on playback and 1 frame back on pause.

LIVE mode – Left SEARCH mode- Select the play speed (Rewind).

LIVE mode – Select (Center) SEARCH mode - Play & Pause.

3-2. Connectors

Figure 3.2.1. Connectors

① Ground: Use for grounding. ② PoE POWER: DC48V input.(NSP Models) ③ PoE PORT: N4NSP (4 Port PoE), N8NSP/N16NSP(8 Port PoE) ④ ETHERNET PORT2: Network Second Terminal. No Internet access.(NS Series without PoE) ⑤ AUDIO IN/OUT: 4 Connectors for Audio Input / 1 Connector for Audio Output ⑥ CVBS OUT: MAIN – Composite Video Output. ⑦ HDMI OUT: HDMI output port, Connector to the HDMI Monitor, (1280x720, and 1920x1080). ⑧ VGA OUT: Connector for VGA Monitor, Main Video Output. ⑨ RS232C: POS Interface (TBD) ⑩ AUDIO Port: Audio inputs connections for channels 5-8 or 5-16 through external cable (N8NSP,

N16NSP Models only).

⑪ E-SATA: 1 External SATA Terminal ⑫ USB PORT: Connector for USB Mouse or USB flash memory. ⑬ ETHERNET PORT1: RJ-45 Connector for LAN Connection, used for Internet Connection ⑭ SENSOR IN, ALARM OUT, RS-485: 4 sensor inputs, 1 alarm output and RS-485 for PTZ ⑮ POWER: DC12V input

 Do not power this system on before all the connections are completed.  Make sure all the connections are properly secured. Faulty connection may result in

the system being damaged.

1 1 1 2 10 9 8 7 6 5 4

3 2 5

6 6 7

7 8 8 3 11

N4/8/16NS

N4NSP

N8/16NSP

3-3. Remote Control

① ID: Used to set up the remote control ID. ② REC: To enable or disable manual recording mode. ③ SEARCH: Goes to SEARCH menu for playback options. ④ F/ADV:

 During Playback – Moves the playback forward by 60 seconds.  During Pause – Moves the playback forward by 1 frame.

⑤ F/REW:

 During playback – Moves the playback backward by 60 seconds.  During Pause – Moves the playback backwards by 1 frame.

⑥ FF: Increases playback speed (fast fowards). ⑦ PLAY/PAUSE: To play or to pause the recording in playback mode ⑧ REW: Plays video backwards (rewinds), additional selection increases backwards playback speed. ⑨ ESC:

 During Setup – Returns to the previous menu screen.  During Playback – Exits playback mode.  System lock – Locks the system when pressing ESC button for 5 seconds.  System unlock – Unlocks the system when pressing ESC button for 5 seconds.

⑩ SETUP: Opens up the SETUP menu. ⑪ Direction buttons: Used to move menu items or select a channel. ⑫ SEQ: Starts auto sequence the screen when in full screen mode. (Toggle) ⑬ BACKUP: Start the backup operations in live or playback mode. ⑭ 0~9: Used to select channel (1,2,3,..) or to setup a NS Remote ID.

4. Setting up the NS

The following sections detail the initial setup of the NS.

Menu screen will close if user input is not received within 5 minutes.

4-0. Setup – Main Live Screen

To enter the setup menu, right click on the mouse and select setup from the submenu or press the setup button on the remote control.

Table 4.0.1. Live Screen and Quick Operation Window

When the NS prompts the LOG-IN window, enter the PASSWORD using the virtual keyboard, or the front panel, or the remote control. For ADMIN, the factory default password is 1111. It is highly recommended to assign a new password to protect the system. User can assign a new password in SECURITY setup menu.

4-1. Setup – IP CAMERA

Press the SETUP button and enter the password. The IP Camera setup menu is displayed below.

Figure 4.1.1. IP Camera mode setup screen

Table 4.1.1. Menu items in IP CAMERA mode setup

Item

Description

CHANNEL

To manually connect each camera, click on the to get this window:

Under the column labeled Type, Select IP Camera Manufacturer.

Double Click to Scan

SCAN: Double click the empty box to search IP camera on the local network.

IP: Enter the address of IP camera to connect, or select from scanned list. PORT: Enter the port number of IP camera to connect WEB PORT: Enter the web port number of IP camera to connect PROTOCOL: TCP Only SETUP: Change the IP camera setting. Double click the empty box and then

Log-In box will be pop-up. (Enter ID and PASSWORD of IP Camera)

VENDOR

Select the camera manufacturer.

SCAN

Automatic IP Camera search on the local network.

Set up IP camera address.

PORT

Set up the RTSP port of the IP Camera (default: 554)

WEB PORT

Set up the web port of IP Camera (default: 80)

PROTOCOL

Select a protocol. (TCP only)

Enter ID of IP CAM

PASSWORD

Enter the PASSWORD of IP CAM

4-1-1. SCAN Menu

Figure 4.1.3 IP CAMERA Setup Screen Figure 4.1.4 Search IP Camera Screen

① Select the specific manufacturer of IP Camera and then on click the scan button ② Select the camera on the list and then click the register button. ③ After the registration is completed, the basic information is to be displayed.

4-1-2. ONVIF

Figure 4.1.2 IP CAMERA Setup Screen (ONVIF)

The NS Series can search for IP Cameras that are conformant to ONVIF (Open Network Video Interface Forum). In order to search for ONVIF Cameras, the field associated with VENDOR has to be set to ONVIF. Click on the Box associated with SCAN to scan the networks for ONVIF Conformance cameras.

Figure 4.1.4 ONVIF Camera Scan Window

Figure 4.1.5 ONVIF Profile Scan Window

① Select ONVIF for Vendor and click the SCAN button. ② Select the camera on the list and then click the register button. ③ Then, PROFILE and ONVIF setting button will be displayed on the menu.

Click PROFILE button and then the detail information of ONVIF will be searched and listed.

(If there is not one listed, the ONVIF protocol of IP CAM is not compatible with NVR and therefore not supported. )

④ Double click the listed profile to apply. ⑤ Enter ID and PASSWORD of IP CAM. Registration is .completed.

Figure 4.1.6 ONVIF Setup Window

Under ONVIF Setup, the following can be viewed and changed: VIDEO, NETWORK, SYSTEM settings.

Table 4.1.2. Menu Items in ONVIF Setup Screen

Menu Item

Description

VIDEO

Under ONVIF system setup, the following can be viewed and/or changed. Video: Resolution, Framerate, and Bitrate. Encoder: I-Frame Interval, H.264 Profile Audio Encoder.

NETWORK

View and change Network settings.

SYSTEM

Device information can be viewed, passwords can be changed. Factory reset and the rebooting the camera are also available through ONVIF System setup.

+ 75 hidden pages

Speco N8, 16NS, N4, 16WNS, 16NSP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
