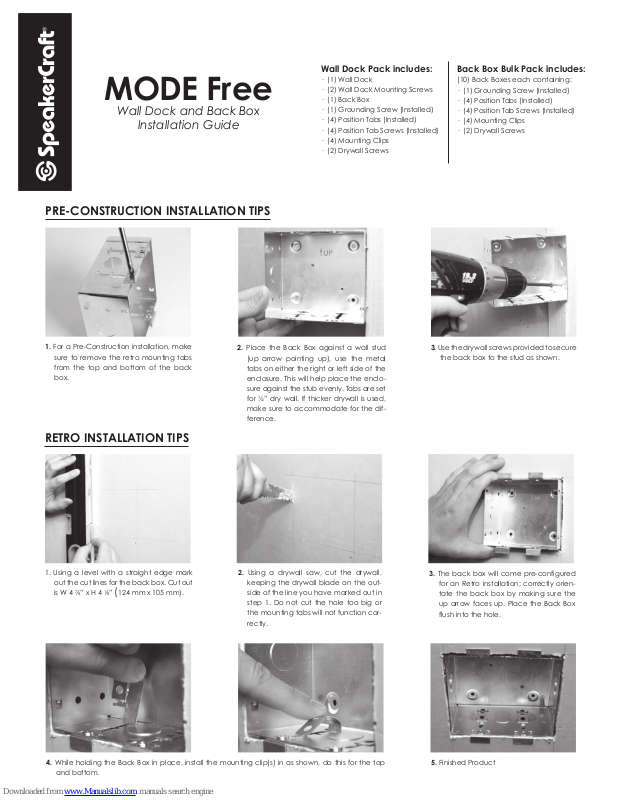

Page 1
MODE Free
Wall Dock and Back Box
Installation Guide

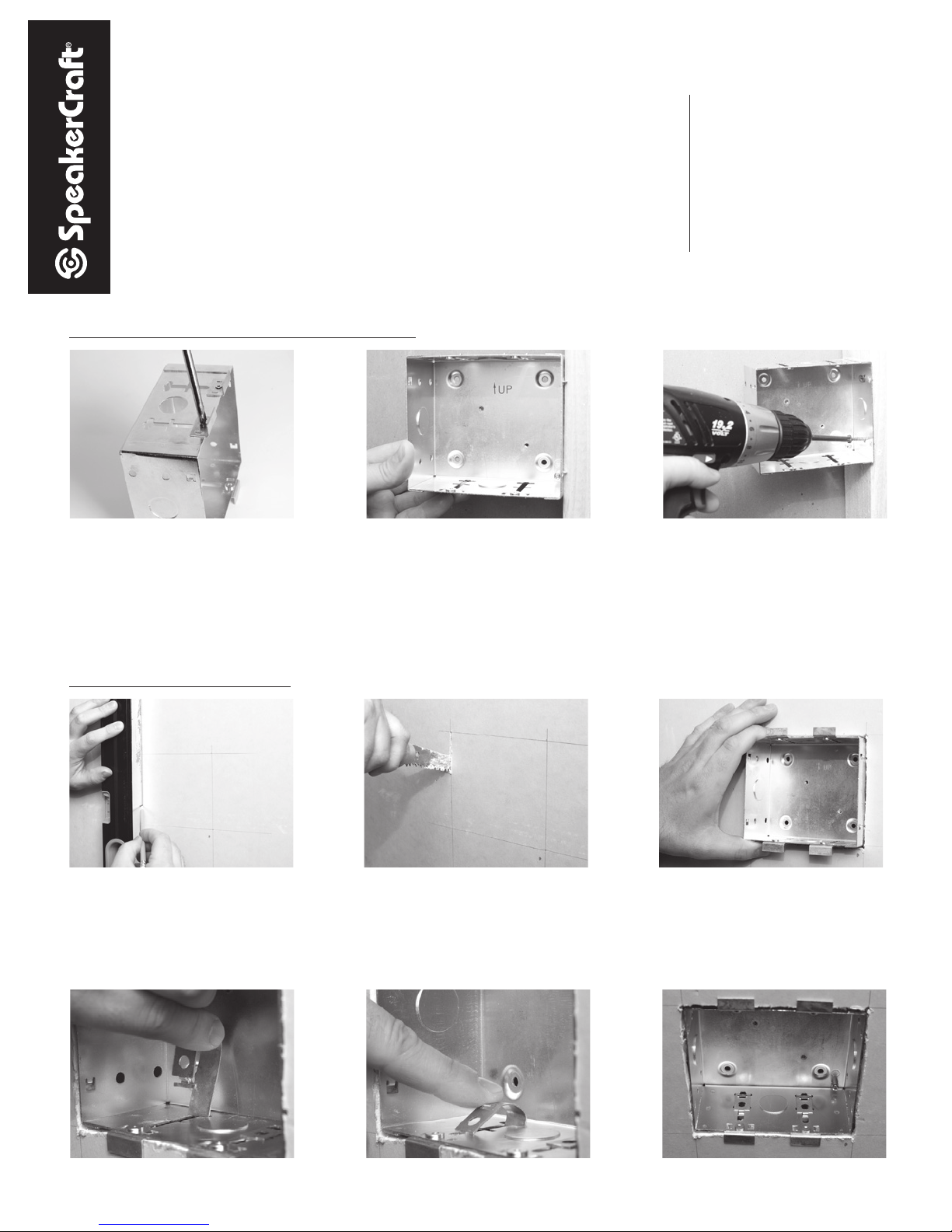

PRE-CONSTRUCTION INSTALLATION TIPS
Wall Dock Pack includes:
· (1) Wall Dock
· (2) Wall Dock Mounting Screws
· (1) Back Box
· (1) Grounding Screw (Installed)
· (4) Position Tabs (Installed)
· (4) Position Tab Screws (Installed)
· (4) Mounting Clips
· (2) Drywall Screws
Back Box Bulk Pack includes:
(10) Back Boxes each containing:
· (1) Grounding Screw (Installed)
· (4) Position Tabs (Installed)
· (4) Position Tab Screws (Installed)
· (4) Mounting Clips
· (2) Drywall Screws
1. For a Pre-Construction installation, make
sure to remove the retro mounting tabs
from the top and bottom of the back
box.
RETRO INSTALLATION TIPS
1. Using a level with a straight edge mark
out the cut lines for the back box. Cut out
7
⁄8” x H 4 1⁄8” (124 mm x 105 mm).
is W 4
2. Place the Back Box against a wall stud
(up arrow pointing up), use the metal
tabs on either the right or left side of the
enclosure. This will help place the enclosure against the stub evenly. Tabs are set
for ½” dry wall. If thicker drywall is used,
make sure to accommodate for the difference.
2. Using a drywall saw, cut the drywall,
keeping the drywall blade on the outside of the line you have marked out in
step 1. Do not cut the hole too big or
the mounting tabs will not function correctly.
3. Use the drywall screws provided to secure
the back box to the stud as shown.
3. The back box will come pre-configured
for an Retro installation; correctly orientate the back box by making sure the
up arrow faces up. Place the Back Box
flush into the hole.
4. While holding the Back Box in place, install the mounting clip(s) in as shown, do this for the top
and bottom.
5. Finished Product
Page 2

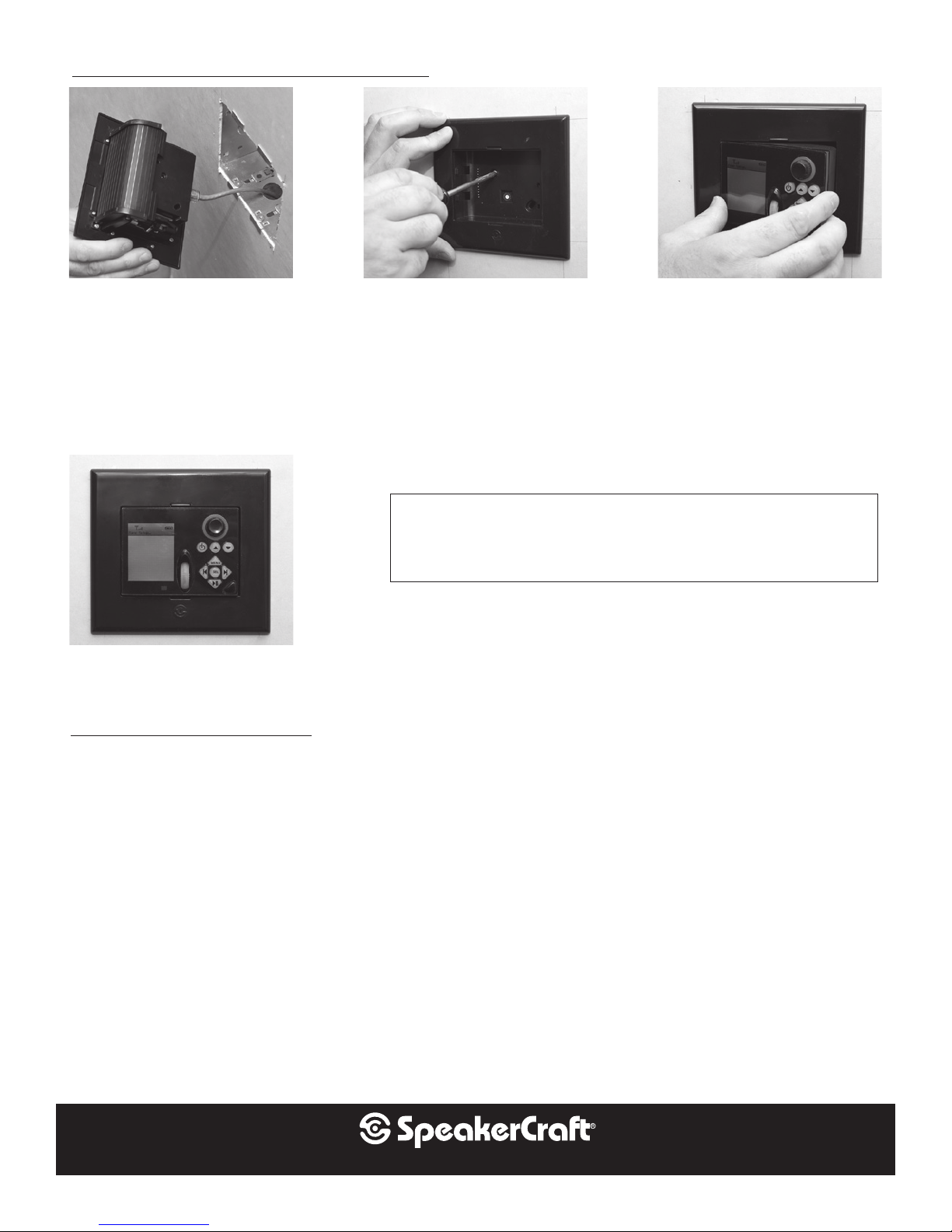

WALL DOCK AND KEYPAD INSTALLATION
1. Run a CAT 5 cable to the back box lo-
cation; punch out one of the knock out
tabs to run the wire through. NOTE: It is
recommended the wire is run up through
the bottom knock out hole; this will give
more room for the RJ45 connector, and
will alleviate any issues of pinching the
wire during installation.
2. Attach the Wall Dock to the Back Box
with the two mounting screws that are
provided with the wall dock.
3. Starting from the left, angle the MODE
Free into the Wall Docking Station, then
click into place.
SPECIFICATIONS
Cut-Out Size: W 4
4. Finished Product
7
⁄8” x H 4 1⁄8” (124 mm x H 105 mm)
LIMITED 2-YEAR WARRANTY
Defective products must be shipped, together with p roof of purchase, prepaid insu red to the Speake rCraft Authorized Dealer from whom they were
purchased, or to the Speake rCraft factor y at the addres s listed on thi s installation instruction manual. Freight coll ect shipments will be refused. It is
preferable to ship this product in the or igi nal shippi ng contai ner to lessen the chance of transit damage. In any case, the r isk or loss or damage in
transit is to be borne by the purchaser. If upon examination at the Factor y or Speaker Craf t Autho rized Dealer it is determined that the unit was defective in mater ial s or wo rkmanship at any ti me du ring thi s war rant y per iod, SpeakerCraft or the SpeakerCraf t Authorized Deale r will, at its option, repai r
or replace th is product at no add itional cha rge, except as set forth bel ow. If this model is no longer available and can not be repaired effectively,
Speake rCraft, at its sole option may replace the unit w ith a cu rrent model of equa l or greater value. In some cases where a new model i s substituted,
a modification to the mounting surface may be required. If mounti ng su rface modification is req uired, Speaker Craft assumes no res ponsibi lit y or
liab ility for such modification. All replaced parts and product become the property of SpeakerCraft Inc. Products replaced or repaired under this
warranty wil l be retur ned to the original retail pu rchaser, within a reasonable time, freight prepaid.
This warranty does not include se rvice or par ts to repai r damage caused by accident, disaster, misuse, abuse, negli gence, inadequate pack ing or
shipping procedures, commercia l use, voltage in puts in exces s of the rated maximum of the unit, or ser vice, repair or modifi cation of the product
which has not been authorized or approved by SpeakerCraf t. Thi s wa rranty also excludes no rma l cosmetic deteriorati on caused by environmental
condition s. This warranty wil l be void if the Serial n umber on the p roduct has been removed, tampered with or defaced.
This war rant y is in lieu of a ll other expressed warranties. If the prod uct i s defective in mater ial s or wor kmanship as warranted above, the purchase r's
sole remedy shall be repair or replacement as p rovided above. In no event will Speake rCraft be liable fo r any incidental or consequential damages
ari sing out of the use or inabi lit y to use the product, even if Speake rCraft Inc. o r a SpeakerCraft Inc. Author ized Dea ler has been advised of the possibi lit y of such damages, or for any claim by any other party. Some states do not allow the exclusion or lim itation of consequential damages, so the
above limitation and exclusion may not app ly.
All imp lied warranties on the product are limited to the duration of this expressed war rant y. Some states do not allow limitation on the length of an
implied Warranty. If the original retail p urchaser resides in such a state, this limitation does not apply.
If you have any questions regarding this or any other SpeakerCraft product, please contact your local Author ized SpeakerCraf t d ealer, or you may
contact Speake rCraft toll-free at 1-80 0-448 -0976 for immed iate customer assistance. We are available to assist you every weekday, except holidays,
between the hou rs of 7:00 a.m. and 5:00 p.m.
940 Columbia Avenue, Riverside, CA 92507 | USA (800) 448 0976 Fax (951) 787 8747 International +1 951 787 0543 | www.speakercraft.com
LIT14420(rev2)
