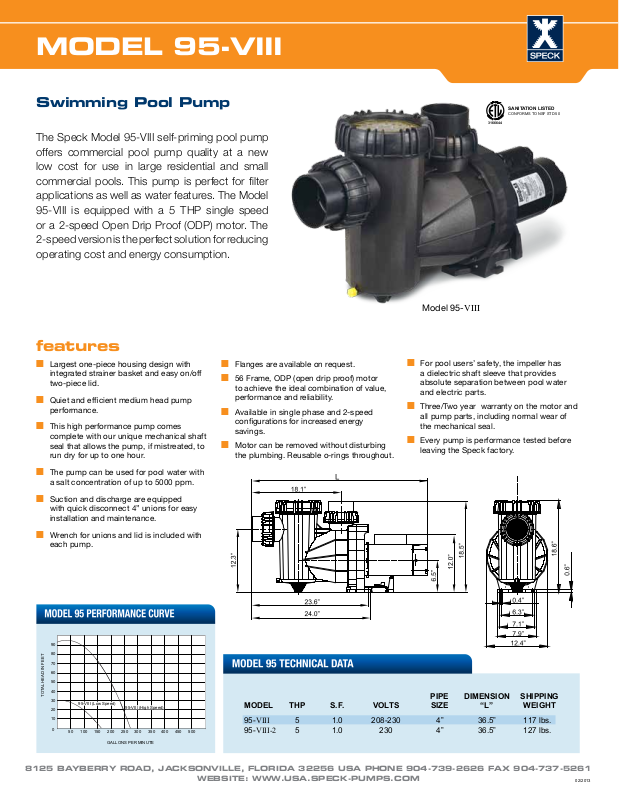

MODEL 95-VIII
Swimming Pool Pump
The Speck Model 95-VIII self-priming pool pump
offers commercial pool pump quality at a new
low cost for use in large residential and small
commercial pools. This pump is perfect for filter
applications as well as water features. The Model
95-VIII is equipped with a 5 THP single speed
or a 2-speed Open Drip Proof (ODP) motor. The
2-speed version is the perfect solution for reducing
operating cost and energy consumption.
features
n Largest one-piece housing design with
integrated strainer basket and easy on/off
two-piece lid.
n Quiet and efficient medium head pump
performance.
n This high performance pump comes
complete with our unique mechanical shaft
seal that allows the pump, if mistreated, to
run dry for up to one hour.
n The pump can be used for pool water with
a salt concentration of up to 5000 ppm.
n Suction and discharge are equipped
with quick disconnect 4” unions for easy
installation and maintenance.
n Wrench for unions and lid is included with
each pump.
n Flanges are available on request.
n 56 Frame, ODP (open drip proof) motor
to achieve the ideal combination of value,
performance and reliability.
n Available in single phase and 2-speed
configurations for increased energy
savings.
n Motor can be removed without disturbing
the plumbing. Reusable o-rings throughout.
SANITATION LISTED
CONFORMS TO NSF STD 50
3166644
Model 95-VIII
n For pool users’ safety, the impeller has
a dielectric shaft sleeve that provides
absolute separation between pool water
and electric parts.
n Three/Two year warranty on the motor and
all pump parts, including normal wear of
the mechanical seal.
n Every pump is performance tested before
leaving the Speck factory.
90
80
70
60
50
40
TOTAL HEAD IN FEET
30
95-VIII (Low Speed)
20
10
0
50 100 150 200 250 300 350 400 450 500
8125 BAYBERRY ROAD, JACKSONVILLE, FLORIDA 32256 USA PHONE 904-739-2626 FAX 904-737-5261
95-VIII (High Speed)
GALLONS PER MINUTE
WEBSITE: WWW.USA.SPECK-PUMPS.COM
MODEL
95-VIII
95-VIII-2
THP
5
5
S.F.
1.0
1.0
VOLTS
208-230
230
PIPE
SIZE
4”
4”
DIMENSION
“L”
36.5”
36.5”
SHIPPING
WEIGHT
117 lbs.
127 lbs.
02/2013
Page 2
MODEL 95
Plastic Commercial Pool Pump
The Speck Model 95 is setting new standards with
many firsts in the Industry. Look for the largest
one-piece plastic casing design with integrated
strainer basket, easy on/off two-piece lid, and
4” quick disconnect unions. These features
combined with our unique impeller and heavyduty mechanical seal result in a medium head
pump with the “highest flow” of any one-piece
plastic pump on the market today. This pump is
ideally suited for high rate sand filter applications
as well as water features. Speck’s high quality
continues in the Model 95 with positive advances
to benefit the consumer and the environment.
Model 95-X
SANITATION LISTED
CONFORMS TO NSF STD 50
3166644
features
n Largest one-piece housing design with
integrated strainer basket and easy on/off
two piece lid.
n Quiet and efficient medium head pump
performance.
n This high performance pump comes
complete with our unique mechanical shaft
seal that allows the pump, if mistreated, to
run dry for up to one hour.
n The pump can be used for pool water with
a salt concentration of up to 5000 ppm.
n Suction and discharge are equipped
with quick disconnect 4” unions for easy
installation and maintenance.
n Wrench for unions and lid is included with
each pump.
n Flanges are available on request.
n Heavy-duty energy efficient TEFC (totally
enclosed fan cooled) motor.
n Available in single phase and 3 phase
configurations. Models 95-IX & Model 95-X
requires a motor starter.
n Motor can be removed without disturbing
the plumbing. Reusable o-rings throughout.
n For pool users’ safety, the impeller has
a dielectric shaft sleeve that provides
absolute separation between pool water
and electric parts.
n Three/Two year warranty on the motor and
all pump parts, including normal wear of
the mechanical seal.
n Every pump is performance tested before
leaving the Speck factory.
90
80
70
60
50
40
TOTAL HEAD IN FEET
30
20
10
0
50 100 150 200 250 300 350 400 450 500
8125 BAYBERRY ROAD, JACKSONVILLE, FLORIDA 32256 USA PHONE 904-739-2626 FAX 904-737-5261
95-X
95-IX
GALLONS PER MINUTE
MODEL
95-IX
95-IX
95-X
WEBSITE: WWW.USA.SPECK-PUMPS.COM
7
HP
1
S.F.
5
1.15
5
1.15
/
1.15
2
Also available in 3 phase, 50 Hz.
VOLTS
208-230
208-230/460
208-230/460
PIPE
SIZE
4”
4”
4”
DIMENSION
“L”
36.5”
34.0”
36.5”
SHIPPING
WEIGHT
140 lbs.
100 lbs.
141 lbs.
02/2013
