Schedule 40 Fittings Technical
PVC Clear Schedule 40 Pipe & Fittings
PVC Clear Schedule 40 Pipe &
Fittings
Page 1
ENGINEERING GUIDE
Contact Spears® for any Information not found.
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
See Spears® Product Sourcebook for product offerings
Spears® Manufacturing Company
Schedule 40 Fittings Technical
.

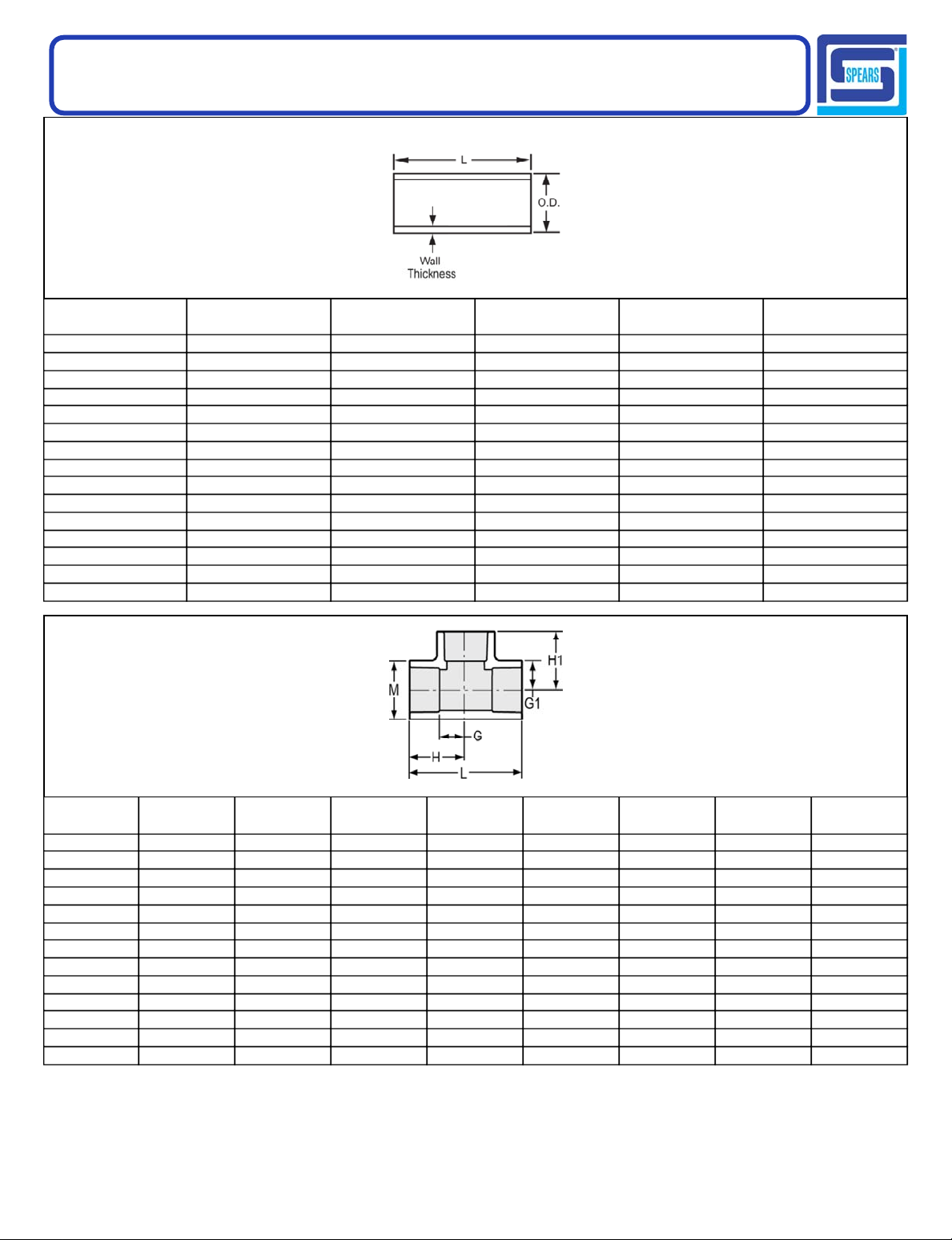

PVC Clear Sch 40 Pipe & Fittings Dimensions
Pipe - Clear PVC Schedule 40
Plain End
10' Lengths
Part Number Size L AVG.O.D.
PL-002 1/4 10 .540 .088 .08
PL-003 3/8 10 .675 .091 .10
PL-005 1/2 10 .840 .109 .15
PL-007 3/4 10 1.050 .113 .22
PL-010 1 10 1.315 .133 .33
PL-012 1-1/4 10 1.660 .140 .44
PL-015 1-1/2 10 1.900 .145 .49
PL-020 2 10 2.375 .154 .72
PL-025 2-1/2 10 2.875 .203 1.13
PL-030 3 10 3.500 .216 1.48
PL-040 4 10 4.500 .237 2.11
PL-060 6 10 6.625 .280 3.17
PL-080 8 10 8.625 .322 5.94
PL-100 10 10 10.750 .365 7.96
PL-120 12 10 12.750 .406 10.53
Tee - Clear
Socket x Socket x Socket
Minimum
Wall
Approx. Wt.
(Lbs./Ft)
Part Number Size G G1 H H1 L M
401-002L 1/4 11/32 11/32 31/32 31/32 1-29/32 27/32 .04
401-003L 3/8 3/8 3/8 1- 1/8 1- 1/8 2- 1/4 31/32 .03
401-005L 1/2 1/2 1/2 1- 1/4 1- 1/4 2- 1/2 1- 3/32 .06
401-007L 3/4 9/16 9/16 1- 9/16 1- 9/16 3- 1/8 1- 5/16 .11
401-010L 1 11/16 11/16 1- 3/4 1- 3/4 3- 1/2 1- 5/8 .15
401-012L 1-1/4 7/8 7/8 2- 1/8 2- 1/8 4- 1/4 2 .25
401-015L 1-1/2 1-1/16 1-1/16 2-3/8 2-3/8 4-3/4 2- 1/4 .32
401-020L 2 1- 3/8 1- 3/8 2- 3/4 2- 3/4 5- 1/2 2- 3/4 .48
401-025L 2-1/2 1-21/32 1-21/32 3-13/32 3-13/32 6-13/16 3-11/32 .98
401-030L 3 1-15/16 1-15/16 3-27/32 3-27/32 7-11/16 4 1.42
401-040L 4 2-13/32 2-13/32 4- 7/16 4- 7/16 8- 7/8 5- 1/32 2.14
401-060L 6 3- 5/8 3- 5/8 6-21/32 6-21/32 13- 5/16 7- 9/32 6.33
401-080L 8 4- 1/2 4- 1/2 8-17/32 8-17/32 17- 1/16 9- 3/8 11.42
Made in the U.S.A
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
See Spears® Product Sourcebook for product offerings
Approx. Wt.
(Lbs.)
Page 2
