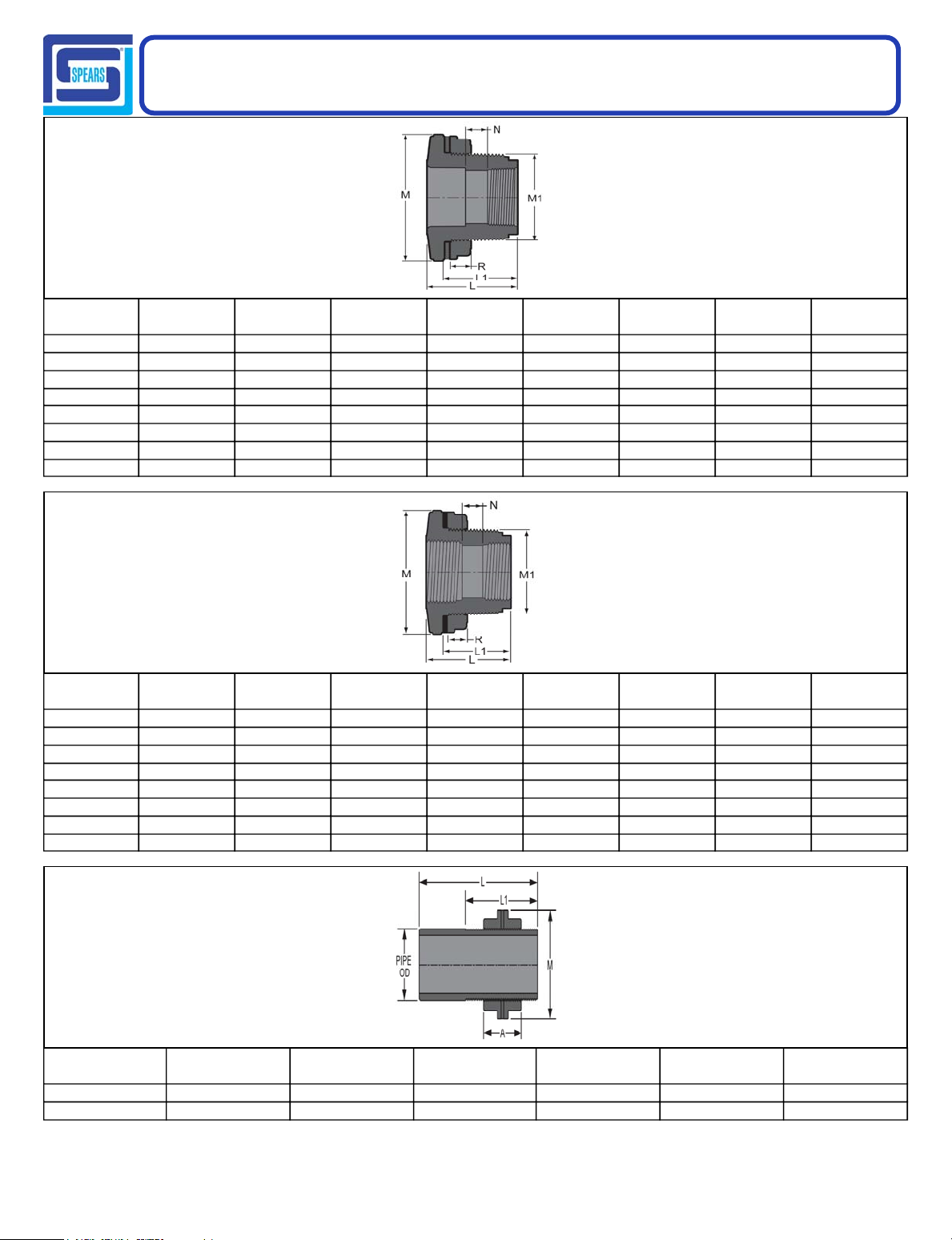

Tank Adapter, PVC Old Style
5
with Neoprene Gasket
Socket x Fipt
150 psi Maximum Internal Pressure Rating @ 73°
F (23°C)
Dimensions Also Applicable to
871E-XXX EPDM Gasket
Schedule 80 PVC Technical
Schedule 80 Tank Adapters
Part Number Size L L1 M M1 N R
871-005 1/2 2-27/32 2-3/16 2-3/8 1- 9/32 1-11/32 5/8 .24
871-007 3/4 2-23/32 2-1/16 2-5/8 1- 5/8 29/32 5/8 .29
871-010 1 2-25/32 2- 1/8 2-13/16 1- 7/8 25/32 21/32 .33
871-012 1-1/4 3- 1/8 2- 7/16 3-29/32 2-11/32 27/32 5/8 .65
871-015 1-1/2 3- 5/32 2-21/32 3-29/32 2-11/32 3/4 5/8 .54
871-020 2 3- 3/16 2-17/32 4-31/32 3-15/32 13/16 3/4 1.33
871-030 3 4-19/32 3-13/16 6- 7/16 4-15/32 31/32 1- 3/16 2.46
871-040 4 4- 7/16 3-23/32 7- 7/16 5- 1/2 1/2 1- 1/4 3.16
Tank Adapter, PVC Old Style
with Neoprene Gasket
Fipt x Fipt
150 psi Maximum Internal Pressure Rating @ 73°
F (23°C)
Dimensions Also Applicable to
872E-XXX EPDM Gasket
Part Number Size L L1 M M1 N R
872-005 1/2 2-27/32 2-3/16 2-3/8 1- 9/32 1-15/32 5/8 .24
872-007 3/4 2-23/32 2-1/16 2-5/8 1- 5/8 1-1/4 5/8 .30
872-010 1 2-25/32 2-1/8 2-7/8 1- 7/8 1-5/16 5/8 .34
872-012 1-1/4 3- 1/8 2-7/16 3-15/16 2-11/32 1- 1/8 5/8 .66
872-015 1-1/2 3- 1/8 2-7/16 3-15/16 2-11/32 1- 1/16 5/8 .57
872-020 2 3-3/16 2- 3/8 5-3/32 3-15/32 3/4 3/4 1.37
872-030 3 4-19/32 3-11/16 6-19/32 4-7/16 1-1/8 1- 3/16 2.55
872-040 4 4-15/32 3-17/32 7-11/16 5- 1/2 17/32 1- 1/4 3.34
Approx. Wt.
(Lbs.)
Approx. Wt.
(Lbs.)
Tank Adapter, Spigot PVC with
EPDM Gasket
Spigot
150 psi Maximum Internal Pressure Rating @ 73°
F (23°C)
Part Number Size A L L1 M
8173E-005 1/2 1-3/16 3 1-3/4 1-1/2 .11
8173E-007 3/4 1-1/4 3 2 1-11/16 .14
Page 7
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
