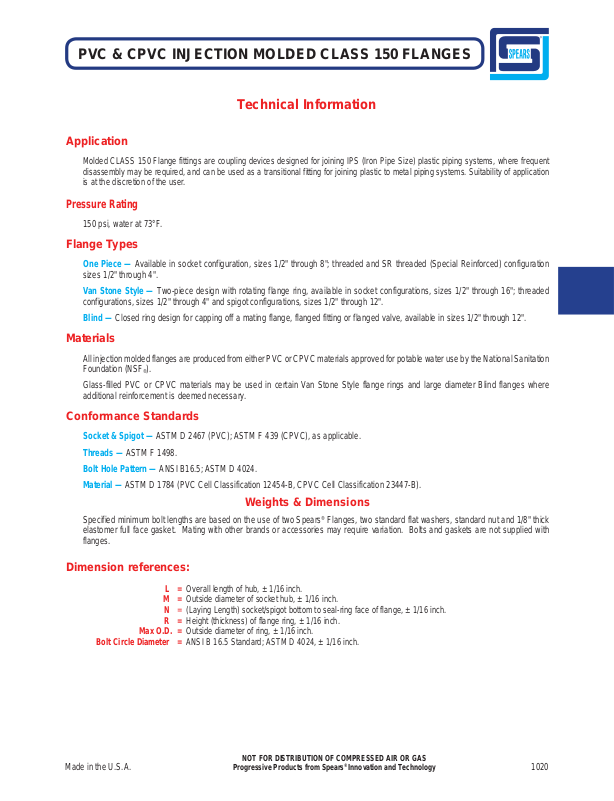

PVC & CPVC INJECTION MOLDED CLASS 150 FLANGES
Technical Information
Application
Molded CLASS 150 Flange fittings are coupling devices designed for joining IPS (Iron Pipe Size) plastic piping systems, where frequent
disassembly may be required, and can be used as a transitional fitting for joining plastic to metal piping systems. Suitability of application
is at the discretion of the user.
Pressure Rating
150 psi, water at 73°F.
Flange Types
One Piece — Available in socket configuration, sizes 1/2" through 8"; threaded and SR threaded (Special Reinforced) configuration
sizes 1/2" through 4".
Van Stone Style — Two-piece design with rotating flange ring, available in socket configurations, sizes 1/2" through 16"; threaded
configurations, sizes 1/2" through 4" and spigot configurations, sizes 1/2" through 12".
Blind — Closed ring design for capping off a mating flange, flanged fitting or flanged valve, available in sizes 1/2" through 12".
Materials
All injection molded flanges are produced from either PVC or CPVC materials approved for potable water use by the National Sanitation
Foundation (NSF
Glass-filled PVC or CPVC materials may be used in certain Van Stone Style flange rings and large diameter Blind flanges where
additional reinforcement is deemed necessary.
).
®
Conformance Standards
Socket & Spigot — ASTM D 2467 (PVC); ASTM F 439 (CPVC), as applicable.
Threads — ASTM F 1498.
Bolt Hole Pattern — ANSI B16.5; ASTM D 4024.
Material — ASTM D 1784 (PVC Cell Classification 12454-B, CPVC Cell Classification 23447-B).
Weights & Dimensions
Specified minimum bolt lengths are based on the use of two Spears® Flanges, two standard flat washers, standard nut and 1/8" thick
elastomer full face gasket. Mating with other brands or accessories may require variation. Bolts and gaskets are not supplied with
flanges.
Dimension references:
L = Overall length of hub, ± 1/16 inch.
Bolt Circle Diameter = ANSI B 16.5 Standard; ASTM D 4024, ± 1/16 inch.
M = Outside diameter of socket hub, ± 1/16 inch.
N = (Laying Length) socket/spigot bottom to seal-ring face of flange, ± 1/16 inch.
R = Height (thickness) of flange ring, ± 1/16 inch.
Max O.D. = Outside diameter of ring, ± 1/16 inch.
Made in the U.S.A. 1020
NOT FOR DISTRIBUTION OF COMPRESSED AIR OR GAS
Progressive Products from Spears® Innovation and Technology
Page 2
PVC & CPVC INJECTION MOLDED CLASS 150 FLANGES

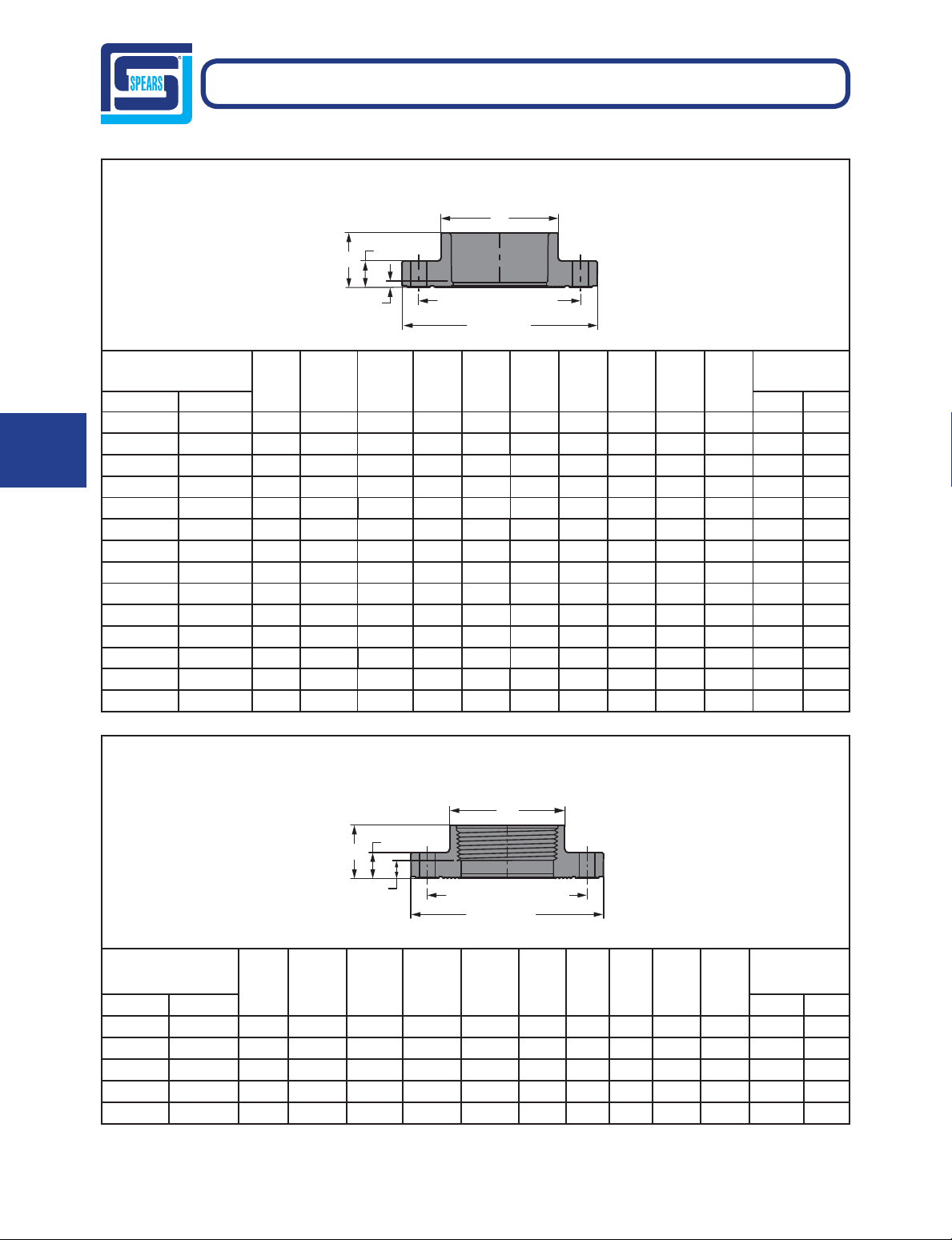

Flange One Piece
Socket
M
R
L
N
BOLT CIRCLE DIA.
MAX O.D.
Bolt
Dia.
No. of
Bolt
Holes
Bolt
Size
Part Number
Size L M N R
Circle
PVC CPVC PVC CPVC
851-005 851-005C 1/2 1-1/16 1-9/32 1/8 9/16 2-3/8 4 1/2 2 3-1/2 .22 .24
851-007 851-007C 3/4 1-3/16 1-1/2 1/8 5/8 2-3/4 4 1/2 2 3-7/8 .31 .31
851-010 851-010C 1 1-5/16 1-13/16 3/16 3/4 3-1/8 4 1/2 2-1/4 4-1/4 .44 .47
851-012 851-012C 1-1/4 1-7/16 2-7/32 3/16 23/32 3-1/2 4 1/2 2-1/4 4-5/8 .41 .42
851-015 851-015C 1-1/2 1-19/32 2-1/2 3/16 23/32 3-7/8 4 1/2 2-1/2 5-1/16 .58 .61
851-020 851-020C 2 1-27/32 3 5/16 27/32 4-3/4 4 5/8 3 6 .82 .95
851-025 851-025C 2-1/2 2-1/4 3-1/2 1/2 1 5-1/2 4 5/8 3-1/4 7 1.63 1.67
851-030 851-030C 3 2-5/16 4-9/32 3/8 1-1/16 6 4 5/8 3-1/4 7-1/2 1.74 1.81
851-040 851-040C 4 2-7/16 5-7/32 3/16 1-5/32 7-1/2 8 5/8 3-1/2 9-1/16 2.67 2.78
851-050 851-050C 5 3-1/4 6-3/8 1/4 1 8-1/2 8 3/4 3-3/4 10-1/8 3.00 3.17
851-060 851-060C 6 3-1/4 7-9/16 1/4 1-3/8 9-1/2 8 3/4 4 11 4.06 4.34
851-080 851-080C 8 4-17/32 9-3/4 1/2 1-7/16 11-11/16 8 3/4 4-1/2 13-5/8 7.67 8.02
851-100F 851-100CF 10 9-7/8 11-15/16 5-5/8 1-1/4 14-1/4 12 7/8 4 16 18.90 19.27
851-120F 851-120CF 12 10-11/16 14-1/8 4-7/16 1-3/8 17 12 7/8 4 19 26.92 30.67
Min.
Bolt
Length
Max
O.D.
Approx. Wt.
(Lbs.)
Flange One Piece
Fipt
M
R
L
N
Part Number
Size L M N R
PVC CPVC PVC CPVC
852-005 852-005C 1/2 1-1/16 1-5/16 9/32 9/16 2-3/8 4 1/2 2 3-1/2 .21 .22
852-007 852-007C 3/4 1-3/16 1-17/32 15/32 5/8 2-3/4 4 1/2 2 3-7/8 .30 .32
852-010 852-010C 1 1-5/16 1-13/16 7/16 3/4 3-1/8 4 1/2 2-1/4 4-1/4 .41 .48
852-012 852-012C 1-1/4 1-3/8 2-7/32 17/32 23/32 3-1/2 4 1/2 2-1/4 4-5/8 .44 .46
852-015 852-015C 1-1/2 1-11/16 2-1/2 19/32 23/32 3-27/32 4 1/2 2-1/2 5-1/16 .61 .64
1021 Spears® Manufacturing Company
NOT FOR DISTRIBUTION OF COMPRESSED AIR OR GAS
Progressive Products from Spears® Innovation and Technology
BOLT CIRCLE DIA.
MAX O.D.
Bolt
Circle
Dia.
No. of
Bolt
Holes
Bolt
Size
Min.
Bolt
Length
Max
O.D.
Approx. Wt.
(Lbs.)
