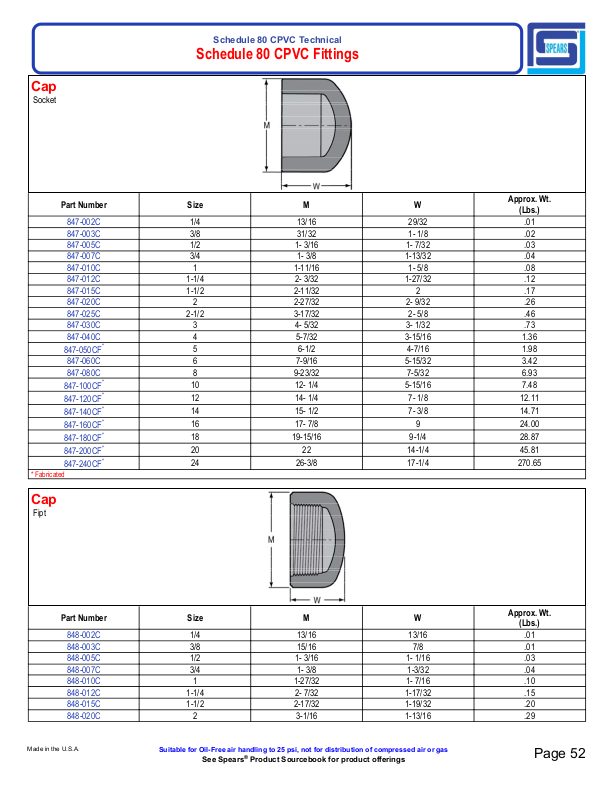

Page 1

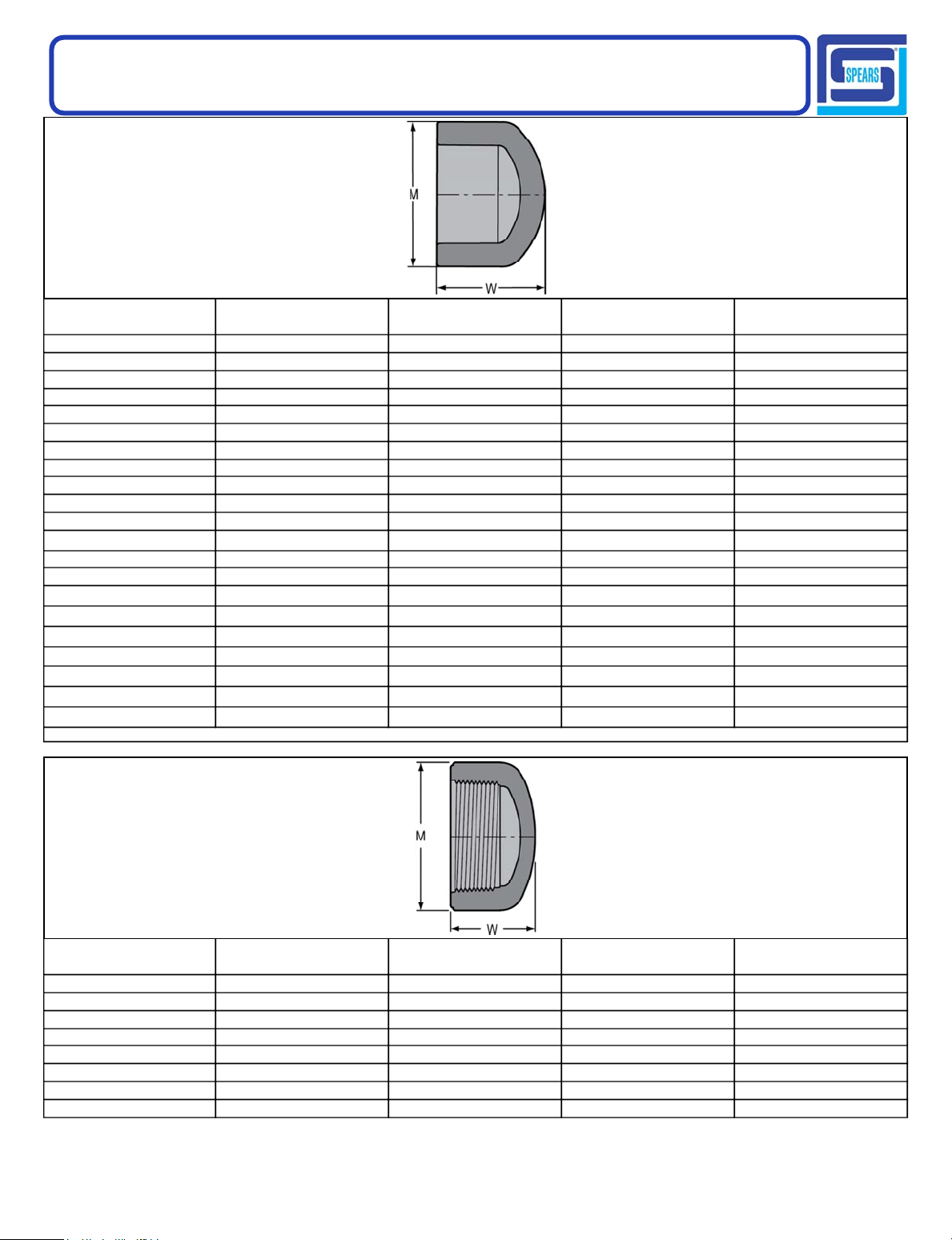

Cap
.
Socket
Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Part Number Size M W
847-002C 1/4 13/16 29/32 .01
847-003C 3/8 31/32 1- 1/8 .02
847-005C 1/2 1- 3/16 1- 7/32 .03
847-007C 3/4 1- 3/8 1-13/32 .04
847-010C 1 1-11/16 1- 5/8 .08
847-012C 1-1/4 2- 3/32 1-27/32 .12
847-015C 1-1/2 2-11/32 2 .17
847-020C 2 2-27/32 2- 9/32 .26
847-025C 2-1/2 3-17/32 2- 5/8 .46
847-030C 3 4- 5/32 3- 1/32 .73
847-040C 4 5-7/32 3-15/16 1.36
847-050CF
*
5 6-1/2 4-7/16 1.98
847-060C 6 7-9/16 5-15/32 3.42
847-080C 8 9-23/32 7-5/32 6.93
* Fabricated
847-100CF
847-120CF
847-140CF
847-160CF
847-180CF
847-200CF
847-240CF
*
*
*
*
*
*
*
10 12- 1/4 5-15/16 7.48
12 14- 1/4 7- 1/8 12.11
14 15- 1/2 7- 3/8 14.71
16 17- 7/8 9 24.00
18 19-15/16 9-1/4 28.87
20 22 14-1/4 45.81
24 26-3/8 17-1/4 270.65
Approx. Wt.
(Lbs.)
Cap
Fipt
Part Number Size M W
848-002C 1/4 13/16 13/16 .01
848-003C 3/8 15/16 7/8 .01
848-005C 1/2 1- 3/16 1- 1/16 .03
848-007C 3/4 1- 3/8 1-3/32 .04
848-010C 1 1-27/32 1- 7/16 .10
848-012C 1-1/4 2- 7/32 1-17/32 .15
848-015C 1-1/2 2-17/32 1-19/32 .20
848-020C 2 3-1/16 1-13/16 .29
Made in the U.S.A
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
See Spears® Product Sourcebook for product offerings
Approx. Wt.
(Lbs.)
