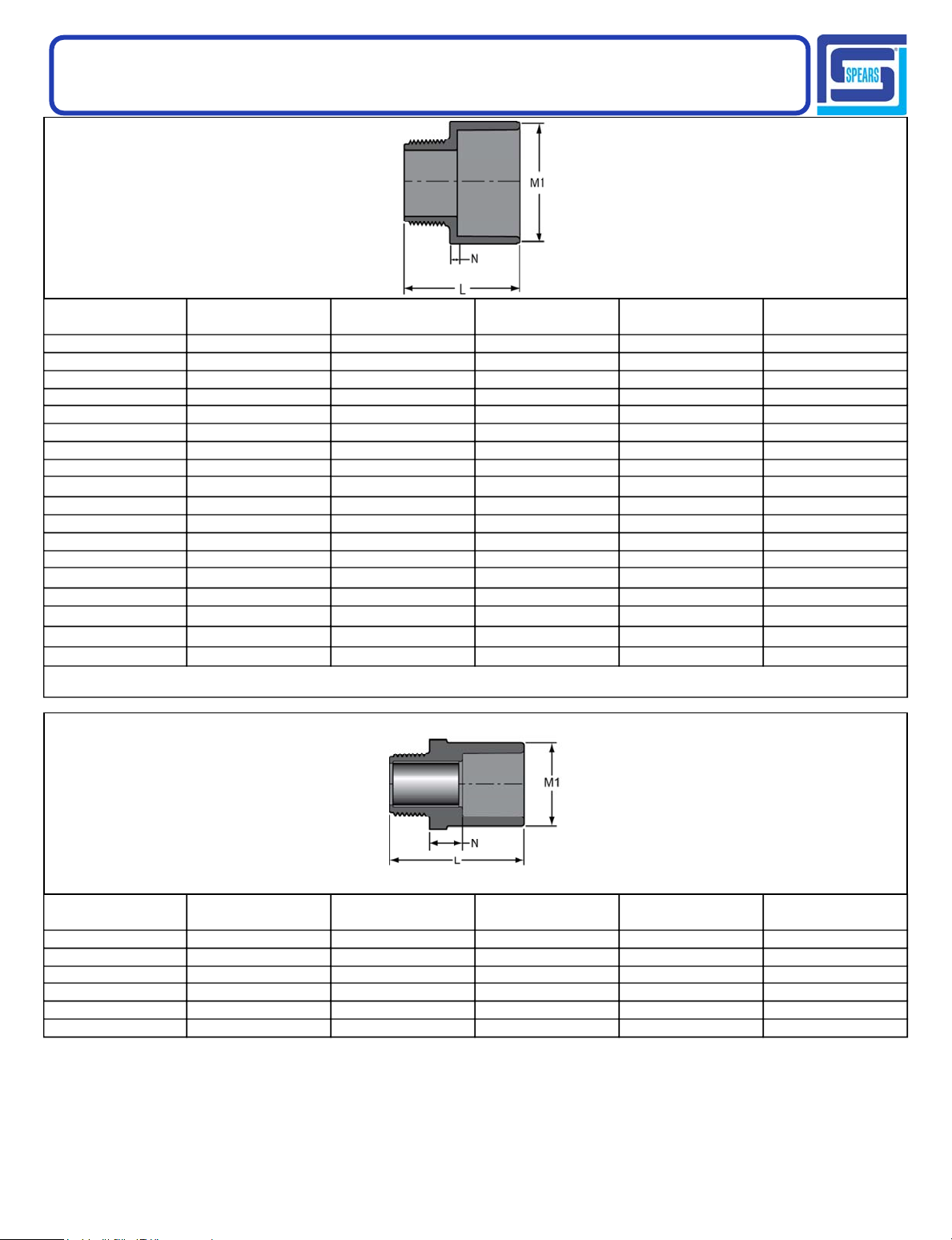

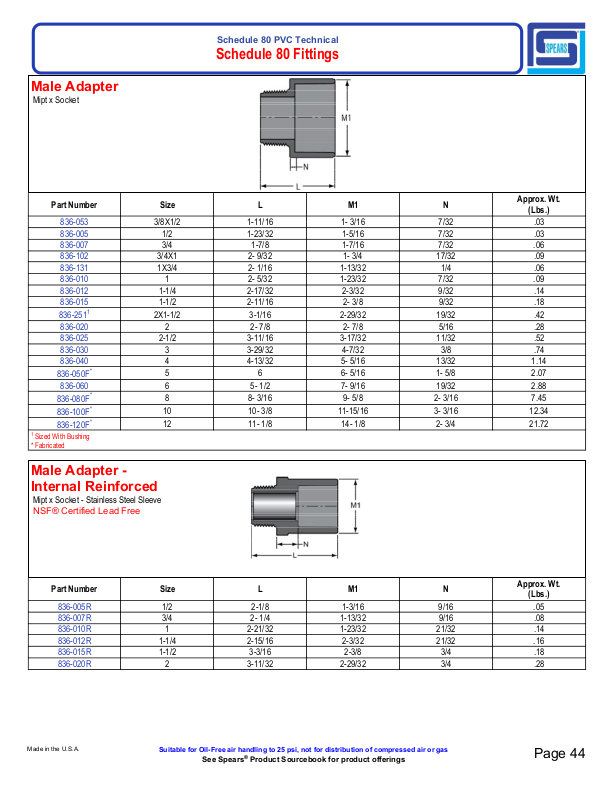

Page 1
Male Adapter
.
Mipt x Socket
Schedule 80 PVC Technical
Schedule 80 Fittings
Part Number Size L M1 N
836-053 3/8X1/2 1-11/16 1- 3/16 7/32 .03
836-005 1/2 1-23/32 1-5/16 7/32 .03
836-007 3/4 1-7/8 1-7/16 7/32 .06
836-102 3/4X1 2- 9/32 1- 3/4 17/32 .09
836-131 1X3/4 2- 1/16 1-13/32 1/4 .06
836-010 1 2- 5/32 1-23/32 7/32 .09
836-012 1-1/4 2-17/32 2-3/32 9/32 .14
836-015 1-1/2 2-11/16 2- 3/8 9/32 .18
836-251
1
2X1-1/2 3-1/16 2-29/32 19/32 .42
836-020 2 2- 7/8 2- 7/8 5/16 .28
836-025 2-1/2 3-11/16 3-17/32 11/32 .52
836-030 3 3-29/32 4-7/32 3/8 .74
836-040 4 4-13/32 5- 5/16 13/32 1.14
836-050F
*
5 6 6- 5/16 1- 5/8 2.07
836-060 6 5- 1/2 7- 9/16 19/32 2.88
836-080F
836-100F
836-120F
1
Sized With Bushing
* Fabricated
*
*
*
8 8- 3/16 9- 5/8 2- 3/16 7.45
10 10- 3/8 11-15/16 3- 3/16 12.34
12 11- 1/8 14- 1/8 2- 3/4 21.72
Male Adapter Internal Reinforced
Mipt x Socket - Stainless Steel Sleeve
NSF® Certified Lead Free
Approx. Wt.
(Lbs.)
Part Number Size L M1 N
836-005R 1/2 2-1/8 1-3/16 9/16 .05
836-007R 3/4 2- 1/4 1-13/32 9/16 .08
836-010R 1 2-21/32 1-23/32 21/32 .14
836-012R 1-1/4 2-15/16 2-3/32 21/32 .16
836-015R 1-1/2 3-3/16 2-3/8 3/4 .18
836-020R 2 3-11/32 2-29/32 3/4 .28
Made in the U.S.A
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
