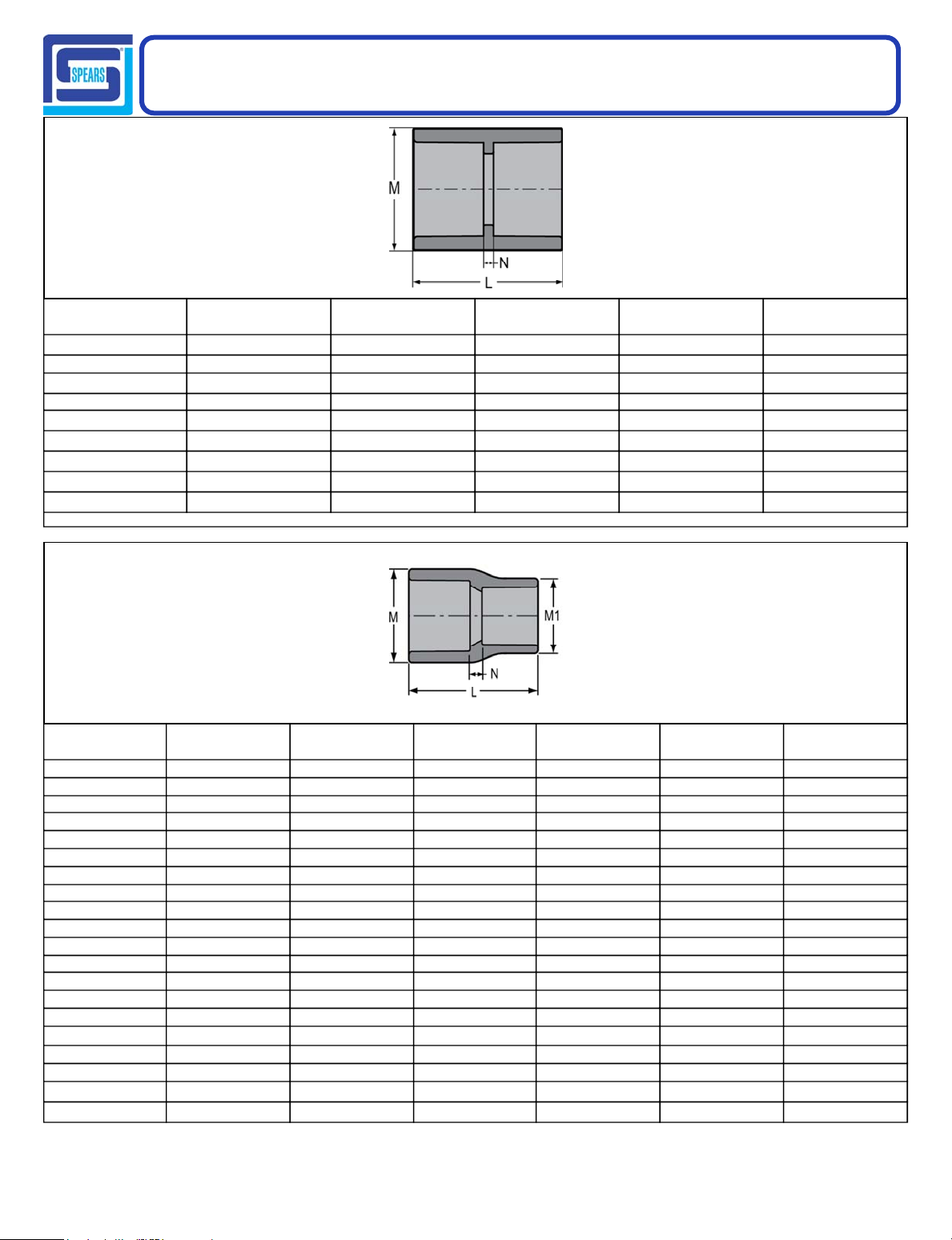

Schedule 80 CPVC Technical
Schedule 80 CPVC Fittings
Coupling
Socket x Socket
Part Number Size L M N
829-100CF
*
10 13-1/8 11-15/16 2-5/8 15.68
829-120C 12 12- 3/8 14- 7/32 3/8 20.05
829-120CF
*
12 15-1/4 14-1/8 2-3/4 25.85
829-140C 14 14- 7/16 15- 5/8 3/8 28.10
829-140CF
829-160CF
829-180CF
829-200CF
829-240CF
* Fabricated
*
*
*
*
*
14 16 15- 1/2 2 33.33
16 19-3/4 17-11/16 3-3/4 54.79
18 22 19- 7/8 4 72.88
20 25-3/4 22- 1/16 5-3/4 97.40
24 29- 1/4 26- 7/16 5- 1/4 167.66
Coupling - Reducer
Socket x Socket
(Continued)
Approx. Wt.
(Lbs.)
Part Number Size L M M1 N
829-101C 3/4X1/2 2- 3/32 1-13/32 1- 5/32 7/32 .06
829-130C 1X1/2 2- 3/16 1-23/32 1-13/32 7/32 .12
829-131C 1X3/4 2-13/32 1-23/32 1-13/32 1/4 .15
829-166C 1-1/4X1/2 2- 9/16 2- 3/32 1- 5/32 7/16 .14
829-167C 1-1/4X3/4 2-19/32 2- 3/32 1- 5/8 11/32 .17
829-168C 1-1/4X1 2-11/16 2- 1/8 1- 3/4 5/16 .18
829-209C 1-1/2X1/2 2-27/32 2-11/32 1- 3/16 19/32 .20
829-210C 1-1/2X3/4 2- 7/8 2- 3/8 1-13/32 17/32 .22
829-211C 1-1/2X1 2- 7/8 2-11/32 1-15/16 3/8 .26
829-212C 1-1/2X1-1/4 2-13/16 2-13/32 2- 1/8 5/32 .22
829-247C 2X1/2 3- 3/32 2- 7/8 1- 5/32 11/16 .31
829-248C 2X3/4 3- 7/32 2- 7/8 1-13/32 23/32 .32
829-249C 2X1 3-1/2 3 1-23/32 27/32 .37
829-250C 2X1-1/4 3-11/32 2- 7/8 2- 3/32 19/32 .33
829-251C 2X1-1/2 3- 7/32 2-27/32 2-11/32 1/4 .31
829-290C
1
2-1/2X1-1/4 3-29/32 3-1/2 2-3/8 15/16 .57
829-291C 2-1/2X1-1/2 3- 3/4 3- 1/2 2- 3/8 19/32 .50
829-292C 2-1/2X2 3-21/32 3-15/32 2-27/32 13/32 .51
829-335C
829-336C
Page 33
1
1
3X1 4- 7/16 4- 1/8 2- 7/8 1- 7/16 1.02
3X1-1/4 4- 7/32 4- 5/32 2-29/32 1- 1/16 .98
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
See Spears® Product Sourcebook for product offerings
Spears® Manufacturing Company
Approx. Wt.
(Lbs.)
