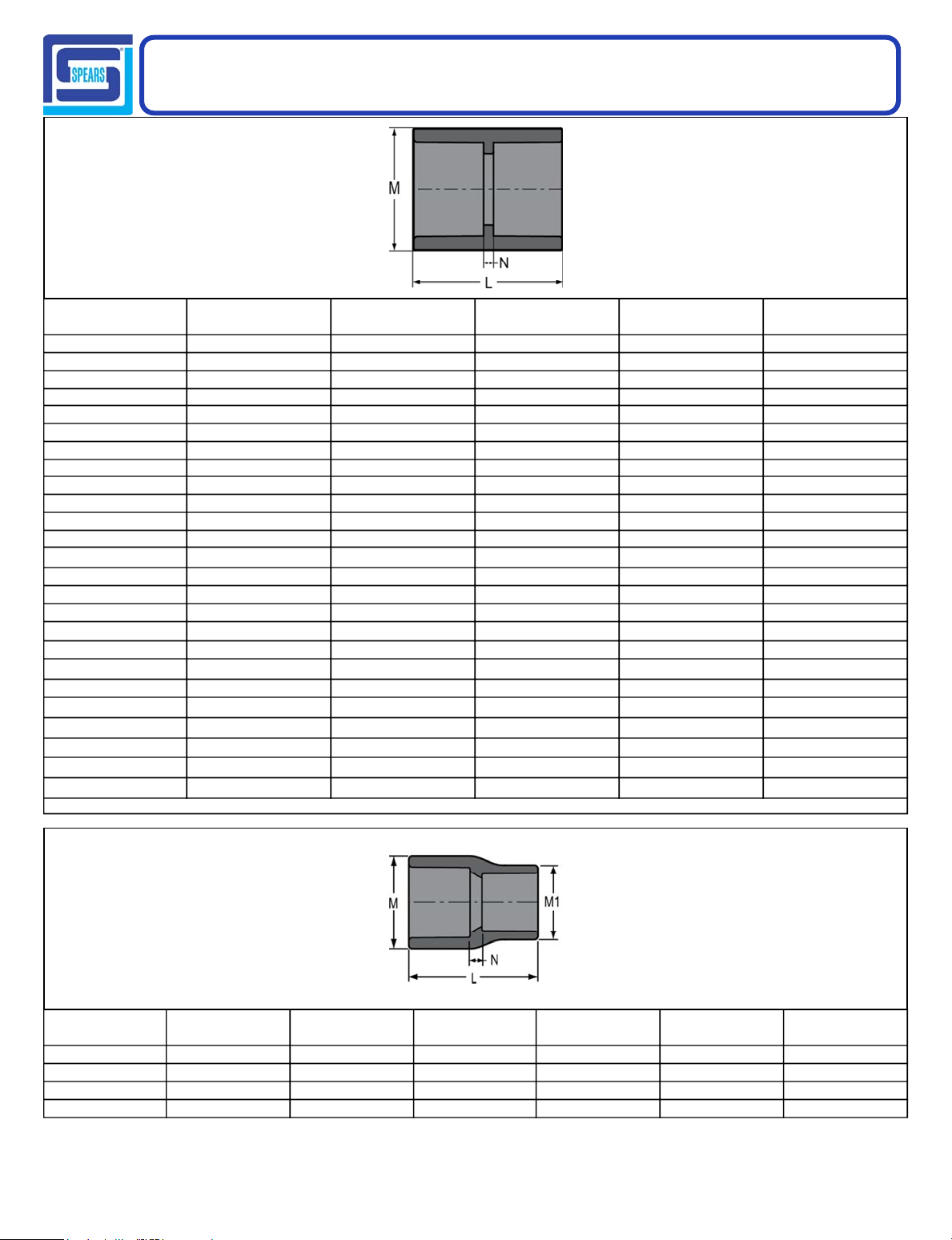

Coupling
Socket x Socket
Schedule 80 PVC Technical
Schedule 80 Fittings
Part Number Size L M N
829-002 1/4 1- 3/8 27/32 1/16 .02
829-003 3/8 1-5/8 1 3/32 .03
829-005 1/2 1- 7/8 1- 3/16 1/8 .04
829-007 3/4 2- 1/8 1-13/32 1/8 .07
829-010 1 2-15/32 1-23/32 3/16 .11
829-012 1-1/4 2-11/16 2-3/16 5/32 .16
829-015 1-1/2 2- 7/8 2-11/32 3/32 .21
829-020 2 3- 1/8 2-27/32 3/32 .31
829-025 2-1/2 3-11/16 3-15/32 1/4 .55
829-030 3 3-31/32 4- 5/32 3/16 .79
829-040 4 4- 3/4 5- 5/16 1/4 1.34
829-050 5 5-15/32 6- 3/8 7/32 2.05
829-050F
*
5 7- 3/8 6- 5/16 1- 3/8 3.05
829-060 6 6- 3/8 7- 9/16 1/4 3.41
829-080 8 8- 1/4 9-23/32 3/8 6.68
829-100 10 10- 9/32 12- 1/16 1/4 11.54
829-100F
*
10 12- 1/2 11-15/16 2 14.40
829-120 12 12- 3/8 14- 7/32 3/8 19.08
829-120F
*
12 14- 1/4 14- 1/8 1- 3/4 21.80
829-140 14 14- 7/16 15- 5/8 3/8 27.04
* Fabricated
829-140F
829-160F
829-180F
829-200F
829-240F
*
*
*
*
*
14 16- 1/4 15- 1/2 2- 1/4 29.69
16 18-5/8 17-11/16 2-5/8 42.40
18 22 19- 7/8 4 67.00
20 25-3/4 22- 1/16 5-3/4 84.73
24 29- 1/4 26- 7/16 5- 1/4 147.22
Approx. Wt.
(Lbs.)
Coupling - Reducer
Socket x Socket
Part Number Size L M M1 N
829-101 3/4X1/2 2- 3/32 1-13/32 1- 5/32 7/32 .06
829-130 1X1/2 2- 3/16 1-23/32 1-13/32 7/32 .11
829-131 1X3/4 2-13/32 1-23/32 1-13/32 1/4 .09
829-166 1-1/4X1/2 2- 9/16 2- 3/32 1- 5/32 7/16 .13
Page 33
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
