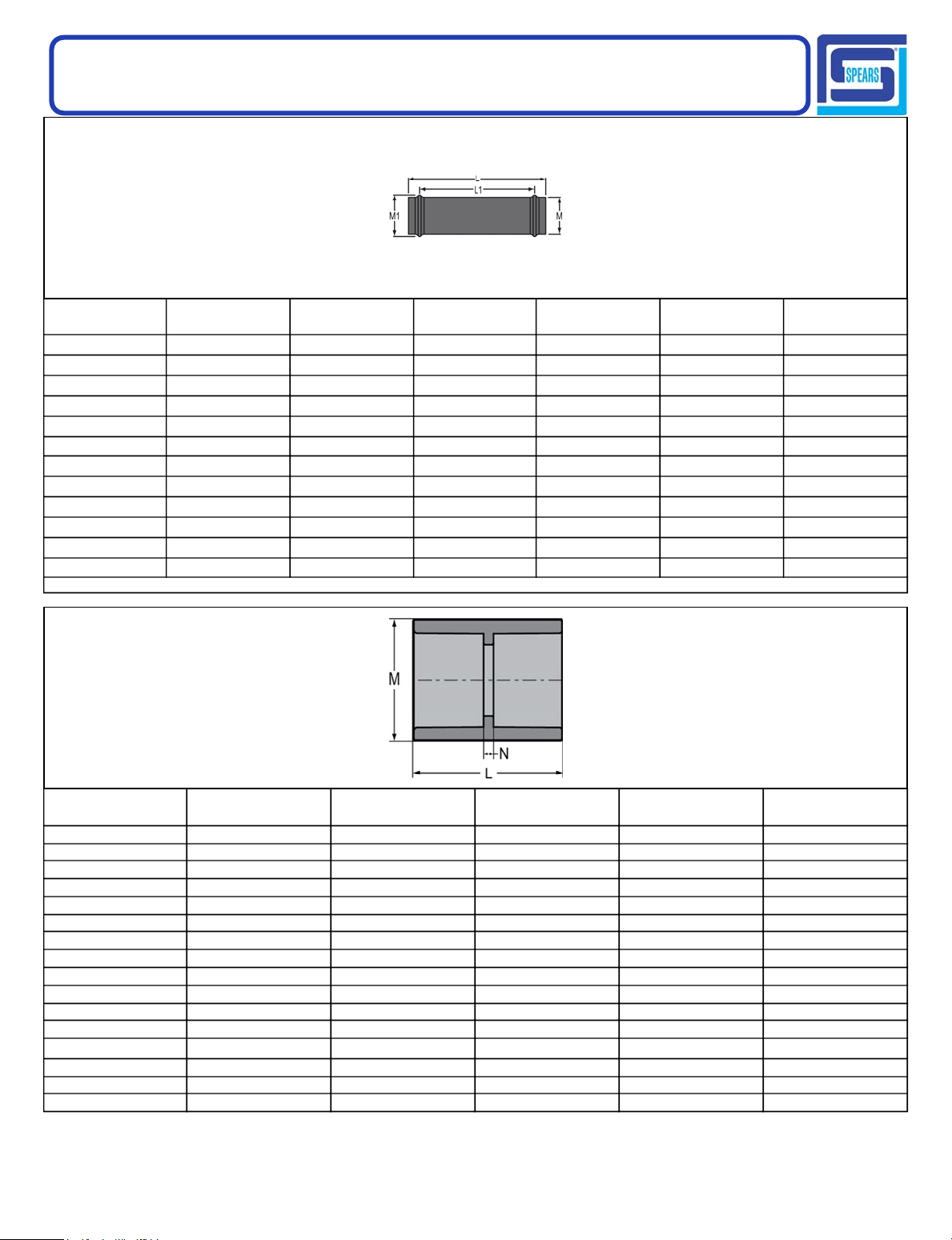

Schedule 80 CPVC Fittings
.
Repair Coupling - Fabricated
Gasket x Gasket
Schedule 80 CPVC Technical
Part Number Size L L1 M M1
828-020CF
828-030CF
828-040CF
828-060CF
828-080CF
828-100CF
828-120CF
828-140CF
828-160CF
828-180CF
828-200CF
828-240CF
* Fabricated
*
*
*
*
*
*
*
*
*
*
*
*
2 9- 1/8 6 2-13/16 3- 3/16 1.00
3 15- 1/2 11- 3/4 4- 1/8 4- 5/8 3.38
4 19- 1/2 15 5- 3/16 5- 3/4 6.53
6 23 18-1/4 7- 1/2 8- 1/8 13.41
8 26-1/8 19 9- 5/8 10- 3/8 23.42
10 28 21-1/4 11-15/16 13-1/8 37.92
12 29 21-3/8 14- 1/8 15-3/8 53.28
14 30 21 15- 1/2 17-1/4 68.61
16 31 22-1/4 17-11/16 18-7/8 71.10
18 32 22-5/8 19-7/8 21-7/8 127.70
20 32 23-1/2 22-1/16 24-1/16 160.38
24 32 23-1/2 22-7/16 24-13/16 236.00
Coupling
Socket x Socket
Approx. Wt.
(Lbs.)
Part Number Size L M N
829-002C 1/4 1- 3/8 27/32 1/16 .02
829-003C 3/8 1-5/8 1 3/32 .03
829-005C 1/2 1- 7/8 1- 3/16 1/8 .07
829-007C 3/4 2- 1/8 1-13/32 1/8 .10
829-010C 1 2-15/32 1-23/32 3/16 .12
829-012C 1-1/4 2-11/16 2-3/16 5/32 .17
829-015C 1-1/2 2- 7/8 2-11/32 3/32 .22
829-020C 2 3- 1/8 2-27/32 3/32 .32
829-025C 2-1/2 3-11/16 3-15/32 1/4 .58
829-030C 3 3-31/32 4- 5/32 3/16 .81
829-040C 4 4- 3/4 5- 5/16 1/4 1.36
829-050C 5 5-15/32 6- 3/8 7/32 2.18
829-050CF
*
5 8 6-5/16 2 3.41
829-060C 6 6- 3/8 7- 9/16 1/4 3.87
829-080C 8 8- 1/4 9-23/32 3/8 6.77
829-100C 10 10- 9/32 12- 1/16 1/4 12.31
Made in the U.S.A
Suitable for Oil-Free air handling to 25 psi, not for distribution of compressed air or gas
